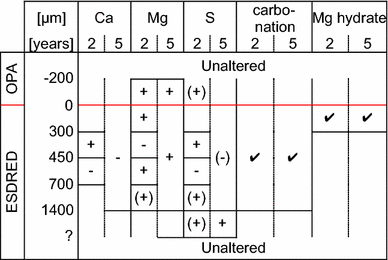

Table 3 Characteristics of the zonation at the ESDRD-Opalinus Clay interface after 2.2 (2) and 4.9 (5) years

From: 5-year chemico-physical evolution of concrete–claystone interfaces, Mont Terri rock laboratory (Switzerland)

  1. Empty cells: same characteristics as unaltered material
  2. +, −, ✔ represent “enriched”, “depleted”, and “present”, relative to the unaltered Opalinus Clay or cement far from interface. (+): Small enrichment
