Subduction-related mafic to felsic magmatism in the Malayer–Boroujerd plutonic complex, western Iran

Abstract

The Malayer–Boroujerd plutonic complex (MBPC) in western Iran, consists of a portion of a magmatic arc built by the northeast verging subduction of the Neo-Tethys plate beneath the Central Iranian Microcontinent (CIMC). Middle Jurassic-aged felsic magmatic activity in MBPC is manifested by I-type and S-type granites. The mafic rocks include gabbroic intrusions and dykes and intermediate rocks are dioritic dykes and minor intrusions, as well as mafic microgranular enclaves (MMEs). MBPC Jurassic-aged rocks exhibit arc-like geochemical signatures, as they are LILE- and LREE-enriched and HFSE- and HREE-depleted and display negative Nb–Ta anomalies. The gabbro dykes and intrusions originated from metasomatically enriched garnet-spinel lherzolite [Degree of melting (f_mel) ~ 15%] and exhibit negative Nd and positive to slightly negative ε_Hf(T) (+ 3.0 to − 1.6). The data reveal that evolution of Middle Jurassic magmatism occurred in two stages: (1) deep mantle-crust interplay zone and (2) the shallow level upper crustal magma chamber. The geochemical and isotopic data, as well as trace element modeling, indicate the parent magma for the MBPC S-type granites are products of upper crustal greywacke (f_mel: 0.2), while I-type granites formed by partial melting of amphibolitic lower crust (f_mel: 0.25) and mixing with upper crustal greywacke melt in a shallow level magma chamber [Degree of mixing (f_mix): 0.3]. Mixing between andesitic melt leaving behind a refractory dense cumulates during partial crystallization of mantle-derived magma and lower crustal partial melt most likely produced MMEs (f_mix: 0.2). However, enriched and moderately variable ε_Nd(T) (− 3.21 to − 4.33) and high (⁸⁷Sr/⁸⁶Sr)_i (0.7085–0.7092) in dioritic intrusions indicate that these magmas are likely experienced assimilation of upper crustal materials. The interpretations of magmatic activity in the MBPC is consistent with the role considered for mantle-derived magma as heat and mass supplier for initiation and evolution of magmatism in continental arc setting, elsewhere.

1 Introduction

Studies of the magmatic rocks formed above continental subduction zones have established that the subduction process is an, if not the, most important principal process for the petrological-geochemical evolution of the continental crust (Anderson 2007; Grove et al. 2002; Kelemen et al. 2003; Kessel et al. 2005; O’Neill and Jenner 2012; Stracke 2012). Annen et al. (2006) further demonstrated that the chemical diversity of arc magmas is intimately tied to the processes that occur within the deep crust, while textural diversity is more commonly attributed to shallow-level crystallization processes. In this regard, the common association of mafic, intermediate and felsic rocks is likely to provide geochemical and isotopic constraints on mantle and on both deep and shallow crustal petrogenetic processes (Liankun and Kuirong 1991; Dai et al. 2011; Zhao et al. 2015). The Malayer–Boroujerd Plutonic Complex (MBPC) is an example of a plutonic suite formed above a continental subduction zone, with contemporaneous occurrence of mafic, intermediate, and felsic rocks. This complex is located in the Mesozoic–Cenozoic Sanandaj–Sirjan Zone (SaSZ), one of the two magmatic zones trending parallel to one another in the Zagros Orogen (Fig. 1a, b). The SaSZ represents the internal magmatic/metamorphic part of the Zagros orogenic belt. The other magmatic zone is Cenozoic Urumieh–Dokhtar Magmatic Arc (UDMA). These zones formed by prolonged NE-dipping subduction of Neo-Tethyan oceanic crust beneath the Central Iranian Micro-Continent (CIMC) (Fig. 1a). The Zagros Main Thrust (ZMT) marks the suture zone between the Arabian plate and the Central Iran Micro-Continent (CIMC) marking the closure of the Neo-Tethys Ocean (e.g. Stöcklin 1968; Agard et al. 2005; Paul et al. 2006, 2010). The SaSZ extends for almost 1500 km, parallel to the ZMT (Fig. 1b) joining the Taurides–Anatolides orogenic belt in Turkey in the northwest and Esfandaqeh in the southeast in Iran. During Middle Jurassic to Cretaceous time, the SaSZ represented an Andean-type margin with abundant calc-alkaline plutonic and minor preserved volcanic activities (e.g. Stöcklin 1968; Berberian and King 1981; Ghasemi and Talbot 2006; Azizi and Jahangiri 2008; Mohajjel and Fergusson 2014). In many localities within the SaSZ, intrusive rocks have been emplaced within metasedimentary units. Regional low pressure metamorphism preceded contact metamorphism associated with abundant Middle-Late Jurassic intrusions, the latter marked by widespread schists and hornfels with andalusite, sillimanite, cordierite, and garnet porphyroblasts and some exposures of marble or skarns throughout the SaSZ.

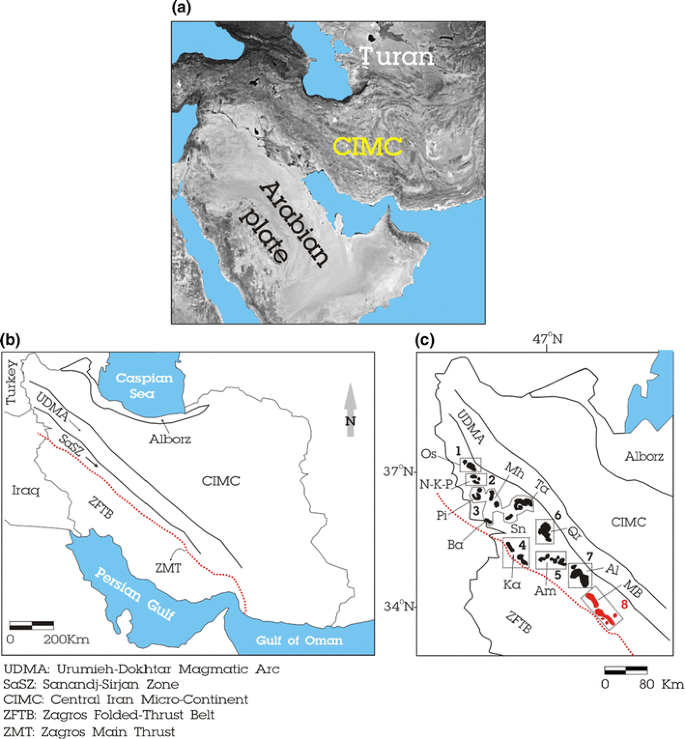

Fig. 1

a Landsat composite image showing the position of the CIMC between the Arabian and Turan plates (image is from Google Earth). b Map of Iran illustrating the location of SaSZ within the Zagros Orogeny, W Iran (adapted from Deevsalar et al. 2014). The Zagros Folded-Thrust Belt (ZFTB), Sanandaj–Sirjan Zone (SaSZ), and the Urumieh–Dokhtar Magmatic Arc (UDMA) are three major subdivision of Zagros Orogen. c Simplified map of NW Iran showing the distribution of magmatic complexes in the northern SaSZ. 1-Oshnavieh and Urumieh (Os), 2-Naghade-Khalfe-Pasveh (N-K-P); 3-Piranshahr (Pi), Saqqez, Takab (Ta), Miandoab, Mahabad (Mh), Sanandaj (Sn) and Baneh (Ba); 4-Qorveh (Qr); 5-Kamyaran (Ka); 6-Almogholagh (Al); 7-Alvand (Al); 8-Malayer–Boroujerd (MB)

Within the northern SaSZ (N-SaSZ), the magmatic rocks are mainly plutonic and only minor volumes of volcanic rocks are reported, with the exception of the Cretaceous volcanic activities present from Sanandaj to Saqqez (Fig. 1c), in the NW-SaSZ (Azizi and Jahangiri 2008; Moinevaziri et al. 2014). This magmatism formed in two episodes during the Mesozoic: the first began in the Middle to Late Jurassic (Ahmadi-Khalaji et al. 2007; Ahadnejad et al. 2010; Vousoughi Abedini 2010; Shahbazi et al. 2010; Mahmoudi et al. 2011) and the second episode during the Middle to Late Cretaceous (Azizi and Jahangiri 2008; Azizi and Asahara 2013; Azizi et al. 2014, 2015); only one magmatic episode occurred during the Cenozoic (Late Eocene) (Mazhari et al. 2011; Mahmoudi et al. 2011; Sepahi et al. 2014; Deevsalar et al. 2017).

A large number of geochronological and geochemical studies on the SaSZ magmatic rocks testify to their derivation from Neo-Tethyan plate subduction beneath the Central Iranian Micro-Continent (CIMC) during the Mesozoic, a magmatic episode that ultimately ended with the collision between the CIMC and the Afro-Arabian plate in Cenozoic times (e.g. Ahmadi-Khalaji et al. 2007; Hassanzadeh et al. 2008; Omrani 2008; Ghalamghash et al. 2009a, b; Shahbazi et al. 2010; Ahadnejad et al. 2010; Mahmoudi et al. 2011; Esna-Ashari et al. 2012; Azizi and Asahara 2013; Chiu et al. 2013). Most of the geochemical studies in the SaSZ have focused on voluminous felsic (granitic) plutons. Comparatively few studies have been conducted on the much less abundant intermediate-mafic (diorite-gabbro) rocks (e.g. Ahmadi-Khalaji et al. 2007; Ghaffari et al. 2013; Ghalamghash et al. 2003; Mazhari et al. 2011; Sepahi 2008; Kheirkhah et al. 2013; Deevsalar et al. 2014, 2017). Yet, mafic intrusions (gabbroic dykes, mafic mega-enclaves, mafic microgranular enclaves and mafic patches) provide opportunities to explore the original traits of the mantle source region by being compositionally closer to the source than differentiated felsic rocks.

The objective of this study is to consider the whole spectrum of compositions in the MBPC from the northern Sanandaj–Sirjan Zone (N-SaSZ). In some localities, the MBPC felsic magma chambers have been intruded by mafic magmas now preserved as dykes, microgranular enclaves and isolated patches and small stocks. These different facies have been sampled and studied, in addition to the main felsic phases. In addition to field relationships and petrographical observations, the studied rocks have been newly analyzed for major and trace elements and Sr–Nd–Hf isotopes, with data added from both published and unpublished papers. This body of data allows us to place fundamental constraints on the relationship between felsic and mafic magmatism and potential geodynamic triggers of magmatic activities in the MBPC.

2 Rock types and field relations in the MBPC

The MBPC contains both magmatic rocks and metamorphic country rocks (Fig. 2). Magma emplacement generated contact metamorphic aureoles containing andalusite or garnet, with hornfelsic textures closest to the igneous bodies. The metamorphic units, known as the Jurassic Hamadan Series, include low- to high-grade metasedimentary rocks overprinted by contact metamorphism, consisting of slate, phyllite, and spotted schist (Berthier 1974, Masoudi 1997). The intrusive rocks are plutons, stocks, and irregular-shaped ‘patches’ that together with metamorphic country rocks form a band of NW–SE trending outcrops over an elongated area that is 10 km wide and 100 km long (Fig. 2). The MBPC felsic magmatic facies comprise granodiorite, monzogranite, syenogranite, quartz diorite, monzonite, quartz monzonite, as well as aplitic, pegmatitic and silicic dykes or veins, and felsic microgranular enclaves (Ahmadi-Khalaji et al. 2007; Ahadnejad et al. 2010, 2011; Yeganehfar and Deevsalar 2016). The intermediate rocks are dioritic intrusions and dykes as well as mafic microgranular enclaves (MME). The MBPC mafic suite is also composed of gabbroic intrusions and gabbroic dykes. In the case of the MBPC mafic suites, no relationship has been observed at outcrop scale between the mafic dykes and the mafic bodies. The gabbroic intrusions have not been observed in direct contact with granitoids and they are not cross-cut by gabbro-dioritic dykes. According to published age data, the MBPC granitoids belong to the Middle Jurassic (zircon U–Pb ages of NW-MBPC 162–187 Ma; Ahadnejad et al. 2010; SE-MBPC: 169–172 Ma; Ahmadi-Khalaji et al. 2007). These Middle Jurassic ages are consistent with zircon U–Pb ages for subduction-related mafic and felsic magmatism throughout the SaSZ (Ahmadi-Khalaji et al. 2007; Ahadnejad et al. 2010; Mahmoudi et al. 2011; Esna-Ashari et al. 2012; Chiu et al. 2013; Sepahi et al. 2014).

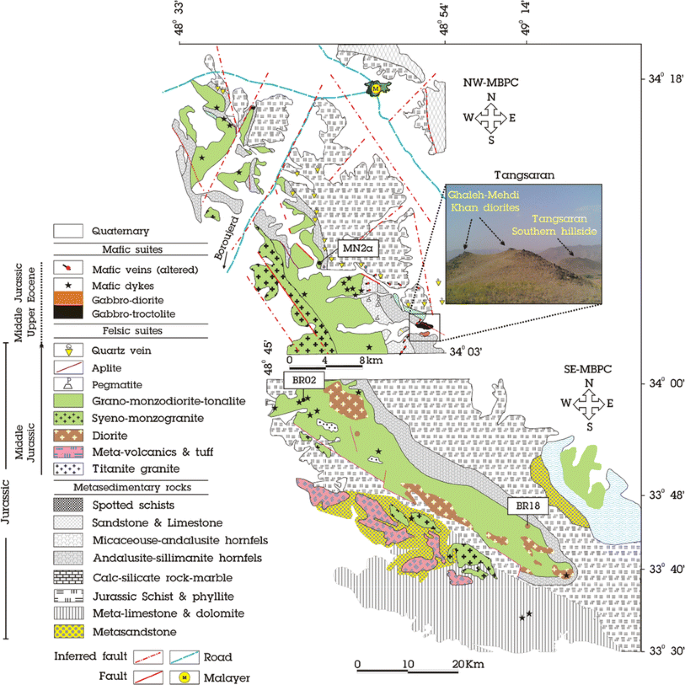

Fig. 2

Simplified geological map of the northwestern (NE-MBPC) and southeastern parts (SE-MBPC) of the Malayer–Boroujerd Plutonic complex. The inset shows the outcrop of the gabbroic rocks (Tangsaran) and gabbroic-dioritic dykes (Ghale-Mehdi Khan)

2.1 Felsic rocks

2.1.1 Granitoids

Similar to other localities in the N-SaSZ, the MBPC granitoids are emplaced within the metamorphic rocks described above. They display generally sharp, sometimes ductile contacts with adjacent metamorphic bodies. In some locations, the presence of refractory metamorphic minerals (e.g. garnet and andalusite) inside the immediate contact with granitic bodies reflects partial melting and assimilation of metamorphic country rocks. Granodiorite is the dominant and most widespread rock-type in both NW- and SE-MBPC area. It is frequently associated with quartz-diorite (especially in SE-MBPC) and tonalite at outcrop scale. This magmatic association displays fine- to coarse-grained granular textures comprising plagioclase (30–55%), biotite (5–30%), quartz (20–35%), and alkali feldspar (5–45%) as major phases and apatite (often as needle-like crystals in alkali feldspar), zircon, rutile, allanite, and Fe–Ti-oxides as common accessory minerals. Biotite gives a weak to sharply foliated texture to mylonitic facies. Granodiorite usually presents microgranular centimeter- to meter-size enclaves, as well as sedimentary xenoliths (metapelitic and micaceous enclaves). Refractory minerals such as andalusite and garnet locally occur in granodiorite close to the contacts with spotted schists and hornfelses. Tonalite is rare; occurring as mesocratic fine- to medium-grained rocks containing higher proportions of modal hornblende than of biotite. More evolved granitic rocks including syenogranite and rare alkali-granite are mainly found in the NW-MBPC. These are leucocratic, medium-grained rocks, normally with less than 5% biotite and contain restitic and metapelitic enclaves (Fig. 3a).

Fig. 3

a Weak foliation in mylonitic granite cross cut by sedimentary xenolith elongated along the magmatic flow. b Small rounded FME in granodioritic host. c, d Globular and ellipsoid-like MMEs in granodioritic host. e, f Linear arrangement of flaky biotite across the boundary between enclaves and host rock, indicating ductile deformation in semi-molten state

The MBPC granitoids, especially granodiorite and monzogranite, are crosscut by numerous silicic, aplitic and pegmatitic dykes and veins, marking the end of the magmatic activity. Aplites are characterized by a fine equigranular assemblage of quartz, alkali-feldspar, some muscovite, tourmaline, and opaque oxides. Pegmatites are mainly present in granodioritic rocks and their aureoles. They show a simple mineralogy with graphic texture, with quartz, feldspar, muscovite, tourmaline, zircon, and apatite, with some andalusite and garnet in the samples crosscutting the aureoles.

2.1.2 Felsic microgranular enclaves (FME)

These enclaves are typical of plutons emplaced high in the upper crust where the temperature contrast between injected magmas and the host country rocks leads to formation of microgranitoid textures (Barbarin and Didier 1992). The MBPC felsic microgranular enclaves (FME) are dispersed in the pluton as small irregular-shaped fragments (5–50 cm in length, Fig. 3b) but generally increase toward the margins of the plutons. These cognate enclaves have similar mineral assemblages to their enclosing rocks, but display smaller grain size. The cogenetic nature of the FMEs is supported by close mineralogical and chemical composition to their host rocks (Deevsalar and Valizadeh 2010, Deevsalar et al. 2011).

2.1.3 Xenoliths

Xenoliths are pelitic in composition and are concentrated near contacts with metasedimentary units. They are closely associated with restitic or micaceous enclaves. In foliated host rocks (MBPC mylonitic rocks), they are elongated along the same direction of foliation, which is mainly given by biotite (Fig. 3a).

3 Intermediate rocks

3.1 Diorite intrusive rocks

The rare intermediate rocks in MBPC are composed of quartz diorite and diorite. They mostly occur in the SE-MBPC as separate dioritic and quartz dioritic patches and small stocks (Ahmadi-Khalaji et al. 2007) or dioritic dykes. The diorites have a subhedral granular texture and contain plagioclase and amphibole, with minor clinopyroxene and biotite. The hornblende/biotite ratio increases from quartz diorites to diorites. Titanite and apatite are accessory phases and secondary minerals are epidote, sericite, and chlorite. Quartz diorite has subhedral granular and intergranular textures and contains plagioclase, amphibole, quartz, and biotite with minor amounts of opaque minerals and orthoclase. The abundant small patches of quartz-diorite within the MBPC granodioritic plutons, especially in SE-MBPC, display sharp contacts with the enclosing host (Ahmadi-Khalaji et al. 2007).

3.2 Diorite dykes

The dioritic dykes are recognizable in the field by their grey colour, and their porphyritic texture. They are predominantly found in granodiorite and monzogranite. They are composed of 15–30 vol% plagioclase phenocrysts (2–4 mm) and amphibole (2 mm) in a 70–85% groundmass of plagioclase, amphibole, and 5% accessory minerals (including apatite, zircon, and Fe–Ti-oxides). Some samples undergone variable degrees of alteration, such as chloritization of mafic minerals and sericitization of plagioclase.

3.3 Mafic microgranular enclaves (MME)

The MMEs are most abundant in the NW-MBPC. They are found scattered throughout hornblende-biotite-bearing granitoids (granodiorite and monzogranite), but are absent in muscovite-bearing syenogranite and in the intrusions that contain large amounts of metasedimentary restite. In contrast to the irregular-shaped FMEs concentrated along the contacts of the granitic bodies (representing different pulses of magmas of felsic composition), the MMEs (Fig. 3c, d) occur in the internal parts of the granitoid plutons. At outcrop scales, MMEs are darker than the FMEs, have a finer grain-size and higher modal mafic minerals than the host granitoids. The MMEs range from a few cm to tens of cm in diameter and are roughly ellipsoid (slightly flattened) in shape. In their vicinity, plagioclase in host granitoids display linear arrangement (Fig. 3f). Mafic microgranular enclaves are classified as hornblende diorite, pyroxene diorite, and quartz diorite. They have poikilitic, equigranular, fine-grained and occasionally porphyritic textures with plagioclase phenocrysts (Fig. 3e). The MMEs contain higher proportions of ferromagnesian phases (mm-sized hornblende and pyroxene) and plagioclase and lower percentages of acidic phases (quartz and K-feldspar) than those of the host rocks. The wide range of intermediate to mafic compositions is reflected in the abundances of plagioclase (35–60 vol%), K-feldspar (0–5%), quartz (0–7%), hornblende (10–30%), biotite (0–10%) and clinopyroxene (0–5%). Biotite contains euhedral crystals of zircon and acicular apatite with rutile as inclusions. As shown in Fig. 3e, f, flaky biotite and tabular plagioclase lie parallel to boundary surface of enclave and host. The chemical differences between MMEs and host granitoids result from the relatively higher ratio of hornblende/biotite in the former.

4 Mafic rocks

Plutonic rocks of mafic composition are exposed in outcrops of various sizes between the main felsic bodies or at their margins, forming gabbroic stocks, patches (i.e. irregularly shaped intrusions), dykes (and rarely as mafic veins). Field evidence and rock type mapping indicate that intrusions of mafic composition increase in volume from the internal part of the MBPC toward its eastern margin.

4.1 Gabbro dykes

The gabbroic dykes are recognizable in the field by their grey to black colour and their fine-grained texture and mm-size phenocrysts (Fig. 4a, b). They are hornblende-bearing pyroxene gabbro (Streckeisen and Le Maitre 1979), with a fine-grained to porphyritic texture (mm-size phenocrysts) and pale-green to gray colour. They are predominantly found in host granodioritic and monzogranitic bodies and, rarely, intruding metamorphic rock. Mafic gabbroic dykes with fine-grained to porphyric granular texture are composed of 0–25 vol% medium- to coarse-grained plagioclase phenocrysts (2–4 mm) and medium-grained clinopyroxene and amphibole (2 mm) in a 60–80% groundmass of plagioclase, clinopyroxene, amphibole, opaques, chlorite, and sericite. In some samples, the presence of a chlorite, actinote, and epidote paragenesis indicate local greenschist facies metamorphism. In order to avoid the problem of element mobility affecting petrogenetic interpretation, the most altered samples have been excluded from the geochemical study.

Fig. 4

a, b Two outcrops of the MBPC mafic dykes are shown. c Olivine gabbro. d Olivine-clinopyroxene gabbros. e Olivine-free hornbelende gabbro with poikilitic hornblende and f hornblende-bearing olivine gabbro

4.2 Gabbro intrusions

Within the MBPC, many mafic plutonic rocks have gabbroic mineralogy and compositions, but are found to not be mappable at the scale of Fig. 2. The recognized, 2 km² large exposure occurs at Tangsaran Hill (inset map in Fig. 2). Gabbro intrusions are found as discrete bodies either hosted within or closely spatially associated with the metamorphic units. The mafic intrusions comprise olivine gabbro and hornblende gabbro. In contrast to the olivine gabbro which is marked by reactional, symplectitic intergrowths and coronas, the hornblende gabbro displays textural equilibrium. Both facies comprise samples with cumulate texture.

The massive dolerite to olivine gabbros are fine- to medium-grained (0.1–2 mm; Hibbard 1995) rocks, composed of olivine (35–40 vol%), plagioclase (25–40 vol%), hornblende (5–20 vol%) and clinopyroxene (5–10 vol%), orthopyroxene (0–5 vol%) ± spinel, pyrite, apatite, ilmenite (< 1 vol%) (Fig. 4c, d, f). Highly cracked olivine displays corrosion embayments. It encloses magnetite and pyrite grains of small size (~ 0.01 mm) that have rounded shape and are located mainly along cracks, and some small rounded spinel grains. Olivine is sometimes rimmed by a very fine symplectite of amphibole and plagioclase.

The coarse-grained olivine-free gabbro contains poikilitic amphibole and plagioclase and less abundant clinopyroxene (Fig. 4e). Small subhedral clinopyroxene contains needles of magnetite and plagioclase. Magnetite (< 1%) is the most common oxide, but rare ilmenite is present. The hornblende gabbro is dark in colour, with a fine- to medium-grained (0.2–3 mm) tabular equigranular texture to slightly porphyritic, and consists of hornblende and anorthitic plagioclase as the main phases with additional minor amounts of Fe–Ti oxides, zircon, and apatite with or without clinopyroxene. Hornblende is present as anhedral crystals (up to 2 mm), which contain inclusions of plagioclase and ilmenite. Subhedral to euhedral plagioclase (1–3 mm) does not display chemical zonation.

5 Review of whole-rock major and trace element geochemistry

The whole-rock geochemical data presented in this section results from a compilation of 85 samples from three PhD thesis including first author’s MSc and PhD theses developed along the last 10 years in the study area (Ahmadi-Khalaji et al. 2007; Ahadnejad et al. 2008; Deevsalar and Valizadeh 2010; Deevsalar 2015; Supplementary Item 1; Table S1). The petrographic observations and coherent behavior of mobile elements (e.g. K and Rb) throughout the range of compositions indicating only minor alteration or sub-solidus processes, enable us to conclude that element mobility was not important in this study. The MBPC magmatic rocks including felsic granitoids, intermediate dykes and enclaves and a mafic suite comprising non-cumulate gabbroic intrusions and gabbroic dykes are plotted in AFM diagram (Fig. 5a) and FeO_tot/MgO vs SiO₂ (Fig. 5c) indicating calc-alkaline to transitional tholeiitic character. On TAS diagram (Irvine and Baragar 1971; Fig. 5b), they display a sub-alkaline character (except one altered dyke sample with high Na₂O + K₂O), spanning an overall range from gabbro to granite. The MBPC gabbroic and dioritic dykes and MMEs are tholeiitic, whereas gabbroic and dioritic intrusive rocks show calc-alkaline affinity (Fig. 5c).

Fig. 5

Middle Jurassic rocks from the MBPC plotted on a AFM plot, b TAS diagram of Le Bas et al. (1986), c FeO_tot/MgO vs. SiO₂ (calc-alkaline-tholeiitic discrimination line is from Miyashiro 1974). Blue symbols are peraluminous granites (Crn-normative) and black symbols are metaluminous granites (Di-normative)

With respect to A/CNK values [Al₂O₃/(CaO + Na₂O + K₂O)] or alumina saturation index (ASI), the MBPC granitic rocks comprise diopside-normative, metaluminous I-type and corundum-normative, peraluminous S-type, as well as uncommon peraluminous I-type granites (Chappell and White 1974; Chappell et al. 2012). The quartz-dioritic samples and most of the granodioritic, tonalitic and monzogranitic rocks exhibit an I-type affinity (ASI < 1.1; Chappell 1999). Those samples containing metapelitic xenoliths have high ASI-index values and are peraluminous, S-type granites (Chappell and White 1974; Acosta-Vigil et al. 2003). In between, the syenogranites and some granodiorites and monzogranites show S-type affinity. As shown in plot of ASI-values vs. SiO₂, the MBPC granitoids could categorize within six groups. First four groups belongs to I-type granites (diopside-normative) and two later are S-type (corundum-normative) in composition. The areas are numbered and include: (1) evolved, and (2) less evolved I-type metaluminous granites, (3) evolved, and (4) less evolved I-type peraluminous granites, (5) evolved, and (6) less evolved S-type peraluminous granites (Fig. 6).

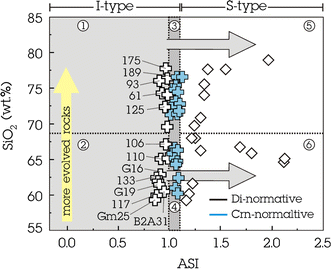

Fig. 6

Plot of SiO₂ vs. ASI-values for the MBPC granitoids

For a range of mafic to felsic rocks, SiO₂ (43.34–78.77 wt%) was chosen as the differentiation index because it displays the best correlations with other major oxides. Diagrams of major elements versus SiO₂ (Harker plots) appear in Fig. 7. In comparison with some important magmatic complexes of the SaSZ, including Alvand, Aligudarz, Astaneh and Siah-Kuh (Fig. 7; sources in caption), the MBPC mafic to felsic rocks cover the total range of major element variations. They conform to trends observed for similar bodies elsewhere in the SaSZ and comprise continuous trends from gabbro intrusions/dykes through MMEs and dioritic intrusions/dykes to granitic rocks. Despite the continuous trends, major oxide variations in a small range of SiO₂ concentrations for the gabbroic intrusions and dykes are not consistent with those dioritic and felsic rocks. In the plots of wt% TiO₂ and Al₂O₃ vs. wt% SiO₂, MBPC rocks broadly show a bell-shaped pattern with decreasing TiO₂ and Al₂O₃ from 60 wt% SiO₂, i.e. for the granitoids. This indicates a change in the cumulative minerals with greater amount of Ti–rich (such as oxides, apatite, titanite) and Al-rich (feldspar) minerals. Gabbros and gabbroic enclaves could correspond to such cumulates, but the amount of plagioclase is too low, suggesting the presence of anorthosite at depth. MnO, CaO, MgO, and FeO_tot concentrations significantly decrease with increasing SiO₂ (Fig. 6) in both granitoids and dioritic rocks (i.e. dykes, intrusions and MMEs). In the Na₂O and K₂O vs. SiO₂ diagram (Fig. 6), the studied rocks define roughly a bell-shaped diagram with a decreasing of K₂O at c. 68% SiO₂, indicating the beginning of the crystallization of important amounts of K-feldspar. Na₂O shows globally an increase with SiO₂, but a quite large number of samples show low amounts of Na₂O (especially S-type granitoids) and a few high amounts of Na₂O (two I-type granitoids), suggesting some late-magmatic mobility of this element marked by saussuritization of the plagioclase in these rocks.

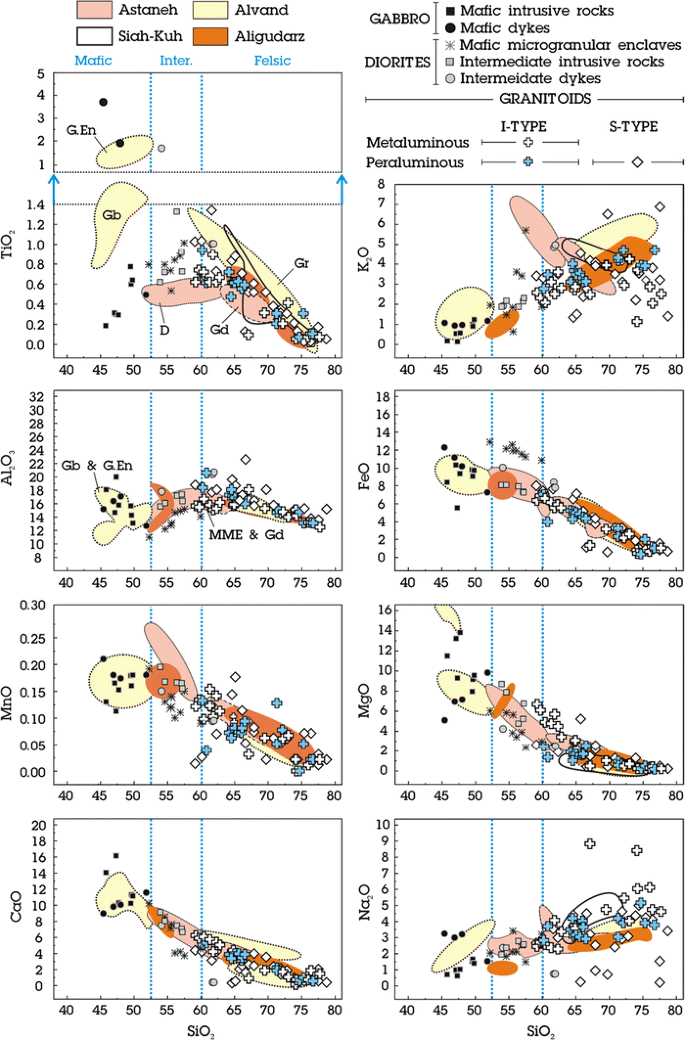

Fig. 7

Major element variations with increasing SiO₂ values for MBPC gabbroic to granitic rocks. The data for granitic rocks are taken from Ahadnejad et al. (2010), Ahmadi-Khalaji et al. (2007), and data for MMEs and mafic rocks are from first author’s MSc and PhD thesis and, Deevsalar et al. (2014). Alvand batholith (Ghalamghash et al. 2009b; Shahbazi et al. 2010); Aligudarz (Esna-Ashari et al. 2012); Astaneh (Tahmasbi et al. 2010); Siah-Kuh (Arvin et al. 2007). G.En gabbroic enclaves; Gb gabbro; D diorites; Gd granodiorites; Gr granitoids (granodiorite to syenogranites); MME microgranular enclaves

Gabbroic dykes and gabbroic intrusions exhibit different compositions and trends. In the plot of SiO₂ vs TiO₂, gabbroic dykes display high concentrations decreasing with silica, suggesting a cumulative character, while gabbroic intrusions display lower and increasing TiO₂ with increasing silica, suggesting a magmatic liquid character. MnO, CaO, Na₂O, K₂O, and FeO_tot contents show similar concentrations and evolutions both gabbroic types, increasing with SiO₂. Gabbroic dykes and intrusions show quite wide variations of MgO and Al₂O₃ for a narrow range of SiO₂. This suggests some cumulative character (olivine or Mg-enriched pyroxene and plagioclase respectively).

If compatible trace elements (Cr, Ni, and Co; Supplementary Item 3; Fig. S1a–c) can be much higher in most of the gabbroic intrusions and dykes than in the more fractionated dioritic and granitic rocks, S-types granitoids can be quite enriched, e.g. in Cr (Supplementary Item 3; Fig. S1a–c) and mafic rocks not more enriched, such as the gabbro and diorite dykes and some gabbro intrusion. This suggests that the studied rocks are already evolved, even the mafic ones; the large enrichment of the gabbros can again be attributed to a cumulative component in these rocks, probably of oxides, as already suggested by TiO₂. Incompatible elements show different behaviors. Zirconium is increasing with SiO₂ in mafic rocks (Supplementary Item 3; Fig. S1d), except in some dykes where Zr is enriched (3–5 times at equivalent silica) and is highly variable in granitoids (70–350 ppm), with no correlation with the silica content. Rubidium and Barium show a bell-shaped pattern for most of the samples (Supplementary Item 3; Fig. S1e, f), with negative slope beginning at c. 68% SiO₂, i.e. at the same value than K₂O. The decreasing of Rb and Ba can thus be attributed to the beginning of K-feldspar accumulation. Some samples enriched in Rb and Ba can be considered as bearing cumulative K-feldspar crystals, while the few being strongly depleted were probably affected by late magmatic processes; these samples being also very depleted in Na₂O (S-type granitoids 56, 116 and 187, 0.25 wt%, 0.19, and 0.67 wt% Na₂O, respectively). Overall, the selected samples from the MBPC have broadly arc-like features such as negative Nb–Ta anomalies, P, Ti troughs (Fig. 8a, c, e) and relatively depleted La and Nb to Ba concentration. A lack of Zr and Hf depletion (except for the dioritic intrusions) and significant Sr-depletion on normalized plots are the common features, between these rocks/groups (Fig. 8a, c, e). These rocks are also dominated by relatively enriched LREE patters and depleted HREEs (Fig. 8b, d, f). The gabbroic intrusions have the lowest total REE-concentration (∑REE 23.8–157.8 ppm) and evolved granites possess the highest values (∑REE 70–324 ppm), even if some overlap exists. Among the MBPC magmatic rocks, the gabbroic intrusive rocks have highly variable Eu/Eu* ratios (0.49–1.77), and negative to positive Eu-anomalies, both parameters being in agreement with the variable plagioclase cumulative component noted above. Two gabbro intrusions (M₀₇ and M₁₄) have positive Eu anomaly, high Sr (up to 513 ppm) and Al₂O₃ concentrations (up to 19 wt%) indicating plagioclase accumulation. Remaining samples including gabbroic and dioritic dykes, as well as granitoids, mainly display negative (Eu/Eu* < 1) Eu-anomalies conforming to their non-cumulative character.

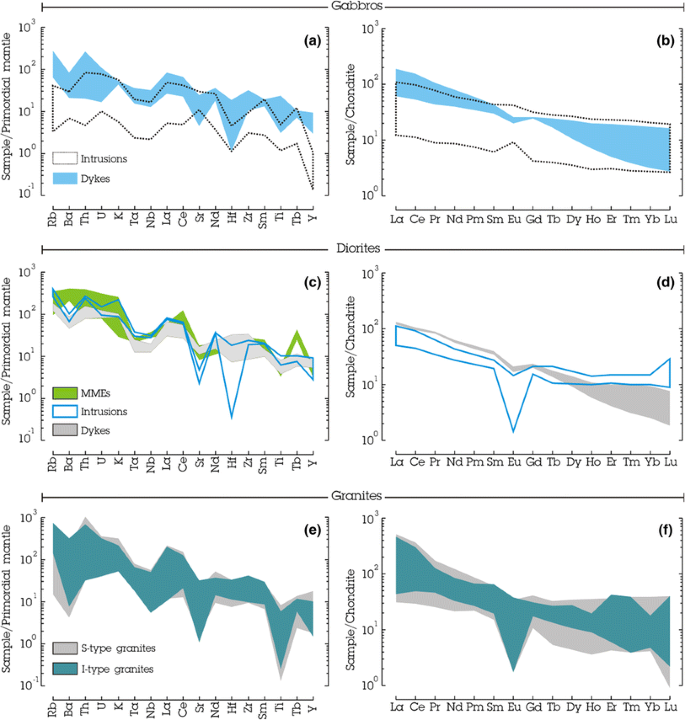

Fig. 8

Primitive mantle-normalized trace element pattern (a) and chondrite-normalized rare earth element (REE) pattern (b) of mafic rocks: gabbroic intrusions and dykes, of intermediate rocks: MMEs, dioritic intrusions and dykes (c, d), of granitic rocks (e, f). Trace element abundances for primitive mantle are from Taylor and McLennan (1985). REE abundances for Chondrite are from Sun and McDonough (1989)

6 Isotopic ratios

6.1 Review Sr–Nd isotopic ratios of the MBPC granitoids

The granitic rocks from the MBPC are characterized by enriched Nd–Sr isotope compositions. They show a limited range of ε_Nd(T) = − 2.4 to − 5.3 and initial ⁸⁷Sr/⁸⁶Sr [(⁸⁷Sr/⁸⁶Sr)_i] = 0.7062–0.7110 (Data from Ahadnejad et al. 2010; Ahmadi-Khalaji et al. 2007; areas 12, 13 in Fig. 9a; Supplementary Item 1; Table S2) and plot within or close to the Aligudarz granites (Esna-Ashari et al. 2012; area 9 in Fig. 9a) and the Alvand batholith (area 14 in Fig. 9a; Shahbazi et al. 2010). They have higher ε_Nd(T) than those typical I- and S-type granites from southeastern Australia (Berridale and Kosciusko batholiths, areas 9 and 11 in Fig. 9a, McCulloch and Chappell 1982) and lower than Late Jurassic Ghalaylan granitoids from N-SaSZ (Azizi et al. 2015; area 2 in Fig. 9a).

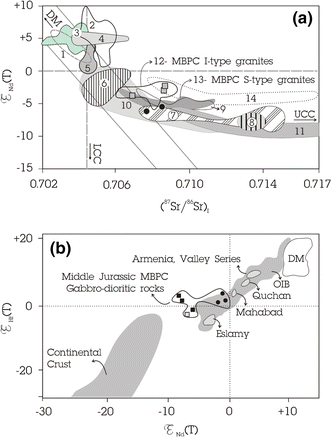

Fig. 9

Radiogenic isotope plots for MBPC mafic and felsic rocks. a ε_Nd(T) vs. (⁸⁷Sr/⁸⁶Sr)_i. The fields show, 1-Hawaii (PREMA)—Hofmann 2005; 2-Eocene Mafic rocks from NW, Iran—Azizi et al. (2011); 3-Eocene Mafic rocks from N-Armenia—Sahakyan et al. (2016); 4-Upper Jurassic–Lower Cretaceous Kapan arc—Mederer et al. (2013); 5-Ghalaylan Complex—Azizi et al. (2015); 6-MBPC Middle Jurassic gabbroic intrusive rocks, 7-MBPC Middle Jurassic gabbro dykes, and 8-MBPC Middle Jurassic dioritic dykes—(Deevsalar et al. 2014, 2017); 9-Aligudarz granites—Esna-Ashari et al. (2012); (10, 11) Berridale and Kosciusko batholiths of southeastern Australia—McCulloch and Chappell (1982); 12-MBPC I-type granites, and 13-MBPC S-type granites—Ahadnejad et al. (2010), Ahmadi-Khalaji et al. (2007); 14-Alvand granite — Shahbazi et al. (2010). b Eslamy samples—Pang et al. (2013); Quchan—Kheirkhah et al. (2015); Mahabad—Neill et al. (2015); Armenia, Valley Series—Neill et al. (2015). The Hf-isotopic composition of the OIB and DM are from Nowell et al. (2004), and continental crust (Vervoort et al. 1999). New data are given in Table 2

6.2 New Sr–Nd–Hf isotopic ratios for mafic rocks

New additional Nd-, Sr- and Hf-isotopic compositions of the MBPC mafic rocks are given in Tables 1 and 2. The analytical methods and procedure are in Supplementary Item 2.

Table 1 New Sr–Nd isotopic composition of the gabbroic rocks from the MBPC

Table 2 Hf-isotope composition of the gabbro-dioritic rocks from the MBPC

6.2.1 Whole-rock Sr–Nd isotope geochemistry

The small number of new isotope ratios for gabbroic intrusions and dykes (Fig. 9a) show a limited range of compositions ((⁸⁷Sr/⁸⁶Sr)_i = 0.7052–0.7085 and ε_Nd(T) = − 0.1 to − 5.6; Fig. 9a; Table 1). These results are consistent with ratios obtained in previous studies (areas 6, 7 in Fig. 9a) indicating enriched Nd–Sr isotope compositions for both intrusions and dykes. The non-cumulate gabbro intrusions have higher ε_Nd(T) than the gabbroic dykes and plot close to the Bulk Earth (similar to areas 6 in Fig. 9a). Tight data clusters in gabbroic intrusions and dykes suggest insignificant crustal contamination and retention of magmatic information despite the inevitable slight alteration or sub-solidus low grade metamorphism. The diorite intrusive rocks display lower (⁸⁷Sr/⁸⁶Sr)_i and higher ε_Nd(T) than those of dioritic dykes (area 8 in Fig. 9a). They have similar Sr–Nd isotopic ratios which lie in the range of I-type igneous rocks. Compared to the mafic samples from across the Turkish-Iranian Plateau, the mafic magmatic rocks (areas 6 and 7 in Fig. 9a) diverge from those fields defined by younger Eocene Mafic rocks from NW Iran (Azizi et al. 2011), Upper Jurassic–Lower Cretaceous mafic rocks from the Kapan arc (Mederer et al. 2013; area 4 in Fig. 8a), and Eocene mafic rocks from N Armenia (Sahakyan et al. 2016; area 3 in Fig. 9a).

6.2.2 Whole-rock Hf-isotope geochemistry

Gabbro intrusions from the MBPC show a limited range of initial ¹⁷⁶Hf/¹⁷⁷Hf ratios (0.28262–0.28275) and ε_Hf(T) values (− 1.49 to + 2.99), similar to the gabbro-dioritic dykes with ¹⁷⁶Hf/¹⁷⁷Hf ratios (0.28262–0.28273) and ε_Hf(T) values (− 1.56 to + 2.34). The MBPC gabbroic intrusions and gabbro-dioritic dykes lie close to the general Hf–Nd mantle array (Fig. 9b). Comparatively few samples across the region have been analysed for Hf isotopes (Fig. 9b); all from small volume (< 5%) Cenozoic partial melts of: the convecting asthenosphere beneath Quchan, E. Iran (Kheirkhah et al. 2015) and subduction-modified lithospheric mantle beneath Mahabad in the UDMA (Neill et al. 2015), the Eslamy peninsula in the far NW of Iran (Pang et al. 2013) and Armenia (Neill et al. 2015). Compared with those samples analysed from Armenia, Quchan and Mahabad, the gabbros and gabbro-dioritic dykes are less radiogenic.

7 Discussion

The coeval occurrence of calc-alkaline mafic magmatism in proximity to intermediate and felsic types in an arc setting leads to the question of the relationship between these facies. It is possible that these samples are genetically related to one another by fractionation, assimilation or mixing processes, as perhaps implied by the geochemical continuity displayed by many of the samples and the evident interaction between mafic and felsic magmas as can be seen in many outcrops. In the following sections we focus on the spatial relationship and then potential genetic linkage between the different observed rock types.

7.1 Spatial and temporal relationship between facies

To specify the spatial relations between major rock types, we applied a graphical model using spatial analysis-kriging method in Arc GIS 9.2, by incorporating major element compositions determined over the past 10 years (Supplementary Item 1; Table S1). As the NW-MBPC contains a wider range of rock types and chemical composition as well as crystallization ages, it has been selected for spatial modeling. However, the gabbro-dioritic dykes have not been used in this model as they only occur within granitic bodies (Fig. 10a). The results show a sequence of geochemical/petrographical variation in NW-MBPC (Fig. 10b, c) from the eastern to the western margin. It seems that the internal part of the MBPC is composed of less evolved granitoids and those gabbro-dioritic rocks and more-evolved granites were emplaced after them at the margins. Such a model of emplacement indicates that there is a possibility the earliest emplaced granitic magmas may have been parental magma for the most highly-evolved granites. An alternative model is that the mafic magmas are still representative of the parental magmas for the most evolved rocks, and so both these possibilities will be tested geochemically.

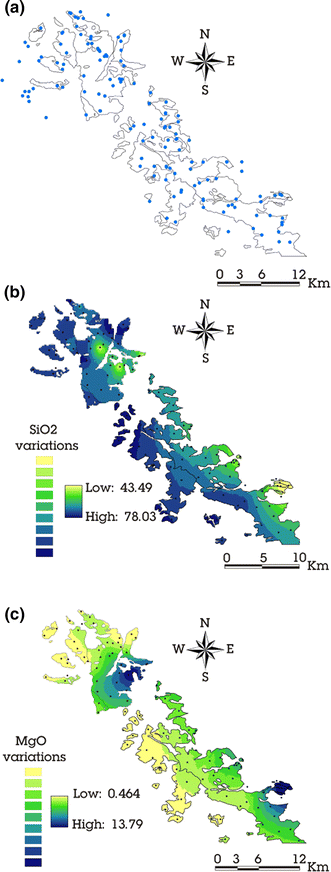

Fig. 10

Geochemical variations and spatial distribution of magmatic rocks from the NW-MBPC. a Sampling location and accessory points marked by small blue filled-circles. Accessory points used in blanked area to achieve a higher accuracy on neighborhood analysis. b, c The statistical modeling of SiO₂ and MgO-variations across the MBPC, based on spatial analysis-kriging method (Arc GIS 9.2 environment) using analyzed samples and extrapolation of neighborhood values

7.2 Petrogenesis of gabbros and gabbro-dioritic dykes

The isotopic characteristics of the MBPC gabbroic intrusions and gabbro-dioritic dykes provide valuable information concerning their origin and evolution history. Compared to felsic and intermediate rocks (i.e. granitoids and diorites; areas 12, 13 and 8 in Fig. 9a), MBPC gabbroic intrusions exhibit higher Nd- and lower Sr-isotopic ratios and they lie in the enriched part of the mantle array (area 6 in Fig. 9a). The MBPC gabbroic dykes have wider range of (⁸⁷Sr/⁸⁶Sr)_i ratios which extend from mantle array to that of crustal values (areas 7, 8 in Fig. 9a). Higher Sr-isotopic ratios in some gabbroic dykes (area 7 in Fig. 9a), similar to those of dioritic dykes has been attributed to degrees of crustal contamination (Deevsalar 2015). The similar Sr- and Nd- isotopic ratios (areas 7 and 8 in Fig. 9a) as well as trace element compositions (including REE) to those dioritic dykes (Fig. 8a–d) are taken to indicate common source and similar processes involved in their petrogenesis. The low LOI-values (Ahadnejad 2009; Deevsalar 2015) and alteration indices (Supplementary Item 1; Table S1; CIA values < 50 {= molecular [Al₂O₃/(Al₂O₃ + CaO + Na₂O + K₂O)]*100, suggested by Nesbitt and Young (1982)} in these gabbroic and dioritic dykes, confirm that the wide range of Sr-isotopic ratios are signaling significant crustal contamination (areas 7, 8 in Fig. 9a). Therefore, the least-contaminated and evolved samples could be used to investigate source region for middle Jurassic mafic magmatism. There is a general consensus that the majority of arc mafic magmas are generated in the mantle wedge overlying the subducting slab, through dehydration melting of metasomatised peridotite (Wilson 1989; Ulmer 2001; Grove et al. 2003). The occurrence of gabbroic samples with broadly mantle-like isotopic and geochemical compositions (high MgO, Ni, and Cr) in the MBPC (Deevsalar 2015) supports the hypothesis that melting of mantle peridotite took place. Compared to rocks derived from deep crustal sources, such as eclogite and amphibolite (Sobolev et al. 2005; Spandler et al. 2008; Wang et al. 2010), the MBPC gabbros and gabbro-dioritic dykes rocks have lower SiO₂ and higher MgO, CaO/Al₂O₃, and Ni/MgO. The dominance of anorthitic plagioclase and Ca-rich clinopyroxene, as well as hornblende in the MBPC gabbros is also consistent with a water-rich setting like as continental subduction zone (Deevsalar et al. 2014, 2017). The enrichment in large ion lithophile element (LILE; e.g. Th, Ba, Rb), depletion in high field-strength elements (HFSE; e.g. Nb, Ta, P, Zr, and Ti; Fig. 8a) coupled with low ⁸⁷Sr/⁸⁶Sr and positive to slightly negative ε_Nd in least-contaminated and evolved gabbros and gabbroic dykes (Deevsalar et al. 2014; Deevsalar 2015) implies they were likely originated from sub-arc mantle wedge peridotite. In this regards, higher ⁸⁷Sr/⁸⁶Sr in some gabbroic dykes are attributed to significant assimilation of crustal components. Furthermore, the low Nb concentration reflected in low Nb/Y (< 3) and high K/Nb support that the mantle source were metasomatised by subduction-related fluids (Ionov et al. 2002; Verma 2006; Su et al. 2014). Given the high compatible element contents, low Rb/Sr, high Ba/Rb, and high chondrite-normalized (La/Yb)_cn and (Tb/Yb)_cn (relative HREE depletion; Fig. 8b), they were likely derived from an amphibole- and garnet-bearing mantle lherzolite. However, the (Gd/Yb)_cn ratios ranging from 1.62 to 3 indicate moderate fractionation between MREE and HREE and depth of derivation equivalent to garnet-spinel transition zone (Deevsalar 2015). The trace element modeling of melting carried out for the least-contaminated and evolved gabbros and gabbroic dykes is consistent with this hypothesis (Table 3; Fig. 11a; with parameters used in mantle melting model in Supplementary Item 1; Table S3). To investigate the source for dioritic dyke we applied mass balance calculations (Stormer and Nicolls 1978) which demonstrate that the dioritic dyke (i.e. BN₀₇) can be considered as products of fractional crystallization of mantle-derived magma (i.e. sample MN_2a), where the fractionated phases are Cpx (70.66 vol%), Pl (26.74 vol%), Ap (0.44 vol%), (Supplementary Item 1; Table S3). Mineral abbreviations are from Whitney and Evans (2010).

Table 3 The results of melting and mixing model calculations

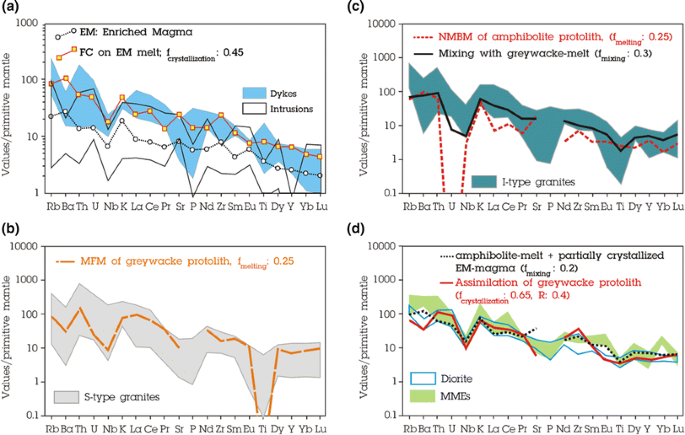

Fig. 11

a Non-modal batch melting curves of amphibole-bearing garnet lherzolite source and fractional crystallization (FC) on Enriched Mantle (EM). b Trace element modeling of melting and mixing processes for the Middle Jurassic S-type granitoids, c I-type granitoids, d MMEs and dioritic intrusions. The results of AFC model (DePaolo 1981) are shown in Table 4. The parameters used in melting model are given in Supplementary Item 2, Table S2. NMBM non-modal batch melting, MFM modal fractional melting, F _mixing degree of mixing, F _melting degree of melting and F _{crystallization} degree of fractional crystallization

7.3 Constraints on petrogenesis of granitoids

7.3.1 S-type granites

The MBPC granitoids have isotopic, chemical, and petrological features that form two groups that should be considered separately as typical examples of I- and S-type lithologies (Chappell and White 1974). The S-type granites from the MBPC (Supplementary Item 1; Tables S1a, c, d, e; Fig. 6a) contain metapelitic xenoliths, refractory metamorphic minerals, and micaceous enclaves are considered to be products of crustal anatexis. The experiments show that the partial melting of pelite and greywacke compositions could produce up to ~ 40 vol% peraluminous granite melt at appropriate temperature (650–900 °C) (Thompson 1982; Patiño Douce and Johnston 1991a, b; Vielzeuf and Montel 1994; Montel and Vielzeuf 1997; Patiño Douce and Harris 1998), suggesting upper crustal materials as a potential source for S-type magmatism (Vielzeuf and Holloway 1988; Förster et al. 1999). Therefore, dehydration melting of upper crustal meta-greywacke/pelite (e.g. Annen et al. 2006) seems to be best simple explanation for the peraluminous S-type granites from the MBPC (area 5 in Fig. 6) which is supported by high (⁸⁷Sr/⁸⁶Sr)_i in these rocks. Worth to note that, because of small data set available for the MBPC S-type granites they exhibit relatively lower (⁸⁷Sr/⁸⁶Sr)_i than that of crustally contaminated gabbroic dykes. The low values (< 10) for [(Na₂O + K₂O)/(FeO_tot + MgO + TiO₂)], is suggestive of meta-greywacke as appropriate source for S-type granites rather than felsic pelite (Patiño Douce 1999). Trace element modeling of modal fractional melting of upper crustal greywacke also supports this scenario for the MBPC S-type granites (column « 13 » in Table 3; F_mel: 0.2; Fig. 11b).

7.3.2 I-type granites

I-type granites are considered to have formed by fractional crystallization of basaltic magma (Tuttle and Bowen 1958; Langmuir 1989) or partial melting of meta-igneous source (Chappell and White 1974). However, both mechanisms can lead to similar major element, trace element and isotopic characteristics in derivative magmas. The generation of igneous rocks containing more than 60 wt% SiO₂—similar to those granites from the MBPC (area 2 in Fig. 6)—requires 60% or more fractional crystallization of typical arc basalt (Foden and Green 1992; Müntener et al. 2001). As such, the occurrence of extensive granitic magmatism in MBPC seems to require an extraordinary volume of parental magma, which is difficult to reconcile with the low volume of mafic magmas present at shallow depth in the area. From Sr–Nd isotope geochemistry, the I-types granites are dissimilar to the mantle-derived mafic magmas. Scattering of trace element concentrations across the whole suite, however, do not reflect any genetic relationship by fractional crystallization between the various rock types (Ni and Cr vs. SiO₂; Supplementary Item 3; Fig. S2). The presence of MME in metaluminous I-type granites from the MBPC (Supplementary Item 1; Tables S1a–g) does indicate the contribution of mantle-derived magma as both heat and mass supplier in their magmagenesis. One popular model for the genesis of felsic rocks in arcs is by underplating of mantle-derived mafic magma, which provides sufficiently high temperatures to assist with melting of the (meta-) igneous lower crust. Based upon theoretical approaches and experimental investigations, Annen et al. (2006) demonstrate that partial crystallization of mantle-derived mafic magmas can produce residual silicic-intermediate melt and promote partial melting of refractory lower crustal materials by transferring heat and H₂O to the deep crust. The experimental studies of Patiño Douce (1999) and Patiño Douce and McCarthy (1998) demonstrate that hydrous melting of lower crustal amphibolites or meta-basalts could produce tonalitic magmas. The derivative magmas ascend to shallow magma chamber and subsequent fractional crystallization yields granodioritic to granitic compositions. However, the presence of uncommon corundum-normative I-type granites (areas 3 and 4 in Fig. 6) and ASI-values slightly lower than unit in those metaluminous samples, as well as Sr–Nd-isotope ratios similar to those of S-type granites, invokes either homogenization by greywacke-partial melt or assimilation of meta-sedimentary crustal materials (gray horizontal arrows; Fig. 6). This scenario is supported by melting and mixing models, as shown in Fig. 11c, trace element composition of the MBPC I-type granites could be modeled as mixtures of lower crustal amphibolitic melt (column « 9 » in Table 3; f_mel: 0.25) and greywacke-partial melt (column « 16 » in Table 3; f_mix: 0.3). Lower crust-derived magmas may supply required heat for triggering upper crustal anatexis by decomposing and dehydrating of hydrous minerals (Beard and Lofgren 1989). The final part of the emplacement model for the granitoids involves formation of a chilled contact between granitic magma and crustal wall-rock, resulting in the generation of felsic microgranular enclaves (FMEs) or felsic autoliths.

7.4 Constraints on petrogenesis of dioritic rocks

7.4.1 Diorite intrusions

Several models have been proposed for the petrogenesis of intermediate arc magmas, in which mafic magma plays an important role, namely: (1) fractional crystallization of primary basaltic magmas (Langmuir 1989), (2) extensive contamination with crustal components (Reiners et al. 1995) or assimilation and fractional crystallization of mantle-derived magma (AFC) (DePaolo 1981, Bacon and Druitt 1988), (3) mixing with crustal-derived felsic magmas (Marshall and Sparks 1984; Downes et al. 1990; Griffin et al. 2002), (4) Melting, Assimilation, Storage and Homogenisation (MASH) processes (Hildreth and Moorbath 1988), and (5) partial melting of crustal materials by thermal influence of underplated basaltic magma (e.g. Guffanti et al. 1996; Chappell and White 2001; Izebekov et al. 2004). As outlined in previous sections, the association of mafic, felsic, and intermediate rocks in the MBPC is indicative of interplay between crust and mantle. The intermediate samples display crust-like LILE and LREE enrichment (relative to HFSE and HREE), but have low silica (53.94–57.24 wt%) and high MgO (4.69–8.61 wt%) content. Petrographic observations from diorite intrusive rocks indicate the presence of sieve-textured and zoned plagioclase phenocrysts, which are generally taken as indicative of magma mixing process (Barbarin 1990; Jicha et al. 2007). In addition, the calc-alkaline dioritic intrusions from the MBPC exhibit straight-line differentiation trends in Harker plots (Fig. 7), and thus it is possible that they can be explained by mixing of mafic and felsic magmas. The composition of plagioclase changes from anorthite (for gabbros) through andesine–labradorite (for diorites) to oligoclase–andesine (for granites). The bytownite to labradorite cores in some plagioclase phenocrysts from diorites rimmed by andesine to oligoclase, indicating both mafic and silicic magmas appears to have been incorporated in their petrogenesis (Supplementary Item 1; Table S4).

As shown in Fig. 9a, (⁸⁷Sr/⁸⁶Sr)_i ratios of the diorite intrusions are broadly similar to the Middle Jurassic lower crust-derived I-type granites. Displacement of the dioritic intrusions away from mantle array towards crustal values indicates Sr-isotope equilibration through mixing with felsic magmas or through AFC. We argue that these diorites thus have hybrid parent magma. The multi-element modeling shows that mixing between residual melt of high pressure fractionation of 60% Ol + 40% Cpx from enriched mantle magma (column « 6 » in Table 3; f_cry: 0.35) and lower crustal amphibolite-derived melt (column « 9 » in Table 3; f_mel: 0.25) could produce compositions similar to those of the MBPC dioritic intrusions (column « 10 » in Table 3; f_mix = 0.2). Partial crystallization of underplated mantle-derived magma and early removal of a mafic mineral assemblage drives the bulk magma towards a more silica-rich composition (e.g. Debari and Coleman 1989; Müntener et al. 2001). The hybrid andesitic melt could ascend toward high level crustal magma chamber. Trace element modeling suggest that deep-crust mixing was followed by AFC-process through assimilation of upper crustal materials (calculated using the equations of DePaolo 1981) rather than mixing with upper crustal melt (column « 15 » in Table 3; F_cry: 0.65; R: assimilant/melt = 0.4; Fig. 11d).

7.4.2 Mafic microgranular enclaves (MMEs)

MMEs result most often from the mingling between mafic and felsic magmas. These two magmas can have a different origin (i.e. deep crust-derived melt and mantle-derived melt; e.g. Barbarin 2005) or can belong to the same differentiation series (“endo-hybridization”; Duchesne et al. 1998). Both origins can coexist. In general, the presence of MMEs indicates the role of mafic magmas in the initiation and evolution of calc-alkaline granitoid magmas (Collins et al. 2000; Barbarin 2005). The small globular-shaped MMEs (Fig. 3c, d) in MBPC granites have an intermediate composition between gabbros and granitic rocks, similar to dioritic intrusions in terms of mineralogy and whole-rock geochemistry. They have lower silica content, higher MgO, FeO_tot, and compatible element concentrations (Cr, Ni, and Co) than their granitic host rocks. The MMEs contain higher hornblende/biotite, plagioclase/K-feldspar ratios and lower quartz than those of the host rocks. The contrasting modal and chemical composition to the host rocks indicates that they are not cognate magmas (Donaire et al. 2005). Chemical zoning observed in some euhedral to subhedral plagioclase crystals imply compositional disequilibrium. Compositions of the plagioclase core are similar to those of plagioclase in the gabbros (Supplementary Item 1; Tables S4b, c) and rims are broadly similar to those granodiorite and quartz diorites (Supplementary Item 1; Tables S4d), which are likely to mirror magma mixing process. On Harker diagrams, all the dioritic intrusions and MMEs together with gabbros plot along straight lines for both major and trace elements (Fig. 7; Supplementary item 3; Fig. S1). This is also interpreted as the product of mixing between mafic and felsic end-members. Sharp contacts between MMEs and their host granite, as well as a fine-grained texture, needle-like apatite, elongated flaky biotite and aligned tabular plagioclase in MMEs, are clearly suggestive of rapid cooling and plastic deformation, implying mingling between magmas of contrasting composition, viscosity and temperature (i.e. hybrid MME and silicic host magmas). From field observations and U–Pb zircon ages, it appears that dioritic melts and some pulses of granitic magmas were emplaced simultaneously, indicating the possibility of interaction between them. These together with petrographical and geochemical evidence is conclusively in favour of mingling scenario, supporting that these dioritic MMEs are hybrid melts surrounded by felsic host magmas. This scenario is consistent with previous geochemical and microstructural studies carried out on MMEs in MBPC granites (Deevsalar and Valizadeh 2010; Deevsalar et al. 2011). Hence, similar to the dioritic intrusions, MMEs can be modeled as mixture of partially crystallized mantle magma and crustal derived melt (column « 10 » in Table 3; f_mix = 0.2), but without significant contamination by crustal materials because of their small volume and presence away from the wall rock. Given low viscosity and density, mafic melts can easily ascend to shallow level magma chambers, filled by I-type granitic magma. The contrasting viscosities between dioritic hybrid magma and granitic one only allow mingling, in which dioritic magma break up into blobs and scatter in the granitic magma to form MMEs.

8 Conclusions

The association of mantle-derived gabbros, in forms of intrusions and dykes, hybrid dioritic intrusions, MMEs and heterogeneous I-type granitic rocks from the MBPC strongly imply that the Middle Jurassic Tethyan arc in Iran was generated through the addition of mafic, mantle-derived magmas as a thermal trigger for melting of amphibolitic lower crust. Subduction-related magmatism in the MBPC occurred in two main stages: mantle–deep crust interplay, and shallow-level intracrustal processes. It begins with the synchronous mantle melting and lower crustal anatexis during the Middle Jurassic. Petrographic, geochemical, and Sr–Nd–Hf isotopic data obtained in this study together with published data, suggesting:

• 1. The MBPC gabbros originated from metasomatised sub-lithospheric mantle wedge peridotite with modelled amphibole-bearing lherzolite from garnet-spinel transition zone. The parental magma for the MBPC gabbros (dykes and intrusions) has been modeled at approximately 15% partial melting of this source.

• 2. The partial crystallization of primary mantle-derived magmas (f_cry: 0.3) occurred in the deep crust or at the crust-mantle boundary. Significant transfer of heat and H₂O promotes melting of lower crust.

• 3. Metaluminous, I-type melts originated from amphibolitic lower crust ascended to shallower, upper-crustal magma reservoirs, at some point in this process supplying the requisite heat for melting of upper crustal greywacke and generation of S-type granites (f_mel: 0.2). I-type granites formed by hybridization between lower crustal amphibolite melt (f_mel: 0.25) and upper crustal greywacke melt (f_mix: 0.3).

• 4. MMEs are hybrid dioritic rocks formed by homogeneous mixing of partially crystallized mantle-derived magma and lower crustal silicic melt (f_mix: 0.2). They are produced by injection of hybrid magma into I-type granitic magma at high level magma chamber, magma mingling and breaking up hybrid magma into blobs which scattered in the granitic host. The assimilation of hybrid magma with upper crustal materials and subsequent fractional crystallization (AFC; F_cry: 0.65, R: 0.4) will produce composition similar to that of dioritic intrusions.

• 5. Overall, the results of this study indicate that the MBPC requires the involvement of mantle, deep and shallow crustal processes to explain fully their magmagenesis. Middle Jurassic in N-SaSZ is the critical period in which mantle melting reached its climax, because of higher geothermal gradients associated with deep subduction of Neo-Tethys slab. However, arc-like huge felsic magmatism in N-SaSZ was likely triggered by mantle melting event, but limited outcrops of mafic plutonic rocks favor the emplacement of considerable amount of mafic magmas in depth.

  The presence of deep-seated large mafic intrusions requires to be investigated by geophysical evidence, in future studies.
