Tectonics of the Lepontine Alps: ductile thrusting and folding in the deepest tectonic levels of the Central Alps

Abstract

The Lepontine dome represents a unique region in the arc of the Central and Western Alps, where complex fold structures of upper amphibolite facies grade of the deepest stage of the orogenic belt are exposed in a tectonic half-window. The NW-verging Mont Blanc, Aar und Gotthard basement folds and the Lower Penninic gneiss nappes of the Central Alps were formed by ductile detachment of the upper European crust during its Late Eocene–Early Oligocene SE-directed underthrust below the upper Penninic and Austroalpine thrusts and the Adriatic plate. Four underthrust zones are distinguished in the NW-verging stack of Alpine fold nappes and thrusts: the Canavese, Piemont, Valais and Adula zones. Up to three schistosities S1–S3, folds F1–F3 and a stretching lineation XI with top-to-NW shear indicators were developed in the F1–F3 fold nappes. Spectacular F4 transverse folds, the SW-verging Verzasca, Maggia, Ziccher, Alpe Bosa and Wandfluhhorn anticlines and synclines overprint the Alpine nappe stack. Their formation under amphibolite facies grade was related to late ductile folding of the southern nappe roots during dextral displacement of the Adriatic indenter. The transverse folding F4 was followed since 30 Ma by the pull-apart exhumation and erosion of the Lepontine dome. This occurred coevally with the formation of the dextral ductile Simplon shear zone, the S-verging backfolding F5 and the formation of the southern steep belt. Exhumation continued after 18 Ma with movement on the brittle Rhone-Simplon detachment, accompanied by the N-, NW- and W-directed Helvetic and Dauphiné thrusts. The dextral shear is dated by the 29–25 Ma crustal-derived aplite and pegmatite intrusions in the southern steep belt. The cooling by uplift and erosion of the Tertiary migmatites of the Bellinzona region occurred between 22 and 18 Ma followed by the exhumation of the Toce dome on the brittle Rhone–Simplon fault since 18 Ma.

1 Introduction

The Lepontine gneiss dome of the Central Alps represents an exceptional outcrop of a collisional mountain belt. The Lepontine dome is defined by the area of Tertiary amphibolite facies metamorphism and consists of basement nappes separated by their Mesozoic cover series of the deepest tectonic level of the Central Alpine structural culmination (Fig. 1). This dome structure is unique in the Western and Central Alpine arc. Another dome structure with an amphibolite facies gneiss core is exposed in the Tauern window of the Eastern Alps (e.g. Schmid et al. 2004). In the Lepontine dome the transition from the more simple thrust structures of the high tectonic lid to the deepest tectonic amphibolite facies units with their ductile fold structures can be studied in continuous profiles. Complex fold interference structures are exposed in a tectonic half-window of the deeply eroded gneiss dome located between the Toce and Ticino rivers, limited to the south by the Canavese and Tonale faults of the Insubric line.

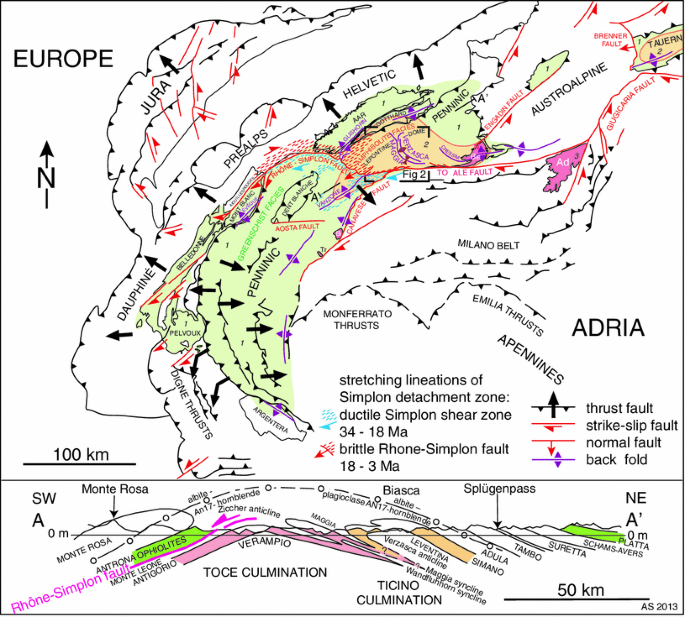

Fig. 1

Oligocene and Neogene structures and metamorphism of the Central and Western Alps, modified after Frey et al. (1999), Steck et al. (2001) and Oberhänsli (2004) showing the location of the structural map of the central Lepontine Alps (Fig. 2) and the cross-section A–A’ (see also Fig. 8). The zones of the Late Cretaceous and Eocene high-pressure metamorphism are not represented. It is suggested that the anchizone-greenschist facies limit, corresponding to a temperature of about 300 °C represents an important rheological boundary in the quartz-rich granitic European crust that controls the position of the frontal NW verging and en echelon Belledonne, Mont Blanc and Aar F2 basement folds in the zone of NW–SE directed Alpine compression between the European and Adriatic plates. The greenschist-amphibolite facies boundary which delimits the Lepontine dome is defined by the reaction: albite An 0–3 + epidote + hornblende = oligoclas An >17 + hornblende (Wenk and Keller 1969; Steck 2008). The Adamello gabbros, diorites and granites (Ad), 32–29 Ma Bergell tonalites and granites (Be), 31–30 Ma Biella pluton (Bi) and Traversella diorite (Tr) are Oligocene mantle-derived intrusions located along the Insubric line, the limit between the European and Adriatic plates (Beccaluva et al. 1983; Reusser 1987; Romer et al. 1996; Berger et al. 2012; Kapferer et al. 2012). The dextral Rhône-Simplon fault continues to the west in the Chamonix zone and after new observations by Daniel Egli (personnel communication) also along the Penninic front to the east of the Mont Blanc massif. (1) Oligocene–Miocene greenschist facies metamorphism, (2) Oligocene–Miocene amphibolite facies metamorphism, (3) Mantle derived dioritic magmatism

The aims of this paper are (1) to describe and decipher the geometry of the structures of the Lepontine Alps and (2) to discuss a revised tectonic and kinematic model in the light of recent field investigations, together with a compilation of structural data collected by the authors. The classic geological documents of the early twenty century (Preiswerk et al. 1934; Niggli et al. 1936; Wenk 1955) have been completed with detailed geological maps at a scale of 1:25,000, i.e. Campo Tencia (Keller et al. 1980), Bellinzona (Baechlin et al. 1974) and Valli Vigezzo, Fenecchio e Basso Isorno (Bigioggero et al. 1981a, b), and numerous Ph.D. theses (Burckhardt 1942; Hasler 1949; Kobe 1956; Knup 1958; Hunziker 1966; Reinhardt 1966; Wieland 1966; Keller 1968; Bianconi 1971; Colombi 1989; Brouwer et al. 2005; Burri 2005). In addition, the tectonic models by Merle et al. (1989), Grujic and Mancktelow (1996), Maxelon and Mancktelow (2005), Berger et al. (2005), Berger and Mercolli (2006), Galli et al. (2007) and Steck (1998, 2008) have been considered. The 1:25,000 map sheets Bosco Gurin (by Franco Della Torre and Luca Maggini), Maggia (by Paul Gräter (†), Eduard Wenk (†) and Thomas Burri) and Locarno (by Alberto Colombi, Peter Knup, Huldrich Kobe and Hans-Rudolf Pfeifer) have been submitted for publication in the Swiss geological atlas and are available as provisional editions.

The progress of geological knowledge has been enormous since the classical descriptions of Niggli et al. (1936), but important questions concerning the complexity of the observed structures are still debated. Chatterjee (1961) postulate that the formation of the Simplon nappe stack by brittle thrusting was followed by heating, orogenic metamorphism and folding. Milnes (1975) (in response to Streckeisen et al. 1974) considered steep and overturned metamorphic isograds of the Simplon tunnel transect as evidence for synmetamorphic ductile folding and NW-directed thrusting. The post-nappe folding in the adjacent Lepontine gneiss dome was recognised by Milnes (1974), Milnes et al. (1981), Huber et al. (1980), Huber (1981), Steck (1984, 2008), Merle et al. (1989), Grujic and Mancktelow (1996) and Maxelon and Mancktelow (2005).

In this paper, we present a synthesis of all these data on the complexity of the post-nappe folding in the Lepontine dome in the form of a new tectonic map (Fig. 2, printed here as a fold-out at the back of this issue of SJG), accompanied by a series of structural cross-sections through the dome (Fig. 3). The following Sect. 2 presents in detail the Lower Penninic tectonic units within the Lepontine dome. Section 3 gives only a brief description of the Tectonic units surrounding the Lepontine dome (Middle–Upper Penninic, Austroalpine and South Alpine). The Alpine structures and metamorphism of the Lepontine dome are described in Sect. 4. The complex structural evolution of the Lepontine dome is discussed in the final Sect. 5.

Fig. 2

Structural map of the Lepontine Alps after field observations by Preiswerk et al. (1934), Hasler (1949), Kobe (1956), Knup (1958), Hunziker (1966), Wieland (1966), Keller (1968), Bianconi (1971), Keller et al. (1980), Colombi (1989), Burri (2005), Steck (1998, 2008), Berger and Mercolli (2006), Matasci et al. (2011) and unpublished documents by Paul Graeter (^†) and Eduard Wenk (^†) (A high-resolution version of this figure appears as Electronic Supplementary Material with the online version of the article and can be found as a fold-out at the back of the printed issue)

Fig. 3

Structural cross-sections through the Lepontine gneiss dome (for locations, see Fig. 2)

2 Tectonic units within the Lepontine dome (Lower Penninic)

The studied area is composed of a NW-verging stack of basement and post-Carboniferous cover nappes. From north to south these are: (1) the Helvetic Aar and Gotthard folds, (2) the Lower Penninic units detached from the upper European crust, (3) the Valais basin calc-schists, (4) the Middle Penninic units attributed to the Briançonnais domain, (5) the Upper Penninic Antrona and Zermatt–Saas oceanic crust elements of the Piemont ocean, (6) the Sesia zone of the Austroalpine domain and (7) the Southern Alps forming the northern margin of the Adriatic plate. As indicated in Table 1, four deep underthrust zones are distinguished in the Central Alps: (a) the Adula underthrust of the Lower Penninic (European) domain contains the eclogitic Mergoscia and Cima Lunga units and the amphibolite facies Bosco–Bombogno–Isorno–Orselina Zone, (b) the Valais units and Viège (Visp) Mélange mark the Valais underthrust at the limit of the Lower Penninic (European) and Middle Penninic (Briançonnais) domains, (c) the eclogitic Upper Penninic Antrona and Zermatt–Saas zones are exposed in the Piemont underthrust at the limit of the Penninic and Austroalpine domains and (d) the Canavese underthrust represents the limit between the Austroalpine Sesia zone with its late Cretaceous high-pressure metamorphism and the Southern Alps, the north-western margin of the Adriatic plate.

Table 1 List of the Alpine tectonic units from the western and eastern Lepontine area represented from north to south in their respective paleogeographic positions, with the distinction between the polycyclic basement (bold letters), the related post-Permian Mesozoic and Cenozoic sedimentary cover (italics) and the ophiolites (bold letters), modified after Geologische and Tektonische Karte der Schweiz 1:500,000 (Spicher 1980; Swiss Geological Survey 2005), Steck et al. (1999, 2001), Berger and Mercolli (2006) and Steck (2008)

Most units of the Helvetic, Penninic, Austroalpine and South Alpine domains are composed of polycyclic Caledonian and Variscan basement gneisses that are overlain by Permian, Mesozoic and Cenozoic sediments. The Upper Penninic Antrona and Zermatt–Saas zones are composed of Piemont oceanic crust of Middle to Late Jurassic age. The regional distribution of the different tectonic units is indicated on a paleogeographic map of the Alpine Tethys at the Santonian some 84 Ma ago before the Late Cretaceous and Tertiary convergence of the European and Adriatic plates (Fig. 4). The different tectonic units within the Lepontine dome, as distinguished in Table 1 and Fig. 4, are described briefly below.

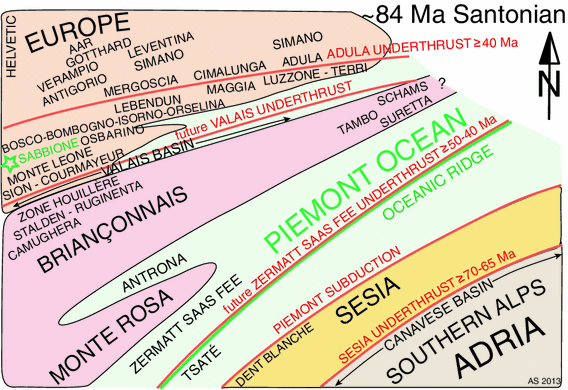

Fig. 4

Palaeogeographic map of the Alpine Tethys preceding the Tertiary collision of Europe and Adria (modified after Masson 2002; Bernoulli et al. 2003; Gianreto Manatschal, personal communication; Galster et al. 2012). The regional distribution of the different continental and oceanic units is deduced from the kinematic model of the Central Alps discussed in this paper, with emphases on the European continental margin and the Valais basin. The green star indicates the position of the Sabbione basaltic volcano (Carrupt 2002)

2.1 The Lower Penninic units of the European domain

2.1.1 The Verampio unit

The Verampio and Leventina units are the deepest units of the Alpine nappe stack, exposed in the Toce and Ticino dome structures (Figs. 2, 3; Table 1). The deep seismic study (Swiss National Foundation Project no. 20, Steck et al. 1997; Steck 2008) confirmed the thrust sheet geometry of the Verampio nappe, itself separated by an un-named nappe (X-nappe on cross-section 3, Fig. 3) from the root of the northern Gotthard fold nappe. The Verampio fold nappe is composed of the 291 ± 4 Ma old Verampio granite (U–Pb zircon age, François Bussy in Steck et al. 2001) intrusive in Paleozoic meta-greywackes (Baceno schists) and separated from the higher Antigorio fold nappe by a syncline of autochthonous Mesozoic sediments, the Teggiolo zone (Steck et al. 1999, 2001).

2.1.2 The Leventina nappe

The Leventina nappe is formed of a leucocratic, two micas granite gneiss (Casasopra 1939). It occupies the hinge zone of the NW-striking Ticino dome between Claro and Rodi-Fiesso in the Leventina valley. It is separated from the higher Simano nappe by a quartzitic and mylonitic shear zone that passes at Chiggiogna in a zone of Triassic quartzite and dolomite (Fig. 2; Rütti et al. 2005; Berger et al. 2005).

2.1.3 The Antigorio nappe

The Antigorio fold nappe in the Antigorio (Toce) and Devero valleys is composed of three granitoid intrusions: (a) the 296 ± 2 Ma old Antigorio tonalite, (b) the dominant middle to coarse grained 290 ± 4 Ma old Antigorio granodiorite and (c) the 289 ± 4 Ma old Antigorio granite (Bergomi et al. 2007). The Antigorio granitoids are farther east intrusive in an older polycyclic and migmatitic basement. The granodiorite is also intrusive in the Paleozoic Baceno schist of the Devero valley and the Verampio window. The Pioda di Crana gneiss is dominated by a strongly foliated middle to fine grained 301 ± 4 Ma old granite gneiss (Bergomi et al. 2007). Locally and especially near the contact with the higher Mergoscia zone, polycyclic micaschists and amphibolites are common. The granodioritic and tonalitic Alpigia hornblende-biotite gneiss, here attributed to the Antigorio nappe, exhibits a regular contact with the staurolite–kyanite–garnet–micaschist of the Campo Tencia unit of the Simano nappe (Keller et al. 1980; Steck 1998; Berger et al. 2005). This contact may be tectonic or intrusive.

2.1.4 The Teggiolo zone

The Teggiolo zone is the autochthonous sedimentary cover of the Antigorio and Verampio nappes. Its age ranges from Triassic to Eocene and it comprises several sedimentary cycles composed of Triassic quartzites, metapelites and dolomites, Jurassic to Lower Cretaceous marbles and Upper Cretaceous to Tertiary flysch and wildflysch, separated by erosive surfaces and large stratigraphic gaps. The main mass of the Teggiolo calc-schists, whose base truncates the Triassic–Jurassic cycles and the Antigorio basement consists of flysch deposits of Late Cretaceous to Eocene age of the North-Penninic (or Valais s.l.) basins. Thus, the Antigorio-Teggiolo domain occupies a palaeogeographic position at the boundary between the Helvetic and Penninic realms (Matasci et al. 2011). A 10 m thick band of calcite marble exposed along the Sentiero dei Vanisc (VANISC on map Fig. 2) is attributed to the Upper Jurassic of the Teggiolo zone.

2.1.5 The Simano nappe

On their tectonic map of the Simano nappe, Keller et al. (1980) distinguished a northern Campo Tencia unit composed of staurolite–kyanite–garnet micaschist and biotite-plagioclase paragneiss (meta-graywacke), the latter intruded by the Ganna granite gneiss, from a southern zone, dominated by a granitic two mica augengneiss, the 300 Ma old Verzasca gneiss (Köppel et al. 1981). A discontinuous zone of amphibolites follows the contact of the two units. The contact of the Campo Tencia and Verzasca units resemble a shear zone (Keller 1968).

2.1.6 The Campolungo zone

The Campolungo sedimentary cover of the Simano basement is characterised by a 1–10 m thick basal quartzite (Lower Triassic?), a 30–100 m thick level of white and grey graphitic dolomites (Middle Triassic?) and 8–50 m of cargneule (Upper Triassic?) of a Triassic age overlain by post-Triassic calc-schists. The Triassic quartzite overlies an up to 10 m thick conglomeratic quartzitic gneiss (locally with carbonate) of uncertain Permian age and a two mica garnet, ±staurolite and kyanite gneiss or schist of the Campo Tencia basement. The Campolungo zone is folded to the west by the Mogno and to the east by the Alpe Piota syncline (Bianconi 1971; Keller et al. 1980). In our interpretation (Figs. 2, 3), the Campolungo zone does not represent the “Mulde” (syncline) postulated by Hasler (1949) nor the continuous Mogno syncline proposed by Maxelon and Mancktelow (2005, Fig. 16).

2.1.7 The (eclogitic) Mergoscia and Cima Lunga units and the (amphibolite facies) Bosco–Bombogno–Isorno–Orselina zone

The amphibolite facies Bosco–Bombongo–Isorno–Orselina zone replaces the former Bosco–Isorno–Orselina zone, defined by Hunziker (1966), Wieland (1966) and adopted by Steck (2008). The Bosco and Bombogno zones were at first distinguished by Grütter (1929), Hunziker (1966) and Wieland (1966). New fieldwork by Franco Della Torre and Luca Maggini provides a better knowledge and more precise limits of the two units. The Bosco unit is exposed in the Alpe Bosa, Bosco and Wandfluhhorn region and continue as a small layer in the Isorno valley with an uncertain southern continuation, whereas the Bombogno unit has its southern continuation in the Bosco–Bombogno–Isorno–Orselina zone. The Bosco unit is composed of micaschist and leucocratic muscovite–biotite–K-feldspar–oligoclase gneiss. The very heterogeneous zone of para- and orthogneisses, amphibolites, meta-gabbros, ultramafites, calc-schists and marbles of the Bombogno unit continue to the south into the similar Isorno zone. Wieland (1966) observed the continuity between the Isorno and Orselina zones across the Masera syncline, an observation that has been confirmed by Bigioggero et al. (1981a, b) and Steck (2008). The eclogitic Mergoscia and Cima Lunga units and the amphibolite facies Bosco–Bombogno–Isorno–Orselina zone have a very similar lithology and occur in the same tectonic position on top of the Antigorio and below the Maggia nappes to the east and below the Osbarino unit and the Monte Leone nappe to the west, in the Wandfluhhorn–Alpe Bosa fold structure. The delimitation of the eclogitic Mergoscia unit from the Antigorio nappe is arbitrary and only based on the presence or absence of rare eclogite relicts. The very heterogeneous Mergoscia and Bosco–Bombogno–Isorno–Orselina units are composed of polycyclic basement rocks, granite gneiss, ophiolites and calc-schists, the latter of a probable Mesozoic age. The heterogeneity of these units indicates a strong deformation by folding and boudinage of more competent layers. Only a detailed mapping can show if the term “tectonic mélange” used by Trommsdorff (1990) and Engi et al. (2001a, b) is justified. Berger et al. (2005) attribute these units to a Paleogene tectonic accretion channel. Contrary to them, we distinguish in this zone, (1) the Mergoscia and Cima Lunga units characterised by Paleogene eclogites and their relicts, later overprinted by the Oligocene amphibolite facies regional metamorphism, from (2) the Bosco–Bombogno–Isorno–Orselina zone of the southern steep belt that was only overprinted by a Oligocene amphibolite facies metamorphism. All these units occur in the same Adula suture zone (cf. Fig. 4; Table 1), where they were underthrust to different depths, metamorphosed and later extruded and accreted. The occurrence of elements of oceanic crust (ultramafites, metagabbros, amphibolites) and calc-schists suggest the existence of a Cretaceous–Paleogene marine basin that was situated between the European Antigorio and Monte Leone nappe domains. The suggested Palaeogene age of the eclogites of the Mergoscia zone is not supported by radiometric data, but it may be similar to the ca. 40 Ma Sm–Nd and Lu–Hf ages obtained for the Alpe Arami and Cimalunga eclogites situated in a same tectonic position (Becker 1993; Brouwer et al. 2005; Herwartz et al. 2011; cf. Table 1).

2.1.8 The Maggia nappe

The Sambuco and Maggia units are represented on the Tectonic map of Switzerland (Fig. 5a; Spicher 1972, 1980; Tektonische Karte der Schweiz, 1:500,000, 2005) and by Grujic and Mancktelow (1996) and Maxelon and Mancktelow (2005) as a unique continuous Maggia nappe. The Campolungo sediments of the Mogno syncline are connected with the Pertusio zone. However, the detailed fieldwork of Keller et al. (1980) and Stefan Kröner (personal communication) has shown that the latter connection does not exist. The staurolite–kyanite-bearing garnet two mica schist of the Simano nappe turn at Fusio as a continuous zone around the Mogno antiformal syncline (Fig. 3 in Steck 1998). The Maggia nappe is exposed in the two Sambuco and Maggia klippes separated by the Antigorio and Simano nappes. The two triple points between the limits of the Sambuco, Antigorio and Simano and the Antigorio, Simano and Maggia units respectively, testify of the overthrust of the older Antigorio and Simano nappes by the younger Maggia nappe (Figs. 2, 5c). Another solution is a connection of the Sambuco and Maggia units through the Alpigia granodiorite and tonalite. The Alpigia granodiorite and tonalite has a very similar magmatic texture with characteristic biotite agregates as the Matorello and Cocco intrusions (Preiswerk in Niggli et al. 1936) and may belong to the Maggia nappe (Fig. 5b). The amphibolite layer that separates the Alpigia pluton from the Sambuco unit is a strange feature in this interpretation. The Maggia nappe is composed of polycyclic basement gneisses intruded by the late Carboniferous 300–304 ± 8 Ma old Matorello and the 308 ± 7 Ma old Cocco and Ruscada granites, granodiorites and tonalites (U–Pb zircon ages, Bussien et al. 2011). The lithological similarity of the Cocco and Matorello granodiorites and tonalites led Preiswerk (1921) and Bossard in Niggli et al. (1936) to conclude that the Maggia nappe represents a continuous transverse Maggia structure. Bossard considered it as a transverse root zone between the Simano gneisses in its roof to the east and the Antigorio–Pioda di Crana gneisses below to the west. Bossards idea has been taken over by Simpson (1982), Grujic and Mancktelow (1996) and Maxelon and Mancktelow (2005). In this paper, the view of Keller et al. (1980) according to the geological map Campo Tencia is adopted, which considers the Sambuco and Maggia units representing two synformal klippes that are separated in the region of Fusio by the Antigorio-Alpigia gneisses and the staurolite–kyanite–garnet micaschist of the Campo Tencia sub-unit (Fig. 2). Geopetal upside down magmatic structures in the Matorello region were overturned during a younger phase of folding (Bussien et al. 2011). This observation is compatible with the interpretation of the Tertiary F2 fold nappe geometry of the Maggia nappe. The contacts of the Sambuco unit with the Mesozoic calc-schist of the Campolungo cover of the Campo Tencia unit of the Simano nappe and the Mesozoic Teggiolo cover of the Antigorio basement are tectonic. The lower contact of the Maggia nappe with the neighbouring units is complex and also tectonic.

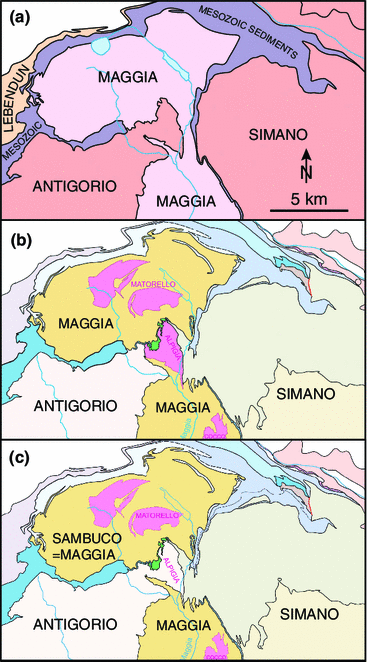

Fig. 5

Three models for the structural relations between the Sambuco, Maggia, Antigorio and Simano units in the region of Peccia and Fusio in the upper Maggia valley. a On the Tektonische Karte der Schweiz (2005), the Sambuco and Maggia units are connected by a strip of gneisses and the Campolungo Mesozoic sediments continue in the zone of Pertusio. This model is contrary to Keller et al. (1980) and new fieldwork. b In this model it is suggested that the Alpigia granodiorite and tonalite forms an integral part of the Maggia nappe. The Alpigia granodiorite and tonalite are similar to the Matorello and Cocco intrusions (Grütter and Preiswerk in Niggli et al. 1936). The textures of this granitoids are characterized by biotite aggregates also typical for the Matorello and Cocco intrusions. c On the model proposed in this paper (Fig. 2) the Maggia and Sambuco units represent two klippes of a single Magga nappe. The two triple points between the Antigorio, Sambuco and Simano units to the north and between the Antigorio, Maggia and Simano units to the south may be explained by a younger overthrust of the Maggia–Sambuco son the older Antigorio and Simano nappes. In any case, the Antigorio basement with its Helvetic Mesozoic cover sequence (Teggiolo zone) and the Simano basement with its Penninic Mesozoic sediments (Campolungo zone) are different and the structural relations of the Antigorio and Simano nappes are in all three models open to question. Model c is our preferred interpretation of the Alpine structures of the Peccia and Fusio region, but model b is also possible and cannot be excluded

2.1.9 The Cristallina zone

The Cristallina zone represents the autochthonous Mesozoic sedimentary cover, well developed on the northern border of the Sambuco basement. This zone has been studied by Jean-Yves Délèzes and Florence Lodetti for their MSc theses at Lausanne University in the Cristallina and Lago di Narèt regions. This sedimentary cover is affected to the north of the Pizzo Cristallina, together with the higher Lebendun sediments by three phases of isoclinal folding F1–F3 and resembles the autochthonous sedimentary cover of the Helvetic Gotthard and Mont Blanc massifs (personal communications). The sequence starts with about 1 m of Triassic meta-arkose, quartzite and greenish micaschist and over 5 m of dolomitic marble with 20–30 % of calcite and ends with up to 10 m of an alternation of sandstone, micaschist and calc-schist with detrital dolomite attributed to the Rhaetian. The passage to the next over 15 m thick sequence, an alternation of micaschist, calc-schist and marbles is gradual and ends with quartzites with mica, garnet, staurolite and kyanite. These sediments are attributed to the Early Jurassic. They are followed by over 25 m thick dark graphitic micaschist with garnet, staurolite and kyanite attributed to the Aalenian. A 350 m long slice of the Cristallina zone is exposed at the Cimetta Briolent (point 2,172 m and Swissmap coordinates 695.025 km/146.250 km) on the contact between the Sambuco unit and the Campolungo zone. The Sambuco basement to the west is overlain by 70 m of arkosic conglomerate of probably Permo-Carboniferous age, followed by the Triassic composed of about 1 m of quartzite rich in white mica, 6 m of dolomite marble, 1 m of micaceous quartzite, 4 m of dolomite marble, followed by a 1–2 m thick layer of a ochre collared banded sandy calcite marble attributed to the Lower Jurassic, the latter in tectonic contact with the quartz-rich calc-schist of the Campolungo zone to the east (Bianconi 1971).

2.1.10 The Fusio zone

White calcite marble occur at the village of Fusio in decametre thick bands inside of the Sambuco basement near the tectonic contact with the calc-schist of the Campolungo cover of the Simano nappe. The calcite marble outcrop in the village of Fusio contains some quartz and mica to the west and passes to a pure white (brown–yellow weathering) calcite marble to the east. The sequence may be interpreted as a slice of middle to upper Jurassic marble. No similar sediments exist in the nearby Cristallina and Campolungo zones.

2.1.11 The Pertusio zone

The Pertusio zone is a strongly deformed zone, mainly composed of some metres thick horizon of white quartzite of uncertain probably Triassic age with numerous up to some centimetres thick bands of calcite marble of a possible Upper Jurassic age that marks the limit between the Maggia and Simano nappes between Monte Zucchero to the south and Peccia to the north (Fig. 2; Keller et al. 1980).

2.1.12 The Someo zone

The term Someo zone is defined and restricted in this paper in accordance with Preiswerk et al. (1934) to a decimetre to some metres thick band of white calcite marble and associated quartzite, micaschist and amphibolite that marks the limit between the Mergoscia and Maggia units. It is not possible to attribute this zone to one of the two adjacent units. The Someo zone is composed north of Someo of an up to 4 m thick band of white calcite marble. At its border it is associated with centimetre to decimetre thick bands of quartzite, amphibolite and some garnet micaschist. Two bands of up to 60 cm thick white calcite marble are associated with garnet micaschist and decametric bands of amphibolite in the Maggia riverbed southeast of Brontallo (Fig. 2; Keller et al. 1980). Eclogite relicts are missing in the amphibolite layers of Someo and Brontallo. The new definition of the Someo unit by Berger et al. (2005), who associate in the Someo unit the marbles of Preiswerk’s Someo zone with the gneiss, schists, eclogitic amphibolites, ultramafites and marbles of our herein defined Mergoscia unit, is for this reason rejected and replaced by the original definition of Preiswerk et al. (1934). It is speculated that the white marble of the otherwise very different Fusio, Pertusio and Someo sedimentary sequences may belong to a same possibly Upper Jurassic marble horizon of the Sambuco–Maggia nappe.

2.1.13 The Lebendun nappe

The Lebendun nappe is composed of a polymictic conglomerate and a micaschist (“schisti bruni”, Burckhardt 1942; Burckhardt and Günthert 1957; Joos 1969). Pebbles of Triassic dolomite testify the post-Triassic, possibly Cretaceous age of these sediments (Rodgers and Bearth 1960; Spring et al. 1992). It occupies a large zone to the north of the Antigorio nappe and Sambuco unit. Another up to 50 m thick band of Lebendun conglomerate is exposed on the mountain ridge to the north of the Pizzo di Bronzo in the upper Valle dell’Isorno, between the Bosco zone on top and the Antigorio gneiss at the base. The tectonic position of the Lebendun conglomerates suggests that they have been thrust from the south of the Maggia and the north of the Monte Leone nappes (Fig. 4). The San Giorgio unit occurs in a similar tectonic position in front of the Simano nappe. It is composed of metapsammite and metapsephite gneisses and Triassic phlogopite dolomite and cellular dolomite and represents after Burckhardt (1942) an eastern equivalent of the Lebendun nappe. Bianconi (1971), Berger and Mercolli (2006) and Galster et al. (2010, 2012) propose the San Giorgio unit as an equivalent of the Soja unit that has nothing to do with the Lebendun unit.

2.1.14 Osbarino and Valgrande units

The Osbarino unit (named herein after the Pizzo Osbarino, located between the Toce and Isorno valleys, Fig. 2) is dominated by well foliated, leucocratic muscovite–biotite–granite gneiss. It may correspond to a southwestern continuation of the Bosco unit and continue farther west in the Valgrande gneiss. Schmidt and Preiswerk (1905) and Wieland (1966) distinguish this gneiss as the “Lebendun”-Zug and consider it with the Valgrande gneiss as the basement of the Lebendun conglomerates. We propose that the Valgrande gneiss represents the basement of the newly defined Pizzo del Vallone nappe of Mesozoic sediments (Carrupt 2002), whereas the Mesozoic Lebendun conglomerate and “schisti bruni” are considered as a rootless thrust sheet.

2.1.15 The Monte Leone nappe

The Monte Leone gneiss occupies the central part of the Alpe Bosa fold, situated between the Toce, Isorno and Bosco valleys and is separated from the Osbarino and Bosco–Bombogno–Isorno–Orselina units by a sheet of Mesozoic calc-schist, garnet mica schist and marble (Figs. 2, 3). The calc-schist forms only a discontinuous horizon of lenses on the contact with the similar Osbarino gneiss between Monte Crestese and Alpe Agarino (to the west of the Toce valley). The Monte Leone unit in the Isorno valley is composed of a tabular, fine to middle grained biotite–K-feldspar–oligoclase gneiss (Wieland 1966). The Moncucco unit is attributed in accordance with Milnes in Steck et al. (1979) (Milnes and Müller in Trümpy 1980) to the Monte Leone nappe. The 271 ± 4.8 Ma (Rb–Sr age, Bigioggero et al. 1981a, b) old Moncucco biotite–muscovite–K-feldspar–oligoclase-gneiss is exposed in two quarries on the eastern (left) wall of the Valle d’Ossola, in a symmetric position to the axial trace and a paragneiss in the centre of the Vanzone anticline situated behind the Trattoria Isola on the Masera-Beura road (Fig. 2; Steck 2008). The Holzerpitz Mesozoic sedimentary cover of the Monte Leone nappe was studied by Carrupt (2002) is not exposed in the studied area (Fig. 2).

2.1.16 The Valais units

A large mass of calc-schists is exposed to the north of the Monte Leone and Lebendun nappes, representing the sediments of the Valais basin, of mainly Cretaceous and Palaeogene age. 40–35 Ma is given by Paleocene–Eocene Radiolarian in Sion–Courmayeur zone near Sion (Bagnoud et al. 1998). Berger and Mercolli (2006) attributed them to the Grava nappe and another part to the San Giacomo unit. The latter are related to the Sion–Coumayeur zone farther west.

3 Tectonic units surrounding the Lepontine dome (Middle–Upper Penninic, Austroalpine, South Alpine)

This third chapter gives a brief description of the higher tectonic units of the Middle–Upper Penninic, Austroalpine and South Alpine domains that are involved in the structural evolution of the Lepontine gneiss dome. The complete analysis of the structural evolution of these internal Alpine tectonic units lies outside this study.

3.1 The Ruginenta and Camughera units

The Ruginenta and Camughera units (Steck 2008) are in accordance with Milnes in Steck et al. (1979) (Milnes and Müller in Trümpy 1980) correlated respectively with the Berisal–Upper Stalden and Siviez–Mischabel nappes (Escher et al. 1997; Steck et al. 2001; Steck 2008). Both units are composed of strongly foliated coarse-grained, biotite augengneiss and polycyclic basement gneiss. The Carboniferous and Triassic Salarioli sedimentary cover of the Ruginenta basement (Steck 2008) is not exposed in the herein studied area. Sartori et al. (2006) and Genier et al. (2008) suggest that the Upper Stalden and Berisal gneiss represent the basement of the Zone Houillère.

3.2 The Monte Rosa nappe

The Monte Rosa nappe, exposed to the west of the area described in this paper, was studied in detail by Bearth (1952) and between the Ossola valley and the Loana valley by Reinhardt (1966). The Monte Rosa nappe is composed in the southern steep belt of a coarse-grained biotite–K-feldspar–oligoclase augengneiss. It is dated by Pawlig and Baumgartner (2001) (U–Pb zircon age) at 302 ± 6 Ma. On the left side of the Valle d’Ossola, in the Rio di Menta valley, it contains a band of staurolite–kyanite–garnet–muscovite–biotite schist that reveals the F3 anticlinal fold structure in the root of the Monte Rosa nappe (dashed lines on Fig. 2, stereogram on Fig. 6; see Reinhardt 1966; Steck 1984). No relicts of the Eocene high-pressure metamorphism have been found in the root zone of the Monte Rosa nappe between the Toce River and Locarno.

Fig. 6

Steregrams of selected Alpine fold structures in the Lepontine gneiss dome (equal area projection, lower hemisphere): the Monte Rosa F3 anticline, the Maggia F4 syncline, the Alpe Bosa fold F4a, the Wandfluhhorn fold F4b, the Masera syncline F6 and the Salmone anticline F6 (see localities – on Figs. 2 and 7). Symbols for schistosity and axial surface represent the poles to these planar structures

3.3 The Antrona and Zermatt–Saas Fee zones

These two units are composed of Alpine ophiolites with eclogite relicts (Colombi 1989; Pfeifer et al. 1991). The 163.1 ± 2.4 and 158 ± 17 Ma old Antrona ophiolite (SHRIMP U–Pb zircon ages, Liati et al. 2005) is cut by the Centovalli fault to the south of Druogno in the Valle Vigezzo. In contrast, the 164 ± 2.7 and 163.5 ± 1.8 Ma (SHRIMP U–Pb zircon ages, Rubatto et al. 1998) old, Early–Late Jurassic, Zermatt–Saas Fee ophiolites continue farther east on the southern border of the Monte Rosa gneiss, up to the Maggia alluvial delta, and ends there, together with the Monte Rosa nappe, and the Sesia and Canavese zones being cut by dextral faults (“Riedel faults”) of the Centovalli and Tonale fault system (Pfeifer et al. 1991). Gebauer (1999) and Amato et al. (1999) dated the Middle Eocene high-pressure metamorphism of the Zermatt–Saas Fee zone to be around 50–40 Ma. The structure and stratigraphy of the Zermatt–Saas Fee and Antrona ophiolitic nappes exposed to the west of the Lepontine gneiss dome was described by Bearth (1967, 1973), Dal Piaz (1965), Sartori (1987). The metamorphic petrology and geochemistry of the mafic rocks of the Antrona and Zermatt–Saas Fee units, exposed in the root zone between Antronapiana to the west and Locarno, was studied by Colombi (1989).

3.4 The Sesia zone

The Sesia zone is composed of polycyclic basement gneisses and intruded by late Carboniferous to Early Permian granites and gabbros (Reinhardt 1966; gabbro d’Anzasca, 288 +2/−4 Ma, U–Pb zircon age, Bussy et al. 1998). The gabbro and granite gneisses of the “Maia-Zug” were mapped and described for the first time by Walther (1950) in the area of Arcegno–Losone and according to the mapping by Hans-Rudolf Pfeifer are frequently found on the south side of the Vigezzo valley and Centovalli. These rocks of the “Maia-Zug” seem to correspond to the same zone. Black and white marbles are exposed in the upper Valle di Remo to the south of the Centovalli and near Bedruscio to the west of Arcegno. They represent the probably Mesozoic cover of the Sesia basement zone.

3.5 The Southern Alps

The Southern Alps form the northwestern border of the Adriatic plate, limited to the northwest from the Sesia zone by the alpine Canavese fault. The Southern Alps are composed of the Canavese zone, the Ivrea–Verbano zone and the Strona–Ceneri zone, delimited by the alpine S. Lorenzo–Loro fault, named herein after the localities S. Lorenzo to the north of Ascona and to the west of the Maggia river and the chapel of Loro in the Valle d’Ossola (Fig. 2; Zingg et al. 1990).

3.5.1 The Canavese zone

The rocks of the Canavese zone are together with the southern part of the Sesia zone and the northern border of the Ivrea zone in the neighbourhood of the alpine Canavese and S. Lorenzo–Loro faults strongly deformed into mylonites (Schmid et al. 1989; Zingg et al. 1990). A stratigraphic section through the Paleozoic basement and its sedimentary cover was identified in the Valle Loana. The Canavese zone is composed from south to the north of an amphibolite facies basement gneiss (named Scaredi formation in the Loana Valley) and its autochthonous sedimentary cover, composed of a some decametres thick basal level of probably Permian conglomerate and micro-conglomerate, decimetre to metre thick Triassic white calcite and dolomite marbles, intruded by basaltic dikes and some decametres of a Liassic black sandy marble (Steck et al. 2001). The Canavese zone is attributed according to Ferrando et al. (2004) to the Southern Alps.

3.5.2 The Ivrea–Verbano zone

The mafic main body (“basischer Hauptzug”, e.g. Zingg et al. 1990) of the Ivrea zone is composed of bronzite–diopside–hornblende (±garnet)-anorthite-amphibolites and phlogopite and hornblende lherzolites associated with stronalites (granulite facies quartz–sillimanite–garnet–anorthoclase rocks). Rare marbles are distinguished by the occurrence of diopside and olivine from the greenschist to lower amphibolite facies Triassic marbles of the Canavese zone. The Ivrea–Verbano zone represents a polycyclic lower crust basement, overprinted by a Permian granulite facies high temperature and low-pressure regional metamorphism, dated of 290 Ma by Henk et al. (1997) (U–Pb monazite age). The high temperature Permian crystallisation and chemical homogenisation excludes the radiometric dating of older metamorphic phases. A Tertiary greenschist facies overprint associated to shear zones and folds is observed over 1 km inside of the northern part of the Ivrea–Verbano zone. The Variscan higher amphibolite facies Finero antiform was during the Tertiary alpine compression, together with the S. Lorenzo–Loro and Canavese faults, deformed by an alpine F6 greenschist facies fold (Fig. 2; Steck and Tièche 1976). Wolff et al. (2012) discuss the cooling and exhumation history of the Ivrea–Verbano Zone using K/Ar dating of mica and illite-rich fault gouges as well as zircon fission track and (U–Th)/He thermochronology, including the adjacent Sesia–Lanzo Zone and Penninic nappes. The exhumation of the Ivrea Zone took place in three steps. (A) During the Middle Jurassic time the Ivrea zone was exhumed to shallow crustal position by crustal extension. (B) A minor cooling event of the Late Eocene is dated by ~38 Ma zircon fission track ages. (C) The final exhumation is documented by ca. 14 Ma zircon (U–Th)/He ages and a 12.8 Ma K/Ar fault gouge age. The latter fault gouge age is in accordance of the 14–4 Ma age of fault gouges of the Centovalli Line obtained by Surace et al. (2011). The tectonics of the Ivrea zone was discussed by Zingg et al. (1990), Handy and Zingg (1991), Henk et al. (1997) and Handy et al. (1999). A further discussion of the tectonics of the Southern Alps lies outside of this study.

4 Alpine structures and metamorphism

4.1 The NW-verging Alpine nappe stack and F1–F3 folds

The NW-verging stack of Alpine nappes is best exposed in the classic Simplon transect to the west of the Toce dome and in the Simplon railway tunnel (Schardt 1903; Schmidt and Preiswerk 1905; Argand 1911; Milnes 1973; Steck et al. 1979, 1997; Steck 1984, 1990, 2008, Fig. 5; Escher et al. 1993; Genier et al. 2008; cross-section 3 on Fig. 3). Units such as the NW-directed Aar and Gotthard folds, the X-nappe, the Verampio, Antigorio, Monte Leone nappes have been formed by ductile detachment of the upper European crust during its underthrust to the SE below the upper Penninic and Austroalpine thrust sheets and the Adriatic plate (Steck 1984, 2008; Escher et al. 1993; Epard and Escher 1996; Escher and Beaumont 1997). The ductile deformation occurred at temperatures of 300 °C in the Lötschen valley, the northern border of the Aar massif fold and over 650 °C in the Verampio window and the southern steep belt (Fig. 1; Frank 1983; Engi et al. 1995, 2001; Burri et al. 2005; Herwegh and Pfiffner 2005). Up to three schistosities (S1–S3) were developed during a progressive rotational deformation as axial surface schistosities S1 and S2 and as younger steeper SE-dipping schistosity S3 of the fold nappes and thrusts (Figs. 2, 3, 6, 7, 8; Steck 1984; Matasci et al. 2011). Matasci et al. (2011) described in the Pizzo Castello section the F3 folds with their axial surface that crosses as a discordant structure the Antigorio gneiss, its autochthonous Mesozoic Teggiolo sedimentary cover and the higher Sambuco (Maggia) basement gneiss (cross-section 2 on Fig. 3). A SE-plunging stretching lineation named XI (Steck 1980, 1984, 1990), with top-to-NW shear indicators parallel to a dominant direction of simple shear, was developed on the XY schistosity planes S1–S3. The autochthonous Mesozoic sedimentary cover sequences, the Teggiolo sediments of the Verampio and Antigorio nappes, the Campolungo sediments of the Simano nappe and the Cristallina sediments of the Maggia nappe were accumulated in the frontal NW-verging F2 fold hinges by the simple shear dominated thrusting (Figs. 2, 3). The synmetamorphic middle Penninic Siviez Mischabel nappe emplacement has been dated to 40–35 Ma (⁴⁰Ar/³⁹Ar white mica in Triassic quartzites, Markley et al. 1998). The Lower Penninic nappes and the Aar and Gotthard basement folds are younger, also younger than the Cimalunga and Adula high-pressure metamorphism, dated by Becker (1993) (Sm–Nd mineral ages) and Herwartz et al. (2011) (Lu–Hf mineral ages) at about 42–37 Ma. This lower Pennine nappe emplacement must also be older than the 32 Ma zircon ages in the Adula nappe (Liati et al. 2009) and the 33–29 Ma porphyritic, 29–25 Ma aplitic and pegmatitic dikes and 32–22 Ma migmatites of the southern steep belt (Romer et al. 1996; Schärer et al. 1996; Rubatto et al. 2009; see Table 2). More complex are the structures and evolution of the higher and older Monte Rosa, Zermatt–Saas Fee, Antrona and Sesia thrust sheets, not treated in this study.

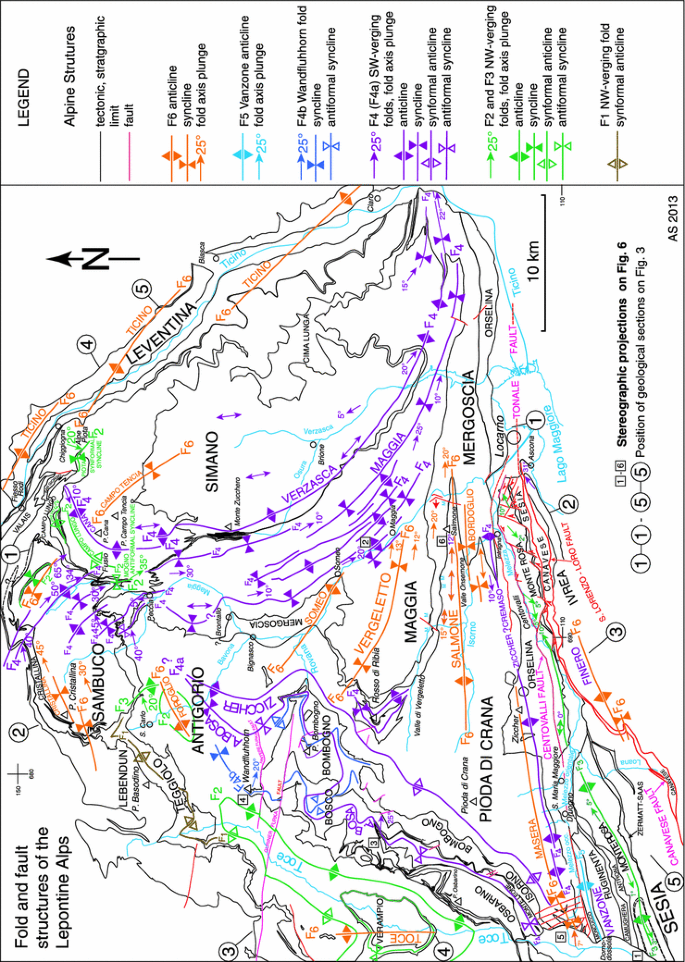

Fig. 7

Overview of the axial traces of Alpine fold structures in the Lepontine gneiss dome (extracted from Fig. 2). Note that only a selection of axial traces of the F2–F3 recumbent folds are represented on this figure. The cross-sections on Fig. 3 give more complete information on these phases of folding. Anticline is named on Figs. 2 and 7 an upward closing fold and syncline is named a downward closing fold at the moment of their formation. A synformal anticline is an over turned anticline and an antiformal syncline an over turned syncline. The stratigraphic age relationships can only be used for the definition of anticlines and synclines in the case of F1–F3 folds that deform the Paleozoic basement-Mesozoic sedimentary cover contacts

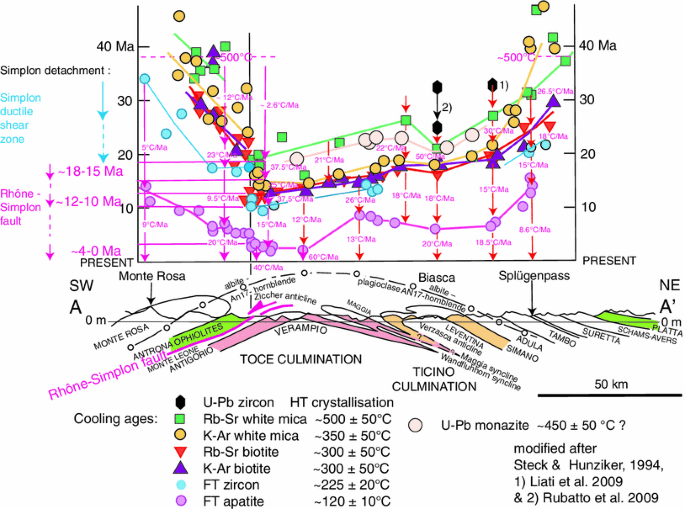

Fig. 8

Cooling ages and rates of the Lepontine gneiss dome (A–A’ on Fig. 1) modified after Fig. 12 in Steck and Hunziker (1994; Campani 2011), completed by U–Pb zircon dating of Liati et al. (2009) and Rubatto et al. (2009). (1) High temperature crystallisation (resetting) of zircon in the Adula nappe (Liati et al. 2009). (2) Crystallisation of zircon in Tertiary migmatite leucosome from Bellizona (20 km to the south of profile A–A’; Rubatto et al. 2009). Note that the progressive cooling below 500 °C started during and after Lower Penninic nappe emplacement some 38 Ma ago at the western and eastern border of the Lepontine dome and was followed by the rapid cooling some 26 Ma ago of the Verzasca F4 anticline (Hurford 1986). 32 Ma zircon U–Pb resetting in the Adula nappe and 32–22 Ma zircon crystallisation in the southern steep belt testify of temperatures of over 650 °C until 22 Ma (Rubatto et al. 2009). Accelerated cooling continued by uplift and erosion of 50 °C/Ma between 23 and 18 Ma of the Ticino dome to the E and followed by the rapid cooling of the Toce dome to the W, with phases of accelerated cooling by detachment on the Rhone–Simplon low angle normal fault of 37.5 °C/Ma between 18–15 and 12–10 Ma and 40 °C/Ma since 4 Ma. The U–Pb monazite ages obtained by Köppel et al. (1981) suggest a cooling (resetting?) temperature of ~450 ± 50 °C (Steck and Hunziker 1994). The Antigorio and Simano nappes are distinguished in red and orange–yellow colour on the cross-section A–A’. They occur in the same tectonic position in the Alpine nappe stack, but the structural relation of the two units is still problematic

Table 2 Chronology of the Alpine folding phases compared with the Tertiary sedimentation, structural, magmatic and metamorphic events of the Central Alps, modified after Steck et al. (2001) and Steck (2008), with data from Becker (1993), Brouwer et al. (2005), Herwartz et al. (2011) and Rubatto et al. (2009)

Four deep zones of underthrust, extrusion and accretion were developed from the south to the north in the Alpine orogeny (Fig. 4; Table 1).

• 1. 1. Alpine subduction started in the Western Alps with the underthrust of the Sesia zone below the Canavese zone of the Southern Alps (Dal Piaz et al. 2001; Babist et al. 2007; Handy et al. 2010). It is dated by its Late Cretaceous 75–65 Ma high-pressure metamorphism (Duchêne et al. 1997; Ruffet et al. 1997; Rubatto et al. 1998; Konrad-Schmolke et al. 2006). The extrusion by 63 Ma and accretion of the Sesia zone on the Canavese zone and Southern Alps was followed by

• 2. The underthrust of the Piemont oceanic crust starts with the underthrust, extrusion and accretion of the southern Tsaté unit followed by the up to 100 km deep underthrust of the Zermatt Saas Fee and Antrona ophiolites with their Eocene 50–40 Ma eclogitic metamorphism (with coesite, Reinecke 1998; Gebauer 1999; Amato et al. 1999; Lapen et al. 2003), situated to the north of the Tsaté unit and the Austroalpine Sesia zone. The beginning of subduction of the Piemont ocean floor was probably older than the metamorphism as indicated by youngest Late Cretaceous wildflysch deposits in the Gets nappe (Bill et al. 1997, 2001) and Arosa unit (Handy et al. 2010).

• 3. The Valais underthrust is characterised by calc-schists (contourite deposits) with their high pressure-low temperature metamorphism, that must be of about 40–35 Ma, younger than the Palaeocene–Eocene Radiolarians in carpholite–chloritoid-bearing Valais metasediments of the Central Alps (Bagnoud et al. 1998; Bousquet et al. 2002), situated between the European Monte Leone nappe and the Briançonnais Zone Houillère, Berisal and Siviez Mischabel nappes. Hammerschmidt and Frank (1991) determined 3T-polytype phengite relicts of a high-pressure metamorphism overprinted by a regional amphibolite facies metamorphism, with 2 M-polytype muscovite in the Monte Leone nappe, supporting a deep underthrust of this unit.

• 4. The deep Adula, Cimalunga and Mergoscia underthrust occurred inside the European crust between the Antigorio and Simano unites, to the north, and the Bosco–Bombogno–Isorno–Orselina, Osbarino, Monte Leone and Maggia units, to the south. ~40 Ma Sm–Nd and Lu–Hf ages were obtained for the Alpe Arami and Cimalunga eclogites (Becker 1993; Brouwer et al. 2005; Herwartz et al. 2011). This model of the alpine convergence of Adria with the European plate is in agreement with the plate-kinematic model proposed by Handy et al. (2010).

4.2 The transverse, SW-verging Verzasca, Maggia, Ziccher, Alpe Bosa and Wandfluhhorn F4 folds

Post-nappe transverse structures may be described as a succession of SW-verging F4 folds: the Verzasca anticline, Maggia syncline, Ziccher anticline, Alpe Bosa (F4a) and Wandfluhhorn (F4b) synclines (Figs. 2, 3, 6, 7, 8). The fold axis F4 developed parallel to the pre-existing XI stretching lineation of the top-to-NW directed nappe shearing. This development of folds parallel to an older stretching lineation is difficult to explain. Klaper (1988) according to Cobbold and Watkinson (1981) suggested a mechanism in which the rheological bending anisotropy of a folded layer may control the orientation of younger fold axis. The top-to-N shear indicators of the Verzasca anticline are rotated in its lower limb to a reversed top-to-S shear during folding (Allaz et al. 2005), whereas in the case of the Alpe Bosa and Wandfluhhorn NE-closing synclines, the top-to-NW shear indicators of the Antigorio gneiss in the Toce valley were rotated around the fold axis, resulting in a reversed top-to-E shear in the upper fold limb in the Bosco region. The staurolite of metapelites of the Bombogno, Campo Tencia and Sambuco units crystallises before and after the transverse F4 folding as also observed by Galli et al. (2007) (F3 in Galli et al.). There is no indication of an important retrograde greenschist facies crystallisation during this phase of deformation, as proposed by Merle et al. (1986, 1989). The amplitude of the transverse folds increases drastically from north to south with the increase of the metamorphic grade and rock ductility with depth. The large Cana F4-arch or vault of the Campo Tencia region develops southwards to the SW-verging Verzasca anticline exhibiting a style of similar folding (Figs. 3, 7). The several hundred metres amplitude of the Maggia transverse folds in the northern Sambuco spoon reaches over 5,000 m in the Someo region. The Ziccher and Alpe Bosa folds start to the north somewhere in the Bavona valley and the amplitude may be over 20 km north of the Melezzo and Melezza rivers (Valle Vigezzo and Centovalli) to the south. The axial traces of the Alpe Bosa and Wandfluhorn N-closing backfolds overprint the older Antigorio fold and are not identical with the F2 axial trace of the Antigorio nappe as proposed by Maxelon and Mancktelow (2005). The geometry of the NW-directed isoclinal Antigorio fold nappe with its frontal autochthonous Mesozoic Teggiolo sedimentary cover is well exposed in the deeply eroded Cairasca and Devero valleys sections. The isoclinal Antigorio F2 fold with its root in the Toce valley is situated below the younger 25° SE-dipping F4 axial surface of the Alpe Bosa fold (Fig. 2 and cross-section 3 on Fig. 3; Gerlach 1869, 1883; Milnes 1973; Steck 1984, 2008; Fig. 5). The transverse folds (F4) are in the southern steep belt overprinted by ductile dextral shear (Fig. 1). It is concluded that the transverse folding F4 predates the dextral shear and the S-directed backfolding F5 and rotation to vertical of the southern steep belt (Figs. 1, 2, 3, 7; Steck and Hunziker 1994; Steck 2008).

4.2.1 The Wandfluhhorn double fold

Schmidt and Preiswerk (1905), Grütter (1929), Preiswerk et al. (1934), Hunziker (1966) and Hall (1972) described the Wandfluhhorn fold. Klaper (1988), Steck and Hunziker (1994) and Steck (2008) interpreted it as a N-closing backfold. New observations by Franco Della Torre on map sheet Bosco/Gurin revealed a N-closing complex backfold structure created by two superposed backfolds. The older, Alpe Bosa F4a fold is deformed by the younger Wandfluhhorn F4b, also S-verging fold (Figs. 3, 6, 7).

4.3 Dextral shear, S-verging folding F5, uplift of the Lepontine dome and formation of the southern steep belt

The southern steep belt of the Central Alps between Locarno and Domodossola is overprinted by an up to 8 km wide ductile dextral shear zone formed under amphibolite facies conditions. The shear zone is folded after and during continuation of dextral shear by the Vanzone backfold F5, crosses to the west the Simplon pass and continues in the frontal part of the Siviez-Mischabel and Pontis nappes in the Rhone valley to the west of Visp. It is the dextral ductile Simplon shear zone (represented in blue colour on Fig. 1; Steck 1980, 1984, 1990, 2008; Steck and Hunziker 1994). Another branch of the ductile shear zone follows the southern border of the Monte Rosa nappe and continues in the low angle extensional shear zone of the Valtournanche (Vannay and Allemann 1990; Handy et al. 2005). The dextral and extensional Rhone–Simplon fault developed since 18 Ma under brittle, and in its hot footwall, ductile conditions (represented in red colour on Fig. 1; Steck and Hunziker 1994) following the ductile extension on the older Simplon shear zone (represented in blue colour on Fig. 1). The older 34–18 Ma extensional structures of the ductile Simplon shear zone are hidden and no more distinguishable in the younger 18–3 Ma ductile structures of the Rhone–Simplon fault footwall (Figs. 1, 8; Steck and Hunziker 1994). Already Argand (1911, 1916) distinguished two phases of S-verging backfolding in the Monte Rosa massif that succeeded the NW-directed nappe emplacement. The younger phase is Argand’s Insubric phase of backfolding. The root of the Vanzone backfold F5 is visible on Figs. 1, 2, 7. This SE-verging backfold was formed by a late conjugate movement opposite to the NW-directed Penninic and Helvetic thrusts (Steck 1984, 1990; Steck and Hunziker 1994; Escher and Beaumont 1997; Table 2). Its formation was accompanied by the uplift of the Lepontine dome since about 30–25 Ma (Hurford 1986; Hunziker et al. 1992; uplift (a) on cross-sections 2 and 3 of Fig. 3). Structural and petrological work shows that the Vanzone backfold was formed under amphibolite facies conditions after and during late dextral shear on the Simplon ductile shear zone (Table 2; Steck 1984; Steck and Hunziker 1994; Keller et al. 2005). This means that the southern steep belt and backfold F5 were created in a dextral shear zone of the Insubric line in the zone of continental collision.

4.4 The Oligocene porphyrites (andesites), pegmatites, aplites and migmatites

Porphyrites (andesitic dikes) are intruding the Canavese and Sesia zone along the Canavese fault. They are dated of 31–29 Ma (Steck and Hunziker 1994; Romer et al. 1996; Schärer et al. 1996; Table 2). They belong to the 33–29 Ma mantle-derived magmatism like the Bergell, Biella and Traversella granites and tonalites and Biella volcanic suite (Fig. 1; Beccaluva et al. 1983; Trommsdorff and Nievergelt 1983; Reusser 1987; Trommsdorff 1990; Romer et al. 1996; Berger et al. 2012; Kapferer et al. 2012). Muscovite–biotite pegmatites and aplites crosscut the southern steep belt between Valle d’Ossola and the Bergell. They are widespread in the Monte Rosa nappe and Orselina unit between the Valle d’Ossola and Locarno. They occur also in the Antrona and Zermatt–Saas ophiolites and more northern regions, the Monte Leone gneiss in the Valle dell’Isorno, the Pioda di Crana, Mergoscia, Maggia and Simano units (Stern 1966). They are the product of crustal melting and were dated by Romer et al. (1996) and Schärer et al. (1996) to 29–25 Ma. The ages are similar to the ~32–22 Ma SHRIMP U–Pb zircon ages of two leucosome samples of Tertiary migmatites from the region of Bellinzona and Valle d’Arbedo (Rubatto et al. 2009; Fig. 8; Table 2). Tertiary migmatites are common in the southern steep belt between the entrance of the Onsernone valley to the west and the Bergell to east (Figs. 1, 2; Hänny et al. 1975). They occur often in Tertiary shear zones, where the Alpine age is undeniable. However, the distinction from the older Variscan migmatites of the polycyclic basement is difficult and the regional expansion of the zone of Tertiary migmatites is still a matter for debate (Stern 1966; Wenk 1970; Hänny et al. 1975; Romer et al. 1996; Schärer et al. 1996; Burri et al. 2005). Dextral shear in the southern steep belt occurred before, during and after the Oligocene intrusions (Table 2). The deep crustal melting was related to the formation of the dextral shear zone of the southern steep belt, as discussed by Schärer et al. (1996), Romer et al. (1996) and Rosenberg (2004). It is probable that the shear deformation supported fluid migration and supply, creating the high water pressure necessary for the Tertiary melting of pre-existing (dehydrated) Variscan migmatites, amphibolite facies metapelites and granitoides (Schärer et al. 1996; Burri et al. 2005; Rubatto et al. 2009).

4.5 The Rhone–Simplon, Centovalli and Tonale faults

The dextral and extensional Rhone–Simplon fault developed from 18 to 3 Mas under brittle, and in its hot footwall, ductile conditions, following the ductile extension on the older Simplon shear zone (Fig. 1, 8; Table 2; Steck and Hunziker 1994). The Vanzone back fold and the root of the Moncucco, Ruginenta, Camughera gneisses and the Antrona ophiolites are cut between Trontano, east of Domodossola and Druogno at an angle of up to 20° by the anchizonal Centovalli fault (Fig. 2). The latter is parallel to the Orselina zone to the north. The Centovalli fault follows, between Santa Maria Maggiore and Intragna the northern contact of the Monte Rosa gneiss. Conjugate W-directed dextral and N-directed sinistral faults are associated with the dextral Centovalli fault and indicate NW–SE compression in a dextral zone of transpression (Figs. 2, 7; Wieland 1966; Matthias Tischler, personal communication; Steck 2008). Surace et al. (2011) dated the clay minerals of 9 fault gouges of the Centovalli line with the K–Ar method of 14–4 Ma, completing the 9.1–8.3 Ma ages of Zwingmann and Mancktelow (2004). The Monte Rosa gneiss, Zermatt–Saas ophiolites, Sesia and Canavese zones are cut and end between Intragna and Locarno on W-NW-striking dextral faults. Also the Ivrea zone ends south of Locarno on the W-striking dextral Tonale fault and forms there a 31–60° NE-plunging, probably Tertiary F6 anticline. The disappearance of these zones must also be explained by a late uplift of southern blocks on these dextral faults (indicated as normal fault displacement b) on cross-sections 2, 3 and 6 of Fig. 3).

4.6 The Ticino and Toce dome, late F6 folds and cooling history of the Lepontine dome

The amphibolite facies transverse folds and Vanzone backfold were overprinted during continuation of Alpine compression by younger open F6 folds, i.e. the greenschist facies Masera (Figs. 2, 7 and stereogram on Fig. 6), Cristallina, Campo Tencia, Ticino, Toce, Someo, Vergeletto, Salmone (stereogram on Fig. 6), Bordoglio and Finero F6 folds. The younger Masera F6 syncline was formed after cooling by uplift and erosion under greenschist facies conditions in contrast to the neighbouring and older amphibolite facies Vanzone F5 anticline (Steck 2008). The squeezing of F4–F6 folds in the southern steep belt is illustrated on Fig. 2 and the cross-sections 1 and 2 of Fig. 3. The Cristallina backfold is probably of a similar age as the Aar Massif–Glishorn backfold (Figs. 1, 2; Table 2) dated to about 10 Ma by Steck (1984), Steck and Hunziker (1994) and Campani (2011). It may be interpreted as a SW-verging fold conjugate to the 9–4 Ma NW-directed Jura thrust (Table 2). The cooling history of the Lepontine gneiss dome and its Ticino and Toce culminations is constrained by radiometric data (Fig. 8; Hurford 1986; Hunziker 1969; Hunziker and Bearth 1969; Hunziker et al. 1992; Steck and Hunziker 1994; Liati et al. 2009; Rubatto et al. 2009; Garzanti and Malusà 2008). The cooling by uplift and erosion started after a temperature peak reached some 38–22 Ma ago. The 32–30 Ma Bergell tonalite to the east of the Lepontine gneiss dome intruded at depths of about 17 km. It cooled to 300 °C some 28 Ma ago by rapid uplift of about 7 km in 2 Ma (uplift rate ~3.5 mm/a) concomitant with erosion (Reusser 1987). The progressive cooling of the Lepontine area to temperatures below 500 °C some 38 Ma ago is indicated by Rb–Sr white mica ages on the eastern and western border of the dome structure. It is followed by the rapid cooling below 500 °C of the Verzasca anticline some 26 Ma ago (Fig. 8; Hurford 1986) and an accelerated cooling of 50 °C/Ma of the Ticino culmination between 22 and 17 Ma (Steck and Hunziker 1994; Rubatto et al. 2009). This was followed by the progressive cooling of the Toce culmination, farther west, characterised by phases of accelerated cooling of 37.5 °C/Ma between 18–15 and 12–10 Ma and of 40 °C/Ma after 4 Ma. The latter cooling was related to the detachment on the brittle Rhone–Simplon low angle normal fault (Figs. 1, 8; Steck and Hunziker 1994; Campani 2011). The late cooling after 10 Ma of the Ticino, Maggia and Toce valleys constrained by apatite FT ages is discussed by Garzanti and Malusà (2008). The en echelon position of the three crest lines F6 of the Ticino dome eroded by the Ticino River suggests a genetic relation between erosion and folding (Figs. 2, 7, 8). The direction of compression perpendicular to the fold axis is oblique to the Ticino River. The position of the Ticino dome and in a similar way the Toce dome controlled probably the erosion of the two transverse valleys. The interdependence of updoming and valley formation may be complex, as the rapid cooling by uplift and erosion of the dome structures started some 22 Ma ago and was still active after the last Alpine glaciation, some 10,000 years ago.

4.7 Late Alpine and active normal faults

N-dipping late normal faults cut the Finero anticline (Steck and Tièche 1976). A late uplift of the Ivrea zone relative to the Sesia zone during the last 2 Ma has been dated using the apatite fission track method (Yvon Fazis, personal communication).

The Guriner Furka and Hintere Furka faults, to the south of the Wandfluhhorn are active normal faults that displace the glacial landforms, testifying to a phase of late Alpine extension (Fig. 2; Table 2; Steck et al. 2001). Epidote–chlorite–quartz veins in the Guriner Furka fault testify also to an older lower greenschist facies event.

5 Discussion

5.1 Overall history of the study area

The complex structures of the Central Alps result from the Tertiary southeast directed underthrust and collision of the European plate with the Adriatic plate indenter. The Helvetic nappes and the Lower–Middle Penninic basement fold nappes were formed by ductile detachment of the upper European crust, during its SE-directed underthrust below the upper Penninic and Austroalpine thrust sheets and the Adriatic plate. It is not possible to estimate the NW–SE shortening of the Alpine nappe stack because of material lost by erosion and subduction (Steck 2008). The style of deformation of the basement gneisses was controlled by their temperature-dependent rheology. It is suggested that the anchizone-greenschist facies limit, corresponding to a temperature of about 300 °C, represents an important rheological boundary in the quartz-rich granitic European crust that determined the position of the frontal NW-verging Belledonne, Mont Blanc and Aar F2 basement folds (Steck 1968, 1984; Voll 1976). The en echelon position of the frontal folds was controlled by a slightly oblique direction of compression relative to the 300 °C isotherm trace (Fig. 1; Steck et al. 1989, 1999, 2001). The Rawil depression situated between the Mont Blanc and Aar en echelon basement folds, was overprinted by WNW-oriented dextral strike-slip faults (e.g. Rezli fault zone, Gasser and Mancktelow 2010) during the younger, brittle, Rhone–Simplon fault deformation. The Lower Penninic Antigorio, Simano and Maggia basement fold nappes accumulated by ductile shear on their frontal NW-verging F2 fold hinges their autochthonous Mesozoic sedimentary cover, the Teggiolo, Campolungo and Cristallina sedimentary covers, respectively. The high ductility of the amphibolite facies Lepontine gneisses deformed under temperatures of 550–650 °C allowed the younger formation, SW-directed overthrust and squeezing of the transverse Verzasca, Maggia, Ziccher, Alpe Bosa and Wandfluhhorn folds below the front of the west driving Adriatic indenter. Already Steck et al. (2001) and Maxelon and Mancktelow (2005) (Fig. 25 and 26) recognized the spectacular over 20 km amplitude of the Pioda di Crana basement backfold in the Antigorio nappe (Ziccher anticline on Figs. 2, 3, 7). It is however important to note that the axial traces of the F4a Alpe Bosa and F4b Wandfluhhorn north closing folds are not identical with the axial surface of the frontal NW-verging Antigorio F2 fold-nappe as proposed by Maxelon and Mancktelow (2005). The isoclinal NW-verging F2 fold geometry of the Antigorio recumbent fold nappe, with its frontal Mesozoic sedimentary cover, the Teggiolo zone, is undeniably preserved in the natural Valle Cairasca, Valle Devero and Simplon railway tunnel geological sections (Gerlach 1869, 1883; Schardt 1903; Schmidt and Preiswerk 1905; Milnes 1973, 1974; Steck 1984, 2008; Fig. 5; geological section on Fig. 3). The Pioda di Crana (Ziccher anticline) S-verging backfold is a younger east plunging F4 structure developed farther east on the upper limb of the pre-existing, NW-verging Antigorio F2 fold nappe. It was formed during SW-directed overthrust of higher Penninic, Austroalpine and South Alpine units tangent to the Canavese fault in the southern root zone of the Central Alpine nappes.

5.2 Importance of the Maggia transverse structure

The most controversial question concerns the significance of the Sambuco–Maggia and Wandfluhhorn transverse structures. Is the Maggia transverse structure a syncline, as interpreted by Preiswerk (1921), Preiswerk et al. (1934); Niggli et al. 1936), Steck (1998, 2008) and Berger et al. (2005), or a root zone between a higher Simano nappe and the lower Antgorio nappe as discussed by Bossard in Preiswerk et al. (1934), Simpson (1982), Grujic and Mancktelow (1996), Maxelon and Mancktelow (2005) and Rütti et al. (2005)? The structural map (Fig. 2) and the cross-sections (Fig. 3) show that the Sambuco spoon and the Maggia syncline are two klippes of a single Maggia nappe which was situated on top of Mesozoic sediments in the case of the Sambuco spoon and on top of the deeper Mergoscia and Antigorio nappes to the west and the Cima Lunga and Simano nappes to the east. Berger et al. (2005) consider the Sambuco spoon and the Maggia syncline as two klippes, but the former belonging to the European and the latter to the Briançonnais domain. The affinity of the Mesozoic Cristallina cover of the Sambuco unit to the Helvetic sedimentary covers of the Gotthard and Mont Blanc massifs suggests that the Sambuco unit with its southern continuation in the Maggia unit belong together to the European domain.

The question of a Maggia root or a Maggia syncline is therefore still under discussion. It depends on Topic (A). The interpretation of the geological structures around Fusio, mapped by Keller et al. (1980) and Kröner (2000) and on Topic B) The geometry of the internal fold structures of the Maggia nappe.

Concerning A), it is to note that the Triassic to Cretaceous sediments of the Mogno syncline form an autochthonous contact with the staurolite–kyanite–garnet mica schist of the Campo Tencia unit. The 20°–40° south-east plunging axis indicate the antiformal geometry of the Mogno syncline (Figs. 2, 7). The twofold hinges of the antiformal syncline are also corroborated by the southern continuation of Triassic dolomite as two 50 and 60 m thick layers cut at depth at an altitude of 1,130 m and the Swiss map coordinates (693.400 km/141.900 km and 694.410 km/141.480 km) by the Valle di Prato–Camblee (Valle Maggia) water tunnel (unpublished data of E. Dal Vesco, reported by Franz Keller). The constructed fold axes of the northwestern antiform gives a value of ≥146°/≤28° and of the southeastern antiform of ≥141°/≤53 and on the outcrop we measured an axis plunging at 35° towards 133° (Fig. 2; Fig. 3 in Steck 1998). This geometric feature confirms that the Mogno syncline is situated as an antiform in front and on top of the Simano nappe and below the Sambuco unit (cross-section 1 on Fig. 3; Steck 1998: Fig. 3) and cannot be identical with the synformal Piota syncline of the Valle Leventina at the base of the Simano unit, as postulated in the models of Grujic and Mancktelow (1996) and Maxelon and Mancktelow (2005). This geometric relation, between the Simano and Sambuco units corroborate the model of the overturned fold hinge at the Campolungo pass by Preiswerk (1919) (“Die überkippte Tauchfalte am Campolungopass…”). A large anticline, the Cana anticline (Figs. 2, 3), situated between the antiformal Mogno syncline, to the west, and the synformal Piota syncline, to the east, is responsible for the NW-directed overturning of the frontal Campolungo and Prevat F2 fold hinges (synformal anticlines) of the Simano nappe. The Sambuco unit is consequently situated to the north and on top of the deeper Simano nappe (geological profile 1 on Fig. 3). Other questions are still open:

(1) What is the structural relation between the Antigorio and Simano nappes? The cross-sections 4 and 5 on Fig. 3 and the cross-section A–A’ on Figs. 1 and 8 illustrate the same tectonic position of the two nappes in the alpine nappe stack. But the two nappes are different in the composition of their basement gneisses and especially the different sedimentary cover sequences. The Teggiolo zone possesses a typical Helvetic sedimentary sequence, whereas the Triassic dolomites and the calc-schist of the Campolungo zone have a Penninic affinity (Table 1).

(2) The limit between the Maggia and Simano gneiss is defined by the decametre thick band of probable Triassic quartzite with centimetre (Upper Jurassic?) calcite-marble layers of the “Pertusio Zug”, exposed from Monte Zucchero to the south, to east of Peccia to the north. The contact between the Mergoscia and Maggia units is identified between Someo and Brontallo by marble lenses of probable Upper Jurassic age of the Someo zone. The limit between the Maggia and Antigorio nappes between Brontallo and Peccia is not defined by Mesozoic sediments, and is thus uncertain.

Topic B) concerns the internal fold structures of the Maggia unit. Detailed mapping and analysis of the internal fold structures of the Maggia nappe indicate the geometry of a synclinal structure (cross-sections 4 and 5, Fig. 3). The F4 fold structures of the Valle di Coglio (Giumaglio)–Val d’Osura and Valle di Salto (Maggia) sections through the Maggia and Simano nappes illustrated by Steck (1998), Burri (2005) and unpublished structural data of the Maggia map sheet of the Geological Atlas 1:25,000 by Paul Gräter (†) are shown on the structural map (Fig. 2) and cross-sections 4 and 5 on Fig. 3, as well as stereogram on Fig. 6. The Maggia unit forms a big syncline, characterised by an alternation of second order F4 syn- and anticlines partly recognizable by the folded Cocco intrusion (Fig. 6, stereogram , and Fig. 7) Also the northern Sambuco spoon overlies as synformal anticline deeper Mesozoic sediments. The depth of the Maggia syncline hinge is unknown and roughly estimated to be about 5 km to the east of Someo and Maggia (Fig. 3, sections 1, 4 and 5, and Fig. 8, section A–A’). The petrological similarity, and the same late Carboniferous age, of the Matorello and Cocco granitoids are in agreement with the model that the Sambuco spoon and the Maggia syncline are two klippes of the same Maggia nappe (Bussien et al. 2011). It is suggested that the SW-verging F4 transverse Sambuco–Maggia fold forms, together with the frontal, NW-verging F2–F3 folds of the Antigorio and Simano folds, a type twofold interference pattern after the definition of fold interference structures by Ramsay (1967) (Fig. 2). Such F2–F3/F4 fold interference patterns are common in the region of Sambuco and Fusio. The bend of the F4 fold axis plunging from 45° east to 30° south in the southern Sambuco unit near Fusio could be explained by this fold interference pattern. It is also possible that, in the Sambuco unit, the F4 fold developed parallel to the pre-existing F2 or F3 fold hinges, especially in the north-western part of the Sambuco klippe (Galli et al. 2007) and that the rheological bending anisotropy of the folded layer controlled the orientation of the younger fold axis (Cobbold and Watkinson 1981).

The Lepontine gneiss dome, limited to the southwest by the ductile Simplon shear zone and the younger Rhone–Simplon fault, from the Dent Blanche depression, represent together a late pull-apart structure in a zone of dextral transpression in front of the Adriatic indenter (Fig. 1; Table 2). The total amount of SW-directed dextral translation of the Adriatic indenter against the European Plate, estimated of over 100 km corresponds to the sum of displacements by the SW-verging Verzasca, Maggia, Ziccher and Alpe Bosa and Wandfluhorn folds measured of about 30 km, the SW-extension of over 60 km on the ductile Simplon shear zone and the detachment of about 14 km on the Rhone–Simplon low angle normal fault (Steck 1984, 1990, 2008; Mancktelow 1985, 1990; Steck and Hunziker 1994). The cooling history of the Lepontin gneiss dome and its Ticino and Toce culminations since 38–22 Ma is demonstrated by radiometric cooling ages by Steck and Hunziker (1994; Hurford 1986; Hunziker et al. 1992; Rubatto et al. 2009; Fig. 8). The lack of some nappe roots in the southern steep belt of the Lepontine gneiss dome is a problematic feature of the Central Alps. This disappearance can be explained by normal fault removal on the late Alpine Centovalli and Tonale faults and the covering by the Pioda di Crana unit and Bosco–Bombogno–Isorno–Orselina zone of the Ziccher recumbent fold. The structural map of the Lepontine Alps and cross-sections (Figs. 2, 3) represent an updated model of the complex fold interference pattern of the deepest tectonic level of the Alpine nappe stack. This model has to be considered as a basis for discussion and future fieldwork.
