Revised middle Triassic stratigraphy of the Swiss Prealps based on conodonts and correlation to the Briançonnais (Western Alps)

Abstract

The Triassic in the “Médianes rigides” Nappe of the Swiss Prealps, belonging to the Briançonnais realm of the Western Alps, consists of a several hundred meters thick carbonate succession. At the localities Wiriehorn and Rothorn, 650 m above sequence base, the Costatoria goldfussi limestone, a remarkable coquina and widespread transgressive marker bed, yields the key conodont Sephardiella truempyi (HIRSCH), a proxy for the Curionii - lower Gredleri ammonoid Zones (Early Ladinian). This new discovery has deep implications on the age of the different Triassic formations in the Swiss Prealps and for its correlation with other tectonic units. The newly established Pralet Formation in the Swiss Prealps comprises the Balmi Member with the Lower Ladinian Costatoria goldfussi limestone at its base, followed by the dolomitic breccias of the Ladinian Erpilles Member. Below the S. truempyi level, both the mighty platform carbonate sequence of the Wiriehorn Formation in the Swiss Prealps, and of the coeval Champcella Formation in the Brianconnais realm, are reassigned here to the Late Anisian. In our revised correlation, the Costatoria goldfussi limestone corresponds to the main flooding surface (MFS) of the large marine transgression that correlates biostratigraphically the now well dated Upper Muschelkalk transgression in Provence, Sardinia and Spain with the basal Ladinian type locality at Bagolino in the Southern Alps.

Introduction

It is a century ago that Alphonse Jeannet (1912–1913), in his impressive “Monographie géologique des Tours d’Aï”, described in detail the Middle Triassic stratigraphy of the Swiss “Préalpes Médianes” along the West bank of the Rhône Valley near Aigle. He herein proposed the stratigraphic correlation of the Triassic exposures with those that were already known at that time from more internal zones of the Alps. Also, while studying the NE of the Prealps, Jeannet and Rabowski (1912) found for the first time the level with the bivalve Myophoria goldfussi at the top of their Middle Triassic “écaille du Twiriehorn” (=Wiriehorn thrust sheet, 6 in Fig. 1). Almost half a century later, Ellenberger (1950), restudying Jeannet’s collections, discovered the close affinity between the Triassic sections in the Swiss Prealps with those of the Briançonnais (Western Alps).

Fig. 1
figure1

Simplified geological map of the Prealps thrust sheet of Western Switzerland with the position of the studied sections that belong to the Middle Triassic units of the “Préalpes médianes rigides” tectonic unit (modified, after Bill 1998). 1 Mont d’Or section studied by Botteron (1961). 2 Rocher Plat section, type locality of the new Pralet Formation. 3 Rocher de Raye section, locality of the new Erpilles Member. 4 Wildgrimmi section, type-locality of the Wildgrimmi Member and reference section for the Wiriehorn Formation. 5 Seehorn section studied by Genge (1958). 6 Wiriehorn section, type locality for the Wiriehorn Formation, the Bodeflue Member and the Balmi Member

Geological frame of the Swiss Prealps (Fig. 1)

The Swiss Prealps represent a stack of nappes that was thrusted from the south over the Molasse foreland and Ultrahelvetic domains of the Alpine belt. From NW to SE they consist of:

  • The External nappes Dranse and Gurnigel, Médianes Plastiques, Simme and Gets;

  • The Internal nappes of “Préalpes médianes Rigides” and “Brèche nappe” that are themselves thrusted over the Wildflysch of the “Zone Submédiane” and Niesen nappes (Fig. 1).

The “Préalpes médianes”, both “Plastiques” and “Rigides”, are a Triassic domain in Western Switzerland, belonging to the exotic Briançonnais micro-plate that collided with the southern European margin since Late Cretaceous times.

The reinvestigated Middle Triassic sediments occur only in the internal “Préalpes médianes Rigides” (Fig. 1).

Previous research in the Middle Triassic carbonate succession of the the Swiss Prealps (Fig. 2)

Since the earlier work of Pia (1912), Dasycladacean calcareous algae became very useful to the biochronology of Triassic shallow water carbonate platforms. In his synthesis on the Triassic of the Briançonnais, Ellenberger (1958) subdivided the Middle Triassic carbonate platform using three superposed Dasycladacean associations:

Fig. 2
figure2

Stratigraphic chart showing the previous (ref. in the text) and the revised age attribution of the lithological units of the Swiss Prealps and the Briançonnais and their comparison with the Germanic basin units according to Franz et al. (2015)

  • Early Anisian: Oligoporella association, (=Anisoporella occidentalis Botteron, 1961);

  • Middle-Late Anisian: Physoporella praelpina and Diplopora annulatissima association;

  • Ladinian: Diplopora uniserialis and Diplopora lotharingica association.

At the top of the Dasycladacean sequence, the Myophoria (=Costatoria) goldfussi level appears. This was correlated by Ellenberger (1958) with the well-known Goldfussi-coquina in the Germanic Lettenkohle (basal Keuper), and considered Late Ladinian to Early Carnian.

In the Prealps, the biochronology of Ellenberger (1950) was followed by Genge (1958) and Botteron (1961) for the Middle Triassic carbonate succession. Two decades later, in their synthesis of the Western Alpine Triassic, Baud and Mégard-Galli (1975) and Mégard-Galli and Baud (1977) still used the same time scheme, but subdivided the Middle Triassic carbonate succession in three cycles (I to III) that correspond to the following three units (Figs. 2, 3, 4):

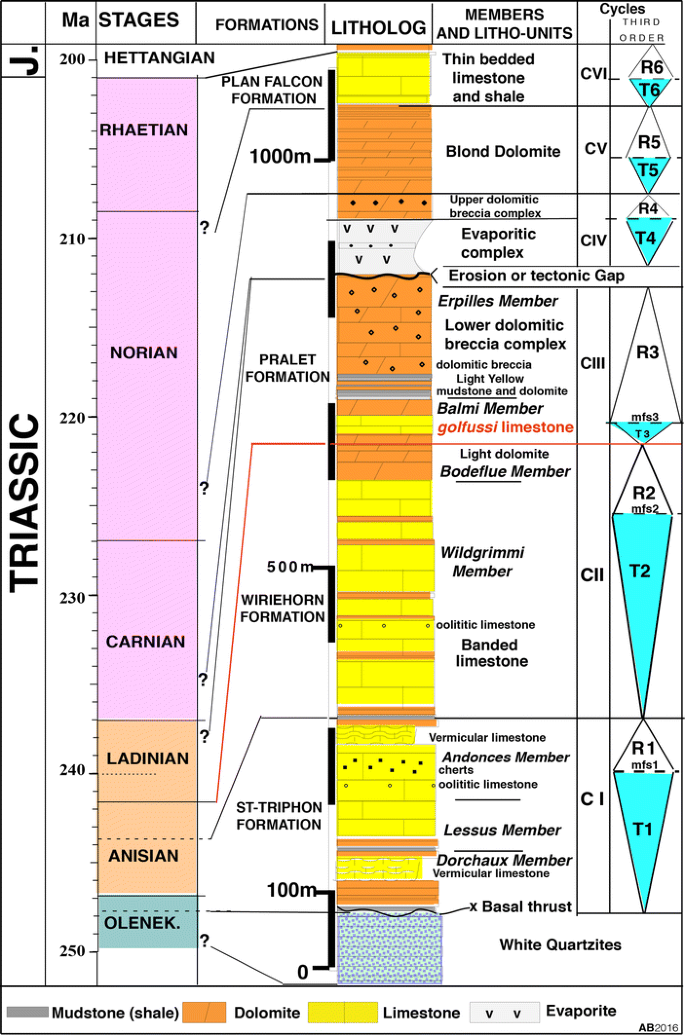

Fig. 3
figure3

New composite section of the Triassic units of the Western Swiss Prealps (“Médianes plastiques and Médianes rigides”). In red, the position of the studied “goldfussi” unit. mfs main flooding surface. Numerical age according to the Triassic time chart, in Ogg et al. (2016)

Fig. 4
figure4

New composite section of the Middle Triassic of the “Préalpes medianes Rigides” thrust sheet, with the position of conodonts, of calcareous algae and of ammonoid occurences. Age not in scale and caption in Fig. 3. Tethyan ammonoid zones modified from Balini et al. (2010)

  1. 1.

    the Anisian St. Triphon Formation (CI);

  2. 2.

    the Early Ladinian Champcella/Wiriehorn Formation (CII);

  3. 3.

    the Late Ladinian-Early Carnian “couches à C. goldfussi”(CIII).

Triassic lithostratigraphy of the Swiss Prealps

The Briançonnais-type Triassic deposits in the Swiss Prealps reach a maximum thickness of about 1100 m (Fig. 3). The Lower Triassic consists of mature quartz-arenite. The Middle Triassic is built up of three transgressive–regressive (T-R) cycles of rapidly succeeding shallow marine carbonates of cyclic nature. The Upper Triassic sediments, made of evaporites, are topped by a shallow marine, partly dolomitic carbonate platform.

The three Middle Triassic cycles correspond to lithological units that start and end under emersive environmental conditions. The first author successfully applied this scheme during the geological mapping campaigns of the Middle Triassic in the Swiss Prealps (Baud in Lombard et al. 1975, Baud, in Furrer et al. 1993; and see Online Resource 1).

Some formations and members have been previously named after respective type localities in the Prealps or the Briançonnais (Baud and Mégard-Galli 1975; Mégard-Galli and Baud 1977; Baud 1984, 1987). The type localities and sections of the new formal units, proposed here for the Prealps (Fig. 3), are described in the Online Resources 1, 2, Figs. a, c and e, and 3, Fig. g).

These three Middle Triassic cycles, established by Baud and Mégard-Galli (1975) correspond to 3rd order T-R eustatic cycles, as in Courel et al. 1998 and in Franz et al. 2015.

Cycle CI: “Formation de Saint-Triphon”

The St-Triphon Formation (Baud 1984, 1987), corresponding to the first cycle, is characterized by shallow-water limestone that yields the dasycladacean Physoporella prealpina, and Diplopora annulatissima association. The discovery of the ammonoid Beyrichites cadoricus in the upper part of the St-Triphon Formation (Baud 1984, 1987) provides a Middle Anisian age constraint (Monnet et al. 2008). The same age was previously attributed to the first conodont finding in the Prealps, presumably “Gondolella” ?mombergensis (Baud et al. 1968) The presence of ammonoids and conodonts in this very shallow sequence point to a transgressive peak in the upper part of the Formation, which could correspond to the Middle Anisian Balatonicus ammonoid Zone (Fig. 4).

Cycle CII: “Formation du Wiriehorn” (alias Champcella; Online Resources 1 and 2)

The Wiriehorn Formation (Baud and Mégard-Galli 1975; Baud, in Furrer et al. 1993; Online Resources 1 and 2 for a description) represents the mightiest Briançonnais Middle Triassic carbonate cycle (between 250 to 330 m) and is built up by a set of restricted upwards-shallowing carbonate para-sequences, 20 to 50 m thick (banded limestone = Wildgrimmi Member, Online Resource 2, Figs. b and c), capped by a 20–80 m thick peritidal regressive dolostone (“Dolomies claires” = Bodeflue Member, Online Resource 2, Fig. d and e) ending with mud-cracks dolostone beds. The Wiriehorn Formation is equivalent with the “Formation de Champcella” in the Briançonnais (Mégard-Galli and Baud 1977; Online Resource 1). The revised age proposed herein for this interval is Late Anisian (see Chap. 3).

Cycle CIII: “Formation du Pralet “ (Online Resources 1 and 3)

Mégard-Galli and Baud (1977) having not provided a formation name for this cycle, we propose herein the Pralet Formation for the Prealps. This “Formation du Pralet” overlies conformably the Wiriehorn Formation.

It encompasses two members: the new Balmi and Erpilles Members. Transgressive from the bottom, the Balmi Member (Online Resources 1 and 3) starts with light coloured dolo-grainstone, followed by the large transgressive unit of the “Couches à Costatoria goldfussi” that represents the peak of the transgression (MFS). It ends with the sudden appearance of crinoidal limestone, with a brown dolomite at its top.

The second member, the Erpillles Member, starts with terrigenous yellowish clay (mudstone). This sudden terrigenous input was previously interpreted as the base of a new cycle (Cycle IVa, Mégard-Galli and Baud 1977). But it is at present interpreted as the continuation of the high-stand deposit of Cycle III that consists of the thick, partly brecciated, dolomite of the Erpilles Member. We propose a Ladinian age for the Pralet Formation time interval, with the Balmi Member being Early Ladinian (Fig. 3 and Online Resources 1, 2 and 3 for further details).

The three Upper Triassic cycles (Fig. 3)

Cycle CIV corresponds to the “Complexe de Clot-la-Cime” in the Briançonnais s.str. (description by Mégard-Galli 1972; Mégard-Galli and Faure 1988) where it comprises two evaporitic complexes (anhydrite and gypsum), whereas only one is present in the Prealps, with detrital Equisetum shale and sandstone followed by an upper brecciated dolomite complex, partly Carnian in age according to Mégard-Galli and Faure (1988).

The Cycle CV is made of medium bedded blond dolomite that is correlated with the Norian “Hauptdolomit” of the Eastern and Southern Alps (Jeannet 1912).

The Cycle CVI (Plan Falcon Formation) is marked by the large transgression of the Rhaetavicula limestone (bivalve coquina) characterizing the Rhaetian stage (Jeannet 1912).

The Prealps “Couches à Costatoria goldfussi”: new conodont age constraint for the Balmi Member of the Pralet Formation (Fig. 3)

The “Couches à Costatoria goldfussi” form the bulk of the Balmi Member of the Pralet Formation in the Prealps (Fig. 3). Corresponding to the transgressive lower part of cycle CIII, it overlies undisturbed the Wiriehorn Formation (Champcella in the Briançonnais). These Costatoria goldfussi marker beds can be followed all the way down to the Mediterranean coast (Mégard-Galli and Baud 1977). It is most often dolomitized in the Western Alps.

In the Seehorn section (Fig. 6), just north of the Rothorn thrust sheet, Genge (1958) described and illustrated Myophoria goldfussi, as well as Pectinids, Cyprinids, Dentalids and Aviculids. He also mentioned crinoids with Encrinus liliiformis and a Solenopora algae.

Its faunal content in the Vanoise area of the French Alps has been described and illustrated by Ellenberger (1958). Among the bivalves, this author proposed the use of Myophoria goldfussi var. alpina as a marker. Bivalves comprise smooth Myophorids, Pachycardia and Trigonodus. Among gastropods figures Omphaloptycha (or Geinitzia) cf. escheri.

Dolomitized “Couches à Costatoria goldfussi” are present in most of the Swiss Prealps “Préalpes médianes Rigides” thrust sheets (Botteron 1961; Genge 1958), but in the Eastern part of these Prealps they show rare but interesting limestone outcrops (Diemtigtal, sections 1, 2 and 3 in Figs. 5, 6). There, in-between dolomitic layers, the 5–10 m thick Costatoria goldfussi interval represents a level of lime-wackestone with some cherts in the lower part (Fig. 5), capped by crinoidal lime-packstone.

Fig. 5
figure5

Position of the samples within the Balmi Member from three sections of the Wiriehorn–Rothorn thrust sheet (Online resources 1 and 2). Conodont samples in red. Stratigraphic columns: 1 Rothorn, “Lyss Hütte” section, coordinate: 46°33′9.96″N 7°27′45.67″E; 2 Riprechtifluh, road section, coord.: 46°35′7.00″N 7°30′3.36″E; 3 Wiriehorn, Balmi section, coord. 46°35′8.50″N/7°31′36.49″E. Levels: a top of the “Dolomies claires” unit; b C. goldfussi Limestone unit; c base of the “Dolomie brune” unit. Caption in Fig. 3

Fig. 6
figure6

E–W Google Earth view-3D in the SSW direction of the upper part of the Diemtigtal Valley. Geographic situation of the three sections 1, 2, 3 placed on Fig. 5. Coordinate in Fig. 5 caption. Seehorn is the Genge (1958) locality (5 in Fig. 1)

During our quest in these uppermost limestone of the Wiriehorn-Rothorn Middle Triassic thrust sheet, we were lucky to find the key conodont Sephardiella truempyi that is a proxy for the Early Ladinian curionii zone (Brack et al. 2005). Previously, this limestone was correlated with Upper Ladinian to Lower Carnian units of the Germanic Triassic. The new finding and description (see below) of the conodont Sephardiella truempyi within these “Couches à Costatoria goldfussi” from the top of the Rothorn section (1, in Figs. 5 and 6: Online Resources 1 and 2 Fig. c) and of the Twiriehorn (Wiriehorn) section (3, in Figs. 5, 6; Online Resources 1 and 2 Fig. e) provide an Early Ladinian age as discussed below and in the Chap. 5. All the productive samples are coming from these upper limestone beds and among all the extracted conodonts, those originated from a singular thick bed of the “Lyss Hütte” section (1 in Fig. 5, Fig. 7, red star; Online Resource 2, Figs. b and c) are illustrated in the Fig. 8.

Fig. 7
figure7

Outcrop view of the Costatoria goldfussi limestone, “Lyss Hütte” section of the Rothorn thrust sheet (Locality 1 in Figs. 5, 6). The red star shows the conodont finding bed, about 60 cm thick (scale = hammer on the right of the star)

Fig. 8
figure8

P1 elements of Sephardiella truempyi (Hirsch) from the Rothorn section. Sample 80304 and 80305, 3 and 4 m above base of Pralet Fm, respectively (Lower Ladinian, Swiss Prealps). All bars = 0.05 mm (=50 μm). a Right element, sample Ro80304, specimen K99II_10. Inner and lower views. Note the amygdaloid basal cavity. b Left element, sample Ro80304, specimen K99II_25. Upper, inner and lower views. c Right element, sample Ro80304, specimen K99II_59. Outer and lower views. d Left element, sample Ro80304, specimen K99II_65. Outer and lower views. e Left element, sample Ro80305, specimen Ro-80-305-04. Upper, lower and outer views. f Right element, sample Ro80305, specimen Ro-80-305-08. Inner and Lower views

Consequently, this Costatoria goldfussi limestone level near the top of the first thick carbonate succession of the Briançonnais realm, is of Early Ladinian age. The overlying monogenic and synsedimentary dolomitic breccia still contains Costatoria goldfussi shells (Genge 1958) and represents the Erpilles Member of the Pralet Formation (Online Resources 1 and 3). This unit is now to be considered of Ladinian age instead of Carnian, as it was assumed in earlier publications (Fig. 2: previous and this paper charts).

Remark: As a result of the establishment of the Global Stratotype Section and Point (GSSP) at the onset of the Curionii ammonoid Zone in the Bagolino section by Brack et al. (2005), the Anisian–Ladinian boundary was shifted upwards by up to three ammonoid zones. Getting younger, the Upper Anisian part of the Briançonnais includes now the Wiriehorn (Champcella) Formation. This formation, held previously for Lower Ladinian on the base of the Diplopora uniserialis and Diplopora lotharingica dasycladacean association (Mégard-Galli and Baud 1977; Baud 1984, 1987), is at present fully comprised within the Upper Anisian (Figs. 2, 3, 4, this paper). This new age attribution is apparently also in agreement with the revised Dasycladacean stratigraphy of Granier and Grgasović (2000).

The conodonts

Sephardiella truempyi (HIRSCH 1971) is characterized by acuminate platform elements with an amygdaloid or ellipsoid basal cavity (Fig. 8). It belongs to the subfamily Sephardiellinae of the Family Gondolellidae (Plasencia et al. 2007) that is also characterized by acuminate platform elements with an amygdaloid or ellipsoid basal cavity (Fig. 8). First classified as Gladigondolella, for its acuminate shape, but possessing a gondolellid multielement apparatus, the species truempyi was subsequently referred to the genera Epigondolella Mosher 1968, Carinella Budurov 1973 , Budurovignathus Kozur 1989 and Sephardiella March et al. 1990, validated in the first revision by Sudar (1989). The species Sephardiella truempyi has smooth platforms devoid of any nodes or denticles. The conodont fauna from the “Préalpes médianes Rigides”, found in the “Lyss Hütte” section of Locality 1, Rothorn (Figs. 5, 6, 7; Online Resource 2 Figs. b and c), samples Ro 80304, Ro 80305, consists of relatively small specimens (varying between 0.2–0.5 mm) which all correspond to the original diagnosis of S. truempyi (See Fig. 8).

Specimens of S. truempyi, have also been found in the samples Ri 72302 and Ri 81401 of the Riprechtifluh, road section (locality 2 in Figs. 5, 6) and in the sample Wi 72702 of the Wiriehorn section (locality 3 in Figs. 5, 6; Online Resource 2, Figs. d and e). Together with the extracted conodonts, a great amount of fish remains and teeth are expected to be studied in a near future.

Age of Sephardiella truempyi

Sephardiella truempyi is present in the Buchenstein Formation of the Southern Alpine Bagolino section, the GSSP of the Ladinian stage, defined at the base of the ammonoid Eoprotrachyceras curionii Zone (Nicora and Brack 1995; Brack et al. 1999, 2005). At Bagolino, the conodont S. truempyi is found in a level that is 2.7 m above the base of the Curionii Zone and 2 m below the Margaritosum ammonoid Zone, in the Northern Grigna section near Lecco (Nicora and Rusconi 2007) and at Belvedere (Colle S. Lucia) in a level that falls into the upper Curionii ammonoid Zone (Muttoni et al. 2004, Figs. 6, 7). These authors report that between the upper Curionii Zone and basal portion of the Gredleri Zone (240–239 Ma), an abrupt decrease in specific variability occurs, characterized by the substitution of the relatively abundant Paragondolella and Neogondolella association of the previous secedensis—basal curionii ammonoid interval (241–240 Ma), with an association of fewer species, such as Paragondolella praehungarica, P. gabriellae and Sephardiella truempyi.

The current Southern Alpine S. truempyi range would correspond to the middle portion of the Curionii Zone up to the basal part of the Gredleri ammonoid Zone. These two zones define the “Fassanian” substage of the Ladinian (Brack et al. 2005; Hochuli et al. 2015) that can be considered as the closest approximation of the original historical range of the “Fassanian” (=Buchenstein Beds).

At Felsöörs (Balaton), the FAD of the diagnostic S. truempyi postdates Paragondolella praehungarica, while it predates the FAD of Eoprotrachyceras (Vörös et al. 2003).

In the Northwestern Sardinia, S. truempyi is most abundant, and is considered by Bagnoli et al. (1985), Brocard (1991) and Carrillat et al. (1999) as indicative of the upper Curionii ammonoid Zone (now Early Ladinian). For Kovacs and Kozur (1980), it is the index conodont of the Truempyi-range-Zone.

At Alós de Balaguer in the Catalonian Pyrenees, Plasencia (2009) and Plasencia et al. (2015) found S. truempyi together with Pseudofurnishius murcianus van den Boogaard (1966) in the “Grey Limestone” unit. The FAD of the latter lies within the Early Ladinian ammonoid Eoprotrachyceras curionii ramonensis Zone at Ramon in Israel and at Calasparra in S.E. Spain (Hirsch 1972). Pérez Valera (2016) confirmed this ammonoid to correspond to the S. Alpine E. curionii species after careful comparisons.

Palaeogeographic significance of the “Couches à Costatoria goldfussi

The Costatoria goldfussi level that characterises the Balmi Member, of the lower part of the Pralet Formation in the Swiss Prealps yields S. truempyi that can thus be correlated with a portion of the lower Ladinian (Fassanian).

In the Germanic basin, C. goldfussi occurs in the Nodosus ammonoid Zone, which is also Early Ladinian (Fassanian, Brack, written comm.). The rare occurrence of S. truempyi, just above the “Cycloides Bank” of the Meissner Formation, has been claimed (Kozur and Bachmann 2005), a statement that we were unable to verify. But this “Cycloides Bank” interval corresponds to the Lower Buchenstein Beds just above the latest Anisian Nevadites ammonoid Zone, with a maximum basin depth according to Brack et al. (1999).

Recorded within the Briançonnais realm all along the Western Alps from the Central Swiss Prealps to Franco-Italian maritime Alps, the “Couches à Costatoria goldfussi” are well known in the Triassic of the Provence area (Southern France), where it corresponds to the Formation III or F of the Provence Upper Muschelkalk (Caron 1967; Brocard 1991). It is interesting to note that S. truempyi occurs in levels with C. goldfussi in both Provence and Sardinia. It concern the “La Bastide de la Blanque” section, North of Toulon (Provence, SE France, Hirsch 1971) and the “Monte San Giusta”, “Punta del Lavatoio” and “Cala Poglina” sections of NW Sardinia (Carrillat et al. 1999; Posenato et al. 2002).

Franz et al. (2015), in their palaeogeographical overview of the Upper Muschelkalk wrote: “the latest Illyrian MFS is also suggested in Provence and Northwest Sardinia where nodular limestones and bioturbated limestones (partly with dasycladaceans) are superimposed by bioclastic limestones with the index conodont S. truempyi corresponding to the Curionii Zone”. This correlates with the Early Ladinian age assignment of the Upper Muschelkalk transgression in Provence that is based on the finding of Ceratites {Cycloceratites} cf. laevigatus by Urlichs (1997), and confirmed by Durand et al. (2011).

Correlative levels with Costatoria goldfussi have also been described from the Muschelkalk of Spain (Escudero-Mozo et al. 2015): during the Anisian–Ladinian transition, a marine transgressive peak, well dated with the curionii ammonoid fauna, onlaps over Variscan foreland (Pérez Valera 2016). It corresponds to the maximum extent of the Triassic basins in the Southern Alps and the migration of ammonoid fauna from the Neotethyan domain to peripheral seas (Gianolla et al. 1998; Brack et al. 1999).

Costatoria goldfussi rich beds have been found in the first marine transgressive “dolomie capucin” belonging to the basal sedimentary cover of the Variscan Massif, South of the Belledone Massif of the Western Alps (Mégard-Galli oral communication).

S. truempyi is reported at Tarasci (Turkey) by Chen et al. (2015), in co-occurrence, among others, with the ammonoid Israelites, Late Ladinian in their view, but Early Ladinian according to Assereto and Monod (1974) and to Pérez Valera (2016).

Finally, S. truempyi is not restricted to the Western Tethys and adjacent shallow Triassic seas, but is found in SW China, where, at Guangdao, North flank of the Great bank of Guizhou, Nanpanjiang Basin, this proxy pinpoints the base of the Ladinian stage (Lehrmann et al. 2015).

Conclusions

The appearance in the Prealps of the conodont Sephardiella truempyi is linked with the large marine transgression along the western Tethys during the Anisian–Ladinian transition (Franz et al. 2015), well dated by the curionii ammonoid fauna in Spain (Minorca and Betic Range, Pérez Valera 2016) and also corresponding with the first marine transgression over the external Variscan basement shown by Courel et al. (1998) and by Escudero-Mozo et al. (2015).

In the Swiss Prealps, the finding of Sephardiella truempyi attributes the “Couches à Costatoria goldfussi” to the Early Ladinian. These “Couches à Costatoria goldfussi” define the Balmi Member transgression that is the base of the newly proposed Pralet Formation. The level of Costatoria goldfussi extends along the entire Briançonnais realm. The Pralet Formation in the Prealps, corresponds to the Middle Triassic 3rd order T-R Cycle III that is older than the Clos-la-Cime Formation in the Briançonnais.

The “Couches à Costatoria goldfussi” of the Balmi Member that was formerly assigned to the Upper Ladinian to Lower Carnian, is now of Early Ladinian age.

The Wiriehorn Formation in the Prealps and the coeval Champcella Formation in the Brianconnais, both formerly held for Ladinian in age, must now be assigned a Late Anisian age. They represent the thickest carbonate platform units in the Prealps and Briançonnais.

References

  1. Assereto, R., & Monod, O. (1974). Les formations triassiques du Taurus occidental à Seydischir (Turquie méridionale). Stratigraphie et interprétation sédimentologique. Memorie Rivista Italiana di Paleontologia e Stratigrafia, 14, 159–191.

    Google Scholar

  2. Bagnoli, G.. Perri, M. C. & Gandin, A. (1985). Ladinian Conodont Apparatuses from Northwestern Sardinia. Italy. Bolletino della Societa Geologica Italiana, 23(2), 311–323.

  3. Balini, M., Lucas, S. G., Jenks, J. F., & Spielmann, J. A. (2010). Triassic ammonoid biostratigraphy: an overview. Geological Society, London, Special Publications, 334(1), 221–262.

    Article  Google Scholar

  4. Baud, A. (1984). Histoire naturelle des calcaires de Saint-Triphon (Anisien, Préalpes et Alpes occidentales), PhD. dissertation, Université de Lausanne, Switzerland, 2 Bands (p. 500).

  5. Baud, A. (1987). Stratigraphie et sédimentologie des calcaires de Saint-Triphon (Trias, Préalpes, Suisse et France). Mémoires de Géologie, Lausanne, 1, 322.

    Google Scholar

  6. Baud, A., Hirsch, F., & Weidmann, M. (1968). Présence de Conodontes dans 1’Anisien des Préalpes médianes rigides. Eclogae Geologicae Helvetiae, 61(2), 507–508.

    Google Scholar

  7. Baud, A., & Mégard-Galli, J. (1975). Modèle d’évolution d’un bassin carbonate du domaine alpin durant la phase pré-océanique: cycles et rythmes dans le Trias de la zone briançonnaise des Alpes occidentales et des Préalpes. In Proceeding of the 9th International Sedimentological Congress, Nice, 5/1 (pp. 45–50).

  8. Bill, M. (1998). Données isotopiques, chimiques et biostratigraphiques de la nappe des Gets et des Préalpes médianes rigides: contraintes sur l’océanisation et la tectonique des Alpes occidentales. Ph.D. dissertation, Université de Lausanne, Switzerland (p. 222).

  9. Botteron, G. (1961). Etude géologique de la région du Mont d’Or (Préalpes romandes). Eclogae Geologicae Helvetiae, 54(1), 29–106.

    Google Scholar

  10. Brack, P., Rieber, H., Nicora, A., & Mundil, R. (2005). The global boundary stratotype section and point (GSSP) of the Ladinian Stage (Middle Triassic) at Bagolino (Southern Alps, Northern Italy) and its implications for the Triassic time scale. Episodes, 28(4), 233–244.

    Google Scholar

  11. Brack, P., Rieber, H., & Urlichs, M. (1999). Pelagic successions in the Southern Alps and their correlation with the Germanic Middle Triassic. Zentralblatt der Geologie und Palaontologie Teil I, 7–8, 853–876.

    Google Scholar

  12. Brocard, C. (1991). La plate-forme provençale au Trias moyen: Un modèle de rampe carrbonatée en milieu restreint—Dynamique des paléoenvironnements—Evolution diagénétique. PhD dissertation, Université de Provence-Marseille, France (p. 282).

  13. Budurov, K. (1973). Carinella n. gen. und Revision der Gattung Gladigondolella (Conodonta). Comptes Rendus de l’Académie Bulgare des Sciences, 26, 799–802.

    Google Scholar

  14. Caron, J. P. H. (1967). Étude stratigraphique du Muschelkalk supérieur calcaire et dolomitique de Basse-Provence occidentale entre Bandol et Hyères (Var). Bulletin de la Société géologique de France, 9, 670–677.

    Google Scholar

  15. Carrillat, A., Martini, R., Zaninetti, L., Cirilli, S., Gandin, A., & Vrielynck, B. (1999). The Muschelkalk (Middle to Upper Triassic) of the Monte di Santa Giusta (NW Sardinia): sedimentology and biostratigraphy. Eclogae Geologicae Helvetiae, 92, 81–97.

    Google Scholar

  16. Chen, Y., Krystyn, L., Orchard, M. J., Lai, X. L., & Richoz, S. (2015). A review of the evolution, biostratigraphy, provincialism and diversity of Middle and early Late Triassic conodonts. Papers in Palaeontology, 2015, 1–29.

    Google Scholar

  17. Courel, L., Poli, E., Vannier, F., Le Strat, P., Baud, A., & Jacquin, T. (1998). Sequence stratigraphy along a Triassic transect on the Western Peritethyan margin in Ardèche (SE France basin): correlations with Subalpine and Germanic realms. In P.C de Graciansky, J. Hardenbol, T. Jacquin, & P. R. Vail (Eds.), Mesozoic and Cenozoic Sequence Stratigraphy of Europeans Basins (pp. 691–700). SEPM, Society of Sedimentary Geology Special Publication.

  18. Durand, M., Caron, J.-P., & Hagdorn, H. (2011). Triassic of Southeast France—Provence: Var and Alpes-maritimes. In Pan-European Correlation of the Triassic: 8th International Field Workshop, Toulon, September 4–8, 2011 (pp. 1–64).

  19. Ellenberger, F. (1950). Horizons paléontologiques du Trias à faciès radical des Préalpes médianes vaudoises (coupes de la Grande Eau et de Saint-Triphon). Compte-rendus de l'Académie des Sciences, Paris, 231, 1326–1328.

    Google Scholar

  20. Ellenberger, F. (1958). Etude géologique du Pays de Vanoise (p. 679). Orléans: Imprimerie nationale.

    Google Scholar

  21. Escudero-Mozo, M. J., Márquez-Aliaga, A., Goy, A., Martín-Chivelet, J., López-Gómez, J., Márquez, L., et al. (2015). Middle Triassic carbonate platforms in eastern Iberia: Evolution of their fauna and palaeogeographic significance in the western Tethys. Palaeogeography, Palaeoclimatology, Palaeoecology, 417, 236–260.

    Article  Google Scholar

  22. Franz, M., Kaiser, S. I., Fischer, J., Heunisch, C., Kustatscher, E., Luppold, F. W., et al. (2015). Eustatic and climatic control on the Upper Muschelkalk Sea (late Anisian/Ladinian) in the Central European Basin. Global and Planetary Change, 135, 1–27.

    Article  Google Scholar

  23. Furrer, H., Huber, K., Adrian, H., Baud, A., Flück, W., Preiswerk, C., Schuler, P., & Zwahlen, P. (1993). Feuille 1247 Adelboden. Atlas géologique de la Suisse 1:25’000.

  24. Genge, E. (1958). Ein Beitrag zur Stratigraphie der südlichen Klippendecke im Gebiet Spillgerten-Seehorn (Berner Oberland). Eclogae Geologicae Helvetiae, 51(1), 151–211.

    Google Scholar

  25. Gianolla, P., De Zanche, V., & Mietto, P. (1998). Triassic sequence stratigraphy in the Southern Alps (Northern Italy): definition of sequences and basin evolution. In P.C de Graciansky, J. Hardenbol, T. Jacquin, & P. R. Vail (Eds.), Mesozoic and Cenozoic Sequence Stratigraphy of Europeans Basins (pp. 719–747. SEPM, Society of Sedimentary Geology Special Publication.

  26. Granier, B. R., & Grgasović, T. (2000). Les Algues Dasycladales du Permien et du Trias. Nouvelle tentative d’inventaire bibliographique, géographique et stratigraphique. Geologia Croatica, 53(1), 1–197.

    Google Scholar

  27. Hirsch, F. (1971). Conodontes nouvelles du Trias méditerranéen. Comptes-Rendus des Séances, Société de Physique et d'Histoire Naturelle de Genève, N.S., 6, 65–69.

  28. Hirsch, F. (1972). Middle Triassic conodonts from Israel, southern France and Spain. Mitteilungen der Gesellschaft der Geologie- und Bergbaustudenten in Wien, 21, 65–69.

  29. Hochuli, P. A., Roghi, G., & Brack, P. (2015). Palynological zonation and particulate organic matter of the Middle Triassic of the Southern Alps (Seceda and Val Gola–Margon sections, Northern Italy). Review of Palaeobotany and Palynology, 218, 28–47.

    Article  Google Scholar

  30. Jeannet, A. (1912–1913). Monographie géologique des Tours d’Aï et des régions avoisinantes. Matériaux pour la Carte géologique de la Suisse (NS), 34, 1–701.

  31. Jeannet, A., & Rabowski, F. (1912). Le Trias du bord radical des Préalpes médianes entre le Rhône et l’Aar. Eclogae Geologicae Helvetiae, 11, 739–746.

    Google Scholar

  32. Kovacs, S., & Kozur, H. (1980). Stratigraphische Reichweite der wichtingsten Conodonten (ohne Zahnreihenconodonten) der Mittel-und Ober-Trias. Geologisch-Paläontologische Mitteilungen Innsbruck, 10, 47–78.

    Google Scholar

  33. Kozur, H. (1989). The taxonomy of the Gondolellid conodont in the Permian and Triassic. Courier Forchungsinstitut Senckenberg, 117, 409–469.

    Google Scholar

  34. Kozur, H. W., & Bachmann, G. H. (2005). Correlation of the Germanic Triassic with the international scale. Albertiana, 32, 21–35.

    Google Scholar

  35. Lehrmann, D. J., Stepchinski, L., Altiner, D., Orchard, M. J., Montgomery, P., Enos, P., et al. (2015). An integrated biostratigraphy (conodonts and foraminifers) and chronostratigraphy (paleomagnetic reversals, magnetic susceptibility, elemental chemistry, carbon isotopes and geochronology) for the Permian-Upper Triassic strata of Guandao section, Nanpanjiang Basin, south China. Journal of Asian Earth Sciences, 108, 117–135.

    Article  Google Scholar

  36. Lombard, A., Baud, A., & Steinhauser, N. (1975). Feuille 1265 Les Mosses Notice explicative. Atlas géologique de la Suisse 1:25’000, 1–64.

  37. March, M., Budurov, K., & Hirsch, F. (1990). Sephardiella nov. gen. (Conodonta), Emendation of Carinella (Budurov, 1973) from the Ladinian (Middle Triassic) Type Area in Catalonia (N.E. Spain), Sephardic. Courier Forchungsinstitut Senckenberg, 118, 197–201.

    Google Scholar

  38. Mégard-Galli, J. (1972). Données nouvelles sur le Carnien dans la zone briançonnaise entre Briançon et la vallée du Guil: conséquences tectoniques et paléogéographiques. Géologie Alpine, 48, 131–142.

    Google Scholar

  39. Mégard-Galli, J., & Baud, A. (1977). Le Trias moyen et supérieur des Alpes nord-occidentales et occidentales: données nouvelles et corrélations stratigraphiques. Bulletin du BRGM, 2ème serie. 4/3, 233–250.

  40. Mégard-Galli, J., & Faure, J. L. (1988). Tectonique distensive et sédimentation au Ladinien supérieur-Carnien dans la zone briançonnaise. Bulletin de la Société géologique de France, 4(5), 705–715.

    Google Scholar

  41. Monnet, C., Brack, P., Bucher, H., & Rieber, H. (2008). Ammonoids of the middle/late Anisian boundary (Middle Triassic) and the transgression of the Prezzo Limestone in eastern Lombardy-Giudicarie (Italy). Swiss Journal of Geosciences, 101, 61–84.

    Article  Google Scholar

  42. Mosher, L. C. (1968). Evolution of Triassic platform conodonts. Journal of Paleontology, 42(4), 947–954.

    Google Scholar

  43. Muttoni, G., Nicora, A., Brack, P., & Kent, D. V. (2004). Integrated Anisian-Ladinian boundary chronology. Palaeogeography, Palaeoclimatology, Palaeoecology, 208(1), 85–102.

    Article  Google Scholar

  44. Nicora, A., & Brack, P. (1995). The Anisian/Ladinian boundary interval at Bagolino (Southern Alps, Italy): II. The distribution of Conodonts. Albertiana, 15, 57–65.

    Google Scholar

  45. Nicora, A., & Rusconi, M. (2007). Conodonti dalla Formazione di Buchenstein della Grigna Settentrionale (Lc). In Società Paleontologica Italiana, VII Giornale di Paleontologia, Barzio/Pasturo, 610 Giugno 2007 (p. 47).

  46. Ogg, J. G., Ogg, G., & Gradstein, F. M. (2016). A Concise Geologic Time Scale: 2016. Elsevier.

  47. Pérez Valera, J. A. (2016). Ammonoideos y Bioestratigrafía del Triásico Medio (Ladiniense) del sector oriental de la Cordillera Bética. PhD. dissertation, Universidad Complutense de Madrid 2015 (p. 489).

  48. Pia, J. V. (1912). Neue Studien über die triadischen Siphoneae verticillatae. Beiträge zur Paläontologie und Geologie Österreich-Ungarns und des Orients, 25, 25–81.

    Google Scholar

  49. Plasencia, P. (2009). Bioestratigrafía y paleobiología de conodontos del Triásico Medio del Sector Oriental de la Península Ibérica. PhD. dissertation, Servei de Publicacions de la Universitat de Valencia, Spain (p. 408).

  50. Plasencia, P., Hirsch, F., & Márquez-Aliaga, A. (2007). Sephardiellinae, a new Middle Triassic conodont subfamily. Journal of Iberian Geology, 33, 163–172.

    Google Scholar

  51. Plasencia, P., Hirsch, F., Sha, J., & Márquez-Aliaga, A. (2015). Taxonomy and evolution of the Triassic conodont Pseudofurnishius. Acta Palaeontologica Polonica, 60(2), 385–394.

    Google Scholar

  52. Posenato, R., Simone, L., Urlichs, M., & Ibba, A. (2002). The Ladinian Muschelkalk of Punta del Lavatoio (Alghero, NW Sardinia), In Cherchi, A., Corradini, C., & Putzu, M.T. (Eds.), Sardinia Field Trip (pp 111–118).

  53. Sudar, M. N. (1989). Revision of conodont genera Sephardiella March, Budurov, Hirsch and Marquez-Aliaga, 1988 and Budurovignathus Kozur, 1988. Geologica Balcanica, 9, 8.

    Google Scholar

  54. Urlichs, M. (1997). Die Gattung Ceratites (Ammonoidea) aus dem Muschelkalk der Provence (Mitteltrias, Südost- Frankreich). Stuttgarter Beiträge zur Naturkunde, B, 252, 1–12.

    Google Scholar

  55. Van den Boogaard, M. (1966). Post-Carboniferous conodonts from south-eastern Spain. Koninklijke Nederlandse Akademie van Wetenschappen, serie B 69, 1–8.

  56. Vörös, A., Budai, T., Haas, J., Kovacs, S., Kozur, H., & Palfy, J. (2003). Global Boundary Stratotype Section And Point proposal for the base of Ladinian (Triassic) at the base of the Reitzi Zone (sensu stricto) at Bed 105 in the Felsöörs section, Balaton Highland, Hungary. Albertiana, 28, 35–47.

    Google Scholar

Download references

Acknowledgments

A. Baud, P. Plasencia and S. Richoz appreciated the hospitality of the Geological Museum in Lausanne and the help for studying the Prealps collections. Thanks are due to Claudia Baumgartner of the Geological Institute in Lausanne for opening the SEM Laboratory. We thank Hans Hagdorn (Ingelfingen) and Matthias Franz (Freiberg) for their kind help with unpublished reports. A. Baud thanks also Joséphine Mégard-Galli for previous field works and for providing us old guide-books and Henri Masson for his good advises. We are also much indebted to Sylvie Crasquin (Paris) and Peter Brack (Zurich) for their constructive reviews that greatly improved our paper.

Author information

Affiliations

Authors

Corresponding author

Correspondence to Aymon Baud.

Additional information

Editorial Handling: D. Marty.

Electronic supplementary material

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Baud, A., Plasencia, P., Hirsch, F. et al. Revised middle Triassic stratigraphy of the Swiss Prealps based on conodonts and correlation to the Briançonnais (Western Alps). Swiss J Geosci 109, 365–377 (2016). https://doi.org/10.1007/s00015-016-0226-3

Download citation

Keywords

  • Carbonate platform
  • Anisian
  • Ladinian
  • Costatoria goldfussi limestone
  • Large marine transgression
