Sediment provenance during Alpine orogeny: fluid inclusions and stable isotopes on quartz–calcite veins from detritic pebbles
Swiss Journal of Geosciences volume 109, pages 329–344 (2016)
An innovative multidisciplinary approach was used on quartz–calcite veins that crosscut pebbles of several lithologies from the French South Alpine Foreland Basin to discern the source of detrital sediments. Microthermometric results indicate that inclusions contain low to moderate salinity (0.9–9.8 wt% eq. NaCl) fluids. Oxygen and carbon isotope compositions of quartz and calcite (δ18O mean at +24.1 and +24.7 ‰ respectively (V-SMOW) and δ13C from −1.1 to +2.0 ‰ (V-PDB)) are comparable with the composition of their host rocks (δ18O from +17 to +24.3 ‰ and δ13C from −4 to +1.4 ‰). The calculated δ18O and δ13C values of the fluid trapped in quartz and calcite range from +9.3 to +21.9 ‰, and from −2.6 to +4.1 ‰ respectively. These data suggest isotopic buffering of the fluid by the host rocks. Fluid trapping conditions were 105–185 MPa and 175–310 °C. Using a lithostatic gradient, the conditions of fluid entrapment correspond to a depth of vein formation from 4 to 7 km. Petrographic and geochemical data obtained on the host rocks, their veins and fluid inclusions suggest that the source of the conglomerates is the inner part of the Alps rather than reliefs surrounding the foreland basin. The study of fluid inclusions in veins provides a powerful and innovative approach to link the production of detrital sediments with tectonic events, to trace the provenance of conglomerates and to reconstruct the regional geometry of the drainage system.
The study of rock erosion, sediment transport and mass redistribution is a key to unravel climatic and tectonic processes that shape the landscape from mountains to basins. At the periphery of mountain ranges, foreland basins represent large-scale topographic lows progressively filled by the detrital products of previously buried rocks eroded after their exhumation (DeCelles and Giles 1996; Burbank 2002). Petrography, thermochronology and geochemistry of sandstones and conglomerates are classical tools for tracing the source of the synorogenic detritus, sedimented in relation to surface uplift and erosion (e.g. von Eynatten 2003; Najman 2006). Surface uplift is associated with tectonic stress responsible for the development of ductile to brittle deformation zones that are pathways for fluids of various origins (metamorphic, magmatic or meteoric; Siebenaller et al. 2012; Marsala et al. 2013). The study of the minerals sealing the veins can provide information on the fluid source and on the P–T regime prevailing during tectonic processes (Krenn et al. 2008; Miron et al. 2013). Witnesses of fluids are trapped as fluid inclusions in minerals sealing the veins. The petrographic and microthermometric characteristics of the fluid inclusions together with the isotopic composition (O, H and C) of the fluids and their host minerals are commonly used to discern the origin of the fluid types. Fluids of surficial origin (meteoric, groundwater) are conventionally used to reconstruct palaeo-elevation of mountain belts (e.g. Sharp et al. 2005; Gébelin et al. 2013). Fluids of deep origin (metamorphic, magmatic) provide valuable records of the physical and chemical evolution of the rock, as well as the P–T conditions related to the conditions of fluid entrapment (e.g. Roedder 1984; Mullis 1994; Siebenaller et al. 2012; Marsala et al. 2013).
Cenozoic detritic succession in the South Alpine Foreland Basin (SAFB) contains pebbles of both magmatic/metamorphic and sedimentary origins. The provenance of the endogenous rock is known to be from the Internal Alps (e.g. Gubler 1958; Bodelle 1971; Morag et al. 2008; Schwartz et al. 2012) constraining the proximal source of the drainage system. However, the sedimentary rocks may have various sources in the accretionary wedge and in the foreland preventing any clear identification of watershed and river pathways.
In this study, we present data from fluid inclusions (microthermometry, Raman spectroscopy, isotopic composition of the fluids) and their host minerals (microstructures, cathodoluminescence, isotopic composition) in veins from host rocks whose provenance is unclear. We compare our results with lithologies from which the sources in the Western Alps are already constrained (such as basalt, serpentinite and radiolarite pebbles). This innovative approach enables us (1) to trace the catchments and to discern the various possible sources of this detrital material, (2) to reconstruct and discuss the extension of the drainage pathway through the accretionary wedge, and (3) to establish the location of the higher eroded massifs. Information on the types of fluids prevailing during vein formation is also discussed.
2.1 Geological setting

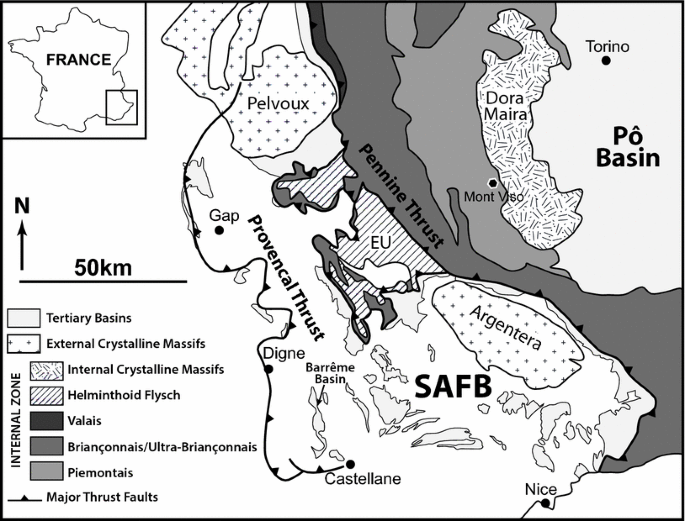

The Western Alps result from the subduction and collision between the European and Apulia-Africa plates since the Late Cretaceous (e.g. Dewey et al. 1973; Rosenbaum and Lister 2005; Handy et al. 2010). The convergence between the two plates led to the closure of the Tethyan Ocean, to post-collisional crustal horizontal shortening, and to the juxtaposition of the internal and the external zones separated by the Pennine Thrust (Fig. 1; Coward and Dietrich 1989; Schimd and Kissling 2000). The internal zone is made up of the superimposition of metamorphic nappes derived from the inverted ocean and its European and Adriatic margins (de Graciansky et al. 2011), while the external zone consists of the External Crystalline Massifs (Argentera and Pelvoux massifs, Fig. 1) and of the Alpine foreland basin. In southeastern France, the foreland basin consists of a succession of piggy-back basins located at the top of thrust sheets (Siddans 1979; de Graciansky et al. 1989; Ford and Lickorish 2004) that allowed the preservation of the Cenozoic sedimentary rocks in a complex network of palaeovalleys active during Eocene/Oligocene (Grosjean et al. 2012, 2015).
The Eocene–Oligocene succession in the study area, the Barrême Basin (Fig. 1), is represented by detrital sediments of the Clumanc Conglomerates, the St-Lions Conglomerates and the Senez Sandstones (Fig. 2a) accumulated in different depositional environments that were connected in a southward prograding system. From north to south, the depositional system records the progressive filling of the Barrême Basin during a forced regression (Grosjean et al. 2012). The Clumanc and the St-Lions conglomerates and the Senez sandstones contain clasts of sedimentary rocks and radiolarite, serpentinite, basalt and blueschist pebbles from a former accretionary wedge which today corresponds to the internal zones of the Western Alps (Morag et al. 2008; Bernet et al. 2009; Cordey et al. 2012; Schwartz et al. 2012). The regressive system is the consequence of the uplift of the internal nappes (Briançonnais and Piemontais nappes; Fig. 1) and the activation of the Penninic Thrust around 32–30 Ma ago (Ford et al. 2006; Simon-Labric et al. 2009; Dumont et al. 2011; Schwartz et al. 2012). This major tectonic event established a NE–SW-oriented drainage system that transferred the products of erosion from the internal Alpine Chains to the palaeovalleys in the foreland basin (Grosjean et al. 2012, 2015).
2.2 Location and description of the investigated samples
The studied pebbles were sampled in the St-Lions Conglomerate Formation in the Barrême Basin (Fig. 2b). This formation is clast-supported in an andesitic sandy matrix, characterized by the absence of cemented fractures (Fig. 2c). The St-Lions Conglomerates have a polymictic composition (magmatic, metamorphic and sedimentary). The less abundant pebbles (25–30 %) are magmatic/metamorphic clasts from the Internal Alps (Gubler 1958; Bodelle 1971; Morag et al. 2008; Schwartz et al. 2012). The dominant pebbles are sedimentary rocks derived either from local reliefs or from unknown localities (Fig. 2d). These undefined sedimentary pebbles—dolomitic rocks as well as some Liassic limestones—have various possible sources as they are exposed in both the Internal Alps and the foreland basin. Given the similarities between the petrography of the sedimentary pebbles and the lithologies surrounding the SAFB, various provenances for the pebbles are possible: (1) Jurassic and Upper Cretaceous limestones from the adjacent topographic highs; (2) the underlying Eocene Nummulitic Limestones; (3) Upper Cretaceous limestones and sandstones from the Castellane platform that was located at about 30 km to the south of Barrême by erosion of the underlying Argens Conglomerates Formation (Fig. 1); (4) micaceous sandstones which seem to be a facies of the Helminthoid Flysch that represent the cover of the Embrun-Ubaye Nappe (Fig. 1); and (6) Triassic dolomitic limestones and sandstones (Fig. 2e).
Pebbles containing veins have been sampled in each lithology for microscopic observation. Veins containing sufficient amounts of fluid inclusions larger than 5 µm were selected for microthermometric and isotopic analyses. The selected samples are: four dolomitic sandstones (samples SL2c, SL2g, SL2h and SL3b), two sandy limestones (samples SL2b and SL2i), and a micaceous sandstone (sample SL5a). We also selected metamorphic and magmatic pebbles: three basalts (samples SL1a, SL1d and SL1e) and one serpentinite (sample SL1b) for comparison with the sedimentary pebbles.
3 Analytical approaches
Cathodoluminescence (CL) was performed at the Department of Earth Sciences, University of Geneva (Switzerland). Eleven polished thin sections were studied using a CITL cold cathode unit (model CL8200 Mk5) operating at 400–450 µA and 14.5 kV. Trace elements act as activator elements showing characteristic lines in the CL emission spectrum that allows the identification of growth zones, microcracks and dissolution/recrystallization phenomena. Thus it provides complementary information for the reconstruction of the mineral succession precipitated during vein formation.
3.2 Microthermometry and Raman spectroscopy
Fluid inclusion microthermometry was performed with a heating-freezing stage Linkam Inc. THM 600 at the Laboratoire de Géologie de Lyon, University of Lyon (France). Calibration was done with synthetic fluid inclusion standards (pure water: ice melting temperature of 0.0 °C and critical homogenization temperature of 374.1 °C; pure CO2–H2O: CO2 melting temperature of −56.6 °C; clathrate melting temperature of 10 °C). Final ice melting temperature (Tmice) and homogenization temperature (Th) of fluid inclusions were recorded with a precision of ±0.1 and ±1 °C respectively. Tmice measurements permitted to determine the salinity of the fluid (expressed in wt% eq. NaCl) using the revised equation of Bodnar (1993) for a H2O–NaCl chemical system. The determinations of Th allowed the calculation of the isochores (Zhang and Frantz 1987) using standard deviation (1σ) of microthermometric values for each population of each sample. The nature of the fluids trapped in inclusions was obtained through the analysis of each phase (gas and liquid) of individual inclusions in quartz and calcite using a Labram HR800 Raman microspectrometer at the Laboratoire de Géologie de Lyon, ENS Lyon (France) using a 514.5 nm Ar+ laser source of excitation.
3.3 δ13C and δ18O of the bulk rock
The carbon and oxygen isotope composition of the host rocks was measured on 2–4 mg of rock powder, at the Stable Isotope Laboratory, University of Lausanne (Switzerland), with a GasBench II connected to a Finnigan MAT DeltaPlus XL mass spectrometer, using a He- carrier gas system according to a method adapted after Spötl and Vennemann (2003). The isotopic ratios were normalized using an in-house Carrara Marble standard calibrated against V-PDB for both carbon and oxygen isotope compositions. V-PDB values were recalculated to the V-SMOW scale for δ18O values of carbonates. External reproducibility for the analyses estimated from replicate analyses of the in-house standard (n = 11) is ±0.1 ‰ for both δ13C and δ18O.
3.4 δ13C and δ18O analyses of host minerals containing fluid inclusions
The oxygen and carbon isotope analyses of the host minerals were carried out at the Laboratoire Géosciences, University of Rennes 1 (France), using a VG SIRA-10 triple collector mass spectrometer. Analyses were carried out on a powder of previously handpicked quartz grains under a binocular microscope and crushed using boron carbide pestle and mortar. Mineral purity (determined optically) was always higher than 98 %. About 6–7 mg of silicate materials were reacted with BrF5 in Ni tubes at 670 °C overnight (following the method of Clayton and Mayeda 1963). The liberated O2 was then converted into CO2 by reaction with hot graphite. The oxygen isotope composition is quoted using the δ notation with respect to V-SMOW. Measured quartz δ18O values have been slightly corrected by less than 0.2 ‰ considering the long-term quartz NBS28 standard and the in-lab standard A1113 granite measurements. Analytical precision is estimated to be ±0.2 ‰ for the δ18O of quartz. 10–12 mg of calcite powder was reacted with anhydrous H3PO4 at 50 °C. The oxygen and carbon isotope compositions of the liberated CO2 were analysed on the mass spectrometer and are quoted using the δ notation with respect to V-SMOW and V-PDB respectively. Analytical precision is estimated to be ±0.15 ‰ for the δ18O and ± 0.1 ‰ for the δ13C of calcite.
3.5 δ 18O, δD and δ13C of fluid inclusions
The hydrogen isotope composition of the fluid contained by the inclusions was determined at the Stable Isotope Laboratory of the University of Lausanne (Switzerland). About 1 g of calcite or quartz grains was placed in a quartz tube, evacuated for several hours and then heated for thermal decrepitation of the fluid inclusions. Microstructural observation shows that all the analysed samples contained two or more fluid inclusion populations. Tests of stepwise heating, allowed selective decrepitation of two populations of fluid inclusions. The temperature of decrepitation obtained for the two populations of fluid inclusions in calcite are 150 and 350 °C respectively, and 200 and 500 °C in quartz. All fluid inclusion populations were also extracted in a single heating step. The composition of the bulk fluid inclusion content was compared with the composition of fluids extracted separately from the different populations of inclusions. All volatiles liberated were collected in a liquid N2 cold trap. Using the method of Vennemann and O’Neil (1993), the liquid N2 trap was replaced by an ethanol-liquid N2 slush trap held at −80 °C to separate water from CO2 and other gases not retrained at −80 °C. All purified water fractions were subsequently reduced to hydrogen by reaction with 300 mg of zinc metal at 500 °C for 15 min (Friedman 1953; Craig 1961). The D/H ratios were measured on a Thermo Finnigan 253 mass spectrometer with internal MOW (δD = −3.5 ‰), INH (δD = −114 ‰) and LIPE (δD = −59 ‰) standards. The results are reported in the δ notation with respect to V-SMOW. Analytical precision for the hydrogen measurements is ±4 ‰ based on replicate measurements of the samples.
The isotopic composition of quartz and calcite depends on the isotopic composition of the fluid from which minerals precipitate and the isotopic fractionation between the fluid and the solid for a given temperature. The oxygen isotope composition of the fluid in equilibrium with host minerals was calculated based on the oxygen isotope composition of quartz as well as the oxygen and carbon isotope composition of calcite at the temperature of precipitation of minerals. The mean δ18O values of fluid in quartz and calcite were calculated according to the quartz-water (Zheng 1993; Méheut et al. 2007) and the calcite-water (O’Neil et al. 1969; Zheng 1999; Horita 2014) fractionation factors respectively. The δ13C values of fluid at equilibrium with calcite were calculated using the equation of Ohmoto and Rye (1979).
4 Summary of vein and fluid inclusion characteristics
4.1 Vein petrography
Veins are commonly of centimetre scale and filled either by quartz and/or calcite (Fig. 3a) with textures from euhedral geodic (Fig. 3b) to fibrous geometry perpendicular to the wall of the vein (Fig. 3c). Different generations of veins are sometimes superimposed indicating a complex history of fracturing of the host rocks (Fig. 3d), as also revealed by the cathodoluminescence (CL) images indicating overprint of a late calcite within micro-fractures (bright luminescence; Fig. 4). The vein in the basalt displays a palisade of adularia crystals lining the edge of the fracture (Fig. 3e) indicating low-temperature hydrothermal potassic-rich fluids (Browne 1978; Černý and Chapman 1986) possibly resulting from the hydrothermal alteration of the basaltic host rocks. Low-grade metamorphic conditions during fracturing of the rocks are supported by chlorite-epidote assemblage growth in most veins either before or after the quartz and calcite precipitation (Fig. 3f). Some ductile deformation posterior to crystal growth is expressed by wavy extinctions in quartz (Fig. 5a). This deformation locally exhibits irregular grain boundaries (Fig. 5b) due to grain boundary migrations. In mixed quartz–calcite veins, quartz crystals commonly display irregular shapes suggesting a process of dissolution on their edge. The occurrence of calcite between or around quartz suggests that a calcite-saturated fluid percolated in the veins subsequently to the growth of quartz (Fig. 5c). This phenomenon of dissolution-precipitation commonly induces a compositional change and the trapping of new generation of fluid inclusions in marginal growth zones (Folk 1965; Goldstein 2001). In our case, this has been observed in only one sample (SL2g) where the rim of quartz in contact with secondary fractures contain fewer fluid inclusions than the core of the crystal (Fig. 5d).
In order to obtain information about the early conditions of rock fracturing and thus on vein precipitation, only the relative older veins (when various families appeared) were taken into account in this study.
4.2 Fluid inclusion petrography
At room temperature, fluid inclusions mostly contain H2O liquid, occasionally associated with CO2-dominated vapour, as confirmed by Raman spectrometry. However, CO2 will not be considered in this study due to its low proportion (less than 2.5 µmol per gram of studied host mineral). Mono-phase liquid inclusions are scarcely present, also not considered in this study because of their small size and the absence of bubble nucleation after repeated runs.
Microstructural observation of doubly polished thick sections made at room temperature allows the discrimination between two fluid inclusion assemblages (FIA): the “primary fluid inclusions” (FI-1) were trapped during crystal growth and the “secondary fluid inclusions” (FI-2) were formed at any time after mineral growth. Roedder (1984) and Van den Kerkhof and Hein (2001) refer to “pseudosecondary inclusions” that were formed in microcracks during the crystal growth. In this study, these “pseudosecondary inclusions” are included in FI-1 because of their syn-host mineral character.
Primary fluid inclusions occur as isolated (Fig. 6a), clustered or in short trail-bounds formed on the surface imperfection of a crystal during its growth. They are between 5 and 20 µm in size (mean at about 10 µm). Secondary fluid inclusions occur in trails (Fig. 6b) in microcracks that intersect the grain boundaries (Fig. 6c). They display irregular shape and are smaller than the primary fluid inclusions with a mean size at 5 µm.
Textures of post-trapping deformations and pressure/temperature variations as necking-down (Fig. 6d) are observed in the majority of the studied samples. In order to avoid misinterpretations, the microthermometric measurements have been restricted to fluid inclusions undamaged by deformation and/or reequilibration.
5 Microthermometric data
Eleven doubly polished thick sections of calcite and/or quartz veins were prepared for microthermometric analysis. For each sample, final ice melting temperatures (Tmice) and homogenization temperatures (Th) were measured. The dataset obtained on FI-1 and FI-2 in quartz and calcite is represented in Fig. 7. The measured Tmice and Th seem to record a comparable range of values for all the pebbles of different lithologies, and for the different populations of fluid inclusions.
5.1 Tmice and salinity of fluids
Tmice range between −6.5 and −0.5 °C for fluid inclusions in both quartz and calcite (Fig. 7), indicating a fluid with low to moderate salinity from 0.9 to 9.8 wt% eq. NaCl. A bimodal distribution of Tmice is observed in two samples (altered basalts): SL1d displays temperatures in FI-1 and FI-2 that range between −12.0 to −7.0 °C and −6.5 to 1.0 °C, and sample SL1e where temperatures in FI-1 from quartz range between −11.5 to −4.5 °C and −3.5 to 1.0 °C (Fig. 7). The lowest Tmice values correspond to highest fluid salinities (8.5–15.5 wt% eq. NaCl) possibly corresponding to another fluid inclusion population trapped in these samples. However, no correlation has been observed between the location of the fluid inclusions in the host minerals and in the veins with the measured temperatures.
5.2 Th and P–T conditions of fluid entrapment
On heating, the fluid inclusions homogenized to the liquid phase. Regardless of lithology, homogenization temperatures range between 120 and 220 °C (Fig. 7). As no clear difference between the two populations of fluid inclusions can be made, we conclude that identical trapping conditions of fluids have prevailed during the opening and subsequent deformation of veins and no long time between these two events.

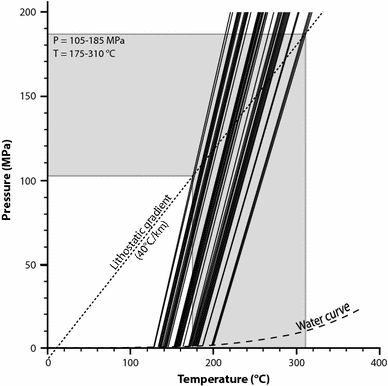

Isochores of the fluid inclusions (Fig. 8) were calculated using the equation of Zhang and Frantz (1987). Lanari et al. (2011) estimated a transition of the Alpine geothermal gradient between 50 and 30 Ma from about 10 °C/km during subduction to 40 °C/km during continental collision. On the basis of the age of St-Lions Conglomerates deposition at about 30 Ma, as well as of the low-grade metamorphic minerals (chlorite and epidote assemblages, Fig. 3f) and ductile deformation (wavy extinctions and grain boundary migration in quartz crystals, Fig. 5a, b) observed in veins, we reasonably estimated a mean geothermal gradient during vein formation around 40 °C/km. Thus, considering a lithostatic gradient (supported by petrographic characteristics and ductile deformation observed in thin sections), we determined the entrapment temperatures between 175 and 310 °C for a pressure between 105 MPa and 185 MPa (Fig. 8).
6 Stable isotope analyses
6.1 Bulk rock composition (O, C)
The δ18O values of sedimentary rocks pebbles are homogenous and range from +20 to +24.3 ‰ (Table 1), a common composition of sedimentary rocks with a compositional range of +7 to +38 ‰ (Hoefs 2009). The basalt (sample SL1a) has a δ18O value of +17 ‰ (Table 1) which differs from compositions of unaltered basaltic rocks that have lower δ18O (+6 to +10 ‰ for MORB and ocean-island alkali basalt respectively; Kyser 1986; Hoefs 2009). Such 18O enrichment is characteristic of low temperature (<50 °C) interaction between seawater and seafloor basalts (Muehlenbachs and Clayton 1972; Böhlke et al. 1984).
The δ13C values obtained on sedimentary rocks (SL2b, SL2g and SL2i) range from −4 to +1.4 ‰, regardless of the lithology, such values are similar to values of sedimentary Mesozoic carbonates.
6.2 Composition of quartz and calcite in veins (O, C)
The δ18O values of quartz (Table 1) have a range from +22.8 to +26.3 ‰ (mean value at +24.1 ‰) whereas the δ18O values of calcite have a range from +20.7 to +27.3 ‰ (mean value at +24.7 ‰). On two samples where both minerals are present, the difference between δ18O values of quartz and calcite (Δ18O) is 1.8 and 2.1 ‰. This corresponds to an apparent temperature of equilibration between 180 and 210 °C (using Zheng 1999) that is reasonable regarding the estimations of fluid entrapment temperatures between 175 and 310 °C (Fig. 8). The δ18O values of quartz and calcite in the veins from the basalt pebble are lower than in sedimentary rocks. The δ13C values obtained on the calcite veins range from −1.1 to +2.0 ‰ (Table 1). Calcite associated with quartz in two samples display similar values of −2.0 ‰ (SL1a) and +1.3 ‰ (SL2i).
6.3 Fluid inclusion compositions (H, O, C)
The δD values of water contained in fluid inclusions range from −24 ‰ (sample SL3b) to −73 ‰ (sample SL2h; Table 2) regardless of the nature of the host mineral (quartz or calcite). In a given sample, the δD values obtained for the FI-1 are always lower than the δD values for the FI-2 by about 20–30 ‰ (Table 2), largely higher than the analytical uncertainty.
The stable isotope compositions of minerals can be used to estimate that of the fluid in equilibrium with the mineral and hence help to identify its origin. The equilibrium fractionation between mineral species and fluids is dependent on the temperature of mineral precipitation. This temperature can be deduced from the intersection between isochores and the lithostatic gradient of 40 °C/km (175–310 °C; Fig. 8). At these temperatures, the calculated oxygen isotope compositions of the fluid (δ18O-H2O; Table 2; Fig. 9) in equilibrium with quartz and with calcite range from +9.3 to +16.2 ‰ at 175 °C and from +15.3 to +21.9 ‰ at 310 °C respectively.
7.1 Fluid source and fluid–rock interactions
The fluid trapped in inclusions is H2O-rich with small amounts of CO2. Tmice of fluid inclusions (−6.5 to –0.5 °C) indicate a low to moderate salinity from 0.9 to 9.8 wt% eq. NaCl. This range of salinity might be explained by exchange of ions during the fluid transfer and its buffering by the carbonate series (Muchez et al. 1994; Dubois et al. 1996). In our set of data, the altered basalts SL1d and SL1e display bimodality in Tmice (Fig. 7) and where the high salinities likely origin in a local fluid circulation in these peculiar rocks.
Paired δD–δ18O values for the majority of fluid inclusions (Fig. 9) indicate fluids of sedimentary or magmatic/metamorphic origin, with no, or very limited, mixing with meteoric waters. This rather deep fluid can arise from migration of formation water during tectonic event or from the dehydration of the host rocks during prograde metamorphism.
The calculated δ18O values of fluid in equilibrium with quartz and calcite (+9.3 to +21.9 ‰) overlap with the δ18O values in quartz (+9.3 to +20.8 ‰) and calcite (+9.6 to +21.9 ‰) (Table 2). This variability of the δ18O values observed in minerals (quartz and calcite) and fluids could either be linked to the temperature of mineral precipitation or to the composition of the host rocks buffering the fluid composition.
The δD and δ18O values of the fluids and of the minerals in veins are lower in the basalt. These compositions can be correlated to the oxygen isotope composition of the basalt that is 3–6 ‰ lower than sedimentary pebbles. The δ13C of the fluid (from −2.01 to +2.05 ‰, Table 1) in equilibrium with calcite host mineral points to a marine sediment source.
The homogenous range of isotopic composition of fluids, minerals sealing veins and host rocks indicates that fluid compositions were buffered by the isotopic composition of the host rocks. This reflects dehydration of the host rocks and/or expulsion of formation water during metamorphism.
The calcite cement of the conglomerate (Fig. 2e) has likely crystallized in the foreland basin at the surface from meteoric water flow. The δ13C value of −1.7 ‰ reflects high fluid/rock ratio by surficial water circulation in carbonate-rich Mesozoic series that surround the Barrême Basin and buffering of the water by marine carbonate rocks.
To conclude, the isotopic compositions of the veins within the pebbles are not compatible with the presence of meteoric water during their crystallization, thus preventing any relief elevation estimation (Sharp et al. 2005). However, the microthermometric data of deep fluids allowed the determination of P–T conditions during the fluid trapping of 105–185 MPa and 175–310 °C (Fig. 8). Related pressures under lithostatic gradient correspond to depths of 4–7 km for vein formation (lithostatic gradient is based on 27 MPa/km; Fig. 8). Such depth of fluid trapping is consistent with the estimation of nappe thickness along and to the west of (Embrun-Ubaye Nappe) the Pennine Thrust Front at around 8–10 km and 6–8 km respectively (Labaume et al. 2008).
7.2 Drainage pathway from source to sink
Petrological and geochemical studies of the St-Lions Conglomerates allow the determination of the provenance of the majority of the pebbles. Radiolarites associated with serpentinites, basalts and blueschist pebbles originate from the internal zones of the Western Alps (Cordey et al. 2012; Jourdan et al. 2012; Schwartz et al. 2012), while the source of the micaceous sandstones is in a more external part of the Alps, the Embrun-Ubaye Nappe (Kerkhove 1969; Figs. 1, 10). By contrast, the sedimentary pebbles (Triassic, Jurassic, Cretaceous and Eocene), that are dominant in the conglomerate (Fig. 2d), are classically interpreted as coming from local topographic highs bordering the basin (Gubler 1958; Chauveau and Lemoine 1961; Bodelle 1971). However, the provenance of Liassic limestones and Triassic sandstones/limestones was not yet clear since these facies are present in the Briançonnais Zone (Internal Alps) and also at the base of the Provençal Nappe (Figs. 1, 10).
The mineralogy of the vein fillings can help us to better constrain the source of the pebbles. Chlorite-epidote assemblages are frequent in veins of the studied set of pebbles. This assemblage is not observed in the sandstones and limestones that form the modern-day topographic highs around the Barrême Basin. Also they are not observed in the pebbles resulting from the erosion of the local topographies (e.g. Nummulitic limestones). Thus, we conclude that most of the sedimentary pebbles (SL2b, SL2c, SL2g, SL2h, SL3b and SL2i) cannot be derived from the erosion of the reliefs surrounding the basin but have a source that is likely to be a more internal area having recorded fracturing. The microthermometric data corroborate that micaceous sandstones, serpentinites and basalts record similar P–T evolutions. These observations suggest that vein formation in all these samples occurred under very close pressure and temperature conditions, so approximately at the same depth in the crust.
In the Barrême Basin, the St-Lions Conglomerates are overlain by continental molassic deposits (Red Molasses, Grey Series and Green Sandstones; Fig. 2a) that do not exceed 480 m of thickness (de Graciansky et al. 1982). Such thickness is not compatible with the pressure conditions recorded by the rocks that give a depth of 4–7 km upon the opening of the veins. The east of the Pennine Thrust Front, a boundary between the Piemontais and the Briançonnais zones, combines rocks of oceanic crust and sedimentary rocks of the European passive margin (Lemoine and Tricart 1986; Tricart and Schwartz 2006; de Graciansky et al. 2011). We propose that this zone is the source area of the St-Lions Conglomerates pebbles (Fig. 10). Furthermore, the well-known location of each lithology in the Western Alps, allows the identification of the drainage pathway from the Piemontais Zone (source) to the Barrême Basin (sink), across the Briançonnais Zone and the Embrun-Ubaye Nappe (Fig. 10).
7.3 Regional tectonic and topographic implications
The metamorphic gradient of the Western Alps increases from the western external arc to the eastern internal arc. The External Crystalline Massifs and the Briançonnais Zone record greenschist facies conditions (Goffé et al. 2004 and reference therein), while the Piemontais Zone has a gradient from blueschist to eclogitic facies as well as the Internal Crystalline Massifs (Schwartz et al. 2000; Tricart and Schwartz 2006; Bousquet et al. 2008). The absence of high-grade metamorphic minerals in veins crosscutting the basalts and the presence of serpentinite pebbles coming from the Piemontais Zone (Schwartz et al. 2012) suggest that these rocks have been fractured and cemented at shallow depth of the continental crust after the high-grade metamorphism. The oceanic accretionary prism emerges during the Lower Oligocene (34–30 Ma; Morag et al. 2008; Bernet and Tricart 2011), synchronous with the emplacement of the Embrun-Ubaye Nappe (32–30 Ma; Ford et al. 2006; Simon-Labric et al. 2009). The detrital sediments from these massifs constitute part of the St-Lions Conglomerates (serpentinite and blueschist pebbles) which were deposited between 30 and 28 Ma (Fig. 2a). Thus, we conclude that the formation of the veins is coeval with the exhumation of the Internal Crystalline Massif that occurred at about 32–30 Ma, before their erosion and the Oligocene sedimentation in the basin. The link between vein formation and tectonic event is in agreement with the structures of deformation observed at the mineral scale (Fig. 5), with the presence of low-grade metamorphic minerals (chlorite and epidote) in the veins (Fig. 3f), and finally with the fluid inclusion conditions of formation (Fig. 8).
The similar trapping conditions of the fluids within their host minerals suggest fluid/rock interactions and/or rock dehydration over a regional scale. This feedback corresponds to a regional tectonic event that fractured the rocks from the Piemontais Zone to the Embrun-Ubaye Nappe. This is consistent with a short-lived, fast erosional exhumation (1.5–2 km/Ma) between 30 and 28 Ma as proposed by Jourdan et al. (2013). This exhumation event is also recorded by comparable microthermometric data between FI-1 and FI-2 in samples (SL1d and SL2i in Fig. 7) recording that the two populations have formed under comparable conditions during a short time span. In response to this uplift, a regional drainage system eroded part of 4–7 km of rocks and redistributed detrital material along a profile from the highest topographies in the Piemontais Zone (source) to the foreland basin (sink). This proposed evolution agrees with the maintenance of the general Western Alps topography since the Oligocene, as the higher topographies are still located in the Piemontais and Briançonnais zones (Fauquette et al. 2015).
Classically, provenance studies are based on the application of petrographic and geochemical techniques on whole rocks or minerals (for review see Najman 2006). In this study, we also used such classical petrologic-petrographic methods but have added a new approach based on the fluid inclusions and stable isotope compositions of vein minerals within different pebbles of the sedimentary rocks. This approach can further refine our interpretations on the provenance and hence regional geology of the Alps.
Our data illustrate that all quartz–calcite veins crosscutting the studied pebbles contain a fluid trapped at about 175–310 °C and 105–185 MPa, under about 4–7 km of rocks. While the endogenous pebbles have been sourced in the internal massifs of the Western Alps, the provenance of sedimentary pebbles was still poorly constrained. The same entrapment conditions recorded by all magmatic, metamorphic and sedimentary clasts have allowed for a distinction between the sedimentary pebbles resulting from the erosion of the orogenic wedge from those sourcing in local topographic highs. Knowing the location of sedimentary cover in the Western Alps, the drainage pathway through the different massifs of the orogenic wedge can be reconstructed from source to sink. Moreover, the similar isotopic composition in oxygen and carbon of the fluid and of host rocks is consistent with the buffering of water during percolation through the rocks and/or with the expulsion of formation water during low grade metamorphism. Finally, the homogenous fluid composition and depth of fluid trapping argue for vein crystallization during a unique tectonic event. Thus, we conclude that the formation of these veins coincides with the major Early Oligocene tectonic event that induced the rapid Western Alps exhumation, their subsequent erosion and the mass redistribution in the foreland basin.
