Reconciling late faulting over the whole Alpine belt: from structural analysis to geochronological constrains
Swiss Journal of Geosciences volume 110, pages 565–580 (2017)
The significance of late-stage fracturing in the European Alps in a large geodynamic context is reappraised by studying brittle deformations over the entire belt. In the internal Western Alps, paleostress datasets display a major occurrence of orogen-parallel extension resulting in normal faulting and associated strike-slip mode. There the direction of subhorizontal extension rotates with the bending of the Alpine belt. In the Central Alps, paleostress tensors also indicate orogen-parallel extensional regimes, both in the Bergell area and the Lepontine Dome, where the brittle structures are associated with ductile structures related to the formation of large-scale upright folds that accommodate most of the collisional shortening due to the north-directed component of the movement of the South-Alpine indenter. This brittle deformation phase is of Miocene age and is coeval with the propagation of the Alpine front toward the external Alpine domains. In the Eastern Alps, brittle deformation of the Tauern Window displays an overwhelming occurrence of orogen-parallel normal faulting and associated strike-slip regimes again, which is inferred to be driven by lateral extrusion of the orogenic wedge toward the Pannonian basin, partly due to indentation on the Dolomites indenter. The major orogen-parallel extensional signal of the brittle Cenozoic deformations appears remarkably stable all over the internal Alps. Extensional brittle structures are part of a late phase of collisional deformation, during which the propagation of the Alpine front of the Western Alps and the northward movement of the Southern Alpine and the Dolomites indenters in the Central and Eastern Alps were accommodated by orogen-parallel extension in the inner zones, at the scale of the entire chain.
It is well constrained and largely accepted that the exhumation of the Alps results from the collision between European and Adriatic plates due to the relative northward movement of the Adriatic microplate (e.g. Termier 1903; Argand 1916, 1924; Dewey et al. 1973; Handy et al. 2010; Schmid and Kissling 2000; Schmid et al. 2017). However, late exhumation of the Alps differs significantly in terms of the sites of enhanced exhumation within the chain, both laterally and along strike. The actual shape and topography of the Alpine belt is related to tectonic, climatic and erosional processes. In the Late Eocene, the subduction of the Tethyan oceans beneath the Adriatic plate was followed by continent–continent collision inducing uplift and exhumation of the Western-Central Alps and the central part of the Eastern Alps (Dewey et al. 1989). The differences in buoyancy forces and flexural strengths between oceanic and continental lithosphere induced an Oligocene slab break-off (Von Blanckenburg and Davies 1995), enhancing rapid rock uplift at the scale of the belt. Subsequent continental subduction induced complex vertical motions in the Alpine crust, which are still under debate both in terms of structures and dynamics (e.g. Champagnac et al. 2007; Sue et al. 2007; Vernant et al. 2013; Fox et al. 2015, 2016; Schlunegger and Kissling 2015; Zhao et al. 2015; Chéry et al. 2016; Nocquet et al. 2016). In the Eastern Alps, based on analogue models, extensional collapse and tectonic escape have been proposed as exhumation mechanisms during the Cenozoic (e.g. Ratschbacher et al. 1991, b).
Brittle deformations allow assessing the latest stage(s) of deformation of an orogen (e.g. Burg et al. 2005; Hintersberger et al. 2011). However, despite the large number of data on brittle deformation available over the entire European alpine chain (e.g. Sue and Tricart 1999, 2002, 2003; Sue et al. 1999, 2007; Bistacchi and Massironi, 2000; Champagnac et al. 2003, 2004, 2006; Ciancaleoni and Marquer 2008; Perrone et al. 2011; Beucher 2009; Allanic 2012; Bertrand et al. 2015) interpretation at the orogen scale has not been proposed in the Alps so far.
When comparing brittle deformations that occurred in different areas of the Alps, the timing of such deformation is of first importance. Because the closure temperature of fission-tracks in zircon crystals, i.e. 240 ± 60 °C (Yamada et al. 1995; Brandon et al. 1998), roughly corresponds to the brittle-ductile transition temperature in quartz in basement rocks (Stipp et al. 2002), at first approximation, the maximum age of brittle deformation can be inferred from the zircon fission-track ages. We are aware that using zircon fission-track age constraints for brittle deformation is a rough simplification that only allows for a large-scale overview over the entire alpine chain. Therefore, to provide a more accurate dating of the deformation we provide, when available, absolute dating of the deformations such as for the Central Alps (i.e. Zwingmann and Mancktelow 2004; Rolland et al. 2009; Allanic 2012), the Periadriatic fault system (Mancktelow et al. 2001; Müller et al. 2000, 2001; Martin et al. 2016), and the Southern Alps (Zanchetta et al. 2011).
In this work, we present a synthetic overview of brittle deformations in the Alps in order to reappraise the significance of late-stage fracturing over the entire orogen in a wider geodynamic context by: (1) providing an overall homogeneous mapping of late Alpine brittle deformations, (2) using geochronological and thermochronological data to better constrain the timing of the brittle deformations, (3) analysing the degree of anisotropy of the upper mantle by questioning the significance of shear wave splitting from SKS phases.

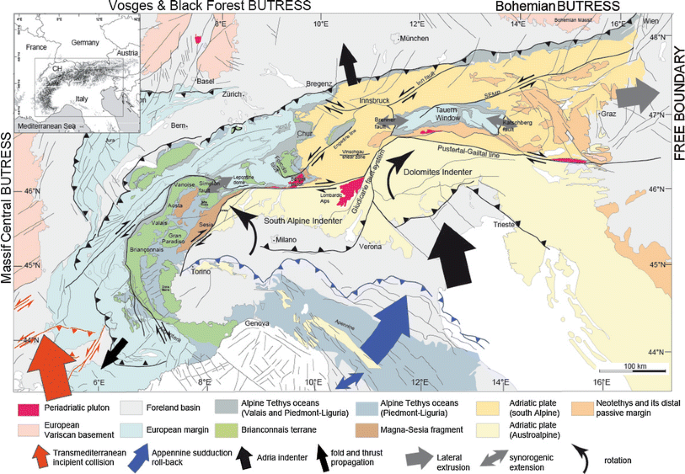

The European Alps are geographically divided into the EW-trending Eastern Alps and the arcuate Western Alps (Fig. 1). They are characterized by a stack of large-scale nappes that are derived from Adria (Austroalpine nappes), the oceans of Alpine Tethys (part of the Penninic nappes) and Europe (Helvetic-Dauphinois cover nappes and Subhelvetic basements units) (e.g. Termier 1903; Argand 1916; Stampfli et al. 1998; Schmid et al. 2004). Stacking and exhumation of these nappes resulted from two successive orogenies that occurred from the Cretaceous onwards in the Eastern Alps and from the Cenozoic onwards in the Western Alps (Tollmann 1963; Frisch 1979; Platt 1986; Frank 1987; Behrmann 1988; Dewey et al. 1989; Froitzheim et al. 1996; Schmid and Kissling 2000).
In the Eastern Alps, subduction commenced during the Early Cretaceous and lasted until the Eocene (Handy et al. 2010). It is characterized by the subduction of continental crust associated with nappe stacking within the Austroalpine nappes in the Cretaceous and subsequent accretion of parts of the Tethyan oceanic units and finally European margin units to the Austroalpine in the Cenozoic (Schuster 2015 and reference therein). The underlying Penninic and Europe derived units formed an accretionary wedge in front of the Alpine subduction (e.g. Schmid and Kissling 2000; Weh and Froitzheim 2001). The following collisional orogeny took place from the Oligocene onwards (e.g., Dewey et al. 1973; Milnes 1978) and is related to the indentation of Adria into Europe (e.g. Tapponnier 1977; Sengör 1979; Schmid et al. 1996; Schmid and Kissling 2000; Handy et al. 2010; De Graciansky et al. 2011). The Eastern Alpine structures result from the northward movement of the Dolomites indenter with respect to the European plate, together with a coeval E–W extension favoured by the rifting of the Pannonian basin to the East (e.g. Ratschbacher et al. 1991a, b; Rosenberg et al. 2015) and eastward retreat of the subduction beneath the outer Carpathian belt (Decker et al. 1993; Royden 1993; Peresson and Decker 1997; Sperner et al. 2002). Related to this geodynamic context, the Eastern Alps, including the Southern Alps, display large-scale crustal strike-slip and extensional faults, i.e. the dextral Pustertal fault and Insubric line, the sinistral Salzach–Ennstal–Mariazell–Puchberg (SEMP) and Giudicarie fault systems and the Brenner and Katschberg normal fault systems (Fig. 1).
In the Western-Central Alps, orogeny took place from the Paleogene onward and is related to the gradual closure of the Tethyan oceans and the following Oligo-Miocene continental collision (Tapponnier 1977; Tricart 1984; Schmid and Kissling 2000; De Graciansky et al. 2011). They are characterized by voluminous occurrences of accreted rocks derived from the European plate (Fig. 1), i.e. the lowermost units of the Alpine chain, and additionally, accreted units derived from the Valais Ocean, the Briançonnais microcontinent and the Piedmont-Liguria oceans. All these units were accreted to the Adriatic margin (Southern Alps and Austroalpine nappes). The Western-Central Alps display an arc-shaped geometry, acquired during Oligocene time, due to complex rotation and deformations (Gidon 1974; Anderson and Jackson 1987; Vialon et al. 1989; Laubscher 1996; Thomas et al. 1999; Collombet et al. 2002; Delacou et al. 2005). The internal arc of the Western-Central Alps is imprinted by a series of Neogene to current extensional features related to extensional and/or transtensional processes. These processes are still under debate and could refer to two specific extensional phases (see Sue et al. 2007 for a review; Champagnac et al. 2007; Vernant et al. 2013; Walpersdorf et al. 2015; Nocquet et al. 2016).
South of the Pustertal-Gailtal fault, the Dolomites indenter forms a stack of basement and Upper Paleozoic to Mesozoic units (Laubscher 1985). South of the Insubric line, the Southern Alpine indenter displays the lower crust and the upper mantle of the Adriatic plate.

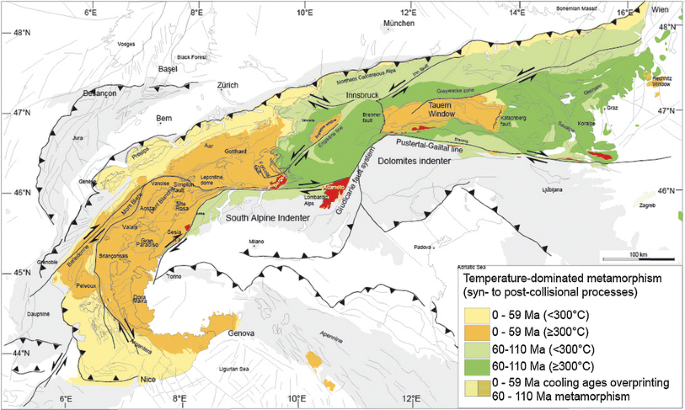

Hot and deep-rooted crustal material of the Eastern and Western-Central Alps has been exhumed asynchronously above the temperature for the brittle-ductile transition (ca. 300 °C). While the Eastern Alps, with the exception of the Tauern and the Engadine Windows, were already exhumed in Cretaceous times above c.a. 10 km, the Western-Central Alps were not exhumed above this depth before the Cenozoic (Fig. 2).
From the Oligocene to Miocene and Early Pliocene, the Western and Southern Alps expanded from the central axial zone, towards more external Europe and Adria, respectively, resulting from foreland propagation (Tricart 1984; Schmid et al. 1996; Schlunegger and Willett 1999; Willett et al. 2006). This was manifested by the widening of the area of rapid cooling towards more external parts of the orogen (Schlunegger and Willett 1999) and by the shift of the young orogenic activity (10–6 Ma) (Laubscher 1996) to the Jura Mountains and the external crystalline massifs to the West and to the Lombardian domain to the South-East (Fig. 2) (e.g. Laubscher 1996; Rabin et al. 2015).
Overview of late-Alpine brittle deformation
Systematic statistical analysis of brittle deformation measured in the field at meso/micro-scales allows quantifying the corresponding kinematic axes, either strain or stress axes, depending on the methodological and theoretical backgrounds (e.g. Wallace 1951; Bott 1959; Carey and Brunier 1974; Angelier and Mechler 1977; Angelier and Goguel 1979; Angelier 1989; Gephart 1990; Twiss and Unruh 1998; Yamaji 2000). Regardless of whether a stress or kinematic approach is taken, slip occurs parallel to the direction of maximum resolved shear stress within the fault plane that is subject to a local spatially homogeneous stress tensor leading to failure (Wallace 1951 and Bott 1959’s principle). The basic assumptions for the application of methods of stress/strain analysis of brittle deformation are the following: (1) the rock volume is isotropic and homogeneous; (2) displacements along faults are incremental and individual faults slip independently; (3) the stress/strain field is uniform and steady during a given tectonic phase; (4) the deformation is non-rotational; (5) no post-faulting reorientation of the fault-slip data has occurred. In practice, the direction of movement is mainly given by the orientation of slickensides, mineral fibres, and grooves on the fault plane. The sense of movement is given, among other indicators, by steps, Riedel criteria (Riedel 1929), fibres and drag-folds (e.g. Petit 1987). Although the related methods have proved their robustness in many areas and in various tectonic contexts (e.g. Burg et al. 2005; Hintersberger et al. 2011), fault-slip data may not be in accordance with these basic assumptions, mainly because of stress variations due to pre-existing anisotropies and inherent rock heterogeneities. The long-lasting discussions on the various methods concerning strain vs. stress approaches have recently been critically discussed (Lacombe 2012), and we refer to this paper and references therein for more details.
Brittle deformations of the entire Alps have been investigated by different authors and paleostress fields have been determined using the graphical right-dihedra method (Angelier and Mechler 1977; Pfiffner and Burkhard 1987), the graphical P-B-T axes method (Turner 1953; Marrett and Allmendinger 1990), as well as the numerical standard direct inversion (Angelier 1990; Sperner et al. 1993). In particular, the direct inversion method [see Angelier (1990) for the theoretical formalism] defines a stress tensor that best minimizes the deviation between the theoretical shear stress for a given plane and slickenside, and the measured slickenside lineation (Carey and Brunier 1974; Angelier 1989, 1990).
We present hereafter a synthesis of data on brittle deformation over the entire Alpine belt, especially along the axial zone of the Alps. We integrated available datasets (Fig. 3a, b) from the Penninic units north of the Argentera massif (Beucher 2009; Bauve et al. 2014), the Briançon region between the Pelvoux, Viso and Argentera massifs (Sue and Tricart 1999, 2002, 2003), the Vanoise area (Champagnac et al. 2006), the Aosta region (Champagnac et al. 2004; Bistacchi and Massironi 2000), the Valais area (Champagnac et al. 2003), the vicinity of the Simplon fault (Grosjean et al. 2004), the Lepontine Dome (Allanic 2012), the Bergell pluton (Ciancaleoni and Marquer 2008), the Tauern Window (Bertrand et al. 2015), along the SEMP (Salzach–Ennstal–Mariazell–Puchberg; Wang and Neubauer 1998), along the Passeier and Jaufen faults (Luth 2011) and in the Cottian Alps (Perrone et al. 2011).
To summarize the paleostress field(s) around the bend of the Alps, we reassessed a homogeneous statistical analysis for the entire set of data (Fig. 3a, b; Table 1). The reading of the 727 tensors map being quite difficult (see supplementary material), we propose a new statistical map-view (Fig. 3a) that includes both contouring of stereonets and rose-diagrams for each regional subset of data. The results are plotted on Fig. 3b. Each stereonet in Fig. 3 presents both the contouring of the overall related σ3 paleostress axes for a given area, together with the corresponding rose-diagram (Stereonet© software, Allmendinger et al. 2013; Cardozo and Allmendinger 2013). The corresponding parameters are given in Table 1, including the best σ3 directions in the (0°–180°) range (Bingham axial distribution combined with the rose-diagram distribution). From the south-western branch of the chain to the core of the Eastern Alps, the paleostress field displays a dominant and surprisingly stable signal that displays horizontal to subhorizontal σ3 paleostress axes running parallel to the orogen along the bending of the belt (highlighted by the red lines in Fig. 3a). Note that the stereonets of the Briançonnais (L), the Valais (I), The Cottian Alps (K), and the Western-Aosta (J) areas present a noticeable secondary family of horizontal σ3 oriented perpendicular to the Western Alpine arc (Sue and Tricart 2002; Champagnac et al. 2006; Perrone et al. 2011). Kinematically, orogen-parallel horizontal extension by normal faulting is often associated with horizontal extension by strike-slip faulting (Champagnac et al. 2006; Sue et al. 2007; Beucher 2009; Bauve et al. 2014). In the overall belt, ca. 75% of the computed paleostress tensors are normal fault tensors, while most of the remaining ones are transcurrent. Over the entire inner Alps, orogen-parallel normal fault and strike-slip tensors are kinematically coherent, that is to say the σ3 paleostress axes remain subparallel and near-horizontal regardless of the type of tensor (Wang and Neubauer 1998; Sue and Tricart 1999, 2002, 2003; Bistacchi and Massironi 2000; Champagnac et al. 2003, 2004; Grosjean et al. 2004; Champagnac et al. 2006; Ciancaleoni and Marquer 2008; Beucher 2009; Luth 2011; Perrone et al. 2011; Allanic 2012; Bauve et al. 2014; Bertrand et al. 2015).
The major orogen-parallel extensional signal is very stable over the entire Alps and follows the arcuate shape of the belt, especially in the Western Alps’ arc (Fig. 3a). In detail, the so-called Central Alps northeast of the Western Alpine arc including the Valais (Champagnac et al. 2003), Simplon area (Grosjean et al. 2004), Lepontine Dome (Allanic 2012), Bergell pluton (Ciancaleoni and Marquer 2008) display an overwhelming majority of orogen-parallel σ3 paleostress axis tensors within a very regular ENE-WSW σ3 orientation (average N60°, Fig. 3a over more than 250 km along the strike of the orogen. Further east, the Tauern Window shows a quite comparable orientations of σ3 (WNW-ESE, N105° on average) (Bertrand et al. 2015), with a variation from the Western Tauern Window (N95°) to the Eastern Tauern Window (N119°). Southward, from the Vanoise area to the Briançon region and the internal units North of the Argentera, late Alpine extension perfectly follows the arcuate shape of the orogenic arc, with σ3 axes evolving from N27° in the North of the arc, to N160°, N105°, then N101° in the southernmost branch of the arc (Table 1; Fig. 3a).
Orogen parallel extension, reflected by the σ3 paleostress axes, has long been described in the Eastern Alps (Behrmann 1988; Selverstone 1988; Ratschbacher et al. 1989) and in the Central Alps (Steck 1980; Mancktelow 1985), mainly based on the analysis of ductile deformation, but it was only later recognized in the Western Alps on the basis of the analysis of brittle structures (see Champagnac et al. 2006 for a review). In this framework, our synthesis of fault-related data over the entire Alpine belt shows a surprisingly steady signal with a very dominant paleostress field characterized by σ3 paleostress axes distributed parallel to the strike of the belt, from its eastern tip, to its southwestern end. Our synthesis establishes a tectonic continuity regarding this orogen-parallel extension over the entire Alpine chain.
Age of the brittle deformations
The closure temperature of fission-tracks in zircon crystals is estimated around 240 ± 60 °C (Yamada et al. 1995; Brandon et al. 1998). The annealing kinetics of fission-tracks in zircon, and therefore the closure temperature, depends on different parameters such as the chemical composition of the minerals, the presence of radiation-damages in the crystal (Dodson 1973; Kasuya and Naeser 1988; Garver et al. 2005) or the cooling rates. However, as a first approximation, we assume that the closure temperature of fission-tracks in zircon corresponds roughly to the temperature of the brittle-ductile transition in quartz in basement rocks (i.e. 280 ± 30 °C; Stipp et al. 2002).
We provide an interpolated map of a compilation of non-detrital zircon fission-track ages over the entire Alps using the natural-neighbour algorithm tool of ESRI-ArcMap10tm GIS software (Fig. 4). Extended cells for the interpolation are of 500 m. Analytical errors are not taken into account for the interpolation. Age classes are based on the analysis of the distribution histograms of zircon fission-track ages. Because of the history of detrital materials (e.g. Cerveny et al. 1988; Brandon and Vance 1992), it is difficult to assess the significance of the fission-track ages in such material; therefore detrital fission-track ages are here not considered.
The Argentera, Dora-Maira, Grand Paradiso, Belledonne, Mont-Blanc massifs of the Western Alps, the Lepontine Dome and the Bergell pluton in the Central Alps, and the Tauern Window, as well as units located northwest of the Meran-Mauls fault and southeast of the Jaufen fault cooled below the zircon fission-track closure temperature during Late Paleogene and Neogene. The rest of the Alps and especially the Austroalpine units of the eastern Alps cooled below this temperature between Jurassic and Eocene (Fig. 4). Therefore, the main areas of interest in this paper are the area around Briançonnais, the Valais-Vanoise area, the area around the Simplon fault, the Lepontine Dome, the Bergell pluton and the Tauern Window. With the exception of the Briançonnais, all the investigated areas display zircon fission-track ages of Oligocene and younger age. As stated previously, the zircon fission-track closure temperature corresponds to the ductile–brittle transition temperature, therefore deformations measured in those areas are of Miocene or younger age.
The Bergell area is a good target for investigating brittle deformations because of the homogeneous rheological behaviour of the granitoids and of its Oligocene emplacement (32–30 Ma) (Von Blanckenburg et al. 1992), which provides a good constrain on the maximum age of the deformations. Moreover, the Bergell area displays close relationships between well-constrained time markers of post-collisional deformation (late Oligocene Periadriatic intrusions) and prominent late Alpine faults of the Periadriatic fault system (Tonale, Engadine and Forcola faults). After emplacement of the Bergell pluton, uplift and eastward escape of the area occurred between the dextral Tonale fault and the sinistral Engadine fault as the result of on-going N–S shortening (Schmid and Froitzheim 1993). A late Oligocene-early Miocene zircon fission-track age (23.1 ± 1.4 Ma; Ciancaleoni 2005) provides a good constraint on the timing of cooling below the ductile–brittle transition temperature for the Bergell pluton.
To the south, the dense fault network, which carves the Briançonnais zone, postdates all the Alpine Oligocene-age (Tricart 1984) compression-related structures such as nappe stacking, folds, schistosities and cleavages related to the different compressional phases (Sue and Tricart 1999, 2003). Therefore, it is has been proposed that the brittle deformations in the Briançonnais area correspond to the last tectonic event in the Alpine history, potentially of Miocene age (Sue and Tricart 2003). Local paleo-karst infill allowed proposing that brittle deformations corresponding to the last orogen-perpendicular and still active extension worked during the Pliocene using indirect argumentation (Sue 1998), In summary, in the Briançon and surrounding areas, the orogen-parallel extension phase is most likely of Miocene age, postdating the Oligocene compressional phases, and followed by the Plio-Quaternary and still active orogen-perpendicular extension.
Dating of faults

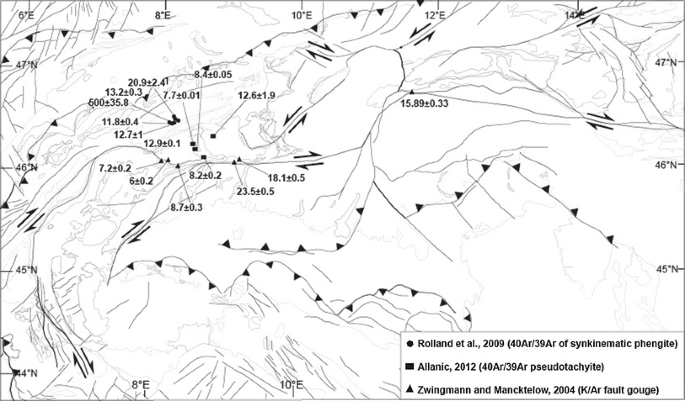

Direct dating of brittle faulting is generally difficult and hence rare. Only a few methods allow such a direct dating such as the dating of pseudotachylite that develop during seismic events by extreme grain size reduction and melting due to frictional heating (e.g. Spray 1992; Hetzel et al. 1996). If the pseudotachylites contain significant amounts of potassium derived from the host rock minerals, they may be suitable to assess the timing of fault activity by using the 39Ar/40Ar method (e.g., McDougall and Harrison 1999; Van der Pluijm et al. 2001). Displacement on brittle fault planes may also often result in the development of fault gouge, composed of crushed rock fragments and authigenic clay minerals formed by retrograde hydration reactions. Dating the activity of such brittle faulting is thus possible by using K–Ar on those authigenic clay minerals (Lyons and Snellenberg 1971; Kralik et al. 1987).
In the Alps, data based on such methods are rare, and specifically located within the Lepontine Dome (Allanic 2012), in the vicinity of the Periadriatic fault system (Mancktelow et al. 2001; Müller et al. 2000, 2001; Zwingmann & Mancktelow 2004) and in the Aar massif (Rolland et al. 2009) (Fig. 5).
Absolute dating based on K–Ar ages of fault gouges provides ages of 6.01 ± 0.18–7.17 ± 0,18 Ma along the N–S striking latest and brittle part of the Simplon detachment, and 8.72 ± 0.26 Ma along the EW-striking Centovalli fault (Zwingmann and Mancktelow 2004). These ages are coherent with absolute ages based on 40Ar/39Ar dating of pseudotachylites of the Simplon detachment and within the Lepontine Dome area (between 7.7 ± 0.01 and 11 ± 2 Ma, Allanic (2012) (Fig. 5). Moreover, 40Ar/39Ar and Rb/Sr dating of synkinematic white mica of in foliated phyllonites from the footwall of the Simplon detachment yields ages between 14.6 ± 9.5 and 11.0 ± 0.1 Ma (Campani et al. 2010), and are interpreted to estimate the timing of the ductile–brittle transition. Based on these ages, it has been proposed that the Simplon low angle detachment underwent a continuous transition from ductile shearing to brittle deformation within the same geological framework from Middle Miocene time onwards (Campani et al. 2010). K–Ar for <2 μm illite fractions fault gouges provide ages of 18.98 ± 0.47–23.46 ± 047 for the steeply north-dipping Insubric fault south of the Lepontine Dome, and 15.89 ± 0.33 Ma for the Pustertal-Gailtal fault at the tip of the South Alpine indenter (Zwingmann and Mancktelow 2004). Stepwise-heating and laser-ablation 40Ar/40Ar of pseudotachylites and Rb–Sr on mylonites of the Periadriatic fault system indicate a tectonic activity lasting from Late Cretaceous to Middle Miocene (Müller et al. 2000, 2001; Mancktelow et al. 2001). In the Aar massif, brittle–ductile offsets and reactivation of shear zones are constrained between 13.8 ± 0.2 Ma and 12.2 ± 0.2 Ma (40Ar/39Ar on syn-kinematic phengite, Rolland et al. (2009), while brittle deformations are dated between 10.1 ± 0.4 Ma and 7.6 ± 0.4 Ma (K–Ar on mylonite and fault gouges clays, Kralik et al. (1992). Most of the above-mentioned age data are related to brittle deformation belonging to the orogen-parallel extensional phase (Fig. 5, Zwingmann and Mancktelow 2004; Allanic 2012), and are coherent with the zircon fission-track ages (Fig. 4). Absolute dating combined with zircon fission-track dating suggests that such orogen-parallel extension occurred during late Oligocene to Miocene times.
Crustal thickening due to on-going orogen-perpendicular convergence accommodates large amounts of intra-continental shortening across the Alpine belt during late-stage indentation of Adria. However, brittle deformations in the Western, Central and Eastern Alps display surprisingly similar patterns with major occurrence of brittle faulting achieving subhorizontal extension parallel to the strike of the Alpine chain. This Neogene orogen-parallel extensional signal developed mainly in the internal zones, coevally with further propagation of the indentation to the West and the Northwest in the external zone. Indeed, the propagation of the Alpine front in the Western Alps and the northward movement of the Southern Alpine and Dolomites indenters in the Central and Eastern Alps and backthrusting onto the Adria microplate were accommodated by orogen-parallel extension in the inner zones, at the scale of the entire chain. This implies major tectonic decoupling between the inner belts and the most external belts of the Alps as a whole. Late Alpine orogen-parallel extension appears as a major event during the kinematics and associated dynamics of the evolution of the Alps from the Miocene onwards. It can no longer be treated as a local epiphenomenon, and must therefore be taken into account in geodynamic models for the Miocene geodynamic evolution of the Alps.
In the Lepontine Dome and the Bergell pluton, most of the collisional shortening due to the north-directed component of the movement of the South Alpine indenter was accommodated by the formation of large-scale upright folds. In the Eastern-Alps, the late brittle deformations, as observed in the Tauern Window are dominated by orogen-parallel extension at the eastern and western borders of the Dome and by strike-slip faulting in the central parts of the Dome and along the SEMP (Fig. 3) (Wang and Neubauer 1998; Bertrand et al. 2015). The location of the Tauern Window in front of the tip of the Dolomites indenter invokes a possible link of extensional and strike-slip faulting with the N to NNE motion of the Dolomites indenter. Analogue models (Ratschbacher et al. 1991a, b; Rosenberg et al. 2004, 2007) show that the movement of the indenter can be accommodated, in the eastern Alpine units located north of the indenter, by both extension and shortening due to deformation partitioning. Northward movement of the indenter first resulted in exhumation of the unit of the lower European plate and the overlying Penninic units of the Tauern Window by folding and erosion accommodating ca. 30 km of orogen-perpendicular N–S shortening of the Tauern window (Scharf et al. 2013). During the Neogene, the motion of the Dolomites indenter was accommodated by orogen-parallel extension combined with strike-slip faulting, yielding an overall N–S shortening and exhumation of ca.10 km (Bertrand et al. 2015). Orogen-parallel extension in the Eastern Alps is inferred to be driven either by the retreat of the plate boundary in the outer Carpathians (Royden 1993; Sperner et al. 2002) or by a combination of N–S compression driven by the Dolomites indenter (Ratschbacher et al. 1991a) and eastward retreat of the subducted slab below the Carpathians (Decker et al. 1993; Peresson and Decker 1997). Mid- to Late Miocene (U-Th–Sm)/he and apatite fission-track ages from the Southern Alps and the Karawanken Mountains (Nemes 1996; Zattin et al. 2003, 2006; Pomella et al. 2011; Reverman et al. 2012; Heberer et al. 2016), indicate that exhumation related to the movement of the Dolomites indenter, which was localized within the central part of the Eastern Alps during Oligocene and Early Miocene became more widespread during Mid- to Late Miocene (Heberer et al. 2016).
Images of the seismic velocity and anisotropy variations in the uppermost mantle, compiled from Pn and Sn phases (Diaz et al. 2013) indicate a non-continuous signature of the Alps, with an arcuate variation of the anisotropic properties in the Western Alps and low-velocity zones beneath its eastern and southwestern terminations. Pn anisotropy shows consistent orientations subparallel to major alpine orogenic structures. Beneath the Alps, the two important low velocities observed seem to be separated by a zone of normal velocity located roughly under the Insubric line. The anisotropic parameters obtained from Pn and SKS splitting are very similar beneath the Western Alps, with an anisotropy following the trend of the belt, from a NE–SW orientation to the North, to a roughly NS orientation in the southern termination of the Alps. The variations in crustal thickness are consistent with available Moho depths inferred from controlled-source seismology and receiver functions (Spada et al. 2013). The overall similarity between anisotropic parameters retrieved from Pn tomography (Diaz et al. 2013), from the splitting SKS (Qorbani et al. 2015a) and the Moho depth (Spada et al. 2013) seems to indicate that deformations are rather uniform from the base of the crust to mantle depths. The anisotropic pattern may be explained by lithospheric-scale deformation beneath the Alps triggered by mantle flow that may be related to the retreat of the Pannonian and Calabrian slabs (Faccenna et al. 2014) at both ends of the Alpine orogen.

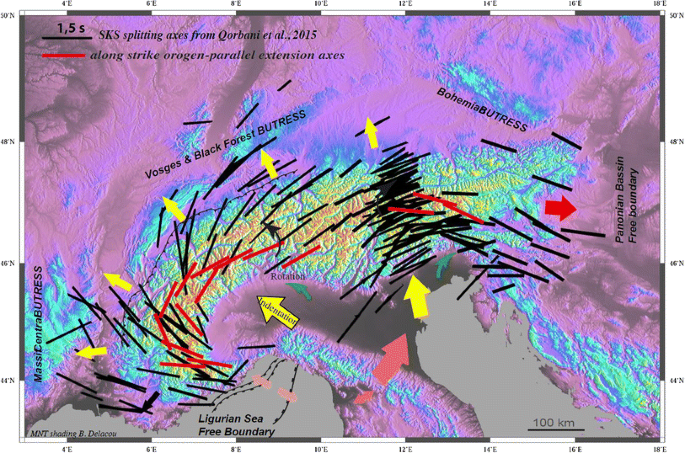

SKS splitting measurements also indicate a strong coherent average signal with the fast direction being subparallel to the strike of the orogen over the entire Alps, including Central and Western Alps (Qorbani et al. 2015). It is SW–NE in the western part of the Eastern Alps and NW–SE in the eastern part of the Eastern Alps and turns parallel with the arcuate shape of the Central-Western Alps (Fig. 6), staying roughly parallel to the strike of the belt. In Fig. 6, we superpose the orientations of the inferred axes of subhorizontal orogeny-parallel extension from our statistical analysis with the orientations of the fast direction inferred from SKS measurements. In this framework, it appears that both kinds of data, a priori disconnected as belonging to very different structural levels within the lithosphere, exhibit surprisingly similar patterns. Indeed, the scheme of the SKS anisotropy, arising from lattice preferred orientation of olivine acquired during upper mantle flow parallel to the fast direction, is well correlated with the orientation of the extensional axes measured in the upper crust along the entire strike of the Alps. This might indicate a coupling between strain in the upper crust (acquired during brittle deformation) and flow in the upper mantle (acquired during dislocation creep in olivine at very elevated temperatures of >700 °C). Beyond the discussion on a potential fortuitous correlation, we can propose that, at the scale the entire Alps, Miocene upper crustal brittle deformation, characterized by an orogen-parallel extensional phase, could be controlled, or at least strongly influenced, by mantle flow (e.g. Doglioni 1991; Faccenna et al. 2004; Jolivet et al. 2008; Molli et al. 2010). Such a provocative interpretation would imply a strong coupling across the different structural levels in the Alpine lithospheric root.
The main features of brittle deformation in the Eastern Alps are related to lateral extrusion resulting from the northward movement of the Dolomites indenter combined with slab retreat beneath the Carpathians. However, in the Western Alps the overall structure of the arc prevents to propose a similar extrusion-like model. Here, deformations and exhumation are related to the WNW-directed movement and counterclockwise rotation (e.g. Delacou et al. 2005 and references herein) of the South Alpine indenter in the Oligocene and Miocene times (e.g. Tricart 1984; Schmid and Kissling 2000; Schmid et al. 2017). The opening of the Ligurian Sea during Early-Middle Miocene may have favoured the brittle extension parallel in an overall geodynamic model, in which orogen-parallel Miocene extension in the upper crust of the internal Alps would be driven by mantle flow and concomitant slab retreat processes implying the Pannonian slab to the East and the Apennine slab to the Southwest.
We provided a first synthesis of the late Alpine brittle deformation at the scale of the entire Alps, using inversion methods and published regional paleostress fields (Sue and Tricart 1999, 2002, 2003; Champagnac et al. 2003, 2004, 2006; Grosjean et al. 2004; Ciancaleoni and Marquer 2008; Beucher 2009; Allanic 2012; Bertrand et al. 2015). 727 individual tensors have been statistically reassessed to provide an overview of the main kinematics associated to the late faulting in the Alps. Zircon fission-track ages, direct dating, and indirect argumentations suggest that the main faulting event is a Miocene phase of orogen-parallel extension, well developed in the inner belts of the entire Alps, from the Eastern Alps (E–W extension) to the Central Alps (ENE–WSW extension) and the Western Alpine arc (rotation of the extensional axes from NE-SW to NW–SE). Indeed, orogen-parallel extension is surprisingly stable along the strike of the Alps. Correlation between brittle extension axes and SKS anisotropy axes along the strike of the Alps suggest a potential coupling between mantle flow within the upper mantle and the upper crustal faulting. In this framework, Miocene orogen-parallel upper crustal faulting would be driven (at least partly) by mantle flow, which itself is controlled by subduction dynamics in the larger Alpine-Mediterranean realm.
