Permian magmatism and metamorphism in the Dent Blanche nappe: constraints from field observations and geochronology
Swiss Journal of Geosciences volume 111, pages 79–97 (2018)
In the Dent Blanche Tectonic System, the Mont Morion biotite-bearing granite is a km-scale intrusion preserved in a low-strain volume. Zircon saturation thermometry suggests that it crystallised from a melt that reached about 800 °C. U–Pb zircon and allanite geochronology indicates crystallization of the magma in the Permian (290 ± 3 Ma; 280 ± 8 Ma, respectively). Migmatitic biotite-gneiss and amphibolite are found as xenoliths within the Mont Morion granite and constitute its country-rocks. In two samples of migmatitic biotite-gneiss zircon has metamorphic overgrowths that yield U–Pb ages of 285 ± 3 Ma and 281 ± 4 Ma, and are thus contemporaneous with the intrusion of the granite. The Mont Morion granite with its country-rocks of migmatitic biotite-bearing gneiss and amphibolite was thus emplaced at middle crustal levels while amphibolite facies metamorphism affected its country rocks. The magmatic and metamorphic record in the Mont Morion area reflects the high-temperature regime and lithospheric thinning of the Adriatic continental margin during Permian.
The high thermal regime that characterised the European Alpine region during the Permian was responsible for diffuse magmatism with gabbroic and granitic intrusives at all crustal levels (e.g., Paquette et al. 1989; Bussy et al. 1998; Monjoie et al. 2007; Cenki-Tok et al. 2011; Miller et al. 2011) and explosive, acid volcanism at the surface (e.g., Quick et al. 2009). This igneous activity was associated with high temperature medium/low pressure metamorphism in the lower and middle continental crust (e.g., Rivalenti et al. 1984; Sinigoi et al. 1994; Peressini et al. 2007; Manzotti et al. 2012; Zanetti et al. 2013; Klötzli et al. 2014). Both magmatic and metamorphic signals have been interpreted as the result of a hot astenospheric mantle upwelling under the continental plate and of continental rifting (e.g., Dal Piaz and Martin 1988; Dal Piaz et al. 1993; Diella et al. 1992; Marotta and Spalla 2007; Müntener et al. 2001; Schuster and Stüwe 2008).

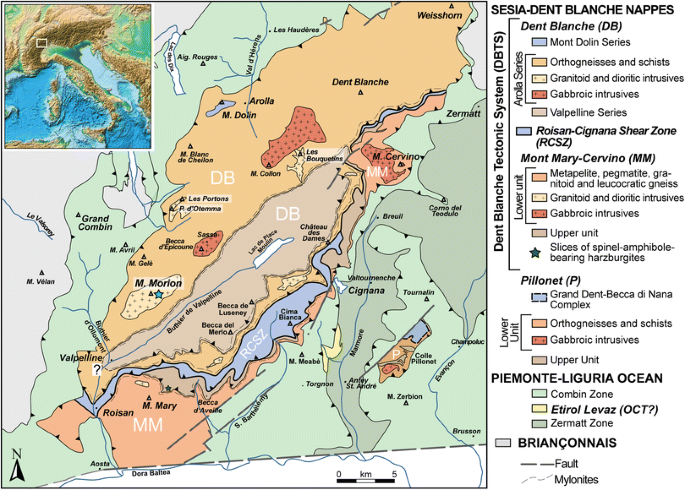

In the Dent Blanche Tectonic System (DBTS) (Fig. 1), the Arolla Series is classically considered as a slice (~50 × 5 km) of Permian upper continental crust (e.g., Argand 1911; Diehl et al. 1952; Dal Piaz et al. 1972, 2015; Manzotti et al. 2014a). It mostly comprises intrusive bodies (granitoids, diorite and gabbro) (Dal Piaz et al. 2015 and references therein) that were metamorphosed and deformed at low-temperature high-pressure conditions, during the Alpine orogeny (Roda and Zucali 2008; Angiboust el al. 2014). The Permian age of the Arolla Series is well established for the mafic to ultramafic igneous rocks (Dal Piaz et al. 1977; Bussy et al. 1998; Monjoie et al. 2005, 2007). By contrast, the age of the granitoids is generally assumed to be Permian, but this has been assessed in a single study (ID-TIMS), for an orthogneiss sampled south of the Matterhorn (Bussy et al. 1998). The Mont Morion granite (~7 × 1.5 km) is the largest undeformed granitoid body in the Arolla Series (e.g., Diehl et al. 1952; Roda and Zucali 2008), and it preserves igneous texture and mineralogy. Moreover, metre-scale enclaves of migmatitic biotite-gneiss and amphibolite recording high temperature metamorphism are found as xenoliths within this pluton (e.g., Diehl et al. 1952; Pennacchioni and Guermani 1993; Roda and Zucali 2008). These lithologies also form a kilometre-scale body interpreted as country-rocks (Burri et al. 1999). The age of the high temperature metamorphism in these bodies has not been established so far and their time relationship to the emplacement of the pluton remains unclear. The Mont Morion granite is thus an excellent setting to study the age of the magmatism in the DBTS and to discuss its temporal relationship to Permian high temperature metamorphism that is widely recorded in the Adriatic crust. This study presents field and geochronological (U–Pb ages of allanite and zircon) data for the Mont Morion granite. In addition, thermometry on metamorphic biotite, U–Pb ages and geochemistry of zircon are reported for two samples of migmatitic biotite-gneiss. These data allow discussing the age and characteristics of the high temperature metamorphism for the migmatitic biotite-gneiss.
The internal Western Alps consist predominantly of continental and oceanic derived units, which were assembled during the oblique Alpine convergence of S-Europe and the thinned Adriatic margin (Schmid et al. 2004; Handy et al. 2010). The Sesia-Dent Blanche nappes derive from the Adriatic palaeomargin and mainly consist of polycyclic basement slices, bounded by Alpine shear zones and now forming independent tectonic units. These units preserve evidence of the pre-Alpine (Permian) magmatism and metamorphism (e.g. Carraro et al. 1970; Compagnoni 1977; Lardeaux and Spalla 1991; Manzotti et al. 2014a, b).
The DBTS is a large continental klippe, resting on top of the Piemonte-Liguria ocean and surfacing to the north of the Aosta valley (Fig. 1). The DBTS is made of the Dent Blanche (DB) and the Mont Mary-Cervino (MM) nappes (Fig. 1) that are separated by the Roisan-Cignana Shear Zone (RCSZ), an Alpine km-scale high strain zone (Manzotti 2011; Manzotti et al. 2014b). The Dent Blanche nappe comprises the Valpelline Series and the Arolla Series (Diehl et al. 1952), as well as remnants of a Mesozoic metasedimentary cover (i.e., the Mt. Dolin Series, Ayrton et al. 1982).
The Valpelline Series consists of meta-pelite, mafic and carbonate rocks with a dominant metamorphic imprint under amphibolite to granulite facies conditions (Nicot 1977; Gardien et al. 1994; Manzotti and Zucali 2013) of Permian age (Zucali et al. 2011; Kunz et al. 2017). Anatectic veins and dykes of garnet-bearing pegmatite are common (Diehl et al. 1952; Nicot 1977). The Alpine imprint is weakly developed and mainly at greenschist facies, but a few occurrences of kyanite-chloritoid assemblages in the Valpelline Series have been interpreted as evidence of relatively high pressure conditions (e.g. 7–8 kbar) during the Alpine orogeny (Kiénast and Nicot 1971).
The Arolla Series is dominantly made of several intrusive bodies of granitoids, some of them preserving undeformed portions (e.g., Mont Morion, Les Bouquetins, Les Portons, P. d’Otemma) and their orthoderivates (Diehl et al. 1952; Burri et al. 1999; Roda and Zucali 2008; Dal Piaz et al. 2015). Migmatitic biotite-bearing gneiss and amphibolite occur sparsely within the intrusives and constitute a kilometre-scale body (Diehl et al. 1952; Burri et al. 1999; Roda and Zucali 2008; Dal Piaz et al. 2015; Manzotti et al. 2017). Several gabbro bodies of various sizes have been described in the Dent Blanche s.s. (Mont Collon-Dent de Bertol, Ruinette, Sassa, and Berrio) and Mont-Mary-Cervino nappe (Becca d’Aveille, Matterhorn-Cervino) (Dal Piaz et al. 1977, 1997, 2010, 2015; Dal Piaz and Martin 1988; Burri et al. 1999; Monjoie et al. 2007; Baletti et al. 2012; Manzotti et al. 2017). Both granitoids and gabbros largely preserve their pre-Alpine igneous texture and mineralogy. Permian ages have been determined for the Mont Collon and Cervino gabbros (284 ± 1 Ma, U/Pb on zircon; Monjoie et al. 2005; 250 ± 5 Ma, K/Ar and Rb/Sr methods, Dal Piaz et al. 1977), as well as for a greenish orthogneiss sampled south of the Matterhorn (289 ± 2 Ma, U/Pb on zircon, Bussy et al. 1998). In the Arolla Series, the Alpine evolution is characterised by blueschist (rare relics only) and then greenschist facies conditions (Diehl et al. 1952; Roda and Zucali 2008; Angiboust et al. 2014), frequently associated with ductile Alpine deformation.
Field relationships of the magmatic bodies in the studied area
Recent field study has led to the identification of three main subunits forming the Arolla Series, namely the Mont Morion, Mont Gelé and Regondi Units (for details, see Manzotti et al. 2017). In the Mont Morion Unit, a low strain domain has been reported by previous authors (Diehl et al. 1952; Burri et al. 1999; Roda and Zucali 2008, 2011; Dal Piaz et al. 2015; Manzotti et al. 2017). The different lithologies constituting this domain crop out in two small tributaries on the right side of the Valpelline valley, namely the Comba di Crête Sèche and the Comba Faudery (Figs. 2 and 3), which are more easily accessible and less prone to rock falls than the Mont Morion ridge itself (Fig. 3). The following description is based on previous work (Diehl et al. 1952; Burri et al. 1999; Roda and Zucali 2008, 2011; Dal Piaz et al. 2015) and our own field data, summarized in a new map (Fig. 2a) and a cross-section (Fig. 2b).
From north to south, three main lithologies are exposed. (1) An amphibole-bearing granite (Fig. 4a) that displays a porphyritic structure with phenocrysts of K-feldspar (1–5 cm in size) within a matrix that contains biotite, hornblende, plagioclase (now commonly saussurritic) and quartz (up to 1 cm in size). This granite shows a magmatic foliation marked by the shape preferred orientation of K-feldspar, plagioclase, and amphibole (Fig. 4a). Mafic microgranular enclaves (Fig. 4a) are decimetre to metre in size, of lenticular shape and elongated parallel to the magmatic foliation. They consist of hornblende, saussuritic plagioclase and rare biotite. These enclaves may derive from more ancestral magmas or from dikes intruding the granitic melt and dismembered by the movement of the granitic magma (e.g. Didier and Barbarin 1991). A pervasive foliation (Fig. 4b) defined by millimetre- to centimetre-scale flattened feldspar pseudomorphs and quartz aggregates developed during the Alpine evolution and bounds metre- to decametre-scale lower strain domains. Coronas of pale green amphibole grew around the magmatic hornblende.
(2) A kilometre-scale body (~2 km long and 500 m thick) of migmatitic biotite-gneiss and interlayered amphibolite is cropping out from the base of the Mont Morion cliff to the west to the Pic de la Vierge to the east (Fig. 2). The migmatitic biotite-gneiss comprises biotite, quartz, and feldspar whereas amphibolite consists of green hornblende and plagioclase ± minor biotite. Evidence for partial melting (Fig. 4c) in the paragneiss is provided by coarse-grained leucocratic layers made of quartz and feldspars (i.e., leucosomes), bordered by narrow biotite-rich selvedges (i.e., melanosomes). The proportion of leucosome may reach up to c. 30% in volume. Pegmatitic layers (Fig. 4d), up to one metre thick, are parallel to the migmatitic layering, and display garnet (up to 1 cm in size) sometimes associated with muscovite. In the amphibolite, coarse-grained leucosomes consisting of clinopyroxene (frequently rimmed by amphibole), plagioclase, and quartz form irregular cm- to dm-scale patches or veins (Fig. 4e). The amount of leucosome in the amphibolite is much smaller (5–10% at most in volume) than in the paragneiss.
(3) In the southern part, a medium- to coarse-grained biotite-bearing granite locally displaying a weak to moderate magmatic foliation constitutes the larger part of the outcrop. Accessory minerals are zircon, titanite, apatite and allanite. Numerous composite dykes are seen along the Comba de Crête Sèche, especially along the footpath from the Rifugio Crête Sèche to the Bivacco Spataro (Fig. 2), and at the base of the cliff of the Mont Crête Sèche. In the dykes, felsic magma forms an anastomosing net of cm-scale veins which enclose decametric lenses of finer-grained mafic material, sometimes showing cm-sized amphibole needles aligned parallel to the mafic bodies and to the main trend of the felsic veins (Figs. 4f, 5a). Detailed examination in the field of the composite bodies reveal that they have a tabular shape, 1–3 metres in thickness, and rather sharply cutting the biotite-bearing granite (Figs. 4f, 5a). The fabric inside the composite bodies is parallel to their margins, but at high angle with respect to the magmatic foliation in the enclosing granite.
A primary task of the field work was to determine whether the contacts between the three lithologies distinguished above are either preserved intrusive contacts, or tectonic boundaries (pre-Alpine or Alpine in age). Prior authors have suggested that the biotite-gneiss and amphibolite represent either the country-rocks of the intrusive granites (Burri et al. 1999) or roof-pendants and/or xenoliths (Diehl et al. 1952; Pennachioni and Guermani 1993; Roda and Zucali 2008, 2011).
Field observations show a sharp contact between the amphibole-bearing granite and the migmatitic biotite-gneiss, from slightly north of the Pic de la Vierge to slightly south of the Mont de Crête Sèche (Fig. 2). In this area, no evidence for xenoliths of migmatitic biotite-gneisses into the amphibole-bearing granite has been found. In addition, no evidence for dykes of this granite into the migmatitic biotite-gneiss has been observed. A pervasively foliated domain, 10–100 metres thick, bounds the southern margin of the amphibole-bearing granite. We conclude that the contact is most probably tectonic, either pre-Alpine (e.g., a Permian shear zone, a normal fault of Jurassic age) or Alpine (an internal thrust in the Mont Morion Unit).
By contrast, the intrusive contact of the biotite-bearing granite into the migmatitic biotite-gneiss is undisputable. This relies on several lines of evidence, mostly observed along the southern margin of the migmatitic body, either along the base of the cliff, or, in huge blocks in the scree along the flanks of both Comba Faudery and Comba de Crete Sèche. Firstly, the contact between the granite and the migmatitic biotite-gneiss is in most cases lobate and/or cuspate, displaying open to narrow folds of decimetre- to metre-scale (Fig. 5b, c). Towards such folded contacts, no variation of grain size is observed in the granite. A centimetre-thick selvedge of biotite develops at the interface between the granite and the gneiss (Fig. 5b, c). In addition, leucosome layers inside the migmatitic biotite-gneiss are parallel to or sometimes cut by the contact, and later folded with the same axial plane than the granite-gneiss contact. Secondly, aplitic dykes are commonly cutting the migmatitic biotite-gneisses (Fig. 5d) as well as the folded contact between the gneisses and the biotite granite. Another evidence for intrusive contact is the presence of numerous metre- to decametre-sized xenoliths of migmatitic biotite-gneiss into the biotite-bearing granite (Fig. 5e), at a distance not exceeding about 50 m from the main gneissic body.
Last but not least, composite dykes have been found over large areas in the biotite-bearing granite, including cutting across the contact between the latter and the gneiss (e.g., at the departure of the climbing route to the Pic de la Vierge called Oriana). By contrast, such composite dykes have never been observed in the amphibole-bearing granite.
Relative timing deduced from field relationships
For clarity, hereafter the amphibole-bearing granite is called the Aroletta Granite and the biotite-bearing granite the Mont Morion Granite. The two granitic bodies are separated by a shear zone and no age relationships between the two can be deduced from the field data.
By contrast, field data allow the recognition of different stages in evolution of the Mont Morion granite and country rocks:
sedimentation of the protoliths of the gneiss and mafic magma emplacement (now amphibolite layers within the gneiss);
high-grade metamorphism (i.e., partial melting) of both the sediments and the mafic magmas;
intrusion of the biotite-bearing granite at a time when the migmatitic gneiss and amphibolite were still not cooled, allowing folding of the granite-gneiss contact with small temperature difference between the two, hence no recognizable thermal overprint in the gneiss due to the granite intrusion;
cooling of this piece of crust as evidenced by intrusion of composite dykes;
further cooling of the magmatic body and its gneissic country-rocks, allowing aplitic dykes to cut across the contact.
The main focus of our geochronological study is to date the oldest metamorphic and magmatic stages in this sequence, namely the partial melting in the biotite-gneiss, and the intrusion of the Mont Morion granite.
Imaging and electron probe microprobe analysis (EMPA)
Allanite electron-microprobe analyses on major and accessory minerals were performed on polished thin sections with a JEOL JXA8200 electron microprobe (EMPA) at the University of Bern, using the analytical scheme described by Scherrer (2000) and refined by Janots et al. (2008). Operating conditions were set to 15 kV and 20 nA (spot size = 1 μm) for major minerals and 25 kV and 50 nA (spot size = 3 μm) for all the REE-minerals analyses. φ(pZ) matrix correction was applied based on Armstrong (1988, 1991). Natural silicates and oxides were used as standards and as monitors to check the accuracy of measurements. Back scattered electron images were obtained with a ZEISS EVO50 scanning electron microscope (University of Bern) using a voltage of 20 kV, current of ~1 nA and a working distance of 10 mm, and with a Cambridge S360 scanning electron microscope (Centre for Advanced Microscopy, Australian National University), using a voltage of 20 kV, beam current of ~2 nA and a working distance of 17 mm. Cathodoluminescence (CL) investigation was carried out on a HITACHI S2250 N scanning electron microscope supplied with an ellipsoidal mirror for CL at the ANU Centre for Advanced Microscopy. Operating conditions for the SEM were 15 kV/60 μA and 20 mm working distance.
Chlorite, feldspar and biotite, mineral analyses were performed with a Cameca SX100 electron microprobe (Microsonde Ouest, Brest, France) operating in the wavelength dispersive mode. Operating conditions for spot analyses were set to 15 keV, 20 nA and 10 s counting time on the peak (spot size = 1 μm). φ(pZ) matrix correction was applied based on Pouchou and Pichoir (1985). Standards were natural albite (Na, Si), orthoclase (K), corundum (Al), wollastonite (Ca), forsterite (Mg), MnTiO3 (Mn, Ti), andradite (Fe). Representative analyses of biotite, chlorite and feldspar are given in Tables S3, S4 and S5.
Allanite and zircon ion microprobe dating
Samples were disintegrated using a SELFRAG apparatus to a grain size of ~250 microns at the University of Bern. Zircons and allanite grains were separated using conventional heavy liquid and magnetic properties. Grains for SHRIMP analysis were mounted in epoxy resin and polished down to expose the grains near their centres.
U–Pb analyses of allanite and zircon (#J504) were obtained with a SHRIMP II ion microprobe at the ANU in Canberra. Instrumental conditions and data acquisition were generally as described by Williams (1998). The data were collected in sets of six scans throughout the masses, and a reference zircon was analysed each fourth analysis. The measured 206Pb/238U ratio was corrected using reference zircon from the Temora granodiorite (TEM, Black et al. 2003). The calibration error for the session was 1.8% (two sigma) and it was propagated to the individual analysis. The fraction of non-radiogenic 206Pb (f206) was calculated from the measured 207Pb/206Pb (7/6Rm) and the non-radiogenic 207Pb/206Pb (7Rc) according to Williams (1998), i.e., f206 = (7/6Rm–7/6R*)/(7/6Rc–7/6R*), where 7/6R* is the expected radiogenic 207Pb/206Pb assuming concordance at the approximate age of the sample. The 7Rc composition was assumed to be as predicted by the Stacey and Kramers (1975) model. Uncertainties on average ages were forced to be at least 1% to account for external errors and long term reproducibility.
For allanite, instrumental conditions and data acquisition were as described by Gregory et al. (2007), with isotope data collected from sets of six scans through the masses. U-Th–Pb allanite data were collected over a single analytical sessions with a calibration error of 1.5% (two sigma), which was propagated to single analyses. The measured 208Pb/232Th ratio was corrected using the allanite standard TARA. A secondary standard (Bona 208Pb/232Th age of 30.1 Ma, von Blanckenburg 1992) returned ages within 2% of the nominal value. Their suitability for allanite geochronology was recently confirmed by the extensive study of Smye et al. (2014). Allanite from Mont Morion granite is very similar in chemical composition to these standards, thus eliminating the issue of matrix effects (see also Gregory et al. 2007). Single ages were corrected for common Pb based on measured 207Pb/206Pb in a similar way to zircon, as described in Gregory et al. (2007). Common Pb measured in allanite is essentially inherent, therefore an estimate of initial Pb composition at the time of crystallisation from an evolving model Pb composition (Stacey and Kramers 1975) was assumed. Alternatively the 207Pb/206Pb of common Pb was obtained from a free regression in the total Pb Tera-Wasserburg diagram (Tera & Wasserburg 1972). For both minerals, the data evaluation and age calculation were done using the software Squid (Squid 1 for zircon and Squid 2 for allanite) and Isoplot/Ex (Ludwig, 2003a, 2003b), respectively. Average ages are quoted at 95% confidence level (c.l.).
Zircon laser ablation ICP-MS dating
The samples were crushed to a grain size of ~250 μm using a SELFRAG instrument at the University of Bern. Zircons were then extracted by Frantz magnetic separation (I > 1.35 A) and heavy-liquid separation of the non-magnetic fraction in diiodomethane (ρ > 3.32 g/cm2). Zircon grains between 64 and 250 μm were handpicked and mounted in 0.5 cm-thick epoxy blocks, which were polished to reveal core textures of the crystals. Zircon grains were imaged using a Zeiss Evo 50 scanning electron microscope (SEM) at the University of Bern in the back-scattered electron (BSE) mode and under variable pressure conditions (VPSE), using a 20 kV accelerating voltage, ~1 nA beam current and a working distance of 10 mm.
Zircons were dated using an ELAN-DRCe ICPMS (Perkin Elmer, USA) coupled with a GeoLas Pro 193 nm ArF Excimer laser system (Lambda Physik, Germany) at the University of Bern. Before performing measurements, the different analytical conditions (including the gas flow rates, torch parameters, ion-lenses and acceleration voltages on the quadrupole) were optimised by ablation of a National Institute of Standards and Technology (NIST) standard reference glass SRM 610. The carrier gas consisted of a mixture of He (1.000 l/min) and H2 (0.008 l/min), and was mixed with Ar (L/min) prior to its introduction in the plasma. The U+/Th+ intensity ratio for the NIST SRM 610 standard was c. 100%. ThO+, UO+ and Ca2+/Ca+ ratios were 0.15–0.20, <0.10 and 0.4–0.5%, respectively. Laser operating conditions were: 4 Hz repetition rate, 5 J/cm2 on-sample fluence, and spot sizes of 24 and 32 µm. The analytical list included the 202Hg, 204Pb, 206Pb, 207Pb, 208Pb, 232Th, 235U, 238U isotopes of interest. The 202Hg isotope allowed monitoring the isobaric overlap of 204Hg on 204Pb, using mass biased ratios. Dwell times per isotope ranged from 5 to 30 ms. Peak hopping mode was employed, as well as dual (counting and analog) detector mode. Measurements were carried out in peak hopping mode (dwell times from 5 to 30 ms) and dual (counting and analog) detector mode. Acquisition times for background and sample amounted to 55 and 40 s, respectively. The Plešovice zircon (TIMS 206Pb/238U age of 337.13 ± 0.37 Ma; Sláma et al., 2008) was used for external standardisation and the GJ-1 zircon (TIMS 207Pb/206Pb age of 608.5 ± 1.5 Ma; Jackson et al. 2004) served as secondary standard. Typical acquisition series consisted of 10–12 measurements of unknown zircons and 2 measurements of the Plešovice standard, bracketed at the start and end of each analytical sequence by two GJ-1 standard analyses.
Intensity vs. time data signals for isotopic U–Th–Pb data were reduced using an Excel spreadsheet (for calculation, see El Korh 2013) following the ratio-of-the mean intensity method (Ulianov et al. 2012). Intervals of 45 and 25 s were selected for the background and the ablation signal, respectively, with an offset of 5 s from the beginning of the ablation. Data spikes outside of two standard deviations of the mean signal value were corrected. Mean isotope intensity ratios (206Pb/238U, 207Pb/235U and 207Pb/206Pb) were calculated using background-corrected mean signal intensities. External standard measurement allowed calculating k-coefficients (concentration ratio/intensity ratio), employed to calculate sample concentration ratios that will be used to determine ages, assuming that k coefficients are the same for external standards and samples. Apparent 206Pb/238U ages from 599 ± 19 to 608 ± 22 Ma (weighted average age = 601.6 ± 6.0 Ma (95% c.l.); n = 9) were obtained for the GJ-1 zircon and are similar within uncertainty to the apparent TIMS 206Pb/238U ages (596.2–602.7 Ma; wt. mean age: 600.38 Ma) presented in Jackson et al. (2004). No common lead correction was applied. Common Pb enrichments were monitored by a careful control of intensities acquired on masses 202 and 204, following the approach of Jackson et al. (2004). Concordia diagrams were generated using Isoplot v. 4.15 (Ludwig, 2003a, 2003b).
Zircon trace element composition
Trace element analyses were performed on zircons using the same quadrupole LA-ICPMS instrument. A mixture of He (1.000 L/min) and H2 (0.008 L/min) was used as the cell gas. The ThO+/Th+ and UO+/U+ and Ca2+/Ca+ ratios were adjusted to 0.2 and 0.4%, respectively. Analyses were performed in spot mode, at 6 J/cm2 on-sample fluence, 10 Hz repetition rate and 24–35 µm pit sizes. Acquisition times for background and sample were c. 70 and 30–35 s, respectively. Signals were acquired in peak hopping mode (dwell times from 5 to 30 ms) and dual (counting and analog) detector mode. The NIST SRM 612 reference glass was used for external standardisation, using the values from Pearce et al. (1997) and updated according to the GeoReM database (http://georem.mpch-mainz.gwdg.de). 29Ca served as an internal standard. Intensity vs. time data were reduced using SILLS, a MATLAB-based programme (Guillong et al., 2008). Intervals of 45 and 25 s were employed for the calculation of background and ablation intensity signals, respectively. Intensity spikes were corrected, when present.
Major and minor elements were determined in whole-rock samples by inductively coupled plasma atomic emission spectrometry (ICP-AES) at the SARM analytical facility of the Centre de Recherches Pétrographiques et Géochimiques (CRPG,-CNRS, Nancy, France) while incompatible trace elements were measured by ICP-MS. Bulk-rock glasses were fused at 980 °C by mixing appropriate proportions (1:5) of fine-grained rock powder with di-lithium tetraborate. Then, glasses were dissolved in a mixture of HNO3 (5%), H2O2 (0.5%) and glycerol (10%) prior to analysis. Details about the method used for the analyses are available in Carignan et al. (2001). Uncertainties at 1σ are c. 5% and 8% for the ICP-AES and ICP-MS data, respectively.
Petrography of samples
Mont Morion granite (#J504)
The Mont Morion granite #J504 (UTM ED 1950 coordinates: 375082–5082529) was collected in the Comba de Crête Sèche, at the foot of Pointe Duc (Figs. 2, 3b). Sample #J504 is medium to coarse grained and preserves its pre-Alpine igneous equigranular texture, consisting of quartz, red-brownish biotite and accessory allanite, apatite, zircon, and Fe–Ti oxides. Apatite and zircon frequently occur as inclusions in magmatic biotite, which is subhedral to euhedral, slab- or flake-shaped, forming aggregates. Biotite is frequently altered, displaying sagenitic exsolutions, and becoming paler or chloritized. Magmatic feldspar is not preserved, being altered to fine-grained sericite aggregates.
Sample #J504 is weakly peraluminous (A/CNK = 1.06) and contains moderate total alkali content (K2O + Na2O = 7.52; Tab. S2). It shows an enrichment in light REEs compared to heavy REEs, with LaN/YbN ratios of 43 and a small negative Eu anomaly (Eu/Eu* = 0.40). Trace element compositions show high Ba, Ga, Zr. Zirconium concentration is relatively high (304 ppm) (Tab. S2). Zircon saturation thermometry (Boehnke et al. 2013) yields a temperature of ~800 °C for zircon crystallization in the melt.
Migmatitic biotite-gneiss (#R22, #R26)
Migmatitic gneisses #R22 and #R26 (#R22 UTM ED 1950 coordinates: 375150–5082890, #R26 UTM ED 1950 coordinates: 375105–5082685) (Fig. 5f), were both collected in the Comba de Crête Seche. #R22 was sampled in the 2 km long body (interpreted as the country-rocks), at the foot of Pic de la Vierge, very close (within 1 m) to the contact with the Mont Morion granite (Figs. 2 and 3b). #R26 was sampled in a metre-scale lenticular body of migmatitic biotite-gneiss (i.e. xenolith) enclosed by the Mont Morion granite (Figs. 2 and 3).
Migmatitic biotite-gneiss shows a characteristic rusty-orange weathering colour and a banded structure, defined by quartz-feldspar layers alternating with biotite seams. Biotite is frequently not strictly parallel to the banding, with crystals displaying different orientations. At hand-sample and micro-scale, coarse-grained quartz is more abundant in #R26 (up to ~30%) than in #R22 (up to ~10%).
The Ti content in biotite in #R22 varies from 0.34 to 0.57 p.f.u., XMg from 0.38 to 0.45 (Tab. S1), corresponding to a crystallization temperature of 668–741 °C (±12 °C, Henry et al. 2005). Such temperatures are above the experimentally-determined solidus for pelitic or semi-pelitic compositions (e.g., Thompson 1976; Le Breton and Thompson 1988; Vielzeuf and Holloway 1988; Thompson and Connolly 1995) and confirm that the rocks underwent partial melting. In #R26, biotite is frequently sagenitic or replaced at the rim by chlorite and, for this reason, its Ti content could not be used to estimate temperature. Accessory zircon and apatite are dispersed in the rock. Very sparse ilmenite is found associated with biotite.
Zoning, composition and U-Th–Pb geochronology of accessory phases
Trace element composition and U-Th–Pb ages of allanite and zircon separated from the Mont Morion granite #J504 were analysed by SHRIMP ion microprobe (Tabs S3 and S6). Chemical composition and U–Pb ages of zircon from the two migmatitic biotite-bearing gneiss (#R22 and #R26) were analysed by LA-ICP-MS (Tabs S7, S8). Internal zoning of zircon and allanite grains was investigated by cathodoluminescence and back-scattered electron imaging, respectively.
Mont Morion granite

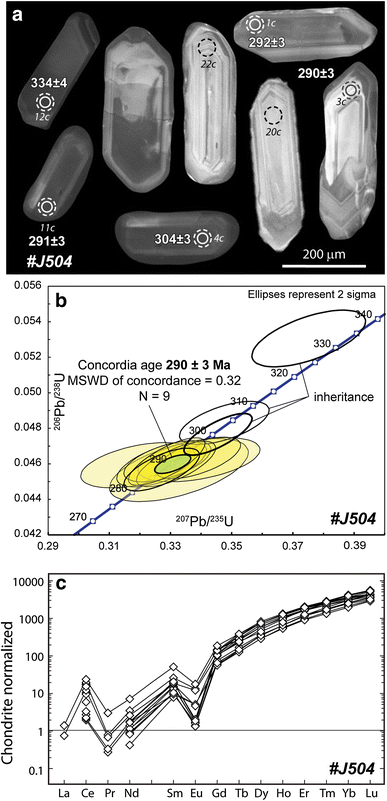

Zircon crystals from the Mont Morion granite (#J504) are mainly dark pink, prismatic in shape with grain size up to 400 μm (Fig. 6a). They show well-preserved oscillatory growth zoning in CL images. U–Pb analyses from zircon have yield 206Pb/238U dates ranging from 288 ± 5 Ma to 334 ± 4 Ma (1σ). Most analyses (9 out of 12) define a concordia age of 290 ± 3 Ma (95% c.l.) with 3 analyses showing evidence of Pb inheritance (Fig. 6b, Tab. S3).
Chondrite-normalized REE patterns are similar for all zircon grains, with HREE enrichment, a positive Ce and negative Eu anomaly (Fig. 6c), and with relatively high Th/U (0.06–0.30; Tab. S4). The zircon REE patterns and internal zoning are typical of igneous zircon (e.g., Hoskin and Schaltegger 2003; Corfu 2003).
Magmatic allanite crystals are subhedral, brown and pleochroic, with dimensions varying from 100 to 500 μm (Figs. 7a). Allanite is dominated by Ce over other LREE (e.g. La, Nd; Fig. 7b). The ∑REE ranges from 0.464 to 0.745 p.f.u. (Table S5). In BSE images (Fig. 7a), the grains show some patchy zoning, reflecting variations in Ca (Fig. 7c). The decrease in Ca and Al is accompanied by an increase in Fe2+ and REE, following the typical allanite substitution: Ca2+ + (Al, Fe3+) = REE3+ + Fe2+ (Deer et al. 2013). The decrease in Ca is coupled with an increase in Mn, a feature observed in allanite from other granitoids (e.g., Hoshino et al. 2006). The analysed allanite grains show chondrite-normalized patterns for the LREE with rather flat La-Pr and a strong decrease in Sm (Fig. 7d).

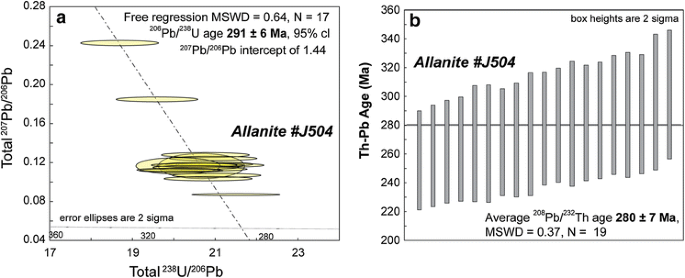

In the Mont Morion granite #J504, allanite grains have Th/U between 20 and 66. The U–Pb system (Table S6) contains relatively high concentrations of initial Pb (5–24%), whereas the Th–Pb system is more radiogenic (1–6% of initial 208Pb). A regression on the Tera-Wasserburg (total Pb) diagram (Fig. 8a), which makes no assumption on the composition of the initial Pb, returns a lower intercept age of 291 ± 6 Ma (95% c.l., MSWD = 0.64), but with an unusual 207Pb/206Pb intercept of 1.44 ± 0.46, which is highly dependent on two analyses with higher common Pb. Assuming a model for common Pb composition (~0.854, Stacey and Kramers 1975) at 280 Ma, the U–Pb and Th–Pb system return identical ages of 280 ± 8 Ma (95% c.l., MSWD = 0.14) and 280 ± 7 Ma (95% c.l., MSWD = 0.37, Fig. 8b), respectively.
Migmatitic biotite-bearing gneiss

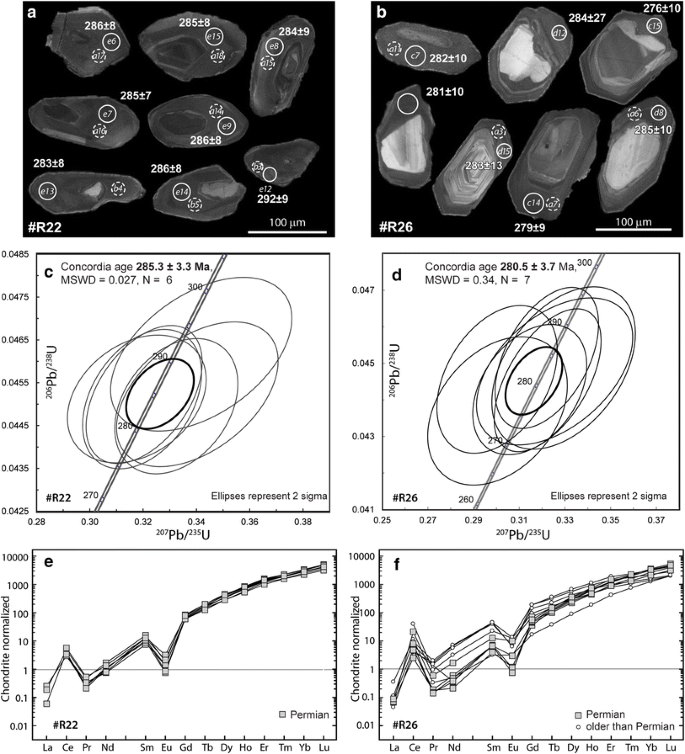

Both migmatitic biotite gneisses have abundant zircon with grain size up to 150 μm (#R22) and 200 μm (#R26). #R22 contains prismatic zircon grains, preserving relatively small, rounded cores overgrown by rims that shows weak or not CL-zoning (Fig. 9a). #R26 has prismatic zircons with large rounded cores that in most crystals are overgrown by a euhedral rim with weak CL-zoning (Fig. 9b). In both samples, the internal textures of the cores are diverse, but oscillatory zoning is the most common zoning type. The zoning patterns of these cores are truncated by the rim, suggesting that the zircon cores are detrital and underwent abrasion or dissolution before the rim formed. No mineral inclusions were found in zircon cores or rims.
Zircon cores in #R22 have not been analysed due to their small sizes. U and Th concentrations in #R22 zircon rims range between 555 and 1356 ppm and 59–148 ppm, respectively, with Th/U ratios between 0.09 and 0.15 (Tab. S7). U–Pb analyses from overgrowths yield 206Pb/238U dates ranging from 283.2 ± 8.8 to 290.9 ± 9.2 Ma (2σ) with a weighted average of 285.2 ± 2.9 Ma (95% c.l.; n = 8, MSWD = 0.29; Fig. S1a). U–Pb data form a cluster on the Concordia curves that defines a concordia age of 285.3 ± 3.3 Ma (2σ; n = 6; MSWD = 0.27; Fig. 9c) for the six concordant analyses. In #R26, zircon cores display variable U and Th contents (35<U<1514 ppm; 16<Th<409 ppm) with 206Pb/238U dates scattering between 3203 ± 106 to 453 ± 15 Ma (Tab. S7), in line with a detrital origin. U and Th concentrations in overgrowths range between 819 and 1841 ppm and 52–203 ppm respectively, with Th/U ratios between 0.06 and 0.15. 206Pb/238U dates for zircon rims range from 276 ± 10 Ma to 345 ± 16 Ma (2σ). The younger zircon rims have a weighted average of 281.0 ± 3.7 Ma (95% c.l.; n = 8, MSWD = 0.277; Fig. S1b), while the concordant points yield a Concordia age of 280.5 ± 3.7 Ma (2σ; n = 7; MSWD = 0.34) (Fig. 9d).
In both samples the Permian rims are enriched in HREE with respect to the MREE (Fig. 9e–f), as indicated by the high LuN/SmN ratios (353–705 for #R26, 301–535 for #R22). The negative Eu anomaly of the zircon is strong in both samples (Eu/Eu* between 0.02 and 0.23 for #R26, 0.02–0.07 for #R22).
Age of intrusion of the Mont Morion granite
The Mont Morion granite largely preserves its igneous texture and mineral content. There is a priori no reason for zircon to be modified after the granite crystallisation. Indeed, the shape and the internal texture of zircon suggest that it crystallizes in a magma, and that no significant modification has taken place during the subsequent history. In addition, the typical HREE enriched REE pattern and the negative Eu-anomaly of the zircon is in line with zircon crystallization from an evolved melt that already crystallized plagioclase (e.g., Hoskin and Schaltegger 2003). The absence of significant zircon inheritance (i.e., Early Palaeozoic or Proterozoic ages) in the Mont Morion granite suggests an initially zircon undersaturated melt composition for the magma. Therefore, the calculated zircon saturation temperature of ~800 °C is taken as the maximum magma temperature (Miller et al. 2003). This temperature is compatible with crustal contamination of a fractionating mantle magma, as suggested for other Permian granitoids in the Alpine region (Schaltegger and Brack 2007 and references therein). The U–Pb age (290 ± 3 Ma) of zircon obtained in this study is therefore considered as recording the early stages of crystallization of the magma. Few grains display slightly older concordant ages, at c. 300 and c. 330 Ma. These may represent grains incorporated into the magma from an older partially melted source. Gneissic country-rocks of the Mont Morion granite might be seen as potential candidates for such a source, but our zircon data (see below) do not support this interpretation. The required source for the older zircons should be present in the lower crust rather than at the level of granite emplacement.
Allanite grains show patchy zoning, although core and rim compositions are similar and display small variations by comparison with other allanite in granitoid rocks (e.g. Oberli et al. 2004). The high REE content, high Th/U ratio, and the relatively low common Pb contents, at least in the Th system, argue for magmatic origin of the dated allanite (Oberli et al. 2004; Gregory et al. 2012). The U–Pb and Th–Pb ages of allanite are identical (U–Pb: 280 ± 8 Ma; Th–Pb: 280 ± 7 Ma). The closure temperature of allanite is at least 700 °C (Oberli et al. 2004), and zircon saturation temperatures indicate that the Mont Morion granite crystallized at ~800 °C. Therefore the 280 ± 7 Ma age is interpreted as dating an early cooling stage, but prior to the final crystallization of this granite.
P–T conditions and timing of partial melting in the country rocks of the Mont Morion granite
Determining the P–T conditions of the metamorphism in the migmatitic biotite-gneiss is a difficult task owing to its bulk-rock composition and thus the lack of diagnostic mineral assemblages. The Ti content in biotite (Henry et al. 2005) indicates amphibolite-facies conditions (~670–740 °C). Mineral assemblages are consistent with this statement. Specifically, peritectic minerals (e.g., garnet, cordierite and orthopyroxene) have not been observed in the leucosomes. In addition, garnet and rutile are very rare in these rocks (Roda and Zucali 2008; Dal Piaz et al. 2015) and they are not present in the samples studied. Finally, metamorphic zircon overgrowths (Figs. 9e, f) have steep REE-patterns that also indicate growth in a garnet-free assemblage, while the presence of plagioclase is evident from the moderate negative Eu-anomaly (similar to zircon in amphibolite-facies migmatites from the Central Alps, Rubatto et al. 2009). Garnet and orthopyroxene also have never been found in the amphibolite, either reflecting their bulk-rock compositions or low pressure metamorphic conditions. Therefore we suggest that the country-rocks reached partial melting at amphibolite-facies conditions, in contrast with granulite-facies conditions in the Valpelline Series (Gardien et al. 1994; Manzotti and Zucali 2013). Consequently, the country-rocks of the Mont Morion granite were located at mid crustal levels during pluton emplacement and do not represent lower crustal material.
Geochronological data are needed to estimate the precise timing of the partial melting in the country-rocks of the Mont Morion granite. Zircons separated from two samples of migmatitic biotite-gneiss (one found as xenolith and the other one as country-rock, see Fig. 2) include grains with detrital cores surrounded by one rim. Detrital cores yielded Palaeoproterozoic to Palaeozoic (Ordovician) ages, no concordant Carboniferous ages have been found. The zircons rims are characterised by euhedral shape, weak internal zoning, moderate to low Th/U (0.15–0.06) that are in line with growth during partial melting of felsic rocks (e.g., Vavra et al. 1999; Rubatto et al. 2001; Rubatto et al. 2009). Therefore the zircon rims are interpreted as dating migmatisation during Permian (#R26: 281 ± 4 Ma, #R22: 285 ± 3 Ma).
Relationship between Permian magmatism and metamorphism in the DBTS
The DBTS is a large composite thrust sheet, composed of slices of upper to middle (e.g. Arolla Series) and lower (e.g. Valpelline Series) continental crust (e.g. Argand 1911; Diehl et al. 1952; Dal Piaz et al. 1972, 2015; Manzotti et al. 2014a). Such slices now constitute different tectonic subunits bounded by Alpine shear zones, but they pervasively record the Permian metamorphic and magmatic history.
In the Arolla Series, migmatitic biotite-gneiss and amphibolite from the Mont Morion Unit constitute the sole occurrence known so far of pre-Permian basement (Burri et al. 1999; Dal Piaz et al. 2015). Field data show that the Mont Morion granite intruded partially melted gneiss and amphibolite, and that these country-rocks were still at high temperature at the time of its intrusion. Therefore, it is not surprising that the ages of the partial melting and the granite are similar within errors (c. 290–280 Ma). However, zircon ages from the granite are slightly older than the allanite ages from the granite as well as than the zircon ages from the migmatitic biotite gneiss, and this deserves a more detailed discussion. One potential explanation would be to consider a two-stage history (Fig. 10). In a first stage, zircon from the granite would have crystallised during the early cooling of the magma (i.e. ca. 800 °C), before its final emplacement. In a second stage, crystallisation of melt in the gneissic country rock is likely to have occurred slightly before the intrusion of the Mont Morion granite, possibly while allanite grew from remaining melt.
The granitoid body and its country-rocks were at similar temperatures during granite emplacement, allowing ductile deformation of their interface. The absence of contact metamorphism around the Mont Morion granite (i.e., well-developed hornfelses with granoblastic textures) is consistent with this model, the country rocks being still partially molten during the emplacement of the Mont Morion granite.
In the Valpelline Series, Permian amphibolite to granulite facies regional metamorphism (~7–8 kbar, 700 to 850 °C; e.g. Manzotti and Zucali 2013) is widely preserved. For this high temperature regional metamorphism, a bimodal age distribution of 287–283 Ma and 277–260 Ma has been recognized based on two distinct growth periods of metamorphic zircon, separated by an interval of ~10–20 Ma (Kunz et al. 2017). The first age group is contemporaneous with the main granitic and gabbroic intrusions in the DBTS (Dal Piaz et al. 1977; Monjoie et al. 2005; Manzotti et al. 2017; this study).
Overall, a clear temporal link between mantle melts underplating at the base of the crust, partial melting within the lower crust, and intrusions of granitic and gabbroic bodies at higher levels are recognized during Permian times in the DBTS. This evolution is closely similar to the one established for the Ivrea Verbano Zone (e.g. Rivalenti et al. 1975; Schnetger 1994; Klötzli et al. 2014). No evidence for a Triassic thermal imprint with associated (mantle-derived) magmatism is documented in the DBTS, whereas this is observed in the Southern Alps (e.g. Zanetti et al. 2013; Langone and Tiepolo 2015).
The Mont Morion Unit in the DBTS exposes large volumes that escaped Alpine deformation. These allow the reconstruction of several stages of the pre-Alpine magmatic and metamorphic evolution. Two plutons are identified, now separated by a ductile shear zone: the Aroletta amphibole-bearing granite and the Mont Morion biotite-bearing granite. The latter intruded partially-melted gneissic country-rocks, and the contact is deformed by syn-magmatic, ductile folds, suggesting magma emplacement during early stages of cooling of the migmatitic country-rocks.
The Permian age of the Mont Morion granite is constrained by U–Pb data on zircon (290 ± 3 Ma) and allanite (280 ± 7 Ma). Migmatitic biotite-gneiss and amphibolite from the country rocks of the Mont Morion granite record partial melting at amphibolite facies conditions (670–740 °C), dated at 280–290 Ma, i.e., virtually coeval with the Mont Morion intrusion. A slight difference in age between zircon from the granite and the country-rocks may indicate a prolonged history for the magmatic body, with an initial cooling at ca. 290 Ma followed by final emplacement at ca. 285 Ma.
The DBTS records the high heat flow that affected the Adriatic margin in Permian times. This high thermal regime is linked to extensive partial melting, with migmatites and pegmatite dykes at lower crustal levels (e.g., Valpelline Series), and acid and basic intrusions at the higher levels (e.g., granitoids and gabbros forming the Arolla Series).
