Distribution of benthic foraminiferal assemblages in the transitional environment of the Djerba lagoon (Tunisia)
Swiss Journal of Geosciences volume 111, pages 589–606 (2018)
The eastern edge of the Djerba Island represents an important tourist pole. However, studies describing the environmental processes affecting this Island are scarce. Although never studied before, the peculiar Djerba lagoon is well known by the local population and by tourists. In July 2014, surface sediment and seawater samples were collected in this lagoon to measure grain size, organic matter content and living foraminiferal assemblages to describe environmental conditions. Seawater samples were also collected and the concentration of 17 chemical elements were measured by ICP-OES. The results show that a salinity gradient along the studied transect clearly impacts seagrass distribution, creating different environmental conditions inside the Djerba lagoon. Biotic and abiotic parameters reflect a transitional environment from hypersaline to normal marine conditions. Living benthic foraminifera show an adaptation to changing conditions within the different parts of the lagoon. In particular, the presence of Ammonia spp. and Haynesina depressula correlates with hypersaline waters, whilst Brizalina striatula characterizes the parts of the lagoon colonized by seagrass. Epifaunal species, such as Rosalina vilardeboana and Amphistegina spp. colonize hard substrata present at the transition between the lagoon and the open sea.
Coastal lagoons are present in all continents and are water bodies, generally parallel to the coast line, and separated from the ocean by barriers and by one to more inlets. Water salinity can vary from very low (fresh water) to high (hypersaline conditions), depending on the hydrological balance (Kjerfve 1994).
A large number of lagoons are present in the Mediterranean Sea. One of the largest and thoroughly studied mainly because of the intense anthropogenic impacts (e.g., tourism) is the Venice lagoon in Italy (e.g. Sfriso et al. 1987, 1992; Livingstone et al. 1995; Bellucci et al. 2002). Additional lagoons along the Italian coast have also been investigated (Bouchet et al. 2018). Other lagoons like Berre and Thau (France) (e.g. Arfi 1989; Point et al. 2007; Chambouvet et al. 2011; Delpy et al. 2012); Mar Menor (Spain) (e.g. García-Pintado et al. 2007); Paradeniz (Turkey) (e.g. Türkmen et al. 2011); and Marina (Egypt) (e.g. El-Gamal et al. 2012) have been studied as a consequence of anthropogenic practices (e.g., tourism, agriculture, sewage) leading to pollution concerns. Along the Tunisian coast, the Bizerte, Ghar El Melh (e.g. Chouba et al. 2007) and El Bibane lagoons (Vela et al. 2008) are known to be impacted by heavy metals, organic pollutants. The most studied is the Bizerte lagoon, located in the northern part of Tunisia (e.g. Mzoughi et al. 2005; Dridi et al. 2007; Louiz et al. 2008; Ben-Ameur et al. 2012; Martin et al. 2015, 2016). The high population density and the industrial activities around this large (over 150 km2) lagoon represent an environmental threat. The lagoon of Bizerte is therefore of major interest to assess its environmental quality (Martins et al. 2015 and references therein). Although a large part of the Tunisian costal environments have been studied, some important areas were neglected or poorly investigated. For example, the Eastern edge of the Djerba Island is one of the least explored regions in Tunisia, where only grain size distribution related to the dynamic of coastal currents has been studied (Brahim et al. 2014).

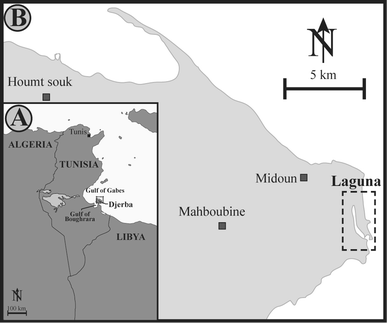

Located in front of the south-eastern coast of Tunisia, the Djerba Island is the largest island (Fig. 1) and is surrounded by the Gulf of Gabes to the North and by the Boughrara lagoon to the South-east. Approximatively 2 km long and 200 m wide, the Djerba lagoon can be considered as small in comparison to the other Tunisian lagoons. Its northern and western parts are the shallowest whereas the southern part is the deepest. A natural channel connects the lagoon to the sea. Based on the classification of Kjerfve (1986), the Djerba lagoon is a choked lagoon as it connects to the Sea by a single channel. Tidal currents acting along the eastern coast of Djerba modulate the hydrology of the lagoon (Brahim et al. 2014) because tides in this region are some of the highest in the Mediterranean Sea (Sammari et al. 2006). The water depth inside the lagoon varies depending on the tide amplitude although it never exceeds 2 m, following the semidiurnal tide, and the water flows out of the lagoon twice a day.
Most coastal areas in the world are impacted by some level of pollution (Shahidul and Tanaka, 2004) and coastal lagoons are especially vulnerable to anthropogenic activities because they represent ideal environments for different economical activities such as fishing, aquaculture, tourism and agriculture which affect their ecology (Gamito 2008 and references therein). The geographical position of the Djerba lagoon makes it particularly exposed to anthropogenic-related pollution since tourism is very intense especially during summer.
The arid climate in southern Tunisia, has also a strong impact on the environmental setting of the Djerba lagoon. High temperature, low precipitation, changing circulation patterns and the heterogeneity of the sediments in the lagoon may impact and influence environmental conditions of the ecosystems within a few meters.
Benthic foraminifera have been used since the 1960s to describe marine environments (e.g., Schönfeld et al. 2012). Their high density in marine sediments, high species variability, short life cycle and the good preservation of tests in marine sediments make these organisms an ideal tool to describe and monitor marine environments (Gooday 2003; Jorissen et al. 2007; Schönfeld et al. 2012). Coupling investigations on living benthic foraminiferal assemblages with environmental parameters (e.g., physiochemical parameters, grain size, and sedimentary facies) may allow to better understand the environmental and ecological conditions in the Djerba lagoon. Availability of organic matter (OM) in sediments, representing as a food source, can influence the benthic species distribution, including foraminifera (e.g., Martins et al. 2015).
Eutrophication of marine environments can be the result of anthropogenic activity, which is induced by an increasing supply of OM into the ecosystems (Nixon 1995). The eutrophic state of marine environments can be described using OM (and its compounds) as a proxy because it reflects a higher primary productivity due to the increase of nutrient input (Dell’Anno et al. 2002, Martin et al. 2015, 2016).
Heavy metals, although minor elements in seawater, are also good pollution and/or anthropogenic indicators (Callender 2003).
The aim of this study is to describe for the first time the Djerba lagoon by investigating hydrodynamic patterns, seagrass meadow distribution and water physiochemical parameters. This approach will allow to describe the environmental conditions that characterize the different parts of the lagoon and to correlate them with living benthic foraminiferal distributions. This study also provides a preliminary assessment of the anthropogenic impact on this lagoon.
Material and methods
Sampling and station description
Ten stations have been sampled (LA-01 to LA-10) in the Djerba lagoon on July 2014. Stations are located along a transect from the internal to the external part of the lagoon (Table 1 and Fig. 2). Most of the stations are located inside the lagoon, only station LA-10 is located outside the lagoon on the rocky substrate on the eastern side of the lagoon.
For each station, surface grab sediment (the first centimeter) and seawater samples were collected. Two sub-samples were collected: (1) approximatively 15 cm3 of sediment per station were collected in falcon tubes for geochemical analyses (Rock–Eval, stable carbon isotope ratio of OM, C, H, N elemental analysis) and were stored at 4 °C; (2) around 50 cm3 of surface sediment samples were collected for living (stained) foraminiferal assemblage analysis following Schönfeld et al. (2012) protocols. Sediments were placed in a rose Bengal solution (2 g/L in alcohol at 90%) for at least 14 days to stain living foraminifera. At station LA-10 two different sediment samples were taken: (i) sediment layout on the bottom of cavities (LA-10a) (ii) sediment trapped in the algal carpet (LA-10b). Both samples (LA-10a and LA-10b) were also analyzed for living foraminifera, only the sediment trapped in the algae carpet were used for geochemistry.
At each station, 120 mL of surface seawater samples were collected in high density polyethylene Nalgene® bottles. Seawater samples were acidified (pH 1) by adding 5 mL of concentrated nitric acid to avoid precipitation of coordination complexes and were stored at 4 °C.
Sediment and seawater analysis
Surface sediment samples for geochemical analysis were dried in a ventilated oven at 35 °C until reaching a constant weight. Rock–Eval analyses were performed on approximatively 100 mg of bulk surface sediment previously crushed in an agate mortar. Rock–Eval analyses were performed following Rock–Eval6 technology to obtain total organic carbon (TOC) content (wt%), hydrogen index (HI), oxygen index (OI), S1 S2 and S3 peaks, maximal temperature (Tmax) and mineral carbon (MINC) content on approximately 100 mg bulk sediment. HI correspond to the free hydrocarbons present in the sample (mg HC/g TOC, measured on S1 peak) and OI to the amount of hydrocarbons containing oxygen that are produced during the thermal cracking of kerogen (mg CO2/g TOC, measured on S2 and S3 peaks). Tmax is measured at the maximum of S2 peak. High temperatures (up to 850 °C) allow MINC determination through mineral carbon oxidation (Espitalié et al. 1985; Lafargue et al. 1998).
Total carbon, hydrogen and nitrogen (C, H, N) contents (in wt%) were measured in the surface sediment samples using a Thermo Finnigan Flash EA 1112 gas chromatography analyser. Rock-Eval and C, H, N analyses were performed at the laboratory of Sediment Geochemistry at the University of Lausanne on approximately 100 mg bulk sediment.
Carbonate minerals in surface sediment were dissolved using a 10% HCl solution at 50 °C. This process was repeated twice and the sediment was rinsed with milli-Q water. Stable carbon isotope ratio of OM (δ13COM) from surface sediment samples were measured at the Stable Isotopes Laboratory of the University of Lausanne by flash combustion on a Carlo Erba 1108 elemental analyser connected to a Thermo Fisher Scientific Delta V Plus isotope ratio mass spectrometry that was operated in a continuous helium flow mode via a Conflo III split interface.
Major elements (Na, Mg, S, K, Ca and Sr) and trace elements (Li, Al, Si, P, Cr, Mn, Fe, Ni, Cu, As, and Cd) were measured in seawater samples by inductively coupled plasma optical emission spectroscopy (ICP-OES) at ATI Aquaristik lab at Hamm in Germany. Measurements were performed with a Spectro Arcos 2 ICP-OES analyser with four points of calibration for major elements and eight points of calibration for trace elements. For each sample and each chemical element, four measurements were performed and corresponding average values were calculated. Every five measurements, a control sample was measured to check the stability of the plasma torch and to avoid any shift during the set of measurements.
Concentration factors (CF) were calculated from the ICP-OES data set. The concentration of each element and of each sample was divided by the concentration of a reference seawater sample, considered as representing normal seawater conditions. Station LA-10 was chosen as the reference site to represent values of seawater because it is located outside the lagoon.
Grain size analysis was performed on the stained (rose Bengal) surface sediments. The samples were wet sieved through four mesh sieves: 500, 250, 125 and 63 µm. Each fraction (< 63, 63–125; 125–250; 250–500 and > 500 µm) was dried in a ventilated oven at 35 °C and weighed to calculate the proportion (wt%).
Following the FOBIMO protocols (Schönfeld et al. 2012), stained foraminifera were picked from plummer cells for each size fraction. Taxonomy was done to species level following the work of Cimerman and Langer (1991), Hottinger and Halicz (1993), Loeblich and Tappan (1994), Milker and Schmiedl (2012). Quantitative data were treated with the software Primer 6 (Clarke and Gorley 2006). The number of living foraminifera (for each species) per samples was standardize for an equivalent volume of sediment of 100 cm3, then the data set was double square root transformed to limit the contribution of most abundant species (Field et al. 1982). The Bray–Curtis (dis-)similarity was calculated and used to obtain the non-metric MultiDimensional Scaling-nMDS plots. The contribution of each species to the total average similarity and dissimilarity between different groups and within single groups where determined by using the similarity percentage analysis (SIMPER). The density of living foraminifera was calculated for every station by dividing the number of living specimens by the total volume of sediment. To compare the diversity pattern of living (stained) benthic foraminifera, in addition to the number of species per stations, the Shannon-Index (H′) and Fisher’s α Index were calculated with the software Primer 6 (Clarke and Gorley 2006).
Sedimentary and environmental facies

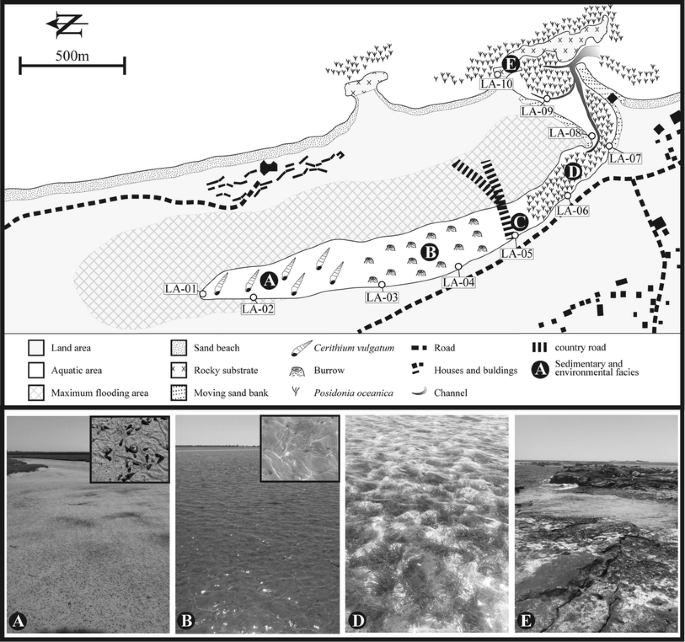

Based on the visual sample description and in situ observation of the sampling sites, five facies were distinguished (Fig. 2):
Facies A groups stations LA-01 and LA-02, it correspond to the inner part of the lagoon. The main characteristic of this facies is the abundance of living Cerithium vulgatum (gastropod).The numerous furrows on the sediments’ surface confirm this observation. The water depth was very shallow in comparison to the other areas of the lagoon (< 10 cm).
Facies B groups stations LA-03 and LA-04. This facies is characterized by the presence of numerous burrows. Unfortunately, the organisms responsible for these burrows were not observed and thus, could not be identified.
Facies C groups station LA-05 and LA-08. This facies does not show any peculiar characteristics, sediments are close to pure sand. However, station LA-05 is located on a country road crossing the lagoon.
Facies D groups stations LA-06, LA-07 and LA-09. This facies is characterized by the seagrass Posidonia oceanica.
Facies E is represented by station LA-10. The bottom is a consolidated sandstone and is probably beachrock. However, numerous cavities present are filled by soft sediments of two types: (i) sediment layout at the bottom of the cavity (i.e. LA-10a). (ii) sediment trapped by a carpet of algae on the wall of these cavities (i.e. LA-10b).
Sediment grain sizes are fairly evenly distributed across all stations. However, sample LA-10a which is relatively coarser (Fig. 3) with the fractions > 500 and 250–500 µm reaching 71 and 19 wt%, respectively. In addition, samples LA-07 and LA-09 are dominated by the fraction 125–250 µm ranging between 31 and 40 wt%, respectively. The finest fraction (< 63 µm) is the least represented and does not exceed 20 wt% except in sample LA-01 with values reaching 27 wt%.
The results of the geochemical analyses are presented in Table 2. TOC values are generally very low for all samples. The maximum TOC content is observed in sample DJB-10 with 0.9 wt%, however, in general, TOC fluctuates from 0.07(LA-04) to 0.5% (LA-01). MINC values are relatively low in the inner part of the lagoon and increase towards the outer part. Minimum and maximum MINC values are reached respectively at station LA-04 and LA-09 with 3.62 and 9.04 wt%. The HI values do not fluctuate significantly among samples varying from 213 (LA-07) to 373 mg HC/g TOC (LA-01), whereas, OI oscillates from 298 (LA-10) to 823 mg CO2/g TOC (LA-06). These data was used in this study to determine the provenance of the sedimentary OM (Fig. 4): (i) HI vs OI plot is widely used to represent the origin of the sedimentary OM, however the plots are out of the different delimited areas for the kerogen type. (ii) HI vs Tmax plot indicates a kerogen type IIb (Delvaux et al. 1990). (iii) S2 vs TOC plot confirms the type II kerogen (Langford and Blanc-Valleron 1990).
Total nitrogen (TN) contents are low and do not exceed 0.088 wt% (LA-10) with some samples being below the detection limit (LA-03, LA-04 and LA-06). Total carbon contents have similar trends as the MINC, with a maximum of 9.074 wt% for sample LA-10 and a minimum of 3.583 wt% for sample LA-04. Total hydrogen content is relatively high in sample LA-01 with 1 wt% but low for all other samples, fluctuating from 0.066% (LA-04) to 0.288% (LA-10). Stable carbon isotopic composition of OM is similar for all samples, ranging between – 16.7‰ (LA-04) to – 14.6‰ (LA-09).
Concentration and CF of major and minor elements in seawater are shown in Tables 3 and 4. In general the lowest concentrations of major elements are found at station LA-10. Sodium and magnesium have respectively concentrations of 11,869 and 1399 mg/L. Sulfur has also a relatively low concentration with 945 mg/L followed by Ca and K with respectively 462 and 442 mg/L. Strontium has the lowest concentration at station LA-10 with only 8.4 mg/L. An almost two-fold increase in major element concentrations was observed from the external (LA-10) to the internal parts of the lagoon (LA-01). However, the concentration of major elements in seawater is relatively similar in stations LA-06 and LA-10 and their CF is equal to 1. For samples between LA-01 to LA-05, the CF did not exceeded 1.8 for all major elements.
Concentration factors of most minor elements in the seawater are different than those of major elements. Generally, the CF of minor elements increased from station LA-10 to LA-01, with the exception of Cd (CF = 1), As (CF slightly decreasing from stations LA-10 and LA-01) and Cr (CF < 1.4, except for station LA-05). Concentration factors of Li have similar trends as major elements. Silicon reaches its highest concentration factor at station LA-01, with a value of 23.6. Concentration factors of P, Al, Fe and Mn fluctuate from station LA-10 to LA-01, they reach maximum factors at station LA-05 and LA-01, respectively.
Living foraminifera and multivariate analyses
Living foraminiferal diversity is relatively high in the lagoon. Ninety-six living species have been identified (Online Resource 1). Fourteen species (> 7% of relative abundance on at least one station) represent at least 60% of all living specimens (LA-10a). The distribution of the 14 most dominant species changes significantly along the transect (Figs. 3, 5). The inner part of the lagoon is dominated by Haynesina depressula and Ammonia spp., although the species Ammonia tepida is only present at stations LA-01 and LA-02. Brizalina striatula, Glabratella altispira, Mychostomina revertens become progressively more abundant from station LA-05 to station LA-10, although in variable amounts. The abundance of Rosalina vilardeboana increases significantly from station LA-05 to LA-06 and is especially abundant at station LA-10b. Abditodentrix rhomboidalis and Amphistegina lessonii are present, but only dominant in station LA-10. Specimen density and number of species per station have similar trends along the transect (Figs. 3, 5). They are relatively low in the inner part of the lagoon, especially at station LA-01 (1.3 specimen/cm3 of sediment and only 4 living species). The density of living foraminifera shows an increasing trend from station LA-01 to LA-10. Some fluctuation in abundances are observed at station LA-02 and LA-09, station LA-10b has a very high living specimen density, with 99 specimens/cm3 of sediment. The number of species shows a continuous increase trend from station LA-01 to LA-10, except samples LA-09 and LA-10a, which show a slight decrease in comparison to station LA-08. Sample LA-10b shows the highest species number with 48 species. Species richness varies from 4 to 48. The Shannon Index (H′) reaches lowest value on station LA-02 with 0.69 and has the highest score of 2.42 on station LA-10 (Fig. 3). The Fisher α Index displays values between 0.58 and 11.86. Both diversity Indexes show similar trends with the number of species per stations (Online Resource 1) and increase from station LA-02 to LA-10 with a marked decrease on station LA-09.
Based on the Bray–Curtis Similarity and n-MDS plots, two clusters are identified in the dendrogram. Cluster 1 groups samples LA-01 to LA-07 with Ammonia parkinsoniana (57.51%), Haynesina depressula (19.45%) and Elphidium incertum (7.31%) as dominant species and is interpreted as representing the internal part of the lagoon. Cluster 2 groups samples LA-08, LA-09, LA-10b and LA-10b representing the external parts of the lagoon with Brizalina striatula (21.09%), Rosalina vilardeboana (18.37%), and Rosalina bradyi (7.12%) as the dominant species.
Impact of water parameters on the marine flora and macrofauna
Water parameters are important factors controlling the distribution of the flora and fauna in the marine environment (Ruivo 1973). In coastal regions, the water parameter that has a major impact on the distribution and density of flora and fauna is salinity (e.g. Bulger et al. 1993; Montague and Ley 1993; Lamptey and Armah 2008). Unfortunately, during the sampling campaign, we were not equipped to record salinity measurements (e.g., with electrical conductivity meter, refractometer for seawater, seawater density meter). Therefore, in the present study, major elements are used to estimate salinity in the Djerba lagoon. A clear increase in the concentration of major chemical elements from the open sea towards the internal part of the lagoon was observed (Fig. 3). Based on CF the lagoon can be divided into two parts: (i) an external part close to the open sea characterized by normal saline seawater with CF ≤ 1. (LA-06, LA-07, LA-08, LA-09 and LA-10). (ii) An internal part that can be considered as hypersaline with a salinity that can be estimated to be around 1.5 times higher than normal seawater conditions (LA-01, LA-02, LA-03, LA-04 and LA-05). However, the seawater sampling was performed during the rising tide and it has to be taken in account that the current probably influences the internal part of the lagoon close to the channel. Stations LA-06 and LA-07 can be regarded as transitional stations where the salinity (i.e. CF) can significantly fluctuate depending to the tide level.
The concentrations of major elements in the internal part of the lagoon are directly linked to the arid climate. This is especially true in the summer, when increased evaporation may increase salinity to hypersaline values (Kjerfve et al. 1996). Reduced seawater exchange between the internal part of the lagoon and the open sea may also be responsible for the hypersaline conditions as this is characteristic of choked lagoons with longer flushing times (Kjerfve 1994). The entrance of the lagoon may act as a dynamic filter significantly reducing the strength of tidal current and thus, seawater flow exchange toward the inside of the lagoon (Kjerfve 1994). In addition, the arched morphology of the channel may contribute to decrease the strength of the tidal current. This difference in the tidal current strength is expressed by the presence of moving sand banks (Fig. 2) between the lagoon entrance and the sharp bend of the lagoon.
A relationship exists between the CF and the P. oceanica seagrass meadow distribution inside the lagoon of Djerba. Posidonia oceanica is present only in areas where the CF does not exceed 1, although P. oceanica is absent in two stations (LA-08 and LA-10). In the case of station LA-10 the rocky sea floor may prevent the roots of P. oceanica from colonizing the substrate, and in case of LA-08 (> 10 cm of the water depth) the very shallow water conditions may prevent the development and vertical growth of P. oceanica leaves.
Several studies demonstrated the sensitivity of P. oceanica to hypersaline conditions (Fernández-Torquemada and Sánchez-Lizaso 2005; Gacia et al. 2007; Sanchez-Lizaso et al. 2008). Brine discharges from desalination plants may increase the salinity of seawater and have a negative impact on P. oceanica meadows (e.g., Platja de Mitjorn on the Island of Formentera; Alicante in Spain) (Fernández-Torquemada et al. 2005; Gacia et al. 2007). Laboratory experiments have demonstrated that when seawater salinity exceeds 39.1 psu, marine vegetation mortality increases, while at 45 psu, 50% of the marine vegetation died within 15 days. However, P. oceanica is able to recover to normal growth when exposed to short hypersaline episodes (Fernández-Torquemada and Sánchez-Lizaso 2005).
Google Earth is an efficient tool to observe landscape evolution through time. Satellite images of Djerba lagoon, dating back to July 10th 2003, are available on Google Earth (https://www.google.com/earth/) where the distribution of Posidonia oceanica is clearly visible on satellite images. The comparison of images from 2003 with the present distribution of P. oceanica suggests no spatial/temporal variation and no seasonal effects. This observation indicates that the salinity of the Djerba Lagoon has not changed since 2003.
If the hypersaline environment is not favorable for P. oceanica, it may possibly provide a suitable ecological niche for other marine macro-organisms, such as C. vulgatum. This marine gastropod is very common along the Mediterranean Sea coast in shallow water marine ecosystems. The diet of this gastropod consists of diatoms and epibenthic microalgae (Nicolaidou and Nott 1999). Hypersaline conditions can be considered as an important stressor on marine organisms leading to a decrease in biodiversity, coupled with a reduced competition among marine organisms. Well-adapted and/or stress-tolerant organisms to natural fluctuations in environmental conditions can thus proliferate and dominate specific ecological niches, as C. vulgatum does in the innermost parts of the lagoon.
Organic matter: origin and trophic state
Organic matter is an essential food resource in marine environments and can also impact faunal and/or microfaunal distribution (e.g., Whitlatch 1981; Mojtahid et al. 2009). The amount and the origin of this food resource allows for better understanding of ecological processes in marine environments (e.g., Whitlatch 1981; Lopez and Levinton 1987) in addition to providing information on trophic resources.
Rock–Eval pyrolysis can be successfully used in environmental studies to determine the type of kerogen which indicates the origin of the OM. Type I kerogen is indicative of lacustrine environments, Type II kerogen of marine environments and type III of terrestrial environments (Espitalié et al. 1985). However, some study differentiate the Type IIa kerogen (marine) and Type IIb (mixed marine/terrestrial) (e.g., Delvaux et al. 1990). Some limitations on Rock–Eval pyrolysis exist due to the low TOC content and where HI and OI should be interpreted with caution. Below 0.3% of TOC, a very limited amount of hydrocarbons can be produced which may induce low S1 and S2 peaks and form a wide gentle hump (Nunez-Betelu and Baceta 1994). In addition, values lower than 0.2 mg HC/g sediment (S2 peak) may influence on Tmax because the S2 peak becomes broad and low and hen the top of the peak cannot be accurately defined (Nunez-Betelu and Baceta 1994). The classical HI versus OI graph prevents a precise determination of the kerogen type (Fig. 4) because of the high OI values. Adsorption of CO2 is possibly induced by low TOC content in the sediments (Table 2) (Nunez-Betelu and Baceta 1994). In addition high carbonate mineral content increases the OI during the heating process of Rock–Eval analysis (Katz 1983) and may therefore represent serious limitations in the interpretation of the OM content.
The graphs S2 vs TOC and HI vs Tmax (Fig. 4) indicate that the OM composition is relatively homogenous along the lagoon of Djerba, and is mainly composed by type II kerogen. This kerogen type reflects a mix marine and terrestrial OM origin (Langford and Blanc-Valleron 1990; Delvaux et al. 1990). The type II kerogen is mostly composed by amorphous kerogen (e.g. planktonic material) and exinite (e.g. pollen, cuticle of leave and herbaceous plants). This mixed provenance of OM can be easily explained: in a coastal environment, planktonic material can be carried inside the lagoon by tidal currents, while the terrestrial OM origin is due to the presence of vegetation such as date palm trees on the western shore of the lagoon of Djerba. Organic matter can also come from the seagrass P. oceanica. This seagrass species presents similarities with land plants as it possesses cuticles and contains a high amount of cellulose (Nunez-Betelu and Baceta 1994; Khiari et al. 2010). Stable carbon isotope composition signal of OM from surface sediment correlates well with land plants and with P. oceanica. Enriched δ13COM values (> – 18.5‰) is typical for C4 land plants (Smith and Epstein 1971; Hedges et al., 1997). The δ13COM of P. oceanica ranges from – 19.7 to – 10.8‰ (Cooper and DeNiro 1989; Vizzini et al. 2002; Lepoint et al. 2003; Vizzini et al. 2003), which corresponds to δ13COM values measured inside the lagoon of Djerba (Table 2).
The relatively high TOC content at station LA-10 (Table 2) can be explained by the algae carpet which traps the sediment, however, we cannot exclude a contribution of OM from the beachrock itself. Strasser et al. (1989) noticed organic compounds (e.g. algae, roots residue) in the beachrock from Bahiret el Biban (southeastern Tunisia). In addition, Vousdoukas et al. (2007) noticed OM associated with microbial structures in the beachrock. Environmental conditions in station LA-01 are extreme (high salinity coupled with high water temperature) and the TN content is relatively high in comparison to the other stations (Table 2). As a nutrient, nitrogen and phosphorus can influence the productivity of microalgae and increase the TOC content in the sediments, hence creating eutrophic conditions (Nixon 1995; Taylor et al. 1995). Following Smith (2003), the concentration in total phosphorus on station LA-01 (Table 4) is indicative of a very high nutrient pollution level (> 31 µg/L of total phosphorus) for a coastal marine ecosystem and thus contribute probably to form eutrophic conditions at this station. High nutrient pollution level together with high sedimentary OM content indicate a high primary productivity which is the definition of eutrophication (Nixon 1995). High primary productivity may explain the high density of C. vulgatum as it provides an ideal food source for this gastropod. In contrast, low TOC content in the rest of the lagoon (LA-03 to LA-09) (Table 2) may possibly be related to the coarse sediment present in the lagoon. Coarse sediment may allow better oxygen diffusion into the sediments, promoting mineralization of OM and leading to the decrease of TOC content (Tyson 1995). Despite these low values (except for stations LA-01 and LA-10), the TOC content shows a consistent gradient in the Djerba lagoon probably due to the constant OM flux from tidal currents. However, we also suggest a possible ecological link between OM content and P. oceanica meadow distribution. During its life cycle, P. oceanica, regenerates its leafs (Ott 1980) and leaf litter represents a significant OM source laying on the surface sediment (Romero et al. 1992; Lepoint et al. 2006).
Benthic foraminifera as bioindicators
Foraminifera are good bioindicators that can provide valuable information about environmental conditions (e.g. Alve 1991; Kaiho 1994; Hallock et al. 2003; Mateu-Vicens et al. 2010; Dimiza et al. 2016). Changes in foraminiferal assemblages can be related to changes of environmental physiochemical parameters (e.g., pH, dissolved oxygen), OM, or substrate type. Living benthic foraminiferal assemblages change significantly within the Djerba lagoon (Fig. 3) based on variations in physiochemical parameters, tidal currents and seagrass distribution. Previous studies demonstrated that some foraminiferal species are sensitive to variations in grain size (e.g., Murray 2006). However in the case of the study area, grain size is fairly homogeneous within the entire lagoon and its possible influence on foraminiferal assemblages can be excluded.
Living benthic foraminiferal assemblages suggest a division of the lagoon into two parts (Fig. 6) separated by the channel, acting as a natural barrier between the internal and the external parts of the lagoon. The channel represents a dynamic environment due to the action of tidal currents that have shaped its present morphology. The channel also acts as a preferential flowing path for the tidal flow, thus reducing tidal energy towards the internal lagoon preventing the transport of foraminifera between internal and external parts of the lagoon.
Ammonia parkinsoniana is one of the most abundant species along a large part of the lagoon and is especially dominant in the internal part. Ammonia parkinsoniana can be considered as stress tolerant because it is a dominant species in the NorthwesternGulf of Mexico under highly variable environmental condition (Gupta et al. 1996 and references therein). In addition, in Puerto Rican bays and lagoons, this species is abundant in fine-grained, polluted and organic-rich sediments (Gupta et al. 1996 and references therein). Ammonia parkinsoniana is also abundant in the Bizerte lagoon and this species is common in transitional environments under seawater influence (Martins et al. 2016) such as Djerba lagoon.
The hypersaline environment directly impacts benthic foraminiferal density in the internal part of the lagoon where species numbers is lower than in its external part. The dominance of Ammonia tepida reflects the extreme hypersaline conditions and high water temperature in the internal edge of the lagoon. In particular, A. tepida was observed in shallow marine environments and lagoons (Frontalini et al. 2009) and is tolerant to thermal pollution. Ammonia spp. is also known to be very tolerant to hypersaline environments (Walton and Sloan 1990; Murray 2006). Another dominant species in the hypersaline internal part of the lagoon is H. depressula. This species is known to colonize sandy substrate in inner shelf environments and is tolerant to brackish water intolerant to salinity higher than 50 psu (Murray 2006). However, this species was identified in several locations along the Gulf of Saros (Turkey) in environments where salinity reached over 50 psu (Bassler-Veit et al. 2013). Based on the concentration factor and the normal seawater salinity in the southern coast of Tunisia (~ 37 psu) (Béranger et al. 2004), the present study suggests that salinity can exceed 55 psu in the part of the lagoon where H. depressula is dominant and confirms the ecological tolerance of this species to high salinity.
Elphidium incertum is relatively abundant in the internal part of the lagoon (Online Resource 1). It is described as uncommon in bays, marshes and in lagoon barriers (Phleger 1965). In the northern Gulf of Mexico, E. incertum is typical for brackish inlet-influenced outer lagoon environments (Otvos 1985). This species is less abundant than Ammonia spp. in the internal part of Djerba lagoon and its presence is probably not directly related to the salinity conditions like H. depressula. Elphidium incertum was also observed in the inner part of Flensburg Fjord (SW Baltic Sea), where high organic matter content in the muddy sediment provides ideal living conditions (Polovodova et al. 2009). Murray (2006), indicates that E. incertum prefers shallow infaunal habitats in sandy substrates, with high oxygen positively impacting on its reproduction. In the Djerba lagoon, the abundances of E. incertum correlate with burrows and seagrass in the internal lagoon. Burrows from macrofaunal activity increase oxygenation in the first centimeters of sediment, and P. oceanica, as a marine plant, supplies oxygen through photosynthesis, providing ideal conditions for E. incertum to develop.
A strong correlation exists between the presence of B. striatula and the distribution of the seagrass P. oceanica. The genus Brizalina has an infaunal mode of life and has specific resistance to oxygen depletion in the environment (Murray 2006). Generally, taxa, which are tolerant to low oxygen conditions are typical of muddy substrates that can accumulate high amounts of organic matter (Van der Zwaan et al. 1999). In the Djerba lagoon, the presence of B. striatula and its preference for oxygen-depleted environments does not match with the observed low OM content and the coarse sediments. However, low oxygen tolerant species and low oxygen conditions can be associated to seagrass decaying in sediments (Mateu-Vicens et al. 2014). In addition, the trophic preference of brizalinids for organic detritus (Murray 2006) suggests that remains of P. oceanica could be a potential food resource.
The abundance of the epifaunal Rosalina vilardeboana and Amphistegina lessonii at station LA-10 can be explained by the hard substratum (Murray 2006). The beachrock located in the eastern part of the lagoon is an ideal environment for their development. The genus Amphistegina is widely used to assess water quality because of its fast response to environmental changes (e.g. water temperature) (e.g. Emrich et al. 2017; de Freitas Prazeres et al. 2012; Hallock et al. 2003). The abundance of Amphistegina spp. and its sensitivity to water quality deviating from normal conditions (e.g., Hallock et al. 2003) confirms the normal marine conditions at the external part of the lagoon. Water quality influencing the development of R. vilardeboana are poorly described in the literature. However this species was described as opportunistic in a benthic foraminiferal culturing system (Hintz et al. 2004). Erginal et al. (2013) describe this species as an indicator of shallow water. However, the present study confirms that R. vilardeboana shows affinity for substrates with more abundant organic carbon and is influenced by the distribution of Posidonia oceanica (Buosi et al. 2012).
The changes in the living foraminiferal assemblages within the lagoon is the consequence of an important environmental zonation due to changes in salinity, water depth, presence/absence of seagrass and type of substrate along a 2 km area. Biotic and abiotic changes reflect the transition from hypersaline conditions from the internal part of the lagoon to normal marine conditions in its external part.
Is there an anthropogenic impact on the lagoon?
The Gulf of Gabes is well known to be severely polluted by one of the main industrial phosphate treatment complex in Tunisia. Many studies have demonstrated a negative impact of this pollution on marine flora such as P. oceanica (e.g. El Zrelli et al. 2017), or on macrofauna like the coral Cladocora caespitosa (El Kateb et al. 2016). The geographic position of the Djerba lagoon, within the center of the touristic area of the Djerba Island, makes it particularly vulnerable to the pollution by tourist activities. Despite of human activities around the Djerba lagoon (e.g., tourism), only few signs of eutrophic conditions were noticed. High nutrient contents on station LA-01 were not clearly defined as anthropogenic origin. Urban sewage close to station LA-01 could be one explanation for high phosphorus content (Gilabert 2001). However, remineralization of OM under warm temperatures carried at the station LA-01 could release phosphorus from the sediment (Nixon 1982) and induce eutrophic conditions. High heavy metal content in marine or terrestrial environments is generally interpreted as a sign of contamination by anthropogenic activities. In the case of the Djerba lagoon, the concentration of metal elements in the seawater is relatively low (Table 4). Concentration factors of minor elements are significantly different depending on the element. Processes can control trace metal concentrations in seawater, such as active biological processes, which can remove trace metals from seawater (Bruland and Lohan 2006). Redox cycling of metals can also influence trace metal concentrations in seawater (Morel and Price 2003). The cause of high CF for silicon (Table 4) on the station LA-01 is not clearly defined. However, the eutrophic state of this station is suspected as a possible factor for quartz solubility. In agreement with the biogeochemical cycle of Si (Basile-Doelsch et al. 2005) siliceous sources in seawater are provide by silicate minerals of endogenous rocks. Quartz is one of the main substrate minerals in the Djerba lagoon. Several studies (Bennett and Siegel 1987; Bennett et al. 1988; Bennett 1991) show the influence of organic acid/compounds on the quartz solubility and quartz dissolution kinetics. Organic matter decay caused by eutrophic conditions probably releases dissolved organic acid/compounds in water and thus increase the solubility of quartz. However, further investigations are needed to confirm this hypothesis. A peculiar behavior of concentrate factors of some minor elements was noticed at station LA-05 (Table 4), corresponding geographically to the country road crossing the Djerba lagoon. This country road is used by tourists to cross the lagoon with vehicles. The increase in seawater of the concentration factors for P, Al, Cr, Fe and Mg at the country road station (LA-05) is probably the result of intense tourist passage on this country road crossing the lagoon. In addition, the lowest living foraminiferal specimen density is reached when in close proximity to this road (Fig. 3). Although the road side site may be slightly impacted by tourism, our preliminary results suggest a minor anthropogenic impact in the Djerba lagoon.
The Djerba lagoon is a transitional environment from hypersaline to normal marine conditions. The high salinity in the inner lagoon is due to the shallow water depth combined with the arid climate (e.g., warm weather and high solar radiation). The variation in salinity has a direct impact on seagrass distribution and creates small-scale ecological niches for macro fauna in the internal part of the lagoon. A clear zonation in the distribution of living foraminiferal assemblages was noticed in the Djerba lagoon. A channel seems to act like a natural barrier, separating the internal and the external part of the lagoon. Based on these observations, the lagoon represents a unique ecosystem in the Djerba Island.
