Evaluating igneous sources of the Taveyannaz formation in the Central Alps by detrital zircon U–Pb age dating and geochemistry


Late Palaeogene syn-tectonic volcanic products have been found in the Northern Alpine foreland basin and in the South Alpine hemipelagic basin. The source of abundant volcanic fragments is still in debate. We analyzed the geochronology and geochemistry of detrital zircons, and evaluated their temporal and genetic relationships with potential volcanic sources. The study shows that the detrital zircon U–Pb age patterns have two major age groups: a dominance (ca. 90%) of pre-Alpine zircons was found, as commonly observed in other Alpine flysch formations. These zircons apparently derived from erosion of the early Alpine nappe stack in South Alpine and Austroalpine units. Furthermore, a few Neo-Alpine zircons (ca. 10%) have ages ranging from Late Eocene to Early Oligocene (~ 41–29 Ma). Both source materials were mixed during long riverine transport to the basin margins before being re-deposited by gravity flows. These Palaeogene ages match with the activity of Peri-Adriatic magmatism, including the Biella volcanic suite as well as the Northern Adamello and Bergell intrusions. The values of REE and 176Hf/177Hf(t) ratios of the Alpine detrital zircons are in line with the magmatic signatures. We observe an in time and space variable supply of syn-sedimentary zircons. From late Middle Eocene to Late Eocene, basin influx into the South Alpine and Glarus (A) basins from the Northern Adamello source is documented. At about 34 Ma, a complete reorganisation is recorded by (1) input of Bergell sources into the later Glarus (B) basin, and (2) the coeval volcaniclastic supply of the Haute-Savoie basin from the Biella magmatic system. The Adamello source vanished in the foreland basin. The marked modification of the basin sources at ~ 34 Ma is interpreted to be initiated by a northwestern shift of the early Alpine drainage divide into the position of the modern Insubric Line.

1 Introduction

Volcanic products of Middle Eocene to Early Oligocene age were distributed over a large area of the growing Alpine orogen including coeval outer and inner foreland basins, and the hemipelagic South Alpine basin. Generally, volcaniclastic sources along the Peri-Adriatic Line, in the Adamello, Bergell and Biella magmatic systems are regarded as sources by various authors. In the present study we focus on both the Northern Alpine Foreland Basin (NAFB) (North Helvetic Flysch, Taveyannaz Formation, TF) and the so-called Plagioclase Arenites (PA) in the Trentino Basin. Occurrences of the TF deposited in the northern underfilled foreland basin were investigated in the Glarus Alps, the Alpe Taveyanne and the Haute-Savoie areas (Fig. 1). Based on petrological, sedimentological and geochronological evidence, earlier studies attested strong influx of volcaniclastic detritus to the basins (e.g., Vuagnat 1944; Siegenthaler 1974; Lateltin and Müller 1987; Lateltin 1988; Sinclair 1992; Waibel 1993; Rahn 1994; Sciunnach and Borsato 1994; Ruffini et al. 1997; Boyet et al. 2001; Di Capua and Groppelli 2015). This view was corroborated by radiometric dating (K/Ar and Ar/Ar, hornblende) on single volcanic pebbles in the range of ~ 35–30 Ma (Fontignie et al. 1982; Fischer and Villa 1990; Féraud et al. 1995; Ruffini et al. 1997). However, the derivation and distribution of the volcanic material are still poorly defined.

Fig. 1
figure 1

Simplified tectonic map of the Central and Southern Alps with sample locations (Pfiffner 2014). Sample locations in red provided Palaeogene detrital zircons (blue-non). BVS Biella volcanic suite, Gi Giudicarie Line, In Insubric Fault, Si Simplon Fault, Ca Canavese Line, Tr Trentino Line, PA Plagioclase Arenites

Various hypothesis about their provenance were proposed. It is suggested that the volcaniclastic detritus was supplied from high-K igneous activity, which occurred in the internal part of the growing Alpine belt along the Peri-Adriatic Line, such as andesitic dykes, plutons and lava flows (Ruffini et al. 1997). Féraud et al. (1995) and Boyet et al. (2001) proposed the erosion of volcanoes located near or in the sedimentary Dauphinois-Helvetic flysch basin (outer foreland basin) as additional source. Similarly, according to Pfiffner (2014), the volcanic feeder dykes were more likely located in the southernmost part of the Aar massif, now beneath the Gotthard nappe, and thus not accessible at the surface. More recently, Di Capua and Groppelli (2015) interpreted the presence of primary volcanic deposits (pyroclastic density currents, PDC) or eruption-triggered flow deposits (their facies type 3) as sedimentary response to the magmatic activity along the Peri-Adriatic volcanic belt.

With regard to the Plagioclase Arenite deposits in the Trentino basin the source-to-sink situation appears simpler. Within the Giudicarie fault zone Eocene turbiditic, plagioclase-rich intercalations in pelagic sediments (Ponte Pià Fm. were identified by Bars and Grigoriadis (1969) and Sciunnach and Borsato (1994), respectively. Petrologic, geochemical analyses and a radiometric age (zircon U–Pb, 35.4 Ma) support the derivation of the volcaniclastic material from extrusions and dykes related to the Adamello magmatic system (Martin and Macera 2014). The results from this well established source-to-sink relationship will serve as an important correlation tool in the present study.

In summary, various potential detrital volcanic sources could hardly be discriminated in earlier works. In addition, our observations suggest that the TF bears also variable and high amounts of siliciclastic grains probably derived from continental basement rocks in the source areas, which was virtually neglected by earlier investigators. This mixing of old basement and minor contemporaneous detritus calls à-priori for a long distance riverine transport to the NAFB margin.

Our approach for revealing the provenance of clastic material in general, and in particular their relationship to orogenic intrusive and eruptive episodes, is to systematically apply detrital zircon analysis. We analyse U–Pb dates of detrital zircons (DZ) from sandstones by laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) (see e.g., Gehrels 2014, for the wide field of applications). Additionally, trace element contents (REE) and in situ Hf isotope analyses (e.g., Belousova et al. 2002; Hawkesworth and Kamp 2006) are performed on those zircons, which by age correlate with Palaeogene Alpine magmatic activity. We expect to discriminate between the different Peri-Adriatic magmatic systems as sources. The unexpectedly high abundance of reworked basement material in the TF and its derivation, and the possible existence of additional volcaniclastic sources closer to the basin, i.e. along the southern margin of the NAFB (North Helvetic Flysch) depositional site will be also discussed.

2 Geological framework

The Late Palaeogene sedimentary sequence of the NAFB is formed in the course of the continent–continent collision during the Alpine orogeny (e.g., Trümpy 1973). The basin is characterized by an initial underfilled ‘flysch stage’ of Late Eocene-Early Oligocene age (e.g., Allen et al. 1991; Sinclair 1992). The resulting turbidite-dominated series were deposited within the inner deformed margin of the foreland basin in a wedge-top position (DeCelles and Giles 1996) and are attributed to the North Helvetic Flysch. This flysch extends in a narrow band (~ 15 km width) over 200 km from the Subalpine chain in the Haute-Savoie to the Glarus area in the east (Fig. 1). The lower stratigraphic boundary of the basin series is marked by a major unconformity, which is known as the ‘Palaeocene Restoration’ (Trümpy 1973). The unconformity separates the eroded underlying Mesozoic northern continental margin succession from the overlying Palaeogene foreland basin sediments, which show a marine deepening trend. This particular tectono-stratigraphic configuration was driven by earlier foreland bulge uplift (starting in latest Cretaceous) followed by progressive stratigraphic onlap of the foreland basin fill during flexural subsidence (Allen et al. 1991; Sinclair 1992).

The Plagioclase Arenites in the western Southern Alps (Trentino basin) (Fig. 1) were deposited in a completely different environment, namely in a hemipelagic basin of outer neritic to bathyal depth (Sciunnach and Borsato 1994). Outcrops are located in the Giudicarie belt separating the Lombardy basin to the west from the Trentino basin in the east (Doglioni and Bosellini 1987). A volcaniclastic source of the sandstones intercalated into hemipelagic/pelagic marl- and limestones from extrusions and dykes related to the Adamello magmatic system is presently accepted (Sciunnach and Borsato 1994; Castellarin et al. 2005; Martin and Macera 2014).

3 Stratigraphy and lithology

3.1 Glarus, Alpe Taveyanne and Haute-Savoie

The TF, traditionally considered as a turbidite sandstone series rich in volcanic debris, has its main occurrence in the Glarus area below the Glarus thrust, in the type locality Alpe Taveyanne and the Haute-Savoie in France. The Grés de Chaupsaur Fm. represents their closest stratigraphic continuation to the southwest in France, at the southern margin of the Pelvoux massive (e.g., Boyet et al. 2001) (not shown in Fig. 1). In the eastern NAFB in Austria (NE of Salzburg) coeval sandstone formations (“Rupelian” sandstones) document volcaniclastic input (Sharman et al. 2017). The strong folding and internal thrusting as well as very low-grade metamorphic overprint, especially in the Glarus section (e.g., Rahn et al. 1995; Ferrero Mählmann 1995), hampered until now precise biostratigraphic correlations.

In the studied sections of the NAFB a similar stratigraphic subdivision (Fig. 2) is generally accepted comprising the underlying deepening-upward series of the Einsiedeln and Stad formations. They are also informally known as Nummulitic limestones and Glogiberina marls, respectively (Stratigraphic Lexicon of Switzerland, Presumably diachronously (Lateltin 1988) follows the TF. Scarce nannoplankton data (Lateltin 1988) indicating NP 21-23 correlate the formation with the latest Eocene (Priabonian)-Early Oligocene (Rupelian) in western Switzerland and France. However, the range of the present DZ U–Pb datings from the Glarus area could allow establishing a maximum older age in the Bartonian if transport and resedimentation of grains is considered geologically rapid in the range of several 100 kys. In the Alpe Taveyanne and Haute-Savoie our DZ age results confirm the biostratigraphic correlation of Lateltin (1988).

Fig. 2
figure 2

Compiled from Siegenthaler (1974), Pfiffner (1986), Sinclair (1992), Sciunnach and Borsato (1994), Zurfluh (2012). Time scale after Gradstein et al. (2012)

Composite stratigraphy of the Palaeogene sections studied in the North Alpine foreland basin (North Helvetic Flysch) and Southern Alps (Trentino Basin) in comparison with age ranges of the Peri-Adriatic intrusions

The Taveyannaz Fm. consists of green turbiditic sandstone and dark-grey shale layers of variable thickness (Fig. 3) and totals several hundred meters. On microscopic scale it shows poorly sorted and often zoned volcanogenic feldspars, andesitic fragments and a small amount of mafic minerals. The andesitic grains are in variable amounts mixed with quartz, feldspar, calcite, white mica and metamorphic fragments. Furthermore, in the Glarus section, based on our radiometric dating of DZ (see below) we may distinguish two informal members, an older member A and a younger member B. Observed lithological and sedimentological similarities in the context of intensive fold deformation in Glarus do not exclude the possibility that our sample and data set also includes sandstones from the Elm and Matt fms.

Fig. 3
figure 3

Sample location (red stars) and microphotographs (plain light) of analysed sandstones. Qz quartz, Pl plagioclase, Hb hornblende, Mi white mica, Bt biotite, Lvh volcanic hypabyssal lithoclast

The TF is topped by continued turbidite deposition represented by the Elm and Matt fms. in central Switzerland, and the Grés du Val d’Illiez in western Switzerland and France, respectively. Both formations terminate the underfilled stage of the NAFB.

3.2 Trentino basin

Sciunnach and Borsato (1994) evaluated a Late Eocene age (latest Bartonian-Priabonian) based on nannoplankton and planktonic foraminifera. The Plagioclase Arenites (PA) conformably overly the hemi-pelagic Ponte Pià Fm. comprising bedded limestones occasional fine sandstones and bioturbated marlstones with increasing amount of marlstones towards the top. In the upper part of the formation and below calcarenitic turbidite layers bentonites are observed (Zurfluh 2012). The PA do not have a formal lithostratigraphic rank but were considered as a special facies in the Ponte Pià Fm. They represent irregular intercalations of turbidite beds of dm-scale thickness, the most prominent one with a thickness of ~ 3 m occurs in the Lake Molveno area (Sciunnach and Borsato 1994).

4 Late Alpine calc-alkaline magmatism

The syn-collisional magmatism along the Peri-Adriatic fault system consists of calc-alkaline and shoshonitic suites with mainly granodioritic, tonalitic intrusions and andesitic volcanism (e.g., Waibel 1993; Rosenberg 2004; Pfiffner 2014). Due to strong deformation during the Neogene, it is difficult to reconstruct its volume and geometry. The calc-alkaline magmatism is linked to Alpine convergence, but its exact origin is still a matter of debate: continental arc, product of the collision detachment of a lithospheric panel, or back-arc extension (e.g., von Blankenburg and Davies 1995; Beltrando et al. 2010; Pfiffner 2014). A widely accepted model for the late Alpine magmatism along the Peri-Adriatic fault system is the oceanic slab break-off model inferred by von Blanckenburg and Davies (1995). This process may have driven mantle upwelling and heat transport giving rise of intensive magmatic activity and rapid exhumation of the plutonic bodies. The three most important volcanic/plutonic suites and potential sources for detrital zircons in the TF are shortly characterised in the following.

4.1 Biella volcanic suite (BVS), Valle de Cervo and Miagliano plutons

Today, the BVS is restricted to a narrow belt about 20 km along the Canavese line in the Sesia–Lanzo zone (Fig. 1). The composition of the volcanic rocks ranges from basalt to andesite in the high-K calc-alkaline suite and from trachyandesite to trachydacite in the shoshonitic suite (Callegari et al. 2004). The BVS represents a complex volcanic sequence of porphyries, coarse-grained conglomerates, volcanic breccias and thin tuffitic layers. Based on palaeobotanical data and K–Ar total rock ages of andesitic rocks, Scheuring et al. (1974) assessed an age of volcaniclastic rocks between 29 and 33 Ma. More recently, Kapferer et al. (2012) measured U–Pb zircon ages at 32.89–32.44 Ma for the eruption of the cal-alkaline lavas. By high precision zircon U–Pb dating, from the Biella intrusion Berger et al. (2012) achieved an age of 33.00 ± 0.04 Ma for the central tonalitic part of the Miagliano pluton and 30.39 ± 0.50 Ma for the granitic core of the Valle del Cervo pluton. In a tentative estimate, the Biella intrusion and volcanics can be correlated with 34–31 Ma.

4.2 Bergell intrusion

The intrusion is located in the SE of the Alpine orogenic belt and today covers a surface area of approximate 50 km2. The pluton is nearly concentrically zoned, exposing granodiorite in the core and tonalite at the margin. The southern tail of the Bergell pluton is a 40 km long steep tabular body of tonalite, which formed due to right-lateral movement along the Peri-Adriatic fault. Post-intrusive tilting and exhumation resulted in the exposure of a 12 km deep crustal section (Rosenberg 2004). Zircon and allanite U–Pb (Th–Pb) ages from the Bergell intrusion range from 33 to 29 Ma (e.g., von Blankenburg 1992; Gianola et al. 2014; Tiepolo et al. 2014).

4.3 Adamello batholith

The Adamello batholith forms the largest intrusive complex in the Alps (e.g., Pfiffner 2014). Its internal part is crossed only by a few late- to post-magmatic fault zones (Callegari and Brack 2002; Schaltegger et al. 2009). Adamello magmas were emplaced from Middle/Late Eocene to Early Oligocene. From northeast to southwest the entire batholith can be subdivided into four different plutonic bodies: Presanella, Avio, Adamello and Re di Castello. The individual plutons are composite bodies displaying varying structural relationships among each other and their adjacent rocks (Rosenberg 2004). They were emplaced over a period of around 9 Myr, successively from the oldest units in the southwest (~ 42 Ma) to the youngest in the northeast (~ 33 Ma) (e.g., Mayer et al. 2003; Schaltegger et al. 2009; Schoene et al. 2012; Skopelitis et al. 2011; Skopelitis 2014).

5 Sample materials

5.1 Sandstones

Our analyses are based on sandstone samples collected from various sections in Switzerland, France and Italy (Table 1). Earlier authors have systematically evaluated the modal composition of these sandstones except in the Glarus area. The sandstones of the TF of Haute-Savoie and Alpe Taveyanne area are subarkosic to lithoarenitic (Lateltin 1988; Lateltin and Müller 1987; Di Capua and Gropelli 2015). Selected examples of outcrop and microscopic views are given in Fig. 3. The sandstones are normally (rarely inveresly) graded turbidites and are greenish-brown in colour. Grain size variies from medium to coarse, sporadically also containing out-size pebbles. Typically, the sandstones also bear rip-up clasts (mud-chips). In thin sections, volcanic lithoclasts are largely dominating whereas continental basement and sedimentary lithoclasts are rarer. Plagioclase is a further abundant grain type, pyroxene, amphibole and biotite occur in minor proportions. However, the variable presence of quartz grains (from < 10% up to 50%) imply the incidence of basement erosion in the hinterland. This is also supported by variable amounts of white mica. In the Gres de Val’Illiez a further increase of quartz (to values > 60%, Lateltin 1988) and white micas is obvious. A similar increase of quartz grains and white micas in the Elm and Matt fms. was also reported from the Glarus area (Siegenthaler 1974).

Table 1 Location and description of analysed samples from the North Alpine foreland basin (North Helvetic Flysch) and Southern Alps (Trentino basin)

The Plagioclase Arenites from the Southern Alps (Trentino basin) are classed as arkoses with a virtual lack of quartz and minor rates of volcanic rock fragments (Zurfluh 2012). The sandstone is dark green with gray and black minerals.

It contains abundant weathered plagioclase with average size of about 0.25 mm. Partly, the plagioclase was converted to chlorite and sometimes replaced by calcite from the centre. An analysis of translucent heavy minerals by the same author revealed prevailing apatite (> 50%), zircon and biotite (~ 20% each), hornblende (~ 5%) and sporadic garnet, anatase and epidote. Hence, the sandstones represent typical volcanic arenites virtually missing basement rock influx.

5.2 Volcanic pebbles in the Glarus area

In the Sernftal area a peculiar kind of volcanic pebbles was documented by Siegenthaler (1974). The pebbles represent several cm-sized clasts enclosed in the sandy turbiditic matrix deposited by highly concentrated gravity flow deposits (Fig. 4). After textural and mineralogical criteria we distinguish three types of pebbles:

Fig. 4
figure 4

Rock slab and thin section photographs (plain and polarised light) of phreato-volcanic pebbles in the Glarus B Taveyannaz Fm. (Ruchi sandstone after Siegenthaler 1974). a 17GL03 (type 1); b 17GL06 (type 2); c 17GL07 (Type 3); d 17GL05 (pebble in pebble, type 2 in type 3)

Type 1: altered hornblende + plagioclase replaced by calcite + sparry calcite + chlorititic matrix + opaques (Fig. 4a),

Type 2: plagioclase replaced by calcite in a chloritic matrix (Fig. 4b),

Type 3: plagoclase partially replaced by calcit + sparry calcite cement (also poikilotopic) (Fig. 4c). Figure 4d shows a pebble-in-pebble configuration of type 2 and 3.

In the pebbles the original magmatic texture is well preserved. The above listed alterations (replacements) causing calcite growth and chloritic matrix document strong post-magmatic alteration most likely in an aquatic environment as described by e.g., Gifkins et al. (2005) or Shanks (2012) and we suggest that the pebbles represent metasomatic products of primary andesitic flows entering an aquatic environment. Their fragile mineralogical content and the infiltration of host sand (Fig. 4c) argues for a short transport from a volcanic source nearer as others. According to Siegenthaler’s (1974) lithostratigraphy, these pebbles occur in the locally called Ruchi Sandstone, the uppermost member of the TF.

6 Results

6.1 Detrital zircon U/Pb ages

As evident from cathodoluminescence pictures (Fig. 5), zircon grains from the TF are mainly prismatic fragments or euhedral crystals. Only a few sub-rounded and unzoned grains were found. The large majority of the zircons show well-developed oscillatory zoning and inherited cores recording older geological events. The internal features indicate a magmatic origin (Rubatto and Gebauer 2000).

Fig. 5
figure 5

Cathodoluminescence images of zircon grains in the TF (a: MRT 160, b: MRT 233), showing the spot of 206Pb/238U age (Ma, yellow lables and circles) and 176Hf/177Hf ratios (red lables and circles). Errors are 2σ

The age distribution of detrital zircons reveals a large dominance (> 90%, of total 1500 dated zircons) of pre-Alpine ages as commonly observed in other Alpine flysch formations (e.g., Bütler et al. 2011; Beltràn et al. 2013). The following age clusters consistent with older orogenic cycles comprised in the Alpine basement can be idntified (Fig. 6): (1) Cadomian (650–540 Ma) with an amount of ~ 10% of the total. The major peak lies at 582 Ma, (2) Caledonian (497–393 Ma) U/Pb ages contribute ~ 45% to the major peak at 452 Ma, and (3) Variscan and post-Variscan (393–252 Ma) zircons represent about 35% with major peaks at around 290 and 270 Ma. There is no quantitative difference of the pre-Alpine zircon age populations observed at the presence or lack of Palaeogene zircons (Fig. 6).

Fig. 6
figure 6

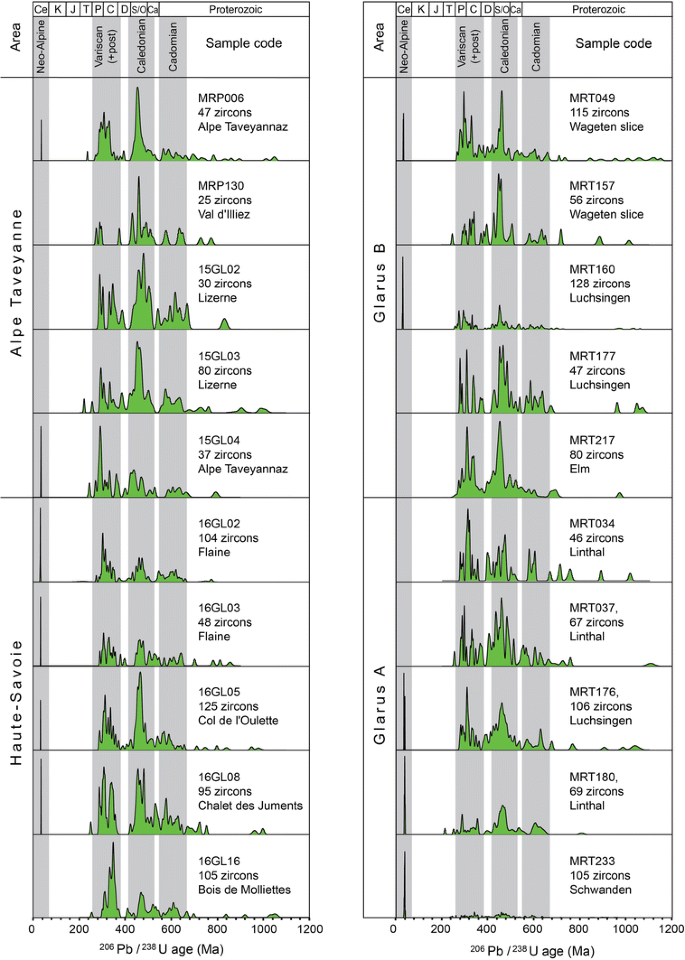

Probability U–Pb age curves of detrital zircon ages from sandstones of the Taveyannaz, Elm/Matt and Grés de Val d’Illiez formations. Only concordant ages are considered and also small error ellipses situated close and only below the concordant age curve (Ludwig 2009, ISOPLOT). Time scale after Gradstein et al. (2012)

Palaeogene detrital zircons (< 10%, of the total 1500 dated zircons) range from ~ 41 to ~ 29 Ma. Six samples from the Haute-Savoie and Alpe Taveyanne area yielded a total of 11 consistent ages ranging from ~ 30–34 Ma including two sigma errors (Fig. 7). In the Glarus area two distinct age populations, derived from different sandstones, are identified: ~ 41–32 and ~ 33–29 Ma. Hereafter we refer to them as Glarus A (older age range) and Glarus B members (younger age range). Similar to Glarus A, the South Alpine Trentino sandstones (Plagioclase Arenites) reveals consistent ages of ~ 41-33 Ma.

Fig. 7
figure 7

Compilation of Palaeogene detrital zircon U–Pb dating results compared with geochronological ages of the Peri-Adriatic intrusions (after Kapferer et al. 2012; Berger et al. 2012; Skopelitis et al. 2011; Skopelitis 2014; Tiepolo et al. 2014; Gianola et al. 2014). Age errors in 2σ

6.2 Rare earth elements

REE signatures of Alpine DZ from the TF in the various occurrences are here compared with published zircon REE data (Northern Adamello and Bergell intrusion data from Rossetti et al. 2007; Broderick et al. 2015; Gianola et al. 2014). All show that the Alpine DZ from different volcanic sources have slightly different geochemical signatures (Fig. 8). Normalized zircon trace element patterns display enrichment relative to CI-chondrites (McDonough and Sun 1995). The REE patterns are characterized by a positive Ce anomaly (CeN/Ce* = 26.2–353.6, Ce* = (LaN*PrN)1/2), characteristic for oxidizing environment, as a result of the preferential incorporation of Ce4+ (instead of Ce3+) in zircons (Schaltegger et al. 2009). Furthermore, all zircon grains from the TF have chondrite-normalized REE patterns enriched in HREE. A slight difference in the values of εEu (EuN/Eu* = Eu*2/(Sm + Gd), ~ 0.1-0.9) suggests the diversity of the magma source during the crystallization of zircons (Fig. 9a). Combined with the zircon REE data (Fig. 8), it indicates that zircons in the Glarus A TF and the Plagioclase Arenites overlap with primary zircons of the Adamello magmatic system. Similarly, the zircons of Glarus B and Haute-Savoie TF reveal a close correlation with Bergell and Biella, respectively.

Fig. 8
figure 8

Rare earth element patterns of detrital zircons from sandstone of Taveyannaz Fm (TS) compared with REE data from Peri-Adriatic magmatic rocks. Date sources: Northern Adamello (Skopelitis et al. 2011; Skopelitis 2014; Broderick et al. 2015), Bergell intrusion (Gianola et al. 2014). All diagrams are normalized to CI-chondrite (McDonough and Sun 1995)

Fig. 9
figure 9

a Epsilon Eu-ratios (EuN/Eu* = Eu*2/(Sm + Gd)) evaluated on U–Pb dated detrital zircons of the Taveyannaz Fm. compared with REE data from Peri-Adriatic magmatic rocks. b:Epsilon Hf-ratios evaluated on U–Pb dated detrital zircons of the Taveyannaz Fm. (TF) and Plagioclase Arenites (PA). Date sources: Skopelitis et al. (2011); Skopelitis 2014; Broderick et al. (2015); Ji et al. (2013); Stipp et al. (2013); Tiepolo et al. (2014); Gianola et al. (2014)

6.3 176Hf/177Hf ratios

On Palaeogene zircon grains, initial 176Hf/177Hf ratios (εHf(t)) were measured after zircon U/Pb age dating. The results reveal a clear clustering of the DZ with regard to ages and Hf isotopic signatures (Fig. 9b). Late Middle Eocene to Late Eocene zircons from the Glarus A TF yield negative values of εHf (− 1.6 to − 5.6). Early Oligocene (Rupelian) Glarus B TF zircons reveal positive values of εHf (+ 4.1 to + 7.8). Rupelian (34.2–30.2 Ma) TF zircons in the Haute-Savoie area disclose negative values of εHf (− 1.2 to − 5.7). A similar overlap pattern as in εEu values is observed.

7 Discussion and interpretation

7.1 Synsedimentary volcanic sources

The DZ U–Pb age populations we measured in the TF from the various occurrences indicate massive reworking of Alpine crystalline basement units into the basins (Fig. 6). The observed prevalence of Neoproterozoic to post-Variscan zircons (> 90%) is certainly amplified by the known low production of zircons in andesitic magmatic eruptions as supposed for the volcanic sources of the TF. In addition, volcanic lithoclasts and associated zircons may also have been supplied by older volcanic units (e.g., Carboniferous, Permian) included in the sandstones, but microscopically indistinguishable. A dominance of syn-sedimentary volcanic products was generally inferred from the sandstone composition (e.g., Vuagnat 1944; Siegenthaler 1974; Lateltin 1988; Di Capua and Croppelli 2015), because several single andesitic pebbles and mineral concentrates could be dated with K/Ar and Ar/Ar methods in the range of 40-30.5 Ma (Fontignie et al. 1982; Fischer and Villa 1990; Ruffini et al. 1997; Féraud et al. 1995; Boyet et al. 2001) (Table 2). In-situ U–Pb age dating of DZ, however, provides a larger insight into the detrital source composition, especially the crystalline basement. In comparison with other central Alpine rift, drift and subduction (flysch) related sandstone formations (Buetler et al. 2011; Beltràn et al. 2013, 2016), synsedimentary volcanic material influx into the foreland basins is clear.

Table 2 Summary of published radiometric dating both in the Peri-Adriatic magmatic provenances and syn-sedimentary volcanic products in the Alpine orogen (Zr Zircon)

Finally, the obtained age ranges of DZ, REE values, Eu and Hf-isotope ratios vs. 206Pb/238U grain ages (Fig. 6, 7, 8, 9) allow to discriminate the volcanic contribution (1) to the Haute-Savoie/Alpe Taveyanne and Glarus B basins from the Bergell and Biella magmatic systems, respectively, and (2) the DZ age ranges and REE signatures in the Glarus A TF and the South Alpine Plagioclase Arenites flawlessly correlate with zircon U–Pb dates and REE patterns from the Northern Adamello batholith. However, volcanic products presumably related to Southern Adamello intrusions were not revealed in the TF.

The low resistant phreato-volcanic pebbles in the Glarus B Taveyannaz Fm. presumably represent local volcanic activity likely along the southern margin of the NAFB. The so-called telemagmatic dykes described by Furrer and Hügi (1952) in the Nummulitic limestones (Einsiedeln Fm.) of the central Helvetic nappes may represent passageways of the ascending magmas.

7.2 Pre-Alpine basement sources

The U–Pb ages of detrital zircons show a wide age range from Permian to Precambrian, with three composite peaks (Cadomian, Caledonian, Variscan and post-Variscan) (Fig. 6). The following age clusters consistent with older orogenic cycles comprised in the Alpine basement can be identified: (1) the largest age group observed correlates with the Cadomian orogenic activity roughly between 650 and 550 Ma (Stern et al. 2004); (2) the Caledonian cluster (Cambrian, Ordovician, Silurian and Early Devonian) represents the second basement source. Ordovician rock series are also well documented within the Variscan basements of Alps (von Raumer et al. 2013). Frisch et al. (1984) explained the magmatic activity by Cambrian-Ordovician rifting that should have occurred along the northern Gondwana margin; (3) Variscan and post-Variscan age populations, ranging the Middle Devonian, Carboniferous and Permian, are consistent with the Variscan orogenic cycle with magmatic activity and metamorphism followed by post-Variscan extension between 333 and 268 Ma (e.g., Rubatto and Hermann 2003; von Raumer et al. 2013; Letsch et al. 2015).

7.3 Palaeogeographic reconstruction

Foreland basin development is controlled by a variety of factors, including flexural rigidity of the subducted plate, sedimentary load, orogenic load, forward migration of the orogenic front and orogenic uplift (e.g., Sinclair 1992; Ford and Lickorish 2004). In the NAFB the Late Eocene-Early Oligocene TF turbiditic sandstones grade up from Helvetic hemipelagic series (Stad Fm.). A formation of the basins in a wedge-top situation is inferred (Pfiffner 1986; Sinclair 1992; Sinclair and Tomasso 2002). Obviously, the basins were topographically confined as it could be reconstructed in the less deformed parts in the Haute-Savoie and Alpe Taveyanne areas. Lateltin (1988) and Di Capua and Cropelli (2015) suggested Turbiditic transport, parallel to the W-E oriented basin axis. With regard to the abundance of Alpine basement zircons and other crystalline rock indicators such as white mica and quartz grains, a broad area of the early Alpine basement nappe stack largely should have contributed to the basin debris. The transition from the hemipelagic Stad Fm. to the turbidite fan Taveyannaz Fm. implies a period of rapid uplift in the orogenic wedge and the development of river systems feeding deltas along the NAFB margin from late Middle Eocene. From a given time, the river catchments cut back into parts of the Per-Adriatic volcano-plutonic provenance. By considering such processes in a short period (i.e. in the range of a few Myr) we suggest that deposition of the TF in Glarus started considerably earlier, during Priabonian at the latest.

From our DZ U/Pb ages, stratigraphy and geographical basin relationships we suggest the following palaeogeographical model:

7.3.1 41–34 Ma (Bartonian-Priabonian, Fig. 10a)

During the early stage of sediment deposition, the Taveyannaz Fm. developed mainly in the Glarus area with turbiditic fan deposition in the Glarus A basin. The transition from hemipelagic (Stad Fm.) to turbiditic siliciclastic facies suggest strong uplift and exhumation in the hinterland during this period. Rivers drained the early Central Alpine basement and cover nappe stack and cut back into the Adamello magmatic system. In such a model, the water divide between the Central and Southern Alps should have been located within or south of the Adamello magmatic area. Exclusive volcanic debris of similar age arrived in the Trentino basin as indicated by the Plagioclase Arenites.

Fig. 10
figure 10

Palaeogeographic reconstruction of the late Liddle Eocene—Early Oligocene Alpine source-to-sink systems. From 41 to 33 Ma the Glarus A and Trentino basin were supplied from the northern Adamello magmatic system. The absence of contemporaneous detrital zircons in the Haute-Savoie and Alpe Taveyanne areas possibly indicates prolonged hemipelagic sedimentation in that part of the North Alpine foreland basin. From 34 to 29 Ma the Glarus B and Haute-Savoie/Alpe Taveyanne were supplied from the Bergell and Biella magmatic systems, respectively

7.3.2 34–29 Ma (Rupelian, Fig. 10b)

According to the Cenozoic DZ supply at around 34 Ma a major palaeogeographical change in sediment routing and volcaniclastic sourcing should have occurred. In the western NAFB (Alpe Taveyanne and Haute-Savoie) turbidite fan deposition was initiated by volcaniclastic material originating from the Biella intrusion and volcaniclastic suite. More or less simultaneously, the Bergell magmatic system started to deliver volcanic material to the Glarus B basin of the NAFB. The Adamello source apparently disappeared in the sedimentary record of the northern Alpine foreland basin. Basement derived DZ continued to dominate but do not depict any trend across this age line. To explain this abrupt change in sediment routing we suggest a strong phase of right-lateral displacement and transpression along the Peri-Adriatic fault system. Consequently, the water divide was pushed north to a position coinciding with the present Insubric Line (Fig. 10b). This process made available sourcing in the Bergell magmatic system. Additional phreato-volcanic pebbles occur in the youngest, informal Ruchi sandstone member of the Taveyannaz Fm. of the Glarus area (Siegenthaler 1974). Because of their out-sized character and fragile composition we suggest that they were additionally supplied by volcanic eruptions along the southern margin of the NAFB, most likely near deltas from where the tubiditic flows initiated.

Detrital zircon age data from the NAFB in Upper Austria, accessed by drill holes, reveal in the informal “Rupelian Sandstone” a typical Adamello age population (~ 39–34 Ma, Sharman et al. 2017). Also there the Late Eocene DZ grains are intensely mixed with various old basement zircons. This may suggest that, in contrast to the Central Alps, the Adamello source continued supply to the eastern NAFB.

8 Conclusions

This study provides a thorough re-evaluation of the pertinent problem of the volcanic sources of the TF in the NAFB. Our conclusions are mainly based on DZ laser-ablation U–Pb dating and geochemical signatures of detrital zircons. Important correlation arguments also come from the investigation of coeval volcaniclastic sandstones in the Southern Alps (Trentino basin).

  1. 1.

    The sum of geochronological results suggests that the volcanic materials in the Taveyannaz Fm come from surficial extrusions and dykes along the Peri-Adriatic fault between 41 and 29 Ma.

  2. 2.

    By using the DZ age ranges as a stratigraphic correlation tool, the results confirm earlier results based on biostratigraphic dating. We suggest a longer, maximum age range for the Glarus TF (late Bartonian-Rupelian) than in the Alpe Taveyanne and Haute-Savoie sections (Rupelian).

  3. 3.

    The DZ ages and geochemical signatures allow to identify all in the reach lying Peri-Adriatic magmatic systems as suppliers to the NAFB, however, changing in time and space, due to palaeotectonic processes.

  4. 4.

    The presence of numerous Neo-Proterozoic and Palaeozoic DZ infers a mixture of the volcanic products with Alpine basement material, hence, common long-distance fluvial transport to the basin margins.

  5. 5.

    In an earlier stage (41–34 Ma), the Glarus A basin was supplied with volcanic debris from volcanic surface products related to the northern Adamello intrusion. Similar volcanic zircons in sandstones within the Southern Alps hemipelagic basins corroborate the origin. During this period the early Alpine water divide was located somewhere within or south of the Adamello area. In the western part of the NAFB (Alpe Taveyanne and Haute-Savoie) presumably hemipelagic sedimentation maintained.

  6. 6.

    Around 34 Ma the earlier drainage divide migrated into a position close to the Palaeo-Insubric Line, as sugegsted by the coeval change of detrital supply to the NAFB. From 34 to 29 Ma in the Glarus B section an influx from the Bergell, and in the Alpe Taveyanne/Haute-Savoie from the synchronous Biella magmatic system is evident. The same volcaniclastic sources are continuously recorded in the overlying younger sandstone formations (Elm/Matt and Grés de Val d’Illiez fms.). Thus, the drastic change implies strong right-lateral transpressive movements along the Peri-Adriatic fault system, which created a barrier between the Southern and Northern Alps.

  7. 7.

    Because of re-sedimentation of fragile phreato-volcanic pebbles into the Glarus B basin, an additional contemporaneous volcanic source situated along the southern margin of the NAFB is implied.
