Under the feet of sauropods: a trampled coastal marine turtle from the Late Jurassic of Switzerland?

Abstract

Recent excavations from the “Paléontologie A16” project brought to light thousands of dinosaur footprints and numerous turtle remains from the Late Jurassic of Porrentruy (Swiss Jura Mountains). While most fossil turtles (Thalassochelydia) were found in marly layers that were deposited in a coastal marine paleoenvironment, the dinosaur (theropod and sauropod) tracks were found in laminites that were deposited in a tidal flat environment. Despite extensive exploration, very few body fossils were found in these dinosaur track-bearing laminites. On one occasion, a sub-complete turtle shell (Plesiochelys bigleri) was discovered within the laminites, embedded just beneath an important sauropod track level. The state of preservation of this specimen suggests that the turtle died on the tidal flat and was quickly buried. This is the first evidence that these turtles occasionally visited tidal flat paleoenvironments. Moreover, the particular configuration of the fossil turtle suggests that the shell was possibly trodden on by a large sauropod dinosaur.

1 Introduction and geological setting

At the beginning of the twenty-first century, the construction of Highway A16 through Canton Jura triggered a new paleontological project, called “Paléontologie A16”. These recent excavations resulted in a rich and diverse vertebrate fossil collection from the Kimmeridgian, including numerous coastal marine turtles (Püntener et al. 2017a and references therein), and extensive dinosaur tracksites (Castanera et al. 2018 and references therein). Most of the turtle remains come from marly lithologies, while the dinosaur tracks were found in tidal carbonate laminites.

In this study we describe a partially-articulated turtle shell (MJSN CRT007-2) of Plesiochelys bigleri Püntener, Anquetin and Billon-Bruyat, 2017a that was discovered just beneath an important sauropod trackway level and is one of the rare articulated vertebrate remains from the dinosaur track-bearing laminites. The turtle was unearthed from the Corbis Limestones during the field season of 2007 at the Chevenez–Crat site (CRT; 47°23′55.8″N 7°01′43.65″E), near the village of Courtedoux, about 4 km southwest of Porrentruy (see Figs. 1 and 2 in Püntener et al. 2017a). The Corbis Limestones are especially rich in dinosaur footprints and exhibit four different track-bearing laminite intervals (e.g., Razzolini et al. 2017). MJSN CRT007-2 was discovered within the lower track levels, which represent the lowermost layers of the Corbis Limestones and are precisely dated to the Cymodoce ammonite zone (late Early Kimmeridgian) (Comment et al. 2011, 2015). It is the only sub-complete and partially-articulated turtle carapace from the Corbis Limestones. Other turtle remains are only occasionally discovered along with these trackways, as for example a mandible and isolated shell bones, all of which probably belong to eurysternid turtles (cf. Püntener et al. 2017b). Most turtle remains from the Porrentruy region come from the Lower Virgula Marls and the Banné Marls. This turtle fauna is dominated by Plesiochelyidae and includes about 80 shells of Plesiochelys (Püntener et al. 2017a and references therein).

2 Sedimentology, ichnology and paleoenvironment

The lower laminite interval (levels 500–550), in which MJSN CRT007-2 was discovered, has been studied in detail by Marty (2008) in Chevenez–Combe Ronde (CRO; 47°24′11.9″N 7°01′16.8″E; Paratte et al. 2018a), a site situated only 1 km NW of Chevenez–Crat (Paratte et al. 2018c). The following information about this lower laminite interval is therefore mainly based on the work of Marty (2008). A good correlation between the levels of the Crat and the Combe Ronde sites has been observed in the field during the excavation of Chevenez–Crat.

Within the 0.65 m thick lower laminite interval of Chevenez–Combe Ronde, dinosaur tracks were found in eight superimposed levels. The lowermost level (500, a subaerial paleosurface) represents the main track surface with a diverse ichnoassemblage of both sauropod and bipedal, tridactyl dinosaurs. In the seven superimposed upper levels (505, 510, 515, 520, 530, 540, and 542) only sauropod tracks were found. The shell MJSN CRT007-2 was found between layers 520 and 530. However, the limits between the intermediate layers were not clear in the discovery area and the remains could not be attributed more precisely, except for the xiphiplastra and the right peripheral 7 that were found in the upper part of layer 530 (see Sect. 5).

At the Chevenez–Combe Ronde site, level 530 shows two generations of tracks (S1 and S2). Trackway S1 exhibits shallow and quadrupedal tracks that were left in almost dry sediment. The tracks of S2 are relatively deep (up to 10 cm) and on the average 48 cm long. They were left in “water-unsaturated to saturated sediment (layer 530), which was penetrated and pushed besides by the foot in a way that the true track sensu stricto was left on top of, at that time already consolidated, layer 528” (Marty 2008: 127). Large and homogeneous displacement rims indicate that the dinosaur placed a foot vertically into the sediment and removed it also vertically (Marty 2008). The average outward rotation of the tracks of trackway S2 is 22° for the left pes and 8.5° for the right pes. Only pes tracks have been found in trackway S2, implying that the manus tracks were subsequently overprinted by the pes tracks.

At the Chevenez–Crat site (where MJSN CRT007-2 comes from), only five isolated and undetermined dinosaur tracks were discovered within levels 520–530 (Paratte et al. 2018c). They were all located in the same excavation unit as the turtle MJSN CRT007-2 (unit 1; 230 m²), but their exact location and stratigraphical position in the sediment has not been documented.

The paleoenvironment, where the track-bearing laminites were deposited, is interpreted as a higher intertidal mudflat to a lower supratidal flat that was located several hundred meters away from the coastline towards the open sea or an internal lagoon (Marty 2008). According to Marty (2008), the exposure index at the time of the track formation of the paleosurface 530 was not very high (about 60–90%), in order to allow forming underprints with large and homogeneous displacement rims. This is also indicated by the absence of desiccation cracks in this layer. Marty (2008) furthermore suggests that the conditions in this paleoenvironment were rather restricted and hostile, and that the tracks were recorded during or rather at the end of rain periods or storm surges.

3 Systematic paleontology

See Püntener et al. (2017a) for Plesiochelys bigleri.

4 Description of the turtle shell

4.1 Carapace

Preserved are the anterior part of the carapace, the peripherals of the bridge region, as well as four disarticulated costals and two disarticulated posterior peripherals (Figs. 1a, c, 2). The bone thickness is difficult to evaluate on the articulated part of the carapace, but the disarticulated costals indicate relatively thin neurals, which corresponds to Plesiochelys bigleri and contrasts with the thicker bones of Plesiochelys etalloni (Pictet and Humbert, 1857) (cf. Püntener et al. 2017a). Linear striations perpendicular to sutures are clearly visible, especially between the costals and between the hyo- and hypoplastra.

Fig. 1

MJSN CRT007-2, Plesiochelys bigleri (Kimmeridgian, Porrentruy, Switzerland). Photographs of the shell in dorsal (a) and ventral (b) view, and drawings of the shell in dorsal (c), ventral (d), and left lateral (e) view. Line width indicates natural borders (thick lines), bone sutures (intermediate lines) and fractures (thin lines); double lines indicate scale sulci. abd abdominal, an anal, ce cervical, co costal, eg extragular, ent entoplastron, fem femoral, gul gular, hum humeral, im inframarginal, n neural, nu nuchal, p peripheral, pec pectoral, pl pleural, hyo hyoplastron, hypo hypoplastron, ve vertebral

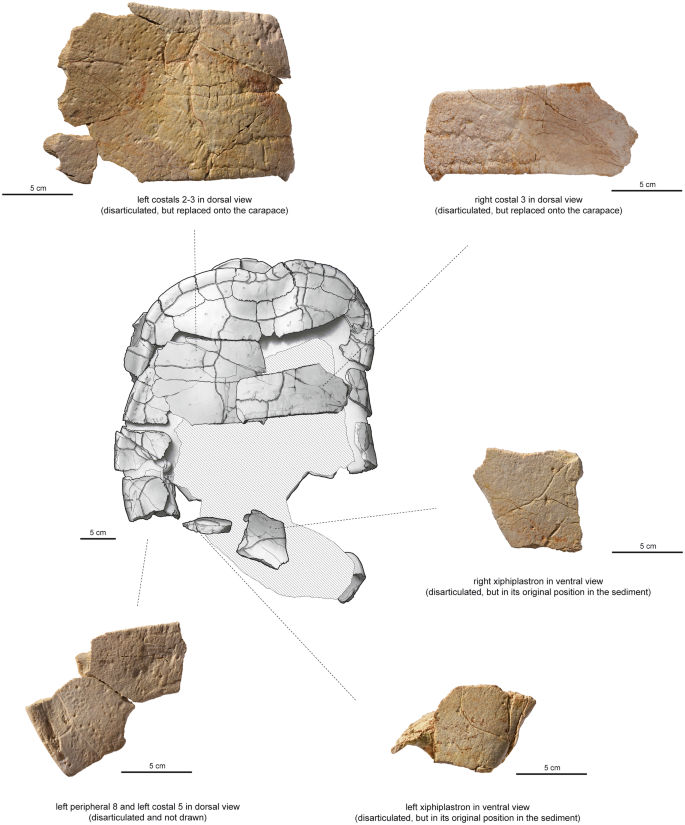

Fig. 2

MJSN CRT007-2, Plesiochelys bigleri (Kimmeridgian, Porrentruy, Switzerland). Drawing of the carapace in dorsal view (with three disarticulated costals replaced onto the carapace); and photographs of the disarticulated elements

The nuchal bone is complete. It is trapezoidal in outline and about twice as long as wide. The anterior nuchal notch is relatively deep compared to other specimens of Plesiochelys bigleri (cf. Püntener et al. 2017a, b) and stretches into the first peripherals. Only the first neural is preserved. It is elongated rectangular in outline and narrower and more rounded posteriorly than anteriorly.

Six costals are preserved (Fig. 2): costals 1–3 and costal 5 (only laterally) of the left side, and costals 1 and 3 of the right side. Both costals 1 are in situ and in articulation with neural one, the nuchal and the first three peripherals. The other four costals are disarticulated and their original positions in the sediment are unknown. The outlines of these costals correspond to the situation in Plesiochelys bigleri. The left costal 5 thickens ventrally towards the posterior, in order to form the inguinal buttress. This costal can be articulated with the left peripheral 8, which is also in contact with the inguinal buttress.

Eight peripherals are preserved on the left side of the carapace. Peripherals 1–3 are still in situ and in articulation with the first costal. Peripherals 4 and 5 are slightly displaced towards the carapace midline by clockwise rotation. The plastral part of the fourth peripheral is broken off and turned up into the horizontal plane of the carapace. Similarly, the plastral parts of peripherals 5 and 6 curve up into the vertical plane. Peripherals 6 and 7 are approximately in situ, but the anteromedial part of peripheral 6 is broken and slightly displaced towards the carapace midline. Peripheral 8 is disarticulated, its original position in the sediment is unknown. It can be articulated with costal 5 (Fig. 2).

Seven peripherals are preserved on the right side of the carapace. As on the left side, the first three peripherals are in situ and in articulation with the first costal. Peripheral 4 is slightly rotated clockwise in the horizontal plane. Peripherals 5 and 6 are lower relative to the plastron plane and are slightly displaced and rotated counterclockwise in the horizontal plane. Their carapacial parts curve up vertically. Peripheral 7 is disarticulated, but still attached to the sediment. It is dislocated along the vertical plane and is now situated stratigraphically above (about 60 mm) peripheral 6 (Fig. 1e). Peripheral 7 is also dislocated along the horizontal plane and is now situated about 120 mm posteriorly relative to its original place in the shell (Fig. 1e). It is rotated, so that its ventral side now faces anterodorsally.

The scutes of the carapace bones follow essentially the pattern described for Plesiochelys bigleri (Figs. 1c, 2; cf. Püntener et al. 2017a). The three cervical scutes are well expressed, which is not very common in plesiochelyid turtles, where these sulci are often eroded (cf. Anquetin et al. 2014). The middle one is approximately quadrangular in outline and broader but shorter than the lateral ones. All longitudinal sulci of the cervicals are convex towards the carapace midline. Left peripheral 4 shows an abnormal scute pattern: the lateral pleural scute sulci do not join immediately with the interpleural scute sulci, but lie parallel to each other towards (the disarticulated) costal 2. Right peripheral 4 shows a similar anomaly. As common in Plesiochelys bigleri, the preserved vertebral scutes cover about half to one third of the costal length. The scute sulcus between vertebrals 2 and 3 is strongly sinuous.

4.2 Plastron

With the exception of the two xiphiplastra, the plastron remains articulated and is relatively flat (Figs. 1b, d, e, 2). The lateral region of the right hypoplastron is lower relative to the plastron plane and parts of the adjacent hyoplastron and peripherals are broken off. The plastron is slightly rotated counterclockwise in the horizontal plane by about 7° relative to the carapace (Fig. 3).

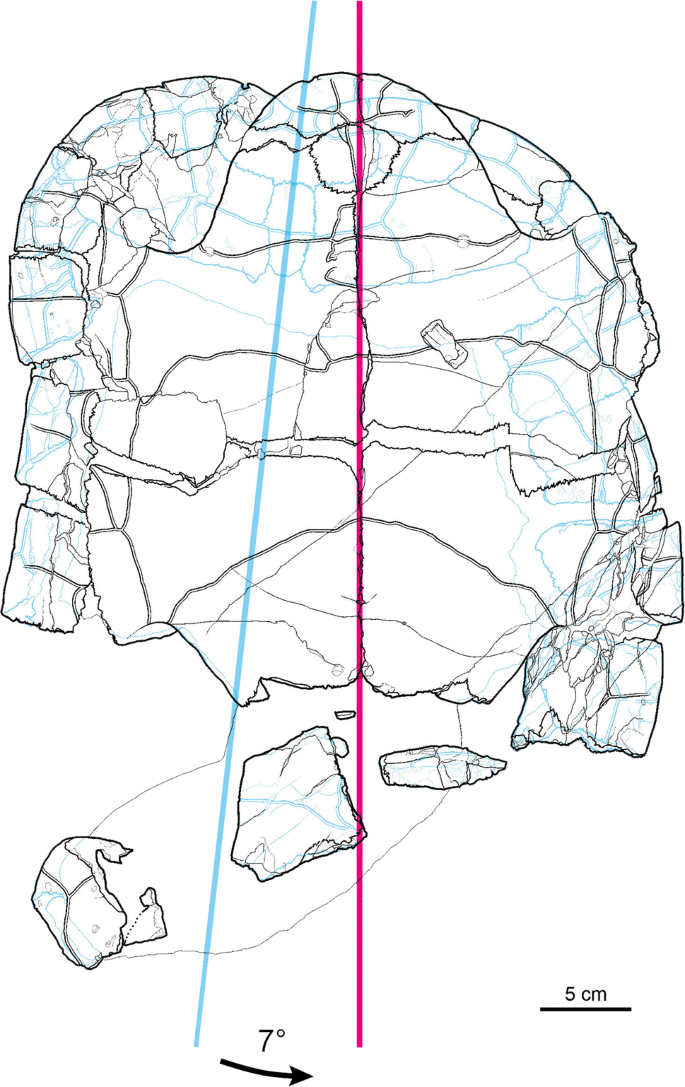

Fig. 3

MJSN CRT007-2, Plesiochelys bigleri (Kimmeridgian, Porrentruy, Switzerland). Illustration of the shift between the plastron and the carapace. The plastron is in black, its main axis in red; the underlying carapace and its axis are in blue

The anterior plastral lobe is well rounded. This is unusual for Plesiocheys bigleri, where this part of the plastron is more often of sub-rectangular outline (cf. Püntener et al. 2017a). Epiplastral bulbs are absent. This, in turn, is typical for Plesiocheys bigleri and contrasts to Plesiochelys etalloni, where these bulbs are usually better expressed (cf. Püntener et al. 2017a). The entoplastron is subcircular in outline and relatively large compared to other specimens of this species (cf. Püntener et al. 2017b). As common in Plesiochelys bigleri and Plesiochelys etalloni, the hyoplastra are longer than wide (cf. Anquetin et al. 2014; Püntener et al. 2017a). The suture between the hyo- and hypoplastra has symmetric anteroposterior projections, an individual feature that can also be observed in other specimens of Plesiochelys bigleri (cf. Püntener et al. 2017a, b).

The posterior parts of the xiphiplastra are missing. Both xiphiplastra are disarticulated, but their original position in the sediment is known (Figs. 1e, 2). Contrary to peripheral 7, the xiphiplastra are almost not dislocated on the horizontal plane. They are mainly dislocated in the vertical plane and are now situated stratigraphically above (about 60 mm) the hypoplastra, and are rotated around the transversal axis. The left xiphiplastron now stands almost vertically relative to the plastral plane, with the ventral side facing anteriorly. The right one now lies approximately in the horizontal plane with its ventral side facing dorsally.

The scutes of the plastron bones follow essentially the pattern described for Plesiochelys bigleri (Fig. 1d; cf. Püntener et al. 2017a, b). The gular scute is restricted to the epiplastra. The sulcus along the plastron midline is irregularly sinuous (visible on the right hyoplastron and the right xiphiplastron). There are four inframarginal scutes. The first two are restricted to the hyoplastra (better visible on the left hyoplastron). As common for this species, the third one is the longest in the series. The anal scute is probably restricted to the xiphiplastra.

5 Discussion

5.1 On the presence of a partial turtle shell in dinosaur track-bearing laminites

The discovery of a partial turtle shell in the dinosaur track-bearing laminites of the Porrentruy area is exceptional. Fossils are generally scarce in these layers and only few other vertebrate remains have been found in the laminites, despite that these laminites were excavated over large areas and considerable quantities of marls were even screen-washed (Marty 2008; Paratte et al. 2018b). Remains of terrestrial vertebrates are entirely missing. Fish (Pycnodontiformes) and crocodylomorphs are represented by a few isolated elements (mostly teeth). With the exception of the shell described herein, turtles are known mostly by a few isolated shell elements and a small eurysternid mandible, found in the sediment filling of a theropod track (Püntener et al. 2017b). Not only are turtle and crocodylomorph remains rare in the laminites, but also their potential tracks are absent (Marty 2008). This suggests that these animals were not frequently present in this tidal flat paleoenvironments (or at least not during conditions favorable for preservation). Fossils of turtles and crocodylomorphs are much more abundant in the more (coastal) marine Banné and Virgula Marls, which presumably were the preferred habitats of these animals.

The limestones from the Tithonian of Crayssac (Lot, France) represent a mudflat with sedimentation in the inter- to supratidal area (Mazin et al. 1997, 2009) and are comparable with the dinosaur track-bearing laminites from the Kimmeridgian of Porrentruy. The former are dominated by dinosaur and pterosaur tracks and yielded a few isolated tracks of turtles and crocodilians. While some remains of crocodilians are present in Crayssac, turtle remains are very scarce (Mazin et al. 2000), emphasizing again the exceptional discovery of MJSN CRT007-2 in the laminites of Porrentruy.

The shell bones of MJSN CRT007-2 are exquisitely preserved. There is no evidence of substantial transport or predation on the bones, nor any external sign (e.g., bioclasts, sedimentary structures) suggesting that the shell could have been transported by currents. Furthermore, the depositional environment of the Crat tracksite was situated relatively far away from the coastline to the open sea or an internal lagoon (Marty 2008), which makes it unlikely that the turtle drifted in as a carcasse. This is also corroborated by the absence of marine macroinvertebrate remains in these laminites. Hence, the most likely scenario is that the turtle reached the tidal flat on its own and died there. The absence of weathering, scavenging/predation marks, and incrustations on shell elements suggests a rapid burial. It should be noted that the shell is preserved upside down, which suggests that it was turned over after the death of the turtle and before burial. Modern marine turtles sometimes die because they get trapped in soft mudflats, in which case cranial and postcranial elements quickly get dislocated notably thanks to the action of small scavengers, while the shells remain largely intact (Fretey 1981; Meyer 1991). This could also explain the absence of cranial and postcranial elements in MJSN CRT007-2.

The discovery of the shell MJSN CRT007-2 in dinosaur track-bearing laminites indicates that thalassochelydian turtles occasionally visited these tidal flat environments. It is possible that females regularly crossed tidal flats to reach the beach and lay eggs, although in that case we could expect turtle remains to occur more commonly in the laminites. Therefore, MJSN CRT007-2 may represent a stranded individual that got stuck in a mudflat and/or dried out in the sun while trying to reach the sea. Note that, in the absence of clearer evidence, this scenario remains speculative.

5.2 On the particular disposition of the bones within the sediment

The anterior part of the shell MJSN CRT007-2 is complete and articulated. In contrast, the middle part of the shell (from peripheral 4 to peripheral 7) suffered more damage. Most notably, the lateral part of the right side of the plastron was dorsoventrally crushed and peripherals 4–7 on both sides exhibit various degrees of breakage, rotation and vertical displacement (see Description above). The right peripheral 7 was separated from the shell and now lies about 120 mm behind and 60 mm above its natural position. It was also rotated with its ventral side now facing anterodorsally relative to the natural orientation of the shell. Of the posterior part of the shell (behind peripherals 7 and 8), only the xiphiplastra are preserved. As described above, these two bones are disarticulated and displaced vertically, now lying about 60 mm above the level of the hyoplastra. Each of the xiphiplastra is rotated around the transversal axis.

These characteristics suggest that the shell was dorsoventrally compressed after burial. That the xiphiplastra and right peripheral 7 lie stratigraphically above the rest of the shell can either be explained by an upward reworking of these elements within the sediment, or by a downward displacement of the main part of the shell under the effect of the aforementioned compression. There is no indication that the vertical displacement of the xiphiplastra and right peripheral 7 is due to small-scale tectonic movements, so this third option can be discarded. In other circumstances, the syn-sedimentary reworking of the xiphiplastra and right peripheral 7 would probably appear as the more likely explanation, but here the mere vertical displacement of the xiphiplastra above their natural position and their rotation around the transversal axis do not fit well with this scenario. In contrast, modern experiments have shown that trampling of bones embedded in soft sediments can result in substantial breakage, horizontal and vertical displacement, and rotation of elements in the sediment (Rozada et al. 2018). Given that the shell MJSN CRT007-2 is embedded in dinosaur track-bearing laminites, trampling is an important taphonomical agent to consider.

5.3 A trampled turtle shell?

MJSN CRT007-2 was discovered at the Chevenez–Crat tracksite close to deep sauropod footprints (Marty 2008). Unfortunately, the footprints of levels 520–530 were poorly preserved in this locality and were not documented (Paratte et al. 2018c). It is therefore impossible to compare the location of the turtle shell with that of the dinosaur footprints.

Chevenez–Crat can be correlated with the nearby important tracksite of Chevenez–Combe Ronde where levels 520–530 and the associated dinosaur tracks are better preserved and documented. At the Chevenez–Combe Ronde tracksite, layer 530 exhibits deep and well-defined sauropod tracks. Marty (2008) notably described some of these footprints in detail (Fig. 4a). Walking on level 530, the sauropod left footprints that are up to 10 cm in depth and sometimes reach the underlying level 528. A parallel with MJSN CRT007-2 could easily be drawn (Fig. 4b). The xiphiplastra and the right peripheral 7 lie at the top of layer 530 and may indicate the level in which the shell was initially embedded. Stepping on the already dead and buried turtle, a sauropod could have crushed the middle and anterior parts of the shell and pushed them downward within the sediment. The xiphiplastra were broken off the rest of the plastron, rotated, but remained approximately in situ. It is remarkable that the maximal vertical displacement between the xiphiplastra and the plastron in MJSN CRT007-2 is about 7.5 cm, which is in the range of the documented footprint depth at Chevenez–Combe Ronde and actually corresponds to the depth measured on the footprint illustrated in Fig. 4. The rotation of the plastron relative to the carapace in the horizontal plane can be explained by a slight horizontal friction of the dinosaur foot, either at the time of placing the foot onto the turtle shell or when taking it off (Fig. 5).

Fig. 4

Comparison of a sauropod pes track with the taphonomic condition of the turtle MJSN CRT007-2. a Cross-section of sauropod track RP2 of the pes-only trackway S2 of level 530 (Chevenez–Combe Ronde tracksite; modified from Marty 2008); b MJSN CRT007-2 in lateral left view (Chevenez–Crat tracksite). Note that there is no direct correlation of this specific sauropod track (a) and the turtle MJSN CRT007-2 (b). Hatchings represent sediment

Fig. 5

MJSN CRT007-2, Plesiochelys bigleri (Kimmeridgian, Porrentruy, Switzerland). a Suggested reconstruction of a sauropod foot stepping onto the turtle, thereby pushing the main shell further down into the sediment and provoking the disarticulation and rotation of the two xiphiplastra and the right peripheral 7. The turtle shell is in lateral left view. Hatchings represent sediment. b Suggested placement of the sauropod foot on the turtle shell. View from above

6 Conclusions

Fossils in general and vertebrate remains in particular are scarce in the Kimmeridgian dinosaur track-bearing laminites of the Porrentruy area. The discovery of a relatively complete turtle shell in these layers is therefore noteworthy. This specimen demonstrates that thalassochelydian turtles living in the nearby coastal waters occasionally crossed the vast tidal flats on which dinosaurs roamed. The turtle shell described herein is also interesting because of the remarkable disposition of the fossilized bones within the sediment. Although we have no definitive evidence of this, it is probable that this shell was trampled upon by a sauropod dinosaur after burial. Examples of trampled vertebrates are rarely documented in the fossil record. We are aware of only one other case: Cabral-Perdomo (1995, 2013) reports a flamingo skeleton from Tepexi de Rodríguez (Puebla, Mexico; a lacustrine limestone site from the Plio-Pleistocene) that is associated with a camel track. Lockley (1991) suggests that the already dead flamingo was stepped on by a camel that crossed a lake bed. In contrast to MJSN CRT007-2, the flamingo can directly be associated with a track of the trackmaker, but the effect on the trampled fossil is less clearly visible than in the turtle MJSN CRT007-2, the latter being clearly mechanically broken. Preliminary experiments in soft sediments revealed that trampled bones bore scratch marks on their surface, but the identification of these marks remains to be formalized (Rozada et al. 2018). When this is done, it would be interesting to look for potential trampling scratch marks on MJSN CRT007-2 in order to see if our preliminary interpretation can be corroborated.
