Origins of hydrocarbons in the Geneva Basin: insights from oil, gas and source rock organic geochemistry

Abstract

An extensive subsurface investigation evaluating the geothermal energy resources and underground thermal energy storage potential is being carried out in the southwestern part of the Swiss Molasse Basin around the Geneva Canton. Among this process, the evaluation of the petroleum source-rock type and potential is an important step to understand the petroleum system responsible of some oil and gas shows at surface and subsurface. This study provides a first appraisal of the risk to encounter possible undesired occurrence of hydrocarbons in the subsurface of the Geneva Basin. Upon the numerous source-rocks mentioned in the petroleum systems of the North Alpine Foreland Basin, the marine Type II Toarcian shales (Lias) and the terrigenous Type III Carboniferous coals and shales have been sampled from wells and characterized with Rock–Eval pyrolysis and GC–MS analysis. The Toarcian shales (known as the Posidonia shales) are showing a dominant Type II organic matter composition with a Type III component in the Jura region and the south of the basin. Its thermal maturity (~ 0.7 VRr%) shows that this source-rock currently generates hydrocarbons at depth. The Carboniferous coals and shales show a dominant Type III organic matter with slight marine to lacustrine component, in the wet gas window below the Geneva Basin. Two bitumen samples retrieved at surface (Roulave stream) and in a shallow borehole (Satigny) are heavily biodegraded. Relative abundance of regular steranes of the Roulave bitumen indicates an origin from a marine Type II organic matter. The source of the Satigny bitumen is supposedly the same even though a deeper source-rock, such as the lacustrine Permian shales expelling oil in the Jura region, can’t be discarded. The oil-prone Toarcian shales in the oil window are the most likely source of this bitumen. A gas pocket encountered in the shallow well of Satigny (Geneva Canton), was investigated for molecular and stable isotopic gas composition. The analyses indicated that the gas is made of a mixture of microbial (very low δ¹³C₁) and thermogenic gas. The isotopic composition of ethane and propane suggests a thermogenic origin from an overmature Type II source-rock (> 1.6 VRr%) or from a terrigenous Type III source at a maturity of ~ 1.2 VRr%. The Carboniferous seems to be the only source-rock satisfying these constraints at depth. The petroleum potential of the marine Toarcian shales below the Geneva Basin remains nevertheless limited given the limited thickness of the source-rock across the area and does not pose a high risk for geothermal exploration. A higher risk is assigned to Permian and Carboniferous source-rocks at depth where they reached gas window maturity and generated large amount of gas below sealing Triassic evaporites. The large amount of faults and fractures cross-cutting the entire stratigraphic succession in the basin certainly serve as preferential migration pathways for gas, explaining its presence in shallow stratigraphic levels such as at Satigny.

1 Introduction

In the past few years, several projects aiming at assessing the potential for deep renewable geo-energy and the CO₂ Capture and Storage (CCS) feasibility have originated in Europe and more specifically in Switzerland where the future provision of energy is challenging both the industry and the scientific community (Chevalier et al. 2010; Leu and Siddiqi 2013; Moscariello 2019; Moscariello et al. 2020a). In this context, the interpretation of the subsurface geology and the reliable assessment of all potential energy resources (both fossil and renewable) are essentials to avoid any conflict of subsurface use and to quantify the risk of encountering undesired hydrocarbons accumulations while exploring for geothermal resources. Indeed, recent thermal modelling in the St. Gallen area revealed that a petroleum system involving deep gas-prone Permo-Carboniferous grabens, favored accumulation of gas in the lowermost Mesozoic units where a 3.5 magnitude earthquake was triggered containing a gas kick (Omodeo-Salé et al. 2020).

In the past century, conventional petroleum exploration took place in Europe in the search for oil and gas, and in particular in the North Alpine Foreland Basin extending from France to Austria. This exploration phase resulted in the acquisition of hundreds of 2D seismic lines both in France and Switzerland (Capar et al. 2015; Sommaruga et al. 2012) as well as 37 deep wells drilled in Switzerland (Lahusen 1992; Leu 2012) and 15 deep wells drilled in France around the Geneva Basin area (Moscariello 2019). Despite the detection of numerous oil and gas shows at the surface and in the subsurface, no major conventional petroleum accumulation has been found so far in the Swiss Molasse Basin (Leu 2012).

Over the last 10 years, unconventional hydrocarbon exploration and production arising from the U.S.A. renewed the interest in petroleum systems in Europe (Burri 2010; Burri et al. 2011; Littke et al. 2011; IEA 2015). So far, however, few studies considered the North Alpine Foreland Basin as a potential unconventional target (Chew 2010; Leu and Gautschi 2014). The recent discovery of a tight gas accumulation in Paleozoic rocks, encountered in Switzerland in the Noville-1 well (Leu 2012), provided new insight into unconventional resources in Switzerland. A Mesozoic marine formation referred as the Posidonia Shale (known also as Shistes Carton in near France) from the Lower Jurassic (Lias) is typically considered to represent the source rock for conventional hydrocarbon accumulations being also associated with potential shale gas or shale oil unconventional resources (Chew 2010; Leu 2012; Leu and Gautschi 2014; Bruns et al. 2016). Additionally, the Paleozoic sequence, which remains insufficiently studied due to the lack of data is typically considered containing two potential source rock intervals, represented by the Permian (Autunian) lacustrine shales and the Carboniferous coal beds (Leu 2012; Izart et al.2016; Pullan and Berry 2019).

The present study provides a first regional evaluation of the source rocks and related hydrocarbon generation potential in the southwestern North Alpine Foreland Basin (hereafter referred to as the Geneva Basin) and thus contributes to the overall risk assessment associated with the ongoing geothermal exploration activities in this region (Moscariello et al. 2020a). This work will present a quantitative evaluation of the potential source rocks based on new organic geochemical data measured on core and cutting samples from deep boreholes as well as bitumen and gas samples in both the Geneva and surrounding French area (Fig. 1). Finally, this study gives first insights on the risk that these source rocks represent for geothermal exploration.

Fig. 1

Geological map of the southwestern Molasse Basin and location of the studied area. Red dots are the deep wells studied. Yellow dots are the other deep wells used to constrain the geological model GeoMol (https://geneve.geomol.ch). G Geneva, S Satigny, R Roulave valley

2 Geological settings and petroleum system

The southwestern North Alpine Foreland Basin (NAFB) forms an asymmetric basin made of a thick Cenozoic, Mesozoic and Late Paleozoic (Carboniferous to Permian) sedimentary cover (3000–5000 m of sediments) which overlays the Variscan crystalline basement gently dipping to the S-SE. Our study area, namely the Geneva Basin, is a low relief area delimited by the Jura toward the NW, forming an arcuate fold-and-thrust belt and by the Alpine units toward the SE, forming a nappe stack (Fig. 1). The Geneva Basin developed over a crystalline basement resulting from the Variscan orogeny (Matte 2001). The orogenic collapse of the Variscan belt created a series of Carboniferous to Permian NE-SW oriented grabens in NW Europe (McCann et al. 2006; Madritsch et al. 2018). In the Geneva Basin, the stratigraphic succession extends from the Late Carboniferous to Quaternary (Fig. 2). The oldest Paleozoic sedimentary units do not crop out in the basin but have been drilled by several wells and are described in the literature (Charollais et al. 2007; Gorin et al. 1993; Signer and Gorin 1995; Sommaruga et al. 2012). The Late Carboniferous (Westphalian—Stephanian) is marked by the deposition of clastic sediments containing coal beds and dark shales in SW-NE oriented grabens and relatively small confined basins. In the studied area, the Permian sequence has not even been encountered in the deepest exploration wells. However, it is inferred to be present at depth based on seismo-stratigraphy (Moscariello 2019) and on oil geochemistry (Pullan and Berry 2019) pointing out its limited lateral extension. Moreover, Pullan and Berry (2019) interpreted the Paleozoic succession of the wells located in the Jura region as part of the Permian sequence. No exact biostratigraphic dating is available for the Paleozoic sequences drilled at depth, but in the well reports, the Paleozoic units are consequently considered as Stephanian (Carboniferous) to Stephano-Autunian (Permo-Carboniferous) based on pollens. We hereafter apply these ages.

Fig. 2

source rocks (SR). Triassic and Jurassic nomenclature includes stratigraphic subdivisions commonly used in the Swiss Plateau. SR large circle: major SR; small circle: minor SR; green: oil; red: gas; b: biogenic

Synthetic stratigraphic log of the southwestern Molasse Basin (based on well records and Leu 2012) with indication of potential reservoirs, seals and hydrocarbon

The Triassic period is marked by the deposition of continental to shallow marine sediments in an epicontinental sea environment. The Lower Triassic (Buntsandstein) is characterized by the deposition of sandstone. It is overlain by Middle Triassic carbonates and dolomites (Muschelkalk) and a thick sequence of evaporites (Keuper) representing an important décollement layer accommodating the shortening of the foreland basin and the Jura (Sommaruga et al. 2017). A marine transgression in the Lower Jurassic (Lias) led to the deposition of distal marls and shales. During this period, worldwide oceanic anoxic condition improved preservation of organic matter-rich levels during the so-called Toarcian Oceanic Anoxic Event (T-OAE; Jenkyns 1988); these source rocks are widespread in northwestern and central Europe and alos occur in the Mediterranean region (Baudin et al. 1990; Song et al. 2015). Depositional environment then evolved to shallower marine conditions when limestones and carbonaceous shales were deposited from the Middle to Upper Jurassic (Dogger and Malm). The Lower Cretaceous is marked by carbonate platform deposits with bioclastic limestone, whereas the Upper Cretaceous is missing. A major subaerial erosional surface affects the top of the Lower Cretaceous. It is associated with the development of karsts, filled by oxidized continental deposits (known as the siderolitic facies) and is attributed to the Late Eocene. Oligocene to Late Miocene siliciclastic deposits of marine and continental origin form the Molasse wedge above the Mesozoic series. The Subalpine Molasse, involved in a series of imbricated thrust sheets, is composed of sandstones and marlstones originated in either marine or continental freshwater depositional environment, while the rest of the Molasse (Molasse plateau in Fig. 1) mostly consists of clastic sediments of continental origin.

In Switzerland, several source rocks have been identified (Leu 2008, 2012) (Fig. 2) including the Carboniferous terrigenous organic matter, the Permian (Autunian) lacustrine shale and the Lower Jurassic (Toarcian) Posidonia marine shales. The Mesozoic-Cenozoic stratigraphic succession containing alternation of carbonates, marlstones, shales and other clastic layers offers several couples of reservoir and seal across the entire North Alpine Foreland basin specifically in the Jurassic/Cretaceous series that are currently under exploration for geothermal purposes as well (Chevalier et al. 2010; Leu 2012). In the Geneva Basin, both the Upper Jurassic Kimmeridgian reefs and the Lower Cretaceous bioclastic limestomes form the two principal reservoir targets for geothermal district heating. However, several oil and gas shows have been reported during the drilling of the reservoir formations (Leu 2012). Oil shows in the Jura area most probably originated from the Permian Autunian shales (Pullan and Berry 2019). Geochemical data of several gas seeps on the Swiss Plateau evidenced a thermogenic origin for the gases, derived from several potential source rocks (Carboniferous, Mesozoic and Tertiary; see synthesis in Leu 2012). Even though oil seeps in the Geneva Basin have been known for a long time and even exploited since the nineteenth century (Lagatola, 1932), the origin of the hydrocarbons remained poorly constrained.

3 Materials and methods

3.1 Samples

A total of 277 rock samples were collected from 7 deep wells located in and around the southwestern termination of the Geneva Basin (Fig. 1). All samples are hereafter called by the well name and the depth below the well head (measured depth or MD). The location of the Humilly-2 well in the center of our study area, as well as its rather complete stratigraphic succession makes it a natural reference well in which 188 samples including 139 cuttings and 49 core fragments have been analyzed along the complete section, with a particularly higher sampling rate within the Toarcian layers (Appendix 1, Fig. 3, 4). This high sampling rate along the entire stratigraphic succession allowed recognition of organic-rich levels.

Fig. 3

Synthetic W-E cross-section and well correlation between Chaleyriat-1, Charmont-1, Humilly-2, Chapeiry-1 and Faucigny-1 wells, representing the stratigraphic columns and the projected geological contacts. Black ellipses represent the sampled intervals for Rock–Eval pyrolysis. C: Cenozoic; LC: Lower Cretaceous; UJ: Upper Jurassic; MJ: Middle Jurassic; LJ: Lower Jurassic; UT: Upper Trias; MT: Middle Trias; LT: Lower Trias; Cb: Carboniferous

Fig. 4

Stratigraphic log of the Humilly-2 well (see Fig. 1 for location) with TOC values measured on cutting samples across the entire stratigraphic section. Red dots highlight samples where TOC > 0.5%

From the 6 other wells (Chapeiry-1, Faucigny-1, La Chandelière, Chatillon-1D, Charmont-1, Chaleyriat-1), a total amount of 89 samples (44 cuttings and 45 core fragments) has been collected mostly focusing on the Toarcian or Liassic sections and the Carboniferous (Appendix 1). The Toarcian sensu stricto was recognized in the Humilly-2, Chaleyriat-1 and La Chandelière wells based on paleontological data. In the Faucigny-1 and Chapeiry-1 wells, no paleontological data allowed us to identify the Toarcian with confidence. Thus, both Upper Lias and sometimes Lower Lias were sampled (based on their lithology) and analyzed in order to confirm the presence of organic-rich material and its maturity. A total of 22 samples was collected for the Lias and 10 for the Carboniferous in these 6 wells.

The Toarcian in Humilly-2 is made of 8 m (2232–2240 m) of bituminous dark-brown to black marls and shales. In the Chapeiry-1 and Faucigny-1 wells, the Upper Lias is marked by black marls intercalated with silty to shaly limestones. In the La Chandelière and Chaleyriat-1 wells, located in the Jura region, the Toarcian consists of dark-grey silty to shaly limestone (Fig. 3).

The Carboniferous drilled in the Humilly-2 well consists of 3 m-thick fluvial sandstones and micro-conglomerates containing thin dark shales and coaly intercalations. In the Jura region, the Carboniferous is sometimes present (Chaleyriat-1, Charmont-1, Chatillon-1D) or absent (La Chandelière). It is represented by a thick sequence of coarse- to fine-grained sandstones alternating with micaceous mudstones and various thin coal beds of Stephanian age (Upper Carboniferous).

A synthetic W-E cross-section showing the correlation between 5 of the 7 wells analyzed is shown in Fig. 3 and displays the sampled intervals in the stratigraphic columns.

In addition to these source-rocks, we sampled bitumen naturally seeping from the Molasse sandstones, inside an old mining gallery along the Roulave stream. We also sampled gas and bitumen retrieved at the well-head of a ca. 80 m deep borehole drilled for heat-probe installation in Satigny, a village located 9 km West of Geneva (S in Fig. 1). It is noteworthy that the gas and bitumen in the Satigny borehole reached the well-head when the drilling reached the depth of 80 m, within the Oligocene Molasse deposits.

3.2 Methods

3.2.1 Rock–Eval pyrolysis and vitrinite reflectance

In order to identify the type and maturity of the organic matter (OM) contained in the source rocks, 28 samples of the Humilly-2 well and 32 samples from Liassic and Carboniferous sections and wells were selected for organic geochemical and petrographic analyses. Depending on the OM content, 2 to 50 mg of dried and powdered bulk rocks were used for Rock–Eval pyrolysis. Analyses were performed on a Rock–Eval 6 following procedures described by Espitalié et al. (1977) and Behar et al. (2001) to obtain: total organic carbon (TOC, wt %), S1 (mg HC/g rock), S2 (mg HC/g rock), S3 (mg CO₂/g), Hydrogen Index (HI, mg/g TOC), Oxygen Index (OI, mg CO₂/g TOC), and T_max (°C). Results are given in Tables 1 and 2 for the Liassic and Carboniferous sample respectively.

Table 1 Rock–Eval pyrolysis results of samples from Liassic sections in the studied wells

Table 2 Rock–Eval pyrolysis results of Carboniferous sections in the studied wells

Vitrinite reflectance (VRr) was measured on 15 samples (Table 3) under oil immersion at 500 × magnification using a Zeiss Axio Imager microscope. A leuco-saphire (0.592%) mineral standard was used for calibration, except for some highly mature samples, for which a gallium gadolinium garnet (1.70%) was used. Sample preparation followed the guidelines described by Taylor et al. (1998). On some samples bitumen reflectance (BRr) was measured and converted to equivalent vitrinite reflectance using correlations published by Landis and Castaño (1995) and Schoenherr et al. (2007). Details of the analytical procedure are described in Bou Daher et al. (2015).

Table 3 Vitrinite reflectance results of the Liassic and Carboniferous sections in the studied wells

3.2.2 Organic geochemistry: GC–MS

The molecular organic geochemical composition of saturated hydrocarbons extracted from 12 rock samples, both from the Toarcian and the Carboniferous (Table 4) was analyzed by gas chromatography (GC) and gas chromatography mass spectrometry (GC–MS), following the analytical protocol described in Bou Daher et al. (2015). Identification of biomarkers in the aliphatic fractions of the different samples was done by comparison with published mass spectra (Peters et al. 2005). In order to link the source-rocks to the oil and gas shows at surface and shallow depth, the aliphatic fractions of two bitumen samples taken in the Roulave stream (R in Fig. 1) and the Satigny borehole was analyzed using GC–MS.

Table 4 Overview of biomarker ratios determined in this study

Moreover, the geochemical and stable isotopic composition of two gas samples originating from an unexpected gas pocket encountered at a depth of ca. 70 m in the Satigny well, 9 km west of Geneva (Fig. 1) was analysed at BGR Hannover. Two samples, SAT1 and SAT2, were collected from the well head at near atmospheric pressure using a syringe and injected into a 20 mL headspace vial with a septum lined crimp cap and filled with helium. Sample SAT1 was filled with 100 μL of gas and 200 μL in sample SAT2. The injected gas volume was 100 µL for sample SAT1 and 200 μL for sample SAT2. The molecular gas composition was analysed using a Refinery Gas Analyzer (RGA; Joint Analytical Systems GmbH) that quantifies the light-volatile hydrocarbons methane to hexane and the permanent gases helium, hydrogen, oxygen, nitrogen, carbon monoxide and carbon dioxide. The stable carbon and hydrogen isotope composition was analyzed by gas chromatography-isotope ratio monitoring mass spectrometry (GC-IRMS) using an Agilent 6890 gas chromatograph, coupled to a Thermo Fisher MAT 253 mass spectrometer.). The stable isotope composition is reported using the delta notation relative to Vienna Peedee Belemnite (VPDB) standard for carbon and Vienna Standard Mean Ocean Water (VSMOW) standard for hydrogen. Details on the molecular and stable isotope analysis of gas samples are provided in Weniger et al. (2019).

4 Results

4.1 Rock–Eval pyrolysis and vitrinite reflectance

Rock–Eval pyrolysis results are presented in Figs. 4 and 5 and in Tables 1 and 2 for the Liassic and Carboniferous samples, respectively. Samples containing less than 0.50% wt TOC are kept in the tables but not plotted in the graphs.

Fig. 5

source-rock maturity of the Lower Jurassic and Carboniferous units. Only samples with TOC > 0.5% are plotted in this graph. The blue shaded area encompasses available data for the Lower Jurassic Posidonia shales in the northwestern Swiss Molasse Basin (Todorov et al. 1993; Fantasia et al. 2019)

Hydrogen Index (HI) vs. Tmax crossplot outlining the kerogen types and

4.1.1 Lias

TOC content ranges between 0.21 and 4.32% with a mean value of 1.1%. The highest value is observed in the Toarcian of Humilly-2 well at a depth of 2238 m. Free hydrocarbons (S1 values) are low and vary between 0.01 and 3.34 mg/g with an average of 0.38 mg/g. The highest S1 value is observed in the lower Lias of Chapeiry-1 well at a depth of 3722.7 m. Hydrocarbon generation potential (S2 values) varies between 0.08 and 21.8 mg/g with an average of 2.22 mg/g. Highest S2 values are recorded in the lowermost Toarcian samples of Humilly-2 well. T_max values vary between 320 and 560 °C and have an average of 447 °C. Except for Faucigny-1 where T_max exceeds 500 °C, the other well samples reveal T_max values between 410 and 446 °C. HI values fluctuate between 22 and 505 mg/g TOC with an average value of 137 mg/g TOC. OI values vary between 11 and 310 mg CO₂/g TOC with an average of 50 mg CO₂/g TOC. High HI values seem to be correlated with high TOC content, except for the Faucigny-1 well, where samples are overmature and have lost their hydrocarbon generation potential (Table 3), whereas OI values tend to increase at low TOC content. These trends may be linked with a mineral matrix effect (MME) that tends to increase OI (especially for carbonated samples) and decrease HI (for shale samples) in low TOC samples (Espitalié et al, 1984; 1985; Grohmann et al, 2019).

Vitrinite reflectance in Humilly-2 and Chapeiry-1 wells vary from 0.72 to 0.77% with a standard deviation between 0.04 to 0.07 (Table 3). In the Faucigny-1 well, no vitrinite was found however bitumen reflectance was measured between 2.07 to 2.22% (Table 3). Such bitumen reflectance reflects an equivalent vitrinite reflectance from 2.22 to 2.41% according to Landis and Castaño (1995) and Schoenherr et al. (2007).

4.1.2 Carboniferous

TOC content ranges between 0.1 and 57.33% with a mean value of 15.9%, the highest value being found in Charmont-1 well at a depth of 2108.50 m. S1 values vary between 0.03 and 6.36 mg/g with an average of 1.25 mg/g. S2 values range between 0.37 and 126.84 mg/g with a mean value of 31.5 mg/g. Highest S2 values at 125.66 and 126.84 mg/g are recorded in organic-rich coals of Charmont-1 well (TOC of respectively 57.33 and 54.85%). T_max values vary between 430 and 545 °C and have an average of 455 °C. Except for the coal-bearing sandstones of La Chandelière and Chaleyriat-1 well where T_max respectively reaches 545 °C and 514 °C, the other well samples reveal T_max values between 430 and 465 °C. HI values vary between 51 and 467 mg/g C. The highest HI value is found in the coal-bearing sandstone of La Chandelière well, but it displays very low TOC (0.1%) and a high T_max (545 °C) indicating that this value is not reliable and will not be further discussed. Except for this sample, Carboniferous samples are characterized by HI values between 51 and 231 mg/g C with a mean value of 135 mg/g TOC. OI values vary between 8 and 470 mg CO₂/g TOC with an average of 85 mg CO₂/g TOC. Pure coals display low OI values between 8 and 27 mg CO₂/g TOC. Except for the three samples composed of coal-bearing sandstones (Humilly-2 at 3049 m depth; La Chandelière at 1562.1 m; Chaleyriat-1 at 1365 m), high HI values and low OI values are correlated with high TOC content.

In the Jura region (Charmont-1, Chatillon-1D and La Chandelière), vitrinite reflectance vary from 0.60 to 0.79%, with a standard deviation below 0.04 (Table 3). The highest vitrinite reflectance has been measured in the Humilly-2 well with a reflectance of 1.14%.

4.2 Chromatographic analysis

Source rock chromatograms and discussed biomarker results are presented in Figs. 6, 7 and Table 4.

Fig. 6

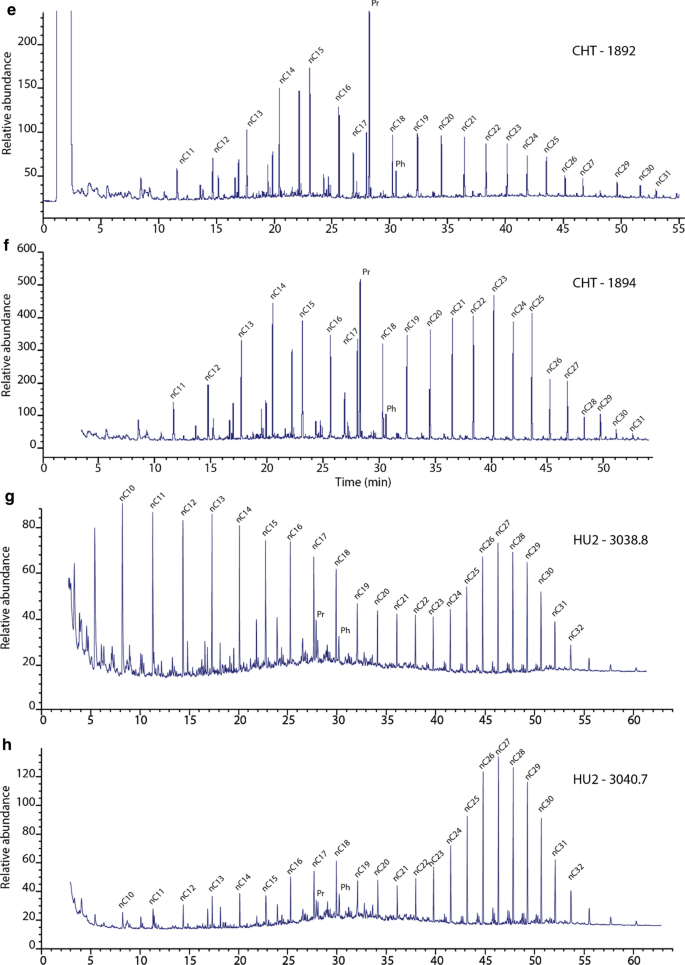

Typical aliphatic fraction total ion chromatograms for the Toarcian unit of (a, b) Humilly-2 and (c) Chapeiry-1 well and the Carboniferous coal of (d) Chatillon-1D, (e, g) Charmont-1 and (g, h) Humilly-2

Fig. 7

Biomarker diagrams: a Cross-plot of pristane/n-C17 versus phytane/n-C18 (after Hunt 1996); b Ternary diagram showing the relative abundances of C27, C28, and C29 regular steranes for Lower Jurassic and Carboniferous samples and the Roulave bitumen seep. The sterane composition of the bitumen seep from the Roulave stream indicates a marine origin, equivalent to the composition of the Lower Jurassic samples

4.2.1 Lias

Short-chain n-alkanes (< n-C₁₉) are predominant compared to mid- (n-C_20-26) and long-chain (> n-C₂₆) n-alkanes in almost all Jurassic samples (Fig. 6), which is typical of marine OM derived from bacteria and/or algae (Peters et al. 2005). The only exceptions are the Chapeiry-1 3720.9 and 3722.7 samples where mid-chain n-alkanes display very high concentrations, suggesting a significant contribution from aquatic macrophytes (Ficken et al. 2000). Sample Chapeiry-1 3722.7 is also the only one displaying a bimodal distribution of n-alkanes, indicating higher plant inputs. It should also be noted that samples 3720.9 and 3728.8 also display significant long-chain n-alkanes concentrations. The terrigenous/aquatic ratios (TAR) defined by Bourbonniere and Meyers (1996) as [(n-C₂₇ + n-C₂₉ + n-C₃₁)/(n-C₁₅ + n-C₁₇ + n-C₁₉)], is an indicator of the relative input of terrestrial plant versus aquatic OM. TAR values range from 0.01 to 0.44. Accordingly, values above 0.1 are only found in the Chapeiry samples (Table 4) with significant long-chain n-alkane concentrations, indicating higher terrestrial plant contributions.

The carbon preference index (CPI_25-31) (Bray and Evans 1961) was calculated when possible (i.e. 4 Toarcian samples did not show the requested n-alkanes) and display values ranging from 1.1 to 1.5. When only n-C₃₂ was absent, a CPI was calculated for odd-number n-alkanes between C₂₅ and C₂₉. For Toarcian samples, the Humilly-2 2238 sample was the only one in that case and display a CPI value of 1.38. Pristane (Pr) is predominant over phytane (Ph), except for the Chapeiry-1 3722 sample, and the Pr/Ph ratios vary between 0.87 and 2.06, the lowest being associated with the Chapeiry-1 3722 sample. Pr/n-C₁₇ ratios mostly range from 0.37 to 0.83, and Ph/n-C₁₈ ratios from 0.33 to 0.75. The only exception is the Chapeiry-1 3722 sample showing a value of 1.6. and 1.2 for the Pr/n-C₁₇ and Ph/n-C₁₈ ratios, respectively. In a Pr/n-C₁₇ vs. Ph/n-C₁₈ diagram (Fig. 7a), all Jurassic samples plot in the mixed organic matter domain (Shanmugam 1985; Hunt 1996).

Regarding relative abundance of the C₂₇, C₂₈, and C₂₉ regular steranes, it appears that the Humilly-2 samples are all dominated by the C₂₉ (> 40%) whereas the ones from the Chapeiry-1 well are dominated by the C₂₇ (> 42%) except for the lowermost sample that is also dominated by the C₂₉ (38.2%). According to the distribution of these samples in a ternary diagram (Fig. 7b), the Liassic samples fall into the area typical of open marine depositional environment, except for the Chapeiry-1 3728.8 sample that plots in the coastal shallow marine domain. Furthermore, it suggests that the OM source of Jurassic samples is mostly derived from marine phytoplankton marine with variable contribution from higher land plants (Peters et al. 2005).

The C₂₉/C₃₀ hopane ratio (Peters et al. 2005) is below 1 for all the Jurassic samples. The only homohopanes found in our samples are the C₃₁ 22S and 22R. The homohopane 22S/(22S + 22R) isomerization ratio (Peters et al. 2005) is relatively high and varies between 0.57 and 0.66.

4.2.2 Carboniferous

Compared to Jurassic samples, the Carboniferous samples display higher concentrations in mid- (n-C_20-26) and long-chain (> n-C₂₆) n-alkanes, which indicate stronger higher plant contributions (Fig. 6). Yet, only two samples (Charmont-1 1894 and Humilly-2 3040.7) are not strictly dominated by short-chain n-alkanes. The latter samples, and the Humilly-2 3039.8 sample, display a bimodal distribution (Fig. 6f–h). While the dark shale samples from Humilly-2 show high proportions of short- (especially in 3039.8 sample) and long-chain n-alkanes, the coal sample from the Charmont-1 well displays relatively high proportions of both short- and mid-chain n-alkanes. Moreover, all the other samples from Charmont-1 (Fig. 6e) and Chatillon-1D wells (Fig. 6d) display significant contributions of mid-chain n-alkanes, but only low relative concentrations of long-chains. TAR values are generally higher than the Jurassic ones, above 0.9 (up to 2.5) in the Humilly-2 samples. This is coherent with relatively higher terrestrial plant contributions compared to the samples from the Charmont-1 and Chatillon-1D wells (Peters et al. 2005).

The carbon preference index (CPI_25-31) displays values ranging from 1.05 (in Humilly-2) to 1.3 (in Chatillon-1D). As n-C₃₂ is absent in Charmont-1 samples, the CPI_25-29, that was calculated instead, shows values between 1.5 and 1.7. Pristane/phytane ratios are clearly higher in Charmont-1 samples (Pr/Ph > 6), indicating a strong predominance of pristane. In other samples, Pr/Ph is below 1.6 and even below 1 for Humilly-2 3040.7. Pr/n-C₁₇ ratio ranges from 0.61 to 0.97 for Humilly-2 and Chatillon-1D samples, and between 2.08 and 4 for Charmont-1 ones. Ph/n-C₁₈ ratios vary from 0.32 to 1.09, the maximum being found in Chatillon-1D sample. In a Pr/n-C₁₇ vs. Ph/n-C₁₈ diagram (Fig. 7a), Carboniferous samples from the Charmont-1 well plot in the terrigenous domain, the sample Humilly-2 3039.8 in the mixed organic matter one, and the other samples in the marine domain (Hunt 1996).

Regarding the regular steranes relative abundance, it appears that Humilly-2 samples are dominated by C₂₇ (> 35%) whereas Charmont-1 and Chatillon-1D samples all show a dominance of C₂₉ (> 50%). Plotting these results in a regular sterane ternary diagram indicates that the Charmont-1 well samples were deposited in a deltaic terrigenous environment, the Chatillon-1D samples in a shallow coastal marine one, and the ones from Humilly-2 in an open marine environment (Peters et al. 2005). Moreover, it suggests that higher plant contributions are stronger for the Charmont-1 and Chatillon-1D samples compared to Humilly-2, which is contradictory with TAR values presented above. This kind of ternary diagram should in fact be interpreted with caution as the interpretation of the relationship between the relative sterane abundance and the depositional environment vs. the OM producers has not yet found consensus within the scientific community (see Peters et al. 2005 for discussion).

The C₂₉/C₃₀ hopane ratio (Peters et al. 2005) ranges between 0.38 and 1.09 for the Carboniferous samples, and are all above 0.8 in the Charmont-1 samples. The homohopane 22S/(22S + 22R) isomerization ratio (Peters et al. 2005), calculated for C₃₁ only, is around 0.58 for all the samples.

4.3 Bitumen and gas characterization

4.3.1 Bitumen

The aliphatic fraction chromatogram of the Roulave and Satigny bitumens (Fig. 8) shows a characteristic unresolved complex mixture (UCM or ‘hump’) typical of moderate to heavy biodegraded oil (Peters et al. 2005). Such chromatogram pattern does not allow us to determine precisely the origin of the organic matter. Still, regular steranes C₂₇, C₂₈ and C₂₉ have been detected (Table 4) and their relative abundance indicates a phytoplanctonic source of organic matter and suggest that the organic matter from which the bitumen originated has been deposited under open marine conditions (Fig. 7b).

Fig. 8

Chromatogram of the Roulave and Satigny bitumens mainly displaying an unresolved complex mixture (UCM) typical of heavily biodegraded oil

4.3.2 Gas geochemistry

The gas retrieved from the shallow drilling at Satigny (Fig. 1) revealed that both samples contained hydrocarbons (C1-C6 range) and 15 to 19 vol.% air (contamination during sampling). Interestingly, the Satigny gas sample did not contain any detectable CO₂ (Table 5). The relative alkane composition of both samples is nearly identical and dominated by methane (99%), typical for a ‘dry’ gas (Table 5). In both samples, the alkane concentration decreases with increasing molecular weight. The mean gas dryness was calculated for samples SAT1 and SAT2 as C1/(C2 + C3) after Bernard et al. (1976). The mean dryness for both samples is 125.

Table 5 Chemical and stable isotopic composition of the gas retrieved from Satigny

The δ¹³C value of methane (δ¹³C-CH₄) was measured in sample SAT1, while δ¹³C of ethane and propane (δ¹³C-C₂H₆ and δ¹³C-C₃H₈) and δ²H of methane (δ²H-CH₄) were measured in sample SAT2. δ¹³C value of methane is at -52.5‰ vs. VPDB. δ¹³C of ethane is at − 23.5‰ vs. VPDB and δ¹³C of propane is at − 21.4‰ vs. VPDB. The Bernard diagram (Bernard et al. 1978) where the molecular ratio of C1/(C2 + C3) is compared with the δ¹³C–CH₄ is widely used to distinguish between dry microbial and wet thermogenic gases. The Satigny gas composition does not fall within the pure microbial nor thermogenic gas fields and rather shows a mix between microbial and thermogenic gas (Fig. 9a). The stable isotopic carbon and hydrogen composition of methane reveals that the thermogenic gas is most likely originating from an early mature source-rock (Whiticar 1999) (Fig. 9b).

Fig. 9

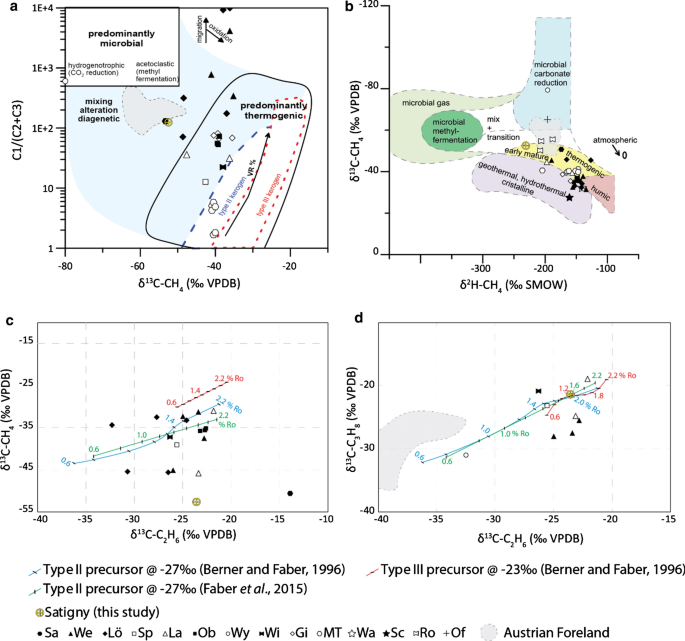

a Modified “Bernard diagram” showing the methane carbon isotopic composition vs. dryness (modified after Bernard et al. 1978; Whiticar 1999) showing the composite biogenic and thermogenic composition of the gas retrieved from Satigny (this study). b Interpretation of gas origin using stable carbon and hydrogen isotopic composition of methane according to Whiticar (1999). c Stable carbon isotopic composition of methane and ethane from the Satigny gas sample. d Stable carbon isotopic composition of ethane and propane from the Satigny gas sample. The vitrinite reflectance ⁄ isotope composition lines (maturation lines) are obtained using the calibration data for Type II and III source rocks from Berner and Faber, (1996) and Type II source rock from Faber et al. (2015). Samples Sa (Sachseln), We (Wellenberg), Lö (Lötschberg), Sp (Spiez), La (Langenthal), Ob (Oberbauenstock), Wy (Wynau), Wi (Wilen), Gi (Giswil), MT (Mont Terri), Wa (Weiach), Sc (Schafisheim), Ro (Rothrist and Lättweg), Of (Oftringen) are synthesized from the Swiss Plateau (Wyss 2001; Etiope et al. 2010; Eichinger et al. 2011; Sachs and Schneider 2012). Dashed grey area show the geochemistry of gas samples from the Austrian Molasse Basin (Pytlak et al. 2017)

5 Discussion

5.1 Source rock maturity and kerogen type

5.1.1 Lias

In Switzerland as well as in W Germany, United Kingdom, Luxembourg or Netherlands, the Toarcian shales (Posidonia shales), equivalent to the Schistes Carton in SE France, consists of marine algal and bacterial Type II organic matter (Littke et al. 1988; Todorov et al. 1993; Röhl et al. 2001; Montero-Serrano et al. 2015; Song et al. 2015; Fantasia et al. 2019). In the northwestern and northeastern part of the Swiss Molasse Basin, the Toarcian shales are characterized by Type II organic matter, rather immature, yielding HI values up to 800 mgHC/gTOC (Fig. 5; Todorov et al. 1993; Fantasia et al. 2019). The thermal maturity of this source-rock primarily depends on its burial and one should expect greater maturity approaching the deepest part of the foreland basin toward the SE and the Alpine front thrusts (Leu and Gautschi 2014). This is clearly shown by the increase of maturity from the Geneva area to the subalpine molasse basin where vitrinite reflectance increases from 0.72 VRr% to < 2.2 VRr% (Table 3). It is worth to note that the present-day burial depth of the source rock is lower than the maximum burial reached in the past considering the intense erosive event leading to a 2000–2600 m stratigraphic gap at the base of the Quaternary (Schegg et al. 1997; Moscariello et al. 2020b).

Looking at the HI vs. T_max diagram (Fig. 5), it first appears that the Jurassic samples are in the oil window, except for the Chaleyriat-1 samples which are immature. This is confirmed by vitrinite reflectance measurements that indicate:

• All Lias samples from Humilly-2 and Chapeiry-1 wells reached oil window maturity (Ro = 0.7%, Tmax around 440 °C).,

• Samples from Faucigny-1 reached dry gas window maturity (equivalent Ro > 2.2%, Tmax > 515 °C).

These statements are in agreement with a previous study (Deville and Sassi 2006) that also showed a strong difference in T_max values between Lias from the Molasse plateau (≈ 440 °C) and from the Subalpine Molasse (> 500 °C).

No vitrinite reflectance measurements were made on the Chaleyriat-1 samples, but their much shallower depth (between 480 and 560 m) compared to other Liassic samples (minimum of 2100 m) are in agreement with their relatively low T_max values (≤ 435 °C) indicating immaturity (Espitalié et al. 1985).

By examining the HI vs. T_max diagram in more detail (Fig. 5), it also appears that 30 Liassic samples have a Type III OM, 6 samples from the Chapeiry-1 and Humilly wells have a mixture of Type II-III OM and 2 samples from the Humilly-2 well are of Type II. The two last samples from the Humilly-2 well (2238 and 2240) contain dominantly short-chain n-alkanes, typical for marine organic matter comparable to the immature Posidonia shales in the northwestern part of the Swiss Plateau (Elie and Mazurek 2008) (Fig. 6a, b). Moreover, biomarker ratios suggest that the 4 Liassic samples from the Humilly-2 well have the same origin (Fig. 7; Table 4). This also includes Pr/n-C₁₇ and Ph/n-C₁₈ ratio indicating a mixture of terrestrial and marine OM (Hunt 1996). Based on the above, it appears that there are contradictory interpretations for the 2 samples (2232 and 2236) with the lowest TOC and HI between biomarker and the HI vs. T_max diagram. This may be due to the fact that, while the HI vs. T_max diagram (Fig. 5) takes into account the effect of maturity on the HI values to assess the OM Type, it does not consider the MME that artificially lowers the S2 during pyrolysis for shale samples, and as a consequence, lowers the HI value of low TOC samples (Espitalié et al. 1984, 1985).

The HI vs. TOC diagram provides good insights on the MME (Fig. 10). Indeed, we can observe a clear correlation between HI and TOC, especially for Humilly-2 samples that are all mostly composed of shales. Then, using abacus proposed by previous studies including one for Toarcian samples from the Paris Basin (Espitalié et al. 1985; Behar et al. 2020), we can propose a hypothetic trend of MME on HI values with decreasing TOC (brown arrows in Fig. 10). For our study, these arrows clearly show that the Chaleyriat-1 and Humilly-2 samples are on the MME trend of the marine Type II, even though the last ones are in the early-oil window.

Fig. 10

Source-Rock potential diagram for samples with TOC > 0.5% showing the ranges of HI values for Type II and III OM when TOC above 4% (i.e. no mineral matrix effect). Brown arrows show the hypothetical effect of mineral matrix on HI values when TOC is lower than 4% and are based on previous works (Espitalié et al. 1985; Behar et al. 2020). Red arrows indicate the effect of maturity on HI values

Chapeiry-1 samples are mostly made of shales, but two are carbonates: 3720.9 (HI = 297 mg/g TOC) and 3722.7 (HI = 198 mg/g TOC); their HI values are thus not affected by MME (Espitalié et al. 1985). These two samples are thus likely mixtures of Type II-III as suggested by their biomarker profiles and ratios (i.e. relatively high TAR and mid-chain n-alkane concentrations), the terrestrial OM being more concentrated in sample 3722.7. All shale samples from the Chapeiry-1 well plot around the Type III MME trend, except one (3728.8) that is under that trend. As their HI values are also affected by maturity, these samples are interpreted to be either mixtures of Type II-III or a degraded Type II like sample 3669. Biomarker distribution and ratios are similar to the Humilly-2 samples and typical of marine Type II OM. The Chapeiry-1 3728.8 sample shows dominance of aquatic biomarkers but with a relatively high contribution of terrestrial components. This sample is thus also probably a mixture of aquatic and terrestrial OM and its low HI (156 mg/g TOC) is likely due to a conjunction of maturity and MME, which, in some cases, can dramatically lower the HI values, even when TOC is above 4% (Saint-Germès et al. 2002). It is therefore clear that, during Liassic black shales deposition, the terrestrial inputs were stronger in the Chapeiry-1 area when compared to the Humilly-2 area. This may be due to the different location of the two wells compared to the basin margin: the Chapeiry-1 well penetrates a sequence which was originally closer to the paleo-shore or to turbidites nearby that can transport large amount of terrestrial OM (Biscara et al. 2011; Stetten et al. 2015).

Finally, the high thermal maturity of the Faucigny-1 samples makes it hard to decipher what was the original Type of OM.

5.1.2 Carboniferous

The maturity of the Molasse Basin Carboniferous formation can only be inferred from 3 of the Humilly-2 samples. Their T_max values range from 449 to 465 °C, suggesting a late oil to wet gas maturity, which is also supported by the VRr of 1.14% of sample 3039.8.

In the samples from the Jura wells, vitrinite reflectance values range between 0.6% and 0.8% suggesting that Carboniferous source-rocks are early to peak oil mature (Mukhopadhyay and Dow 1994; Mazurek et al. 2006). In the samples from the Charmont-1 well, we observe a clear increasing Ro trend with depth, from 0.6% at 1892 m to 0.79% at 2108 m, which indicates an evolution from early to peak oil. This is in agreement with the T_max values between 433 and 460 °C in this well (Espitalié et al. 1985). In the Chaleyriat area, Ro values all point to peak oil maturity, in agreement with the only reliable T_max value of 444 (Espitalié et al. 1985). The different maturities of Carboniferous source rocks between the Jura and the Geneva Basin are likely linked to their burial histories. Indeed, during the Oligocene-Pliocene, the Swiss Molasse Basin was marked by the deposition of large volumes of syntectonic flexural sediments that deeply buried Carboniferous to Eocene sediments (Deville and Sassi 2006) whereas the Jura evolved at shallow levels forming the forebulge of the Alpine orogenic system (Sissingh 1998; Kuhlemann 2007).

Regarding the origin of the OM, biomarker distributions of the Geneva Basin samples show strong proportions of mid- and long-chain n-alkanes, indicating significant proportions of terrestrial OM (Peters et al. 2005). This is confirmed by TAR values of 0.93 and 2.5 (Bourbonniere and Meyers 1996). These values were probably even higher before catagenesis because with increasing maturity the n-alkanes distribution shifts towards lower-molecular-weight homologues (Peters et al. 2005). Regarding the Pr/n-C₁₇ vs. Ph/n-C₁₈ diagram (Fig. 7a), the Humilly-2 samples plot in the mixed OM domain (Hunt 1996), but increasing maturity tends to lower these ratios as more and more n-alkanes are produced during the catagenesis (Peters et al. 2005). In the HI vs. TOC diagram (Fig. 10), these samples also plot on the Type III trend, strengthening a terrestrial origin of the OM. In the HI vs. T_max diagram (Fig. 5) sample Humilly-2 3040.7 plots within the Type II-III domain, but such HI and T_max values are also reported for Carboniferous coals from the eastern Paris Basin (Espitalié et al., 1985) and the Ruhr Basin (Jasper et al. 2009).

The HI vs. TOC diagram (Fig. 10) indicates that all Carboniferous samples from the Jura region plot within the terrigenous Type III field. However, in the HI vs. T_max diagram (Fig. 5), some of the samples plot in the Type II-III and Type II domains. When looking at n-alkane distributions, sample Charmont-1 1894 is dominated by mid- and long-chain n-alkanes that display a clear odd over even predominance, which indicate that terrestrial plants are the main contributors of OM (Eglinton and Hamilton 1967). Compared to the Humilly-2 samples, the sample Charmont-1 1894 shows higher mid-chain and lower long-chain concentrations. This indicate that macrophytes were mainly aquatic or emerged in the Charmont-1 well location, whereas they were land plant in the Jura region as well as in Humilly-2 (Ficken et al. 2000). Moreover, Pr/n-C₁₇ vs. Ph/n-C₁₈ values (Fig. 7a) also indicate a terrestrial OM dominance for this Charmont-1 sample (Hunt 1996). In other Chamont-1 samples, HC distributions are similar to the Humilly-2 Toarcian samples suggesting that there are marine or lacustrine OM inputs (Peters et al. 2005). This is also suggested by the HI and T_max values (Fig. 5). Similar contradictory ratios are also observed for the Chatillon-1D sample with Rock–Eval data indicating a Type III OM, whereas HC distributions and biomarker ratios indicate significant marine inputs. While enhanced maturity may have influenced biomarker ratios for other samples, Chatillon-1D samples are less mature than Humilly-2 ones and biomarker ratios should provide valid information (Fang et al. 2019).

To our knowledge, despite a recent attempt of identifying Carboniferous to Permian paleoenvironments in the Jura (Pullan and Berry 2019) at present there are no reliable studies that would help to decipher the origin of the OM during that geological time interval. In western Europe, the latter is punctuated by the collapse of the Variscan mountain range, causing the development of a complex landscape characterized by the formation of several hemi-graben and graben basins filled with terrestrial and lacustrine sediments such as in the French Central Massif and the Saar Nahe Basin where major coal seams and oil shales accumulated (Ziegler 1990; Müller et al. 2006; Schneider et al. 2006; Izart et al. 2012). Furthermore, a recent study of the Autun basin, located 120 km in the northeast from the Jura, revealed that Gzhelian and Asselian oil shales are associated with lacustrine and/or terrestrial degraded OM (Garel et al. 2017). Carboniferous-Permian deposits found in the Jura area might then be comparable to the ones observed in the lacustrine Autun basin where the oil-shales and coal seams shows similar TOC and maturities to the ones observed in our study (Garel et al. 2017). Thus, the contradictory data observed here might reflect the influence of terrestrial and lacustrine OM during sediment deposition, such as in the Autun basin. Yet, the low HI values of our samples indicate that the terrestrial OM is dominant in these potential compositional mixtures. To prove that, additional analyzes such as further biomarker studies or palynofacies observations should be carried out.

5.2 Implications for the regional petroleum system

5.2.1 Source-rock potentials

The majority of analyzed Liassic samples has TOC values below 2% and genetic potential (i.e. S1 + S2) values below 1.1 mg HC/g rock, indicating very poor to poor petroleum generation potential (Peters and Cassa 1994; Fig. 11). However, this set of samples includes the 7 Chapeiry-1 samples (representing 15% of the total Liassic samples) that are highly mature and have thus probably already generated and expelled hydrocarbons (Espitalié et al., 1985).

Fig. 11

Petroleum generation potential (S1 + S2) vs. TOC (classification after Peters and Cassa 1994)

Samples with a higher potential are all from the Humilly-2 (4 samples) and Chapeiry-1 wells (7 samples). Overall, the source-rock potential has been found fair for 3 samples, good for 4 samples, very good from 2 samples from the Chapeiry-1 well and excellent for 2 samples from the Humilly-2 well (Peters and Cassa 1994; Fig. 11).

In summary, the above data indicate that while Lower Jurassic source-rocks are immature in the Jura region, they are in the oil or gas window in the Molasse Basin. In this basin, most rocks show no or only poor potential, but 26% of the studied rocks display at least a fair potential for oil (marine OM) and gas (mixed marine and terrestrial OM) generation and 15% have likely produced and expelled gas (highly mature Type III).

The Carboniferous source rock potential is poor for Humilly-2 samples (Fig. 11), but their maturities suggest that they already generated and expelled hydrocarbons accounting for a significant part of their initial potential (Espitalié et al. 1985); therefore, their original potential was (much) higher. Charmont-1 and Chatillon-1D coal samples display good to excellent source rock potential for gas, as they are mostly dominated by terrestrial OM (Fig. 11). Thus, while all Carboniferous Molasse Basin samples have a poor potential, 80% of Jura samples have at least a good potential for gas. It should be noted that only the superficial part of the Carboniferous grabens have been reached with the wells (only 3 m in Humilly-2) and that most of it remains buried (Fig. 12a). Coal seams are most likely deposited occurring in the deep grabens and may therefore be mature enough (i.e. > 1.3 VRr%) to generate dry gas.

Fig. 12

(modified from Moscariello, 2019). Black arrows: oil migration; red arrows: gas migration. In the map: R: Roulave, S: Satigny; G: Geneva; yellow: authoctounous Plateau Molasse; light brown: thrusted Subalpine Molasse (see Fig. 1)

Present-day petroleum system of the Geneva Basin viewed through interpreted 2D seismic lines (a and b, located in the inset map) and showing the potential stratigraphic levels generating hydrocarbons that migrated toward stratigraphically shallower levels

5.2.2 Oil and gas characterization and origin

The unresolved complex mixture of the bitumen chromatograms from the Roulave and Satigny does not allow a detailed geochemical interpretation on the origin of these former crude oils. Nevertheless, the resolved regular steranes (C₂₇ to C₂₉) for the Roulave bitumen plot in the regular steranes ternary diagram within the open marine depositional environment, and very close to the Toarcian shales sterane relative abundance (Fig. 7b). Unfortunately, no peaks were resolved for the Satigny bitumen. Most of the oil and impregnations from the Vaud canton (North of the study area) are originating from the Toarcian shales, except for the Eclépens quarry where a more mature source rock is expected (Dolivo 2016). Interestingly, Pullan and Berry (2019) interpreted the oil found in the La Chandelière-1 well as originating from a very mature lacustrine Permian shale (VRr ~ 1%) assumed to be present at depth. Given the present-day maturity trend of the overburden source rock and the burial history (Schegg et al. 1999) we can infer that the Roulave bitumen derives from the Toarcian source rock but we can’t discard the contribution of a Permian lacustrine source rock present at depth, as suggested by seismo-stratigraphic data (Moscariello 2019).

The stable carbon isotopic composition of methane (Fig. 9a) and the gas dryness (C1/(C2 + C3)) of gas from Satigny indicate a mix of thermogenic and microbial origin. However, geochemistry of bitumen from Satigny indicates biodegradation, which may have influenced the gas composition as well because secondary microbial gas associated with degradation of petroleum or bitumen can show similar gas composition (Milkov 2011, 2018; Milkov and Etiope 2018). This gas composition is close to the one of the Lötschberg tunnel (black diamond in Fig. 9a) or from the Austrian Foreland Basin (Pytlak et al. 2017) all being characterized by a mixture of thermogenic and microbial gas. The stable carbon and hydrogen isotopic compositions of methane from Satigny (Fig. 9b) are comparable to the gas samples retrieved in Rothrist located at the northern border of the Swiss Plateau (Sachs and Schneider 2012), where deep Permo-Carboniferous troughs are supposed to be the source-rock of the thermogenic gas component. Interestingly, such mixture of gas has also been evidenced in the Austrian North Alpine Foreland Basin: Misch et al. (2017) showed that the gas retrieved from shallow depth is mainly composed of microbial gas (primary and partly altered) mixed with deep thermogenic gas (originating from Triassic and Permian sequences).

Plots of δ¹³C of methane versus δ¹³C of ethane, and δ¹³C of ethane versus δ¹³C of propane (Berner and Faber 1996; Fig. 9c, d) are often used to determine the organic precursor and thermal maturity of the gas. Due to contribution of microbial methane, the isotopic composition of methane is not helpful to determine any organic precursor for the thermogenic component of the Satigny gas (Fig. 9c). Similar results have been obtained in the Swiss Plateau (in Sachseln and Lötschberg; Wyss, 2001) and interpreted as the result of microbial influence. Etiope et al. (2010) interpreted the lack of significant concentrations of C₃₊ alkanes in the Giswil gas seep as the result of biodegradation. Clear evidence of biodegradation has been found in the bitumen sample encountered at Satigny with the gas (Fig. 8). Biodegradation may have affected the Satigny gas as well, but a more detailed study including δ¹³C-CO₂ measurement would be required to support this interpretation.

The stable carbon isotopic composition of ethane and propane from Satigny does not show any microbial contribution or biodegradation related shifts as in the Austrian Foreland Basin (Pytlak et al. 2017). Maturity trends of Type II and III precursors show that the Satigny gas can originate either from an overmature Type II (from ~ 1.6 to 2.0 VRr%) or a mature Type III source rock (~ 1.2VRr%, Fig. 9d). It is important to note that no information exists about the isotopic data of potential precursor kerogen in the study area; therefore, we used the isotope ratios for sapropelic and humic kerogens used by Berner and Faber (1996) as guideline. In the Geneva Basin, the two major source-rocks identified in this study, namely the dominantly Type II Toarcian and the dominantly Type III Carboniferous, are in the early-oil window and early-gas window, respectively. There is no indication of overmature marine Type II source rocks at depth. Thus, the gas retrieved at Satigny likely originates from Carboniferous source rock bearing Type III kerogen. To reinforce this assumption, the high iC₄/nC₄ ratio of the sample from Satigny supports an origin from early mature type III kerogen (Connan and Cassou 1980).

The terrigenous origin of the Satigny gas is also in agreement with gas found in wells drilled in the Jura region and gas seeps at Cuarny and at Essertines for which a Type III thermogenic source with a maturity < 1.5% VRr (Pullan and Berry 2019). A comparable origin has been put forward for the origin of gas from the Weiach and Schafisheim wells (Hinze et al. 1986) located above deep Permo-Carboniferous grabens in the northeastern Swiss Plateauu. The Giswil and Wilen gas seeps identified by Wyss (2001) and Etiope et al. (2010) in the southern limb of the Swiss Plateau seem to be in turn originating from a Type II thermogenic source with a maturity < 1.5% VRr. This shows the complexity of the petroleum systems acting below the Swiss Plateau.

5.2.3 Implications for geothermal exploration

The occurrence of mature marine and terrigenous OM in the Geneva Basin subsurface is of importance for the geothermal exploration as (1) the reservoir targets of the Upper Jurassic and Lower Cretaceous carbonates can be impregnated or partly filled by hydrocarbons as it has been shown in the Lower Cretaceous (Moscariello 2019) and (2) unexpected gas pockets can be encountered at variable depths during the drilling operations, thus representing a potential risk with negative impact on safety and overall exploration costs.

Given the geometry of the Geneva Basin, a foreland setting with the foredeep located to the SE close to the northwestern margin of the Alpine front, hydrocarbons mostly migrate up-dip from the SE to NW. This explains why most of the oils seeps are located at the northwestern tip of the Molasse Basin (Leu 2012; Moscariello et al. 2020b). However, the Geneva Basin is highly faulted and cross-cut by several NW–SE left-lateral strike-slip faults and NE-SW thrust faults accommodating the recent compressional deformation of the Alpine arc (Moscariello 2019). This structural pattern may both (1) facilitate the formation of structural traps in the basin and (2) prevent from large accumulations of hydrocarbons at depth in case of leaking. Most of the thrust faults are rooted in intermediate marly stratigraphic units within the Lower Cretaceous and Middle Jurassic (Moscariello 2019), the deepest ones being rooted in the evaporites of the Keuper (Fig. 12) that supposedly act as a regional seal (Fig. 2). Those faults may act as preferential pathways for the hydrocarbons generated at depth (Fig. 12), specifically in the case of the marine Type II-derived oil. Although the organic-rich Toarcian shales in the Geneva Basin have a fair to excellent petroleum potential (Fig. 11), their limited thickness not exceeding 8 m in the Humilly-2 well, combined with the likely absence of large and structural traps, make the encountering of large hydrocarbon accumulations a low risk for the deep geothermal exploration.

Seismic reflection profiles below the Geneva Basin show the occurrence deep grabens most likely filled by Permo-Carboniferous rocks (Fig. 12a, b; Moscariello 2019). There, both the lacustrine Permian shales and the coal-bearing Carboniferous shales would be in the gas window at present-day and surely represent the stratigraphic interval of highest chance of conventional gas accumulations below the Triassic seal, as it has been revealed further east in the St Gallen area (Omodeo-Salé et al. 2020). However, as indicated before, the seal integrity at this level could have been severely affected and weakened by the large amount of faults developed during the Alpine shortening which cross the entire stratigraphic succession. This can explain why deep Type III-derived gas have reached the topmost stratigraphic levels in the Molasse. It has been documented that the Permo-Carboniferous itself may act as tight gas reservoirs as in Noville (Leu 2012) as well as the Buntsandstein (Moscariello 2019). In this respect, a 3D basin modeling study will be required to model and quantify the circulation, saturation and potential stratigraphic/structural traps in the entire Geneva Basin.

6 Conclusions

Two major source-rocks have been identified in the Geneva Basin, the dominantly marine Type II Toarcian (Lower Jurassic) shales and the terrigenous Type III Carboniferous.

The Toarcian source-rock is immature in the Jura region, in the oil window in the Geneva Basin and overmature at the front of the Alpine thrust. Rock–Eval pyrolysis combined with gas chromatography indicate that this source-rock is composed of a mixture of Type II and III organic matter, the latter being more influent towards the Jura and the South of the basin (Chapeiry-1). The petroleum potential of the Toarcian shales is fair to excellent, but its limited thickness and the dense network of faults and fractures in the area did not favor accumulation and preservation of petroleum generated by this source-rock and hence the risk for the geothermal exploration is low.

The Carboniferous source-rock is at least in the oil window in the Jura and in the late oil-wet gas window in the Geneva Basin. Pyrolysis and geochemical indicators reveal that this source-rock mostly contains Type III organic matter with slight to significant marine or lacustrine OM inputs. Even though the present-day potential below the Geneva Basin is rather low because it already expelled hydrocarbons, it may have charged large accumulations that would represent high risk for geothermal exploration. As highlighted by our study, gas pocket can be encountered at shallow depth, demonstrating the ability of hydrocarbons generated at depth to migrate through the entire stratigraphic succession.

The bitumen sampled in the Roulave stream seems to be derived from the marine Type II Toarcian shales as indicated by the relative abundance of regular steranes (C₂₇ to C₂₉). On the other hand, the origin of bitumen retrieved from Satigny shallow borehole cannot be identified, due to the high degree of biodegradation. It might either originate from the marine Type II Toarcian shales or from the Permian lacustrine shales as shown previously in the Jura region. Given the maturity of the identified marine and terrigenous source-rocks, the gas sampled in the Satigny borehole most likely derives from a mature terrigenous Type III organic matter such as the Carboniferous source-rock.

Appendix 1

See Table 6.

Table 6 List of the sampled intervals in the various wells of the study area
