New paleontological and biostratigraphical data (calcareous nannofossils, ostracods, brachiopods), correlations and lithostratigraphic units in the Urgonian facies (latest Hauterivian-Barremian) of the Swiss and French Jura Mountains: the Falaises Member and the Saars Formation (former “Gorges de l’Orbe Formation”)
Swiss Journal of Geosciences volume 115, Article number: 17 (2022)
From latest Hauterivian to latest Barremian, the Urgonian facies of the Swiss and French Jura Mountains are subdivided into three formations and five members: new Saars Formation (= former “Gorges de l’Orbe Formation” sensu Strasser et al., 2016; Pictet, 2021) with a new Falaises Member below the Montcherand and Bôle members of Pictet (2021), Rocher des Hirondelles Formation with Fort de l’Ecluse and Rivière members (Pictet, 2021, revised), and Vallorbe Formation (revised from Strasser et al., 2016 and the “Vallorbe Member” of Pictet, 2021). The latest Hauterivian-early Late Barremien Saars Formation includes three members 1) to 3): 1) Latest Hauterivian-Early Barremian Falaises Member with new Early Barremian nannoflora from the Corcelles Marls (much younger than the late Early Hauterivian nannoflora from the Uttins Marls of the type locality at Mont de Chamblon), primitive orbitolinids Praedictyorbitolina claveli Schroeder, 1994; and fossils/microfossils usually considered as Hauterivian markers: echinids Pseudholaster intermedius (Münster in Goldfuss, 1826), brachiopods Glosseudesia semistriata (Defrance, 1828), Lamellaerynchia hauteriviensis Burri, 1953 and Plicarostrum aubersonense Burri, 1956, and ostracods of the Assemblage 1 [Protocythere triplicata (Roemer, 1841), Rehacythereis bernardi (Grosdidier, 1964), Schuleridea clunicularis (Triebel, 1938), Schuleridea gr. thoerenensis (Triebel, 1938)]. 2) Early Barremian Montcherand Member with brachiopods Glosseudesia inexpectata Mojon, n. sp. and Glosseudesia ebrodunensis (de Loriol, 1864), and ostracods of the Assemblage 2 [Strigosocythere strigosa (Grosdidier, 1964), P. triplicata, and juvenile immature species markers of the next ostracod Assemblage 3]. 3) Early to early Late Barremian Bôle Member with adult ostracod markers of the Assemblage 3 [Rehacythereis geometrica (Damotte and Grosdidier, 1963), Bairdoppilata barremiana Mojon, n. sp., Bairdoppilata luminosa Kuznetsova, 1961; Neocythere (Centrocythere) gottisi Damotte and Grosdidier, 1963; Schuleridea derooi Damotte and Grosdidier, 1963; Schuleridea alata Kaye, 1965; Dolocytheridea intermedia Oertli, 1958]. 4) The Early to Late Barremian Fort de l’Ecluse Member/Rocher des Hirondelles Formation and Late Barremian Rivière Member/Vallorbe Formation are characterized by markers such as echinids Heteraster couloni (L. Agassiz, 1839), orbitolinids [Praedictyorbitolina carthusiana Schoeder et al., 1990; Eopalorbitolina charollaisi Schroeder and Conrad, 1967; Valserina broennimanni Schroeder and Conrad, 1967; Paleodictyoconus actinostoma Arnaud-Vanneau and Schroeder, 1976; Paracoskinolina maynci (Chevalier, 1961)], and typical ostracods of the Assemblage 4 [Strigosocythere chalilovi (Kuznetsova, 1961), Rehacythereis buechlerae (Oertli, 1958) only in the southern Jura and replaced by R. geometrica in the central Jura, Platycythereis rostrata Sauvagnat, 1999] extended in the latest Barremian-Early Aptian Fulie Member of the basal Perte-du-Rhône Formation defined by Pictet et al. (2016).
The aim of this study is new micropaleontological data precising the age of the Urgonien Jaune (UJ) facies in the Neuchâtel area and the correlations for the Urgonian facies of the whole Jura Mountains. A Barremian age is reported for the Urgonian facies of the Jura Mountains since the beginning of the 19th century (Baumberger, 1901; Schardt and Dubois, 1902), but was confirmed with certainty only much later (Adatte et al., 2005; Godet et al., 2010, 2011). More recently, very significant updates were presented for a latest Barremian age at the top of Urgonien Blanc (UB) facies in the southern Jura (ammonite Martelites sp. juv. from the Tethyan Sarasini ammonite Zone, Pictet et al., 2019), and for the Early to early Late Barremian age of the UJ facies in the central Jura (nannofloras from the Tethyan Hugii to lower Sartousiana ammonite Zones, De Kaenel et al., 2020). This study documents new calcareous nannofossil data attesting mainly an Early Barremian age for the UJ facies of the central Jura (Western Switzerland). New ostracod data from the UB facies in the southern Jura allow revised datings and correlations with the Urgonian facies (UJ and UB) of the central Jura.

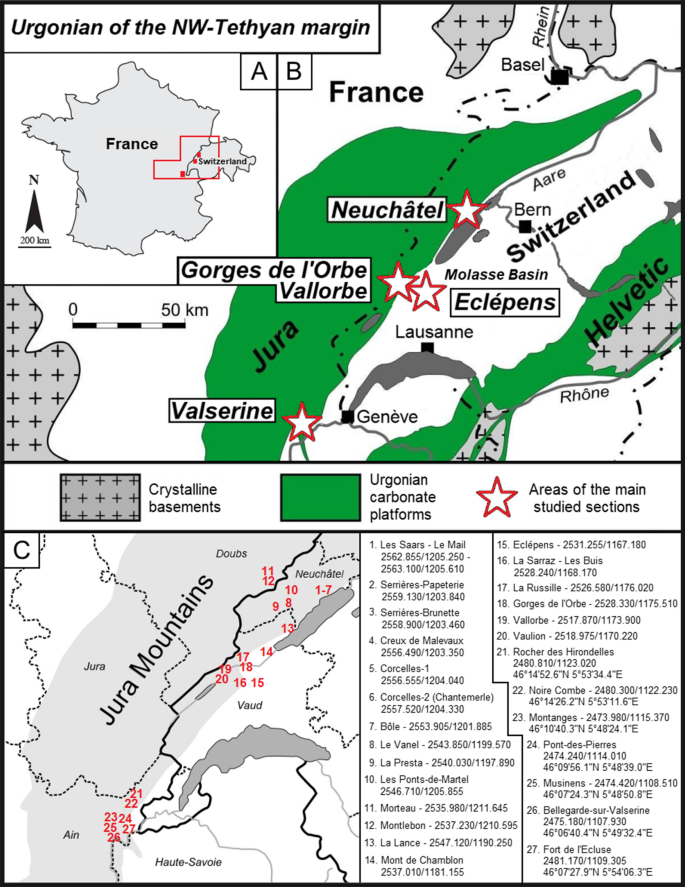

2 Geological settings
The Urgonian facies are Early Cretaceous shallow marine sediments of large Jurassic-Cretaceous carbonate platforms covering the Jura Mountains area (Fig. 1A, B), with intercalated brackish and freshwater deposits in the Oxfordian-Kimmeridgian and Berriasian-Valanginian (Mojon, 2002) as well as in the latest Barremian (Pictet et al., 2019). Although Urgonian deposits in situ are unknown in the eastern part of the Swiss Jura Mountains already from the Biel/Bienne area (canton Bern), it can be attested that these deposits were present before an Eocene period of intense erosion and soil alteration. Early Cretaceous ostracods and orbitolinids are reported in the Late Priabonian “Terre Jaune” of the Delémont Basin (Mojon et al., 2018, p. 9; cf. Rossemaison Formation, Pirkenseer et al., 2018) and it can be specified here that these microfossils are reworked from Barremian marls of the Saars Formation. In 2019, one of us (POM) found in a vineyard above Alfermée (coord. 2582.135/1218.995, 2 km west of Biel/Bienne) a reworked and deeply rubefied pebble of Urgonien Blanc facies (upper part of the Vallorbe Fm with Late Barremian orbitolinid Paracoskinolina cf. maynci, Fig. 2) from the famous Eocene paleokarst infilling (Siderolithic Group deposits, Mojon et al., 2018) having provided other similar remarkable rubefied pebbles and blocks with large Maastrichtian benthic foraminifera (Renz, 1936). The studied sections in the central Swiss Jura (W-Switzerland) are located along the first chain bordering the Swiss Molasse Basin or within inner synclines. Their position is indicated by Swiss Federal Coordinates LV95 (Fig. 1C) and they can be plotted precisely with the Geological Atlas of Switzerland 1:25'000 (managed and edited by the Federal Office of Topography swisstopo at Wabern/Bern, URL: https://www.swisstopo.admin.ch/en/knowledge-facts/geology/geological-data/geological-maps.html) using seven maps/explanatory notes, titled and numbered as following: Neuchâtel (67/1164), Travers (162/1163), Grandson (114/1183), Ste-Croix (95/1182), Yverdon-les-Bains (94/1203), Orbe (42/1202), Cossonay (5/1222). In the central and southern French Jura (E-France), the studied sections in the valleys of Morteau (Fallot and Perrodon, 1968) and Valserine (Conrad, 1969; Arnaud et al., 1998; Charollais et al., 2013; Pictet et al., 2019) are also indicated by Swiss Federal Coordinates LV95 extended outside Switzerland or DMS coordinates (Fig. 1C). The historical importance of the Neuchâtel area for the Early Cretaceous stratigraphy as well as the lithology and some paleontological elements of the Valanginian-Hauterivian stages and the Urgonian facies in the Swiss/French Jura Mountains are reported and discussed by Remane (1989), Remane et al. (1989a) and Strasser et al. (2018), whereas detailed significant data on the sedimentology and micropaleontology were collected and exposed by Blanc-Alétru (1995) and Godet (2006). The Urgonian facies of the Jura Mountains are fossil-rich, but the macrofossils and most microfossils often do not allow accurate datations, although calcareous nannofossils have provided the best results for this purpose (De Kaenel et al., 2020). Among the benthic foraminifers, phylogenetic lineages of orbitolinids were particularly and mainly studied for biostratigraphy (Schroeder, 1993; Schroeder et al., 1999, 2002). The ostracods were poorly known and illustrated (Oertli in Conrad, 1969; Clavel et al., 1994; Sauvagnat et al., 2001; Mojon et al., 2013; Pasquier et al., 2013), but are very useful for detailed correlations between the central and southern Jura as presented in this study.
3 Materials and methods
This study was performed from 2008 to 2021 in permanent outcrops and temporary sections within construction sites of the Neuchâtel area (listed in Sect. 4, NB: all the coordinates of sections indicated in the text are reported from the map of Switzerland 1:25′000). Most sections from the central and southern Jura Mountains (Fig. 1C, n° 8, 10, 12–27) are still well visible, but marly sections were only accessible and sampled in 2014 at La Presta (n° 9, cf. log in Pictet et al., 2016, 2019) and Morteau (n° 11) sampled in thick marly limestones within a construction site.
Macrofossils (echinids, brachiopods, oysters, stromatoporoids, corals) and microfossils (ostracods, benthic foraminifers, sclerites of stromatoporoids, spines of sea urchins) were collected in the Jura Mountains from marly layers of the Urgonian facies (Corcelles Marls, and many others marly intercalations), and also from soft marls of the Hauterivian (Hauterive Marls, Uttins Marls) and latest Barremian-earliest Aptian (Poet Beds, Vauglène Beds). The micropaleontological material was obtained in the laboratory from 68 productive samples of the studied sections [counted from the collection of P.-O. Mojon, sterile samples not reported: Vauseyon/Neuchâtel City-West (1), Les Saars-Le Mail (4), Serrières-Papeterie (1), Serrières-Brunette (3), Creux de Malevaux (2), Corcelles-1 and 2/Chantemerle (4), Bôle (4), Boudry (2), Le Vanel (4), La Presta (2), Ponts-de-Martel (1), Morteau (2), Montlebon (2), La Lance (2), Les Uttins/Mont de Chamblon (1), Eclépens quarry and railway trench (4), La Sarraz-Les Buis quarry (3), La Russille (4), Gorges de l’Orbe/Montcherand (7), Vallorbe (3), Vaulion (2), Rocher des Hirondelles (1), Noire Combe (1), Montanges (2), Pont-des-Pierres (1), Musinens (1), Bellegarde-sur-Valserine (3), Fort de l’Ecluse (1); cf. Figs. 1C, 15].
These samples each of about 1–5 kg dry weight were wet-sieved with mesh width ranging from 250 μm to 2 mm and picked using a binocular loupe. 12 samples with nannofossils from the sections of Corcelles-2 (Corcelles Marls) and Mont de Chamblon (Uttins Marls) were prepared on glass slides (Figs. 12, 13) according to the improved method described by De Kaenel and Villa (1996), but only the two most interesting were studied using a Leica DM2500P light microscope. Photographs and micrographs of the paleontological material were obtained using natural light, optical microscopy with artificial light (cross-polarized/XP light and phase-contrast light for nannofossils using an Olympus DP71 digital camera) or scanning electron microscopy (SEM). Light micrographs (LM) are included in Fig. 13. The reference material for the nannofossils is archived in the collection of E. De Kaenel, reference samples of sediments as well as the macrofossils and microfossils illustrated from the collection P.-O. Mojon (Figs. 15, 16) will be archived in the collection of the Musée géologique de Lausanne (abbr. MGL, UNIL-Dorigny, Lausanne).
The Urgonien Jaune (UJ) facies are represented by bioclastic/oolitic limestones and some marly intervals with sediments mainly yellowish to brownish, but some limestone beds can be whitish or greenish by glauconite enrichment, and small scale cross-bedding (cross-stratification formed by current ripples) is very frequent. Sections in the Neuchâtel area are very important for this study and several of them are known since the middle 19th century, at Le Mail where Desor (1858, cf. Schaer, 2006, p. 23) found in 1855 spines of sea urchin Goniopygus (G. peltatus L. Agassiz, 1838) in yellowish marls between the “Middle Neocomian” (= Early Hauterivian “Pierre jaune de Neuchâtel”) and the “Urgonian” (= Late Barremian Urgonien Blanc facies), and at Bôle with “calcaires intermédiaires de Bôle” or “couches de Bôle” (de Tribolet, 1856, 1857) and echinids reported in Paléontologie française (Cotteau 1862–1867, p. 107–108). At Serrières, the Serrières-Brunette section described by Remane et al., (1989b, p. 44–45, fig. 13) and the Serrières-Papeterie section (Papeterie Way) are still visible behind a wire fence. The interesting section of Corcelles-1 was studied and sampled between 2008 and 2011 within a temporary excavated construction site for grouped houses, and the small outcrop of Corcelles-2 within the Chantemerle forest was observed and analyzed in December 2020 along a pathway excavation. Three other sections are also considered and listed below, but not reported minutely in this study because completely covered by vegetation (Rochefort, Cornaux) or not providing fundamentally new data (Boudry).
4.1 Lithostratigraphy and lithostratigraphic nomenclature with report of sequential and paleontological data
The correlations and subdivisions of the Urgonian facies in the Jura Mountains imply new names for the lithostratigraphic nomenclature and terminology (Figs. 3, 10, 11), with logs and descriptions of significant features according to guidelines for stratigraphic nomenclature (Remane et al., 2005).
NB: In this study, the term of facies “Pierre Jaune de Neuchâtel” (PJN) is often mentioned with the Neuchâtel Member named and defined by Strasser et al. (2018) such as the corresponding lithostratigraphic unit, which is paradoxically incomplete in the Neuchâtel area where the Uttins Marls are not recognized clearly between lower and upper PJN limestones. So, the Uttins Marls constitute an exception developed locally (Grand-Essert, Mont de Chamblon), but the reference in Neuchâtel is maintained for practical and historical reasons.
The problematic data of Pictet (2021) are another matter, therefore they are not considered nor reported in this study. Ostracods already required an erratum (Pictet, 2022), but the reference sections show also important differences of thickness compared to the values of previous authors as well as more numerous 3rd order discontinuities than in the Barremian stratotype, without any explanation provided. So, Pictet (2021) indicates 91 m for his “RDH Formation” of the Rocher des Hirondelles-La Rivière section (versus 140 m in Conrad, 1969), 54 m for the “GdO Formation” of the Gorges de l’Orbe section (versus 75 m in Conrad and Masse, 1989), and 103 m for his “GdO Formation" and “Vallorbe Member” of the Vallorbe section (versus 95 m in Conrad and Masse, 1989). Furthermore, twelve 3rd discontinuities are reported by Pictet (2021, fig. 25) for the PJN/Urgonien facies of the Jura Mountains and only ten by Arnaud (2005, cf. Fig. 11) in the Barremian stratotype of Angles very well calibrated by ammonite zones.
A last remark concerns the report of the paleontological data in order to simplify the text, the names of the genera for the taxa of ostracods or other fossils are often abbreviated and the names of the authors indicated mainly in key sub-chapters (Calcareous nannofossils, Ostracods, Brachiopods) and paragraphs of the lithostratigraphy and lithostratigraphic nomenclature.
4.1.1 Saars Formation (new)
Prior to the new results of this study, it was commonly accepted that the Urgonien Jaune facies (cf. Remane et al., 1989a) of the Jura Mountains matched the Gorges de l’Orbe Formation (Strasser et al., 2016) with the Montcherand and Bôle members (Pictet, 2021). The Gorges de l'Orbe reference section in the central Jura Mountains was first described by Conrad and Masse (1989, fig. 1, p. 308, 310–311) and studied again by Blanc-Alétru (1995, figs. 67, 68, p. 157–161) and Pictet (2021). Remarkable outcrops with thick fossiliferous deposits of yellowish limestones and marls are developed along 1.3 km in the cliffs of the Gorges de l’Orbe pathway from the footbridge of the Montcherand hydroelectric plant and in the Orbe River streambed. But, in the central Jura Mountains, significant sections of the Neuchâtel area (Les Saars-Le Mail, Corcelles-1–2, Fig. 1) highlight the new Falaises Member and imply a redefinition of the incomplete Gorges de l’Orbe Fm into the new Saars Formation (Figs. 10, 11). The Saars Fm is named from the “rue des Saars” or Saars Street (Neuchâtel City), an etymology according to related words of old french from the Middle-Age such as “essarter” and “essartage” (clear up the vegetation).
4.1.2 Falaises M ember (new)
Derivation of name: From the “route des Falaises” or Falaises Road (Neuchâtel City) bordering the cliffs of the ancient shore of Lake Neuchâtel.

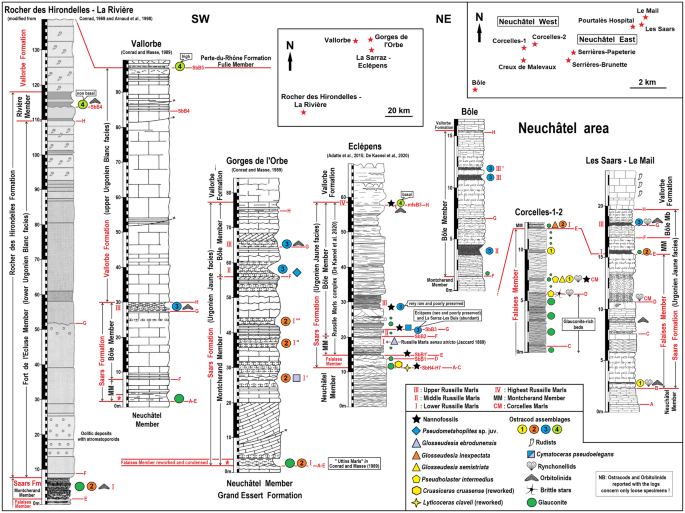

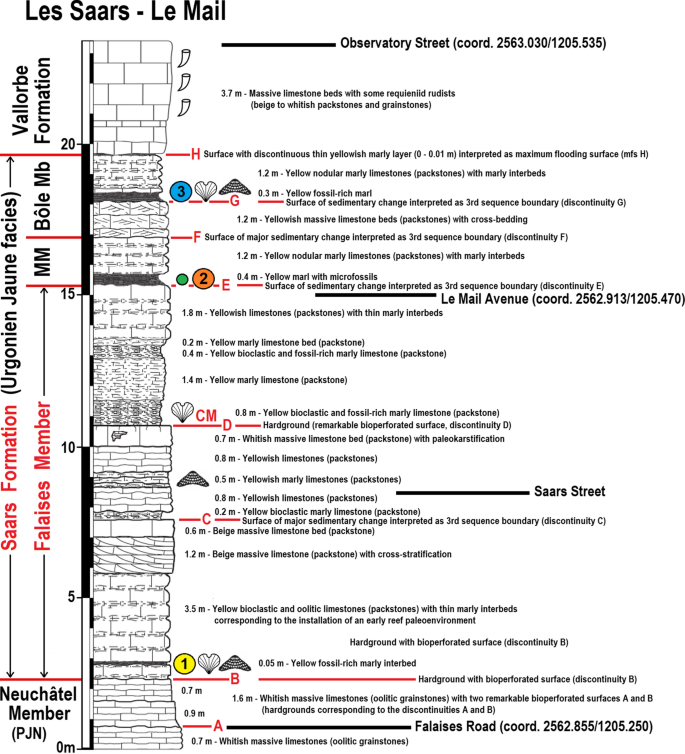

Type locality: Les Saars-Le Mail section (Figs. 3, 10), base at 2.3 m along the Falaises Road (coord. 2562.855/1205.250, Figs. 4a–d, 5f), top at 15.3 m above the Saars Street (coord. 2562.805/1205.265, Figs. 5d–e, 6e). This type section is quite similar and can be compared with the log of the currently covered Pourtalès Hospital section located 500 m west (Godet, 2006, fig. B.18; Godet et al., 2010, fig. 12).
Thickness: 12.9 m in the reference section of Les Saars-Le Mail, but absent in the Gorges de l’Orbe section where the Falaises Mb is reworked in a condensed layer of the basal Montcherand Mb. The maximum thickness is certainly more important in the Corcelles-1 section and much greater (about 50 m) in the French southern Jura Mountains (“Hauterivien supérieur-Barrémien inférieur” interval assimilated to Urgonien Jaune facies by Viéban, 1983, figs. 52–55; or to “Pierre Jaune de Neuchâtel” facies by Blanc-Alétru, 1995, fig. 75), but the extension and thickness of the Falaises Mb and Saars Fm are not known precisely in this area.
Definition and boundaries: The Falaises Mb typically belongs to the Urgonien Jaune facies with well-developed bioclastic and oolitic limestones (packstones) with cross-bedding and some marly layers more or less developed (e.g., Corcelles Marls of the Neuchâtel area). It starts above Late Hauterivian discontinuities A and B with fossil-rich deposits of early reef paleoenvironment, includes 3rd order discontinuities C and D (hardgrounds with bioperforated surfaces) coresponding respectively to latest Hauterivian SbH7 and earliest Barremian SbB1, and ends with the next 3rd discontinuity E or Early Barremian SbB1’ at the base of the Montcherand Mb (Figs. 3, 10, 11).
Geographic distribution and lateral equivalents: The Falaises Mb is irregularly developed in the Swiss and French Jura Mountains. In the central Jura (Neuchâtel area), the Falaises Mb deposits precede the installation of reefs with stromatoporoids (Le Mail, Serrières-Brunette), corals and rudists Pachytraga (Ponts-de-Martel) bordering a deeper sea strait between Tethyan Ocean and Paris Basin at the location of the Morteau Valley (Doubs department, France). This connection through the Jura-Burgundy threshold is particularly obvious during the Aptian-Albian (Pictet et al., 2019). At 50 km southwest, the sedimentation within the paleotectonized area of the Vaud Jura was disrupted by the Pontarlier fault presumably active in the Early Cretaceous (Mormont-La Sarraz fault system, cf. De Kaenel et al., 2020) and the Falaises Mb is incomplete (Eclépens, La Sarraz-Les Buis) or only residual after sedimentary reworking and condensation (Gorges de l’Orbe, Vallorbe). In the French southern Jura, the Falaises Mb seems to be very developed, but its thickness is not known exactly because of discontinuous or incomplete sections (e.g., La Chambotte, Sillens and Rocher des Hirondelles; Viéban, 1983; Blanc-Alétru, 1995; Arnaud et al., 1998).
Biostratigraphic data and age: Reliable biostratigraphic data and age are based on Early Barremian nannofloras from Eclépens (De Kaenel et al., 2020) and Corcelles Marls at Corcelles-2 (this study), complemented by the Hauterivian-Early Barremian ostracod Assemblage 1 including the Early Hauterivian ostracod microfauna from the Swiss Jura Mountains described by Oertli (1989). The Falaises Mb has also provided fossils of mainly Hauterivian affinities (micro- or macrofossils of shallow carbonate platform and mostly considered typical of the Early Hauterivian, Figs. 15.19–22, 16.1–4) such as echinids [Pseudholaster intermedius (Münster in Goldfuss, 1826); cf. Kroh, 2010; Saucède et al., 2012], brachiopods [Glosseudesia semistriata (Defrance, 1828), Plicarostrum aubersonense Burri, 1956; Lamellaerynchia hauteriviensis Burri, 1953; Sulcirynchia renauxiana (d’Orbigny, 1847)], ostreid bivalves Rastellum (Arctostrea) rectangulare (Roemer, 1839) and benthic foraminifers. In the Neuchâtel area, six sections listed below have provided paleontological data from the Falaises Mb:
1. Le Mail-Les Saars section with a basal part characterized by a fossil-rich marly layer (Figs. 3, 4a, 5f) with very fine and coarse grains of detrital quartz, ostracods of the Assemblage 1 [Protocythere triplicata (Roemer, 1841), Rehacythereis bernardi (Grosdidier, 1964), Hechticythere pumila (Grosdidier, 1964), Schuleridea clunicularis (Triebel, 1938), Cytherella gr. parallela (Reuss, 1846), Neonesidea sp., Bairdoppilata aff. barremiana*, Neocythere (Centrocythere) aff. gottisi*, Cytherelloidea sp. 1* (Scarenzi-Carboni, 1984), *see 4.3.1], benthic foraminifers (abundant orbitolinids Praedictyorbitolina claveli Schroeder, 1994; large lituolids, Reophax and Acruliammina spp., Nautiloculina cretacea Peybernès, 1976; Choffatella decipiens Schlumberger, 1905; Involutinidae with Trocholina and Neotrocholina spp., nodosariids with Lenticulina and Citharina spp., some miliolids; cf. Bartenstein, 1989; Arnaud-Vanneau and Masse, 1989), stromatoporoids, various spines of sea urchin, ossicles of brittle stars (Ophiuroidea), starfishes (Asteroidea) and crinoids, sclerites of Alcyonarian corals (Octocorallia), gastropods, bryozoans, small juvenile terebratulids Loriolithyris sp. and rynchonellids L. hauteriviensis. Along the Saars Street (Figs. 3, 5d–e, 6e), orbitolinids P. claveli are also present higher in the section with sclerites of Octocorallia, spines of sea urchins Goniopygus, large N. cretacea, C. decipiens, Neotrocholina sp. and some ostracods (P. triplicata, Bairdoppilata sp., Schuleridea sp.), and a paleokarst infilling (quartz-rich yellowish grainstone) in the massive whitish limestone just below the discontinuity D has provided micritized orbitolinids indet. and one specimen of large ostracod Strigosocythere chalilovi (Kuznetsova, 1961) indicating at least a much younger Late Barremian-Early Aptian age for this peculiar sediment. Above the discontinuity D, rynchonellids P. aubersonense, L. hauteriviensis and S. renauxiana were collected with A. Pictet in 2014 within the thick bed of marly limestone equivalent to the Corcelles Marls of the sections Corcelles-1 and Corcelles-2.
2. Serrières-Papeterie section (Papeterie Way): rare P. triplicata from conglomeratic marls of the basal Falaises Mb.
3. Corcelles-1 section (Fig. 6a–d, f, g): Corcelles Marls with P. intermedius, P. aubersonense, L. hauteriviensis, P. triplicata, and brittle stars just above the discontinuity D (one small fragmented specimen nearly complete in a marl sample collected within the construction site in 2010).

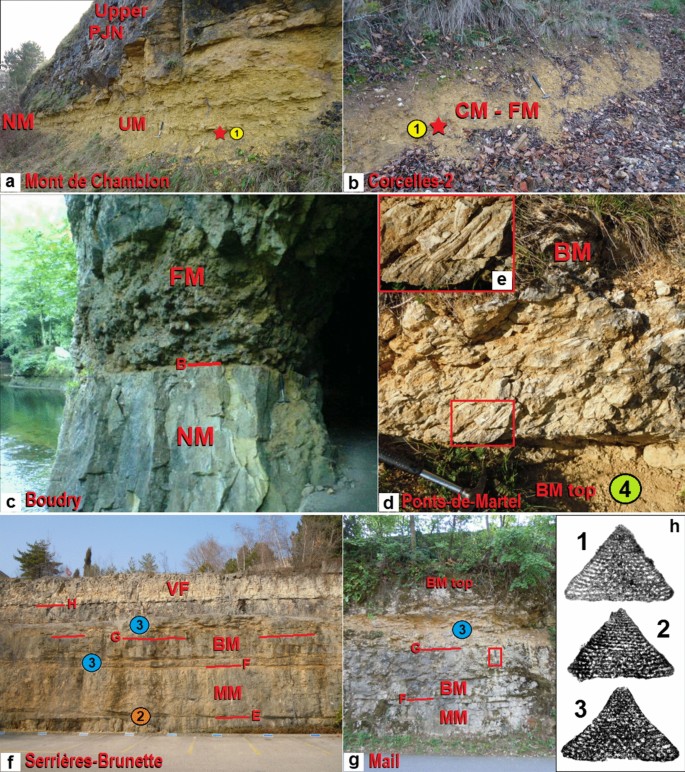

4. Corcelles-2 section (isolated outcrop, Fig. 7b): Corcelles Marls with G. semistriata, R. (A.) rectangulare, P. triplicata, R. bernardi, S. gr. thoerenensis, Cytherelloidea sp., nannofossils.
The lithostratigraphic bed of Corcelles Marls is well developed at Corcelles-1 (Fig. 6d) above glauconite-rich green limestones (Fig. 6f, g), Saars Street (Fig. 6e) and Corcelles-2 (Fig. 7b). Just above the glauconite-rich beds of Corcelles-1, thin marl layers and limestone interbeds are also characterized by abundant rynchonellids (L. hauteriviensis, P. aubersonense) and brittle stars (Ophiuroidea) aforementioned, and therefore have also certainly provided the remarkable starfishes (Asteroidea) from yellow limestones of the “Middle Neocomian” or “Lower Urgonian” in the Neuchâtel area (Coulon, 1872; de Loriol, 1874) at Neuchâtel City and at Vaumarcus (Gorges du ruisseau de la Vaux) near La Lance section (Fig. 1C, n° 13).
Not far away from Corcelles-1, the Falaises Member was also visible during the years 1970–1990 in small sections (not reported on Fig. 1C) at 4.5 km WSW along the entrance roadside at Rochefort (coord. 2552.255/1203.225) and 13.5 km NE in a quarry at Cornaux (coord. 2567.990/1210.150).
5. Rochefort section: Corcelles Marls with G. semistriata, P. aubersonense, L. hauteriviensis (collected by P.-O Mojon in 1975 and with A. Pictet in 2019).
6. Cornaux section: Marly layers with P. intermedius (abundant specimens more or less crushed) and brittle stars (two small specimens on a limestone bed surface harvested in 1981 by Ch.-Ph. Huguenin, a fossil collector from Neuchâtel), which correspond to the Corcelles Marls and the informal inexplicit term of “Marnes de Cornaux” (Pictet, 2021, fig. 2).

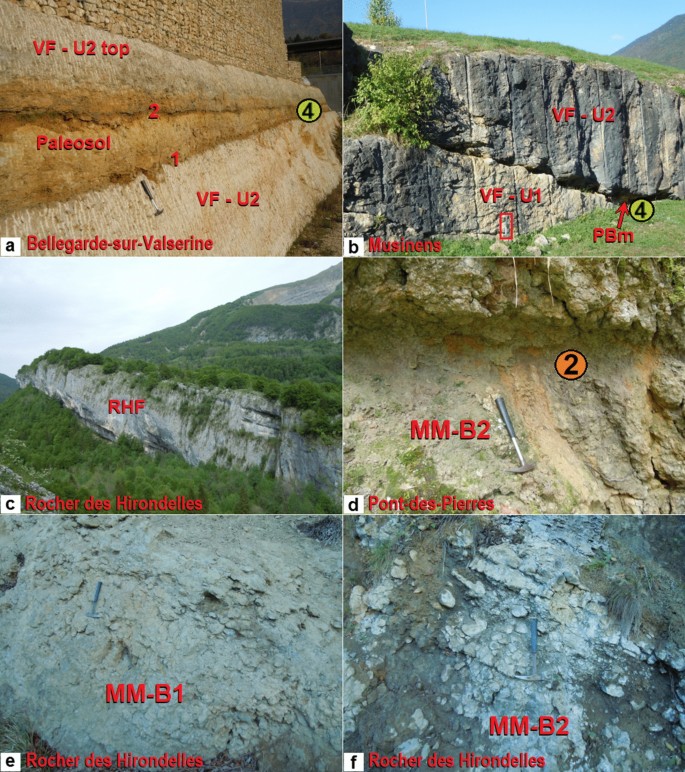

In the southern Jura Mountains (Savoie and Ain departments), the sections of La Chambotte (Savoie) and Sillens (southern Ain) about 40 km south of Bellegarde-sur-Valserine (outside of Fig. 1C) has provided quite similar fossils and microfossils in thick deposits (40–50 m) of the Late Hauterivian-Early Barremian transition (Viéban, 1983, figs. 73, 87), but the base and total thickness of these strata equivalent to the Falaises Mb of the central Jura are not defined precisely.
4.1.3 Montcherand Member (Pictet, 2021 )
Derivation of name: From the village of Montcherand beside the natural site of the Gorges de l’Orbe (Canton Vaud, VD).
Type locality: Gorges de l'Orbe section described by Conrad and Masse (1989, fig. 1), base at 8 m (base of “Marnes d’Uttins”/layer 2) downstream from a footbridge crossing the Orbe River (“passerelle sur l’Orbe”, coord. 2527.840/1175.680), top at 63 m (top of “Calcaires gris/jaunes variés, oolithiques et bioclastiques”/layer 7 pro parte).
Definition and boundaries: In the GdO section, the marly glauconite-rich base (mostly reworked glauconite grains) of the Montcherand Mb is located above the Early Hauterivian “Pierre Jaune de Neuchâtel” (PJN) facies of the upper Neuchâtel Member and merged discontinuities A-E in the hard-to-reach streambed of the Orbe River (coord. 2528.420/1175.505) and was previously considered by Conrad and Masse (1989) as Early Hauterivian Uttins Marls based on very incomplete micropaleontological data with Hauterivian ostracod species S. clunicularis (det. H.-J. Oertli), probably reworked according to the data from the Falaises Mb. However, the marls of the mainly oolitic Montcherand Mb well visible in the Orbe River streambed (Fig. 8f) are characterized by Barremian ostracods of the Assemblage 2 [Strigosocythere strigosa (Grosdidier, 1964), P. triplicata, and mostly juvenile specimens of R. geometrica, B. barremiana, B. luminosa, N. (C.) gottisi, S. derooi, Asciocythere sp]. Above the coastal oolitic facies (tidal bars) of the Early Hauterivian PJN facies (upper Neuchâtel Mb), the marly condensed glauconite-rich base of the Montcherand Mb contains also bryozoans and spines of regular sea-urchins, but is devoid of orbitolinids and typical Barremian benthic foraminifers, as well as stromatoporoids or sclerites of Octocorallia. These representative fossils of the Urgonian facies occur progressively later in the Saars Fm with the installation of estuarine (Montcherand Mb) then recifal conditions (Bôle Mb). Cross-bedding is frequent and indicates deposits in shallow paleoenvironments dominated by tidal currents with transportation of floating nautilid shells [Cymatoceras pseudoelegans (d’Orbigny, 1840)]. The top of the Montcherand Mb is represented by the discontinuity F below the lower bioclastic and fossiliferous marls of the Bôle Mb on the right side of the Orbe river streambed (coord. 2528.790/1175.510, Fig. 8e), with ostracods of the Assemblage 3 and the late Early Barremian ammonite Pseudometahoplites sp. juv. reported by De Kaenel et al. (2020). Above and notably along the pathway 45 m higher (Fig. 8d, coord. 2528.580/1175.400), the fossil-rich Bôle Member with stromatoporoids and orbitolinids Praedictyorbitolina spp. points out recifal conditions and transition marls with the thick marine limestones of the lagoonal Urgonien Blanc facies (Vallorbe Formation).
The Montcherand Mb includes the “Marne(s) de la Russille” or “Russille Marl(s)” defined by Jaccard (1869) in the lower part of La Russille section (located 500 m south from La Russille hamlet) with the brachiopod Glosseudesia ebrodunensis (de Loriol, 1864). In his original definition, Jaccard mentioned in the first place and in singular the “Marne de la Russille” (as a lithostratigraphic bed sensu stricto), then he used ambiguously the plural form to designate several marly layers omitting to precise if it was for all the marly intercalations of La Russille section. Our samplings of fossils in the Jura Mountains confirmed that G. ebrodunensis (Fig.16.10–13) is restricted to the Montcherand Mb at La Russille and Eclépens (cf. De Kaenel et al., 2020) and is presumably extinct above in the upper marls and limestones of the Bôle Mb at La Russille (Fig. 8c) and everywhere else in the Jura Mountains. Moreover, according to the Glosseudesia phyletic lineage (cf. 4.4. Brachiopods), an ancestral species G. inexpectata Mojon, n. sp. from Corcelles-1 (Fig. 16.5–9) predates G. ebrodunensis and can be reported to prior strata of the lowermost Montcherand Mb. So, the term of “Marnes de la Russille” (“Russille Marls”) is therefore a great source of confusion broadly diffused in the literature, because extended sensu lato to the Urgonien Jaune marls of the Jura Mountains (Remane, 1989; Remane et al., 1989a; Blanc-Alétru, 1995; Godet et al., 2010). De Kaenel et al. (2020) introduced the terminology “Marnes de la Russille complex” (or “Russille Marls complex”) in an attempt to correct this old problem of definition. The new paleontological data as well as the sedimentology imply to subdivide the “Russille Marls complex” into distinct and separate units: the Montcherand Member with G. inexpectata, G. ebrodunensis and Assemblage 2 of ostracods, and the Bôle Mb with ostracod Assemblages 3 and basal 4. More precisely, a set of four main successive marly layers I-IV of informal “Russille Marls” can be defined within the “Russille Marls complex” (Fig. 10), with secondary much thinner marl levels also present locally in connection with “Russille Marls” I and III within the Montcherand Mb (I’, I’’, I’’’) and Bôle Mb (III’). The “Russille Marls” are absolutely not restricted to the basal Bôle Mb as indicated by the “Russille Bed” of Pictet (2021, p. 12–15, figs. 5, 8–9), but extend from the basal Montcherand Mb (layer I with G. ebrodunensis of the “Russille Marl” sensu stricto according to Jaccard, 1869) to the entire Bôle Mb (layers II, III and IV).

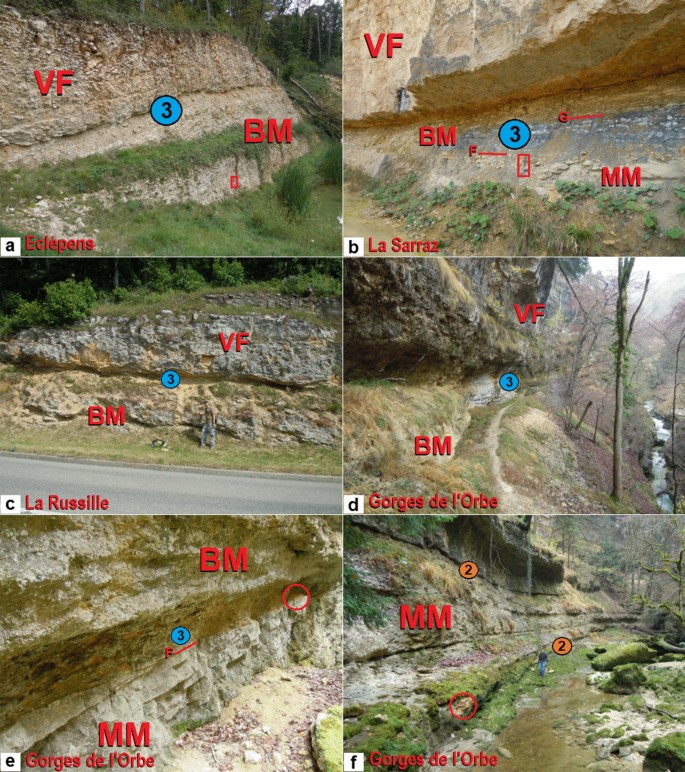

Geographic distribution and lateral equivalents: The Montcherand Mb is developed in the Swiss and French Jura Mountains. Strong lateral facies changes can be observed in the French southern Jura (Rocher des Hirondelles and Pont-des-Pierres sections) and locally in the Swiss central Jura (Vaulion section) with nodular marly-limestone facies of outer platform containing glauconite and muddy facies fossils like irregular sea urchins Toxaster retusus (Lamarck, 1816) of Hauterivian affinity and bivalves Panopea sp. These atypical Urgonien Jaune facies of the Saars Fm (including the Falaises Mb in addition to the Montcherand Mb) correspond to the “Zone de transition inférieure” defined by Conrad (1969, p. 6–7) between the limestones of the Hauterivian Neuchâtel Mb (Grand-Essert Fm; Strasser et al., 2018) and the Urgonien Blanc facies of the Fort de l’Ecluse Mb (Rocher des Hirondelles Fm; Pictet, 2021).
Above the 3rd order discontinuity E recognized by Viéban (1983, p. 221) and interpreted in this study as Early Barremian sequence boundary B1’ (SbB1’, Figs. 10, 11), the basal Rocher des Hirondelles section along the Valserine River (path on the left river bank) or before the tunnel entry of the D991 Road shows deeply bioturbated/brecciated marly limestones and dark marls with nodular/pseudoconglomeratic aspect of about 6 m thickness (Fig. 9e, f) having provided rare ostracods of the Early Barremian Assemblage 2 [juveniles of R. geometrica, P. triplicata, Dolocytheridea, Neocythere (Centrocythere), Paracypris and Asciocythere spp.]. At the Pont-des-Pierres (below the bridge over the canyon of the Valserine River), the top of this series presents a ferruginous paleosol with molds of rootlets and siliciclastic dark marls (Fig. 9d) with microfossils such as mostly juvenile ostracods of the Assemblage 2 [S. strigosa, P. triplicata, N. (C.) gottisi, R. geometrica, B. barremiana, S. derooi, T. consuetus, Asciocythere sp.], benthic foraminifers (orbitolinids Eopalorbitolina? and Paracoskinolina spp., large Reophax and lituolids spp., Spirillina sp., nodosariids), small gastropods, spines of regular sea-urchins and sclerites of Octocorallia. These sediments with marly and pseudoconglomeratic facies interpreted as mangrove deposits are equivalent to the Montcherand Mb. In the central Jura, the lower Urgonien Jaune facies of the Vaulion section contain similar marly deposits (including Falaises Mb) not dated precisely (Conrad and Masse, 1989, fig. 2, p. 312–313: layers 8–9, 20 m thick).
Biostratigraphic data and age: Reliable biostratigraphic data are based on Early Barremian nannoflora (De Kaenel et al., 2020), ostracod Assemblage 2 and brachiopod species Glosseudesia inexpectata and ebrodunensis (this study), these data and their correlations are presented in Figs. 10 and 11. In main sections of the Neuchâtel area such as Corcelles-1–2 (Figs. 6a–c, 7b), Les Saars-Le Mail and Serrières-Brunette (Fig. 7f), the basal Montcherand Mb can be characterized by mostly reworked glauconite (notably at Corcelles-1), Glosseudesia inexpectata Mojon, n. sp., ostreid bivalves Exogyra (Aetostreon) latissima (Lamarck, 1801) [= Exogyra sinuata (Sowerby, 1822)] and poor ostracod Assemblage 2 (P. triplicata, dwarf R. cf. geometrica, B. barremiana), sclerites of Alcyonarian corals, spines of sea urchin Goniopygus and benthic foraminifera N. friburgensis. At Creux de Malevaux (Cormondrèche), a small section 5 m thick in a streambed (coord. 2556.490/1203.350 to 2556.370/1203.440, Fig. 4e) has also provided ostracods of the Assemblage 2 (dwarf R. geometrica and B. barremiana, P. triplicata, S. strigosa, N. (C.) cf. gottisi, N. (C.) djaffarovi, S. derooi, D. longa, D. intermedia, H. hechti), benthic foraminifers (large lituolids, Reophax and Acruliammina spp., N. cretacea, rare C. decipiens and Neotrocholina sp., Lenticulina sp.), stromatoporoids, ossicles of brittle stars (Ophiuroidea) and starfishes (Asteroidea), crinoids, sclerites of Octocorallia, spines of Goniopygus and other echinids, bryozoans. Compared to the ostracod Assemblage 1, the Assemblage 2 indicates a significant change in the ostracod microfauna and a biological event everywhere in the Jura Mountains by emergence of mostly immature marker species with never abundant small juveniles (but frequent and typical large adult specimens characterize the next Assemblage 3), and some quite common species such as S. strigosa and P. triplicata notably in the lower Gorges de l'Orbe section (Fig. 8f) and below the Rocher des Hirondelles Fm in the southern Jura (Pont-des-Pierres section, Fig. 9d).
4.1.4 Bôle Member (Pictet, 2021 )
Type locality: Bôle section within the Merdasson ravine (Fig. 10), base at 1.4 m in the Merdasson streambed (coord. 2554.045/1201.705), top at 14.1 m (coord. 2553.920/1201.885).
Definition and boundaries: The Bôle Mb starts above the 3rd order discontinuity F with a yellowish series of limestones (packstones) interbedded by marly layers and ends with the maximum flooding surface H, before the deposition of the Vallorbe Fm. The Bôle section in the Merdasson ravine is well known since the 19th century for its very fossiliferous yellow marls and limestones, but neither log nor description were ever provided for the “Couches de Bôle” or “Calcaires intermédiaires de Bôle” simply mentioned by de Tribolet (1856, 1857). The aspect of the Bôle Mb can change a lot in some sections, the series of the Eclépens railway trench (Fig. 8a, coord. 2532.060/1168.570, at 1.25 km NE from the Eclépens section) and La Sarraz-Les Buis section (Fig. 8b, at 2 km WNW from the Eclépens section, cf. De Kaenel et al., 2020) are very different according to respectively lagoon or estuarine deposition paleoenvironments.
Geographic distribution and lateral equivalents: The Bôle Mb is developed in the Swiss and French central Jura Mountains. In the French southern Jura, whitish massive limestones of the Fort de l’Ecluse Mb (lower Urgonien Blanc facies) replace the Bôle Mb.
Biostratigraphic data and age: Reliable biostratigraphic data are based on early Late Barremian nannoflora (De Kaenel et al., 2020) and ostracod Assemblage 3 (data and correlations in Figs. 10, 11). The Early to Late Barremian Assemblage 3 is characterized by typical and abundant Barremian ostracod markers with mostly subadult or adult specimens [Rehacythereis geometrica (Damotte and Grosdidier, 1963); Bairdoppilata barremiana Mojon, n. sp.; Bairdoppilata luminosa Kuznetsova, 1961; Neocythere (Centrocythere) gottisi Damotte and Grosdidier, 1963; Schuleridea derooi Damotte and Grosdidier, 1963; Dolocytheridea intermedia Oertli, 1958] collected in the Bôle Mb at Bôle (Fig. 5a, c), Serrières-Brunette (Fig. 7f), Le Mail (Fig. 7g), Boudry (section not reported in this study, coord. 2553.550/1201.135, cf. logs in Blanc-Alétru, 1995 and Adatte et al., 2005), Le Vanel, La Sarraz-Les Buis (Fig. 8b), La Russille (Fig. 8c), Gorges de l’Orbe (Fig. 8d), Vallorbe, Vaulion, and in the Eclépens railway trench (Fig. 8a). The Eclépens section has only provided very poor ostracod microfaunas (De Kaenel et al., 2020) of Assemblages 3 and basal 4. Locally at the top of the Bôle Mb (Pont-de-Martel, Eclépens, Vaulion), the next Late Barremian-Early Aptian ostracod Assemblage 4 is characterized by the occurrence of Strigosocythere chalilovi (Kuznetsova, 1961). In the French southern Jura, this nice species S. chalilovi is associated with Rehacythereis buechlerae (Oertli, 1958) in Late Barremian marls (Rivière Mb at Noire Combe, emersive layers on top of the Vallorbe Fm at Montanges and Bellegarde-sur-Valserine, Fig. 9a), and in paleokarst infilling by latest Barremian marls of Poet Beds (Fulie Mb, Perte-du-Rhône Fm) at Musinens (Fig. 9b). However, in the Fulie Mb of the Swiss central Jura Mountains, S. chalilovi is commonly associated with typical R. geometrica in the marls of the latest Barremian Poet Beds and earliest Aptian Vauglène Beds at La Presta (Sauvagnat, 1999; Pictet et al., 2019).
The Bôle Mb is particularly fossil-rich (notably at Le Mail, Serrières-Brunette, Boudry, Le Vanel, Pont-de-Martel, Montlebon, Gorges de l’Orbe) with stromatoporoids, isolated colonial corals (Hexacorallia), bryozoans, abundant sclerites of Alcyonarian corals (Octocorallia), regular echinids [mainly frequent spines of Goniopygus; Goniopygus peltatus L. Agassiz, 1838; Pseudocidaris clunifera (L. Agassiz 1840); Cidaris lardyi Desor, 1855; Hyposalenia stellulata (L. Agassiz, 1838); Pseudodiademma jaccardi Cotteau, 1863], rynchonellids [Sulcirynchia gillieroni (Pictet, 1872), Sulcirynchia picteti (Burri, 1956) and Belbekella lata (d’Orbigny, 1847); cf. Burri, 1956; Gaspard, 1989; Smirnova, 2012], rare nautilids [Cymatoceras pseudoelegans (d’Orbigny, 1840), Eucymatoceras plicatum (Fitton, 1836)] and one single very rare ammonite Pseudometahoplites sp. juv. (cf. De Kaenel et al., 2020), benthic foraminifera such as orbitolinids Praedictyorbitolina claveli Schroeder, 1994 and others (Choffatella decipiens Schlumberger, 1905; Neotrocholina friburgensis Guillaume and Reichel, 1957; Cuneolina hensoni Dalbiez, 1958; Nautiloculina cretacea Peybernès, 1976; Nautiloculina broennimanni Arnaud-Vanneau and Peybernès, 1978; big Reophax sp., various large lituolids, nodosariids, miliolids; cf. Bartenstein, 1989; Arnaud-Vanneau and Masse, 1989). The Bôle Mb has provided other typical irregular echinids such as Astrolampas productus (L. Agassiz, 1836) and Heteraster couloni (L. Agassiz, 1839) in the sections of Ponts-de-Martel, Montlebon and Gorges de l’Orbe. The Bôle Mb top is also characterized in internal platform sections of the Swiss and French central Jura Mountains by rudist reefs with Pachytraga tubiconcha Astre, 1961 (Masse et al., 1989). The Ponts-de-Martel section with early Late Barremian marls (basal Assemblage 4 of marine ostracods) above a reef with P. tubiconcha and rare requieniid rudists Requienia ammonia (Goldfuss, 1838) is located in a tilted and overturned series of Urgonien Jaune facies (Fig. 7e, d; Pasquier et al., 2013; Eichenberger et al., 2020).
4.1.5 Rocher des Hirondelles Formation (Pictet, 2021 , revised)
This formation is well developed in the French southern Jura Mountains (Valserine Valley, defile of Fort de l’Ecluse) with cliffs of massive limestones and marly outcrops (Geological map of France 1:50′000 n° 653, Saint-Julien-en-Genevois, Donzeau et al., 1997), and includes the Fort de l’Ecluse and Rivière members (Pictet, 2021). Discontinuous outcrops at Fort de l'Ecluse (Charollais et al., 2013) are more difficult to follow in the topography, but allow to recognize clearly these two members. The original Rocher des Hirondelles Fm (Pictet, 2021) is revised in this study by excluding its third “Vallorbe Member” of Pictet (2021), which is clearly a distinctive formation (cf. remarks about the Vallorbe Fm below).
4.1.6 Fort de l’Ecluse Member (Pictet, 2021 )
Derivation of name: From the defile of Fort de l’Ecluse.
Associate locality: Rocher des Hirondelles section with massive limestones (Figs. 9c) described as “Calcaires inférieurs urgoniens” by Conrad (1969), base at the entry of the D991 Road tunnel through the Rocher des Hirondelles and top just after the tunnel exit (coord. 2480.800/1123.050 to 2480.940/1122.800), the section is also accessible above the path along the left side of the Valserine River, the total thickness is 99 m (Conrad, 1969; Viéban, 1983; Arnaud et al., 1998). The massive limestones are easily accessible and observable all around the sheer cliff of Rocher des Hirondelles and the Noire Combe escarpments.
Thickness: 101 m in the Rocher des Hirondelles-La Rivière reference section (Fig. 10), 99 m at Rocher des Hirondelles and only 2 m visible at the base of La Rivière section (Conrad, 1969), approximately 60 m in the Fort de l’Ecluse and Vuache sections (Charollais et al., 2013; Pictet, 2021).
Definition and boundaries: The Fort de l’Ecluse Mb starts below the 3rd order discontinuity F on oolithic limestones of the uppermost Montcherand Mb and ends below the marly Rivière Mb with the surface H interpreted as the maximum flooding surface B3 (mfs B3). The boundaries F, G, H indicated by Viéban (1983) and Arnaud et al. (1998, p. 54) are interpreted differently in this study (F as 3rd order Early Barremian SbB2, G and H as Late Barremian SbB3 and mfsB3 respectively, Fig. 10). The lower Fort de l’Ecluse Mb incorporates massive whitish Urgonien Blanc (UB) facies including basal oolitic limestones with stromatoporoids in their upper part, these beds on either side of the discontinuity F can be correlated in the Gorges de l’Orbe reference section with the upper Montcherand Mb (first strata of oolitic UB facies) and the Bôle Mb (stromatoporoids). On either side of the Rivière Mb, massive limestones with rudists correspond to those of the Vallorbe Fm (cf. Vallorbe type section; Conrad and Masse, 1989; Pictet, 2021).
Geographic distribution and lateral equivalents: The Fort de l’Ecluse Mb is developed only in the French southern Jura, it is replaced in the central Jura Mountains by the Bôle Mb (Saars Fm, cf. correlations in Fig. 10).
Biostratigraphic data and age: The Fort de l’Ecluse Mb has provided typical late Early to Late Barremian benthic foraminifers in thin sections (Conrad, 1969; Viéban, 1983; Arnaud et al., 1998), notably the orbitolinids Eopalorbitolina charollaisi Schroeder and Conrad, 1967; Valserina broennimanni Schroeder and Conrad, 1967; Paleodictyoconus actinostoma Arnaud-Vanneau and Schroeder, 1976; Paracoskinolina maynci (Chevalier, 1961), associated with other species such as Melathrokerion valserinensis Brönnimann and Conrad, 1966.
4.1.7 Rivière Member (Pictet, 2021 )
Derivation of name: From the hamlet of La Rivière beside the type section.
Type locality: La Rivière section (Conrad, 1969) in a small cliff (coord. 2480.600/1122.180 to 2480.590/1122.250) accessible with a forest pathway on the right side of the Valserine River.
Thickness: 8.5 m in the type section of La Rivière (Fig. 10), where the Rivière Mb must be restricted to the marly layers 20–23 of the “Calcaires marneux de La Rivière” described by Conrad (1969), because the layers 24–32 (19.2 m thick with an observation gap of the layer 29 estimated at 2 m, Conrad, 1969, Pl. 7) can be assigned to mostly massive limestones of the upper Vallorbe Fm with rudists and sea urchins H. couloni in the slightly marly layer 30. In the central Jura Mountains, similar beds along the road at 1 km south of Croy (Vaud Jura) are mentioned and placed by Pictet (2021, p. 26) in the upper Bôle Mb, but more likely belong to the Vallorbe Formation above SbB4 according to the ostracod datings (cf. Fig. 10) and the fact that globose morphotypes of H. couloni are absolutely not typical and abundant markers for the Bôle Mb. In the Fort de l’Ecluse section, the lithostratigraphic bed of the “Calcaires marneux de La Rivière sensu stricto” is also 8 m thick (Conrad, 1969; Charollais et al., 2013; 11 m by Pictet, 2021).
Definition and boundaries: The Rivière Mb is developed on the maximum flooding surface H (considered as early Late Barremian mfsB3) with a micritic and marly series including fossil-rich dark gray marls above a bioperforated 3rd discontinuity interpreted as the Late Barremian sequence boundary B4 (SbB4).
Geographic distribution and lateral equivalents: The marly facies of the Rivière Mb are developed only in the French southern Jura, they are replaced in the central Jura Mountains by limestones of the upper Vallorbe Fm (cf. correlations in Fig. 10).
Biostratigraphic data and age: The marly limestones and marls of the Rivière Mb are characterized by abundant loose specimens of typical Barremian fossils and microfossils such as echinids Heteraster couloni (L. Agassiz, 1839) and small Pygaulus desmoulinsi L. Agassiz, 1847; orbitolinids [E. charollaisi, V. broennimanni, P. actinostoma, P. maynci) and other benthic foraminifers (large Reophax spp., C. decipiens, N. friburgensis, M. valserinensis, nodosariids), and ostracods of the Late Barremian Assemblage 4 (gray marls of Noire Combe with S. chalilovi, R. buechlerae, rare B. barremiana, N. (C.) gottisi, S. alata, C. gr. parallela, D. intermedia and Cresacytheridea sp.).
The Vallorbe Fm (Fig. 10) was introduced and defined by Strasser et al. (2016) for the Urgonien Blanc facies of the Swiss Jura Mountains (cf. Remane et al., 1989a), according to previous descriptions and data (Nolthenius, 1921; Conrad and Masse, 1989, fig. 4, p. 315–316; Blanc-Alétru, 1995). Pictet (2021) revised it as “Vallorbe Member” of his Rocher des Hirondelles Fm and by placing the “Russille Marls” sensu Strasser et al. (2016) at the top of the Bôle Mb. But, the Vallorbe Fm is a separate formation according to the ostracod chronology and the general NE-SW progradation of the Urgonian platform towards the Vocontian basin in the southwest, a concept unanimously recognized in the literature by all the previous authors. The lower boundary of the “Vallorbe Mb” reported by Pictet (2021) is indeed older in the Vallorbe section above “Russille Marls” III dated by ostracod A3, and clearly younger 60 km southwest in the reference section of Rocher des Hirondelles-La Rivière above the Rivière Mb dated by non basal ostracod A4. In the Vallorbe type section, Pictet (2021, fig. 20) does not explain either why only the “Vallorbe Mb” would represent the whole “Rocher des Hirondelles Fm”, whereas a large part of the Vallorbe Fm is obviously equivalent to the Rivière Mb. Other inaccuracies and inconsistencies can be also noticed from this author, as in his fig. 24 (top) with a direction of progradation SW-NE towards the northeast and a “Vallorbe Mb” strangely splitted in two separate sedimentary bodies (therefore distinct lithostratigraphic units which must be named differently), and in his fig. 25 where the Bôle and Rivière members can in no way be considered as equivalent but are superimposed according to the ostracod chronology.
The type section of the Vallorbe Fm (Canton Vaud) is accessible in a steep cliff in front of the Vallorbe railways station (coord. 2517.900/1173.910 to 2517.960/1173.935), between the Saars Fm and the latest Barremian Poet Beds (“Aptien”/Bédoulien in Conrad and Masse, 1989) with a thin layer of yellow marl containing marine ostracods Platycythereis rostrata Sauvagnat, 1999. The Vallorbe Fm is well developed in the central and southern Jura Mountains, and locally characterized by requieniid and agriopleurid rudists [Requienia ammonia (Goldfuss, 1838), Requienia renevieri Paquier, 1903; Agriopleura spp.], which are also present in the upper part of the Fort de l’Ecluse Mb (Rocher des Hirondelles Fm).
In the Vallorbe section (Fig. 10), five sequence boundaries can be reported in the Urgonian series. The 3rd order discontinuities A-E (SbB1’), F (SbB2), G (SbB3) are indicated by bioperforated and oysters encrusted hardgrounds, SbB4 corresponds to facies/microfaciès change from thick massive grainstones to thinner beds and micritic limestones with rudist debris, and SbB5 is a well visible karstified and rubefied hardground already reported by Conrad and Masse (1989). Furthermore, the surface H indicates clearly the maximum flooding surface B3 (mfsB3) below the middle Late Barremian prograding Urgonien Blanc facies corresponding to the highstand system track of the sequence Ba3 (Godet et al., 2010; De Kaenel et al., 2020).
Emersions with brackish and lacustrine conditions are present at Bellegarde-sur-Valserine and Montanges in the top of the Vallorbe Fm with paleokarst surfaces (Musinens, Fig. 9b) and marly layers (Fig. 9a) containing black pebbles and various microfossils (Pictet et al., 2019) such as charophytes and fresh- or brackishwater ostracods (cf. Sect. 4.3.2), serpulids, small gastropods, spines of regular sea-urchins, transported Dasycladalean algae [Salpingoporella genevensis Conrad, 1969 ex Conrad, Praturlon and Radoičić, 1973; Clypeina paucicalcarea (Conrad, 1970) Granier, 2013] and benthic foraminifers (orbitolinids P. actinostoma, P. maynci, Praedictyorbitolina, Cribellopsis and Orbitolinopsis spp., C. decipiens, C. hensoni, N. cretacea, N. broennimanni, large Reophax and lituolids spp., miliolids) as well as some marine ostracods of the Assemblage 4 (S. chalilovi, R. buechlerae, Rehacythereis spp. 2 and 3, B. barremiana, P. rostrata, D. intermedia, Schuleridea and Asciocythere spp.); the rare specimens of primitive R. buechlerae were formerly assimilated sensu lato to Rehacythereis gr. geometrica (in Pictet et al., 2019).
4.1.9 Perte-du-Rhône Formation (Pictet et al., 2016 )
The Rocher des Hirondelles Fm (Pictet, 2021, revised) is overlaid by the Perte-du-Rhône Fm (Pictet et al., 2016, 2019) including latest Barremian-Late Aptian Fulie Member (Poet Beds and Vauglène Beds) below a thick Late Aptian-Early Albian Mussel Member. In the north of Bellegarde-sur-Valserine, the Musinens section (along a football pitch) shows a paleokarst infilling of green marls from the Poet Beds (Fig. 9b) characterized by diverse typical benthic foraminifers (orbitolinids P. actinostoma and P. maynci, C. decipiens, N. friburgensis, C. hensoni, N. cretacea, N. broennimanni; Nezzazatinella macovei Neagu, 1979; large Reophax and various lituolids spp., nodosariids, miliolids) and ostracods of the shallow marine Assemblage 4 (S. chalilovi, R. buechlerae, B. sp. 302, B. barremiana, B. luminosa, D. intermedia, Hechticythere sp. 1). The species B. sp. 302 derived from B. barremiana indicates a deposit younger than the top of the Vallorbe Fm, sclerites of Alcyonarian corals are also present but rare.
At La Presta (Pictet et al., 2016, fig. 5; Pictet et al., 2019, fig. 12), the Vallorbe Fm top correspond to a thick ferruginous crust of emersion surface covered by whitish marls (Poet Beds) of confined marine paleoenvironment with serpulids, small gastropods and bivalves, benthic foraminifers (orbitolinids P. actinostoma, P. maynci, Cribellopsis and Orbitolinopsis spp., C. decipiens, C. hensoni, large Reophax and lituolids spp., Haplophragmoides and small Nautiloculina spp., miliolids), and abundant well preserved ostracods of the Assemblage 4 with S. chalilovi, R. geometrica, B. barremiana, B. luminosa, N. (C.) gottisi, S. alata. Directly above, the earliest Aptian Vauglène Beds correspond to superposed blue marls characterized by profusion of orbitolinids Palorbitolina lenticularis (Blumenbach, 1805) and a slightly different (of more open sea) ostracod microfauna (Sauvagnat, 1999) of the Assemblage 4, with S. chalilovi, R. geometrica, P. derooi, S. alata, S. derooi, N. (C.) gottisi, and still present species of Hauterivian affinities such as P. triplicata and H. hechti.
12 km to the south, the section of La Lance (Charollais et al., 1994; Blanc-Alétru, 1995) shows in the Vallorbe Fm a paleokarst infilling of earliest Aptian green marls (Vauglène Beds) with very abundant P. lenticularis (and some large lituolids), spines of regular sea-urchins, fish teeth (selachians, pycnodonts), and reworked Late Barremian microfossils (in its basal part) from the Vallorbe Fm top such as marine ostracods (rare R. geometrica), benthic foraminifers (orbitolinids P. actinostoma, C. decipiens, N. friburgensis, miliolids), serpulids, small gastropods, charophytes (Atopochara trivolvis triquetra Grambast, 1968; Clavatoraxis thallus, rare poorly preserved Globator trochiliscoides Grambast, 1966 and Hemiclavator sp.) and small crocodile teeth.
The Fulie Mb and the Mussel Mb are mostly developped in the Valserine Valley (Pictet et al., 2016, 2019). In the Neuchâtel Jura Mountains, the upper part of the Fulie Mb with Early to Late Aptian blue-green marls completely devoid of microfossils is covered by the Mussel Mb with greensands/sandstones (Late Aptian—Early Albian) and thick gray-beige soft marls (Early Albian) at La Presta (Pasquier et al., 2013; Pictet et al., 2016, 2019). Nearby in Le Vanel section (Thiébaud, 1937), the latest Barremian-Aptian marls and sandstones are absent, Early Albian greensands with phosphate pebbles and soft gray-beige marls overlay directly the Vallorbe Fm by non-deposition or erosion following an Aptian-Albian synsedimentary paleotectonics (Pictet et al., 2019).
4.2 Calcareous nannofossils
Five samples were analysed in the Uttins Marls and seven in the Corcelles Marls. The nannofossil data of these analyses are grouped within two main samples Uttins (Figs. 7a, 12A, 13, 14) and Corcelles C-2 (Figs. 7b, 12B, 13, 14). This study on calcareous nannofossils from Barremian marls started in 2005 for the publications of Godet et al. (2010) and De Kaenel et al. (2020). This third publication is another step for the knowledge of calcareous nannofossils in the Swiss Jura Mountains. New data have been also acquired by the study of the late Early Hauterivian Uttins Marls.
4.2.1 Calcareous nannofossil abundance and preservation
The nannoflora of sample 5m in the glauconite-rich Uttins Marls is common (3 specimens per field of view, cf. In situ Assemblage, Fig. 12A) and the preservation poor to moderate. The diversity is moderate with 28 genera and 45 species observed. In this assemblage, Watznaueria and Cyclagelosphaera species are abundant. Other species are rare to very rare. The nannoflora of sample 1m in the Corcelles Marls is also common (1 specimen per field of view, cf. In situ Assemblage, Fig. 12B) with a poor to very poor preservation. The diversity is moderate with 23 genera and 36 species observed. This assemblage is also dominated by abundant Watznaueria species. Only few Cyclagelosphaera species are observed.
4.2.2 Calcareous nannofossil systematic taxonomy

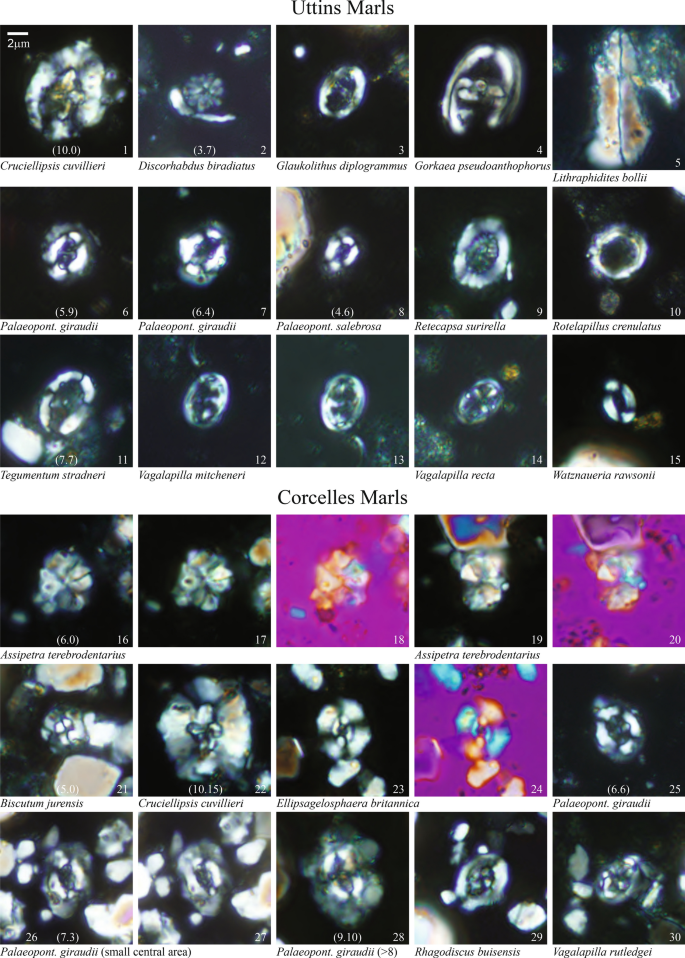

Important markers from the samples of the Uttins Marls and Corcelles Marls are reported (Fig. 12A, B) and also illustrated (Fig. 13), the species are listed by generic epithet. Among them, one new combination is introduced such as Vagalapilla mitcheneri De Kaenel and Mojon, n. comb.
Discussion: Several specimens of A. terebrodentarius are observed in the Corcelles Marls. All of them have the typical petaloid structure and are between 5 and 6 microns. The LO (lowest occurrence) of A. terebrodentarius is placed in the Late Hauterivian Angulicostata (= Ohmi) ammonite Zone by Bergen (1994) and in the Late Hauterivian Variabilis ammonite Zone by Rutledge (1994). The LO of A. terebrodentarius is similar between the Tethyan and North Sea areas. The presence of A. terebrodentarius indicates that the Corcelles Marls are younger than the Uttins Marls.
Biscutum jurensis De Kaenel in De Kaenel et al., 2020
Discussion: B. jurensis was described in late Early Barremian sediments from the “Marnes de la Russille complex” and recorded from the Early Barremian Hugii ammonite Zone to the Late Barremian Vandenheckii ammonite Zone. Very rare specimens of B. jurensis are observed in the Corcelles Marls. B. jurensis is absent from the Early Hauterivian Uttins Marls.
Calculites suturus Bown and Concheyro, 2004
Discussion: Very rare specimens of C. suturus are observed in the Uttins Marls. Bown and Concheyro (2004) recorded this species from the late Early Hauterivian to the base of the Late Hauterivian (basal Sayni ammonite Zone).
Cruciellipsis cuvillieri (Manivit, 1966) Thierstein, 1971
Discussion: A single specimen of C. cuvillieri is observed in the Uttins Marls (Fig. 13.1). Even very rare occurrences of nannofossils can be used to date samples. In a nannofossil assemblage, the dominant species are usually not the markers and rare species are more important. The HRO (highest regular occurrence) of C. cuvillieri is used as zonal marker to define the NC4/NC5 zonal boundary in the Tethyan zonal diagram of Roth (1978, 1983), Bralower (1987) and Bralower et al. (1995). In Figure 14, the NC4/NC5 boundary is placed at the HO of Speetonia colligata following the emendation of the nannofossil zones of Applegate and Bergen (1988) and Bergen (1994). This boundary occurs in the early Late Hauterivian Sayni ammonite Zone. Sporadic occurrences of C. cuvillieri have been observed by several authors in NC5 (Applegate and Bergen, 1988; Bralower, 1991). These occurrences of very isolated specimens are always interpreted as reworked. The LO of C. cuvillieri is placed by De Kaenel and Bergen (1996) in the Late Tithonian. A single specimen is observed in the Corcelles Marls. The observed specimen is large (10.15 microns) with a broad, tapering central cross. Based on the presence of A. terebrodentarius (LO in upper NC5C) and on Barremian markers, the occurrence of C. cuvillieri in the Corcelles Marls is also interpreted as being reworked.
Cyclagelosphaera jiangii Covington and Wise, 1987
Discussion: Very rare specimens of C. jiangii are observed in the Uttins Marls. This Cyclagelosphaera species is differentiated from other small Cyclagelosphaera by its larger central opening. According to Bown (2005), this species ranges from the Berriasian to the early Late Hauterivian (nannofossil Subzone NC4B).
Cyclagelosphaera margerelii Noël, 1965
Discussion: The HOA (highest occurrence acme) is used as a zonal marker in Boreal nannofossil biostratigraphy by Jeremiah (2001) to define the top of the Zone LK25 (Boreal middle Inversum ammonite Zone). Common C. margerelii are observed in the Uttins Marls. Together with E. striatus, S. silvaradius and Tethyan marker L. bollii, this sample belongs to the upper LK25 Zone, which corresponds to the Tethyan upper Loryi and basal Nodosoplicatum ammonite Zones.
Diloma galiciense Bergen, 1994
Discussion: A single specimen of D. galiciense is recorded in the Uttins Marls. According to Rutledge (1994), this species ranges in Boreal area from the Early Hauterivian (Radiatus ammonite Zone) to the Late Hauterivian (Variabilis ammonite Zone).
Discussion: A single specimen of D. biradiatus (3.7 micron and 11 elements) is observed in the Uttins Marls. According to Thierstein (1973), the known range of D. biradiatus is Late Valanginian to Late Barremian, but in South France, this author indicated that the HO (highest occurrence) of D. biradiatus is just above the Early/Late Hauterivian boundary.
Ellipsagelosphaera britannica (Stradner, 1963) Perch-Nielsen, 1968
Discussion: Ellipsagelosphaera and Watznaueria species are separated based on their central area constructions. The holotype of the genus Ellipsagelosphaera, E. britannica, has a central transverse bar. All Ellipsagelosphaeraceae species with a transverse bar are placed in the genus Ellipsagelosphaera (Noël, 1965). And all Ellipsagelosphaeraceae species with a central area open or filled by cycles of elements or plates are placed in the genus Watznaueria (Reinhardt, 1964). Bown (1987) described the family Watznaueriaceae to replace the family Ellipsagelosphaeraceae described by Noël (1965), and considered Ellipsagelosphaera as a subjective junior synonym of Watznaueria. At the opposite, we consider that the two genera are distinct and separated by their central area constructions.
Discussion: This Hauterivian marker is observed in the Uttins Marls. The HO of E. striatus is placed by Bergen (1994) at the base of the Sayni ammonite Zone (lowermost Late Hauterivian).
Glaukolithus diplogrammus (Deflandre in Deflandre and Fert, 1954) Reinhardt, 1964
Discussion: Several specimens of G. diplogrammus are observed in the Uttins Marls. G. diplogrammus is reported from the Early Valanginian to the Late Campanian.
Gorkaea pseudoanthophorus (Bramlette and Martini, 1964) Varol and Girgis, 1994
Discussion: Several specimens of G. pseudoanthophorus are observed in the Uttins Marls and Corcelles Marls. No increases of this species are recorded in these two samples.
Watznaueria quadrata Worsley, 1971; p. 1315, Pl. 2, figs. 20–22.
Non Microstaurus quadratus Black, 1971; p. 404–405, Pl. 32, Fig. 2.
Discussion: Because of the species name quadrata, there are some confusions in the literature between Grantarhabdus quadratus and Microstaurus quadratus. The species Watznaueria quadrata described by Worsley (1971) belongs to the genus Grantarhabdus based on the diagonal cross structure. The species Microstaurus quadratus described by Black (1971) is a junior synonym of Helenea staurolithina described by Worsley (1971). Contrary to Rutledge and Bown (in Bown et al., 1998) and the Nannotax3 website, we include the Cretarhabdaceae species with diagonal central structure in the genus Grantarhabdus. Rare specimens of G. quadratus are recorded in the Uttins Marls. The extinction of G. quadratus is placed by Bergen (1994) in the Late Hauterivian Ligatus ammonite Zone.
Discussion: Very rare specimens of L. bollii are recorded in the Uttins Marls. All of them are overgrowth, but the outer irregular outlines are similar to the holotype of this species described by Thierstein (1971). Thierstein (1971, 1973) used the LO of L. bollii to define the top of the Calcicalathina oblongata and the base of the Lithraphidites bollii Zones. This marker is used in most Tethyan zonations. In the zonal diagram of Roth (1978, 1983), the LO of L. bollii defined the NC4A/NC4B subzonal boundary. The LO of L. bollii lies within the lower part of the Early Hauterivian Loryi ammonite Zone.
Nannoconus quadricanalis Bown and Concheyro, 2004
Discussion: Bown and Concheyro (2004) recorded N. quadricanalis from the Late Valanginian to the Late Hauterivian in the Neuquén Basin (Argentina). Similar specimens were observed in the Eclépens quarry section by De Kaenel et al. (2020) from the Early Barremian to the early Late Barremian. N. quadricanalis is also present in the Corcelles Marls (Fig. 12B). This quadriangular Nannoconus species with wide canal probably evolved in N. truittii during the Late Barremian. The basal occurrence of N. truittii was observed by De Kaenel et al. (2020, fig. 13) in the early Late Barremian.
Palaeopontosphaera giraudii De Kaenel in De Kaenel et al., 2020
Discussion: P. giraudii is frequent in both the Uttins Marls and Corcelles Marls. Medium-sized specimens (between 4.5 and 8.0 microns) are present in both sections of Uttins and Corcelles-2, but specimens with smaller central areas (Fig. 13.26–28) are observed in the Corcelles Marls. Some of these specimens are very large, between 8 and 10 microns (Fig. 13.28). All of these specimens have a small central area, almost filled by the axial cross and are recorded as P. giraudii (> 8 microns). This variation of typical forms of P. giraudii may thus provide an alternative marker for the Early Barremian. These forms were not observed by De Kaenel et al. (2020) in the late Early Barremian-early Late Barremian from the “Marnes de la Russille complex”. Bown and Concheyro (2004) described two Biscutaceae species from the Hauterivian in the Neuquén Basin (Argentina). The first species, Crucibiscutum trilensis (between 5 and 5.5 microns) is broadly elliptical with a central area spanned by off-axial cross-bars. This species restricted to the Late Hauterivian (Bown and Concheyro, 2004) is not observed in both the Uttins Marls and Corcelles Marls. The second species, Crucibiscutum neuquenensis (between 6.1 and 6.2 microns) is also broadly elliptical with a broad rim, a narrow inner distal cycle, and a central area spanned by axial cross-bars and is similar to P. giraudii. P. giraudii is differentiated from C. neuquenensis by the thicker inner rim cycle and thicker axial cross structure. According to Bown and Concheyro (2004), C. neuquenensis is restricted to the Early Hauterivian Nodosoplicatum ammonite Zone. Jeremiah (2001) described from the basal Cretaceous (Ryazanian from Boreal area) Crucibiscutum ryazanicum, a form with an asymmetrical axial cross between 4 and 5 microns. Some of the specimens of P. giraudii observed in the Uttins Marls are similar, with off-axial (slightly rotated) cross-bars, but are larger (Fig. 13.6).
Palaeopontosphaera salebrosa (Black, 1971) Prins and Sissingh in Sissingh, 1977
Discussion: P. salebrosa is only recorded in the Uttins Marls. P. salebrosa is a small Palaeopontosphaera species (between 3 and 5.5 microns) with an axial cross filling the central area. In P. giraudii, the axial cross does not fill the central area. P. salebrosa disappeared in the Early Barremian at the top of the Hugii ammonite Zone. The Palaeopontosphaera species are frequent in the Uttins Marls and Corcelles Marls and the absence of P. salebrosa in the Corcelles Marls indicates a Barremian age conjointly with other markers.
Discussion: P. reticulatus is only observed in the Corcelles Marls. P. reticulatus was reported by Black (1971) from the Early Barremian to the Late Albian. De Kaenel et al. (2020) reported the LO of P. reticulatus in the Early Barremian (Hugii ammonite Zone) and the HO at the Early/Late Barremian boundary.
Retecapsa surirella (Deflandre and Fert, 1954) Grün in Grün and Allemann, 1975
Discussion: Several Retecapsa species are observed in both sections of Uttins (Mont de Chamblon) and Corcelles-2. Because of the poor preservation of the central area, the axial cross and accessory lateral bars are not visible in most specimens. Four species of the genus Retecapsa were identified in the Uttins Marls and Corcelles Marls including R. surirella, R. angustiforata, R. crenulata and R. octofenestrata. None of these four species are markers for the Hauterivian-Barremian interval.
Rhagodiscus buisensis De Kaenel in De Kaenel et al., 2020
Discussion: A single specimen of R. buisensis is recorded in the Corcelles Marls from Corcelles-2 section. The specimen illustrated (Fig. 13.29) has the typical weakly birefringent small circular spine base. De Kaenel et al. (2020) reported the LO of R. buisensis in the late Early Barremian Moutonianum ammonite Zone. The presence of R. buisensis in the Corcelles Marls indicates that the LO of this species is slightly older, below the re-entry of Tegulalithus septentrionalis (Compressissima ammonite Zone) and also below the LIO (lowest increase occurrence) of Cyclagelosphaera margerelii (basal Compressissima ammonite Zone). R. buisensis is the youngest marker reported from the Corcelles Marls and may indicate that they belong to the previous Early Barremian Pulchella ammonite Zone.
Rhagodiscus pseudoangustus Crux, 1987
Discussion: Several specimens of R. pseudoangustus are observed in the Uttins Marls. R. pseudoangustus ranges in Tethyan area from the Tithonian to the Late Aptian (De Kaenel and Bergen, 1996). In Boreal area, the HO of R. pseudoangustus is used by Crux (1989) as a zonal marker for the top of the Nannoconus abundans Zone, which corresponds to the top of the Boreal Rarocinctum ammonite Zone (= Tethyan early Nicklesi ammonite Zone). R. pseudoangustus is not observed in the Corcelles Marls, but very rare specimens were observed by De Kaenel et al. (2020) from the “Marnes de la Russille complex” in the Moutonianum and early Vandenheckii ammonite Zones at Eclépens and La Sarraz-Les Buis.
Rotelapillus crenulatus (Stover, 1966) Perch-Nielsen, 1984
Discussion: Very rare specimens of R. crenulatus are observed in the Uttins Marls. This species ranges from the Late Tithonian (De Kaenel and Bergen, 1996) to the Maastrichtian.
Stradnerlithus silvaradius (Filewicz, Wind and Wise in Wise and Wind, 1977) Rahman and Roth, 1991
Discussion: S. silvaradius is very rare in the Uttins Marls. Bergen (1994) reported the HO of this species at the level of the HO of C. cuvillieri in Tethyan sections from the southeastern France (Vocontian trough) and from the Deep Sea Drilling Site 534 (northwestern Atlantic Ocean), and placed them in the early Late Hauterivian Sayni ammonite Zone. In Boreal area, the HO of S. silvaradius is placed by Jeremiah (2001) in the late LK25 Zone (Boreal top Regale ammonite Zone), which corresponds to the latest Early Hauterivian (Tethyan basal Nodosoplicatum ammonite Zone) based on the Boreal–Tethys ammonite correlations of Mutterlose et al. (2014).
Tegumentum stradneri Thierstein in Roth and Thierstein, 1972
Discussion: T. stradneri is very rare in the Corcelles Marls. This species is not a marker for the Hauterivian-Barremian interval. T. stradneri ranges from the Valanginian to the Maastrichtian.
Vagalapilla mitcheneri (Applegate and Bergen, 1988) De Kaenel and Mojon, n. comb.
Basionym: Vekshinella mitcheneri Applegate and Bergen, 1988; p. 317, Pl. 23, figs. 7–9.
Discussion: V. mitcheneri is differentiated from other bicyclic species of Vagalapilla by the structure of the central axial cross with strongly flaring terminations and median suture. The axial cross does not fill the central area. Rutledge and Bown (in Bown et al., 1998) recombined the species mitcheneri with the genus Staurolithites. As explained by De Kaenel et al. (2020), the type species and holotype of the genus Staurolithites (Caratini, 1963) is dubious and questionable. The type species Staurolithites laffittei is illustrated by a poor light microscope picture with some short visible spines protruding from the rim, and therefore may belong to the genus Rotelapillus described by Noël (1972). The genus Vagalapilla defined by Bukry (1969) is therefore used herein to recombine the species mitcheneri, but the Nannotax3 website of the International Nannoplankton Association (supervised by J.R. Young, P.R. Bown and J.A. Lees) regardless indicates that the genus Staurolithites is accredited for loxolith muroliths with an axial cross. We do not follow this concept of taxonomic classification, not valid in our opinion for the procedural reason of definition defect stated above. Few specimens of V. mitcheneri are recorded in the Uttins Marls. According to Applegate and Bergen (1988), V. mitcheneri ranges from the Early Valanginian to the Late Barremian.
Discussion: Several species of Vagalapilla are observed in the Uttins Marls and Corcelles Marls. Because of the poor preservation, specimens of Vagalapilla could not be always identified at the species level. Only four Vagalapilla species are recognized in the Uttins Marls (V. crux, V. mitcheneri, V. quadriarculla, V. recta) and three in the Corcelles Marls (V. crux, V. recta, V. rutledgei). Except for V. recta, these species range throughout the Hauterivian-Barremian interval. V. recta is observed in the Uttins Marls and was never reported below the Barremian.
Vagalapilla rutledgei De Kaenel in De Kaenel et al., 2020
Discussion: V. rutledgei is only observed in the Corcelles Marls from Corcelles-2 section. The LO of this species is not yet well constrained and may not be present in the Early Hauterivian. De Kaenel et al. (2020) reported it from the Early to Late Barremian. Covington and Wise (1987) recorded this species (= Eiffelithus? sp. 2) from the Late Hauterivian to the Late Barremian.
Watznaueria rawsonii Crux, 1987
Discussion: Few W. rawsonii are recorded in both the Uttins Marls and Corcelles Marls. This species, described from the North Sea area, is not yet reported from the Tethyan area. Rutledge (1994) reported its range from the Early Valanginian to the Late Barremian in the Boreal area.
Zeugrhabdotus erectus (Deflandre, 1954) Manivit, 1971
Discussion: Several specimens of Z. erectus observed in the Uttins Marls are typical of the Early Hauterivian nannofossil assemblage. The HO of Z. erectus is placed by Bergen (1994) in the Late Hauterivian Balearis ammonite Zone. Only specimens with faint birefringence rim, white birefringence and thin transverse bar are included in the Z. erectus concept. This species is not observed in the Corcelles Marls.
4.2.3 Calcareous nannofossil biostratigraphy
Biostratigraphic zonation diagrams are separated between Boreal and Tethyan areas. The Hauterivian and Barremian nannofossil events observed in the Uttins Marls (Fig. 7a) and Corcelles Marls (Fig. 7b) include markers that are used in both areas. Not a single diagram can be applied to these sediments of the Swiss Jura Mountains. An integrated Hauterivian-Barremian nannofossil biostratigraphic diagram is presented in the local context of the Jura Mountains (Fig. 14) according to the Boreal LK nannofossil Zones by Jeremiah (2001) and Tethyan NC nannofossil Zones by Roth (1978, 1983) with Subzones of Bralower (1987) and Applegate and Bergen (1988). Additional stratigraphically useful nannofossil events are added to these diagrams. The Barremian integrated nannofossil diagram is based on the detailed work by De Kaenel et al. (2020) about the Urgonien Jaune facies (Saars Formation) of the Swiss Jura Mountains with Hauterivian-Barremian nannofossil assemblages including obvious species from Boreal and Tethyan areas. The appearance of Boreal species suggests that shallow connections to the Tethyan Ocean were open at this time. Shallow to very shallow connections in Barremian sediments are suggested by the presence of relatively abundant nannoflora and the absence of ammonites. Nannoflora are present from open sea up to few meters of water depth.
A typical Early Barremian nannoflora characterizes the Corcelles Marls, with notably Assipetra terebrodentarius, Biscutum jurensis, Palaeopontosphaera giraudii (> 8), Placozygus reticulatus, Vagalapilla rutledgei (Fig. 12B). This nannoflora can be correlated more precisely with the Tethyan ammonite biozonation of the Early Barremian, since the typical markers of the Hugii Zone (Palaeopontosphaera salebrosa, Haqius ellipticus) and upper Compressissima Zone (Placozygus howei, re-entry of Tegulalithus septentrionalis) are lacking and imply presumably a non basal Early Barremian age corresponding to the Nicklesi, Pulchella and lower Compressissima Zones. Cruciellipsis cuvillieri is an unexpected species in this assemblage, presumably reworked from the late Early Hauterivian. In addition to these observations, the low number of Cyclagelosphaera margerelii recorded in the Corcelles Marls indicates an age older than the Compressissima Zone and probably the Pulchella Zone. Even with the poor preservation of the nannoflora from the Corcelles Marls, the Ellipsagelosphaeraceae species (Cyclagelosphaera, Ellipsagelosphaera and Watznaueria) are well identified and dominate the nannofossil assemblage. So the number of specimens of C. margerelii together with the presence of B. jurensis indicate that the Corcelles Marls indeed belong to the lower Pulchella Zone (lower NC5D nannofossil Subzone) with the first occurrence of Rhagodiscus buisensis (Fig. 14).
For comparison, the nannoflora of the glauconite-rich Uttins Marls (Jordi, 1955; Remane et al., 1989b, fig. 12) in the middle part of the Neuchâtel Member (upper Grand-Essert Formation) is analyzed for the first time from the type locality Mont de Chamblon near Yverdon-les-Bains (Fig. 1C), well dated in the central Jura Mountains by Tethyan ammonites (Lyticoceras spp.) of the late Early Hauterivian Nodosoplicatum Zone (Remane et al., 1989a; Godet et al., 2010). This nannoflora (Fig. 12A) is clearly different and notably characterized by taxa (Calculites suturus, Cruciellipsis cuvillieri, Cyclygelosphaera jiangii, Diloma galiciense, Eiffellithus striatus, Grantarhabdus quadratus, Lithraphidites bollii, Palaeopontosphaera salebrosa, Rhagodiscus pseudoangustus, Stradnerlithus silvaradius, Vagalapilla mitcheneri, Zeugrhabdotus erectus) of the late Early to early Late Hauterivian lower NC4B nannofossil Subzone (Bergen, 1994) including the non basal Loryi and Nodosoplicatum ammonite Zones of the Tethyan Realm (Reboulet et al., 2018). Based on the Boreal nannofossil diagram of Jeremiah (2001), the nannoflora of the Uttins Marls indicate the late Early Hauterivian LK25 Zone including the upper Regale and lower Inversum ammonite Zones of the Boreal Realm.
The samples collected in the Urgonian facies of the Jura Mountains allowed us to recognize marine ostracod microfaunas with affinities to those from the Hauterivien (Oertli, 1989), Barremian (Scarenzi-Carboni, 1984; Babinot and Colin, 2011) and Aptien (Oertli, 1958; Sauvagnat, 1999). In the Urgonien Jaune facies and especially in its lower part (Montcherand Mb), ostracods are mostly represented by juvenile or subadult specimens of reduced size with incomplete and inconspicuous morphological features. The immature aspect of these ostracods found in confined marine paleoenvironments with presumably unstable ecological parameters is interpreted as dwarfism by growth anomalies (heterochrony), with neoteny and progenesis of very old evolutionary origin and common in fossil and current ostracods (Kamiya, 1992; Honigstein et al., 1993; Bertholon and Carbonel, 1995; McNamara and McKinney, 2005; Newman, 2005; Bennett, 2008; Bennett et al., 2012).
24 genera with at least 44 species from four ostracod Assemblages A1 to A4 are recorded below in a non-exhaustive list, because some rare taxa should be still described and precised. The ostracods are reported by assemblages (A1 to A4), frequency, localities, lithological units, with some taxonomical remarks (if necessary and pertinent), and classified at first by genus lineage and importance (with a first number for the genus, and a second number for the species), then by alphabetical order. Among the species mentioned, several are very significant for the Barremian-Aptian biostratigraphy in Europe [S. chalilovi, R. geometrica, R. buechlerae, N. (C.) gottisi according to Oertli (1958), Ainsworth (1986, 1987), Sauvagnat (1999), Babinot et al. (2007), Babinot and Colin (2011)].
Surprisingly, the basal Bôle Mb at Gorges de l’Orbe has also provided rare reworked Berriasian-Valanginian ostracods such as Early Berriasian Fabanella boloniensis (Jones, 1882) from the Purbeckian facies, Berriasian-Valanginian large Paracypris sp. and Late Valanginian Mandocythere (Costacythere) frankei (Triebel, 1938) indicating northwestern emerged lands in erosion process on the Paris Basin side.
Fairly similar to the Early Barremian ostracod microfauna collected at Corcelles-2, the Early Hauterivian material from the Uttins Marls (Mont de Chamblon near Yverdon-les-Bains, VD) is poor and rather badly preserved with P. triplicata, R. bernardi and rare Schuleridea extranea Grosdidier, 1964 according to Oertli (1989) as well as our own observations [the specimen of S. extranea figured by Oertli, 1989 (Pl. III, fig. 2) is very poorly preserved, but our material allows to confirm fully this determination].
4.3.1 Marine ostracods

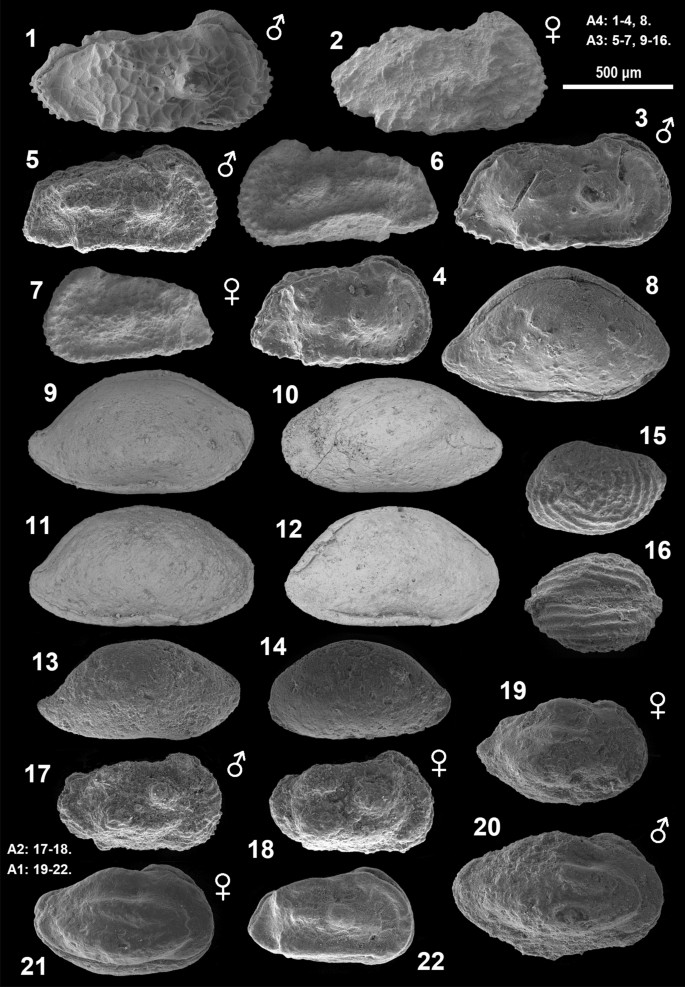

1.1) Strigosocythere chalilovi (Kuznetsova, 1961) - Fig. 15.1–2, A4 basal (rare): Ponts-de-Martel, Eclépens, Vaulion; A4: present at Noire Combe (Rivière Mb), Bellegarde-sur-Valserine and Montanges (emersive layers of the Vallorbe Fm top), abundant in the lower Fulie Mb at Musinens (reworked Poet Beds) and La Presta (Poet Beds and Vauglène Beds).
1.3) Strigosocythere villierensis (Stchepinsky, 1955) - A3: Montlebon (present but not abundant).
2.5) Rehacythereis geometrica (Damotte and Grosdidier, 1963) - Fig. 15.5–7, A2 to A4: common in the Barremian-Early Aptian of the central Jura, juvenile specimens are common in the Urgonien Jaune facies of the Jura Mountains (A2–A3) whose the lower part is devoid of adult specimens (Montcherand Mb with A2 at Corcelles-1, Le Mail and Gorges de l’Orbe in the central Jura, and at Rocher des Hirondelles and Pont-des-Pierres in the southern Jura).
2.6) Rehacythereis buechlerae (Oertli, 1958) - Fig. 15.3–4, A4 of the southern Jura: Noire Combe (present in the Rivière Mb), Bellegarde-sur-Valserine and Montanges (rare in the emersive layers of the Vallorbe Fm top), Musinens (abundant in reworked marls of Poet Beds). Presumably derived from the angular and reticulate R. geometrica, this Late Barremian-Aptian taxon is a smooth and tuberculate species with a very reduced median rib and small scattered tubercles (the most developed behind and below the large sub-central muscle tubercle). In the Late Barremian of the Jura Mountains, there is only a primitive form of R. buechlerae with a few tubercles (Fig. 15.3–4) also common in the Late Barremian of Serre de Tourre (Urgonien Blanc facies of Ardèche in SE-France, Cotillon et al., 1979; Pascal et al., 1989; = “R. aff. geometrica” sensu Scarenzi-Carboni, 1984, p. 39, Pl. 4, figs. 14–16; in Oertli et al., 1985, p. 192–193, Pl. 46, figs. 21, 22), which was formerly recognized at La Rivière (Valserine) in the southern Jura (= “Cythereis aff. buechlerae”, Oertli in Conrad, 1969, p. 64) and in the Subalpine Urgonian facies of Chartreuse (SE-France) under the name “Cythereis (R.) aff. glabrella” (Triebel, 1940) sensu Sauvagnat, 1999 (cf. Sauvagnat et al., 2001, Pl. 2.9–11, p. 95), this primal variant does not coexist with R. geometrica in the Barremian deposits of SE-France and indicates clearly a southern marine influence from the Subalpine area towards the Jura carbonate platform.
2.7-8) Rehacythereis spp. 2, 3 (and 5) - A4: emersive layers of the Vallorbe Fm top at Bellegarde-sur-Valserine, these rare large species could be described later with more material available. According to Babinot and Colin (2011, p. 750, Pl. 6, R. sp. 2: figs. 5–9; R. sp. 5: fig 10, R. sp. 3: figs. 14, 15), they are known in the Barremian of SE-France (sp. 3 and sp. 5 from Serre de Bleyton) and the Aptian of northern Spain (sp. 2 = “Cythereis aff. semiaperta” Damotte and Grosdidier, 1963in Brenner, 1976). Two are strongly costulate with a major transverse median rib subdivided (sp. 2) or continuous (sp. 5), and are close enough to be probably the same species. The latter (sp. 3) is clearly different with a very large smooth and elongate muscle tubercle.
3.9) Protocythere triplicata (Roemer, 1841) - Fig. 15.19–21, A1 (very abundant), A2 (frequent) and A3-A4 (occasional and rare), present everywhere. NB: The species is known since the Late Valanginian in the Jura Mountains (Mojon in Blanc, 1996; Mojon, 2002).
3.10) Protocythere derooi Oertli, 1958 - A4: La Presta (abundant in the Vauglène Beds).
4.11) Bairdoppilata barremiana Mojon, n. sp. - Fig. 15.9–12, A2 to A4 (incl. Poet Beds): common everywhere. The basal Falaises Mb (A1) has provided some small-sized specimens of B. aff. barremiana, maybe juveniles as in A2, but there is no available comparison with other sites of the Falaises Mb to be sure of this specific identity.
4.13) Bairdoppilata sp. 302 (Oertli, 1958) - Fig. 15.8, A4: Musinens only (present in reworked marls of Poet Beds). This large species with elevated carapace and distinct triangular outline is presumably derived from B. barremiana, it is common with S. chalilovi and R. buechlerae in the Late Barremian Urgonien Blanc facies of Serre de Tourre (Ardèche, SE-France) as already reported as B. aff. sp. 302 by Scarenzi-Carboni (1984, p. 24, Pl. 2, figs. 5, 6; in Oertli et al., 1985 as B. cf. sp. 302, p. 192–193, Pl. 46, fig. 2).
5.14) Neonesidea sp. - A1 to A4: occasional and rare.
6.15) Neocythere (Centrocythere) gottisi Damotte and Grosdidier, 1963 - Fig. 15.15–16, A2 to A4: common everywhere. The basal Falaises Mb (A1) has provided at Neuchâtel some small-sized stubby and globular specimens of N. (C.) aff. gottisi with ornamentation close to the type species.
6.16) Neocythere (Centrocythere) bordeti Damotte and Grosdidier, 1963 - A2 to A4 (presumably): smaller species of Neocythere with small knobs on the concentric ornamentation ribs, observed for sure in A3 (Bôle Mb of Gorges de l’Orbe) and probably also present much more widely, but very difficult to identify with certainty because the poor preservation of most small specimens collected.
6.17) Neocythere (Centrocythere) djaffarovi (Kuznetsova, 1961) - A2: rare species from the Barremian of Azerbaijan, only some specimens found at the Creux de Malevaux, with a typical coarsely pustulate ornamentation of small knobs on the outer surface of the valves.
7.18) Schuleridea clunicularis (Triebel, 1938) - A1: Basal Falaises Mb of Les Saars-Le Mail (reworked in A2/basal Montcherand Mb of Gorges de l’Orbe), very typical large species with strong sexual dimorphism.
7.19) Schuleridea gr. thoerenensis (Triebel, 1938) - A1: rare (Corcelles-2).
7.20) Schuleridea derooi Damotte and Grosdidier, 1963 - A2 to A4: present everywhere, abundant in the Bôle Mb of La Sarraz-Les Buis.
7.21) Schuleridea alata Kaye, 1965 - A3–A4: present everywhere, abundant in the Rivière Mb (Noire Combe) and the Vauglène Beds (La Presta).
7.22) Schuleridea sp. 1 formerly known in SE-France (Scarenzi-Carboni, 1984, p. 31, Pl. 2, figs. 24, 25; Babinot and Colin, 2011, p. 746, Pl. 4, figs. 14–16) - A3: rare in the Bôle Mb (Le Mail, Boudry, Bôle, Gorges de l’Orbe). This small species coarsely punctuate with a prominent smooth ridge has a biostratigraphical interest, but a precise description considering its particular features (pronounced sexual dimorphism notably) would need more material with many specimens (difficult to collect and currently not available because of their rarity).
8.23) Asciocythere sp. - A2 to A4: very small smooth species without interest for biostratigraphy, but very common everywhere.
9.24) Cytherelloidea sp. 1 formerly known in the Barremian of SE-France (Scarenzi-Carboni, 1984, p. 21–22, Pl. 1, figs. 14–16; Oertli et al., 1985, p. 192–193, Pl. 46, fig. 1) - A1: Basal Falaises Mb at Neuchâtel, some small-sized and short specimens characterized by valves ornamented with two main longitudinal ribs and a posterior vertical rib underlined by two protuberances at the dorsal and ventral ends.
9.25) Cytherelloidea ghabounensis Bischoff, 1964 - A2–A4: present everywhere, common but never abundant.
10.26) Paracypris levis Kuznetsova, 1961 - A2-A4: small species present everywhere, but never abundant.
10.27) Paracypris acuta (Cornuel, 1848) - A4: larger species of Paracypris frequent in the emersive layers of the Vallorbe Fm top at Bellegarde-sur-Valserine and also present in the Poet Beds of La Presta, some elongated specimens of big size could maybe belong to another species.
11.28) Hechticythere hechti (Triebel, 1838) - A1–A4: occasional and rare species of Hauterivian affinity.
11.29) Hechticythere pumila (Grosdidier, 1964) - A1–A4: occasional and rare species of Hauterivian affinity.
11.30) Hechticythere sp. 1 formerly known in SE-France (Babinot and Colin, 2011, p. 741, Pl. 2, figs. 1, 2) - A4: very rare (reworked marls of Poet Beds at Musinens), previously named “Protocythere aff. croutesensis Damotte and Grosdidier, 1963” (Scarenzi-Carboni, 1984, p. 47, Pl. 5, figs. 12–14; Babinot et al. in Oertli et al., 1985, p. 194–195, Pl. 47, figs. 6, 7). This particular large-sized species with elongated carapace broadly rounded anteriorly (without hinge ear) and ornamented by two (left valve) or three (right valve) large sub-parallel ribs belongs undoubtedly to the genus Hechticythere and has a biostratigraphical interest, but its detailed description would need many specimens currently not available because their rarity.
12.31) Amphicythere sp. - A3–A4: rare (Bôle Mb of Le Vanel, Poet Beds of La Presta).
13.32) Candoniella? sp. - A4: rare in the Poet Beds of La Presta. A medium-sized species of shallow marine environment presumably confined and brackish. The carapace is moderately inflated, smooth and symmetrical with a strongly arched dorsal margin (maximum height in its middle part), both ends narrowed and rounded, and ventral margin slightly incurved (cf. Late Albian-Early Cenomanian Candoniella? sp. 2 and sp. 3 in Bergue et al., 2016, p. 198, fig. 3G–J).
14.33) Cresacytheridea sp. - A4: rare (Rivière Mb of Noire Combe).
15.34) Cytherella gr. ovata (Roemer, 1841) - A3: rare (La Sarraz-Les Buis).
15.35) Cytherella gr. parallela (Reuss, 1846) - A1 to A4: species present everywhere, sometimes abundant (Rivière Mb of Noire Combe).
16.36) Dolocythere longa Gründel, 1966 - A3: rare (Creux de Malevaux, Le Vanel, Gorges de l’Orbe).
17.37) Dolocytheridea intermedia Oertli, 1958 - A3–A4: present in many localities [Bôle Mb of Bôle/Merdasson, Creux de Malevaux, Le Vanel, Eclépens, La Sarraz-Les Buis, Montcherand, La Russille, Vallorbe; Rivière Mb of Noire Combe (also reported by Oertli in Conrad, 1969); emersive layers of the Vallorbe Fm top at Bellegarde-sur-Valserine railway station; reworked marls of Poet Beds at Musinens]. According to our own observations, this Late Barremian-Aptian species is also frequent in the Late Barremian of Serre de Tourre (Urgonien Blanc facies of Ardèche, SE-France). Very rare and badly preserved specimens of Dolocytheridea sp. indet. are present in the Assemblage A2 of the basal Rocher des Hirondelles section.
18.38) Parexophthalmocythere sp. - A3: very rare (Le Mail, Gorges de l’Orbe).
19.39) Platycythereis rostrata Sauvagnat, 1999 - A4: common species in the emersive layers of Vallorbe Fm top at Bellegarde-sur-Valserine and Vallorbe.
21.41) Xestoleberis sp. - A4: La Presta (present in the Poet Beds).
4.3.2 Non-marine ostracods
Non-marine ostracods are common species in the emersive layers of the Vallorbe Fm top (with marine ostracods of A4) at Bellegarde-sur-Valserine and Montanges (Mojon in Pictet et al., 2019):
22.42) Cypridea isasae Kneuper-Haack, 1966.
23.43) Macrodentina (Dictyocythere) gibbera Brenner, 1976.
24.44) Mantelliana sp.
Among the listed taxa of ostracods and according to the references mentioned, most species (33) are known in the Barremian (Scarenzi-Carboni, 1984; Ainsworth, 1986, 1987; Schudack and Schudack, 2009 for the non-marine species; Babinot and Colin, 2011; Mojon in Pictet et al., 2019), four in the Aptian (R. buechlerae, P. rostrata, B. sp. 302, D. intermedia; Oertli, 1958; Sauvagnat, 1999; Babinot et al. 2007) and only seven are inherited from the Hauterivian (P. triplicata, R. bernardi, S. clunicularis, S. gr. thoerenensis, H. hechti, H. pumila, D. longa; Oertli, 1989).
4.3.3 New Bairdoppilata species systematics and taxonomy
Genus Bairdoppilata Coryell, Sample and Jennings, 1935.
Type species: Bairdoppilata martyni Coryell, Sample and Jennings, 1935; p. 2–4, figs. 1, 2.
Discussion: The taxonomy of the post-Paleozoic genus Bairdoppilata was argued by Coryell et al. (1935) and Maddocks (1969) according to a carapace morphology different from the genus Bairdia restricted to the Paleozoic. Although criteria of internal features could not be clearly observed because badly preserved, the Barremian material from the Jura Mountains is reported to Bairdoppilata (thin rounded subhexagonal valves, smooth or finely punctuate) in agreement with these authors and the different features of the Recent genera Neonesidea (elongate subtriangular valves, robust and coarsely punctuate) and Paranesidea (rotund thin valves, smooth or finely punctuate) created by Maddocks (1969).
Bairdoppilata barremiana Mojon, n. sp.
Bairdia sp. 1 Scarenzi-Carboni, 1984; p. 24, Pl. 1, fig. 22.
Bairdia sp. 2 Scarenzi-Carboni, 1984; p. 24–25, Pl. 1, fig. 23.
Bairdia n. sp. Clavel et al., 1994; p. 30, 40, Pl. II, figs. 4–6.
Bairdoppilata sp. 1 Babinot and Colin, 2011; p. 753, Pl. 8, figs. 6, 7.
Derivation of name: Named after the Barremian Stage.
Material: Several hundred carapaces and valves collected in the Urgonien Jaune facies of the Jura Mountains.
Holotype: 1 carapace (Fig. 15.9), collection P.-O. Mojon (still under study, this collection will be deposited later in the MGL, UNIL-Dorigny, Lausanne).
Paratypes: 3 carapaces (Fig. 15.10–12), collection P.-O. Mojon (idem).
Dimensions: Holotype = Length 1 mm, Height 0.56 mm; Paratypes = Length 0.96–1 mm, Height 0.52–0.54 mm.
Type locality: Le Vanel near Travers (NE), western Swiss Jura Mountains.
Type level: Bôle Member, Early to Late Barremian transition.
Description: Large carapace with rounded subhexagonal outline and slightly convex thin valves with smooth and finely punctuate surface texture. In lateral view, the posterior end of the valves forms a protruding and short acute extension slightly curved up to their mid-height. The anterior border of the valves is rounded, sometimes also weakly curved up and widened to two-thirds of their height (Fig. 15.9). The left valve is the larger with a narrow dorsal and ventral overlap on the right valve, but anterior margin and posterior tip are not overlapped. The dorsal margin of the valves is rounded, the ventral margin is straight for the left valve and faintly arched inward in the middle part of the right valve.
Discussion: Bairdoppilata barremiana is close to Bairdoppilata pseudoseptentrionalis (Mertens, 1956) from the Albian-Cenomanian (Sauvagnat, 1999; Sauvagnat and Colin, 2013) and the Barremian species Bairdoppilata sp. 302 (Oertli, 1958) or cf. sp. 302 (Scarenzi-Carboni, 1984; Babinot et al. in Oertli et al., 1985), however markedly larger and higher with a distinctly triangular shape. The morphology of Bairdoppilata luminosa Kuznetsova, 1961 is also very similar, but the size is clearly smaller and the shape much more elongated. Other seemingly similar genera of Bairdiidae ostracods like Neonesidea or Paranesidea are presumably present in the Urgonien Jaune facies of the Jura Mountains. Specimens of Neonesidea sp. are attested (Bairdia sp. in Clavel et al., 1994, Pl. II, fig. 7), but not of Paranesidea however recognized in the Vocontian Basin (Babinot and Colin, 2011, Pl. 8, fig. 2).
This section is focused on the large Glosseudesia very useful for the biostratigraphy, and not on other interesting brachiopods such as rynchonellids (Plicarostrum, Lamellaerynchia, Sulcirynchia, Belbekella). The species Sulcirynchia gillieroni and Sulcirynchia picteti are quite common in the Bôle Member of Le Vanel section, large adult specimens of Belbekella lata are more unusual (one specimen from Le Mail section, found in 2009 and given on her request to Dr. D. Gaspard for the collections of the Muséum d'Histoire naturelle de Paris).
4.4.1 New Glosseudesia species systematics and taxonomy
Genus Glosseudesia Lobacheva, 1974.
Type species: Terebratula semistriata Defrance, 1828; p. 156.
Glosseudesia inexpectata Mojon, n. sp.
Derivation of name: Named after the fortuitous discovery of this species in a construction site at Corcelles-1 (NE).
Material: 3 specimens collected in 2011 within excavations of the construction site Corcelles-1.
Holotype: 1 adult specimen well preserved (MGL 101598), Fig. 16.5–7.
Paratypes: 2 juvenile specimens with only the brachial valve well preserved (MGL 101598' and 101598''), Fig. 16.8–9.
Dimensions: Holotype (adult) = Length 3.15 cm, Width 2.8 cm, Thickness 2.2 cm.
Type locality: Corcelles-1 section nearby Neuchâtel City, western Swiss Jura Mountains.
Type level: Basal Montcherand Member, Early Barremian.
Description: A large species of Glosseudesia with an elongate and highly biconvex shell, strongly costulate with simple (undivided) longitudinal ribs. Adult shell ornamented with 12 ribs (holotype, Fig. 16.5–7), juveniles with 14 to 16 ribs (paratypes, Fig. 16.8–9). In dorsal view, umbo of the brachial valve with a very small smooth area (Fig. 16.6, 16.8-9).
Discussion: Glosseudesia inexpectata Mojon, n. sp. is part of an evolutionary lineage from the Late Valanginian to the Early Barremian in the Jura Mountains (Pictet and de Loriol, 1872; Middlemiss, 1989) and Transcaspia (Lobacheva, 1990). Late Valanginian to late Early Hauterivian Glosseudesia cruciana (Pictet, 1872) and Early to late Early Hauterivian Glosseudesia marcousana (d’Orbigny, 1847) have weaker ribs, bifurcated at their origin near the umbo of the brachial valve. Late Early Hauterivian to Early Barremian Glosseudesia semistriata (Defrance, 1828) is characterized by much more numerous fine undivided ribs and a large smooth umbo on the brachial valve (Fig. 16.3–4). Early Barremian Glosseudesia ebrodunensis (de Loriol, 1864) owns a few big undivided ribs and a very large smooth umbo on the brachial valve (Fig. 16.11, 16.13).
5 Discussion about datings and correlations
In addition to a previous study (De Kaenel et al., 2020), this work on the Urgonian Jaune (UJ) and Urgonien Blanc (UB) facies of the Jura Mountains introduces new lithostratigraphic units, as well as new datings by nannofossils and correlations according to ostracod Assemblages 1–4 and sedimentary discontinuities recognized in the reference sections presented (Figs. 10, 11). The nannofossils allow to date undoubtedly from the Early Barremian (Pulchella ammonite Zone) a non-basal lower part of the Urgonien Jaune (UJ) facies of the Neuchâtel area (new Falaises Mb) with a new lithostratigraphic bed named Corcelles Marls, and to differentiate it clearly from the late Early Hauterivian Uttins Marls of the Neuchâtel Mb in the central Jura (Fig. 11). Ostracod A1 to A4 can be used for precise correlations within the Barremian deposits of the UJ and UB facies in the central and southern Jura, as well as sedimentary discontinuities in order to demarcate the PJN, UJ and UB facies (discontinuities A to H).
The sedimentary discontinuities can correspond to parasequence boundaries (between relatively conformable and genetically interrelated rock strata, particularly in the Montcherand Mb of the lower Gorges de l’Orbe section) or to major 3rd order sequence boundaries (SbH4 to SbB3) indicated by bored surfaces often rubefied and encrusted with large oysters, or with major facies changes within 3rd order sequences linked to relative sea level variations (Barremian glacio-eustatism is not attested) and prograding deposits (mfsB3). The 3rd order sedimentary discontinuities are hardened surfaces (hardgrounds) strikingly bioperforated by lithophagous bivalves (pholads) and indicating relatively long periods of non-deposit before significative sedimentation changes, they must not be confounded with bioturbated surfaces of parasequences made of soft sediments affected by vertical borings of annelids and crustaceans.
The Late Hauterivian discontinuities A and B are often eroded and lacking, they are only preserved in some sections of the Neuchâtel area (Les Saars-Le Mail, Boudry) and are characterized by large bioperforations (Fig. 4c), the surface of the discontinuity A is also very irregular (Fig. 4a, b). In the sections of Les Saars-Le Mail (Figs. 4a–d) and Boudry (Fig. 7c), these major 3rd order discontinuities A and B are included in the top of the Neuchâtel Mb (PJN facies) constituted by typical massive limestone beds and are not in the basal marly UJ facies as reported by Godet et al. (2010, figs. 10, 11). These discontinuities A and B surround two thin limestone beds (1.6 m, Fig. 3), which can be attributed to the early Late Hauterivian Sayni ammonite Zone according to the data about the Grand-Essert Fm (Strasser et al., 2018) and the model of the Eclépens quarry section (Adatte et al., 2015; De Kaenel et al., 2020, fig. 3) with integrated data of ammonite zones and sequence boundaries by Arnaud (2005) reported in Fig. 11. The count of the discontinuities implies that the two later Late Hauterivian discontinuities SbH5 and SbH6 gathering the Ligatus and Balearis ammonite Zones (Arnaud, 2005) are superposed and merged in the discontinuity B corresponding to an important sedimentary hiatus, which must be considered and included in the top of the Neuchâtel Mb. The upper boundary of the Grand Essert Formation (Strasser et al., 2016) and Neuchâtel Member (Strasser et al., 2018) can be therefore precised in order to integrate this long time gap between the 3rd discontinuities SbH5 and SbH6. In this way, only the basal UJ facies below the discontinuity C (SbH7) corresponds locally to the latest Hauterivian Ohmi ammonite Zone in the central Jura (Neuchâtel area as stated in this study, and La Sarraz-Les Buis quarry section according to De Kaenel et al., 2020).
Another point must be clarified absolutely about the non basal Late Hauterivian ammonite marker Plesiospitidiscus ligatus (d’Orbigny, 1841) mentioned by Strasser et al., (2018, p. 239) in the Salève section. This ammonite was a complete specimen badly preserved found by de Loriol (1861, p. 28) and also reported by Joukowski and Favre (1913), but neither figured by these authors nor revised later. There are neither illustration and trace of this ammonite in the collections of museums, nor plaster cast of this fossil apparently currently lost. Moreover, the origin of this ammonite would be the Uttins Marls of the Salève section and its determination was therefore incorrect (pers. comm. A. Pictet 2/9/2020), thus it is probably a late Early Hauterivian Lyticoceras of the Nodosoplicatum ammonite Zone according to the presence of well-developed flexuous ribs mentioned by de Loriol. Excepted two very rare early Late Hauterivian ammonites Cruasiceras cf. cruasense (Torcapel, 1884) at Eclépens (De Kaenel et al., 2020) and Grand-Essert (Strasser et al., 2018), no other typical and reliable markers of the Late Hauterivian were found in the Jura Mountains since the 19th century, and Late Hauterivian fossils seem therefore to be irrefutably almost completely absent. Consequently, there are no precise datings by fossils in the presumed non reworked Late Hauterivian deposits of the central Jura, especially since the ostracod Assemblage 1 of typical Hauterivian affinity extends in a large interval from the latest Valanginian to the Early Barremian.
The latest Hauterivian to Early Barremian discontinuities C (SbH7), D (SbB1) and E (SbB1’) can be clearly observed on the field in the central Jura (De Kaenel et al., 2020; this study, Fig. 10), the discontinuity E corresponding to the base of the Montcherand Member. The discontinuities F (late Early Barremian SbB2 with ammonite Pseudometahoplites sp. juv. in the Gorges de l’Orbe section, Fig. 8e) and G (early Late Barremian SbB3 on top of the Mid-Barremian Event or MBE in the La Sarraz-Les Buis quarry section, Fig. 8b) are particularly well-marked in most sections (Fig. 10), and were also reported by De Kaenel et al. (2020) at Eclépens and La Sarraz-Les Buis. Another important surface boundary H is also well visible everywhere at the base of the UB facies of the central and southern Jura (De Kaenel et al., 2020; this study, Fig. 10), and corresponds to the mfsB3 or “maximum flooding surface” ending the transgressive interval of the early Late Barremian sequence Ba3 marked by a significant facies change between UJ and UB deposits in the central Jura (Les Saars-Le Mail, Bôle, Eclépens, Gorges de l’Orbe and Vallorbe sections) or between lower and upper UB sediments in the southern Jura (Rocher des Hirondelles section).
Several 3rd order sequence boundaries can sometimes be superimposed and merged (e.g., discontinuities A and B of the sequence boundaries SbH5 and SbH6 in the Saars-Le Mail section, and discontinuities A to E of the sequence boundaries SbH4 to SbB1’ in the basal Gorges de l’Orbe and Vallorbe sections). Most of the reported sedimentary discontinuities do not provide themselves reliable dating because not associated with accurate biostratigraphical data, their positioning and correlations can be therefore essentially interpretative according to major changes in the lithology and facies if it is difficult or impossible to observe them directly on the field (e.g., sequence boundary SbB4 in the Vallorbe and Rocher des Hirondelles-La Rivière sections). The framework of the paleoenvironments and their correlations includes new elements for datings and sequences boundaries within the lower UJ facies (Falaises Mb and Montcherand Mb) with tidal dominated deposits of mainly oolitic/bioclastic sandbars as well as estuarine and mangrove marls, and within the upper UJ facies (Bôle Mb) and UB facies (Rocher des Hirondelles Fm, Vallorbe Fm) corresponding to more open sea conditions with lagoons and reefs. So, the synthesis diagram presented on Fig. 10 is very relevant and consistent with the stratigraphic model and integrated ammonite zones reported by De Kaenel et al., (2020, fig. 3).
The biostratigraphic and sequential datings and correlations of this study allow a fairly complete representation of the Urgonian facies in the Swiss and French Jura Mountains, with new Saars Formation (new Falaises Member with Corcelles Marls, Montcherand and Bôle members of Pictet, 2021 forming the “Russille Marls complex” sensu De Kaenel et al., 2020 with four main marly layers I–IV), Rocher des Hirondelles Formation (revised from Pictet, 2021) with Fort de l’Ecluse and Rivière members (Pictet, 2021) and Vallorbe Formation (revised from Strasser et al., 2016 and Pictet, 2021), which are of mostly Barremian age (Figs. 10, 11). The main results of this study are:
1) For the Urgonien Jaune facies, evidence of a new Falaises Member (latest Hauterivian-Early Barremian) and a new Saars Formation (latest Hauterivian-early Late Barremian) replacing the incomplete Gorges de l’Orbe Formation of Strasser et al. (2016).
2) Early Barremian nannoflora (lower Pulchella ammonite Zone) associated in the Falaises Mb with fossils usually considered as Early Hauterivian, such as ostracods [Assemblage 1 with Protocythere triplicata (Roemer, 1841), Rehacythereis bernardi (Grosdidier, 1964), Schuleridea clunicularis (Triebel, 1938) and Schuleridea gr. thoerenensis (Triebel, 1938)], sea urchin Pseudholaster intermedius (Münster in Goldfuss, 1826) and brachiopods Glosseudesia semistriata (Defrance, 1828), Plicarostrum aubersonense Burri, 1956 and Lamellaerynchia hauteriviensis Burri, 1953, implying a stratigraphic range extended in the Early Barremian.
3) Hauterivian-Early Aptian ostracod zonation with four assemblages A1 to A4. The first typical Barremian ostracods [Rehacythereis geometrica (Damotte and Grosdidier, 1963), Bairdoppilata barremiana Mojon, n. sp., Bairdoppilata luminosa Kuznetsova, 1961; Neocythere (Centrocythere) gottisi Damotte and Grosdidier, 1963; Schuleridea derooi Damotte and Grosdidier, 1963] occur only in the Early Barremian (upper Pulchella and Compressissima ammonite Zones with A2 characterized by juveniles specimens), with an acme in A3 and A4 (late Early to latest Barremian-earliest Aptian).
4) Significant synsedimentary anomalies in the Urgonien Jaune facies of the central Swiss Jura with latest Hauterivian-Early Barremian Falaises Mb reworked in the basal Saars Fm (sections of Eclépens, Gorges de l'Orbe and Vallorbe) or overlying the uppermost Neuchâtel Mb (early Late Hauterivian Sayni ammonite Zone) with a hiatus of the Late Hauterivian Ligatus and Balearis ammonite Zones (Les Saars-Le Mail section). In the Gorges de l’Orbe section, the first Barremian ostracods A2 occur in a condensed marly layer at the base of the Montcherand Mb, with abundant glauconite and ostracods A1 [Schuleridea clunicularis (Triebel, 1938)] reworked from prior Late Hauterivian-basal Barremian Falaises Mb sediments. Another example of reworked glauconite and ammonite Cruasiceras cf. cruasense (Torcapel, 1884) from the early Late Hauterivian Sayni Zone is also reported in the Falaises Mb of the Eclépens section (De Kaenel et al., 2020). Other important synsedimentary anomalies are illustrated by Urgonien Blanc facies of the southern French Jura with the extra thickness of the Fort de l’Ecluse Mb (Rocher des Hirondelles) and Vallorbe Fm (Vallorbe type section), or in the Neuchâtel area by truncated Vallorbe Fm and incomplete Aptian deposits of the Vanel section (Thiébaud, 1937). Pictet et al. (2019) also reported major synsedimentary anomalies for the Aptian-Albian deposits of the Jura Mountains generated by depressions forming depocenters within sea straits connecting through a “Jura-Burgundy thresold” the Tethyan Ocean with the Paris Basin and the Boreal Ocean. All these synsedimentary anomalies can be presumably related to synsedimentary paleotectonics by “tilted blocks” influencing the Hauterivian-Barremian and Aptian-Albian sedimentation in the Jura area (Pictet et al., 2019; De Kaenel et al., 2020; Pictet, 2021), and generated by still active fractures of the Hercynian basement such as the Vuache, Morez and Pontarlier faults (cf. Mormont-La Sarraz fault system mentioned by De Kaenel et al., 2020).
Despite very significant advances, the following topics must be clarified absolutely with more detailed precisions:
This study is a general and still preliminary approach to the ostracods from the Urgonian facies of the Jura Mountains, the taxonomy of many species remains to be precised with exhaustive and more complete illustrations involving an additional harvest work, long and difficult given the relative scarcity and often poor preservation of these ostracods.
In the southern French Jura, the lower limit and thickness of the Falaises and Montcherand members as well as the extension of the Saars Fm are not known exactly because of observation gaps by areas covered with vegetation in the reference sections of La Chambotte, Sillens and Rocher des Hirondelles previously studied by Viéban (1983), and therefore remain to be specified using other sections (e.g., Pont-des-Pierres section).
According to the results of this study, the synthesis schemes for the Urgonian facies of the Jura Mountains by Pictet (2021, figs. 25, 26) are premature and marred by errors, new diagrams should be established including the requested details about the lithostratigraphy of the Saars Fm in the southern French Jura.
Availability of data and materials
The reference fossil specimens of this study (ostracods and brachiopods, collection P.-O. Mojon) and reference samples of sediments for the nannofossils will be available at the paleontological collection of the Musée géologique de Lausanne (abbr. MGL, UNIL-Dorigny, Lausanne, Switzerland), the glass slides with nannofossils are conserved and available in the collection of E. de Kaenel (De Kaenel Paleo Research, Mont‑sur‑Rolle, Switzerland).
Adatte, T., Arnaud, H., Arnaud-Vanneau, A., Pictet, A., Fantasia, A., Schöllhorn, I., & Floquet, M. (2015). The Eclépens section. In: Evolution des plates-formes du Crétacé inférieur (Jura - Vercors - Alpes de Haute-Provence - Bouches-du-Rhône). Plate-forme cénomano-turonienne de la région de Cassis (Bouches-du-Rhône, France). Excursion field volume “Camp de Stratigraphie 16–24 mai 2015” (Jour 1, pp. 8–16, unpublished), University of Lausanne.
Adatte, T., Arnaud-Vanneau, A., Arnaud, H., Blanc-Alétru, M.-C., Bodin, S., Carrio-Schaffhauser, E., Föllmi, K.B., Godet, A., Raddadi, M.C., & Vermeulen, J. (2005). The Hauterivian-Lower Aptian sequence stratigraphy from Jura Platform to Vocontian Basin: a multidisciplinary approach. Field-trip of the 7th International Symposium on the Cretaceous (September 1–4, 2005). Géologie Alpine (Série spéciale Colloques et excursions), 7, 1–181.
Ainsworth, N.R. (1986). Upper Jurassic and lower cretaceous ostracoda from the fastnet basin, offshore southwest Ireland. Irish Journal of Earth Sciences, 8, 53–72.
Ainsworth, N.R. (1987). Upper Jurassic and lower cretaceous ostracoda from the fastnet basin, offshore Southwest Ireland. Irish Journal of Earth Sciences, 8, 139–153.
Applegate, J.L., & Bergen, J.A. (1988). Cretaceous calcareous nannofossil biostratigraphy of sediments recovered from the Galicia Margin, ODP Leg 103. In: Boillot, G., & Winterer, E.L. (Eds.) et al., Scientific Results volume, College Station, Texas (Ocean Drilling Program). Proceedings Ocean Drilling Project, Scientific Results, 103, 293–348.
Arnaud, H. (2005). The South-East France Basin (SFB) and its Mesozoic evolution. Géologie Alpine, (Série spéciale Colloques et excursions), 7, 5–28.
Arnaud, H., Arnaud-Vanneau, A., Blanc-Alétru, M.-C., Adatte, T., Argot, M., Delanoy, G., Thieuloy, J.-P., Vermeulen, J., Virgone, A., Virlouvet, B., & Wermeille, S. (1998). Répartition stratigraphique des orbitolinidés de la plate-forme urgonienne subalpine et jurassienne (SE de la France). Géologie Alpine, 74, 3–89.
Arnaud-Vanneau, A., & Masse, J.-P. (1989). Les foraminifères benthiques des formations carbonatées de l’Hauterivien-Barrémien pro parte du Jura vaudois et neuchâtelois (Suisse). Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 257–276.
Babinot, J.-F., & Colin, J.-P. (2011). Barremian ostracods from the Serre de Bleyton (Drôme, SE France). Annalen des Naturhistorischen Museums in Wien, (Serie A), 113, 735–775.
Babinot, J.-F., Moullade, M., & Tronchetti, G. (2007). The upper Bedoulian and lower Gargasian Ostracoda of the Aptian stratotype: Taxonomy and biostratigraphic correlation. Carnets de Géologie (Notebooks on Geology), Article 2007/05 (CG2007_A05), 1–35.
Bartenstein, H. (1989). Foraminifera from the “séries marno-calcaires” (Lower Hauterivian of the Jura Mountains of Switzerland and France). Index fossils and selected important species. Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 187–203.
Baumberger, E. (1901). Über Facies und Transgressionen der untern Kreide am Nordrande der mediterrano-helvetischen Bucht im westlichen Jura. Wissenschaftliche Beilage zum Bericht der Töchterschule in Basel, pp. 1–44.
Bennett, C. (2008). A review of the Carboniferous colonisation of non-marine environments by ostracods. Senckenbergiana lethaea, 88, 37–46.
Bennett, C.E., Siveter, D.J., Davies, S.J., Williams, M., Wilkinson, I.P., Browne, M., & Miller, C.G. (2012). Ostracods from freshwater and brackish environments of the Carboniferous of the Midland Valley of Scotland: the early colonization of terrestrial water bodies. Geological Magazine, 149, 366–396.
Bergen, J.A. (1994). Berriasian to early Aptian calcareous nannofossils from the Vocontian Trough (SE France) and Deep Sea Drilling Site 534: new nannofossil taxa and a summary of low-latitude biostratigraphic events. Journal of Nannoplankton Research, 16, 59–69.
Bergue, C.T., Fauth, G., Coimbra, J.C., Ahmad, F.Y., Smadi, A., & Farouk, S. (2016). The Late Albian-Early Cenomanian ostracodes from Naur Formation, Jordan. Revista Brasileira de Paleontologia, 19, 195–210.
Bertholon, L., & Carbonel, P. (1995). Développement hétérochronique chez les ostracodes: stratégie d’adaptation à des environnements variables? Geobios, Mémoire Spécial, 18, 47–56.
Black, M. (1971). Coccoliths of the Speeton Clay and Sutterby Marl. Proceedings of the Yorkshire Geological Society, 38, 381–424.
Blanc, E. (1996). Transect plate-forme - bassin dans les séries carbonatées du Berriasien supérieur et du Valanginien inférieur (domaines jurassien et nord-vocontien). Chronostratigraphie et transferts des sédiments. Géologie Alpine, Mémoire H.S., 25, 1–312.
Blanc-Alétru, M.-C. (1995). Importance des discontinuités dans l’enregistrement sédimentaire de l’Urgonien jurassien. Micropaléontologie, sédimentologie, minéralogie et stratigraphie séquentielle. Géologie Alpine, Mémoire H.S., 24, 1–299.
Bown, P.R. (1987). Taxonomy, evolution and biostratigraphy of late Triassic-early Jurassic calcareous nannofossils. Special Papers in Palaeontology, 38, 1–118.
Bown, P.R. (2005). Early to mid-Cretaceous calcareous nannoplankton from the northwest Pacific Ocean, Leg 198, Shatsky Rise. In: Bralower, T.J., Premoli Silva, I., & Malone, M.J. (Eds.), Scientific Results volume, College Station, Texas (Ocean Drilling Program). Proceedings of the Ocean Drilling Program, Scientific Results, 198, 1–82.
Bown, P.R., & Concheyro, A. (2004). Lower Cretaceous calcareous nannoplankton from the Neuquén Basin, Argentina. Marine Micropaleontology, 52, 51–84.
Bown, P.R., Rutledge, D.C., Crux, J.A., & Gallagher, L.T. (1998). Lower Cretaceous. In: Bown, P.R. (Ed.), Calcareous Nannofossil Biostratigraphy. British Micropalaeontological Society Publication Series, pp. 86–131.
Bralower, T.J. (1987). Valanginian to Aptian calcareous nannofossil stratigraphy and correlation with the upper M-sequence magnetic anomalies. Marine Micropaleontology, 11, 293–310.
Bralower, T.J. (1991). Lower Cretaceous calcareous nannofossil biostratigraphy of a North Sea borehole: Implications for Boreal Cretaceous stratigraphy. Proceedings of the Yorkshire Geological Society, 48, 421–434.
Bralower, T.J., Leckie, R.M., Sliter, W.V., & Thierstein, H.R. (1995). An integrated Cretaceous microfossil biostratigraphy. In: Berggren, W.A., Kent, D.V., Aubry, M.-P., & Hardenbol, J. (Eds.), Geochronology, time scales and global stratigraphic correlation. SEPM Special Publication, 54, 65-79.
Brenner, P. (1976). Ostracoden und Charophyten des spanischen Wealden (Systematik, Ökologie, Stratigraphie, Paläogeographie). Palaeontographica, (A), 152, 113–201.
Bukry, D. (1969). Upper Cretaceous coccoliths from Texas and Europe. The University of Kansas Paleontological Contributions, 51 (Protista 2), 1–79.
Burri, F. (1956). Die Rhynchonelliden der Unteren Kreide (Valanginien–Barremien) im westschweizerischen Juragebirge. Eclogae Geologicae Helvetiae, 49, 599–702.
Caratini, C. (1963). Contribution à l’étude des coccolithes du Cénomanien supérieur et du Turonien de la région de Rouen. PhD dissertation (pp. 1–61, Publication du Laboratoire de Géologie appliquée de l’Université d’Alger). Paris: Imprimerie Priester.
Charollais, J., Clavel, B., Schroeder, R., Busnardo, R., & Horisberger, P. (1994). Mise en évidence de l’émersion post-urgonienne et de la lacune du Barrémien-Bédoulien inférieur/moyen dans le Jura neuchâtelois. Publications du Département de Géologie et Paléontologie de l’Université de Genève, 14, 57–80.
Charollais, J., Wernli, R., Mastrangelo, B., Metzger, J., Busnardo, R., Clavel, B., Conrad, M., Davaud, E., Granier, B., Saint Martin, M., & Weidmann, M. (2013). Présentation d’une nouvelle carte géologique du Vuache et du Mont de Musièges (Haute-Savoie, France) - stratigraphie et tectonique. Archives des Sciences, 66, 1–63.
Clavel, B., Charollais, J., Schroeder, R., Oertli, H., & Busnardo, R. (1994). Révision de “l’Aptien” de Boveresse et nouvelle attribution chronostratigraphique de l’Urgonien du Jura neuchâtelois et vaudois. Publications du Département de Géologie et Paléontologie de l’Université de Genève, 14, 25–56.
Conrad, M.A. (1969). Les calcaires urgoniens dans la région entourant Genève. Eclogae Geologicae Helvetiae, 62, 1–79.
Conrad, M.A., & Masse, J.-P. (1989). Corrélations des séries carbonatées de l’Hauterivien et du Barrémien pro parte dans le nord-ouest vaudois (Suisse). Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 307–322.
Coryell, H.N., Sample, C.H., & Jennings, P.H. (1935). Bairdoppilata, a new genus of Ostracoda, with two new species. American Museum Novitates, 777, 1–5.
Cotillon, P., Ferry, S., Busnardo, R., Lafarge, D., & Renaud, B. (1979). Synthèse stratigraphique et paléogéographique sur les faciès urgoniens du Sud de l’Ardèche et du Nord du Gard (France S-E). Geobios, Mémoire Spécial, 3, 121–139.
Cotteau, G. (1862–1867). Description des animaux invertébrés, terrain crétacé, Echinides. Paléontologie française, 7, 1–895.
Coulon, L. (1872). Astérie fossile du Néocomien. Bulletin de la Société des Sciences naturelles de Neuchâtel, 9, 170.
Covington, J.M., & Wise, S.W., Jr. (1987). Calcareous nannofossil biostratigraphy of a Lower Cretaceous deep-sea fan complex: Deep Sea Drilling Project Leg 93 Site 603, lower continental rise off Cape Hatteras. In: Van Hinte, J.E., & Wise, S.W., Jr. (Eds.) et al., Initial Reports volume, US Govt. Print. Office, Washington DC. Initial Reports of the Deep Sea Drilling Project, 93, 617–660.
Crux, J.A. (1989). Biostratigraphy and palaeogeographical applications of Lower Cretaceous nannofossils from north-western Europe. In: Crux, J.A., & Van Heck, S.E. (Eds.), Nannofossils and their applications. British Micropalaeontological Society Publication Series, pp. 143–211.
Damotte, R., & Grosdidier, E. (1963). Quelques ostracodes du Crétacé inférieur de la Champagne Humide. II. Aptien. Revue de Micropaléontologie, 6, 153–168.
Defrance, J.L.M. (1828). Térébratule. (Foss.). Dictionnaire des Sciences naturelles, LIII, 147–167.
De Kaenel, E., & Bergen, J.A. (1996). Mesozoic calcareous nannofossil biostratigraphy from sites 897, 899, and 901, Iberia Abyssal Plain: New biostratigraphic evidence. In: Whitmarsh, R.B., Sawyer, D.S., Klaus, A., & Masson, D.G. (Eds.), Scientific Results volume, College Station, Texas (Ocean Drilling Program). Proceedings of the Ocean Drilling Program, Scientific Results, 149, 27–59.
De Kaenel, E., Mojon, P.-O., & Pictet, A. (2020). New biostratigraphical data (calcareous nannofossils, ammonites) and Early to Late Barremian transition in the Urgonien Jaune facies and Marnes de la Russille complex of the Swiss Jura Mountains. Swiss Journal of Palaeontology, 139(6), 1–43.
De Kaenel, E., & Villa, G. (1996). Oligocene-Miocene calcareous nannofossil biostratigraphy and paleoecology from the Iberia abyssal plain. In: Whitmarsh, R.B., Sawyer, D.S., Klaus, A., & Masson, D.G. (Eds.), Scientific Results volume, College Station, Texas (Ocean Drilling Program). Proceedings of the Ocean Drilling Program, Scientific Results, 149, 79-145.
Desor, E. (1858). Sur la présence de piquants de Goniopygus. Bulletin de la Société des Sciences naturelles de Neuchâtel, 4, 11.
Donzeau, M., Wernli, R., Charollais, J., & Monjuvent, G. (1997). Carte géologique de la France 1:50'000, feuille Saint-Julien-en-Genevois (653), notice explicative (pp. 1–144). Orléans: Éditions du Bureau de recherches géologiques et minières (BRGM).
Eichenberger, U., Mojon, P.-O., Gogniat, S., Pictet, A., Blant, D., Locatelli, D., Metral, V., & Morard, A. (2020). Atlas géologique de la Suisse 1:25000, Feuille 1143 Le Locle avec partie de la Feuille 1123 Le Russey. [Eichenberger, U., Aufranc, J., Pietra, L., Pictet, A., & Gogniat, S. (2020)], Notice explicative 172 (pp. 1–176). Wabern: Bundesamt für Landestopographie swisstopo.
Fallot, P., & Perrodon, A. (1968). Carte géologique de la France 1:50'000, feuille Morteau (531), notice explicative (pp. 1–12). Orléans: Éditions du Bureau de recherches géologiques et minières (BRGM).
Gaspard, D. (1989). Explosion de brachiopodes du Crétacé inférieur dans la mer épicontinentale jurassienne. Revue de Paléobiologie, 3, 81–102.
Godet, A. (2006). The evolution of the Urgonian platform in the Western Swiss Jura realm and its interactions with palaeoclimatic and palaeoceanographic change along the Northern Tethyan Margin (Hauterivian - earliest Aptian). PhD dissertation (pp. 1–405, unpublished), University of Neuchâtel.
Godet, A., Föllmi, K.B., Bodin, S., De Kaenel, E., Matera, V., & Adatte, T. (2010). Stratigraphic, sedimentological and palaeoenvironmental constraints on the rise of the Urgonian platform in the western Swiss Jura. Sedimentology, 57, 1088–1125.
Godet, A., Föllmi, K.B., Stille, P., Bodin, S., Matera, V., & Adatte, T. (2011). Reconciling strontium isotope and K-Ar ages with biostratigraphy: the case of the Urgonian platform, Early Cretaceous of the Jura Mountains, Western Switzerland. Swiss Journal of Geosciences, 104, 147–160.
Gradstein, F.M., Ogg, J.G., Schmitz, M.D., Ogg, G.M. (Eds.) et al. (2012). The Geologic Time Scale 2012 (pp. 1–1176, 2 vol.). Amsterdam: Elsevier.
Grosdidier, E. (1964). Quelques ostracodes nouveaux du Crétacé inférieur de Champagne Humide. III: Barrémien - Hauterivien. Revue de Micropaléontologie, 6, 223–236.
Honigstein, A., Hirsch, F., Rosenfeld, A., & Flexer, A. (1993). Cythereis mesa: Methusalem or Lazarus? Zitteliana, 20, 343–347.
Jeremiah, J. (2001). A Lower Cretaceous nannofossil zonation for the North Sea Basin. Journal of Micropalaeontology, 20, 45–80.
Jordi, H.A. (1955). Geologie der Umgebung von Yverdon (Jurafuss und mittelländische Molasse). Beiträge zur Geologie der Schweiz, (N.F.), 99, 1–84.
Joukowsky, E., & Favre, J. (1913). Monographie géologique et paléontologique du Salève (Haute-Savoie, France). Mémoires de la Société de Physique et d’Histoire naturelle de Genève, 37, 295–523.
Kamiya, T. (1992). Heterochronic dimorphism of Loxoconcha uranouchiensis (Ostracoda) and its implication for speciation. Paleobiology, 18, 221–236.
Kroh, A. (2010). Index of Living and Fossil Echinoids 1971–2008. Annalen des Naturhistorischen Museums in Wien, (Serie A), 112, 195–470.
Kuznetsova, Z.V. (1961). Ostrakody melovykh otlozhenii Severo-Vostochnogo Azerbaidzhana i ikh strati-graficheskoe znachenie (Ostracoda from Cretaceous deposits of north-east Azerbaijan and their stratigraphical importance). Azgosizdat (pp. 1–148, published in 1969), Baku. (in Russian).
Lobacheva, S.V. (1974). A new Hauterivian dallinid genus. Paleontologicheskiy Zhurnal, 3, 146–149. (in Russian).
Lobacheva, S.V. (1990). The Urgonian brachiopods of Kopetdag (Trans-Caspian Region). Cretaceous Research, 11, 203–209.
Loriol, P. de (1861). Description des animaux invertébrés fossiles contenus dans l’étage néocomien moyen du Mont-Salève (pp. 1–214). Genève: H. Georg.
Loriol, P. de (1874). Description de quelques Astérides du terrain néocomien des environs de Neuchâtel. Mémoires de la Société des Sciences naturelles de Neuchâtel, 4(2), 1–19.
Maddocks, R.F. (1969). Revision of Recent Bairdiidae (Ostracoda). United States National Museum Bulletin, 295, 1–126.
Masse, J.-P., Conrad, M.A., & Remane, J. (1989). Le «Calcaire à Pachytraga tubiconcha» (rudiste), épisode urgonien de l’Hauterivien carbonaté du Jura franco-suisse. Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 73–80.
McNamara, K.J., & McKinney, M.L. (2005). Heterochrony, disparity, and macroevolution. Paleobiology, 31(2), 17–26.
Middlemiss, F.A. (1981). Lower Cretaceous Terebratulidae of the Jura region. 1. Revision of some species described by Pictet and De Loriol (1872). Eclogae Geologicae Helvetiae, 74, 701–733.
Middlemiss, F.A. (1983). Brachiopod synonymy: Glosseudesia and Costithyris. Eclogae Geologicae Helvetiae, 76, 689.
Middlemiss, F.A. (1989). The distribution of Terebratulidae in the Hauterivian of the Jura region. Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 183–186.
Mojon, P.-O. (2002). Les formations mésozoïques à charophytes (Jurassique moyen - Crétacé inférieur) de la marge téthysienne nord-occidentale (Sud-Est de la France, Suisse occidentale, Nord-Est de l’Espagne): sédimentologie, micropaléontologie, biostratigraphie. Géologie Alpine, Mémoire H.S., 41, 1–386.
Mojon, P.-O., De Kaenel, E., Kälin, D., Becker, D., Pirkenseer, C.M., Rauber, G., Ramseyer, K., Hostettler, B., & Weidmann, M. (2018). New data on the biostratigraphy (charophytes, nannofossils, mammals) and lithostratigraphy of the Late Eocene to Early Late Miocene deposits in the Swiss Molasse Basin and Jura Mountains. Swiss Journal of Palaeontology, 137, 1–48.
Mojon, P.-O., Musolino, A., Bucher, S., & Claude, B. (2013). Nouvelles données sur les ammonites du Valanginien - Hauterivien de la région stratotypique de Neuchâtel (Jura suisse): implications biostratigraphiques. Carnets de Géologie [Notebooks on Geology], Article 2013/06 (CG2013_A06), 237–254.
Mutterlose, J., Bodin, S., & Fähnrich, L. (2014). Strontium-isotope stratigraphy of the Early Cretaceous (Valanginian-Barremian): Implications for Boreal-Tethys correlation and paleoclimate. Cretaceous Research, 50, 252–263.
Newman, W.A. (2005). Origin of the Ostracoda and their maxillopodan and hexapodan affinities. Hydrobiologia, 538, 1–21.
Noël, D. (1965). Sur les Coccolithes du Jurassique européen et d'Afrique du Nord. Essai de classification des coccolithes fossiles. PhD dissertation (pp. 1–209). Paris: Éditions du Centre national de la recherche scientifique (CNRS).
Noël, D. (1972). Nannofossiles calcaires de sédiments jurassiques finement laminés. Bulletin du Muséum national d’Histoire naturelle (3e série Sciences de la Terre, 14), 75, 95–156.
Nolthenius, A.B.T. (1921). Etude géologique des environs de Vallorbe (Canton de Vaud). Matériaux pour la Carte géologique de la Suisse (N.S.), 48, 1–119.
Oertli, H.J. (1958). Les ostracodes de l’Aptien-Albien d’Apt. Revue de l’Institut Français du Pétrole, 13, 1497–1537.
Oertli, H.J. (1989). Ostracoda from the historical type region of the Hauterivian Stage in the Jura Mountains (Switzerland, France). Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 205–222.
Oertli, H.J. (Ed.) et al. (1985). Atlas des Ostracodes de France. Bulletin des centres de recherches exploration-production Elf-Aquitaine, Mémoire 9, 1–396.
Pascal, M., Lafarge, D., Chedhomme, J., & Glintzboeckel, C. (1989). Carte géologique de la France 1:50'000, feuille Bourg-Saint-Andéol (889), notice explicative (pp. 1–67). Orléans: Éditions du Bureau de recherches géologiques et minières (BRGM).
Pasquier, F., Burkhard, M., Mojon, P.-O., & Gogniat, S. (2013). Atlas géologique de la Suisse 1:25000, Feuille 1163 Travers [Pasquier, F., & Burkhard, M. (2013)], Notice explicative 162 (pp. 1–148). Wabern: Bundesamt für Landestopographie swisstopo.
Pictet, A. (2021). New insights on the Early Cretaceous (Hauterivian-Barremian) Urgonian lithostratigraphic units in the Jura Mountains (France and Switzerland): the Gorges de l’Orbe and the Rocher des Hirondelles formations. Swiss Journal of Geosciences, 114(18), 1–47.
Pictet, A. (2022). Correction to: New insights on the Early Cretaceous (Hauterivian-Barremian) Urgonian lithostratigraphic units in the Jura Mountains (France and Switzerland): the Gorges de l’Orbe and the Rocher des Hirondelles formations. Swiss Journal of Geosciences, 115(1), 1–3.
Pictet, A., Delamette, M., & Matrion, B. (2016). The Perte-du-Rhône Formation, a new Cretaceous (Aptian-Cenomanian) lithostratigraphic unit in the Jura mountains (France and Switzerland. Swiss Journal of Geosciences, 109, 221–240.
Pictet, F.J., & Loriol, L. de (1872). Description des fossiles du terrain crétacé des environs de Sainte-Croix (5ème partie). Matériaux pour la Paléontologie suisse, 6, 1–158.
Pictet, A., Mojon, P.-O., Matrion, B., Adatte, T., Spangenberg, J.E., & Föllmi, K.B. (2019). Record of latest Barremian-Cenomanian environmental change in tectonically controlled depressions from the Jura-Burgundy threshold (Jura Mountains, eastern France and western Switzerland). Palaeogeography, Palaeoclimatology, Palaeoecology, 514, 627–654.
Pirkenseer, C., Rauber, G., & Roussé, S. (2018). A revised Palaeogene lithostratigraphic framework for the northern Swiss Jura and the southern Upper Rhine Graben and its relationship to the North Alpine Foreland Basin. Rivista Italiana di Paleontologia e Stratigraphia, 124, 163–246.
Reboulet, R., Szives, O., Aguirre-Urreta, B., Barragán, R., Company, M., Frau, C., Kakabadze, M., Klein, J., Moreno-Bedmar, J.A., Lukeneder, A., Pictet, A., Ploch, I., Raisossadat, S.N., Vašíček, Z., Baraboshkin, E.J., & Mitta, V.V. (2018). Report on the 6th International Meeting of the IUGS Lower Cretaceous Ammonite Working Group, the Kilian Group (Vienna, Austria, 20th August 2017). Cretaceous Research, 91, 100–110.
Reinhardt, P. (1964). Einige Kalkflagellaten-Gattungen (Coccolithophoriden, Coccolithineen) aus dem Mesozoikum Deutschlands. Monatsberichte der Deutschen Akademie der Wissenschaften zu Berlin, 6, 749–759.
Remane, J. (1989). The historical type Hauterivian of the Jura Mountains: original definition, actual concept, lithostratographic subdivision. Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 9–18.
Remane, J., Adatte, T., Berger, J.-P., Burkhalter, R., Dall’Agnolo, S., Decrouez, D., Fischer, H., Funk, H., Furrer, H., Graf, H.-R., Gouffon, Y., Heckendorn, W., & Winkler, W. (2005). Richtlinien zur stratigraphischen Nomenklatur - Directives pour la nomenclature stratigraphique - Direttive per la nomenclatura stratigrafica - Guidelines for stratigraphic nomenclature. Eclogae Geologicae Helvetiae, 98, 385–405.
Remane, J., Busnardo, R., Charollais, J., Clavel, B., Thieuloy, J.-P., Maurice, B., Masse, J.-P., Conrad, M.A., Gindraux, G., Kübler, B., Middlemiss, F.A., Bartenstein, H., Oertli, H.J., Manivit, H., Fauconnier, D., & Arnaud-Vanneau, A. (1989a). Révision de l’étage Hauterivien (région-type et environs, Jura franco-suisse). Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 1–322.
Remane, J., Busnardo, R., Charollais, J., Clavel, B., & Thieuloy, J.-P. (1989b). III. Description lithologique des coupes. Descriptions de profils dans l’Hauterivien de la région neuchâteloise, du Mont-de-Chamblon et des environs de Sainte-Croix (cantons de Neuchâtel et de Vaud, Suisse). Mémoires de la Société neuchâteloise des Sciences naturelles, 11, 19–48.
Renz, O. (1936). Über ein Maestrichtien-Cénomanien-Vorkommen bei Alfermée am Bielersee. Eclogae Geologicae Helvetiae, 29, 545–566.
Roth, P.H. (1978). Cretaceous nannoplankton biostratigraphy and oceanography of the northwestern Atlantic Ocean. In: Benson, W.E., & Sheridan, R.E. (Eds.) et al., Initial Reports volume, US Govt. Print. Office, Washington DC. Initial Reports of the Deep Sea Drilling Project, 44, 731–759.
Roth, P.H. (1983). Jurassic and Lower Cretaceous calcareous nannofossils in the western North Atlantic (Site 534): Biostratigraphy, preservation, and some observations on biogeography and paleoceanography. In: Sheridan, R.E., & Gradstein, F.M. (Eds.) et al., Initial Reports volume, US Govt. Print. Office, Washington DC. Initial Reports of the Deep Sea Drilling Project, 76, 587–621.
Rutledge, D.C. (1994). Calcareous nannofossils of the Boreal Lower Cretaceous: Applications in biostratigraphy and palaeoceanography. PhD dissertation (pp. 1–284, unpublished), University College London.
Saucède, T., Dudicourt, J.-C., & Courville, P. (2012). Description of two new fossil echinoids (Echinodermata: Echinoidea) from the Early Hauterivian (Early Cretaceous) of the Paris Basin (France). Zootaxa, 3512, 75–88.
Sauvagnat, J. (1999). Les ostracodes aptiens et albiens du Jura. Publications du Département de Géologie et Paléontologie de l’Université de Genève, 24, 1–264.
Sauvagnat, J., Clavel, B., Charollais, J., & Schroeder, R. (2001). Ostracodes barrémo-aptiens de quelques vires marneuses de l’Urgonien jurassien, pré-subalpin et subalpin (SE de la France). Inventaire préliminaire et systématique. Archives des Sciences, 54, 83–98.
Sauvagnat, J., & Colin, J.-P. (2013). Ostracodes de l’Albien des Landes (Sud-Ouest de la France): taxonomie, biostratigraphie et paléobiogéographie. Revue de Paléobiologie, 32, 541–556.
Scarenzi-Carboni, G. (1984). Les ostracodes du bassin vocontien: paléoécologie et biostratigraphie au cours du Barrémien et du Bédoulien. Thèse 3ème cycle (pp. 1–136, unpublished), University Claude Bernard - Lyon 1.
Schaer, J.-P. (2006). Les premières recherches sur le Crétacé de Neuchâtel. Bulletin de la Société neuchâteloise des Sciences naturelles, 129, 5–28.
Schardt, H., & Dubois, A. (1902). Description géologique de la région des Gorges de l'Areuse (Jura neuchâtelois). Bulletin de la Société neuchâteloise des Sciences naturelles, 30, 195–352. Eclogae Geologicae Helvetiae, 7, 367–476 (1903).
Schroeder, R. (1993). Evolution du genre Valserina SCHROEDER et al. 1968 et l’origine des Palorbitolines [Foraminiferida]. Paläontologische Zeitschrift, 67, 245–251.
Schroeder, R., Clavel, B., Cherchi, A., Busnardo, R., Charollais, J., & Decrouez, D. (2002). Lignées phylétiques d’Orbitolinidés de l’intervalle Hauterivien supérieur - Aptien inférieur; leur importance stratigraphique. Revue de Paléobiologie, 21, 853–863.
Schroeder, R., Clavel, B., Cherchi, A., & Charollais, J. (1999). Praedictyorbitolina busnardoi n. sp. (Foraminiferida) et évolution de la lignée Praedictyorbitolina - Dictyorbitolina (Hauterivien supérieur - Barrémien basal). Paläontologische Zeitschrift, 73, 203–215.
Schudack, U., & Schudack, M. (2009). Ostracod biostratigraphy in the Lower Cretaceous of the Iberian chain (eastern Spain). Journal of Iberian Geology, 35, 141–168.
Smirnova, T.N. (2012). Early Cretaceous Rhynchonellids of Dagestan: System, Morphology, Stratigraphic and Paleobiogeographic Significance. Paleontological Journal, 46, 1197–1296.
Strasser, A., Charollais, J., Conrad, M.A., Clavel, B., Pictet, A., & Mastrangelo, B. (2016). The Cretaceous of the Swiss Jura Mountains: an improved lithostratigraphic scheme. Swiss Journal of Geosciences, 109, 201–220.
Strasser, A., Clavel, B., Monteil, E., Charollais, J., Piuz, A., & Mastrangelo, B. (2018). La Formation du Grand Essert (Jura franco-suisse; Valanginien supérieur p.p. à Hauterivien supérieur basal). Archives des Sciences, 70, 205–282.
Thiébaud, C.-E. (1937). Etude géologique de la région Travers, Creux du Van, Saint-Aubin. Bulletin de la Société neuchâteloise de Géographie, 45, 1–74.
Thierstein, H.R. (1971). Tentative Lower Cretaceous Calcareous Nannoplankton Zonation. Eclogae Geologicae Helvetiae, 64, 459–488.
Thierstein, H.R. (1973). Lower Cretaceous Calcareous Nannoplankton Biostratigraphy. Abhandlungen der Geologischen Bundesanstalt, 29, 1–52.
Tribolet, G. de (1856). Catalogue des fossiles du Néocomien moyen de Neuchâtel. Bulletin de la Société des Sciences naturelles de Neuchâtel, 4, 69–76.
Tribolet, G. de (1857). Fossiles néocomiens des environs de Morteau. Bulletin de la Société des Sciences naturelles de Neuchâtel, 4, 168–171.
Varol, O., & Girgis, M.H. (1994). New taxa and taxonomy of some Jurassic to Cretaceous calcareous nannofossils. Neues Jahrbuch für Geologie und Paläontologie Abhandlungen, 192, 221–253.
Viéban, F. (1983). Installation et évolution de la plate-forme urgonienne (Hauterivien à Bédoulien) du Jura méridional aux Chaînes subalpines (Ain, Savoie, Haute-Savoie). Sédimentologie, minéralogie, stratigraphie et paléogéographie. Thèse 3ème cycle (pp. 1–293, unpublished), University of Grenoble.
Worsley, T.R. (1971). Calcareous nannofossil zonation of Upper Jurassic and Lower Cretaceous sediments from the Western Atlantic. In: Farinacci, A. (Ed.), Edizioni Tecnoscienza, Roma. Proceedings of the II Planktonic Conference, Roma 1970, 2, 1301–1321.
The authors are indebted to Mr. Jean-Marie Demaury (Musinens, †2019) who guided them at Noire Combe and in the Valserine Valley, to Dr. Antoine Pictet (Musée géologique cantonal, Lausanne) for field investigations and discussions since 2013, to Dr. Annie Arnaud-Vanneau (Grenoble) for the determination of orbitolinids and preparation of thin sections (Fig. 7h.1–3), to Dr. André Piuz (Natural History Museum, Geneva) and to MSc. Hany Mohamed Khalil (UNIL, Lausanne; presently PhD student at the Monash University, Melbourne, and teaching associate at the Alexandria University, Egypt) for the SEM microphotography of the ostracods, to Dr. Danièle Gaspard (Paris) for the study of brachiopods, and to the journal reviewers Dr. Alain Morard (Swisstopo, Wabern) and Prof. Dr. Elisabetta Erba (UNIMI - Milano University) for the review of our manuscript. To all of them, we are very grateful and express our heartfelt thanks. This work is dedicated to Prof. Dr. Hubert Arnaud (1939–2016, University Joseph Fourier - Grenoble 1) and Prof. Dr. Karl Föllmi (1954–2019, UNIL - Lausanne University), who initiated our research on the Urgonian facies of the Jura Mountains.
The authors declare that they received no official or private funding for their rersearchs.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Editorial handling: Wilfried Winkler.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Mojon, P., De Kaenel, E. New paleontological and biostratigraphical data (calcareous nannofossils, ostracods, brachiopods), correlations and lithostratigraphic units in the Urgonian facies (latest Hauterivian-Barremian) of the Swiss and French Jura Mountains: the Falaises Member and the Saars Formation (former “Gorges de l’Orbe Formation”). Swiss J Geosci 115, 17 (2022). https://doi.org/10.1186/s00015-022-00416-x
