Facies architecture, geochemistry and petrogenesis of Middle Triassic volcaniclastic deposits of Mt. Ivanščica (NW Croatia): evidence of bimodal volcanism in the Alpine-Dinaridic transitional zone

Abstract

During the Middle Triassic, intensive volcanic activity took place along the eastern margin of Pangea, including the Greater Adria promontory, due to the Neotethyan oceanization. This resulted in the formation of various volcanic and volcaniclastic rock types. The region of NW Croatia, acting as a transition zone between the Southern Alps and the Dinarides, showcases the outcrops of these rocks. The present study investigates the facies of volcaniclastic rocks, the distribution of those facies, formation processes, as well as the genesis of the primary magma to gain a better understanding of the complex geodynamics of this region during the Middle Triassic. Six profiles across the Vudelja quarry front were surveyed using drone imaging and samples were collected for detailed petrographic and geochemical analyses. Two groups of volcaniclastic rocks were identified—mafic and intermediate/felsic. The former is represented by (I) autoclastic effusive facies and (II) resedimented autoclastic facies, while the latter is represented by (III) secondary pyroclastic facies. Mafic volcaniclastics were generated through basaltic effusions in marine environments, fragmentation in contact with seawater, mixing with shallow marine carbonate clasts, and subsequent redeposition in deeper marine areas. The secondary pyroclastic facies (III) consists of a regionally distributed felsic Pietra Verde tuff whose deposits may be related to pyroclastic density currents and syn-eruptive resedimentation by turbidite-like currents. Geochemical data indicate that parental magmas responsible for generating the mafic volcaniclastics had a calc-alkaline composition and originated in ensialic and mature arc settings of an active continental margin. The observed chemical composition is likely inherited from older, arc-related lithologies, associated with the subduction of the Paleotethys Ocean. Parental magmas are thought to have formed during continental rifting of the passive Middle Triassic margins of the Greater Adria through (i) partial melting of the heterogeneous lithospheric mantle, which had been metasomatized during an earlier Hercynian subduction, and (ii) subordinate processes related to the melting of the upper continental crust and subsequent fractionation. Ar/Ar dating on plagioclase separates yielded an age of 244.5 ± 2.8 Ma for mafic volcaniclastics. This aligns well with biostratigraphic ages of felsic tuffs which crop out on a broader regional scale of the Dinarides, the Southern Alps, and the Transdanubian Range. The overlapping ages obtained from radiometric dating of mafic volcaniclastics and biostratigraphic ages of the felsic Pietra Verde tuffs strongly suggest that the Greater Adria region experienced concurrent bimodal volcanism during the Middle Triassic.

1 Introduction

The Middle Triassic volcano-sedimentary successions in NW Croatia are cropping out in the intra-Pannonian Mountain chain extending for 60 km in the east–west direction (Fig. 1A, B). These mountains, regarded as the southernmost part of the Southern Alps (sensu Schmid et al., 2008, 2020), are located in a tectonically complex area at the contact with the Dinarides. The occurrences of Middle Triassic volcanic, volcaniclastic, and sedimentary rocks are spatially and genetically linked to rifting processes related to the initiation of the Maliak-Meliata-Vardar branch of the Neotethys Ocean (sensu Schmid et al., 2008, 2020). Stratigraphically correlative successions are well known from the Southern Alps, the Dinarides and the Transdanubian Range (Castellarin et al., 1988; De Zanche et al., 1993; Gianolla et al., 1998; Goričan et al., 2005; Smirčić et al., 2018, 2020a; Haas & Budai, 1995; Harangi et al., 1996; Velledits, 2004, 2006; Budai & Vörös, 2006; Velledits et al., 2017), however, their geodynamic evolution has not yet been unambiguously resolved. Previous studies have not been conclusive on the origin of Middle Triassic magmatism, which has been commonly associated with continental rifting (Pamić, 1984; Crisci et al., 1984; Pamić & Balen, 2005; Del Piaz & Martin, 1998; Knežević et al., 1998; Aljinović et al., 2010; Bortolotti et al., 2013; Saccani et al., 2015; De Min et al., 2020). Alternatively, it may be related to convergent plate movements caused by the subduction of the Paleotethys Ocean (Bébien et al., 1978; Castellarin et al., 1980, 1988; Obenholzner, 1991; Bonadiman et al., 1994; Trubelja et al., 2004; Stampfli & Borel, 2002, 2004; Schmid et al., 2004; Grimes et al., 2015; Smirčić et al., 2018; Casetta et al., 2018; Bianchini et al., 2018; Storck et al., 2018; Slovenec et al., 2020, Slovenec & Šegvić, 2021, Slovenec et al., 2023a and b). Considering the complex magmatic activity in the western part of the Neotethys Ocean and related geodynamic processes along its margins, the research of volcanic and volcano-sedimentary successions represents a valuable source of information and is of key importance to unveil multiple lithospheric processes in such a geodynamic environment (Lustrino et al., 2019, Storck et al., 2020).

Fig. 1

A Geotectonic sketch map of the major tectonic domains (simplified after Schmid et al., 2008). B Geological sketch map of the Croatian part of the Zagorje-Mid-Trandanubian Zone, i.e. Sava Composite Unit (slightly modified after Pamić & Tomljenović, 1998 and Haas et al., 2000). Legend: 1 = Quaternary and Neogene fill of the Pannonian Basin; 2 = Upper Cretaceous-Paleocene flysch; 3 = Ophiolitic mélange (Kalnik Unit); 4 = Upper Triassic platform carbonates; 5 = Upper Paleozoic and Triassic clastics and carbonates interlayered with volcanics and tuffs; 6 = Paleozoic-Triassic metamorphic complex (Medvednica Unit). C Simplified geological sketch map of the central part of Ivanščica Mt. (modified after Šimunić et al., 1982). Legend: 1—Neogene and Pleistocene sedimentary rocks; 2—Upper Jurassic-Lower Cretaceous limestones, shales, cherts, 3—Jurassic ophiolite mélange with blocks of basalt and gabbro (blue field), 4—Upper Triassic limestones, dolomites and dolomite breccias, 5—Upper to Middle Triassic dolomites, dolomite breccias and limestones, 6—Middle to Lower Triassic dolomites, limestones, dolomite breccias, radiolarites, clastics rocks intersected by a series of andesite-basalts (dark green field) and/or acid tuffs (light green field); 7—reverse or thrust faults; 8—normal faults; 9—discordance line, tectonic-erosion discordance; 10—sample location. D Detailed geological map of the study area compiled from Šimunić et al. (1982) and the results of this study. a Stereoplot of bedding planes (purple lines) and fold axes (F) measured in Lower Triassic sediments of the Vilinska špica nappe and bedding planes measured in Middle Triassic volcaniclastic rocks from the footwall (black lines). b Stereoplot of bedding planes (black lines), fault planes (red lines) and fold axis (F) measured in Middle Triassic volcaniclastic rocks from the Vudelja Quarry. (c) Stereoplot of the bedding planes measured in Middle Triassic sediments (black lines) and Lower Miocene sediments (blue lines) and the fault planes measured in Middle Triassic sediments (red lines)

The study area is located on the slopes of Mt. Ivanščica, one of the intra-Pannonian mountains, where igneous and volcaniclastic rocks were documented by Golub & Brajdić (1970), Marci et al., (1982, 1984), and Goričan et al. (2005). Recent research of upper Anisian volcano-sedimentary successions in the eastern part of Mt. Ivanščica reports on the origin, geodynamic significance, and diagenetic/hydrothermal history of volcanic/volcaniclastic rocks and associated cherts (Slovenec et al., 2020; 2023b; Slovenec & Šegvić, 2021; Šegvić et al., 2023).

The formation processes, emplacement mechanisms, petrogenesis, as well as tectonic setting of mafic volcaniclastic deposits from the northern part of Mt. Ivanščica are studied by analyzing their sedimentological, mineralogical, petrological, and geochemical features. In this paper we utilize isotope and paleontological data, along with structural characteristics, to determine the stratigraphical position of mafic volcaniclastic deposits within the Triassic period. Finally, this contribution provides new data that will help in our understanding of geodynamic events occurring at the margin of the Greater Adria Plate (sensu van Hinsbergen et al., 2020) during the early evolution of the Neotethys Ocean in the Middle Triassic.

2 Geological setting

In northwest Croatia, several mountains expose Mesozoic igneous and volcaniclastic rocks of ophiolitic and continental margin origin (Fig. 1A, B). These mountains, including Mt. Ivanščica, are found in the SW segment of the Sava Composite Unit (sensu Haas et al., 2000) or the Zagorje-Mid-Transdanubian shear Zone (ZMTDZ; sensu Pamić & Tomljenović, 1998; Fig. 1B). The latter is situated south of the ALCAPA (Alpine-Carpathian-Pannonian) Mega-Unit and between the two regional fault systems: the Zagreb-Zemplen Line to the south and the Periadriatic-Balaton Line to the north and was derived from continental crustal domains containing ophiolites previously obducted on the continental margin (Harangi et al., 1996; Haas & Kovács, 2001).

According to Schmid et al. (2008, 2020), Mt. Ivanščica is considered a part of the Southern Alps and is located in close proximity to the Internal Dinarides. In the wider study area, originally NW–SE trending Dinaridic structures were rotated clockwise during the Oligocene – earliest Miocene (Tomljenović et al., 2008), and overthrusted in the Miocene by the S-verging frontal thrust of the South Alpine unit (van Gelder et al., 2015; Schmid et al., 2008, 2020). From the Late Miocene to the present day this area was finally folded and rotated counter-clockwise (Tomljenović and Csontos, 2001; Tomljenović et al., 2008). Consequently, in the wider study area present day Dinaridic structures deviate from their original orientation and exhibit NW vergence and NE-SW orientation overprinted by younger S-SW vergent Alpine structures (van Gelder et al., 2015; Schmid et al., 2008; 2020). Both tectonic units, however, share a common paleogeographic origin, the eastern continental margin of the Adria microplate (van Hinsbergen et al., 2020).

Middle Triassic shallow to deep-marine successions consisting of volcanic and volcaniclastic rocks intercalated within marine sedimentary rocks are preserved on Mt. Ivanščica (e.g., Goričan et al., 2005; Slovenec et al., 2020, 2023b; Kukoč et al., 2023). These volcano-sedimentary successions were deposited in a relatively short-lived basin, the Northwestern Croatian Triassic Rift Basin (NCTRB; Kukoč et al., 2023) formed on the Adriatic continental margin due to rifting-related extension. The northern slopes of Mt. Ivanščica (Fig. 1C) feature volcanic and volcaniclastic rocks with a wide range of compositions, including basic, intermediate, and acidic effusive and volcaniclastic lithologies. These rocks are interbedded with Middle Triassic marine deposits consisting of siliceous (radiolarite) and carbonate (limestone, dolostone) lithologies (e.g., Šimunić & Šimunić, 1979, 1997; Marci et al., 1982, 1984; Šimunić, 1992; Goričan et al., 2005; Slovenec et al., 2020, 2023b; Kukoč et al., 2023). The Middle Triassic volcanism developed through submarine calc-alkaline basaltic to andesitic lava flows accompanied by multiple explosive eruptions of volcaniclastic material and interpreted as remnants of a late Anisian-Ladinian volcanic arc (Goričan et al., 2005; Slovenec et al., 2020, 2023b; Slovenec & Šegvić, 2021; Kukoč et al., 2023). These Middle Triassic successions on Mt. Ivanščica are overlain by the shallow marine to pelagic successions spanning from the Late Triassic to the Early Cretaceous (Babić, 1974; Vukovski et al., 2023; Fig. 1C). Sedimentary successions of Mt. Ivanščica are thrusted southwards onto the Neotethys stemmed ophiolite mélange during the Neogene (van Gelder et al., 2015; Schmid et al., 2008, 2020; Fig. 1C).

The studied volcaniclastic rocks crop out in a 2 km long and 300 m wide, NE-SW striking continuous belt, which tends to extend further to the west where is more discontinuous and tectonically dissected (Fig. 1D). The estimated thickness of the investigated volcaniclastic rocks is more than 100 m. The northern boundary of the volcaniclastic rocks has only partially preserved primary sedimentological contact with underlying Middle Triassic carbonates, while the rest of the contact is characterized by minor faulting. The southern boundary of the volcaniclastic belt is a major thrust fault that brings in contact volcaniclastic rocks with Lower to Middle Triassic shallow to deep-marine successions of the overlying tectonic unit, informally named the Vilinska Špica nappe (Fig. 1D). The Turmek fault, representing south-eastern border of the studied volcaniclastic belt, juxtaposes Middle Triassic volcaniclastic rocks and slightly older Middle Triassic shallow-marine reefal limestones (Fig. 1D). Dominantly SW-ward dipping beds in volcaniclastic rocks are overlain by Lower to Middle Triassic sediments with dominantly SW-ward dipping bedding planes (Fig. 1D).

In the wider area a large volume of Middle Triassic mafic volcaniclastic deposits, interlayered with rare felsic tuffs are recorded. These rocks are found exclusively in the footwall of the Vilinska Špica nappe. On the other hand, within the succession of the Vilinska Špica nappe, felsic tuffs, commonly referred to as Pietra Verde, alternate with deep-marine sedimentary lithologies with scarce intercalations of mafic volcaniclastic deposits (Slovenec et al., 2023b; Kukoč et al., 2023).

3 Materials and analytical techniques

The volcaniclastic, pyroclastic, and associated carbonate rocks investigated in this study are situated in the broader area of the Vudelja Quarry, located on the northern slopes of Mt. Ivanščica (Fig. 1C, D). To ensure accurate documentation, the quarry front was scanned and photographed using a drone. The resulting image was then referenced, enabling the precise plotting of all collected samples (Fig. 2). The quarry front is heavily covered by talus and scree which makes contouring of distinct facies complicated. Therefore, the zonation of the facies was limited only to the vicinity of the collected samples where the outcrops were clear of cover.

Fig. 2

A drone image of the quarry front with sample positions. Different colours represent different facies and pertaining lithotypes. AF—Autoclastic effusive facies presented by the lithotype of autoclastic basalt breccia with flow texture matrix containing clasts of several different basalts. RAF—Resedimented autoclastic facies with two different lithotypes: block to lapilli-sized basalt breccia with epiclasts, and coarse-sized ash lithoclastic tuff. SPF – Secondary pyroclastic facies with three different lithotypes: (1) coarse-sized ash lithoclastic tuff, (2) fine-sized ash cyrstaloclastic tuff and (3) fine-sized ash vitroclastic tuff. General coordinates of the quarry 16˚3′21.42’’ E; 46˚11′41.42’’ N. Graphical scale is indicated in the figure

For this research samples were collected from six geological profiles (profiles are named: VU I, VU II, VU III, VU IV, VU V, VU VI; Fig. 2) with 62 representative samples chosen for further study. Macroscopic and microscopic observations were performed to determine petrographical features of rocks. Microscopic observations were done on Olympus BH-2 and Zeiss Axio Lab. A1 microscopes equipped with a digital camera (Croatian Geological Survey Zagreb, Croatia) and Optika B 1000 POL polarizing microscope and Optika C-P6 FL camera of the University of Zagreb, Faculty of Mining, Geology and Petroleum Engineering (Zagreb, Croatia). Volcaniclastic facies were determined based on the classifications of Fisher (1961), McPhie et al. (1993), White & Houghton (2006), and Di Capua et al. (2022).

Mineral compositions of two representative samples were analysed at the University of Geneva, Department of Earth Sciences (Geneva, Switzerland) using a JEOL JXA 8200 Superprobe (JEOL Ltd., Akishima, Japan) electron microprobe equipped with a wavelength/energy dispersive combined microanalyzer. Operating parameters included an accelerating voltage of 20 kV, a 20 nA beam current, and a beam size of ~ 1 µm (for feldspars 10 µm). Counting times of 20 s on peak and 10 s on background on both sides of the peak were used for all elements. Limits of detection (LOD) were calculated as the minimum concentration required to produce count rates three times higher than the square root of the background (3σ; 99 wt.% degree of confidence at the lowest detection limit). Concentrations below the LOD are reported as not detected. Raw data were corrected for matrix effects using the PAP algorithm implemented by JEOL (Pouchou & Pichoir, 1984, 1985). Natural minerals, oxides (corundum, spinel, hematite, and rutile), and silicates (albite, orthoclase, anorthite, and wollastonite) were used for calibration. Mineral formulas were calculated using a software package MINPET written by Linda R. Richard (Gatineau, Québec, Canada).

XRF was utilized to acquire the whole-rock geochemistry of collected samples, which were first crushed with a mortar and pestle into a fine powder and then mixed with Li₂B₄O₇ in1:5 ratio. Samples were subjected to loss of ignition treatment which included heating at 1000 °C for 30 min and subsequent fusion. XRF data were collected on fused glass discs using Thermo Scientific ARL Perform’X sequential and U.S. Geological Survey standards. Trace-element abundances in glass discs previously used for XRF measurements were collected using an Agilent 7500cs quadrupole mass spectrometer equipped with a New Wave UP- 213 solid state laser with dual-volume cell. The laser was operated at a frequency of 15 Hz, a spot size of 100 μm and a measured fluence of between 6 and 7 Jcm⁻². The GSD-1G glass and Si abundances from XRF analyses were used as external and internal standards, respectively. The US Geological Society rock standard BHVO-2G (Jochum et al., 2005) served to monitor instrument performance, precision, and accuracy. Major element and trace element concentrations were measured with accuracy and precision better than ± 1% and ± 5%, respectively. It is 3σ at 10 times the detection limit. The quality of the measurements was checked by replicating the analysis on ~ 12% of the samples. Both XRF and LA-ICP-MS analyses were carried out at GeoAnalytical Laboratory of Texas Tech University Department of Geosciences (Lubbock TX, USA).

Nd isotopic compositions of three bulk rock samples were measured at the Noble Gas Laboratory Pacific Centre for Isotopic and Geochemical Research, University of British Columbia, Vancouver (Canada) using a Triton Plus mass spectrometer. Normalizing ratios of ¹⁴⁶Nd/¹⁴⁴Nd = 0.7219 were assumed. The ¹⁴³Nd/¹⁴⁴Nd ratio for the La Jolla standard was 0.5118451 ± 0.000010 (2σ). Total procedural blanks were ~ 150 pg. Python^™ programming language (numpy package) was used to calculate the Monte Carlo propagation error through 10000 iterations for ¹⁴³Nd/¹⁴⁴Nd_(t).

X-ray diffraction (XRD) was carried out on a set of four representative samples. For that purpose, the material was firstly gently crushed and powdered in an agate mortar and was thereupon placed in the sample holder. The material was analysed with a Bruker D8-Advanced diffractometer installed at Texas Tech Department of Geosciences (Lubbock TX, USA) using a step scan mode in the Bragg–Brentano geometry with CuKα radiation. The measurement settings were 45 kV and 40 mA with sample mounts scanned from 3 to 70 º2θ at a counting time of 2.5 s per 0.02 º2θ. The Bruker EVA diffraction suite and the Powder Diffraction File 4 issued by the International Centre for Diffraction Data were used to analyze the diffraction data. Lastly, XRD traces were, once interpreted, compared with the whole-rock geochemistry generated from LA-ICP-MS to ensure geological fluidity.

Plagioclase separate from basaltic volcaniclastic (sample VU II-1) was separated by electromagnetic separator and standard heavy liquid techniques and finally was purified by hand picking under binocular lenses. The plagioclase separate was wrapped in Al foil and stacked in an irradiation capsule with similar-aged samples and neutron flux monitors (Fish Canyon Tuff sanidine), 28.201 ± 0.046 Ma (Kuiper et al., 2008). Samples were irradiated at the McMaster Nuclear Reactor (Hamilton ON, Canada) and analysed at the Noble Gas Laboratory Pacific Centre for Isotopic and Geochemical Research, University of British Columbia (Vancouver BC, Canada). The mineral separates were step-heated at incrementally higher powers in the defocused beam of a 10W CO₂ laser (New Wave Research MIR10) until fused. The gas evolved from each step was analysed by a VG5400 mass spectrometer equipped with an ion-counting electron multiplier. All measurements are corrected for total system blank, mass spectrometer sensitivity, mass discrimination, radioactive decay during and subsequent to irradiation, as well as interfering Ar from atmospheric contamination and the irradiation of Ca, Cl and K (Isotope production ratios: (⁴⁰Ar/³⁹Ar)_K = 0.0302 ± 0.00006, (³⁷Ar/³⁹Ar)_Ca = 1416.4 ± 0.5, (³⁶Ar/³⁹Ar)_Ca = 0.3952 ± 0.0004, Ca/K = 1.83 ± 0.01(³⁷Ar_Ca/³⁹Ar_K)). Initial data entry and calculations were carried out using the software ArArCalc (Koppers, 2002). The plateau and correlation ages were calculated using ISOPLOT ver. 3.09 (Ludwig, 2003). Errors are quoted at the 2σ (95% confidence) level and are propagated from all sources except mass spectrometer sensitivity and age of the flux monitor.

4 Volcaniclastic facies determination

Four facies were determined:

• (I) Autoclastic effusive facies (AF).

Samples belonging to this facies are shown in Fig. 2 and Table 1. Rocks of the AF are presented by a very poorly sorted, mostly matrix supported basaltic breccias with carbonate epiclasts – autoclastic basalt breccia. The size of basaltic lithoclasts varies (Table 1). Clasts are largely irregular in shape (Table 1; Fig. 3A). Several types of basalt clasts are determined (Table 1):

• (a) Basalt clasts composed of hyaline matrix and plagioclase phenocrystals. Altered plagioclase phenocrystals reach up to 0.8 mm in size (Table 1). Rare pyroxene phenocrystals reach up to 1.5 mm in size and are thoroughly altered to oxide minerals and chlorite-like phases (Table 1). The latter is referred to as chlorite in the following text. This basalt clast type typically has amygdaloidal vesicles filled with fan-like aggregates of chlorite, calcite, and dolomite.

• (b) Aphyric basalt lithoclasts with amygdaloid vesicles. Vesicles are filled with chlorite, epidote, and calcite. A faint and unclear alignment of amygdales is documented in some of these lithoclasts. Exceptionally rare crystallites of plagioclase and pyroxene were determined.

• (c) Clasts of olivine basalt with porphyritic texture composed of dark brown hyaline matrix with plagioclase and olivine phenocrystals (Table 1).

• (d) Clasts showing slightly porphyritic texture with microcrystalline groundmass. The discriminant characteristic of this lithoclast type is the presence of a crystallized matrix (Table 1). The elongated minerals exhibit imbrication patterns. These clasts also have a certain number of amygdales filled with fan-shaped chlorite aggregates and calcite. Rare plagioclase and pyroxene phenocrystals are completely altered (Table 1).

Table 1 Synthetic table of the determined volcanic facies and lithotypes in the Vudelja Quarry with their petrographical and mineralogical characteristics

Fig. 3

Petrographic characteristics of the described facies. A Field photograph of the autoclastic basalt facies outcrop. Some basalt clasts are outlined in dark. Notice also the hand sized limestone clasts (Lms). The rocks are very chaotic and poorly sorted. B Fossils of Plexoramea cerebriformis MELLO and Olangocoelia otti BECHSTÄDT and BRANDNER from limestone clast found in the autoclastic basalt facies, sample VU II–2A. C A stitched microphotograph exhibiting flow texture matrix between the basalt lithoclasts. The matrix area is outlined with dark lines. In the lower middle part of the photograph the matrix is rounding the plagioclase crystalloclast – sample VU I–4a. D Between the clasts in the autoclastic basalt facies chlorite cement is seen with small needle like crystals of plagioclase – sample VU III–1. E Clasts of vitroclastic tuffs seen in the resedimented autoclastic facies. The clasts are outlined in the field photograph. F Photomicrograph of the lapilli-sized basalt breccia with epiclasts from the resedimented autoclastic facies (sample VU V–10). Notice that the matrix is composed of finely fragmented volcanic particles. Clasts are very irregular. The amount of the crystaloclastic particles is more abundant in this facies. G The same lithotype of the same facies but with different material in the pore spaces between the clasts (sample VU V–6a). Here the unsorted and irregular clasts mostly of different types of basalts are cemented by calcite cement. H A scanned polished sample VU IV–6 of the resedimented autoclastic facies exhibiting grading texture indicated by the arrow. Grading texture results in the transition from lapilli-sized basalt breccia to the coarse-sized ash lithoclastic tuff that is composed mostly of basalt clasts. I Photomicrograph of the coarse ash crystalloclastic tuff of the secondary pyroclastic facies composed mostly of plagioclase crystalloclast, and vitric particles. Notice the vesical rich particles of dark pumice fragments. The whole sample exhibits a strong imbrication pattern of particles indicated by the grey arrows – sample VU III–4 J Fine ash crystalloclastic tuff of the secondary pyroclastic facies composed mostly of crystalloclasts (VU III–6c). Notice the abundance of quartz crystalloclast in this facies indicating the acidic origin of the pyroclastic material. Also seen from the geochemical analysis. K Fine ash vitroclastic tuff with horizontal lamination from the secondary pyroclastic facies composed of very fine glass shards barely visible with the polarizing microscope (sample VU III–6)

The basaltic lithoclast component occupies around 70 vol.% of the rocks from this facies (Fig. 3A). The second most common constituent of this facies are crystalloclasts up to 1 mm in size (Table 1).

Epiclasts determined in this facies are presented by carbonates (Fig. 3A). Two types of carbonate clasts can be distinguished – dolostone and limestone (Table 1). Fossils of encrusting organisms were noticed in the limestone clasts and are determined as Plexoramea cerebrifimmis MELLO and Olengocoelia otti BECHSTADT & BRANDNER (Fig. 3B). These fossil assemblages are typical of Middle Triassic reefs. Olangocelia otti is determined as a typical Anisian species (Senowberi-Daryan et al., 1993), while Plexoramea cerebriformis ranges from the Pelsonian to the Carnian.

The matrix, composed of hyaline substrate, is characterized by a strong dominance of foliation seen as irregular linear spread between the clasts (Fig. 3C). In some places small microliths can be seen in the matrix contributing to the foliation. The curvature of the matrix may be aligned around the clasts, indicating a flow texture matrix (Fig. 3C). Subordinately, the chlorite cement may also be recognized, and is composed of fine chlorite aggregates with needle-like plagioclase microliths organized in faint imbrication patterns (Fig. 3D).

• (II) Resedimented autoclastic facies (RAF).

Rocks of this facies are presented by two different lithotypes based on the clasts size as well as the rocks’ composition, structure, and texture (Table 1).

The first lithotype is determined by lapilli-sized volcanic clasts and ~ 30 vol.% of carbonate epiclasts – block- to lapilli-sized basalt breccia with epiclasts (Table 1, Fig. 2). Clasts found in this lithotype are very irregular in shape. Granulometric bimodality is recognized with lapilli-sized clast mostly supported by dark brown to dark green to black matrix. The composition of clasts in the samples of this lithotype is similar to the aforementioned autoclastic effusive facies (Table 1). One specific lithoclast type observed in this lithotype is composed of entirely chloritized fine ash vitroclasts (Table 1; Fig. 3E). Horizontal lamination has sporadically been documented in such clasts. These clasts belong to felsic fine ash vitroclastic tuffs described in detail in the upcoming secondary pyroclastic facies. The main difference that allowed the distinction of RAF from the aforementioned AF is the presence of a sedimentary-type matrix and cement (Table 1). The matrix is composed of very fine volcanic particles (Fig. 3F). In addition to the matrix, a smaller quantity of chlorite or calcite cement can also be observed (Table 1; Fig. 3G).

The second lithotype within the RAF is distinguished by its variation in grain size and is referred to as coarse-sized ash lithoclastic tuff (Table 1, Fig. 2). The samples are characterized by very good sorting and occasionally a grading texture with gradual transitions from the lapilli-sized basalt breccia with epiclasts (Fig. 3H). Clasts are dominantly made of lithoclasts of various volcanic effusive rocks (Table 1). The presence of crystalloclasts is more abundant in this lithotype than in the one previously described (Fig. 3F). The most common type of crystalloclasts is plagioclase (Table 1). K-feldspars are found in smaller quantities (Table 1, Fig. 3G), while quartz crystalloclasts are the least abundant (Table 1). About 5% of clasts are represented by elongated pumice fragments (Table 1). The clasts in this lithotype feature point-to-line contacts, with varying pore spaces from 5 to 20%. Pore space between the clasts is filled either by a very fine-grained dark matrix or by calcite cement (Fig. 3G).

• (III) Secondary pyroclastic facies (SPF).

Deposits of the SPF are presented by three different lithotypes: (1) coarse-sized ash crystalloclastic tuff; (2) fine-sized ash crystalloclastic tuff and (2) fine-sized ash vitroclastic tuff (Table 1).

The first lithotype was determined in one sample only (VU III-4). This sample exhibits a pronounced imbrication of elongated clasts (Table 1; Fig. 3I). The dominant constituents of this lithotype are plagioclase crystalloclasts (Table 1). Some crystalloclasts are coated by a thin envelope of dark volcanic glass. Elongated pumice fragments are also present (Fig. 3I). They range from 1 to 2 mm in size (Table 1). Some pumice fragments show ductile deformations in contact with crystalloclasts. Basalt lithoclasts occupy around 10 vol.% of the sample (Table 1). Matrix is composed exclusively of secondary chlorite (Fig. 3I).

Samples from the other two lithotypes are combined into one group in Fig. 2 and are marked as VU III-3, VU III-5, VU III-5a, and VU IV-1. Fine-sized ash crystalloclastic tuff is composed dominantly of crystalloclasts (Fig. 3J; Table 1). A certain number of lithoclasts (up to 40 vol.%) is also present (Fig. 3J; Table 1). The lithoclasts within the rock are similar in grain size to the crystalloclastic particles (Table 1). The particles are either cemented with calcite or supported by a dark matrix (Table 1).

Fine-sized ash vitroclastic tuff is composed of densely packed very fine to fine glass shards (Fig. 3K; Table 1). Their shapes are not clearly distinguishable due to their small size. The entire lithotype exhibits a greenish coloration due to the devitrification process (Table 1). The predominant feature of the entire facies is the presence of horizontal to wavy lamination (Fig. 3K). In places, the two lithotypes alternate within the laminae.

5 Petrography and mineral chemistry of volcaniclastic rocks

Analysed rocks are composed of two-fold mineral associations. The first group of volcaniclastic rocks, related to autoclastic effusive facies and resedimented autoclastic facies largely consists of basaltic lithoclasts. There, plagioclase and pyroxene are the principal crystal phases (Fig. 3C, F, G). Alternatively, these phases may also be found as crystalloclasts (Fig. 3F). The rocks of the secondary pyroclastic facies are dominated by crystalloclasts of plagioclase (Fig. 3I), K-feldspar and quartz (Fig. 3J). Their grain sizes are noticeably greater in the coarse-sized ash crystalloclastic tuff (Fig. 3I) compared to the fine-sized ash crystalloclastic tuff (Fig. 3J, K).

Phase chemistry of representative phases from basalt (clasts in resedimented autoclastic facies) is shown in Additional file 2: Table S1 and Additional file 3: Table S2. Analysed rocks consist of up to 1.5 mm in size idiomorphic to hypidiomorphic prismatic K-feldspar (An_1-3Ab_9-16Or_83-90; Fig. 4A) characterized by homogenous chemical composition. Plagioclase grains are idiomorphic to hypidiomorphic zonal and lamellar (An_13-333; Fig. 4A). Homogenous subhedral pyroxene has diopside composition (Wo_47-48En_41-42Fs_11-11; Fig. 4B) with higher Al₂O₃ content (5.70–6.12 wt.%) and Cr₂O₃ (0.38–0.85 wt.%), and uniform Mg# (~ 79.50). Secondary amphibole occurs as alteration products and is very rare. It was classified as magnesiohornblenda to tremolite (Fig. 4C) with the Mg# ranging from 45.6 to 71.0. Numerous secondary phases found in the matrix, vesicles, pumice fragments, and in the hyaline clasts are very fine fan-like aggregates of chlorite-like phases (diabantite and pycnoclhorite, Hey, 1954; Fig. 4D or Mg-chlorite (clinochlore), Zane & Weiss, 1998; Fig. 4E) and radial needle-like aggregates of Fe-pumpellyite (Fig. 4F) with low Mg# (18.2–38.6). Accessory minerals found sometimes as inclusions of plagioclase or in the fine volcanic matrix are apatite. Volcanic glass in the form of matrix in all determined facies has been altered to the assemblage of chlorite-like and to a lesser degree micaceous phases. X-ray diffraction analyses on a global sample from secondary pyroclastic facies (Additional file 1: Figure S1) revealed the dominance of chlorite-smectite (C-S), which is the typical high-temperature alteration product of igneous lithologies in the study area (Slovenec & Šegvić, 2021; Šegvić et al., 2023). The smectitization however has been attributed to the opening of 14 Å phyllosilicates during a low-temperature regime (Millot, 1971; Uzarowicz et al., 2012) ultimately leading to the formation of smectite-poor C-S of low periodicity and variable ordering (Additional file 1: Figure S1). Such defined composition of C-S aligns well with the microprobe data recording somewhat elevated content of alkali and earth-alkali elements (Additional file 3: Table S2). Comparatively less abundant alteration product is mica, likely a member of the illite–alumoceladonite series based on the position of its first basal reflex, presenting a final stage of the post-magmatic evolution of feldspar and glassy component (Slovenec et al., 2020).

Fig. 4

Classification diagrams for A feldspar [Ab – An – Or plot; Deer et al., 1992, page 2; Dana et al., 1993, page 532], B pyroxene [En – Wo – Fs (Mg₂Si₂O₆ – Ca₂Si₂O₆ – Fe₂Si₂O₆) plot; Morimoto, 1988] C calcium amphibole [^A(Na + K + 2Ca – ^C(Al + Fe³⁺ + 2Ti) plot; Hawthorne et al., 2012], D–E chlorite [Fe/(Fe + Mg) – Si plot (after Hey, 1954 adapted to Sun et al., 2019); Mg – Fe – ^VI(Al + Cr + Fe³⁺) plot (Zane & Weiss, 1998)], F pumpellyite [Fe_tot – Mg – Al plot (adapted after Passaglia & Gottardi, 1973; Coombs et al., 1976)] from the basaltic volcaniclastics from Mt. Ivanščica. The compositional fields of pumpellyite from the East Taiwan Ophiolite (zeolite facies), the Olympic Peninsula (prehnite–pumpellyite facies) and the Taveyannaz Formation (upper prehnite–pumpellyite and pumpellyite– actinolite facies) were taken from Mével (1981), Coombs et al. (1976) and Rahn et al. (1994)

6 Bulk-rock chemistry and Nd isotope composition of volcaniclastic rocks

The chemical composition of the representative rock samples is shown in Additional file 4: Table S3. Analysed samples belonging to the autoclastic effusive facies and resedimented autoclastic facies (Fig. 2) show identical chemical composition and will therefore be considered as a single chemical group in further discussion. Their silica content (SiO₂ = 46.68–50.06 wt.%) is characteristic for mafic igneous extrusive rocks (Cox et al., 1979, page 231). The exception is the analysed sample VU III-3 (Fig. 2) with the high silica content (SiO₂ = 61.93 wt.%). Based on the petrographic definition, this sample belongs to the secondary pyroclastic facies dominantly made of the felsic fine ash tuff. The trace element based classification diagram of Winchester & Floyd (1977) reveals the analysed rocks predominantly fall in the category of sub-alkali basalts. However, sample VU III-3 stands out as an exception due to its elevated Zr content, placing it within the rhyodacite field (Fig. 5A). The high values of Ce/Yb (> 10) and Ta/Yb (> 0.1) indicate their calc-alkaline affinity (Fig. 5B). Analysed volcaniclastics are characterized by moderately high TiO₂ content (up to 1.36 wt.%) and Al₂O₃ (up to 18.84 wt.%), and moderately low MgO content (up to 5.45 wt.%) with significant variations in CaO (2.15–12.71 wt.%). Some of the samples exhibit higher K₂O values (≤ 3.61 wt.%). The loss of ignition (LOI) is between 3.60 (rhyodacite tuff sample) and 8.09 wt.%, which points to the medium level of post-magmatic alterations (Polat et al., 2002; Polat & Hofmann, 2003). Since some elements may be mobile during deuteric alterations we tested the element mobility by plotting their concentrations against that of Zr (not shown). This approach showed variable and selective mobilization of some major elements (Ca, Na, K) and large ion lithophile elements (LILE) such as Cs, Rb, K and Ba. By contrast, high field strength elements (HFSE) like Th, Nb, Ta, Ti, Hf, P, Y, and rare earth elements (REE) remained largely immobile. They were therefore deemed suitable for petrogenetic considerations (Pearce & Norry, 1979; Shervais, 1982; Becaluva et al., 1983). The volcaniclastics show an evolved geochemical character and are moderately fractioned in terms of Mg#, Ni and Cr content (43.0–54.8, 8–25 and < 57 ppm, respectively). Moderately high Zr content (103–166 ppm) in mafic volcaniclastics relates to the presence of zircon, which is abundantly documented in the rhyodacite tuff sample (Zr = 372 ppm).

Fig. 5

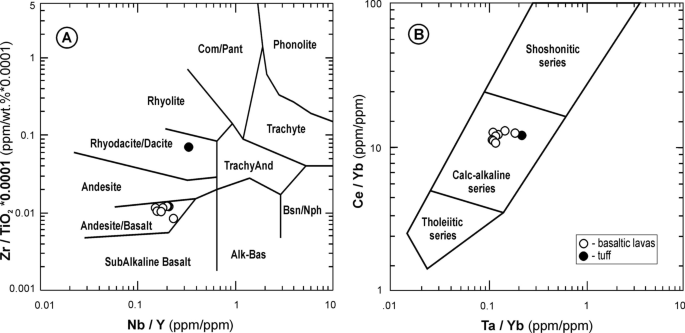

A Nb/Y – Zr/TiO₂*10^–4 classification diagram (Winchester & Floyd, 1977) and B Ce/Yb – Ta/Yb discrimination diagram after Pearce (1982) for the basaltic volcaniclastics and rhyodacite tuff from Mt. Ivanščica

The N-MORB normalized incompatible element patterns are shown in Fig. 6A. All mafic rocks exhibit a wide range of LILE (Cs, Ba, Rb, K) and Th enrichment ranging from 3.2 to 500 times relative to N-MORB and nearly flat pattern for more immobile elements (Zr to Lu) which ranges from 0.8 to 2.4 times relative to N-MORB. A typical feature of all analysed samples is strong positive Pb spike [(Pb/Ce)_N = 1.67–9.14], as well as the significantly pronounced negative anomalies of the Nb–Ta pair [e.g., (Nb/La)_N = 0.30–0.48]. Further on, the documented negative anomalies of Sr and Ti are typical for the subduction-related magmas (Pearce et al., 1984; Hofmann, 1997). The intensity of the negative Ti anomaly and positive Pb anomaly is the highest in the rhyodacite tuff sample (VU III-3). This most evolved felsic tuff is characterized also by a positive Zr-Hf anomaly which may suggest crustal contamination (Sun & McDonough, 1989) and zircon enrichment.

Fig. 6

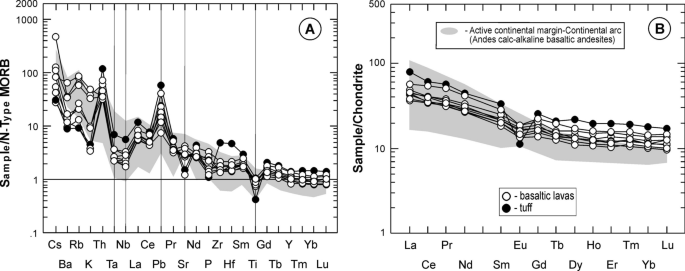

A N-MORB-normalised multielement and B REE patterns for the basaltic volcaniclastics and rhyodacite tuff from Mt. Ivanščica. Normalisation values are from Sun and McDonough (1989). Fields for Active continental margin-Continental arc calc-alkaline basaltic andesites in the Andes (Wilson, 1989, page 215) are plotted for comparison

The chondrite normalized REE patterns are shown in Fig. 6B. Samples exhibit the same trend of their normalized concentrations which suggests an equal composition of fractionated phases. The highest normalized concentrations are documented in the rhyodacite tuff sample. The normalized REE patterns show enrichment of light rare earth elements (LREE) over heavy rare earth elements (HREE) [(La/Lu)_CN = 3.52–4.69] at 28–80 times chondrite relative concentrations. All samples show almost flat HREE profiles [(Tb/Lu)_CN = 1.14–1.40] at 10–21 times relative to chondrite. The slight negative Eu anomaly (Eu/Eu* = 0.74–0.88) in analysed mafic volcaniclatics, is more pronounced in felsic pyroclastics (Eu/Eu* = 0.38) is typical for fractionation and removal of plagioclase in more evolved rock types (Sun & Nesbitt, 1978; Wilson et al., 1995).

The neodymium isotope composition of analysed rocks is provided in Additional file 5: Table S4. The values of ¹⁴³Nd/¹⁴⁴Nd of three representative samples are very consistent ranging from 0.512612 to 0.512622. The initial ε_Nd are calculated for 245 Ma which is the crystallization age of analyzed basaltic lavas based on the Ar/Ar plagioclase dating (see below). The initial ε_Nd varies between + 1.22 (± 0.494) to + 1.35 (± 0.510). These low values above the bulk silicate earth suggest a moderate degree of crustal contamination. However, the complexity of the source areas and associated melts from which the investigated lavas were generated is indicated by the ε_Nd(t) vs. ¹⁴⁷Sm/¹⁴⁴Nd diagram at which points are plotted in the transition zone between OIB, SJM and SCM (Fig. 7).

Fig. 7

¹⁴⁷Sm/.¹⁴⁴Nd – ε_Nd(t) isotope ratios diagram for the basaltic volcaniclastics and rhyodacite tuff from Mt. Ivanščica. Hypothetical mantle sources: DM depleted mantle (not refractory), VDM very depleted mantle (refractory), SJM subducted juvenile material (subducted oceanic crust; slab with little pelagic sediment), SCM subducted continental material and BE bulk earth. The observed compositions and hypothetical end members sources calculated for the Middle Triassic following Swinden et al. (1990)

7 ⁴⁰Ar/³⁹Ar dating

The results of ⁴⁰Ar/³⁹Ar dating on plagioclase separates from sample VU II-1 are provided in Additional file 6: Table S5, while the ³⁹Ar release spectra are shown in Fig. 8A. The calculations based on the released spectra indicated an age of 244.5 ± 2.8 Ma. This corresponds to the Middle Triassic (Anisian-early Ladinian, Gradstein et al., 2020). Sample VU II-1 is determined as coarse-sized ash lithoclastic tuff lithotype of the resedimented autoclastic facies.

Fig. 8

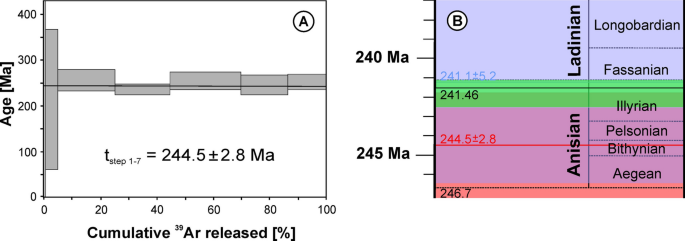

A ⁴⁰Ar/³⁹Ar step heating diagram of coarse-sized ash lithoclastic tuff lithotype of the resedimented autoclastic facies (sample VU II–1) from Mt. Ivanščica. B Age constraints of the coarse-sized ash lithoclastic tuff lithotype of the resedimented autoclastic facies from the Vudelja quarry (transparent red) combined with the radiolarian ages of the felsic tuff deposits in the southern part of the Ivanščica Mt. (transparent green – Kukoč et al., 2023) and K–Ar ages obtained from high-K calc-alkaline lavas and associated pyroclastic products on Kuna Gora Mt. (transparent purple – Slovenec & Šegvić, 2021)

Slovenec & Šegvić (2021) reported K–Ar ages of 241.1 ± 5.2 Ma for high-K calc-alkaline lavas and associated pyroclastic products on Kuna Gora Mt. in NW Croatia. Furthermore, the crystalloclastic and vitriclastic tuffs recovered from north-western Croatian mountains which were classified as deposits of a syn-eruptively resedimented pyroclastic density flow, are constrained biostratigraphically to the late Illyrian-early Fassanian (Kukoč et al., 2023). Secondary pyroclastic facies deposits (sensu Di Capua et al., 2022) of felsic tuffs in the present study have similar characteristics as volcanogenic deposits recorded in Kukoč et al. (2023).

Ages reported by Slovenec and Šegvić (2021), Kukoč et al. (2023) and those from this study are shown in Fig. 8B.

8 Discussion

Three volcaniclastic facies have been recognized in the investigated outcrop: (I) autoclastic effusive facies, (II) resedimented autoclastic facies and (III) secondary pyroclastic facies. Their distribution in the abandoned quarry front is shown in Fig. 2. The spatial organization and distribution of determined facies are not clearly visible in the whole quarry front due to thick and abundant scree, and tectonic disruptions. In today’s configuration, the distance from the primary volcanic source area likely increased from north-west to south-east.

8.1 Genesis of volcaniclastic facies

Volcaniclastic facies can be categorized into two groups based on their geochemical composition (Table 1). The first group primarily consists of basaltic lavas which underwent autoclastic processes, followed by re-sedimentation and reworking. Tectonic activity related to the rifting of the future Neotethys Ocean caused severe faulting and formation of graben and half-graben structures (Fig. 9). Basaltic magma likely effused through these deep fractures in the oceanic crust in the form of fissure-like effusions (Fig. 9). Such basalts are shown in Fig. 9 as basalt effusions of the coherent facies (CF). Primary basaltic effusions of the coherent faices were not recorded in the Vudelja quarry. The autoclastic effusive facies (AF) and resedimented autoclastic facies (RAF) are genetically linked and their distribution indicates an increasing distance from the original volcanic source (CF) and more pronounced re-sedimentation processes occurring further away. Autoclastic effusive facies deposits formed as a result of material fragmentation due to the rapid cooling of lava entering the marine environment. Clasts formed by these processes are irregular in shape and poorly sorted (Table 1). Different textures of basaltic clasts indicate that different parts of the flow were fragmented. It is however possible that some of the clasts stemming from hypothetical previous effusions might have been incorporated into the deposits of the autoclastic facies during transport. The newly formed clasts are subsequently redeposited by gravitational mechanisms (McPhie et al., 1993). The occurrence of a hyaline matrix with a flow texture documented in the samples of autoclastic effusive facies (Table 1; Fig. 3C) suggests relatively short sediment transport and permeation of the glassy lava flow in between the newly formed clasts (Allen, 1988).

Fig. 9

Volcano-sedimentary model representing mechanisms of formation and spatial distribution of generated facies during their time of formation. A A wider image representing the horst-graben, half-graben structure that was created by normal faulting related to the Middle Triassic rifting. These fault fractures served as routes for basaltic magma ascent and effusions. B The effused basaltic magma is quenching and autofragmenting in contact with cold sea water. Since slopes were developed during the faulting, newly formed basaltic clasts are transported by gravity currents. The most proximal clastic material is still influenced by effused lava, while with the alienation from the source the fragments become finer and are supported by sedimentary type matrix or cemented by calcite cement precipitated from the sea water. The secondary pyroclastic facies are deposited here as syn-eruptively resedimented PDC deposits from the explosive eruptions from an unknown/undiscovered source

Carbonate clasts found within volcaniclastic deposits (Fig. 3A) originated from the shallow marine carbonate environment (Table 1; Fig. 3B). Intense tectonic movements likely led to the coeval existence of active carbonate platform(s) and deeper marine environments (Goričan et al., 2005; Kukoč et al., 2023). The epiclasts of pelagic limestones (micritic limestone with pelagic fossils) found in both facies (AF and RAF) could have been incorporated in the volcaniclastics as they were moving over the carbonate bedrock, or/and due to the ascent of magma which had fragmented the bedrock. Pelagic limestone was deposited on subsided blocks within the NCTRB during the Middle Triassic (Kukoč et al., 2023). Carbonate clasts do not exhibit features that would suggest direct contact with hot volcanic rocks.

With the more distal transport from the primary basaltic magma effusion, clasts become rounder due to reworking (Table 1). The consistent composition of basaltic clasts suggests that there has been no alteration in the source area (Table 1; Fig. 9). The primary distinction between the autoclastic effusive facies and the resedimented autoclastic facies can be seen as the absence of a flow-type hyaline matrix between the clasts of the latter. The resedimented autoclastic facies is characterized by a prevalent sedimentary type of matrix, consisting of fine particles (Table 1). In places, clasts may have been cemented by calcite. The absence of hyaline lava in this facies implies that the lithotypes were deposited at greater distances from the source, where hyaline lava could have not penetrated the deposits. Rare occurrences of lithoclasts of vitroclastic tuffs indicate erosion of secondary pyroclastic facies which likely existed somewhere laterally. Both lithotypes of RAF, namely lapilli-sized basalt breccia with epiclasts and coarse-sized ash lithoclastic tuff with epiclasts, are found near each other at the quarry front (Fig. 2). The variations in clast size can be attributed to the sorting which occurred during transport and deposition. The material for this facies was likely transported downslope from submarine heights and deposited in deeper parts of the depositional environment by gravitational currents (Fig. 9). The grading texture visible in some samples (Table 1; Fig. 3H) supports this interpretation. In general, sedimentary processes had a stronger influence over the volcanic activity in shaping this facies.

The second geochemical group of facies is presented by secondary pyroclastic facies (SPF) (sensu Di Capua et al., 2022). The coarse-sized ash crystalloclastic tuff lithotype is determined as a single narrow zone (Fig. 2). Although there is no available chemical analysis for this specific sample, the phase assemblage indicates a felsic to intermediate composition (Table 1). The prominent feature of this sample is the pronounced imbrication of existing crystalloclasts and elongated pumice fragments, which signifies the processes of deposition by traction currents (Table 1, Fig. 3I). The plastic deformation observed in pumice fragments in contact with crystalloclasts indicates that the pumice fragments remained ductile while the current was in motion, indicating their syn-eruptive redeposition. Basaltic lithoclasts could have been incorporated while the current was moving over the basalts and/or basaltic volcaniclastics.

Fine-sized ash vitroclastic and crystalloclastic tuffs of the secondary pyroclastic facies are geochemically determined as rhyodacite tuff (Fig. 5A). The main characteristic of these deposits is the dominance of horizontal to wavy lamination (Table 1). The presence of lamination is attributed to the transition from predominantly crystalloclastic particles to vitroclastic particles. Similar associations of lithotypes has been reported in other locations within the NCTRB. They are determined as deposits of the distal pyroclastic density flows generated by volcanic eruptions from vents located near the shore and syn-eruptively redeposited by turbidite-like currents. These lithologies are widely recognized in the neighboring region of the Alpine-Dinaridic belt and are commonly referred to as Pietra Verde tuffs (e.g. Castellarin et al., 1988, Obernholzner, 1991). Storck et al. (2020) indicated several (sub-) volcanic centers in the Alpine region, that were active from 241.913 ± 0.052 to 238.051 ± 0.053 Ma, as a possible source of this pyroclastic material. Such volcanic centres have not been described from the Dinaridic region, except for a relatively small dolerite body (Slovenec et al., 2023a), indicating that the same Alpine explosive (sub-) volcanic centres could have served as a source of pyroclastic material for the wider region of the Greater Adria. An alternative explanation for the absence of such a volcano in the Dinarides could be attributed to its presumed proximity to the ancient shoreline or potentially even its location within shallow-water environment. In that case, seawater could be incorporated into the volcanic vent system producing vapour and raising the pressure in the magma chamber, thus causing explosive eruptions able to produce a huge amount of pyroclastic material. In addition, the energy of waves could have reworked a vast majority of that volcanic/volcaniclastic material. These processes could have produced material for secondary volcanogenic detritus found in younger deposits, such as the Wengen Formation in the Alpine region (Brack & Rieber, 1993; Gianolla et al., 1998; Brack et al., 2005; 2007) or the secondary volcaniclastic deposits of the NCTRB (Kukoč et al., 2023). The deposition of fine ash PDC material most likely occurred during the waning phase of volcanic activity that produced the basaltic lavas, along with the redeposition of basaltic clasts. A similar scenario has been documented in the current Ethiopian rift system today (Kazim et al., 1980; Wolde Gabriel & Aronson, 1987; Wolde Gabriel et al., 1990; Bonini et al., 2005). There, the presence of basalts along with intermediate and felsic rocks has been documented and interpreted this as evidence of bimodal volcanism occurring in the Eastern Africa rift area (Morbidelli et al., 1975; Zanettin et al., 1978; Wolde Gabriel et al., 1990; Mazzarini et al., 1999; Bonini et al., 2005). Analogous situations of both modern and ancient volcanic systems are described by Ellis and King (1991), Jackson et al. (2008), and Hnylko et al. (2015).

Felsic tuffs of NW Croatia intercalated with radiolarian cherts were dated as late Illyrian to early Fassanian (Goričan et al., 2005; Slovenec et al., 2023b; Kukoč et al., 2023). Basaltic volcaniclastics were dated radiometrically at 241.1 ± 5.2 Ma (Slovenec & Šegvić, 2021). Therefore, in the case of Middle Triassic deposits of NW Croatia the existence of andesitic to basaltic volcanic/volcaniclastic rocks (Slovenec & Šegvić, 2021; Slovenec et al., 2020; Kukoč et al., 2023), as well as rhyolitic to rhyodacitic coarse to fine ash tuffs (Goričan et al., 2005; Slovenec et al., 2023b; Kukoč et al., 2023) indicates a bimodal volcanic activity in the region of the Greater Adria during the Middle Triassic (Fig. 6).

In the wider Dinaridic region, traces of Middle Triassic volcanic activity are recorded in a variety of settings. Although it is speculated that the initial volcanic activity started in the Permian (Šćavničar, 1979) and lasted up to the Late Triassic (Pamić, 1984), the peak of the volcanic activity in the Dinarides occurred during the Middle Triassic. The remnants of this volcanic activity are observed through the presence of basaltic and andesite sub-/effusions (Pamić, 1984; Lugović & Majer, 1983; Dimitrijević, 1997; Trubelja et al., 2004; Slovenec et al., 2023a), more evolved effusive rocks (Dimitrijević, 1997), intrusive igneous rocks (Golub & Vragović, 1975; Marić, 1976; Pamić, 1984, 2000; Trubelja et al., 2004), and volcaniclastic deposits (Šćavničar et al., 1984; Marci et al., 1991; Belak, 2000; Kolar-Jurkovšek et al., 2006; Balini et al., 2006; Aljinović et al., 2010; Gawlick et al., 2012; Smirčić et al., 2018, 2020a; 2020b). The majority of volcano-sedimentary successions, which have been dated using biostratigraphic or isotopic methods, indicate a late Illyrian to early Fassanian age (e.g., Gawlick et al., 2012; Smirčić et al., 2018, 2020b). Mafic volcaniclastic deposits, similar to the ones recorded in this study and interpreted as submarine effusions, are found in the External Dinarides (Šćavničar et al., 1984; Smirčić et al., 2018). Here, mafic volcaniclastics have been accompanied by felsic Pietra Verde-type tuffs (Šćavničar et al., 1984), and covered by shallow-water carbonates. Pietra Verde-type tuffs in the successions of the External Dinarides, exhibit characteristics of gravitationally-driven submarine deposits as well. Here, the effusive volcanism seems to have ceased in the early Carnian (Pamić, 1984; De Min et al., 2008).

Volcanic and volcaniclastic deposits are a common feature of Middle Triassic deposits of the Southern Alps and the Transdanubian Range. Mafic volcanic and volcaniclastic deposits, including pillow lavas and hyaloclastites were deposited in a deep-marine environment (Bosellini et al., 2003) in the Alpine region. These deposits have been referred to as the Fernazza Formation (Mundil et al., 1996; Brandner et al., 2007) and are dated as 238.65 Ma to 237.77 Ma, which corresponds to the late Ladinian (Gradstein et al., 2020). Pietra Verde tuffs are intercalated within the coeval basinal and shallow-water deposits and have been constrained radiometrically from 242.65 Ma (late Illyrian) to 237.58 Ma (late Ladinian to early Carnian) according to Storck et al. (2018). These obtained age span suggests a coeval existence of the two different types of volcanism analogue to the study area of the NCTRB. However, while the ages of felsic volcanic products are comparable, mafic volcanites and volcaniclastics of the Fernazza Formation are somewhat younger than the mafic lithologies in the NCTRB. Lithologies similar to the ones presented in this study have also been documented in Transdanubia and Gemer-Bükk subunits of the Alcapa Block (Harangi et al., 1996, Velledits, 2004, 2006). In the Transdanubian Range, Middle Triassic volcanic and volcaniclastic lithologies, along with pyroclastic deposits, are present in two distinct horizons: one ranging from the Anisian to the early Ladinian, and the other occurring in the late Ladinian. The main difference between the two relates to their chemical composition. The older horizon is composed of intermediate to felsic volcanic lithologies, while the younger belongs to the alkaline basaltic series (Harangi et al., 1996).

Based on the available data, it can be tentatively concluded that the mafic effusion in NW Croatia occurred earlier than in the Southern Alps and Transdanubian Range. This observation suggests that the present-day Dinarides were positioned closer to the main rifting direction of the future Neotethyan Ocean (Fig. 46 in van Hinsbergen et al., 2020; or Fig. 12 in Slovenec et al., 2023a, 2023b). The Pietra Verde tuffs are found throughout the entire area as extensive horizons, ranging in age from the late Illyrian to late Ladinian. Similar to the Southern Alps and the Dinarides, this indicates that such pyroclastic activity persisted concurrently with the mafic effusions during that period.

8.2 Petrogenesis of parental lavas

The complex origin of analysed rocks from all three determined facies in the Vudelja Quarry can be clarified based on the ratios of discriminant trace elements and the Sm–Nd isotope data. Low and constant Sm/La coupled with a moderately high Th/La ratio (up to 0.52; Fig. 10) indicate the presence of sediment/crustal material in the generation of the magmas. Positive Pb spikes (up to 12.2; Fig. 6A) clearly reveal elevated degrees of crustal contamination. Low positive values of initial ε_Nd(t) (≤ 1.34) and low values of ¹⁴⁷Sm/¹⁴⁴Nd (≤ 0.137401; Additional file 5: Table S4) coupled with negative anomalies of Nb–Ta pair relative to La (Fig. 6A) are in line with the input of subducted slab melts. The magma responsible for the formation of the investigated rocks was generated through partial melting, which occurred as a result of the mixing of three distinct source components: (a) subducted juvenile material (SJM) whose origin was likely linked to the subducted oceanic crust of the Paleotethys, (b) subducted continental material (SCM), i.e. sediments recycled in mantle wedge and (c) subordinate of OIB-like mantle (Fig. 7).

Fig. 10

Discrimination diagrams for the basaltic volcaniclastics and rhyodacite tuff from Mt. Ivanščica. Th/La – Sm/La (after Plank, 2005). N-MORB normal mid-ocean ridge basalts, E-MORB enriched MORB, OIB ocean island basalts, PM primitive mantle (Sun & McDonough, 1989)]; [UCC upper continental crust, LCC lower continental crust (Taylor & McLenann, 1985)]; GLOSS global subduction sediment (Plank & Langmiur, 1998); DMM depleted MORB mantle (Workman & Hart, 2005)

The petrogenetic model based on incompatible and immobile trace element concentrations (i.e. Dy vs. Yb, Rollinson, 1993, page 166; Thirwall et al., 1994) was used to report on partial melting of a residual mantle source. In the Dy/Yb vs. Yb diagram (Fig. 11) analysed basaltic rocks plot near the melting curve representing a spinel mantle source region, and the partial melting degree could have spanned from 7 to 13%. This generally low degree of spinel source partial melting reflects a relatively shallow mantle source probably related to a mature volcanic arc.

Fig. 11

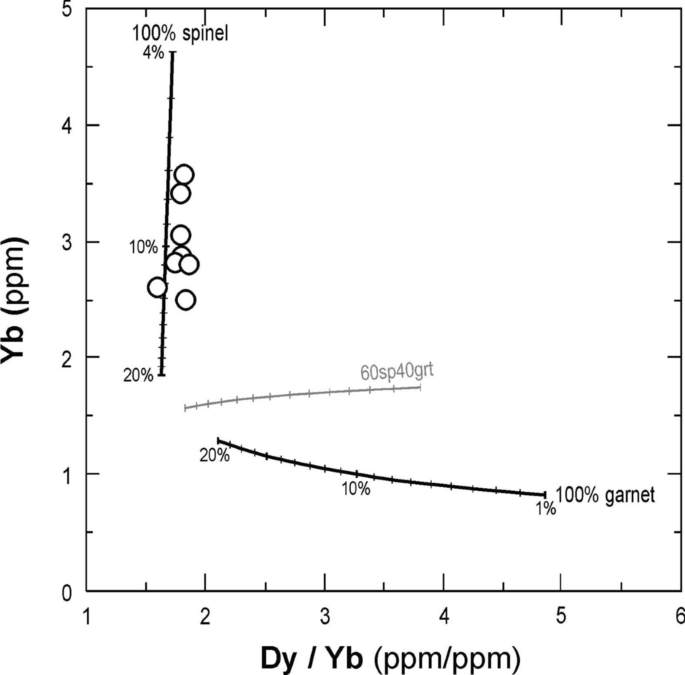

Yb – Dy/Yb diagram for the basaltic volcaniclastics from Mt. Ivanščica. Partial melting curves are shown for the non-modal batch melting of spinel and garnet lherzolite sources, starting from a Primitive Mantle (PM; McDonough & Frey, 1989) material. Mineral and melt modes for spinel and garnet-lherzolite source: Ol_0.58(0.10) + Opx_0.27(0.27) + Cpx_0.12(0.50) + Sp_0.03(0.13) (Kinzler, 1997) and O_l0.60(0.05) + Opx_0.21(0.20) + Cpx_0.08(0.30) + Gt_0.12(0.45) (Walter, 1998), respectively. Italic numbers in parentheses indicate the percentages of each mineral entering the liquid. Partition coefficients are from McKenzie & O'Nions (1991)

In brief, it can be inferred that the analysed calc-alkaline rocks from all three facies were formed as a result of complex processes involving partial melting of the metasomatized subcontinental lithospheric mantle, along with minor melting of a shallow asthenospheric mantle.

8.3 Tectonomagmatic and geodynamic significance

Analysed basaltic volcaniclastic rocks and associated rhyodacitic tuffs from the Vudelja Quarry exhibit chemical characteristics of calc-alkaline magmas formed in the volcanic arc geotectonic settings, which suggests a genetic relation with the subduction zone (Fig. 12A-C). The chemical composition of the primary mineral phases further supports the same conclusion (clinopyroxene; Fig. 12D). Enrichment in LILE and LREE concentrations and negative anomalies of Nb–Ta and Ti (Fig. 6A, B), along with depletion in HFSE and Th/Ta vs. Yb and Th/Nb vs. La/Yb ratios (Fig. 12B-C) support a strong subduction influence (e.g. Pearce, 1982, 1983; Arculus & Powel, 1986; Hawkesworth et al., 1993, 1997). These findings are consistent with the origin of the investigated volcaniclastic rocks being related to an ensialic and mature volcanic arc setting that developed in an active, Andean-type, continental margin environment. Nevertheless, the observed chemical composition, indicating the presence of an active volcanic arc, is likely predominantly inherited from older arc-related lithologies associated with the subduction of the Paleotethys Ocean. As a result, it may not accurately reflect the true tectonomagmatic setting of the formation of the investigated volcaniclastic rocks and related basaltic lavas that served as their primary source. Their origin can be explained by the model of a passive continental rifting along mid-Triassic margins of the Greater Adria within the NCTRB (Fig. 13). This model includes (i) partial melting of the heterogeneous lithospheric (subcontinental) mantle, which had been metasomatized during an earlier Hercynian subduction event(s) in the Late Paleozoic (Saccani et al., 2015) and (ii) significantly subordinated to the processes related to the melting of the upper continental crust and fractionation as suggested by Slovenec & Šegvić (2021) for the coeval basalts/andesites of the wider study area.

Fig. 12

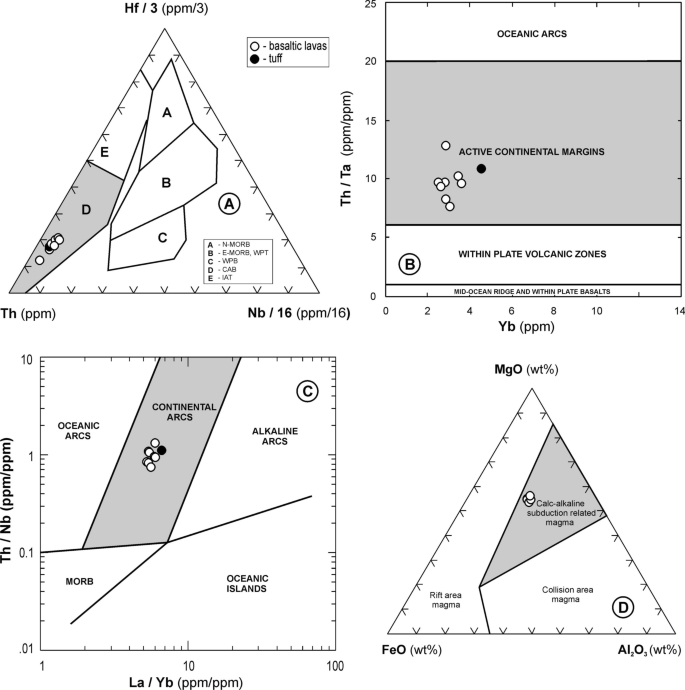

Discrimination diagrams for the basaltic volcaniclastics and rhyodacite tuff from Mt. Ivanščica. A Th – Nb/16 – Hf/3 diagram (Wood, 1980). A = normal mid-ocean ridge basalts (N-MORB); B = enriched MORB (E-MORB) and within-plate tholeiites (WPT); C = alkaline within-plate basalts (AWPB); D = calc-alkali basalts (CAB); E = island-arc tholeiites (IAT). B Yb – Th/Ta diagram for felsic and intermediate rocks (Gorton & Schandl, 2000). C La/Yb – Th/Nb diagram (Hollocher et al., 2012). D FeO – Al₂O₃ – MgO discriminant diagram for pyroxene (Le Bas, 1962)

Fig. 13

Schematic geodynamic model (scale is approximate) for ensialic infant arc – back-arc rifting in the central part of the Mediterranean region according to van Hinsbergen et al. (2020) palaeogeographic reconstruction. CAB calc-alkaline and shoshonitic basalts/volcaniclastites, AB alkaline basalts, OIB ocean island basalts, NCTRB Northwestern Croatian Triassic Rift Basin

9 Conclusions

Three different volcaniclastic facies are determined in the study area based on their micropetrographical characteristics: (I) autoclastic effusive facies, (II) resedimented autoclastic facies, and (III) secondary pyroclastic facies. These facies are divided into mafic and intermediate/felsic groups based on geochemical results. The mafic group of facies: autoclastic effusive facies and resedimented autoclastic facies is composed dominantly of basaltic clasts with grain size change reflecting the increasing distance from the primary basaltic effusion. These facies were generated through basaltic fissure eruptions in a marine environment, where they underwent processes such as quenching, autofragmentation, and resedimentation of the freshly derived basaltic clasts. Additionally, the presence of limestone epiclasts containing distinct Middle Triassic reef fauna suggests the existence of a nearby shallow carbonate environment from which the carbonate fragments could have been sourced. The intermediate/felsic facies is determined as secondary pyroclastic facies. The secondary pyroclastic facies is characterized by the presence of horizontal lamination in fine ash tuffs (Pietra Verde), indicating distal parts of PDC deposits and their syn-eruptive redeposition. The geochemical characteristics of rocks from all analysed facies indicate a unique, relatively shallow, spinel mantle magma source. The magma was generated through a complex process involving the mixing of three distinct source components: (a) subducted juvenile material (SJM) whose origin was likely linked to the subducted oceanic crust of the Paleotethys Ocean, (b) subducted continental material (SCM), i.e. sediments recycled in the mantle wedge and (c) an OIB-like mantle.

The Ar/Ar dating revealed the ages of 244.5 ± 2.8 Ma, corresponding to the uppermost Spathian to uppermost Illyrian. This age coincides with the ages obtained for felsic tuffs documented in the NCTRB, as well as in the wider area of the Greater Adria, suggesting that during the Middle Triassic time, the entire area of the Greater Adria was influenced by contemporaneous bimodal volcanism.
