Earthquakes in Switzerland and surrounding regions during 2017 and 2018
Swiss Journal of Geosciences volume 114, Article number: 4 (2021)
This report summarizes the seismicity in Switzerland and surrounding regions in the years 2017 and 2018. In 2017 and 2018, the Swiss Seismological Service detected and located 1227 and 955 earthquakes in the region under consideration, respectively. The strongest event in the analysed period was the ML 4.6 Urnerboden earthquake, which occurred in the border region of cantons Uri, Glarus and Schwyz on March 6, 2017. The event was the strongest earthquake within Switzerland since the ML 5.0 Vaz earthquake of 1991. Associated ground motions indicating intensity IV were reported in a radius up to about 50 km and locally approached intensity VI in the region close to the epicentre. Derived focal mechanisms and relative hypocentre relocations of the immediate aftershocks image a NNW–SSE striking sinistral strike-slip fault. Together with other past events in this region, the Urnerboden earthquake suggests the existence of a system of sub-parallel strike-slip faults, likely within in the uppermost crystalline basement of the eastern Aar Massif. A vigorous earthquake sequence occurred close to Château-d'Oex in the Préalpes-Romandes region in western Switzerland. With a magnitude of ML 4.3, the strongest earthquake of the sequence occurred on July 1, 2017. Focal mechanism and relative relocations of fore- and aftershocks image a NNE dipping normal fault in about 4 km depth. Two similarly oriented shallow normal-fault events occurred between subalpine Molasse and Préalpes units close to Châtel-St-Denis and St. Silvester in 2017/18. Together, these events indicate a domain of NE–SW oriented extensional to transtensional deformation along the Alpine Front between Lake Geneva in the west and the Fribourg Fault in the east. The structural complexity of the Fribourg Fault is revealed by an ML 2.9 earthquake near Tafers in 2018. The event images a NW–SE striking fault segment within the crystalline basement, which might be related to the Fribourg Fault Zone. Finally, the ML 2.8 Grenchen earthquake of 2017 provides a rare example of shallow thrust faulting along the Jura fold-and-thrust belt, indicating contraction in the northwestern Alpine foreland of Switzerland.
Dieser Bericht stellt eine Zusammenfassung der im Jahr 2017 und 2018 in der Schweiz und Umgebung aufgetretenen Erdbeben dar. Im Jahr 2017 erfasste und lokalisierte der Schweizerische Erdbebendienst im erwähnten Untersuchungsgebiet 1227 Erdbeben. Im Jahr 2018 lag diese Zahl bei 955 Erdbeben. Das stärkste Ereignis im untersuchten Zeitraum war das ML 4.6 Urnerboden Beben, welches sich am 6. März 2017 im Grenzgebiet der Kantone Uri, Glarus und Schwyz ereignete. Das Urnerboden Beben war das stärkste Ereignis innerhalb der Schweiz seit dem ML 5.0 Beben bei Vaz im Jahre 1991. Nahe dem Epizentrum erreichten die verursachten Bodenbewegungen eine makroseismische Intensität der Stufe VI, und in einem Umkreis von bis zu 50 km wurden Intensitäten der Stufe IV verspürt. Herdmechanismen und Relativlokalisierungen von unmittelbaren Nachbeben deuten auf eine NNW–SSO streichende, sinistrale Blattverschiebung hin. Ähnlichkeiten mit weiteren Beben in der jüngeren Vergangenheit in dieser Region weisen auf ein System von subparallelen Blattverschiebungen im obersten Teil des kristallinen Grundgebirges des östlichen Aar Massivs hin. Eine außergewöhnlich starke Sequenz von Erdbeben ereignete sich zudem nahe Château-d'Oex, in der Region Préalpes-Romandes im Westen der Schweiz. Mit einer Magnitude von ML 4.3 ereignete sich das stärkste Beben dieser Serie am 1. Juli 2017. Herdmechanismen und Relativlokalisierungen von Vor- und Nachbeben deuten auf eine nach NNO einfallende Abschiebung in ungefähr 4 km Tiefe hin. Zwei weitere, ähnlich orientierte Abschiebungsbeben traten im Zeitraum 2017/18 nahe Châtel-St-Denis und St. Silvester im Bereich zwischen Subalpiner Molasse und den Préalpes Decken auf. Zusammengefasst deuten diese drei Abschiebungsbeben auf einen Bereich von NO-SW gerichteter Extension bzw. Transtension entlang der Alpenfront hin, welcher durch den Genfersee im Westen und der Fribourg-Verwerfung im Osten begrenzt ist. Ein ML 2.9 Beben bei Tafers im Jahr 2018 erlaubt neue Einblicke in die komplexe Struktur der Fribourg Störung. Das Beben weist auf ein NW-SO streichendes Verwerfungssegment im kristallinen Grundgebirge hin, das eventuell im Zusammenhang mit der Fribourg Verwerfung steht. Das ML 2.8 Erdbeben, das sich im Jahr 2017 nahe Grenchen ereignete, stellt zudem ein seltenes Beispiel einer seismisch aktiven Überschiebung südlich des Faltenjuras im nordwestlichen alpinen Vorland der Schweiz dar.
Ce rapport résume l'activité sismique en Suisse et dans les régions limitrophes au cours des années 2017 et 2018. En 2017 et 2018, le Service Sismologique Suisse a détecté et localisé respectivement 1227 et 955 séismes dans la zone considérée. L’événement le plus puissant dans la période analysée fut le séisme d’Urnerboden de magnitude ML 4.6, qui s’est produit le 6 mars 2017 dans la région frontalière des cantons d’Uri, de Glaris et Schwytz. Ce fut le plus grand séisme en Suisse depuis le séisme de magnitude ML 5.0 à Vaz en 1991. Les mouvements du sol associés au séisme d’Urnerboden approchèrent une intensité maximale de VI, et une intensité de IV fut reportée à une distance d’environ 50 km. Les mécanismes au foyer et les relocalisations relatives des hypocentres de répliques rendent compte d’une faille décrochante senestre de direction NNW–SSE. Le séisme d’Urnerboden et la sismicité historique environnante suggèrent l’existence de failles décrochantes sub-parallèles, probablement dans la partie supérieure du socle cristallin à l'extrémité orientale du massif de l'Aar. Une autre séquence remarquable s’est produite près de Château-d'Oex dans les Préalpes romandes en Suisse occidentale. Le plus puissant séisme de cette séquence s’est produit le 1er juillet 2017 avec une magnitude ML de 4.3. Les mécanismes au foyer et les relocalisations relatives de ses précurseurs et répliques permettent de visualiser une faille normale avec un pendage vers le NNE à environ 4 km de profondeur. Deux évènements associés à des failles normales superficielles d’orientation similaires se sont produits en 2017 et 2018, entre les Molasses sub-alpines et les unités structurales des Préalpes, près de Châtel-St-Denis et St. Silvestre. L'ensemble de ces évènements indiquent le long du front alpin, entre le lac Léman à l’ouest et la faille de Fribourg à l’est, un domaine NE–SW où s’opère une transition de déformation entre une région d’extension et une région de transtension. La complexité structurale de cette dernière est révélée par un séisme d’une magnitude ML 2.9 près de Tavel en 2018. Cet évènement décrit un segment de faille NW–SE au sein du socle cristallin, qui pourrait être relié à la zone de faille de Fribourg. Enfin, le séisme de magnitude ML 2.8 à Grenchen en 2017 procure une information rare sur la dynamique active de la partie superficielle de la ceinture de chevauchement du Jura dans l’avant-pays nord-ouest-alpin Suisse.
Past earthquake activity in Switzerland and surrounding regions has been documented in a series of annual reports since 1879. A detailed overview on the history of past reports and studies covering different aspects of the recent seismicity of Switzerland is provided e.g. by Diehl et al. (2014). The present report first summarizes the state of the seismic network and documents changes in its configuration during 2017 and 2018. Then we provide a short overview of the methods used for earthquake analysis. This is followed by a description of the seismic activity and significant earthquakes in 2017/18. The discussion of significant earthquakes and earthquake sequences considers information from derived focal mechanisms and high-precision relative hypocentre relocations.
2 Data acquisition, analysis and access
2.1 Seismic stations in operation during 2017/18
The Swiss Seismological Service at ETH Zurich (SED) operates two nationwide seismic networks, a high-gain (weak-motion) network predominantly consisting of broad-band seismometers (SDSNet, Additional file 1: Table S1) that is often complimented by co-located accelerometers, and a low-gain (strong-motion) network (SSMNet, Additional file 1: Table S2) that consists of accelerometers (Swiss Seismological Service (SED) at ETH Zurich 1983). A more complete description can be found in previous Annual Reports (e.g., Diehl et al. 2014). In addition, the SED operates a number of temporary stations for various projects (Additional file 1: Table S3). SED-operated permanent stations with on-line data acquisition that were operational at the end of 2018 are shown in Fig. 1.
Within the Swiss Strong Motion Network (SSMNet) renewal project, 100 free-field, real-time, very broad-band accelerometer stations are being installed over a 10-year timeframe between 2010 and 2021 (e.g., Clinton et al. 2011). In 2017/18, 15 new accelerometer stations were installed (Fig. 1; 8 in 2017: SCHAT, SEFS, SGLK, SHER, SRFW, SNTZ, SUSI, SZWD2; 7 in 2018: SAARA, SARC, SBUL, SENGL, SFRS, SMELS, SWYZ).
The broadband weak-motion seismometer network is also undergoing a renewal period that continued during 2017 and 2018. Numerous stations were upgraded by replacement of the acquisition hardware and broadband seismometers, and if not already existing, the addition of an accelerometer. In 2018, a new broadband weak-motion station JAUN was installed close to Jaun (FR). To improve seismic monitoring in regions of past or future geothermal projects, five new broadband weak-motion stations were installed in 2017/18 (Fig. 1; FULLY, ILLEZ, LAVEY, SAVIG, SGT18). In 2017, stations at LKBD (Leukerbad) and GSF01 (Oberhasli) were dismantled. Further, all first-generation dial-up analogue accelerometer stations were decommissioned in 2017.
As part of various projects, several new semi-permanent stations have been installed to locally improve the density of the network in 2017/18 (e.g. in the region of the Bedretto Underground Laboratory for Geoenergies and the Geneva basin). The networks built to monitor potential sites for radioactive waste disposal; the geothermal projects in Basel (2006) and Sankt Gallen (2013); and the Mont Terri Rock Laboratories continue to operate. Surface stations related to the Grimsel Rock Laboratory were partly dismantled. In 2017/18, the temporary stations from the AlpArray Seismic Network (AASN) (Molinari et al. 2016; AlpArray Seismic Network 2015) continue to operate in the greater Alpine region, including three stations in Switzerland (A060A/B, A061A, and A062A). The number of AlpArray stations operating outside but near the Swiss border in Italy, France, Austria and Germany is significant, and these stations are included in the national monitoring when possible. To improve the reliability of locations for events at the periphery of or outside of Switzerland, the SED continues to be engaged in an on-going cross-frontier cooperative effort to exchange seismic data in real-time with foreign seismic networks as documented in detail by Diehl et al. (2014). Over 60 foreign stations were monitored by the SED at the end of 2018.
The SED now provides open access to station inventory, waveform data and earthquakes catalogues via the International Federation of Digital Seismograph Networks (FDSN) webservices, the community standard (see http://www.seismo.ethz.ch/en/research-and-teaching/products-software/fdsn-web-services/ for details).
2.2 Automatic earthquake detection and magnitude of completeness during 2017/18
All stations with real-time data acquisition (Fig. 1) were used for automatic real-time detection of seismic events. An estimation of the magnitude of completeness (MC) achieved by the network configuration at the end of 2018 is shown in Fig. 1. The MC magnitude is defined as the lowest magnitude of events that a network is able to record reliably and completely (e.g., Schorlemmer and Woessner 2008). We use the probabilistic approach of Schorlemmer and Woessner (2008) to compute lateral variations in MC (see Diehl et al. 2018 for details). The map shown in Fig. 1 assumes a probability of detection of 0.99, a hypothetical focal depth of 5 km and a minimum number of 6 automatic triggers, which corresponds to the minimum number currently required by the monitoring system of the SED (Diehl et al. 2013). Compared to previous MC maps of Switzerland (e.g., Nanjo et al. 2010), the recent and ongoing densification of the seismic network has significantly improved the detection capabilities throughout Switzerland. Due to the removal of temporary stations in the Grimsel area, MC slightly deteriorated in this region compared to previous estimates (Diehl et al. 2018). On the other hand, MC in western and southwestern Switzerland improved compared to previous estimates due to the densification of stations in these regions during 2017/18. The completeness magnitude achieved by the network configuration at the end of 2018 is MC = 1.5 or better for most parts of Switzerland and around MC = 1.0 in north and southwest Switzerland (Fig. 1). Regions of relatively higher MC are the western Molasse basin and the southwestern Jura Mountains with MC between 1.5 and 2.0.
2.3 Routine and supplementary earthquake analysis
Methods and software currently used for routine earthquake analysis are described in detail in Diehl et al. (2013, 2014, 2018). Later in this report, we will discuss the ground shaking associated with two major earthquakes in 2017. Maps of ground shaking are automatically computed by the SED for every earthquake with ML ≥ 2.5 within the greater Swiss region using the USGS ShakeMap software (Worden et al. 2010, 2020). SED ShakeMaps are computed as described in Cauzzi et al. (2015), using the Swiss ground-motion model of Edwards and Fäh (2013), combined with regional site amplification factors (Fäh et al. 2011) and station recordings. Macroseismic intensity according to the European Macroseismic Scale (EMS-98; Grünthal 1998) is converted from measured peak ground velocity using the equations of Faenza and Michelini (2010). The ShakeMaps presented in the following sections were computed using the new USGS ShakeMap 4.0 software (Worden et al. 2020), which features the improved interpolation method described by Worden et al. (2018) and the ground motion models as implemented in OpenQuake (Pagani et al. 2014).
To enhance the completeness for selected sequences in 2017/18, a cross-correlation based template matching method was implemented in order to lower the detection threshold of micro-seismicity. The applied procedure is described in Herrmann et al. (2019). To resolve active fault planes and to image the spatio-temporal evolution for selected earthquake sequences, we performed relative hypocentre relocations using the double-difference method of Waldhauser and Ellsworth (2000) in combination with waveform cross-correlation. The applied procedure is described in Diehl et al. (2017).
3 Seismic activity during 2017 and 2018
During 2017, the SED detected and located a total of 1227 earthquakes in the region ranging from 5.8 to 10.8° E and 45.7 to 47.9° N shown in Fig. 2a. Based on criteria such as the time of occurrence, the location, and signal character or on direct communication, 237 additional seismic events were identified as quarry blasts. Magnitude values of the earthquakes recorded in 2017 range from ML − 0.4 to 4.6 (Fig. 3). During 2018, 955 earthquakes and 229 quarry blasts were detected and located by the SED in the same region (Figs. 2b, 3). The magnitudes of earthquakes in 2018 range from ML − 0.2 to 4.1 (Fig. 3). The events with ML ≥ 2.5 in 2017/18 are listed in Table 1. The chosen magnitude threshold of ML 2.5 ensures that the data set is comparable to seismicity in the same magnitude range for previous years (completeness magnitude MC = 2.5 for Switzerland over the period 1975–2018; Nanjo et al. 2010), and makes sure that the number of unidentified quarry blasts and of mislocated earthquakes is negligible. With a total of 23 and 25 earthquakes of magnitude ML ≥ 2.5, the seismic activity of potentially felt events in either year was close to the yearly average of 23 earthquakes in the same magnitude range over the previous 42 years.
Table 1 includes the location qualities for events with ML ≥ 2.5. Table 2 documents the criteria used to assign these quality ratings to the given locations, and it also indicates corresponding estimated location uncertainties for each quality value. The location quality criteria as defined in Table 2 provide conservative first-order information on the reliability of epicentre location and focal depth and, since they have been systematically applied in all annual reports since 1999, that allow direct comparison of quality with locations documented in previous annual reports. For events that have occurred since 2013, additional nonlinear location uncertainty estimates can be found in the online catalogue, in XML using the quakeMLformat (https://quake.ethz.ch/quakeml). Not all reported uncertainties, however, do account for systematic errors, e.g. errors in the seismic velocity model used for location, or, misidentified phases (e.g., Husen and Hardebeck 2010). Ignoring the contribution of such errors can result in a significant underestimation of the true location accuracy. On the other hand, these errors are difficult to assess (e.g., Husen and Hardebeck 2010). Therefore, we provide realistic uncertainty estimates on hypocentre accuracy in the discussion of significant earthquakes. These estimates consider the nonlinear uncertainty estimates as well as tests with varying subsets of data (P and/or S phases, different distance ranges, with/without refracted Pn phases, etc.) and velocity models.

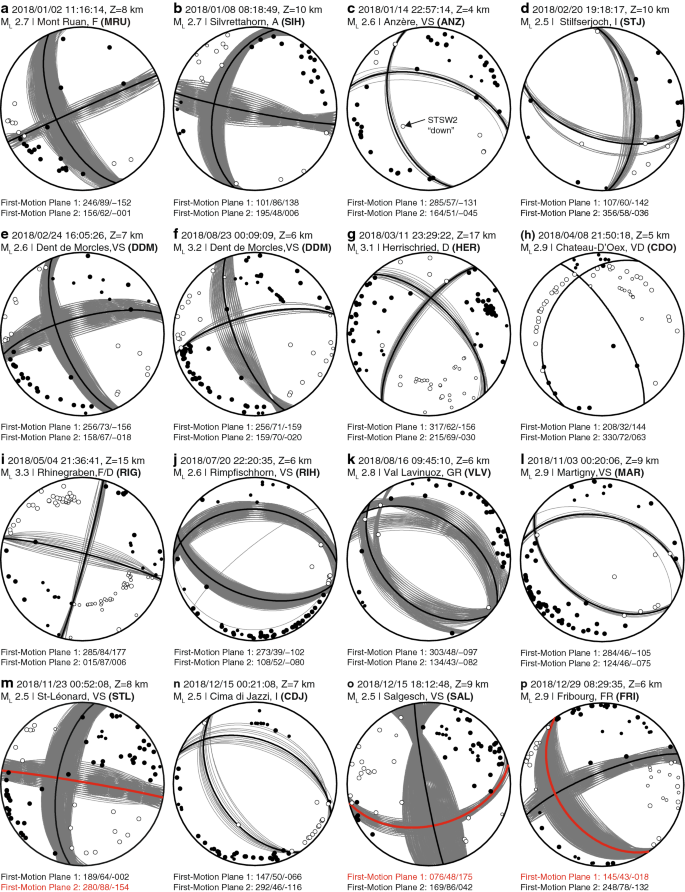

Fault-plane solutions based on first-motion polarities of all events with ML ≥ 2.5 in 2017/18 are shown in Figs. 2, 4, 5, 6 and 7. The mechanisms derived for selected earthquakes with ML < 2.5 are shown in Fig. 2 and Additional file 1: Figure S1. All corresponding parameters are summarized in Additional file 1: Table S4. Only well-constrained solutions are listed and first-order uncertainties of the first-motion mechanisms are provided by the spread of solutions in Figs. 4, 5, 6, 7 and Additional file 1: Figure S1. Following the definition of Aki and Richards (2002), the parameters strike, dip and rake are used to define fault-orientations and inferred slip directions in this report. The strike angle of a fault plane is measured clockwise from north, with the fault dipping down to the right of the strike direction. The dip angle of the fault plane is measured downward from the horizontal. The slip direction is defined by the rake angle, which indicates the angle between the slip direction and the strike of the fault plane as measured within the fault plane. Six events in 2017/18 generated sufficient long-period energy to produce a high-quality full-waveform moment-tensor inversion (Figs. 5 and 6). Moment magnitudes derived from this procedure range between MW 3.1 and MW 4.1. Additional Mw values derived from the spectral fitting method of Edwards et al. (2010) are listed in Table 1.
Figure 8 shows the epicentres of the 1032 earthquakes with ML ≥ 2.5, which have been recorded in Switzerland and surrounding regions over the period 1975–2018. The number of earthquakes with ML ≥ 2.5 between 1975 and 2018 accounts for about 6% of the total number of events detected during that time in the same area. The majority of earthquakes with ML ≥ 2.5 in 2017/18 occurred in regions that have been seismically active in previous years (Fig. 8). In the following section we discuss significant and noteworthy earthquakes and earthquake sequences for the period 2017/18.
3.2 Discussion of noteworthy earthquakes in 2017
3.2.1 Göschenen (UR)
On January 13 2017, an ML 2.5 earthquake occurred about 6 km west of Göschenen (UR) (GOE, Fig. 2a). It is located within a cluster of earthquakes that has been active since at least 2011 and contains a total of 45 events detected and located by the end of 2018. The focal mechanism derived for this event indicates dominantly strike-slip faulting with a small normal-fault component (Fig. 4a). The mechanism is virtually identical to the mechanism of an ML 3.2 earthquake of the same cluster, which occurred in October 2016 (Diehl et al. 2018). The focal depth derived with SED’s routine velocity model of Husen et al. (2003) is about 5 km. With a distance to the closest station of about 14 km, we estimate the uncertainty of the focal depth to be in the order of ± 2 km. Despite this uncertainty, the earthquake certainly locates within the crystalline Aar Massif and the ongoing seismic activity suggests active strike-slip deformation in the internal part of the massif, possibly along reactivated WNW–ESE striking shear-zones (see Diehl et al. 2018).
3.2.2 Urnerboden (UR/SZ)
With a magnitude of ML 4.6, the largest event in the reporting period occurred 1–2 km north of the Urnerboden valley in the border region of canton Uri, Schwyz and Glarus on March 6, 2017 (URB, Fig. 2a). This event also represents the strongest earthquake within Switzerland since the ML 5.0 Vaz earthquake of 1991 and has the seventh largest magnitude of all earthquakes instrumentally located by the SED within the geographic boundaries of Fig. 2 since 1984. The mainshock occurred at 20:12 (UTC) at a depth of about 4 km and it was felt by large parts of the population in eastern and central Switzerland (Fig. 9a). The maps in Fig. 9 show the spatial distribution of the interpolated macroseismic intensity (see Sect. 2.3), along with observed macroseismic intensities based on felt reports from online questionnaires. The felt reports shown in the maps are aggregated by postal code. We show only reports with associated quality levels “good” or higher (i.e., based on more than eight consistent reports from a postal code area) to minimize possible bias induced by using automatically processed questionnaires. The final macroseismic field depicted in the ShakeMap of Fig. 9a is the result of a weighted average of the converted predicted ground-motions and the station recordings. Colours in Fig. 9a are proportional to macroseismic intensity levels according to the European Macroseismic Scale (EMS-98; Grünthal 1998) and indicate that the largest intensities well constrained by felt reports are of degree V. The interpolated ShakeMap intensities in Fig. 9a suggest that intensity may have approached degree VI in the alluvium-filled Linth valley, a few km east of the earthquake epicentre. A degree VI intensity, however, would imply cases of slight damage for masonry building types such as hair-line cracks or falling of small pieces of plaster (Grünthal 1998). The SED received only two reports indicating such damages in a distance of about 20 km from the epicentre. Due to the low number of unconfirmed damages reported to the SED, it remains questionable if a degree VI was actually observed. The lack of degree VI observations might also be due to the fact that the epicentre locates in a remote area. If such an event occurs in a densely settled area, a considerable number of cases of small damage would be likely.
With 85 cm/s2, the highest acceleration associated with the Urnerboden earthquake is measured at station SLTM2 at a distance of about 6 km from the epicentre (Fig. 10). Station SLTM2 is located on rockslide deposits in the centre of a small Alpine valley in Linthal village. The peak ground velocity at the same station reached 2 cm/s (Fig. 10), consistent with macroseismic intensity levels exceeding degree V in the epicentral area (Faenza and Michelini 2010). The shaking levels are remarkably lower (10 cm/s2) at station LLS (Fig. 10), at comparable distance from the earthquake epicentre, but located on very hard rock in Linth–Limmern. The ground shaking amplitudes (29 cm/s2) and duration increase again at station SALTS (Altdorf-Hospital; Fig. 10) located at 22 km from the epicentre on an alluvial fan at the edge of the Reuss alluvial plain. Both SLTM2 and SALTS exhibit an amplification of about 2 over a broad frequency range compared to the Swiss reference model of Edwards and Fäh (2013), while LLS is known to show analogous de-amplification (see Michel et al. 2014 and stations.seismo.ethz.ch). The amplification effects shown in Fig. 10 document the severe impact of local site effects on the ground shaking for such earthquakes.
With the closest station at 6 km distance, the focal depth of about 4 km is relatively well constrained and we estimate its uncertainty to be in the order of ± 1 km. The mainshock was preceded by a sequence of at least 6 foreshocks of magnitudes ranging between ML 0.5 and 2.2. The first detected and located event of this foreshock sequence occurred at 19:40 (UTC), about 32 min before the mainshock. To improve the location quality of aftershocks, two temporary stations were immediately deployed in the epicentre region. The first station (URN1) was installed in the Urnerboden valley, about 1.5 km south of the epicentre on March 7. The following day, a second station (URN2) was installed south of Bisisthal (SZ), about 6 km WNW of the epicentre region. Both stations were in operation through July 11, 2017. To lower the completeness magnitude of the aftershock sequence, standard detections were complemented by template-matching detections (see Sect. 2.3) at station PANIX. For the first 17 days of the aftershock sequence, all template matching detections missed by the SED standard procedures have been reviewed and, if possible, manually located. During the first two weeks following the mainshock, 67 aftershocks with ML ranging between − 0.1 and 2.9 have been located by the SED. The largest aftershock of ML 2.9 took place about 1 h and 45 min after the ML 4.6 mainshock and on August 30, 2018, about 18 months after the mainshock, an ML 2.8 earthquake occurred in the aftershock region.
The fault plane solution derived for the ML 4.6 mainshock is very close to a pure strike-slip mechanism (Fig. 5a top, Additional file 1: Table S4). The corresponding moment tensor solution differs only slightly from the first-motion solution (Fig. 5a bottom), differences are within the uncertainty in the dip of the NNW–SSE striking plane of the first-motion solution. The moment magnitude derived from the full-waveform inversion is MW 4.1. Although the difference of 0.5 between ML and MW deviates from the average 0.3 difference predicted by the scaling-relationship of Goertz-Allmann et al. (2011) for this magnitude range, it is still within the uncertainty of this relationship (σMW ± 0.2). As discussed later in more detail, the focal mechanism of the immediate ML 2.9 aftershock of March 6 shows differences in strike compared to the mainshock (Fig. 5b). The mechanism of the ML 2.8 event of August 2018 (Fig. 5c) indicates a strike-slip rupture similar to the mainshock, however, uncertainties are larger.
Figure 5d shows the relative relocations of fore-, main- and immediate aftershocks through March 7, 12:00 (UTC). We also included an ML 2.8 event of August 2018 and an ML 4.0 event of May 2003 in the double-difference relative relocation (see Fig. 5d). As indicated by the error bars in Fig. 5d, uncertainties of the relative location of the ML 4.6 mainshock are higher due to the low degree in waveform similarity between mainshock and the majority of smaller fore- and aftershocks. This effect is related to differences in the frequency content of the signals (e.g., Bachura and Fischer 2019) and leads to a low number of cross-correlation measurements and therefore weaker linkage between the mainshock with the rest of the sequence. We therefore interpret the eastward offset of about 100 m of the mainshock from the main lineament of fore- and immediate aftershocks as an artefact. The fact that the formal error bars of the mainshock approach the foreshock region (Fig. 5d) suggests that the mainshock actually locates on the main lineament. In addition, the proximity between foreshocks and mainshock (Fig. 5d) indicates a nucleation phase in advance of the mainshock. We estimate a rupture length of about 0.6 km for the ML 4.6 mainshock from the extent of relocated fore- and immediate aftershocks (proposed rupture plane indicated by red and green dashed lines in Fig. 5d). This estimate is in good agreement with a rupture length of 0.7 km derived from empirical relationships (Wells and Coppersmith 1994) for an Mw 4.1 strike-slip earthquake. In combination with the focal mechanisms from the two events on March 6 (Fig. 5a, b), the relative relocations indicate a sinistral rupture on a NNW–SSE striking plane. However, the geometry of the relocations together with a well resolved difference of about 16° in strike of the sinistral focal plane between the mainshock (strike: 167°; red dashed line in Fig. 5d) and the ML 2.9 aftershock (strike: 151°; red dashed line in Fig. 5d) suggest a westward bend or jog along the rupture plane. Alternatively, the rupture might have extended over two or more fault segments of variable orientation (e.g. Riedel shears), which are expected to exist in a complex and fractured strike-slip system. Evidence for the existence of such a fractured fault system is provided by the spread in locations in Fig. 5d, indicating the triggering of off-fault structures by the mainshock. A prominent example is the event of August 2018. Although the focal mechanism is very similar to the one of the mainshock, its location is clearly separated from the ML 4.6 rupture. Additional evidence for the existence of a system of strike-slip faults in this area is provided by the ML 4.0 Urnerboden earthquake of May 6, 2003 (Deichmann et al. 2004). Although its strike-slip focal mechanism is virtually identical to the ML 4.6 mainshock of 2017 (see Fig. 5d), relative relocations combining both sequences confirm that the event of 2003 locates about 1 km west of the sequence of 2017 and therefore occurred on a sub-parallel fault (Fig. 5d).
The base of the autochthonous Mesozoic units in this part of the Helvetic nappes is estimated to lie at a depth of about 1.5 km (Pfiffner 2014). We therefore conclude that, with a focal depth of 4 km (with the estimated uncertainty of about ± 1 km), the source is probably located within the uppermost parts of the crystalline Aar Massif. Together with previous events like the ML 3.8 Linthal earthquake of 2001 (Deichmann et al. 2002) and the 2003 ML 4.0 Urnerboden earthquake, both located at a similar depth (about 3 km) and of almost identical focal mechanisms, the ML 4.6 Urnerboden earthquake of 2017 documents ongoing strike-slip deformation in the top part of the eastern Aar Massif. The stress field indicated by the P-axis (maximum principal stress) and T-axes (minimum principal stress) of these earthquakes is approximately consistent with the strike-slip regime proposed by Marschall et al. (2013) for the Helvetic domain in eastern Switzerland, with sub-horizontal P-axis in NW–SE direction and sub-horizontal T-axis in NE–SW direction. In principle, this strike-slip regime is also consistent with the mechanism derived for the Göschenen event of 2017 (Fig. 4a) discussed in the previous section. Orientations of P and T-axis, however, seem to be rotated about 30° clockwise compared to the Urnerboden earthquake, indicating possible second-order variations of the stress regime or local stress variations on pre-existing faults along-strike of the Aar Massif.
3.2.3 Vallorcine (France)
The ML 3.3 and ML 3.0 earthquakes of March 20, 2017 (VAL, Fig. 2a) are part of the on-going earthquake sequence that followed the ML 4.9 earthquake of September 2005 (e.g., Deichmann et al. 2006; Fréchet et al. 2010; Diehl et al. 2013, 2015, 2018; Cara et al. 2017). Both events on March 20 were felt by the local population and intensities reached degree IV. The focal depths of 4 km are well resolved by P and S phases observed at station SEMOS located in a distance of about 4 km from the epicentre. Focal depths and the strike-slip fault plane solution of the ML 3.3 earthquake (Fig. 4b) are very similar to past events of this sequence.
3.2.4 Grenchen (SO)
On April 25, 2017, an ML 2.8 earthquake occurred about 4 km east to the town of Grenchen (SO) (GRE, Fig. 2a). With an intensity of degree IV, it was felt by the local population and the hypocentre derived with SED’s standard velocity model of Husen et al. (2003) indicates a shallow source at a depth of about 4 km. With phases observed at the two SSMNet stations in Solothurn (SOLZ, SOLB), which are located at epicentral distances of 5 and 7 km, the formal uncertainty of the focal depth is about ± 2 km. However, errors in the standard velocity model, especially for S-waves in the foreland, are expected and result in possibly even larger uncertainties. Strong surface waves similar to quarry-blast signals as well as hypocentre solutions computed with alternative P- and S-wave velocity models suggest an even shallower source close to the surface, at depths between 0 and 2 km. Within a distance of about 4 km, two similarly shallow ML 2.7 events occurred in October 1993 that might be associated with the same structure. The first-motion focal mechanism derived for the Grenchen event of 2017 (Fig. 4c) indicates reverse faulting. Since we consider it mechanically unlikely that the steep (65°), NW dipping plane was activated in reverse sense, we interpret the shallower plane dipping about 25° towards SE as the active fault plane. The event locates at the northern boundary of the Molasse basin (also referred to as “subjurassic zone”, e.g., Mock and Herwegh 2017), straddling the southern foothills of the Jura mountains between the Weissenstein- and Arch-Anticline (e.g., Meier 2010). The base of the Mesozoic sediments in the epicentral region lies at a depth of about 1.5–2 km and the vertical thickness of the Mesozoic units is about 1.5 km (e.g., Sommaruga et al. 2012; Mock and Herwegh 2017). If located in the sedimentary cover, as suggested by the waveforms, the source is likely within the Mesozoic units. In this case, the SE-dipping, low-angle thrust fault might be associated with the main basal Jura décollement or a secondary thrust, located above the main décollement level. A source in the sedimentary cover would be indicative for possible ongoing thin-skinned deformation. However, considering the current hypocentre uncertainties, we cannot rule out a source in the pre-Mesozoic Permo-Carboniferous trough or Variscan basement. In any case, the Grenchen earthquake of 2017, together with the earthquake sequence of the year 2000 near Saint Ursanne (Lanza et al. 2019, 2020), represents a rare example of shallow thrust faulting in the vicinity of the Jura fold-and-thrust belt, indicating seismically active contraction in the northwestern Alpine foreland of Switzerland.
3.2.5 Daillon (VS)
The ML 3.3 Daillon earthquake (DAI, Fig. 2a) occurred about 6 km NW of Sion at 19:05 (UTC) on June 2, 2017. With more than 400 felt reports received by the SED, this event was strongly perceived by the population in the Valais and the maximum intensity reached degree IV. The focal depth of about 7 km is well resolved by the dense network in the Valais (Fig. 1) and with the closest station at an epicentral distance of about 6 km distance from the epicentre, we estimate the uncertainty to be on the order ± 1 km. The first-motion mechanism in Fig. 6a (top) is of excellent quality and low signal-to-noise levels allowed the computation of a moment-tensor for this event (Fig. 6a, bottom), with a moment magnitude of Mw = 3.2 and a corresponding focal mechanism similar to the first-motion solution (Fig. 6a). The mechanism suggests strike-slip faulting with a small normal-fault component. The active plane could not be determined due to the lack of aftershocks (only one aftershock was detected). However, the NE–SW striking dextral plane would be consistent with orientation and kinematics of the dextral Rhone-Simplon Line (RSL), which locates about 6 km to the south of the epicentre.
3.2.6 St. Silvester (FR)
On June 6, 2017, an ML 3.3 earthquake occurred close to the village of St. Silvester (STS, Fig. 2a). Reported intensities reached degree IV in the epicentre region and most felt reports (intensity III) were received from the city of Fribourg (about 20 reports), located about 10 km NW of the epicentre. The source was located at a depth of about 5 km. However, with the closest station located within the Molasse basin at a distance of about 9 km, the absolute uncertainty using SED’s standard velocity model is probably on the order of ± 2–3 km. Although the focal mechanism computed from first-motion polarities has considerable uncertainties (Fig. 6b, top), the distribution of exclusively compressional (“upward”) polarities can only be explained by a normal-fault mechanism. A normal-fault mechanism is also confirmed by the available moment-tensor solution shown in Fig. 6b (bottom). The corresponding moment magnitude is Mw = 3.2. The epicentre of the earthquake locates at the southern end of the Fribourg Fault Zone (Fig. 2a; see location of STS), in the subalpine Molasse units, about 1 km north of the front of the Préalpes nappes. In comparison with structural models of Vouillamoz et al. (2017) and Gruber (2017), the focal depth of 5 km suggests a source within the pre-Mesozoic basement. However, due to the depth uncertainties, we cannot entirely rule out a source in the lower Mesozoic units. The event locates within the St. Silvester structure proposed by Vouillamoz et al. (2017). However, its normal-fault mechanism substantially deviates from the N–S oriented sinistral strike-slip regime of the Fribourg Fault. In addition, the earthquake likely occurred in the basement and therefore below the Fribourg Fault, which is assumed to be restricted to the sedimentary cover (e.g., Vouillamoz et al. 2017). The St. Silvester event of 2017 therefore suggests potential structural complexity towards the southern termination of the N–S striking Fribourg Fault. Its normal-fault mechanism is similar to the ML 3.8 Jaun earthquake of May 1999 (Deichmann et al. 2000) and indicates the transition from N–S oriented sinistral strike-slip faulting along the Fribourg Fault to predominantly NE–SW or NNE–SSW directed normal faulting within the Préalpes domain.
3.2.7 Château-d'Oex (VD), 2017
With a magnitude of ML 4.3, the second largest earthquake in the reporting period occurred close to the town of Château-d'Oex in the Prealps region on July 1, 2017 (CDO, Fig. 2a). The mainshock was felt in large parts of western Switzerland (Fig. 9b), especially in the Molasse basin to the north as well as along the NE coast of Lake Geneva and to its south within the lower Rhone valley. More than 1000 felt reports were received by the SED. Similar to the Urnerboden earthquake, the ShakeMap intensity reached degree VI in the epicentral area (Fig. 9b). However, the maximum macroseismic intensities reported to the SED within a distance of 8 km from the epicentre are of degree V.
The focal depth of 4 km is well constrained by P and S wave arrivals observed at the SSMNet station in Château-d'Oex (SCOD) at a distance of about 3 km from the epicentre. As discussed already for previously described earthquakes, additional uncertainty is introduced by the velocity model. Therefore, we estimate the uncertainty in focal depth to be in the order of ± 1–2 km for this event. This depth is also consistent with solutions derived for an ML 2.7 and an ML 2.5 event in July 2016 (Diehl et al. 2018), which are related to the ML 4.3 event. This ML 4.3 earthquake is therefore part of a remarkable earthquake sequence, active at least since 2007, as documented by the temporal evolution imaged by template-matching detections in Fig. 11a, b. Between September and December 2007, a sequence of 23 earthquakes with ML ranging between 0.7 and 2.6 had occurred in this cluster. Since station SCOD was only installed in April 2016, the focal depth was basically unconstrained and solutions between 0 and 10 km were reported (Deichmann et al. 2008). The similarity of waveforms between the sequence in 2007 and the more recent sequences, as indicated by overlapping template events (overlap in colours) in Fig. 11b, suggests that the sequences 2007–2009 have the same source depth of about 4 km as those in 2016–2018. The burst of activity in 2016 initiated with an ML 2.7 earthquake on July 16, that was followed by 40 “aftershocks” (ML 0.5–2.5), detected and located by SED routine procedures. The ML 4.3 event of July 2017 was preceded by a small sequence, which initiated on May 12 and lasted for about 5 days (12 located events, maximum ML = 2.7). Moreover, two “foreshocks” occurred two days before the ML 4.3 earthquake of July 1. With about 1000 template-matching detection, the aftershock sequence following the ML 4.3 earthquake was rather intense (Fig. 11a, b). In the following first 2 weeks, the SED detected and located a subset of 193 aftershocks (ML ranging between − 0.1 and 2.7) by routine methods. To improve completeness and location quality of aftershocks, three temporary stations (CDO1-3) were deployed in the epicentral region on July 4. Station CDO2-3 operated through November 2017 and station CDO1 through June 2018. The aftershock activity ceased towards the end of 2017.
The first-motion mechanism computed for the ML 4.3 earthquake of July 2017 is shown along with the derived moment-tensor solution in Fig. 6c. The moment magnitude derived from the full-waveform inversion is Mw = 4.0. Both solutions in Fig. 6c image a normal-faulting mechanism, with a steeply dipping plane (about 70°) towards NNE and a plane dipping at a low-angle of about 20° towards SSW. However, second-order differences between the two solutions exist in terms of rake and strike of the second plane. These differences are likely caused by several polarity misfits contained in the first-motion solution. Preliminary tests with an improved 3D velocity model suggest that these misfits are primarily related to errors in take-off angles caused by un-modelled velocity structures in the current SED standard velocity model. Take-off angles computed with the improved model result in a first-motion mechanism similar to the moment-tensor solution of Fig. 6c.

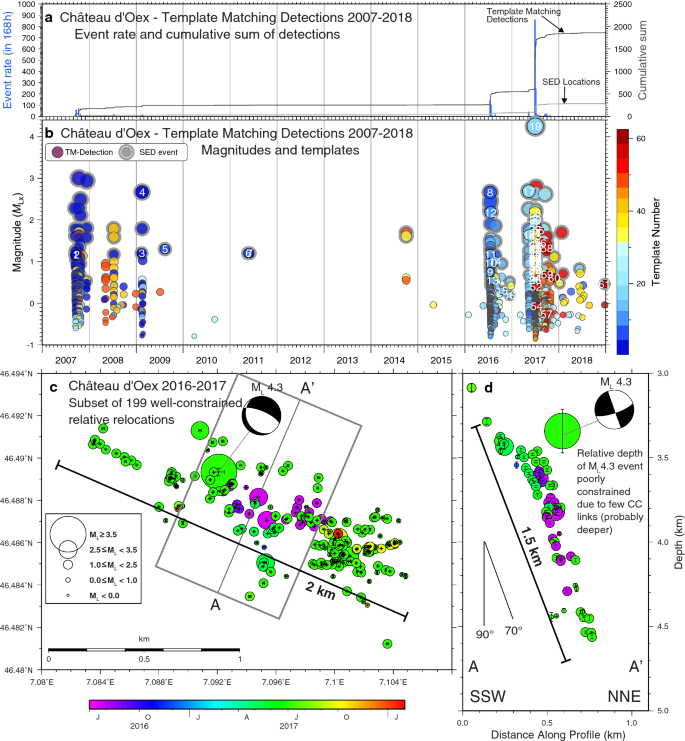

Finally, we performed a double-difference relative relocation of the Château-d'Oex cluster for events that occurred between July 2016 and January 2018. We considered only well locatable events linked to neighbouring events by at least 10 cross-correlation and 10 bulletin-pick differential times. The relative relocations of the resulting 199 events are shown in map view in Fig. 11c and are projected to a vertical profile in Fig. 11d. The vertical profile is oriented perpendicular to the strike of the steeply dipping focal plane (Plane 1 of Fig. 6c). Due to the effects already discussed for the Urnerboden sequence, the relative location of the ML 4.3 earthquake is less well resolved, especially in focal depth. This is documented by its relatively larger error bar in Fig. 11d and the vertical offset from the main cluster is therefore interpreted as an artefact. The relative relocations in Fig. 11d confirm the plane dipping towards NNE as the active fault plane. In addition, the geometry imaged by the relocations is in good agreement with the steep dip angle of 70° of the focal mechanism. Events related to the sequence in 2016 locate in the centre of the cluster (Fig. 11c, d), while events in 2017 are distributed over the entire rupture plane. This may indicate that the activity in 2016 occurred in the nucleation zone of the future ML 4.3 rupture.
In order to constrain the lithology of the source region, we consider two geological profiles. The cross-section of Mosar et al. (1996; their Fig. 2a) locates closest to the Château-d'Oex cluster and indicates that the basal thrust of the Préalpes Médianes lies at a depth of about 1 km and less in the area of the epicentre NW of the Les Millets anticline. Given a focal depth of 4 km (± 1–2 km) the earthquakes therefore locate below the base of the nappes of the Préalpes Médianes. The profile of Matzenauer (2012), located about 10 km NE from the cluster and projected onto the region of the hypocentre, indicates an about 2 km thick layer of subalpine Molasse below the basal thrust of the Préalpes Médianes in the projected hypocentre region. The base of the autochthonous Mesozoic cover lies at a depth of about 5 km in this profile. The interpolated top-basement map of Pfiffner (2014), on the other hand, shows a basement high in the region of the Château-d'Oex earthquake cluster, indicating a depth of the base-Mesozoic of only about 3 km. The focal depth of 4 km therefore suggests that the cluster is likely located near the top of the pre-Mesozoic basement. However, assuming a vertical thickness of the autochthonous Mesozoic cover of 1.5–2 km (Sommaruga et al. 2012), the focal-depth uncertainty of ± 1–2 km and the uncertainties related to the top-basement model do not entirely rule out a source within the autochthonous Mesozoic cover. Similar to the St. Silvester earthquake and to the Jaun earthquake sequence of 1999, the ML 4.3 Château-d'Oex earthquake documents NNE–SSW directed normal faulting in the Préalpes region, likely near the top of the pre-Mesozoic basement.
3.2.8 Zug (ZG)
The ML 3.3 Zug earthquake (ZUG, Fig. 2a) of November 21, 2017 occurred within the lowermost crust within a distance of less than 1 km to the ML 4.2 earthquake of February 2012 (Diehl et al. 2013; Singer et al. 2014). As typical for deep crustal earthquakes, it was felt by the population within a relatively large radius, and the SED received more than 300 macroseismic felt reports. The derived strike-slip focal mechanism (Fig. 4g) is well constrained and is virtually identical with the one of the ML 4.2 earthquake of 2012. It is the first event within this cluster since the ML 4.2 sequence of February 2012 and indicates ongoing activity of this cluster within the lowermost crust.
3.3 Discussion of noteworthy earthquakes in 2018
3.3.1 Anzère (VS)
On January 14, 2018, an ML 2.6 earthquake occurred between the village of Anzère and the Wildhorn summit (ANZ, Fig. 2b). This earthquake locates in the centre of the SW–NE striking earthquake lineament north of the Rhone valley, which is one of the most active clusters in the Central Alps (see Figs. 2 and 8). The cluster has been described to be dominated by strike-slip mechanisms (e.g., Maurer et al. 1997), however, the occurrence of additional reverse as well as transtensive mechanisms suggest a rather complex system of en-echelon faults and step-over geometries (e.g., Diehl et al. 2018). The focal depth of the event is about 4 km and the well-constrained focal mechanism indicates transtensive faulting (Fig. 7c). A smaller (ML 1.8) event occurred at the same location on February 22, with a mechanism similar to the ML 2.6 earthquake (Fig. 2b and Additional file 1: Figure S1d). The transtensive Anzère mechanisms are strikingly similar to the ones of the Crans-sequence (CRA, Figs. 2a and 4e), which is active since at least 2014 (Diehl et al. 2018) and locates about 9 km to the east. The WNW–ESE striking dextral plane, which has been determined to be the active plane in the Crans-sequence (Diehl et al. 2018), deviates from the general SW–NE strike of the earthquake lineament (Fig. 2), consistent with an en-echelon arrangement and segmentation of faults north of the Rhone valley.
3.3.2 Klostertal (Vorarlberg, Austria)
With magnitudes of ML 4.1, the two largest earthquakes in 2018 took place north of the Klostertal valley (KLT, Fig. 2b), about 12 km east of Bludenz in western Austria. The first event of January 17 was followed by an event of similar magnitude on February 1. Although the epicentre is located about 20 km from the Swiss border, the SED received about 270 macroseismic felt reports for the earthquake in January. Most felt reports were received from Liechtenstein, the Rhine valley east of St. Gallen and the city of St. Gallen. ShakeMap intensities for both ML 4.1 earthquakes predict degree V in the epicentre region, which is consistent with the intensity of V reported by the Seismological Service of Austria (ZAMG).
With the closest observing station DAVA, located at a distance of about 18 km, the derived depth close to the surface (depth of − 1 km, Table 1) is poorly constrained. Hypocentre solutions therefore vary between surface and 10 km depth depending on the selected distance range and phase types. We prefer a shallow source, because this is consistent with the strong surface waves observed in the seismograms. However, the estimated uncertainty in focal depth is in the order of at least ± 5 km. A first-motion mechanism was derived for the event in January (Fig. 6d), first-motion and moment-tensor solutions are available for the event in February (Fig. 6e). The corresponding moment magnitude is MW = 3.8 and the focal depth of 5 km derived by the moment-tensor inversion provides additional evidence for a shallow source. First-motion and moment-tensor mechanisms correspond to almost pure strike-slip faulting for both events. The events are located within the domain of the Austroalpine nappe system (Fig. 2b), in a seismically active region (Fig. 8). The observed strike-slip faulting is consistent with other mechanisms such as the ML 3.5 earthquake of January 2016, located about 9 km to the east of the 2018 events (Diehl et al. 2018).
3.3.3 Herrischried (Germany) and Rhinegraben (France/Germany)
On March 11, 2018, an ML 3.1 earthquake occurred close to the village of Herrischried in the Black Forest (HER, Fig. 2b). The focal depth of about 17 km is well constrained by stations in southern Germany. The focal mechanism is well constrained by polarities of P-wave first-motions (Fig. 7g) and corresponds to a strike-slip rupture with a normal-fault component. The mechanism is consistent with the “strike-slip to normal faulting” stress regime derived by Kastrup et al. (2004) for this part of the northern foreland.
Another strike-slip earthquake was located below the Rhinegraben in the border region between France and Germany on May 4, 2018 (RIG, Fig. 2b). With about 200 received felt reports, the ML 3.3 earthquake was felt by the population in northern Switzerland, especially in the region of Basel. The depth of 15 km and the strike-slip mechanism (Fig. 7i) are well constrained. This mechanism is similar to other solutions located in this depth level below the Rhinegraben (e.g., Kastrup et al. 2004).
3.3.4 Château-d'Oex (VD), 2018
The focal mechanism of the ML 2.9 earthquake of April 8, 2018, located about 4.5 km SE of the Château d’Oex cluster active in 2017 and described above, is radically different from the extensional regime of this earlier cluster. In fact, the first-motion fault-plane solution of this event corresponds to an oblique reverse-faulting mechanism (Fig. 7h), with its P-axis oriented almost E–W. The derived depth of 5 km is only slightly higher by about 1 km than the bulk of the previous Château-d'Oex cluster.
The change from an extensional to a compressional focal mechanism within only a few kilometres implies either strong small-scale heterogeneities in the stress field or the activation of faults that are poorly oriented with respect to the far-field stress. In the first case, the differential stress available to activate a given fault is likely to be low. In either case, the occurrence of earthquakes with pronounced different focal mechanisms suggests that the faults are weak, a condition that is most easily met by the presence of fluids at near-lithostatic pressures (e.g. Sibson 1990, 2014).
3.3.5 Châtel-St-Denis (FR)
In addition to the St. Silvester and the two Château-d'Oex events of 2017 and 2018, the ML 3.1 Châtel-St-Denis earthquake of May 15, 2018 (CSD, Fig. 2a) represents the fourth significant earthquake that occurred in the Préalpes region during the reporting period. This ML 3.1 event is part of a small sequence of 6 additional earthquakes of ML 0.6–2.9, located about 3 km SW of Châtel-St-Denis between May and June 2018. For all these earthquakes the routinely determined source depth is 1–2 km. The closest observations of P- and S-phases are provided by the SSMNet station in Vevey (SVEJ), which is located at a distance of about 7 km from the epicentre. In case of the ML 3.1 event, we estimate the uncertainty of the 2 km focal depth to be on the order of ± 2–3 km. We were able to compute a first-motion mechanism as well as a full moment tensor for the ML 3.1 event (Fig. 6f). The moment magnitude is MW = 3.1 and the two focal mechanism agree remarkably well. The derived mechanism indicates predominantly normal faulting, which agrees to first order with the extensional mechanism of the St. Silvester and the 2017 Château-d'Oex event (Fig. 6) as well as with the Jaun event of 1999 (Fig. 12).
Similar to the St. Silvester earthquake of 2017 (Sect. 3.2.6), the Châtel-St-Denis epicentre locates at the boundary between subalpine Molasse and Préalpes nappes (Fig. 2b). According to the interpolated base-Mesozoic map of Sommaruga et al. (2012), the base of the Mesozoic cover lies at a depth of 3–3.5 km in the epicentral region. Assuming a vertical thickness of Mesozoic sediments of 2 km in this part of the Molasse basin (Sommaruga et al. 2012), Mesozoic sediments are expected between 1.0–1.5 and 3–3.5 km depth. A focal depth of 2 km therefore likely points to a source in the Mesozoic cover. However, with the current vertical uncertainty of ± 2–3 km, a source in the subalpine Molasse or pre-Mesozoic basement, cannot be excluded.
3.3.6 Dent de Morcles (VS)
Two earthquakes of ML 2.6 (February 24) and ML 3.2 (August 23) happened close to the summit of the Dent de Morcles in 2018 (DDM, Fig. 2b). With about 400 received macroseismic felt reports, the ML 3.2 earthquake of August was widely felt by the population in the Rhone valley between Sion and Aigle. A few reports from the village of Collonges (epicentral distance 5 km) indicate a maximum intensity of degree V, likely related to amplification caused by the quaternary sediments of the Rhone valley. The focal depth of 6 km is well constrained by the dense network in this part of Switzerland and we estimate the uncertainty to be on the order of ± 1 km. The focal mechanisms of both events are relatively well constrained (Fig. 7e, f) and correspond to strike-slip faulting with a minor normal component. According to a profile of Pfiffner et al. (1997), which is located close to the epicentre region and based on the seismic reflection line W5 of the NRP-20 campaign, the depth of 6 km (± 1 km) points to a source within the crystalline Aiguilles Rouge Massif west of the Rhone valley. An alternative interpretation of Steck et al. (1997) associates a band of SE dipping reflectors on the same W5 line with a sedimentary cover syncline separating the Aiguilles-Rouge from the Infra-Rouge basement at depth. In their depth-migrated section, these reflectors locate between about 4 and 5.5–6.0 km depth in the hypocentral region of the Dent de Morcles earthquakes of 2018 (which projects near Collonges on the W5 profile). In this interpretation, the Dent de Morcles earthquakes would therefore locate near the top of the proposed Infra-Rouge basement and a source within the proposed Mesozoic cover syncline could not be entirely excluded. However, the interpretation of reflectors in the shallow part of the vibroseis and dynamite sections of line W5 is uncertain and debatable in the hypocentral region as described by Pfiffner et al. (1997).
The events locate about 13 km SSW of the 2004 earthquake sequence of Derborence, that marks the western end of the previously discussed earthquake lineament north of the Rhone valley (Anzère earthquakes, Sect. 3.3.1) The focal mechanisms of the Derborence and Dent de Morcles earthquakes are nearly identical (Baer et al. 2005). Moreover, the Dent de Morcles events are located about 8 km NE of the Martigny earthquake sequence of 2001 (Deichmann et al. 2002), which occurred on a NE–SW striking dextral strike-slip fault southeast of the Rhone valley. The Dent de Morcles earthquakes therefore indicate a possible link between the ENE–WSW striking lineament defined by epicentres located north of the Rhone valley and the NE–SW striking segment around Martigny (Fig. 8), which in turn might be linked to the Vallorcine segment located SW of Martigny. A kinematic connection in terms of a continuous dextral and slightly bent “Vallorcine-Valais shear zone” was proposed e.g. by Cara et al. (2017). Note, however, that the dextral planes in Fig. 7e, f strike WSW–ENE and therefore deviate from the general NE–SW trend in the alignment of the epicentres seen near Martigny. A possible explanation would again be the existence of en-echelon segments of strike-slip faults connecting the two larger fault systems to the NE and SW of the Martigny area. On the other hand, the along strike change of the alignment of epicentres in map view corresponds to the gentle bend of the Rhone-Simplon line possibly continuing into the “Chamonix/Mont Blanc shear zone” (CZ in Figs. 2 and 8) located between the Mont Blanc and Aiguille Rouge Massifs (e.g., Egli and Mancktelow 2013; Cara et al. 2017). Either way, the Dent de Morcles earthquakes of 2018 document ongoing strike-slip deformation likely located within the Aiguilles Rouge (or Infra-Rouge) Massif.
3.3.7 Martigny (VS)
The complexity in tectonic deformation within the bending zone between Central and Western Alps is documented by the ML 2.9 earthquake that occurred on November 3, 2018, about 3 km SE of the town of Martigny (see MAR in Fig. 2b). Its epicentre locates about 12 km south from the Dent de Morcles events discussed in the previous section and about 3 km SE of Martigny. The depth of about 9 km is well constrained (uncertainty in the order of ± 1 km) and the event was widely felt along the Rhone valley, reaching an intensity of degree IV. The first-motion focal mechanism is very well constrained and corresponds to almost pure normal faulting. Its mechanism and the orientation of the T-axis is almost identical to the mechanism of the ML 3.3 earthquake that occurred in 1999, 15 km WNW, near Lac de Salanfe (Deichmann et al. 2000). The Martigny earthquake of 2018 very likely occurred within the crystalline basement of the Mont Blanc Massif, whereas the Lac de Salanfe earthquake was located at the northwestern rim of the Aiguille Rouges Massif neighbouring the base of the Morcles nappe. The T-axes are oriented NNE–SSW (Deichmann et al. 2000) and are consistent with the orientation of the T-axes of the strike-slip mechanisms of the Dent de Morcles and Vallorcine events discussed in the previous section, and differ only slightly from the N–S oriented T-axis of the strike-slip mechanism of the Martigny sequence of 2001. Given this relatively uniform orientation of the T-axes, the occurrence of both normal faulting and strike-slip earthquake mechanisms in close proximity to each other is not incompatible with a relatively uniform regional stress field indication a present-day transtensional regime within the bending zone between Central and Western Alps.
3.3.8 Fribourg/Tafers (FR)
On December 29, 2018, an ML 2.9 earthquake occurred northwest of Tafers, close to the city of Fribourg (FRI, Fig. 2b). Intensities of degree IV have been reported within a radius of about 7 km around the epicentre. The focal depth of 6 km is well constrained by P- and S-wave arrivals observed at stations at distances of 2.6 and 5 km in Tafers (STAF) and Fribourg (SFRU). We estimate the focal-depth uncertainty to be on the order of ± 1 km. The derived first-motion focal mechanism in Fig. 7p corresponds to strike-slip faulting with a substantial normal-fault component. The dip of plane 1, however, is not well resolved. The earthquake locates within the Fribourg seismicity cluster (Fig. 12a). The Fribourg Fault (FF in Fig. 2), associated with this cluster, was imaged as a N–S striking sinistral strike-slip fault zone within the sedimentary cover of the Molasse basin (e.g., Kastrup et al. 2007; Vouillamoz et al. 2017). The 2018 event differs in two aspects from other earthquakes along the Fribourg Fault, such as the ML 4.3 event of 1999 (Fig. 12a). First, the sinistral plane of the focal-plane solution strikes NW–SE rather than N–S (Fig. 12a) and second, the depth of 6 km indicates a source in the pre-Mesozoic basement rather than in the sedimentary cover. To determine the active fault plane, we performed relative relocations for a subset of 23 events (ML 0.5–2.1) that followed the ML 2.9 earthquake between December 2018 and May 2019. The result of the relative relocation is shown in Fig. 12b in map view and along a vertical cross-section, oriented perpendicular to the sinistral plane of the focal mechanism. The NW–SE alignment of the relocated seismicity in Fig. 12b confirms the sinistral plane as the active plane. However, the dip imaged by the relative relocation in cross-section AA′ indicates a sub-vertical fault plane (Fig. 12b), which deviates from the corresponding focal-plane solution of Fig. 7p. This discrepancy might be explained by the considerable uncertainty in dip of the corresponding focal plane and we therefore consider a sub-vertical sinistral fault as more likely.
In comparison with structural models of the uppermost crust in the region of the Fribourg Fault (e.g., Vouillamoz et al. 2017; Sommaruga et al. 2012), the depth of 6 km (± 1 km) suggests a source in the crystalline basement. Additional evidence is provided by the seismogram recorded at station STAF at a distance of 2.6 km from the epicentre. The vertical component (HGZ) in Additional file 1: Figure S2 shows a prominent phase arriving between Pg and Sg onsets. We interpret this phase as an S-to-P (Sp) converted precursor phase, generated at the basement-sediment contrast by an Sg phase incident from below. We also compared the waveform of the 2018 event with waveforms of a shallow (depth − 0.6 km) ML 1.9 earthquake, which occurred in June 2015 in the same area likely within the sedimentary cover (Additional file 1: Figure S2). Although in a similar epicentral distance from station STAF, the shallow event indicates a 0.5 s shorter S-P time and the vertical component lacks the Sp phase, visible for the 2018 event (Additional file 1: Figure S2). The presence of the Sp phase in the 2018 event therefore suggests a NW–SE striking sinistral fault segment within the uppermost crystalline basement in the area of the Fribourg Fault. The NW–SE strike of the segment in the basement deviates from the general N–S trend previously proposed for the Fribourg Fault in the near-surface sedimentary cover. This deviation suggests that we are seeing two separate faults, activated by a common stress field with a maximum compressive stress oriented NNW–SSE. In addition, the observed difference in strike might indicate possible structural complexity of the strike-slip fault system, including the possibility of a soft-linkage between faults in the basement and faults in the overlaying sediments. The close proximity in space and time of the more recent events relative to the previous activity along the N–S trending Fribourg Fault Zone could be due to stress transfer from the deformation of the near-surface lithology to the uppermost basement.
3.4 Seismicity associated with the former Deep Heat Mining project in Basel
In 2017, routine processing detected 12 earthquakes with magnitudes between ML 0.5 and ML 1.7. An additional 16 locatable earthquakes, with magnitudes between ML 0.0 and ML 0.6, were detected by template matching (Herrmann et al. 2019). The located events during this period occurred at the upper northern and upper southern periphery of the known seismic cloud (Additional file 1: Figure S3). The events occurred in or beyond regions of the seismic cloud that had last been active in December 2007. The seismic cloud was growing laterally and upward, away from the former injection point in 4.5 km depth. Specifically, the extension of the seismicity to the north had not been observed in the past years, when the seismicity occurred in other parts of the seismic cloud (Diehl et al. 2018).
In an analysis of the phenomenon, the SED concluded that the increasing overpressure, which started after the borehole’s shut-in in April 2011, could be driving the seismicity in the geothermal reservoir (Wiemer et al. 2017). In Summer 2017, the well was bled off in a controlled, step-wise procedure: between July and October 2017. By the end of October 2017, the wellhead over-pressure had been reduced completely, and the borehole has since remained open. Between May 2017 and the end of 2018, only one earthquake was strong enough to be reliably located (ML 0.7, in December 2017). It locates in the upper northern periphery of the seismic cloud and is the shallowest event of the events there (Additional file 1: Figure S3). All other events in this period, had magnitudes below ML 0.2.
3.5 Rockfalls and rock avalanches in 2017/18
On August 23 2017, at 7:30 UTC (9:30 a.m. local time), a large rock-slope failure occurred on the upper flanks of Pizzo Cengalo, at the head of the Bondasca Valley in Graubünden. This catastrophic event included the initial rock slope failure, a subsequent rock avalanche that travelled for 3.2 km, and generated a near-immediate debris flow. 8 hikers on a trail over run by the avalanche lost their lives. The debris flow caused significant damage in the village of Bondo, including damage to nearly 100 dwellings, 6 km down-valley of the slide area. The seismic waves generated by this sequence were observed as very broadband signals that exceeded periods of 100 s. Walter et al. (2020) detail the seismic waves generated by this event and estimate the failure to include 3.0 × 106 m3 of rock. The equivalent local magnitude related to the excited seismic waves of the rock fall and subsequent rock avalanche was ML 3.0.
The first seismic observation of rockslide activity on Pizzo Cengalo occurred on 27 December 2011, when a slide of 1.5 × 106 m3 rock volume occurred, that had an equivalent local magnitude event of ML 2.8 (Deichmann et al. 2012) and also activated a similarly long runout rock avalanche. In 2016, this instability was activated again, with a rockslide event with equivalent magnitude of ML 2.1 (Diehl et al. 2018). Only 2 days before the largest event, at 9:31 UTC on 21 August 2017, a precursory rockslide was also observed by the network, with equivalent local magnitude event of ML 2.3. In the immediate aftermath of the ML 3.0 event, numerous slides were observed, and the seismic network could detect and locate 2 additional events at 9:04 and 9:36 UTC, with ML 1.3 and ML 2.1 respectively. On 15 September 2017, over 3 weeks later, an ML 2.8 rockslide on the mountain was again observed.
The seismic signals of the main event and these secondary slides are presented in Fig. 13, showing records from the 2 closest stations, VDL and TUE, located between 25 and 30 km distance from Pizzo Cengalo. The distinct signatures of the slide and subsequent mudslides—that continued to be re-activated independent of slide activity for days after then event—are seen in the seismic data. Walter et al. (2020) include waveform modelling of the main event as recorded at nearby stations. On 6 September 2017, a temporary seismic station with short period and accelerometer sensors (XP.PICE1) was placed within 2 km of the slide area at the Sciora Hut. This station operated beyond 2018.
4 Discussion and conclusion
As discussed in Diehl et al. (2015, 2018), the total number of located earthquakes per year has increased since 2013 due to ongoing densification of the seismic network, improvements in detection methods, and the occurrence of vigorous earthquake sequences. The same trend is observed for the period 2017/18 (Fig. 3). With 1227 located events, the total annual number of earthquakes in 2017 was the highest so far recorded by the SED. On the other hand, with a total of 23 and 25 earthquakes of magnitude ML ≥ 2.5, the seismic activity of potentially felt events in either year was close to the yearly average of 23 earthquakes in the same magnitude range over the previous 42 years. The densification and improvement of the seismic network also results in an ever-increasing number of high-quality focal-plane solutions (42 in 2017/18), which allows more detailed and complete seismotectonic interpretations.
The strongest earthquake in the reporting period was the ML 4.6 Urnerboden earthquake of March 2017 (URB, Fig. 2a). Together with previous seismicity in this area, the earthquake images arrays of active, N–S to NNW–SSE oriented strike-slip faults, located within the northern front of the uppermost Aar Massif. The strike-slip deformation in this part of the Aar Massif might be related to along-strike differences in the uplift history of the Aar Massif (e.g., Nibourel 2019).
Another remarkable earthquake sequence occurred in the Préalpes region close to Château-d'Oex (CDO, Fig. 2a), which culminated in an ML 4.3 earthquake in July 2017. Template-matching methods reveal several phases of increased activity since at least the year 2007. Similar complex, long-lasting sequences have been observed in Switzerland and surrounding regions before and are therefore not uncommon. Recent examples for similar sequences with bursts of activities over several years are the Diemtigen (Diehl et al. 2015) and the St. Léonard sequence (Diehl et al. 2018). The focal mechanism and relative relocations document NNE–SSW directed extension below the basal thrust of the Préalpes Médianes. Most likely, the sequence is located near the top of the pre-Mesozoic basement. However, focal-depth uncertainties of ± 1–2 km and uncertainties of geological models also allow a source within the autochthonous Mesozoic cover.
In 2017/18, two other events (St. Silvester, Châtel-St-Denis, Fig. 2) occurred along the northern boundary of the Préalpes nappes with predominantly normal-faulting mechanisms, indicating approximately NE–SW oriented extension similar to the Château-d'Oex sequence of 2017. All three extensional to transtensional events occurred near the top of the pre-Mesozoic basement, although, with the current uncertainties in focal depth and structural models, sources within the Mesozoic cover cannot be entirely ruled out. So far, information from focal mechanisms along the Alpine front in western Switzerland was sparse. For instance, the stress inversion of Kastrup et al. (2004) included not a single mechanism in this part of Switzerland. Delacou et al. (2004) included the normal-fault mechanism of the ML 3.8 Jaun earthquake of May 1999 (Fig. 12a) and a predominantly normal-fault mechanism in the Chablais region south of Lake Geneva (ML 4.8; 1968/08/19) in a stress analysis of the Central and Western Alps. Based on these two earthquakes, their resulting interpolated map of deformation shows a tendency for an extensional to transtensional regime in the Préalpes region in western Switzerland. Our three additional mechanisms therefore provide important new constraints and confirm the previous indications of Delacou et al. (2004) for a present-day extensional to transtensional deformation regime along the Alpine front in western Switzerland. This extension is approximately parallel to the strike of the Alpine front and consistent with orientations of minimum principal stresses reported by Kastrup et al. (2004) for western Switzerland. The extensional to transtensional regime along the Alpine front in western Switzerland contrasts the strike-slip to thrust regime observed along the Alpine front in eastern Switzerland (Kastrup et al. 2004; Marschall et al. 2013) and might be related to uplift and extensional processes in the transition zone of Central and Western Alps. The thrust-fault event of 2018, located in close proximity to the Château d’Oex sequence of 2017, stands in contrast to the observed regional extension regime, and as such could be symptomatic for the localized presence of fluids at near-lithostatic pressures.
As in previous years, a large portion of the seismic activity was concentrated in the Valais region in south-western Switzerland (Fig. 2). Previous seismicity clusters like Vallorcine (VAL), as well as the St-Léonard (STL) and Crans (CRA) sequences (Diehl et al. 2018), both located north of the Rhone valley, continued to be active also in 2017/18 (Fig. 2). The Dent de Morcles (DDM) earthquakes of 2018 (Fig. 2b) document strike-slip deformation within the Aiguilles Rouge Massif. The deformation locates north of the Rhone-Simplon Line (RSL) and the strike of the dextral plane is rotated clockwise with respect to the RSL, suggesting an en-echelon system of basement faults as proposed for segments farther to the east along the RSL (Diehl et al. 2018). Due to the dense station coverage in the Rhone valley, a focal mechanism for an ML 0.9 earthquake could be derived, which occurred right under the city of Sion in about 8 km depth in September 2018 (SIO, Fig. 2b, Additional file 1: Figure S1g). The predominantly strike-slip mechanism represents a rare example of strike-slip deformation in the centre of the Rhone valley and might be evidence for dextral strike-slip faulting along the RSL.
In the northern Alpine foreland, the Fribourg earthquake of December 2018 (FRI, Fig. 2b) reveals additional complexity along the Fribourg Fault Zone. The imaged fault segment likely locates in the basement and its strike deviates from the general N–S trend of the Fribourg Fault in the sedimentary cover. This segment might therefore indicate a possible soft-linkage between faults in the basement and faults in the overlaying sediments. Finally, the Grenchen earthquake of 2017 (GRE, Fig. 2a) represents a rare example of ongoing shallow thrust faulting along the southern margin of the Jura fold-and-thrust belt, indicating seismically active contraction in the northwestern Alpine foreland of Switzerland.
