Serpentinite dehydration at low pressures

Abstract

Petrographic observations combined with mineral compositional analyses constrain the phase relations of prograde metamorphosed serpentinites in the Bergell contact aureole (Italy). In a 1500 m profile perpendicular to the north-eastern edge of the Bergell intrusion, seven dehydration reactions ran to completion. Three previously undocumented reactions have been identified within 70 m of the intrusive contact: olivine + anthophyllite = orthopyroxene + H2O, tremolite + Cr–Al-spinel = olivine + Mg-hornblende + H2O and chlorite = olivine + orthopyroxene + Cr-Al-spinel + H2O. Petrological analysis indicates that these reactions occur over a narrow range of pressure and temperature, 300 ± 30 MPa and 720 ± 10 °C respectively. Computed phase diagram sections reproduce the observed mineral parageneses with one notable exception. Due to the underestimation of aluminium and sodium contents in Ca-amphibole models, plagioclase is predicted above 700 °C instead of Mg-hornblende. In comparison with natural grains, the aluminium content of computed chlorite compositions is overestimated for low grade parageneses while it is underestimated near the upper thermal stability limit of chlorite. In the computed sections, Fe partitioning relative to Mg between olivine and other silicates, suggests a clear preference for Fe in olivine, that therefore shows lower Mg#s. In contrast, microprobe analyses of natural mineral pairs indicate that orthopyroxene, Mg-hornblende and anthophyllite have lower Mg#s than equilibrium olivine. The inferred thermal profile of the metamorphic aureole is not consistent with simple heat conduction models and indicates a contact temperature of ~ 800 °C, which is 120–230 °C higher than previously estimated. Petrography also reveals extensive retrograde overprint of the prograde parageneses within 200 m of the contact. Retrogression is related to metamorphic fluids that were released by dehydration reactions during contact metamorphism and magmatic fluids expelled from the tonalite intrusion. The thermal gradient between the intrusion and the country rocks induced hydrothermal circulation of these fluids throughout the contact aureole, which beyond peak metamorphic conditions caused retrograde overprint of the prograde parageneses. The proposed phase relations for low and high pressures, and in particular, the transition from tremolite to Mg-hornblende, provides a complete representation of hydration and dehydration processes in serpentinites in subduction zones, along deep oceanic transform faults, and at passive continental margins. The latter has new implications, specifically for subduction initiation.

Introduction

Contact metamorphic aureoles are natural laboratories that provide constraints on metamorphic processes (Eskola 1914, 1921; Goldschmidt 1911, 1922; Kerrick 1991; Tracy & Frost 1991). They form under approximately eustatic conditions in the country rocks surrounding magmatic intrusions. Metamorphic temperatures in the aureole increase continuously with decreasing distance from the intrusive body, providing excellent control on prograde mineral parageneses. Therefore, in contact aureoles with large continuous lithologies, mapping of isograds is possible.

At Valmalenco, northern Italy, a classic and accessible contact metamorphic aureole is exposed where the Bergell tonalite and granodiorite melts intruded into greenschist facies country rocks at upper crustal levels (Fig. 1). The aureole is most reknown for phase relation studies in the Malenco serpentinites (Trommsdorff & Evans 1972) including its ophicarbonates (Eberhard & Pettke 2021; Pozzorini 1996; Trommsdorff & Evans 1977) but also mesozoic sediments (Bucher-Nurminen 1977; Gieré 1985; Trommsdorff & Schwander 1969; Wenk et al. 1974), metabasalts (Riklin 1978) and basement rocks (Bucher-Nurminen 1977; Gyr 1967). Trommsdorff and Evans (1972) have shown that in the Malenco serpentinites, the pre-intrusive regional paragenesis consists of antigorite, olivine, (chlorite), diopside and magnetite. Through a series of bulk rock measurements, they have also shown that prograde metamorphism in the meta-serpentinites of the Bergell contact aureole is isochemical except for H2O loss during dehydration. Trommsdorff and Evans (1972) and Trommsdorff and Connolly (1996) defined five prograde parageneses which form characteristic mineral zones towards the pluton representing increasing metamorphic grade; (I) olivine + antigorite + tremolite + chlorite + magnetite, (II) Ti-clinohumite + olivine + Mg-ilmenite (geikilite), (III) olivine + talc + tremolite + chlorite + magnetite, (IV) anthophyllite + olivine + tremolite + chlorite + magnetite and (V) olivine + enstatite + tremolite + chlorite + magnetite. Based on the changing mineralogy, they defined five reactions corresponding to isograds: I′ = tremolite-in, II′ = Ti-clinohumite-out, III′ = talc-in, IV′ = anthophyllite-in and V′ = orthopyroxene-in. Trommsdorff and Evans (1980) pointed out that zones I and II coincide throughout the contact aureole defining a combined zone I&II and that zone III is the most simple to recognize in the field. According to Trommsdorff and Connolly (1996), zone IV and V parageneses occur only sporadically in the immediate vicinity of the intrusion, implying that isograds IV′ and V′ are only defined locally. Assuming a tonalite implacement temperature of 700 °C, they argued that the formation of orthopyroxene occurred due to a reduction in H2O activity consequent to CO2 release by decarbonation reactions in neighbouring lithologies. They suggested low contact temperatures of 570 °C based on carbonate thermometry in ophicarbonates, assuming an ambient pressure of 350 MPa in the serpentinites at the time of magma implacement. Ferry (1995) provided an alternative peak metamorphic temperature profile for the Bergell contact aureole. He used an exponential equation which represents temperatures around cooling plutons from Furlong et al. (1991), suggesting higher contact temperatures (680 °C) than Trommsdorff and Connolly.

Fig. 1
figure 1

modified from Wenk and Cornelius (1977) and Trommsdorff et al. (2005). Isograds are after Trümpy and Trommsdorff (1980). The study area is outlined with the red rectangle (coordinates are given in WGS 84)

The geologic setting of the Bergell intrusion between the upper Engadine valley (Switzerland) and the Valtellina (Italy)

In this study, we focus on the prograde and retrograde metamorphic reactions in contact metamorphic serpentinites from the north-eastern edge of the aureole which represents the most complete profile in serpentinites towards the Bergell pluton (Fig. 2). We inspect the changing prograde and retrograde parageneses based on micro-textural evidence and compare them with characteristic prograde parageneses reported from other contact aureoles (e.g., Berg & Docka 1983; Evans & Frost 1976; Frost 1975, 1976; Matthes & Knauer 1981; Rice et al. 1974; Robinson et al. 1982; Springer 1974). The petrographic evidence is then linked to chemical changes regarding major and minor element characteristics in key phases such as chlorite, Ca-amphibole and spinel group minerals. Likewise, we re-assess Fe–Mg partitioning data between olivine and paragenetic phases using natural data from this study and from various literature sources (e.g., Padrón-Navarta et al. 2010; Robinson et al. 1982; Trommsdorff & Evans 1972; Trommsdorff et al. 1998). Our observed phase relations combined with reaction curves from the literature (e.g., Chernosky et al. 1985; Evans 1976; Evans & Trommsdorff 1970; Jenkins 1983; Jenkins & Chernosky 1986; Mandler & Grove 2016; Niida & Green 1999; Trommsdorff & Evans 1980; Wang et al. 2020) lead us to propose new phase relations for low pressure meta-serpentinites. We explore the key differences between these phase relations and the computed phase diagram sections. In particular, we focus on the stability of Ca-amphibole versus plagioclase at upper amphibolite conditions in serpentinized peridotites. On the basis of our phase relations, we then revise the thermal profile and contact temperatures of the Bergell aureole and investigate phase relations of chlorite and Ca-amphibole forming reactions over a wide pressure and temperature range. These reactions are relevant to various geodynamic processes. For example, deep hydration processes in the oceanic lithosphere, subduction initiation, subduction infancy and subduction of the oceanic lithosphere.

Fig. 2
figure 2

modified from Trommsdorff et al. (2005). A detailed sample profile was collected from Val Ventina to Val Sissone (red rectangle). Numbers in the map correspond to the mapped isograds from Trommsdorff and Evans (1972) modified by Trümpy and Trommsdorff (1980) and this study. The coordinate grid is given in Swiss coordinates CH1903 +/LV95. b Zoom-in on the sampling profile of a with sample location corresponding coordinates presented in Table 1. Contour lines in both a and b are given in meters above sea-level (m.a.s.l.). Mineral abbreviations are presented in Table 1

a The geological map of the studied ultramafic rocks

Geological setting

The Malenco-Forno ophiolitic unit in Valmalenco (Northern Italy) and Puschlav (south-eastern Switzerland) is a remnant of the Piedmont-Ligurian oceanic lithosphere (Dietrich 1974). It forms the Penninic-Austroalpine boundary zone between the European and Adriatic continental margins (Trommsdorff et al. 2005). The European crust lies tectonically below the Malenco-Forno unit and is represented by middle penninic basement nappe stacks (Suretta-, Tambo-, Adula-, Bellinzona-Dascio-nappes) including their sedimentary cover (Fig. 1). The Adriatic continental basement nappe stacks (Bernina-, Sella- and Margna-nappes) and their sedimentary cover lie tectonically above the Malenco-Forno unit. The Malenco-Forno unit contains one of the largest serpentinized ultramafic bodies in the Alps (Staub 1921, 1946; Trommsdorff & Evans 1972) and preserves a Permian fossil subcontinental lower crust to mantle transition of the Adriatic micro-continent (Hermann et al. 1997; Müntener & Hermann 1996; Trommsdorff et al. 1993). Serpentinization occurred during Jurassic rifting through seawater infiltration (Burkhard & O’Neil 1988) when locally ophicarbonates were formed (Pozzorini 1996; Trommsdorff & Evans 1977; Trommsdorff et al. 1993). Regional metamorphism overprinted the whole nappe stack at 600–700 MPa and 450–500 °C (Bucher & Pfeifer 1973; Guntli & Liniger 1989; Trommsdorff 1974) and was followed by polyphase deformational overprint (Hermann & Muntener 1992). During the Oligocene, the Bergell tonalite, (32 Ma) hornblende gabbros and later granodiorite (30 Ma) intrusions discordantly crosscut the nappe stacks (Fig. 2), causing contact metamorphic overprint in the surrounding country rocks (Diethelm 1985; Hansmann 1996; Jäger 1973; Reusser 1987; von Blackenburg 1992). At the eastern border, thermal metmorphism produced a 1–1.5 km wide aureole in the mostly lherzolitic and harzburgitic Malenco serpentinites (Trommsdorff & Evans 1972) where the contact with the tonalite is mostly vertical (Trommsdorff & Connolly 1996). The tonalite dips subvertically underneath Monte Disgrazia and at its northern edge with a lower angle underneath the Forno basalts where the aureole is 2.5 km wide (Riklin 1978).

Methods

Polished thin sections of 30 µm thickness (Table 1) were investigated by optical microscopy, BSE imaging and quantitative WDS analyses.

Table 1 Samples

Electron probe micro analyser (EPMA)

The JEOL JXA-8200 Superprobe of the Institute of Geological Sciences at the University of Bern was used for quantitative mineral chemistry analyses. The instrument is equipped with five wavelength dispersive crystal spectrometers (WDS) and one energy dispersive spectrometer (EDS). Imaging and micro-textural analyses were performed with a backscatter detector (BSE). Samples were analysed at a 15 kV acceleration voltage and a probe current of 20 nA. The measurement time included 20 s on the peak and 10 s on each background position. These measurement conditions have detection limits of 0.01 wt% (Batanova et al. 2015). All values lower than the detection limit are indicated with "below detection" (b.d.) in the text and tables. Olivine, pyroxene and spinel were analysed under a focused beam, whereas for sheet silicates and amphiboles, a defocused beam of 3–5 µm diameter was used depending on grain size. Natural and synthetic oxides and silicate minerals were used as standards.

Thermodynamic modelling

Phase diagram sections were calculated for a lherzolitic serpentinite bulk sample lr21 from Li et al. (2004): 41.37 wt% SiO2, 4.06 wt% Al2O3, 0.60 wt% Cr2O3, 6.32 wt% FeO, 35.03 wt% MgO, 2.93 wt% CaO and 8.95 wt% H2O. Since Na2O was reported to be < 0.05 wt% by the latter authors, we added 0.03 wt% Na2O in order to test Ca-amphibole model compositions. We used the Perple_X software package of Connolly (2009) and the 2002 revision of the thermodynamic data base of Holland and Powell (1998) augmented with data for Cr-oxide solutions (Klemme et al. 2009). The following solution models from Holland and Powell (1998) were considered including their fluid equation of state: Olivine O(HP), chlorite Chl(HP), orthopyroxene Opx(HP), talc T, brucite B, orthoamphibole from Diener and Powell (2012) oAmph(DP), Ca-amphibole from Dale et al. (2000) GlTrTsPg, antigorite from Padrón-Navarta et al. (2013) Atg(PN) and Cr-Al-spinel from Klemme et al. (2009) CrSp. For comparison, a phase diagram section was calculated with the more recent data base of Holland et al. (2018) using the corresponding solution models: Olivine O(HGP), orthopyroxene Opx(HGP), Al-spinel Sp(HGP), talc (T), brucite (B), chlorite from White et al. (2014) Chl(W), orthoamphibole from Diener and Powell (2012) oAmph(DP), Ca-amphibole from Green et al. (2016) cAmph(G), antigorite from Padrón-Navarta et al. (2013) Atg(PN) and using the fluid equation of state from Pitzer and Sterner (1994). The Mg#s of all phases, the Cr# of Cr–Al-spinel and the Al per formula unit (pfu) for chlorite and Ca-amphibole were then calculated in the system Na2O–CaO–MgO–FeO–Al2O3–Cr2O3–SiO2–H2O, assuming excess H2O.

Results

Serpentinites originate mostly from lherzolitic protoliths, including samples Ol44, Mal1101, CH2, Ol22, Ol21, Ol20, Ol11b, Ol9, Ol38, Ol6, Ol4 and Ol35. Samples 1603, 1604, Ol16, Ol11c and Ol8 show low diopside or Ca-amphibole content and are therefore harzburgitic. Ol18 is Ca-amphibole rich and may have a pyroxenite protolith. In the following, prograde parageneses defined as zones OVI are described in detail. The regional metamorphic zone O is presented in Additional file 1: Figure S1 and Additional file 2: File S1. Sample names, sample types, prograde parageneses, metamorphic zones, distance from the contact, sample locations in Swiss coordinates and mineral abbreviations are given in Table 1.

Prograde mineral parageneses in serpentinites towards the intrusion

Zone I&II (1500–750 m from the contact): first appearance of tremolite

The mineral assemblage of zone I&II is olivine, antigorite, tremolite, relic Cr-magnetite, magnetite and antigorite (Fig. 3). At the outcrop scale, zone I&II serpentinites show a massive felsic to schistose fabric (see Figs. 2a and b for location and 3a, Sample Ol21). Microscopically, olivine exhibits sub-idioblastic habitus and grain sizes vary between a few tens of microns (Fig. 3b). Antigorite blades define the foliation in schists and show interlocking textures in massive rocks. Tremolite shows an acicular habitus and is a few tens to hundreds of microns long. It often occurs in olivine-rich zones with low antigorite content (Fig. 3b–e), grows oblique to the foliation and occasionally forms aggregates (Fig. 3c and d). Therefore, the prograde paragenesis consists of olivine, tremolite and antigorite. Additionally, two types of spinel group minerals occur. Large relic Cr-magnetites show dark inclusion-rich cores surrounded by inclusion-free rims (Fig. 3e). The rims display grey-scales similar to fine-grained magnetites found in the ground mass and as inclusions in olivine and tremolite. Apart from surface weathering, no retrograde overprint has been observed in zone I&II (Sample Ol21).

Fig. 3
figure 3

a Zone I&II Antigorite-olivine-tremolite-serpentinite schist (Sample Ol21) (Swiss army knife 9 × 2.5 cm). b Plain polarised light image of antigorite-olivine-tremolite-serpentinite-schist containing large patches of antigorite, small sub-idioblastic olivine, acicular tremolite and minor sub-idioblastic magnetite. Olivine and antigorite form a mosaic texture. c Crossed polarised light image of b. Antigorite shows a preferred orientation with tremolite growing oblique to the foliation. d Backscatter image of acicular tremolite, sub-idioblastic olivine and dark antigorite. e Backscatter image of a large relic Cr-magnetite showing inclusion-rich darker cores and recrystallized magnetite-rich rims. Magnetite also occurs as groundmass grains

Zone III (750–200 m from the contact): olivine + talc

The mineral assemblage of zone III is olivine, talc, tremolite, chlorite, relic Cr-magnetite, magnetite, antigorite and late serpentine (Fig. 4). At the outcrop scale, the talc-in rocks consist of characteristic acicular olivines that attain several centimetres in length (Fig. 4a). These olivines are embedded in a white, soft talc groundmass where antigorite is locally preserved in patches (Fig. 4a). Also, olivine-talc veins occur in zone I&II rocks consisting of white talc patches and elongated olivine grains (Fig. 4b). Microscopically, the talc-in paragenesis consists of unreacted antigorite serpentinite patches and its breakdown products, olivine, talc and chlorite (Fig. 4c and d). Both the antigorite-rich and olivine-talc-rich zones contain variable amounts of relic Cr-magnetite and magnetite (Sample 1603). At complete antigorite breakdown, two texturally distinct rock types occur, a massive granoblastic fels (Fig. 4e) and a pseudo-spinifex textured variety (Fig. 4f) which is only present in tremolite-poor rocks. Regarding the latter rock type, acicular olivines attain several tens of centimetres in length and are embedded in a talc-rich groundmass. Both rock types consist of the paragenesis olivine, talc and variable amounts of tremolite, chlorite and magnetite (Fig. 4g and h). Retrograde overprint is discernible where late serpentine replaces olivine along cracks (Additional file 3: Figure S2a).

Fig. 4
figure 4

Zone III: a Tc-in isograd locality above Alpe Zocca (Samples 1604, 1603) (coin diameter 2.3 cm). Large acicular olivine embedded in white talc and antigorite groundmass. b Olivine-talc vein at the talc-in isograd (Alpe Zocca, scale length 14.5 cm). c Plain polarised light image of the talc-in paragenesis (Sample 1603) with an upper antigorite-rich part and a lower part consisting of mosaic textured olivine-chlorite-magnetite. d Crossed polarised light image of c. Antigorite and fine grained interstitial olivine-talc in the upper part and mosaic textured olivine with talc next to chlorite in the lower part. e Massive granular olivine-talc fels (Sample Ol20, Swiss army knife 9 × 2.5 cm). f Pseudo-spinifex textured olivine-talc rock containing acicular olivine grains embedded in a white talc groundmass (Sample Ol16, Euro coin 2.3 cm in diameter). g Crossed polarised light image of granular olivine-talc fels containing chlorite, tremolite and Cr-magnetite (Ol20). h Crossed polarised light image of a pseudo-spinifex textured olivine-talc rock containing acicular olivine, fine grained talc and Cr-magnetite (Sample Ol16)

Zone IV (200–70 m from the contact): anthophyllite + olivine

The mineral assemblage of zone IV is olivine, anthophyllite, chlorite, tremolite, Cr-magnetite, magnetite and serpentine (Fig. 5). The anthophyllite-in isograd is the most challenging to define in the field because steep topography and vegetation complicate outcrop access (Fig. 5a). At the outcrop scale, the olivine-anthophyllite dominated rocks form a massive fine grained fels (Fig. 5b). At the microscopic level, anthophyllite is acicular and forms a decussate texture with hypidioblastic olivine and chlorite and in lherzolitic bulk rocks additionally with tremolite. Together, these phases form the prograde paragenesis (Fig. 5c). Relic Cr-magnetite occurs in the olivine-anthophyllite-chlorite groundmass and both olivine and anthophyllite contain inclusions of magnetite. Zone IV is heavily retrogressed, where abundant pseudomorphic talc and antigorite replace anthophyllite, becoming indistinguishable from tremolites in the field (Fig. 5b and Additional file 3: Figure S2b). Additionally, olivine is often partially replaced by serpentine and magnetite.

Fig. 5
figure 5

Zone IV: a Photograph of the anthophyllite-in isograd (Val Sissone). In the background sample Ol11c and b locations and hornblende gabbro-tonalite borders are indicated. b Photograph of olivine-anthophyllite rock (Ol11c). c Backscatter image of sample Ol11c showing polygonal olivine with acicular anthophyllite, chlorite, talc and Cr-rich magnetite

Zone V (70 m from the contact): orthopyroxene-Mg-hornblende-(Cr–Al-spinel) appearance

The mineral assemblage of zone V is olivine, orthopyroxene, Mg-hornblende, tremolite, chlorite, Cr-Al spinel, anthophyllite, magnetite, talc and serpentine (Fig. 6). At the outcrop scale, the meta-serpentinites show a granoblastic texture consisting of brown olivine, orthopyroxene, white Ca-amphibole patches (Fig. 6a) and dark Cr–Al-spinel grains which are surrounded by light grey chlorite (Fig. 6b). At the microscopic scale, orthopyroxene is often intergrown with Ca-amphibole, which consists of three different zones (Fig. 6c). A tremolite-rich core (dark in BSE) which is rimmed by Mg-hornblende (bright in BSE) and small rims of tremolite (Fig. 6d). Orthopyroxene also contains inclusions of chlorite (Fig. 6d), olivine (Fig. 6e), anthophyllite (Fig. 6f) and a few micron sized Cr–Al-spinels (Fig. 6g). Moreover, orthopyroxenes are chemically zoned, visible as darker and brighter shaded zones in backscatter mode (Fig. 6g). Rare groundmass Cr–Al-spinels are concentrically zoned, showing decreasing reflectance towards their rims in backscatter mode (Fig. 6h). The association of Cr–Al-spinel, Mg-hornblende, orthopyroxene, anthophyllite, chlorite and olivine represents the peak metamorphic paragenesis of zone V. Retrograde overprint in zone V samples is manifested by the partial replacement of orthopyroxene by talc and Mg-hornblende by tremolite (Fig. 6c–d). Prograde Cr-Al-spinel is replaced at the rim by chlorite and magnetite and olivine is crosscut by late serpentine and magnetite (Fig. 6h).

Fig. 6
figure 6

Zone V: a Photograph of the outcrop from zone V (Val Sissone), olivine-chlorite-orthopyroxene-(Al-spinel)-Mg-hornblende-anthophyllite rock with indicated white amphibole-rich patches and large single crystal olivine. b Photograph of a saw cut showing dark Al-spinel encircled by a greyish chlorite rim, grey orthopyroxene and brown olivine (tweezers 4.5 cm length). c Crossed polarised light image of sample Ol9 in zone V containing inclusion-rich orthopyroxene with Ca-amphibole intergrowth. d Backscatter image of c showing orthopyroxene containing inclusions of chlorite, olivine and a zoned Ca-amphibole intergrowth that consists of tremolite in the core, Mg-hornblende forming rim1 and tremolite rim2. e Backscatter image of orthopyroxene from sample Ol38 containing chlorite and olivine inclusions. f Backscatter image of sample Ol38 shows orthopyroxene intergrowth with anthophyllite. g Backscatter image of sample Ol38 exhibiting orthopyroxene with Al-spinel and chlorite inclusions. h Backscatter image of sample Ol38 containing a Cr–Al-spinel grain aggregate with sub-grains consisting of bright cores and darker rims. Retrograde replacement rims of Cr–Al-spinel consist of bright magnetite and dark chlorite

Zone VI (40–0 m from the contact): chlorite and anthophyllite-out

The mineral assemblage of zone VI is olivine, orthopyroxene, Mg-hornblende, tremolite, Cr–Al spinel, chlorite, anthophyllite, magnetite and serpentine (Fig. 7). In zone VI metamorphic serpentinites form a triangular contact with the intrusion and metamorphosed gneisses of the Margna nappe (Fig. 7a). However, intrusive or metasomatic features such as veins, dykes, or blackwalls in the meta-serpentinites are absent. At the outcrop scale, the meta-serpentinites show a granoblastic texture (Fig. 7b). The most prominent field marker in the contact zone is black Cr–Al-spinel (Fig. 7b) often rimmed by chlorite (Fig. 7c) and large grey orthopyroxene, showing characteristic cleavage angles of 90° (Fig. 7b). Microscopically, most Cr–Al-spinels consist of multiple sub-grain aggregates (Fig. 7d and e). The subgrains show concentric zoning consisting of opaque to brown cores and brown to green rims (Fig. 7d) equivalent to decreasing reflectance in backscatter mode (Fig. 7e). Orthopyroxene and Mg-hornblende are occasionally intergrown (Fig. 7f) but mostly occur separately, forming the groundmass with olivine and Cr–Al-spinel (Fig. 7g). On one occasion, orthopyroxene is intergrown with olivine (Sample Ol6, Additional file 4: Figure S3a and b). The association of Cr–Al-spinel, Mg-hornblende, orthopyroxene and olivine represents the peak metamorphic paragenesis of zone VI. Retrograde overprint in zone VI is most prominently manifested by the formation of chlorite-magnetite replacement rims around Cr–Al-spinel (Fig. 7d, e and g). Also, anthophyllite either occurs as overgrowth rims around Mg-hornblende or as separate grains in the groundmass together with chlorite (Fig. 7g). Retrograded Mg-hornblende is often dissected by tremolite or shows tremolite rims (see Fig. 7g lower right corner), and olivine is replaced by late serpentine and magnetite.

Fig. 7
figure 7

Zone VI: a Contact between hornblende-gabbro, meta-gneisses and olivine-orthopyroxene-(Mg-hornblende)-(Cr-Al-spinel) rock (Samples Ol4, Ol6, Ol8 and Ol35) zone VI. b Photograph of the olivine-orthopyroxene-(Mg-hornblende)-(Cr-Al-spinel) rock containing large orthopyroxene grains with visible cleavage, brown-weathered olivine and black Cr–Al-spinel. c Photograph of elongated olivine, orthopyroxene and black Cr–Al-spinel encircled by greyish chlorite. d Plain polarised light image of Cr–Al-spinel consisting of a sub-grain aggregates with black Al-magnetite-rich cores and brown to green rims. Its outer boundary consists of retrograde magnetite-chlorite replacement rims and olivine in the groundmass. e Backscatter image zoom-in of d consisting of zoned Cr–Al-spinel aggregates with bright cores becoming gradually darker toward the rims. Magnetite and chlorite rims form the outer boundaries of the sub-grain aggregate. f Crossed polarised light image of inclusion-free orthopyroxene intergrown with Mg-hornblende. g Backscatter image of sample Ol6 showing the prograde paragenesis Cr–Al-spinel, Mg-hornblende, orthopyroxene and olivine. The retrograde assemblage consists of chlorite, anthophyllite, tremolite and late serpentine

Mineral compositions

Mineral compositions are described following increasing metamorphic grade. Analyses were acquired between direct grain neighbours. Mineral compositions are given in wt% oxides, element per formula unit (pfu) and molar ratios such as Mg# [Mg/(Mg + Fe + Ni + Mn)] × 100 and yCr [Cr/(Cr + Al + Fe3+)] × 100 in text. For most minerals, the compositional data set was recalculated assuming Fetot = FeO. Ferric iron contents were only recalculated for Cr–Al-spinel, Cr-magnetite and magnetite. The full data set is presented in Additional files 5, 6, 7, 8, 9, 10 and 11: Tables S1–7.

Olivine

Olivine from the regional metamorphic zone O shows homogenous low Mg# 86 in country rock sample Mal1101 and Mg# 90 in olivine veins (Samples Ol22 and Ol44). In contrast, zone I&II olivine (Sample Ol21) consists of homogeneously high Mg# 94. Zone III olivine displays the largest variability within a single metamorphic zone. At talc-in, olivine from an olivine-talc vein (Sample 1604) is richer in iron (Mg# 90) relative to the country rock sample 1603 (Mg# 91–92). Additionally, the latter olivines occasionally preserve Mg-rich cores (Mg# 92–93). At full antigorite breakdown, olivine from sample Ol20 shows homogeneous Mg# 88 and in sample Ol18 Mg# 90–91. In contrast, olivine cores from pseudo-spinifex textured sample Ol16 show slightly lower Mg#s than their rims with some intergrain variability, e.g., Mg# 86core-88rim or 87core-89rim. Olivine from zone IV exhibit homogeneous compositions of Mg# 90 (Sample Ol11c) whereas zone V olivine shows minor zoning (Mg# 87–88 in samples Ol9 and Ol38). Zone VI olivine of the contact paragenesis exhibits homogeneous Mg#s (89–90) only slightly varying between different samples (Ol6, Ol4, Ol35).

Ca-amphiboles (tremolite-Mg-hornblende)

Aluminium compositions of Ca-amphiboles show two separate populations following increasing metamorphic grade (Fig. 8). At its first appearance in zone I&II tremolite accommodates little Al. It is often below detection and at most contains 0.008 pfu, increasing to 0.060 Al pfu towards the end of zone III (Fig. 8). Al contents are significantly higher in zone V (1.66–1.87 pfu) and in zone VI (1.75–1.96 pfu), delineating the transition from tremolite to Mg-hornblende. Cr contents follow the same pattern with low contents of 0.002–0.023 pfu in zones IIII increasing to 0.03–0.09 pfu in zone V and 0.07–0.15 pfu in zone VI. Ti is below or above detection attaining maxima of 0.011 pfu in zone IIII tremolites but is significantly higher in zone VVI Mg-hornblendes (0.08–0.11 pfu). Na contents are low but increase from 0.07 to 0.08 pfu through zones IIII while K is below detection. This changes abruptly in zone V where Mg-hornblende incorporates 0.35–0.53 Na pfu and 0.01–0.03 K pfu. In zone VI, Na contents are even slightly higher (0.45–0.54 pfu) while K is mostly lower (0.01–0.02 pfu) compared with zone V samples. Mg#s of tremolite generally decrease from 96–97 in zone I&II to Mg# 94–95 in zone III (Samples Ol20 and Ol16). The only exception is sample Ol18 showing similar Mg#s 96–97 as zone I&II tremolite. In contrast, Mg#s of Mg-hornblende (Mg# 86–89) in zones V and VI (Mg# 88–89) are lower than that of tremolite from zones IIV.

Fig. 8
figure 8

Al pfu in Ca-amphiboles and chlorite shows a positive correlation with increasing metamorphic grade IVI and decreasing distance from the contact. There are two distinct Ca-amphibole populations. One comprises zones IIII which represent tremolite stability, while the other comprises zones V and VI, representing Mg-hornblende stability. Chlorite shows four different populations, indicated by the green trend line. Two populations occur within zone III and one each in zones IV and V. For both chlorite and Ca-amphibole, calculated Al compositions from phase diagram section computation are also shown. Numbers in brackets correspond to the reactions presented in 5.1.1

Chlorite

Aluminium compositions of chlorite allow to distinguish four separate populations showing increasing Al content with decreasing distance from the intrusive contact (Fig. 8). At talc-in in zone III, the Al content in chlorite is lower (1.4–1.5 pfu) compared with zone III chlorite where antigorite breakdown was complete (1.6–1.7 pfu). Zone IV chlorite shows elevated Al contents (1.7–1.9 Al pfu) which is only exceeded by grains in zone V (2.2–2.3 Al pfu). At talc-in in zone III Cr compositions show the strongest variability of all samples, with very low to high contents (0.07–0.21 pfu). At full antigorite breakdown, Cr compositions are more homogeneous (0.09–0.18 pfu). This trend continues in zone IV grains showing Cr contents of 0.11–0.17 pfu. Close to its breakdown in zone V, both the compositional variability and absolute contents are low (0.03–0.09 pfu). Chlorite Mg# is fairly homogeneous throughout zones IIIIV, varying between 93 and 94. Only one talc-in sample (1603) shows slightly elevated values (Mg# 94–95). In zone V, chlorite Mg#s are slightly lower, varying between 92 and 93.

Spinel group minerals (Magnetite, Cr-Magnetite, Cr–Al-Spinel)

The spinel-group compositional trends are represented by the trivalent cations Fe3+, Cr3+ and Al3+ (see yCr, yFe, yAl in Additional files 5, 6, 7, 8, 9, 10, 11: Tables S1–7). Three groups of spinel group minerals are distinguished. Cr-magnetite and magnetite both lie on the chromite-magnetite join, showing Al contents close to the detection limit (Fig. 9). Large relic Cr-magnetite cores are characteristic of zones IIV, showing high yCr (0.23–0.62) values (Fig. 9), while their inclusion-free rims have lower yCr numbers (0.06–0.16). The Cr content of groundmass magnetites and inclusions in olivine is low (yCr 0.04–0.05) from zone I&II (Sample Ol21) to talc-in in zone III (Sample 1604). These magnetites clearly form a separate population showing elevated yCr (0.16–0.19) at full antigorite breakdown in zone III, while the highest numbers are attained in zone IV (0.20). In contrast, post-peak retrograde magnetite is depleted in Cr and forms nearly pure end-member magnetite (Fig. 9). The third spinel group mineral is Cr-Al-spinel, which contains Al as a major element. Ferric iron decreases from core to rim and is mainly replaced with Al and to a lesser extent, Cr (Fig. 9). Zone V Cr–Al-spinel aggregates show yCr of 0.28 in cores, decreasing to 0.10 at rims. Additionally, nearly pure Al-spinel inclusions in orthopyroxene show yCr numbers as low as 0.04 (Fig. 9). Zone VI sub-grain aggregates show decreasing yCr from the core (0.34) to the rim (0.16). The lowest yCr number (0.02) was found in a large spinel aggregate in sample Ol6 (Fig. 7g).

Fig. 9
figure 9

modified from Kempf et al. (2020) is represented by the grey shaded area

Fe3+–Cr3+–Al3+-Ternary diagram of magnetite, Cr-magnetite and Cr–Al-spinel (Additional files 5, 6, 7, 8, 9, 10, 11: Tables S1–7) from zones OVI. The spinel type minerals show four main populations: low grade oceanic (Vils et al. 2008) and retrograde magnetite (Ol20, Ol16, Ol11b and c), relic oceanic Cr-magnetite cores, prograde Cr-enriched magnetite and prograde Cr–Al-spinel. The blue arrow indicates prograde core to rim compositions of Cr–Al-spinel from chlorite breakdown and the red arrow shows end-member compositions of Al-spinel inclusions in orthopyroxene of zone V (samples Ol9, Ol38) and groundmass grains in sample Ol6, zone VI. Low grade oceanic magnetite compositions are shown by the black "nabla" symbols. Additionally, the mantle compositional array

Antigorite, talc, anthophyllite and orthopyroxene

Zone O antigorite (Sample Mal1101) accommodates 1.84–3.21 wt% Al2O3 and 0.06–1.36 wt% Cr2O3, and shows a homogenous Mg# 94. Antigorite in zone I&II is enriched in Mg (Mg# 96–97) and contains 0.43–2.68 wt% Al2O3 and 0.04–0.80 wt% Cr2O3. In both zones, Al2O3 and Cr2O3 contents positively correlate (Additional files 5 and 6: Tables S1 and S2). Talc contains minor amounts of Al2O3 (0.05–0.65 wt%) while Cr2O3 mass fractions can be below and above detection (b.d.-0.05 wt%). From talc-in throughout zone III, talc is Mg-rich showing Mg#s between 97 and 98 in samples 1604, 1603, Ol20 and Ol16 (Additional files 7 and 8: Tables S3–4). Anthophyllite is the most iron-rich silicate in the contact metamorphic serpentinites, with Mg#s between 86 and 88 in zone IV and Mg# of 85 in zone V (Additional files 9, 10: Tables S5 and S6). It also contains minor amounts of Na2O in zone IV (0.01 and 0.09 wt%) and in zone V (0.03 and 0.06 wt%). All orthopyroxenes show characteristic lamellar growth zoning (Fig. 6g), accommodating 1.05 wt% to 1.56 wt% Al2O3 in dark and bright lamellae respectively (Sample Ol9) and 1.40–2.19 wt% in sample Ol38. The higher Al2O3 contents belong to the lighter shaded lamellae of the backscatter image. The Mg# in both samples ranges between 87 and 89. In zone VI, orthopyroxene intergrowths with olivine contain up to 4.35 wt% Al2O3, whereas lamellae in groundmass grains accommodate 1.06–2.98 wt% Al2O3 in sample Ol6 and 0.27–2.52 wt% in sample Ol4. They are slightly more Magnesian compared to zone V grains, showing Mg#s between 88 and 90.

Discussion

Reactions

Based on the observed mineral parageneses and various literature sources, we define prograde mineral reactions in the CaO–MgO–SiO2–H2O (CMSH) system for lherzolites and the MgO–SiO2–H2O (MSH) system for harzburgites. The participation of Al-rich phases in some reactions, e.g., antigorite, chlorite, Mg-hornblende and spinel group minerals, requires the addition of Al2O3 (Al) to the chemical system. Reactions involving TiO2 (T) are cited from the literature. We explore compositional changes of minerals with respect to natural bulk rock compositions by considering the effects of FeO (F), Cr2O3 (Cr) and Fe2O3 (Fe3+) and assume the presence of a H2O-rich fluid.

Prograde reactions in the contact aureole

We derive the prograde reaction 1 from the paragenesis olivine + tremolite where diopside from the regional metamorphic zone reacted with antigorite (Evans & Trommsdorff 1970). Regarding the four observed phases and considering the free fluid as an additional phase, the reaction is univariant in CMSH.

$${\text{atg}} + {\text{di}} = {\text{trm}} + {\text{ol}} + {\text{H}}_{2} {\text{O}}$$
(1)

This reaction is limited by the amount of diopside present in the serpentinites. In natural rocks, trivalent cations such as Al, Cr and Fe3+ can be accommodated as tschermak component in antigorite. If the tschermak component is saturated in antigorite, chlorite will additionally form (Padrón-Navarta et al. 2013). Tschermak saturation will particularly be attained in Al-rich (lherzolitic) bulks. Even though chlorite was not observed in sample Ol21, Trommsdorff and Evans (1972) have shown that chlorite may form through reaction 1. If chlorite is produced, some of the Cr and Fe3+ released by antigorite consumption may be incorporated into chlorite (Laird 1988) as well as in magnetite. Thus, the reaction would need to be described in the chemical system CrFe3+CFMASH, in which it is no longer univariant:

$${\text{atg}} + {\text{di}} = {\text{trm}} + {\text{ol}} \pm {\text{chl}} \pm {\text{mt}}_{1} + {\text{H}}_{2} {\text{O}}$$
(1a)

Reaction 2 describes Ti-clinohumite breakdown to Mg-ilmenite and olivine (Trommsdorff & Evans 1980). It is univariant in the system MTH.

$${\text{Ti}} - {\text{cl}} = {\text{ol}} + {\text{ilm}} + {\text{H}}_{2} {\text{O}}$$
(2)

This reaction is volumetrically unimportant in ultramafic rocks because even in fertile lherzolites, bulk TiO2-contents are low (0.09–0.14 wt%, Müntener (1997)). Nevertheless, the coincidence with reaction 1 in the field from 1500 m to 750 m away from the contact (Fig. 2) allows defining the combined zone I&II. In the five component system CMSTH, the seven phase equilibrium is invariant.

The prominent talc-in isograd representing the onset of antigorite-breakdown is recognizable by the occurrence of white talc patches and elongated olivine. At complete antigorite breakdown, olivine and talc form the characteristic zone III paragenesis. Reaction 3 releases most of the water of all the reactions, and the consumption of Al-bearing antigorite leads to the formation of chlorite (Trommsdorff & Connolly 1996).

$${\text{atg}} = {\text{ol}} + {\text{tc}} + {\text{chl}} + {\text{H}}_{2} {\text{O}}$$
(3)

While this reaction is univariant in MASH, the presence of ferrous iron renders the equilibrium divariant in FMASH. This is evident in the field, where talc and olivine occur in veins prior to the complete consumption of antigorite (Fig. 4a). According to Clément et al. (2019), the divariant zone is approximately 150 m wide in the field. The transition from partial to full antigorite breakdown also indicates an enrichment of Cr in magnetite and, simultaneously, a decrease in ferric iron (Fig. 9). Large relic Cr-magnetites become sparse but their composition is more like that of magnetite in the groundmass and inclusions in olivine (Sample Ol16, Ol18 and Ol20, Fig. 9). Similar to reaction 1, ferric iron may be incorporated into newly formed chlorite. Thus, a reaction may be written considering the components CrFe3+FMASH.

$${\text{atg}} = {\text{ol}} + {\text{tc}} + {\text{chl}} + {\text{Cr}} - {\text{mt}} + {\text{H}}_{2} {\text{O}}$$
(3a)

The prograde formation of anthophyllite in reaction 4 is the first olivine-consuming reaction in the contact aureole. This reaction is univariant in MSH.

$${\text{ol}} + {\text{tc}} = {\text{anth}} + {\text{H}}_{2} {\text{O}}$$
(4)

Relative to zone III, groundmass magnetite is enriched in Cr following the systematics outlined for reaction 3a (Sample ol11c, Fig. 9). Al contents are significantly increased in chlorite, forming a distinct chlorite population (Fig. 8). This can be expressed by the more complex reaction in the system, CrFe3+FMASH.

$${\text{ol}} + {\text{tc}} + {\text{chl}}_{1} + {\text{mt}}= {\text{anth}} + {\text{Cr}} - {\text{mt}} + {\text{chl}}_{2} + {\text{H}}_{2} {\text{O}}$$
(4a)

Orthopyroxene-bearing assemblages have been recognized in previous studies but have never been precisely documented (Bucher-Nurminen 1977; Riklin 1978; Trommsdorff & Connolly 1996; Trommsdorff & Evans 1972). The volumetrically most important orthopyroxene-forming reaction is the consumption of anthophyllite and olivine.

$${\text{anth}} + {\text{ol}} = {\text{opx}} + {\text{H}}_{2} {\text{O}}$$
(5)

Reaction 5 is univariant in MSH but divariant in FMSH. This is in agreement with the observation of anthophyllite-orthopyroxene intergrowths (Fig. 6f).

Also, Bucher-Nurminen (1977) mentioned the presence of Mg-hornblende instead of tremolite in samples close to the intrusion contact but did not further investigate its occurrence. Robinson et al. (1982) suggested that in natural isochemically metamorphosed meta-serpentinites, this transition occurs simultaneously with the formation of spinel, which is supported by experimental investigations of Jenkins (1981, 1983, 1994).

$${\text{trm}} + {\text{Cr}} - {\text{Al}} - {\text{spin}} = {\text{ol}} + {\text{Mg}} - {\text{hbl}} + {\text{H}}_{2} {\text{O}}$$
(6)

Indeed, the breakdown of chlorite to Cr–Al-spinel has not been described in the Bergell contact aureole yet. Chlorite inclusions in orthopyroxene that contain more Al than the clinochlore end-member (Fig. 8) are typical close to its breakdown (Jenkins & Chernosky 1986; Vavrecka-Sidler 1998). This is in agreement with nearly pure Al-spinel present as inclusions in orthopyroxene (Fig. 6g). Reaction 7 is univariant in MASH.

$${\text{chl}} = {\text{ol}} + {\text{opx}} + {\text{Al}} - {\text{spin}} + {\text{H}}_{2} {\text{O}}$$
(7)

However, since Cr-magnetite is absent in parageneses V and VI and Cr–Al-spinel core compositions are aluminous, a Cr-magnetite-consuming reaction may be written.

$${\text{chl}} + {\text{Cr}} - {\text{mt}} = {\text{ol}} + {\text{opx}} + {\text{Cr}} - {\text{Al}} - {\text{spin}} + {\text{H}}_{2} {\text{O}}$$
(7a)

In the chlorite and Cr-magnetite consuming reactions 7 and 7a, Cr and Fe3+ are released and partition into new phases such as Cr–Al-spinel, orthopyroxene and Mg-hornblende. The amount of calculated ferric iron in Cr–Al-spinel is very close to that of endmember Al-spinel with less than 5% magnetite. However, ferric iron estimates obtained by charge balance calculations depend on the normalization scheme applied and especially with regard to chlorite and Mg-hornblende, are inaccurate (Hawthorne et al. 2012; Laird 1988). Thus, ferric iron content and redox conditions, which are generally expected to become more reduced in rocks at increased temperatures (Frost 1991), cannot be resolved unambiguously.

All observations indicate that reactions 57 occurred simultaneously in the contact aureole. Hence, the six phase equilibrium of reactions 5 and 7 described in MASH is invariant, providing a tight constraint for pressure. In summary, all possible serpentinite dehydration reactions at low pressures occur in the Bergell aureole except Ca-amphibole dehydration where Mg-hbl + ol = opx + plag + H2O or Mg-hbl + ol = opx + cpx + H2O.

Retrograde reactions and fluid flow

Post-peak retrograde overprint was chiefly controlled by H2O-rich fluid infiltration because retrograde carbonates are absent. In zones IIIVI, this is witnessed by the replacement of olivine with retrograde serpentine and end-member magnetite (Fig. 9). The more intense overprint in zone IV is additionally evidenced by serpentine, talc and magnetite pseudomorphs after anthophyllite (Fig. 9 and Additional file 3: Figure S2b).

$${\text{anth}} + {\text{H}}_{2} {\text{O}} = {\text{tc}} + {\text{serp}} + {\text{mt}}$$
(8)

In zone V, the prograde phases orthopyroxene, Mg-hornblende and Cr–Al-spinel are replaced by talc, tremolite, chlorite and magnetite respectively (Fig. 6c and d). This is expressed by reaction 9.

$${\text{opx}} + {\text{Mg}} - {\text{hbl}} + {\text{Cr}} - {\text{Al}} - {\text{spin}} + {\text{H}}_{2} {\text{O}} = {\text{chl}} + {\text{tc}} + {\text{trm}} + {\text{mt}}$$
(9)

Retrograde overprint in zone VI led to the partial replacement of Cr-Al-spinel with chlorite and magnetite (Fig. 7d and g). Mg-hornblende was replaced with tremolite and orthopyroxene with anthophyllite (Fig. 7g).

$${\text{Mg}} - {\text{hbl}} + {\text{opx}} + {\text{Cr}} - {\text{Al}} - {\text{spin}} + {\text{H}}_{2} {\text{O}} = {\text{chl}} + {\text{anth}} + {\text{trm}} + {\text{mt}}$$
(10)

The fluid source causing the widespread retrograde overprint in zones IVVI is poorly constrained. Thermal modelling has shown that hydrothermal fluid circulation cells may form around magmatic intrusions. They become active prior to magma emplacement and remain active during the cooling of the pluton, thus causing widespread retrograde overprint (Eldursi et al., 2009; Furlong et al., 1991). Therefore, several fluid sources may have continuously fed such a hydrothermal fluid circulation cell at the Bergell aureole. Internal fluids were released by prograde dehydration reactions in serpentinites and other lithologies parallel to the thermal front that has been moving away from the intrusion. External fluids were probably expelled by the tonalite intrusion where it became water saturated near its solidus (Reusser 1987).

Controls on the Al component in chlorite and Ca-amphiboles

The small increase of Al in chlorite from talc-in to fully equilibrated olivine-talc rock in zone III is explained by the presence of antigorite lamellae in chlorite. Because chlorite lamella in antigorite increase in abundance close to the breakdown of antigorite, a few antigorite lamella may have survived in what is now identified as chlorite (Shen et al. 2020; Wunder et al. 2001). Only minor amounts of Al are stored in prograde tremolite and talc. Thus, as soon as all antigorite lamellae break down, a constant Al composition of chlorite throughout zone III is attained. The increase of Al in zone IV chlorite may be explained by the addition of minor amounts from talc and is therefore assemblage controlled. In zone V, the Al composition of chlorite is buffered by Cr–Al spinel, which is in agreement with compositions reported from other studies dealing with samples close to intrusion contacts in meta-serpentinites (Frost 1975; Pinsent & Hirst 1977). The Al solubility in tremolite is buffered by the presence of antigorite in zone I&II and by chlorite in zone III. There is only a minute increase in Al changing from antigorite to chlorite buffering. This suggests that tremolite inclusions in Mg-hornblende in zones V and VI express Al buffering from chlorite of zone IV. Overgrowth rims of Al-rich Mg-hornblende on tremolite coincide with the presence of Cr–Al-spinel at chlorite breakdown. This coincidence has been observed in a number of studies on contact aureoles (e.g., Berg & Docka 1983; Bucher-Nurminen 1977; Frost 1975, 1976; Matthes & Knauer 1981; Pinsent & Hirst 1977; Robinson et al. 1982; Springer 1974). The Al composition of Mg-hornblende is also influenced by the bulk reactive alkali content, particularly by Na and K. The compositions reported here are typical for isochemically metamorphosed serpentinites at upper amphibolite facies conditions (Robinson et al. 1982). Even if fluid mobile elements like Na and K are depleted prior to contact metamorphism during oceanic serpentinization, where mantle clinopyroxene is replaced with diopside, some mantle clinopyroxene may have survived where diopside rims shielded them. This is visible in regional metamorphic zone O [Additional file 1: Figure S1 and Additional file 2, see also Müntener et al. (2010)]. Published bulk rock compositions from samples close to the magmatic intrusion show no evidence of fluid mobile element enrichment with Na2O and K2O < 0.05 wt% and no evidence for enrichment with SiO2 or CaO (Trommsdorff & Evans 1972). Also, there is no direct field evidence for external fluid input from neighbouring sediments or the magmatic intrusion, i.e., no Ca-amphibole or phlogopite veins. The modal abundance of Mg-hornblende is very low in all samples (max 10 vol%), and we speculate that the minor Na content of the ultramafic bulk rock was concentrated in Mg-hornblende.

Fe–Mg partitioning between olivine and other phases

By measuring direct grain neighbours in thin section (Additional files 5, 6, 7, 8, 9, 10, 11: Tables S1–7), the order of preference for Fe relative to Mg between olivine and other phases is determined. It should be noted that the Mg# for all silicates is based on total iron as ferrous iron, i.e., Mg# = Mg/(Mg + Ni + Mn + Fetot) × 100. Only olivine rims were considered because cores may occasionally be inherited from a lower grade zone (Sample 1603, zone III) or show core to rim Mg-enrichment following increased temperatures during prograde growth (Sample Ol16, zone III). Figure 10 compiles all the data produced in this study and compares them with the best fits through compiled mineral pairs of corresponding parageneses from the literature (Additional file 12: Figure S4). The order of preference for Fe relative to Mg obtained from our data set is anthophyllite > orthopyroxene ≈ Mg-hornblende > olivine > chlorite > tremolite > talc.

Fig. 10
figure 10

Mg#s of olivine vs. paragenetic phases. Black fit lines per mineral are labelled in boxes representing partitioning trends. Pink lines show fits through complied mineral data pairs from the literature corresponding to the parageneses observed in this study (see discussion, Additional file 12: Figure S4)

The most reliable data for olivine-anthophyllite pairs is found in sample Ol11c (IV), owing to minor retrogression and a well-equilibrated texture. The two points from samples Ol9 and Ol38 in zone V, however, represent single measurements because only one grain of anthophyllite is available per thin section. In contrast with Trommsdorff and Evans (1972), our data suggests that anthophyllite has lower Mg#s than equilibrium olivine (Fig. 10). This is in agreement with the fit through compiled mineral pair data from Springer (1974), Arai (1975), Frost (1975) and Matthes and Knauer (1981) (Additional file 12: Figure S4a).

Orthopyroxene from zone V samples Ol9 (single grain) and Ol38, as well as zone VI samples Ol4 and Ol6, show slightly lower Mg#s than olivine (Fig. 10). Even their lower Fe content lamellae, except for one measurement, show lower Mg#s than all olivine measurements (Additional file 11: Table S7). This is corroborated by the fit through compiled olivine-orthopyroxene pairs of Springer (1974), Arai (1975), Frost (1976), Berg (1977), Pinsent and Hirst (1977), Matthes and Knauer (1981), Berg and Docka (1983) and Nozaka (2011). Data of natural olivine-orthopyroxene pairs from Cerro del Almirez (Trommsdorff et al. 1998) and the experimental study of Padrón-Navarta et al. (2010) suggest 1:1 partitioning (Additional file 12: Figure S4b).

Mg-hornblende data from zones V and VI shows  slightly lower Mg#s than olivine and similar partitioning to orthopyroxene. By contrast, the fit through compiled Mg-hornblende-olivine data pairs from Frost (1975), Frost (1976), Ashley et al. (1979), Matthes and Knauer (1981) and Springer (1974) suggests lower Mg#s for olivine, while individual studies have proposed controversial results (Additional file 12: Figure S4c). This is possibly caused by measuring intensely zoned grains. Zoning may be induced during prograde growth or partial retrograde equilibration. Additionally, Robinson et al. (1982) showed that Fe–Mg partitioning between Ca-amphibole-olivine pairs is dependent on the metamorphic grade. Accordingly, iron is progressively incorporated into Mg-hornblende from the upper amphibolite to the lower granulite facies.

Chlorite data from this study clearly shows higher Mg#s compared to olivine and coincides with the fit of Trommsdorff et al. (1998) (Fig. 10, Additional file 12; Figure 4Sd). The line through compiled olivine-chlorite pairs from Arai (1975), Frost (1975), Berg (1977), Pinsent and Hirst (1977), Matthes and Knauer (1981) and Berg and Docka (1983), and the one through experimental data of Padrón-Navarta et al. (2010) suggest even higher Mg#s for chlorite relative to equilibrium olivine. The fit provided by Matthes and Knauer (1981) contradicts all other approximations of the literature.

Tremolite Mg#s show a larger compositional range between different samples, which is similar to Mg-hornblende. The fits through our data and the compiled mineral pairs from the literature (Berg 1977; Berg & Docka 1983; Evans & Trommsdorff 1983; Frost 1975; Matthes & Knauer 1981; Nozaka 2011; Pinsent & Hirst 1977; Springer 1974) almost coincide and suggest higher Mg#s of tremolite relative to equilibrium olivine (Fig. 10). Lines provided by individual studies indicate even higher Mg#s in tremolite (Padrón-Navarta et al. 2010; Trommsdorff & Evans 1972; Trommsdorff et al. 1998). Only Springer (1974) reports lower Mg#s of tremolite with respect to our approximation (Additional file 12: Figure S4e).

Talc from zone III displays the most narrowly confined fit, closely approaching the line through compiled olivine-talc pairs of Berg (1977), Pinsent and Hirst (1977), Berg and Docka (1983), Nozaka (2011) and Trommsdorff and Evans (1972). By contrast, the approximation of Berg and Docka (1983) is nearly vertical, dissenting from any other published data (Fig. 10, Additional file 12: Figure S4f).

The overall excellent agreement between the observed Fe–Mg partitioning fits of this study and the one through selected mineral pairs of corresponding parageneses from the literature suggests that equilibrium compositions were measured. However, our approximations display a minor but systematic shift to the left in Fig. 10. This indicates that Fe partitioning relative to Mg in most silicates which are in equilibrium with olivine is stronger than previously thought. On the other hand, we argue that a shift to the right relative to our fits may be caused by using chemical analyses of retrogressed grains. For example, while olivine is stable over all prograde zones and only partially recrystallized at its rims, anthophyllite, orthopyroxene and Mg-hornblende are only stable in a narrow temperature field and hence more readily altered by retrograde fluids. Also, sheet silicates such as chlorite and talc are mechanically weaker, often finer grained, and have a higher surface-to-volume ratio than the other silicates, which makes them prone to retrograde Fe loss. Those arguments show why only analyses from samples with well-equilibrated textures and the least retrograde overprint should be used in order to establish Fe-Mg partitioning data. In particular, orthopyroxene, Ca-amphiboles and chlorite may also contain ferric iron, which would shift their Mg#s to higher values relative to olivine. However, following the discussion in Sect. 5.1.1, ferric iron content cannot be unambiguously determined for these phases.

Furthermore, prograde core to rim zoning of Mg#s in olivine also suggests that overstepping of the olivine forming reaction in zone III, as proposed by Lafay et al. (2019), was not significant and is generally not expected in serpentinites (Pattison et al. 2011).

Phase relations in serpentinites at low pressures

We derive phase relations by combining field observations and mineralogical data from this study with reaction curves from field and experimental studies from the literature (Fig. 11). According to Trommsdorff and Evans (1980), the univariant equilibria 1 and 2 have an invariant point at 300 MPa and 520 °C. This is consistent with Weiss's (1997) experimental brackets that indicate Ti-clinohumite breakdown at 300 MPa and 530 °C (Fig. 11). Divariant fields were estimated not to be broader than 10 °C (Trommsdorff & Connolly 1996; Trommsdorff & Evans 1972; Ulmer & Trommsdorff 1999). Therefore, pressure during contact metamorphism is well constrained at 300 ± 30 MPa. At the corresponding pressure, reaction 3 was placed according to the experimental brackets of Chernosky et al. (1985) at 550 °C. For a natural reactive bulk of Mg# 90 its position may be about 10 °C lower (Trommsdorff & Connolly 1996; Ulmer & Trommsdorff 1999), which is in excellent agreement with a 150 m wide zone where antigorite, olivine and talc coexist (Clément et al. 2019). Reaction 4 was placed at 650 °C according to the experimental brackets of Chernosky et al. (1985). This reaction shifts about 20 °C down temperature for a reactive bulk of Mg# 90 (Evans & Guggenheim 1988; Nozaka 2011; Trommsdorff & Connolly 1996; Ulmer & Trommsdorff 1999). Zone V paragenesis is particularly important due to the completion of reactions 5, 6 and 7. The intersection of reactions 5 and 7 is probably very close to the invariant point in MASH at 720 ± 10 °C and 275 ± 30 MPa (Jenkins & Chernosky 1986), with the difference that instead of cordierite, anthophyllite is involved in the equilibrium. Reaction 6 commences at the onset of reaction 7, and therefore the sharp transition from tremolite to Mg-hornblende occurs within the intersecting divariant fields of reactions 5 and 7. In P-T space, this divariant intersection field is likely not exceeding 10 °C (Evans & Guggenheim 1988; Trommsdorff & Connolly 1996; Ulmer & Trommsdorff 1999). The pressure of contact metamorphism in the meta-serpentinites is therefore constrained to ~ 300 MPa (orange rectangle in Fig. 11) by the invariant equilibria 12 at the outer and 57 at the inner part of the aureole.

Fig. 11
figure 11

Inferred phase relations are represented in a P–T diagram for lherzolitic serpentinites. Zones are indicated per reaction. Reaction 1 is from Evans and Trommsdorff (1970), reaction 2 from Trommsdorff and Evans (1980) and Weiss (1997), reaction 3 from Bowen and Tuttle (1949), Evans (1976) and Evans & Frost (1976), reactions 4 and 5 from Chernosky et al. (1985), Evans and Guggenheim (1988) and Nozaka (2011), reaction 6 is from this study and reaction 7 from Jenkins and Chernosky (1986). The orange bar indicates pressure estimates for contact aureole formation derived in the discussion

Comparison with calculated phase diagram sections

Following the above discussion, a phase diagram section (Fig. 12) was calculated over a temperature range from 450 to 850 °C and pressures between 150 and 400 MPa. TiO2 was not taken into account due to the lack of solution models for Ti-clinohumite. We have also excluded ferric iron from our calculations due to the lack of independent thermodynamic data for the key phases considered here. Overall, the sequence of calculated assemblages is consistent with the order of olivine-tremolite-chlorite, olivine-talc-chlorite, olivine-antholphyllite-chlorite, olivine-orthopyroxene-chlorite and olivine-orthopyroxene-spinel. The position of the intersection between anthophyllite-out and chlorite-out is also correctly predicted when using the 2002 revised Holland and Powell (1998) data base (Fig. 12 and Additional file 14: Figure S5). The discrepancy between the observed and the calculated parageneses is greater when using the latest Holland et al. (2018) database including corresponding solution models (Additional file 15: Figure S6). For example, orthopyroxene is predicted between 450 and 500 °C and the intersection of anthophyllite-out and chlorite-out is not reproduced. Additionally, two distinct orthopyroxenes are predicted above 750 °C. Following those arguments, the remainder of the discussion refers to results obtained with the 2002 data base. A major difference between the computed phase relations and those observed in natural rocks is the predicted co-occurrence of tremolite and diopside below 500 °C, which was not observed in this study, or by Trommsdorff and Evans (1972). After the classification of Leake et al. (1997), tremolite is predicted throughout the calculated P–T section. This is in agreement with the tremolite presence in zones III and IV and the compositions reported in this study as well as those in Trommsdorff and Evans (1972). Tremolite is also the sole Ca-amphibole phase predicted above 700 °C, whereas in natural rocks, Mg-hornblende is additionally present. Instead of Mg-hornblende, plagioclase is predicted in the computed phase diagram section above chlorite breakdown, which is not supported by our observations or other studies in similar geological settings (Frost 1975; Matthes & Knauer 1981; Pinsent & Hirst 1977; Springer 1974; Tracy & Frost 1991). Therefore, the sequence of natural parageneses can only be reproduced between 500 and 700 °C. Plagioclase has only been reported from two contact aureoles in contact zones between meta-serpentinites and mafic hornfels (Docka et al. 1986; Frost 1976). It is also absent in meta-serpentinite lenses from the Lepontine Alps that formed between 0.5–0.8 GPa and 700–800 °C (Stucki 2001; Trommsdorff 1974). Frost (1976) suggested that at pressures below 1 GPa and temperatures above 700 °C, the stable parageneses up-temperature are meta-(Mg-hornblende)-spinel peridotite, (Mg-hornblende)-plagioclase peridotite and then plagioclase peridotite. The increased stability of Mg-hornblende relative to tremolite and plagioclase is due to the incorporation of Al, Na, Ti and K (Robinson et al. 1982). Moreover, these elements have been shown to increase with temperature and pressure, stabilizing Ca-amphiboles to temperatures above 1000 °C and pressures up to 2.8 GPa (Mandler & Grove 2016; Niida & Green 1999).

Fig. 12
figure 12

P–T phase diagram section calculated with Perple_X. Coloured numbers and isopleths indicate Al pfu in chlorite, Ca-amphibole and Cr#s of spinel respectively. Calculated mineral parageneses are presented as mineral abbreviations (see text) in large divariant fields and as numbers in narrower fields. 1: Ol, Ca-amph, Chl, Cr-mt and Atg, 2: Ol, Ca-amph, Chl, Cr-mt, Atg and Tc 3: Ol, Tc, Anth, Ca-amph, Chl and Cr-mt 4: Ol, Spin, Anth, Ca-amph and Chl 5: Ol, Spin, Anth, Ca-amph and, (An) 6: Opx, Ol, Spin, Ca-amph and Chl 7: Opx, Ol, Spin, Ca-amph, Cpx and (An). (An) Indicates anorthite presence if not explicitly excluded from calculations. The orange bar shows pressure estimates for contact aureole formation derived from the discussion of Fig. 11

In contrast to natural mineral pairs, the order preference for Fe relative to Mg extracted from phase diagram sections is: olivine > orthopyroxene > anthophyllite > chlorite > tremolite > talc (Fig. 13). The relative position of olivine and anthophyllite is inversed, but the remaining phases show the same order. In absolute numbers, however, olivine shows a higher preference for Fe relative to Mg and thus lower Mg#s than the other phases, shifting all fits to the right in Fig. 13 (see also Additional file 13: Table S8).

Fig. 13
figure 13

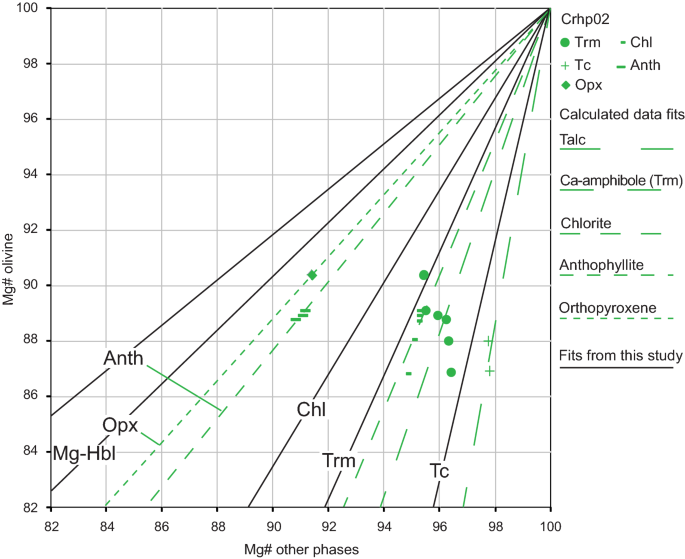

Mg#s of olivine vs. paragenetic phases from phase diagram section computation (using the 2002 revised data base of Holland and Powell (1998) augmented with Cr (Klemme et al. 2009) and corresponding solution models) are represented by the dashed fits and compared with the fits from this study. Partitioning between olivine and other phases was calculated for temperatures listed in Additional file 13: Table S8: Opx (750 and 800 °C), Anth (650, 675, 700 °C), Chl (500, 550, 600, 650, 675 and 700 °C), Ca-amphibole (500, 550, 600, 650, 675, 700, 750 and 800 °C) and Tc (550 and 600 °C)

The calculated Al compositions for chlorite show only a minor change from 500 to 700 °C (1.99–2.1 Al pfu), remaining close to clinochlore composition (Fig. 8). In contrast, natural chlorites accommodate between 1.3 and 2.3 Al pfu. Thus, Al compositions in models are overestimated at low temperatures and underestimated close to chlorite breakdown. Both, calculated and natural spinel show decreasing Cr#s from core to rim. However, absolute numbers cannot be directly compared due to ferric iron presence in natural spinels.

Temperature profile through the Bergell aureole

The isograd temperatures and their distances from the contact  derived from section 5.4 [Trm-in (1500 m, 520 °C), Tc-in (750 m, 540 °C), Anth-in (200 m, 630 °C) and Opx/Hbl-in + Chl-out (70 m, 720 °C)] were fit to the following equation:

$${\text{T}} = {\text{a}} \cdot {\text{e}}^{{({\text{b}} \cdot {\text{x}})}} + {\text{c}} \cdot {\text{e}}^{{({\text{d}} \cdot {\text{x}})}}$$
(11)

With a = 249.3, b = − 0.00559, c = 553, d = − 4.113∙10–5 and x = distance from the contact in meters. By using this parametrization, the peak metamorphic temperature of each sample from zones IVI can be estimated. The contact temperature between the Bergell intrusion and meta-serpentinites is then obtained by setting x = 0, returning a contact temperature of 802.3 °C. Further evidence for contact temperatures close to 800 °C is provided by the occurrence of orthopyroxene in meta-pelites at the contact in Val Predarossa (Wenk et al. 1974). Contact temperatures above 700 °C are also corroborated by the presence of wollastonite in silicic marbles (Bucher-Nurminen 1977), sillimanite in pelitic schists (Wenk et al. 1974), the anorthite content of plagioclase in mafic rocks (Riklin 1978), and brucite pseudomorphs after periclase in metamorphic dolomites (Trommsdorff & Schwander 1969). In any case, our new temperature estimate is 230 °C higher than the one of 570 °C from Trommsdorff and Connolly (1996), and all estimates from the other lithologies would also predict orthopyroxene stability in meta-serpentinites under H2O saturated conditions. According to Trommsdorff and Connolly (1996), orthopyroxene would also become stable if the CO2 activity in the fluid was high enough to destabilize hydrous phases such as anthophyllite. However, if this were the case, tremolite should have broken down to either plagioclase or clinopyroxene, which were both not observed in contact rocks. Therefore, the presence of Mg-hornblende in contact samples indicates that the fluid was H2O-rich and released by the suggested breakdown reactions.

Ferry (1995) proposed a simple heat conduction model based on similar equations provided by Furlong et al. (1991). For an ambient temperature of 350 °C in the country rock, this model predicts a contact temperature of 680 °C, which is 120 °C lower than our estimate (Fig. 14). Even though this estimate is closer to the temperature required for orthopyroxene formation (Fig. 11), it would still be in the anthophyllite zone (IV). It also predicts that the talc-in reaction occurs 1200 m from the contact, which is not supported by field evidence (Table 1, Fig. 2). In any case, the predicted temperature for zone V from this study is higher than both proposed contact temperatures from Ferry (1995) and Trommsdorff and Connolly (1996). Our observations suggest that post-peak metamorphic fluid infiltration led to partial or full replacement of orthopyroxene by anthophyllite or talc. Hence, the more intense retrogression, particularly in zones V and VI, may have led previous studies to conclude that locally CO2-enriched fluids produced orthopyroxene and anthophyllite-orthopyroxene bearing assemblages at lower temperatures.

Fig. 14
figure 14

MATLAB based temperature profile fit of the north-eastern transect through data points derived in Fig. 11. The two other temperature profiles for the Bergell contact aureole are from Ferry (1995) and Trommsdorff and Connolly (1996)

Since the adjacent hornblende-gabbro and tonalite show well crystallized equigranular textures, the intrusion was likely liquid at the time of emplacement. Reusser (1987) suggested that magma of ~ 900 °C intruded the surrounding country rocks, which had an ambient temperature of about 350 °C. Because of the high contact temperature of 800 °C and the shape of the temperature profile inferred here, alternative models to simple heat conduction must be considered. Jaeger (1961) argued that intrusion geometry is the most important factor that controls temperatures around magmatic intrusions (see also Furlong et al. 1991 and references therein). This argument has been used by Riklin (1978) to explain the varying width of the contact aureole produced by the Bergell intrusion. More recently, Annen (2017) proposed that the relative thermal diffusivities between magma and country rock may have a significant impact on aureole widths. Also, multistage magma pulses may enlarge thermal aureoles. This model was also used by Floess and Baumgartner (2015) to explain the higher contact temperatures derived from meta-sediments at the Adamello batholith.

Implications for other geodynamic settings

Subduction zones

We have shown that chlorite composition in the computed phase diagram section is close to the clinochlore endmember (Fig. 8). However, natural chlorites from the contact aureole and subducted high-pressure serpentinites, e.g., Zermatt, Cerro del Almirez and Cima di Gagnone only contain 1.4–1.5 Al pfu and 1.5–1.6 Al pfu respectively, at equilibration temperatures between 550 and 750 °C (Kempf et al. 2020; Padrón-Navarta et al. 2010, 2011; Pfiffner 1998; Scambelluri et al. 2014; Trommsdorff et al., 1998). Chlorite only assumes higher Al contents than clinochlore at its breakdown at low and high pressures (Fumagalli & Poli 2005; Fumagalli et al. 2014; Jenkins & Chernosky 1986). By assuming a fixed bulk composition, the Al ratio between calculated clinochlore and natural pennine is 2.0/1.6 = 1.25 for Cima di Gagnone and the one for Cerro del Almirez is 2.0/1.5 = 1.33. Therefore, 25–33 mol% more chlorite must be present in natural rocks where chlorite is the only Al-bearing phase. Thus, when using standard thermodynamic data bases and corresponding solution models, the molar chlorite content in subducted serpentinites is underestimated except close to its breakdown. Furthermore, chlorite is stable to higher pressures and temperatures than antigorite (Fumagalli & Poli 2005; Fumagalli et al. 2014; Goto & Tatsumi 1990; Padrón-Navarta et al. 2013; Pawley 2003), so calculated phase diagram sections overestimate fluid release by antigorite breakdown and underestimate fluid production by chlorite breakdown.

Our field study showed that the transition from tremolite to Mg-hornblende in meta-serpentinites occurs simultaneously with the chlorite breakdown reaction, forming spinel. Also, Stucki (2001) has shown that the tremolite to Mg-hornblende transition occurs between 750 and 800 °C at pressures typical for barrovian metamorphism (0.5–0.8 GPa). Hence, up to about 1 GPa, the slople of the tremolite to Mg-hornblende transition follows the chlorite breakdown curve which is in agreement with Frost (1976). According to field and experimental studies, this transition did not occur in prograde Ca-amphibole from Cerro del Almirez, formed between 650–700 °C and 1.7–1.9 GPa where chlorite is the stable Al phase (Padrón-Navarta et al. 2010; Trommsdorff et al. 1998). However, at Cima di Gagnone, Mg-hornblende is in equilibrium with garnet in metamorphosed serpentinites that equilibrated between 750 and 800 °C at ~ 3 GPa (Evans & Trommsdorff 1978; Scambelluri et al. 2014). Jenkins (1983) determined the upper stability limit of tremolite coexisting with olivine and showed that the reaction has a backbend and is bracketed at 650 °C and 2 GPa. Fumagalli and Poli (2005) reported that Al-rich tremolite is stable at 700 °C up to 2.4 GPa in a hydrous lherzolite composition, but no Ca-amphibole at 750 °C and 3 GPa. This may suggest that the tschermakite component in Ca-amphibole increases with pressure, for which we tentatively propose a chlorite + Mg-hornblende (Al-tremolite) field in CMASH above 650 to 750 °C and 2.0 down to 1.0 GPa, respectively (Fig. 15). The stability limit of pargasitic amphibole containing Na as a major constituent was found to be just above 3 GPa at 925 °C (Niida and Green 1999). Ca-amphibole presence also influences the transition from Mg-hornblende-spinel and chlorite peridotite to garnet peridotite. According to the experiments of Mysen and Boettcher (1975), the Mg-hornblende-spinel peridotite reaction is placed at 1.75 GPa and 830 °C with a gentle positive slope. Between 1.8 and 2.8 GPa, the reaction of chlorite + Mg-hornblende ± orthopyroxene—> garnet + clinopyroxene + pargasite ± olivine + fluid marks the transition between the hornblende-chlorite peridotite and the pargasite-garnet peridotite fields. At pressures below 1.8 GPa and down to 1.0 GPa, Mg-hornblende-chlorite peridotite reacts to Mg-hornblende-spinel peridotite along the chlorite breakdown reaction. Plagioclase formation is likely to occur below 925 °C at 0.5 GPa (Niida & Green 1999), but above 850 °C (Jenkins 1983).

Subduction initiation and infancy

Figure 15 was constructed based on prograde dehydration reactions derived from natural samples and bracketed experiments for upper and lower crustal environments, including the lithospheric mantle. The established phase relations in hydrous ultramafic rocks at low-pressure conditions are not only relevant for contact metamorphism. Similar high geothermal gradients can occur during the formation of oceanic core complexes at slow-spreading ridges such as the Atlantis massif (Schroeder & John 2004), at transform faults (Prigent et al. 2020) or during subduction initiation of young oceanic lithosphere (Agard et al. 2020).

Fig. 15
figure 15

Petrogenetic grid from 400 to 900 °C and 0.0–5.0 GPa using Figs. 11 and 12 for low pressure phase relations (0.1–0.4 GPa), data from Stucki (2001), Frost (1976) and Niida and Green (1999) for medium pressures (0.4–1.0 GPa). Mysen and Boettcher (1975), Jenkins (1983), Niida and Green (1999) and Fumagalli and Poli (2005) for high pressures (1.0–5.0 GPa). The red bar shows the intersection of reactions 57, and plagioclase stability is indicated by the dashed line according to Jenkins (1983). *Note that either Mg-hornblende or chlorite may be the limiting phases for garnet (Grt), clinopyroxene and pargasite (Prg) production depending on the chosen Ca and Al bulk, including Na in natural rocks

In oceanic transform faults, the Mg-hornblende-spinel-olivine-orthopyroxene paragenesis has been reported to occur at 20–25 km depth (see Fig. 8, Prigent et al. 2020). Serpentinization of deep mantle fractures and faults at intra-oceanic transitions has been proposed to create weak zones such that spontaneous subduction initiation may occur along them (Dymkova & Gerya 2013; Stern & Gerya 2018). At passive continental margins, variably hydrated mantle faults, shear zones, and mylonites (Vissers et al. 1995) show the same parageneses as the deep oceanic transform faults (Prigent et al. 2020) or oceanic core complexes (Schroeder & John 2004). Hydration reactions reduce the rheological strength of these faults such that negatively buoyant oceanic lithosphere may detach along them and initiate spontaneous subduction (Hilairet et al. 2007; Hirauchi et al. 2016; Karig 1982; Van der Lee et al. 2008). According to Regenauer-Lieb et al. (2001), the detachment process could be enhanced by topographic loading of sediments.

Regarding spontaneous subduction initiation, we propose that by sinking of the negatively buoyant oceanic lithosphere into deeper levels, hydrated mantle faults will experience prograde metamorphism. Dehydration reactions along the sinking weak zones would decrease the rock volume in the faults and increase porosity, which would enhance the detachment process. At the same time, released fluids would migrate to shallower levels along the weak zones whereby the faults could be further hydrated at shallower levels, initiating a self-weakening process. The dehydration reactions would also act if subduction initiation was induced by an external heat source such as upwelling mantle at passive margins (Gerya et al. 2015; Ueda et al. 2008; Whattam & Stern 2015). The deep hydration of transform- and passive continental/arc margin faults, shear zones and mylonitic ultramafic rocks may also provide significant amounts of the fluid volume to kick start flux melting in the early stages of subduction, which is believed to produce boninitic melts (Reagan et al. 2010; Shervais et al. 2019, 2021; Wang et al. 2020). During subduction infancy, the formation of Mg-hornblende in basal peridotites marks the beginning of mantle wedge formation and "slabitization" (Agard et al. 2020; Prigent et al. 2018). The latter authors have remarked that the exact temperature conditions of Mg-hornblende formation, i.e., fluid infiltration, cannot be assessed due to the lack of suitable thermometers in Ca-amphibole bearing peridotites. For all the geodynamic settings discussed here, we have shown, however, that the minimum temperatures for Mg-hornblende formation can be constrained between ~ 720 and 750 °C at pressures of ~ 0.3–0.8 GPa based on the detailed investigation of the Malenco contact aureole.

Conclusions

The Bergell contact aureole is an excellent natural laboratory to investigate dehydration reactions in serpentinized peridotites. At the north-eastern edge of the Bergell tonalite intrusion, all but Ca-amphibole dehydration reactions in natural serpentinites can be observed. In particular, within a distance of 70 m from the Bergell tonalite intrusion the three breakdown reactions forming orthopyroxene, Mg-hornblende and spinel not only ran to completion but also occurred simultaneously within a narrow temperature range of 720 ± 10 °C and a pressure of 300 ± 30 MPa. Based on the sequence of prograde reactions, a detailed temperature profile towards the Bergell intrusion was established, showing a strong increase in temperature from 520 to 800 °C within 1500 m of the contact that is inconsistent with simple heat conduction. The comparison of the established phase relations with computed phase stabilities and compositions showed that first order features are in good agreement. However, some key features, such as the appearance of Mg-hornblende and the absence of plagioclase cannot be reproduced in the calculated phase diagram sections. There are also significant differences in phase compositions, such as the Al content of chlorite and Ca-amphibole and the Mg# among the phases, indicating that quantification of fluid liberation during prograde metamorphism of serpentinites should not be based on phase diagram section computation alone.

Phase relations regarding Mg-hornblende and chlorite formation at low and high pressures were shown to be critical in a wide variety of geological settings. For example, deep serpentinization at oceanic transform- or detachment faults and de-serpentinization reactions during subduction initiation and subduction infancy all require data about low-pressure dehydration reactions in serpentinites like that obtained in this study.

Availability of data and materials

All samples, including thin and thick sections are stored at the Institute of Geological Sciences at the University of Bern, Bern, Switzerland. All data analysed during this study are included in the article and presented in Additional files 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15: Figures S1–6, Tables S1–8 and File S1.
